TMI Products VD35A Manuale utente

Issued on : 20. 03. 2015

ψ29. 50 mm

H 4. 57 mm

Specification - 1

Specification - 2

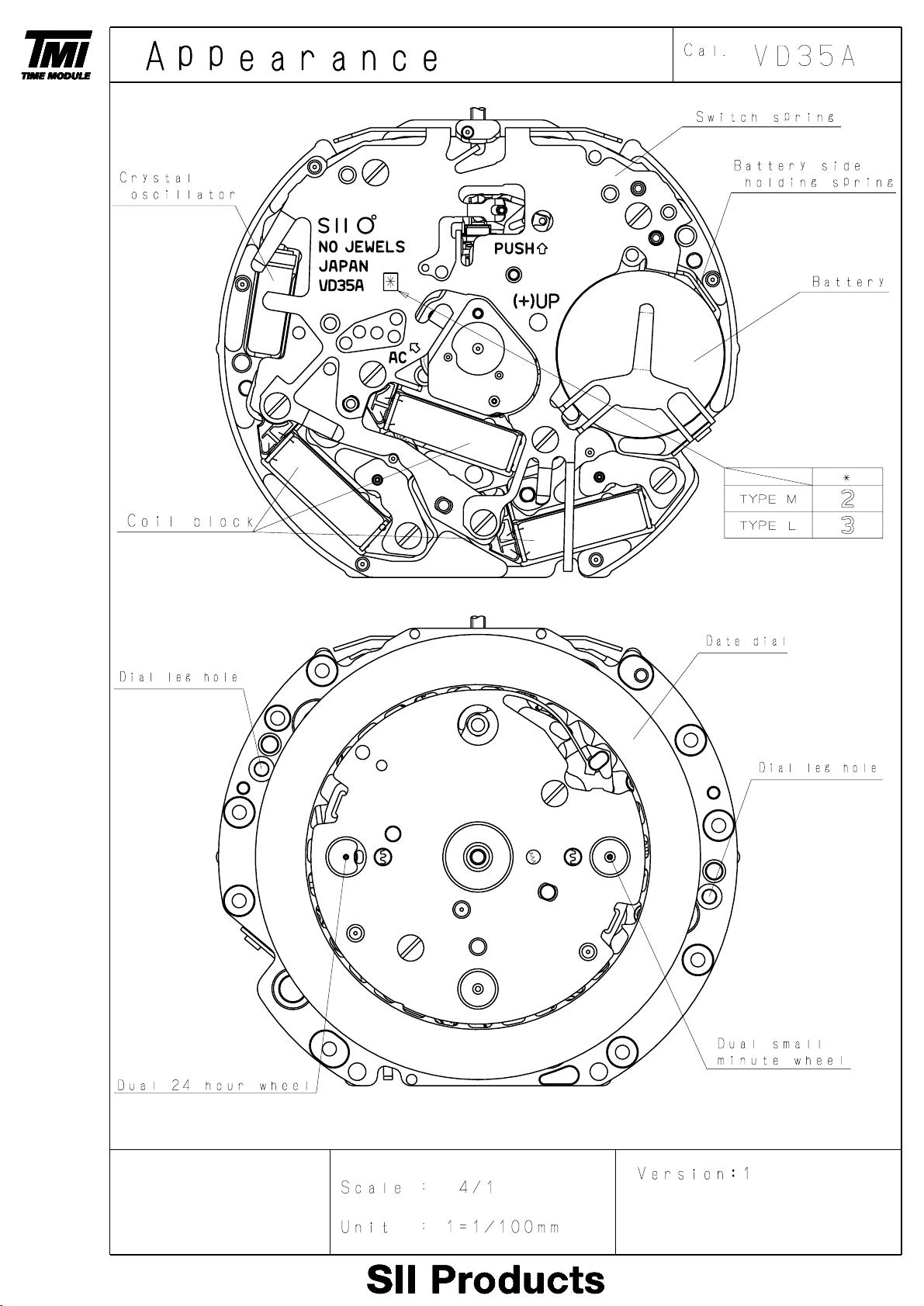

Appearance

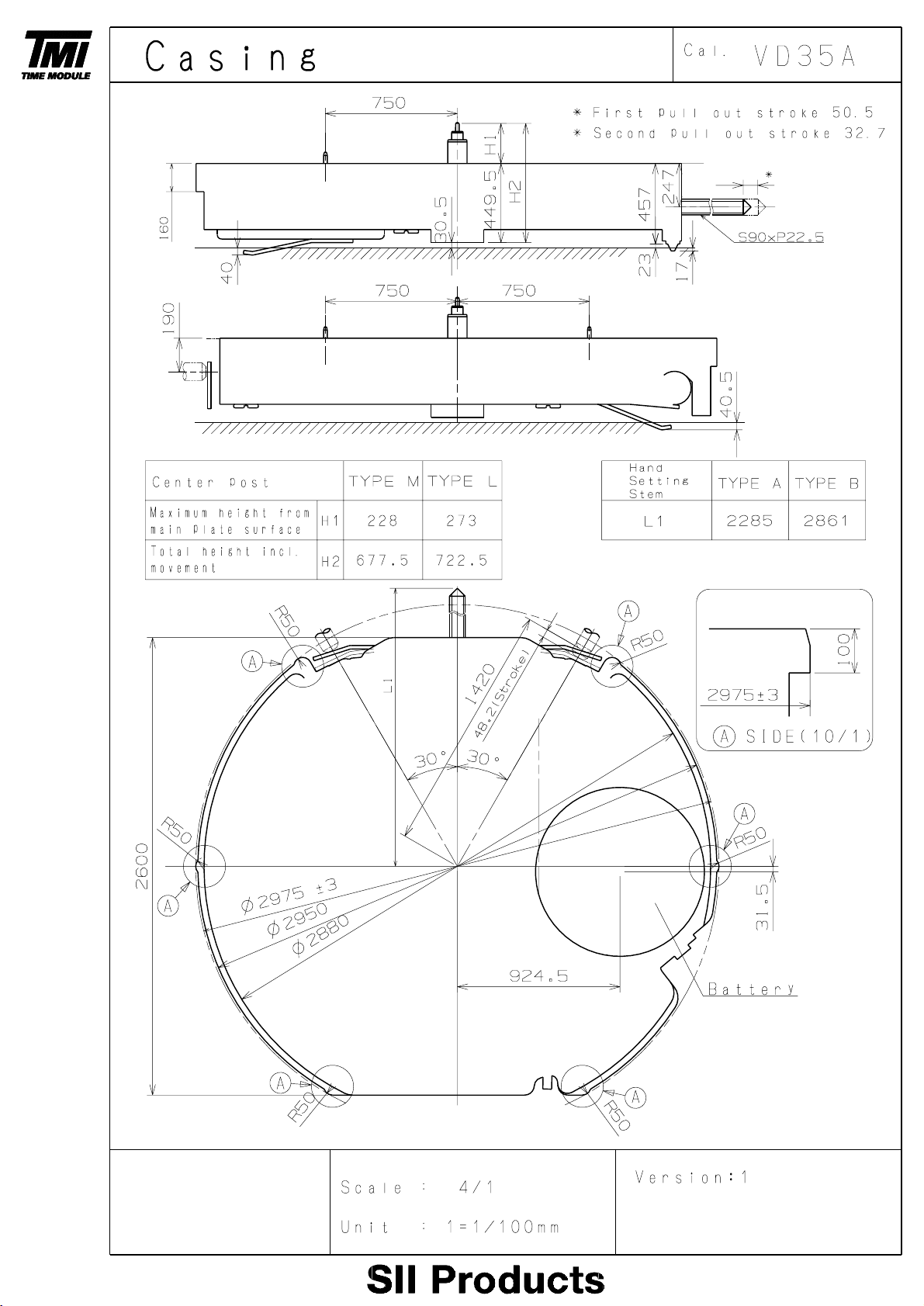

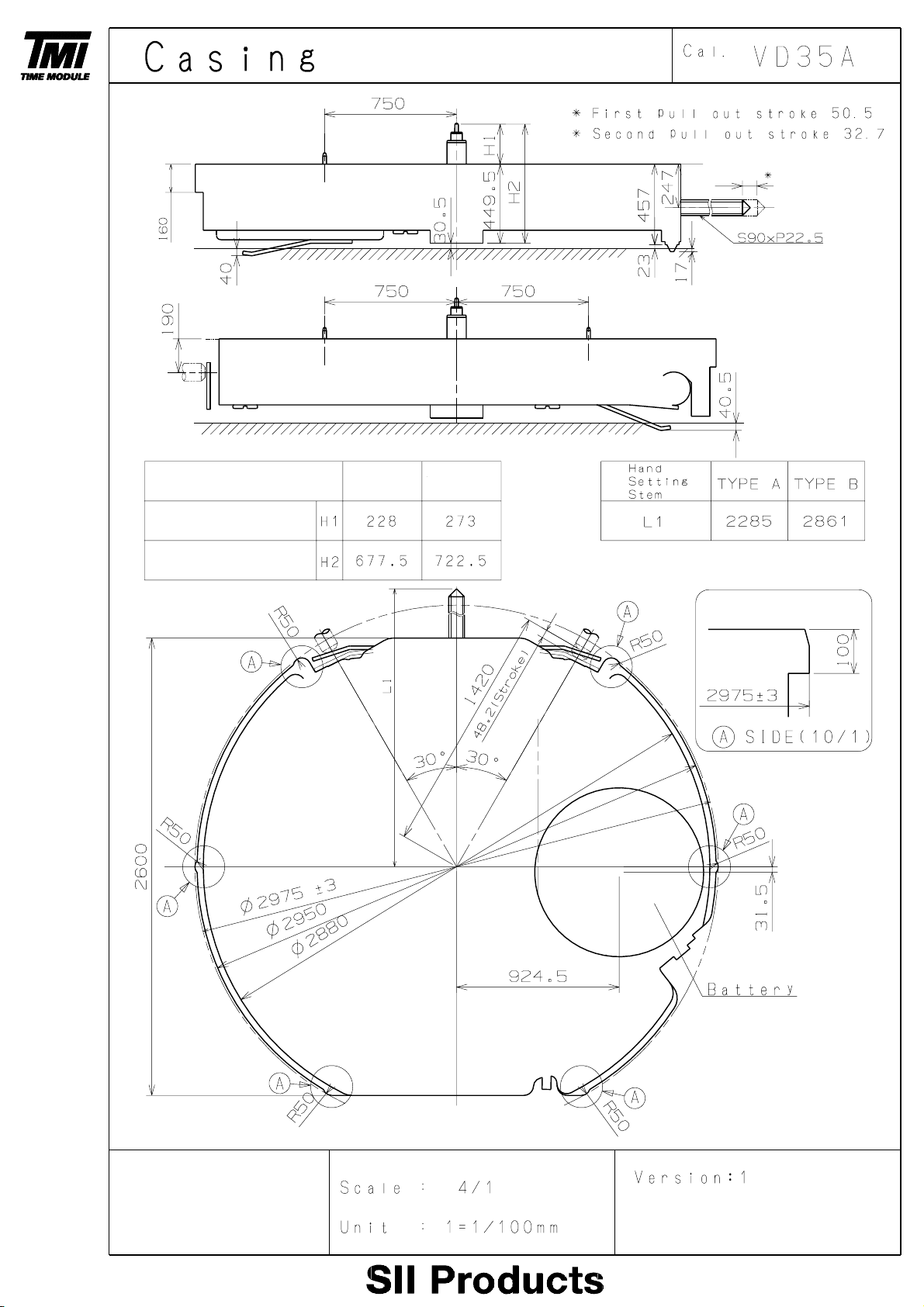

Casing

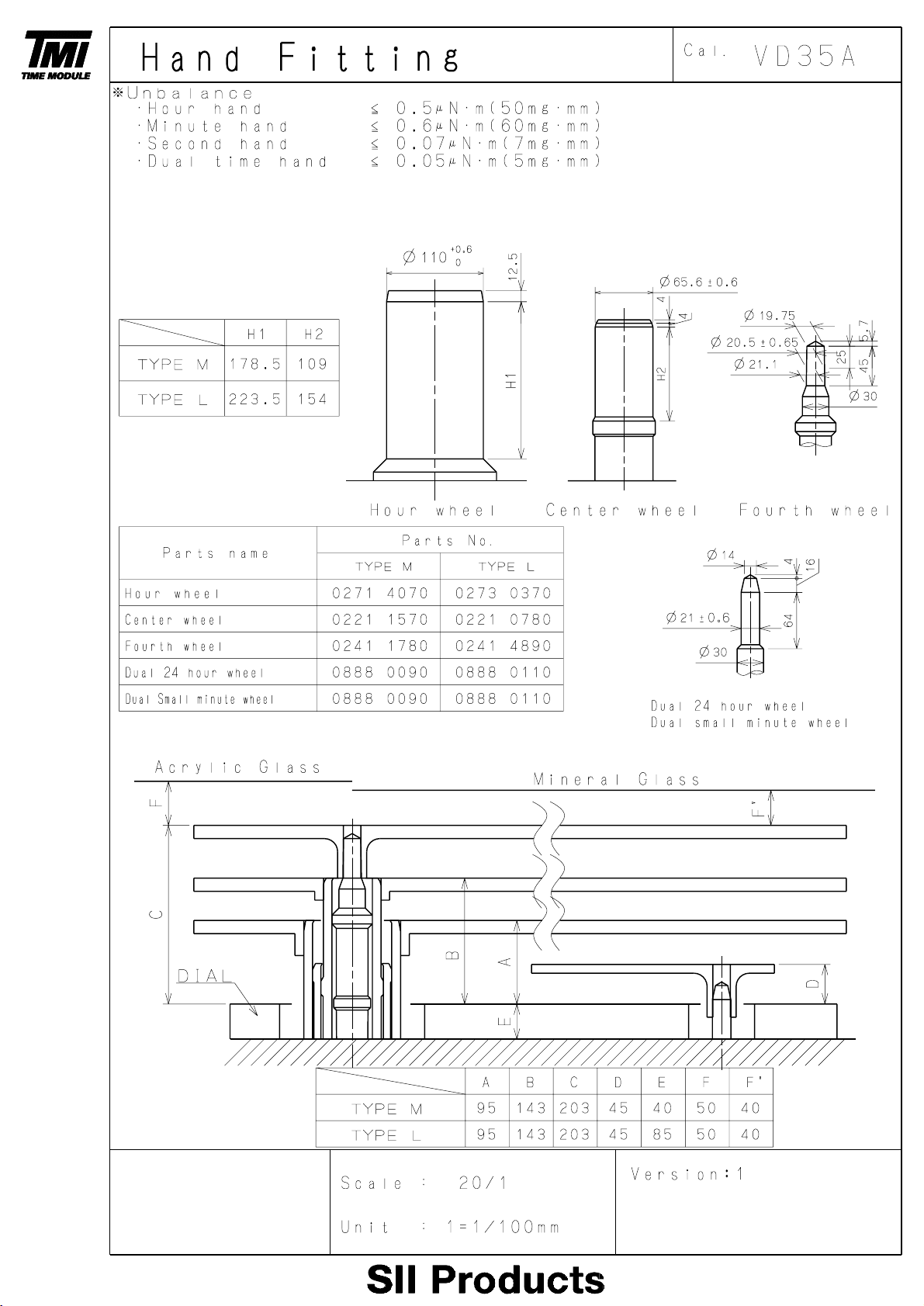

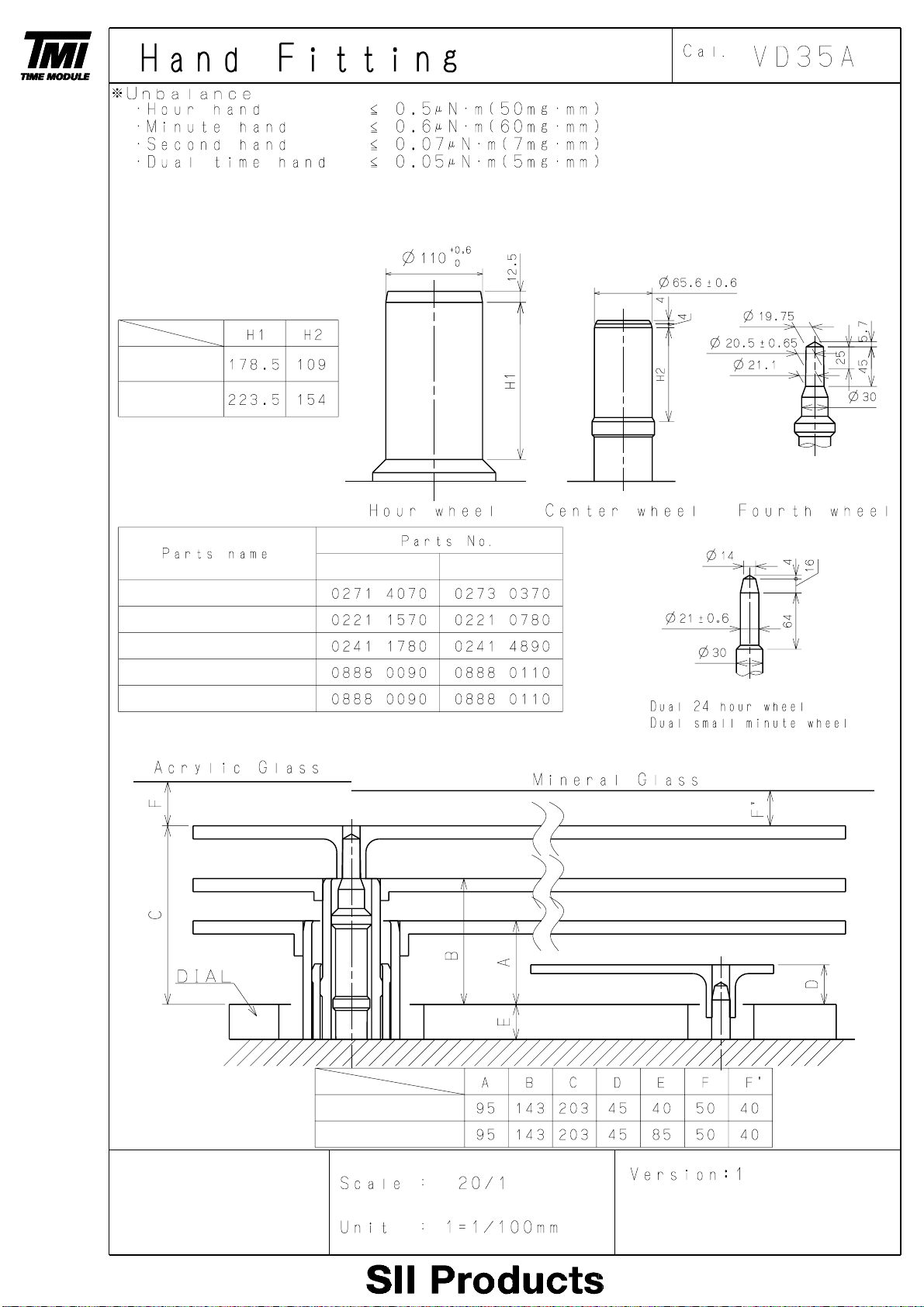

Hand Fitting

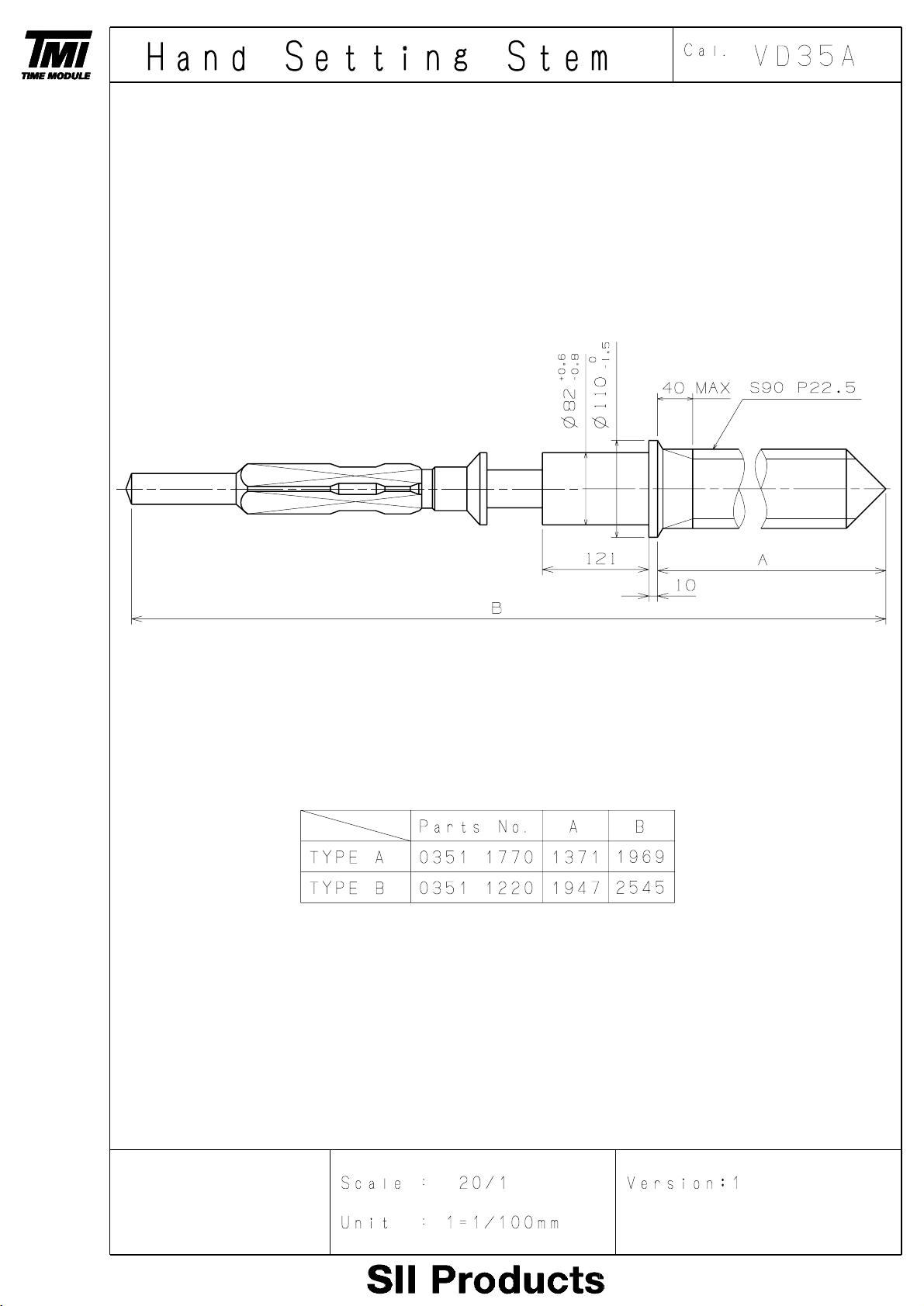

Hand Setting Stem

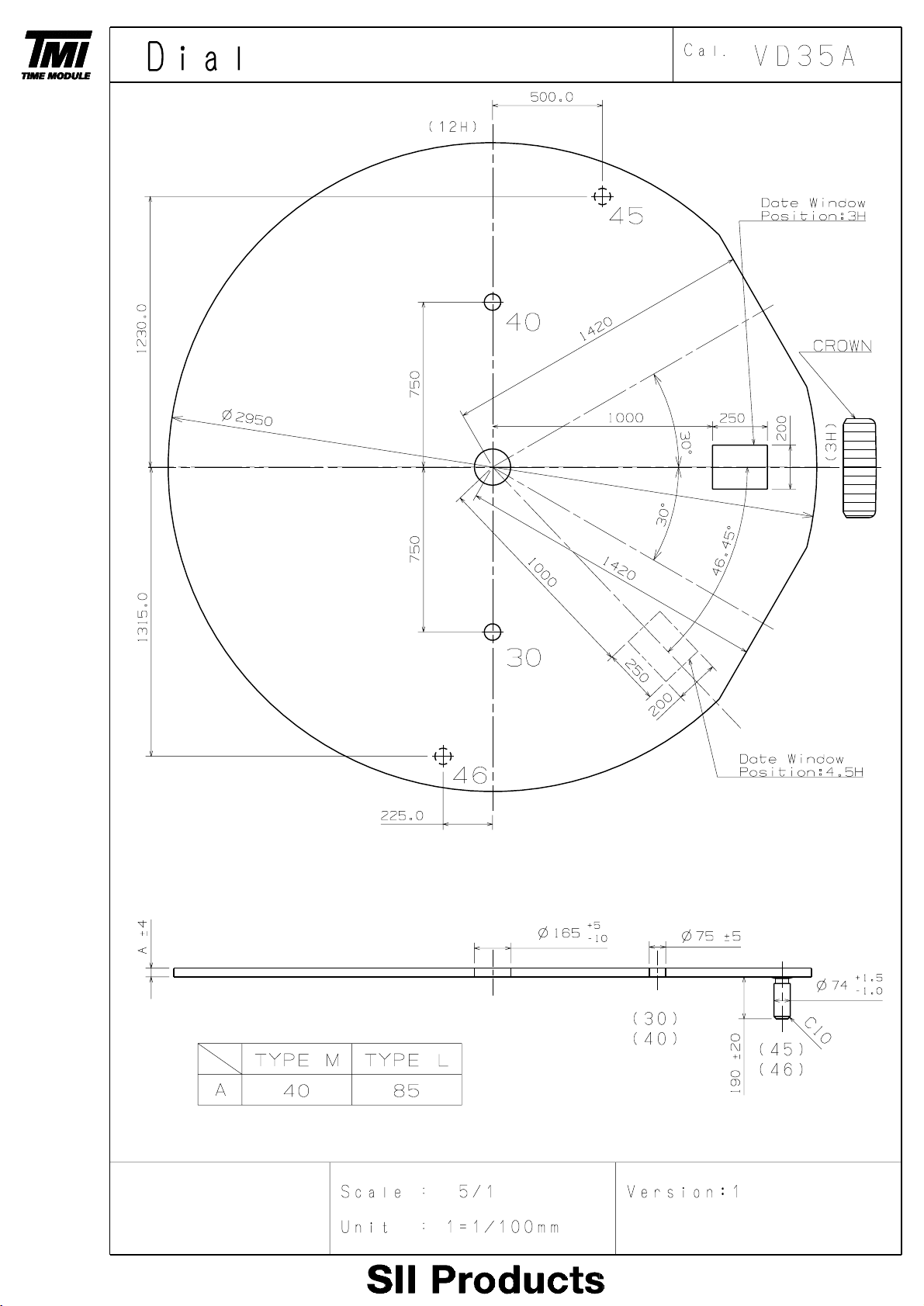

Dial

Assembly Plan - 1

Assembly Plan - 2

Hands

SII Products

Version 1

Version No.Item

Version 1

Cal. VD35A

Version 1

MOVEMENT SPECIFICATION - 1

1. MOVEMENT DIMENSIONS

Outside diameter ψ29.50mm (12H~6H) x 26.00mm (3H~9H)

Casing diameter ψ28.80mm (12H~6H)

Total height 4.57 mm

Dimensions of small hands away from center 7.50 mm

2. TIME STANDARD

Type of quartz oscillator Tuning fork

Frequency of quartz oscillator 32,768 Hz

Accuracy Monthly rate: Less than 20 seconds per month at

normal temperature range

Regulation device Nil

Regulation hands unbalance Hour hand : Less than 0.50 µN·m ( 50mg·mm )

Minute hand : Less than 0.60 µN·m ( 60mg·mm )

Second hand : Less than 0.07 µN·m ( 7mg·mm )

Dual time hand : Less than 0.05 µN·m ( 5mg.mm )

Additional function Dual time hour (24 hours)

Dual time minute (60 minutes)

3. BATTERY

Type Silver oxide battery

Size ψ9.5 x t 2.0 ( mm )

Battery life Approx. 2 years

Recommended battery SR920SW ( SEIZAIKEN )

4. STEPPING MOTOR

Number of units 3 pieces

Type Two pole stepping motor

Step 180°every second

5. JEWEL

0 jewel

6. ANTIMAGNETISM

≧1600 A / m ( Will not affected by general household appliance )

( direct current magnetic field )

7. SHOCK RESISTANCE

On equal level with general quartz movement

8. OPERATING TEMPERATURE RANGE

From - 5 ℃to + 50 ℃

9. TEST OF ACCURACY

Equipment to be used SEIKO Quartz Tester QT - 99

Greiner Quartz Timer - C

Witschi Q-Tester 4000

Duration of measurement 10 seconds

Microphone to be used Electromagnetic detection type

10. ATTACHED PARTS

* All specifications are subject to change without notice.

SII Products Version: 1

Three Hands with 2 Eyes / Date (Regulator Dual Time of 24H & 60M)

CAL.VD35A 12 3 / 4 Ligne Quartz Movement

3013 - 14G0

0110 - 3400

Parts Name

Hand setting stem

Sticker

Silver oxide battery

Parts Code

0351-1770 (Normal) / 0351-1220 (Long)

Movement Specification - 2

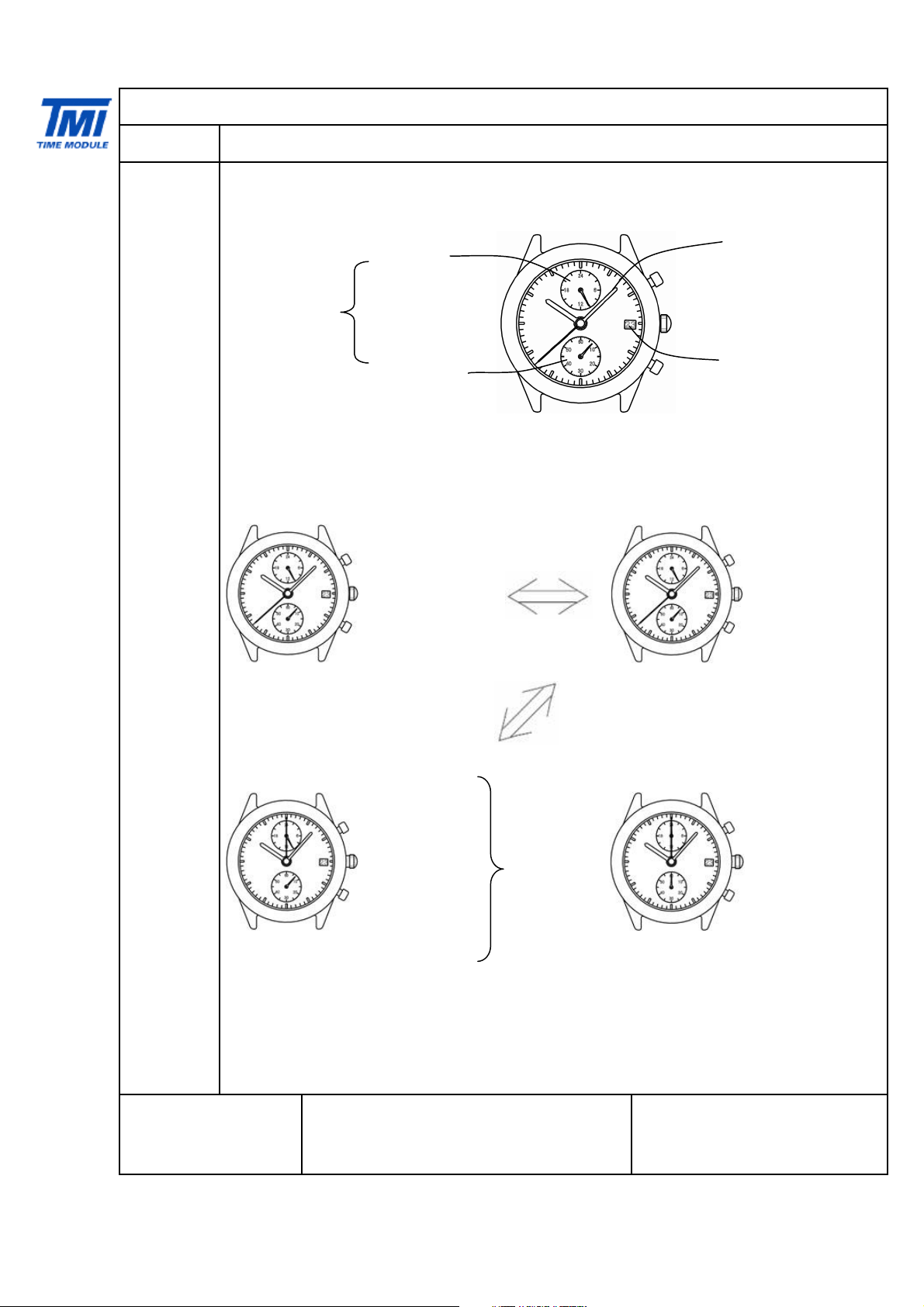

OPERATION

Version 1

SII Products

CAL. VD35A

3 step motors ( 3 hands with calendar, dual time of 24 hour )

Date

24H hand

3 hands

First click position

Minute hand

Dual time

Free

Dual time correction

-1 hour / PUSH

Dual time correction

+1 hour / PUSH

Dual time correction

-1 hour / PUSH

Dual time correction

+1 hour / PUSH

Adjusting calendar

(Clockwise)

Normal position

Second click position

Dual time zero position reset mode

( AC finished = Reset relieved )

Dual time correction

-1 minute / PUSH

( Keep pushing :

hand moving fast )

Dual time correction

+1 minute / PUSH

( Keep pushing :

hand moving fast )

Time setting

Reset switch

Second setting device

Dual time (24H)

correction

+1 step / PUSH

( Keep pushing :

hand moving fast )

Dual time (minute)

correction

+1 step / PUSH

( Keep pushing :

hand moving fast )

*Hands demonstration while AC reset :

Dual time of 24 hour hand : 1 cycle

Dual time of minute hand :

Counter clockwise 1/2 cycle,

Clockwise 1/2 cycle.

Time setting

Reset switch

Second setting device

*After the Dual time hand reset to the [0:00]

position, push the crown back to normal position.

AC functions

(Keep buttons

"A" & "B"

pressed at the

same time for

2 seconds,

and then release

the buttons)

Center post 中心柱位

Maximum height from main plate

surface 與機芯平面之最大高度

Total height incl. movement

機芯總高度

Type M

一般針高

Type L

高針

Hour wheel 時針輪

Center wheel 分針輪

Fourth wheel 秒針輪

Dual small minute wheel 兩地時間小分針輪

Type M 一般針高

Type L 高針

Type M 一般針高

Type L 高針

Dual 24 hour wheel 兩地時間24小時針輪
