Toa HY-PF1B Manuale utente
HX-5 Series
HY-PF1B
SPEAKER RIGGING FRAME
The HY-PF1B is used exclusively to suspend the HX-5 speaker system from the ceiling. The FB-120 series Sub-
woofer can be suspended using this frame and the frame's supplied mounting brackets. This bracket is designed
for indoor use.
Order no: HY-PF1B EU
Specifications
Dimensions (W x H x D) 550 x 50 x 512 mm
Dimensions (ø x D) x 512 mm
Finish Steel plate, semi-gloss, paint, black
We supply sound, not equipment.
www.toa.eu.
©TOA Electronics Europe GmbH | Data subject to change without notice.
EN, 2020/07/26
HX-5 Series
HY-PF1B
SPEAKER RIGGING FRAME

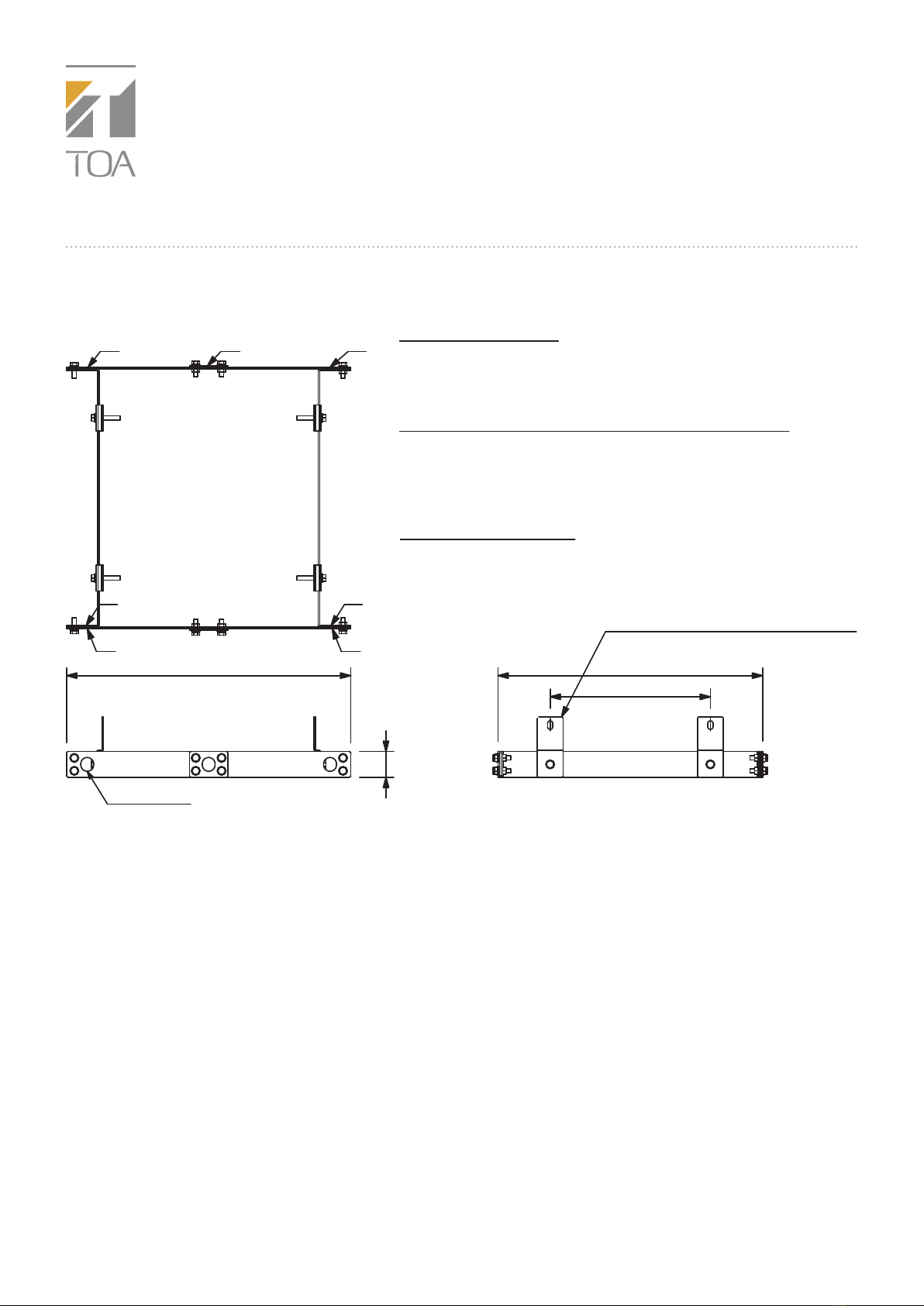

Appearance
550
50
512
310
Hanging the HX-5B
Holes A are used for hanging between the HY-PF1B
and the HX-5B, and also between the HY-PF1B and
the ceiling (3-point hanging).
Hanging the HX-5B with the FB-120B mounted
Holes A are used for hanging between the HY-PF1B
and the HX-5B (3-point hanging), and Holes B for
hanging between the HY-PF1B and the ceiling
(4-point hanging).
Hanging the FB-120B
Holes B are used for hanging between the HY-PF1B
and the ceiling (4-point hanging).
3-27
25
A
B
B A
A
B
B
Subwoofer mounting bracket
(accessory)
We supply sound, not equipment.
www.toa.eu.
©TOA Electronics Europe GmbH | Data subject to change without notice.
EN, 2020/07/26
