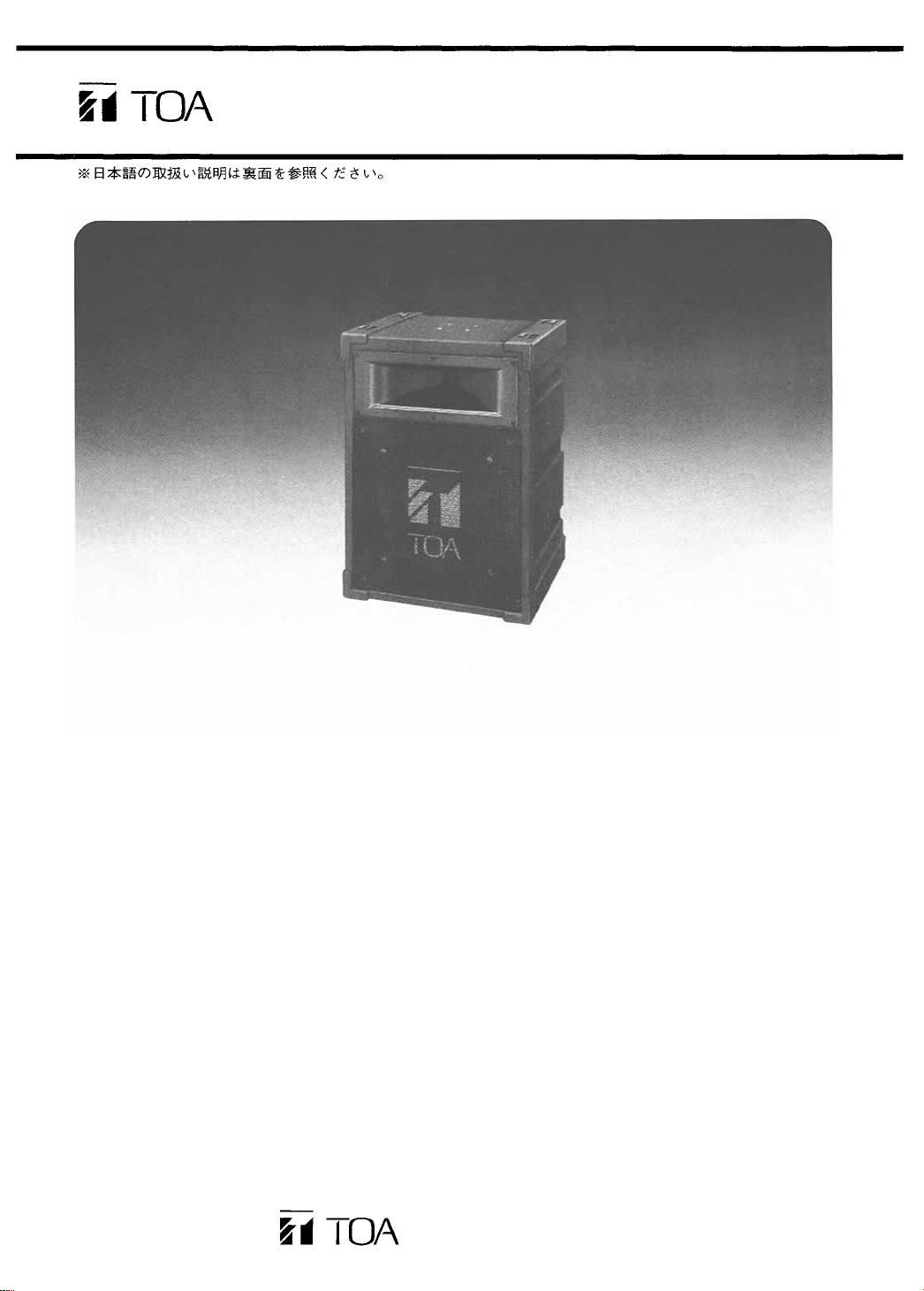

WEATHERPROOF SPEAKER SYSTEM
Model SL-60W

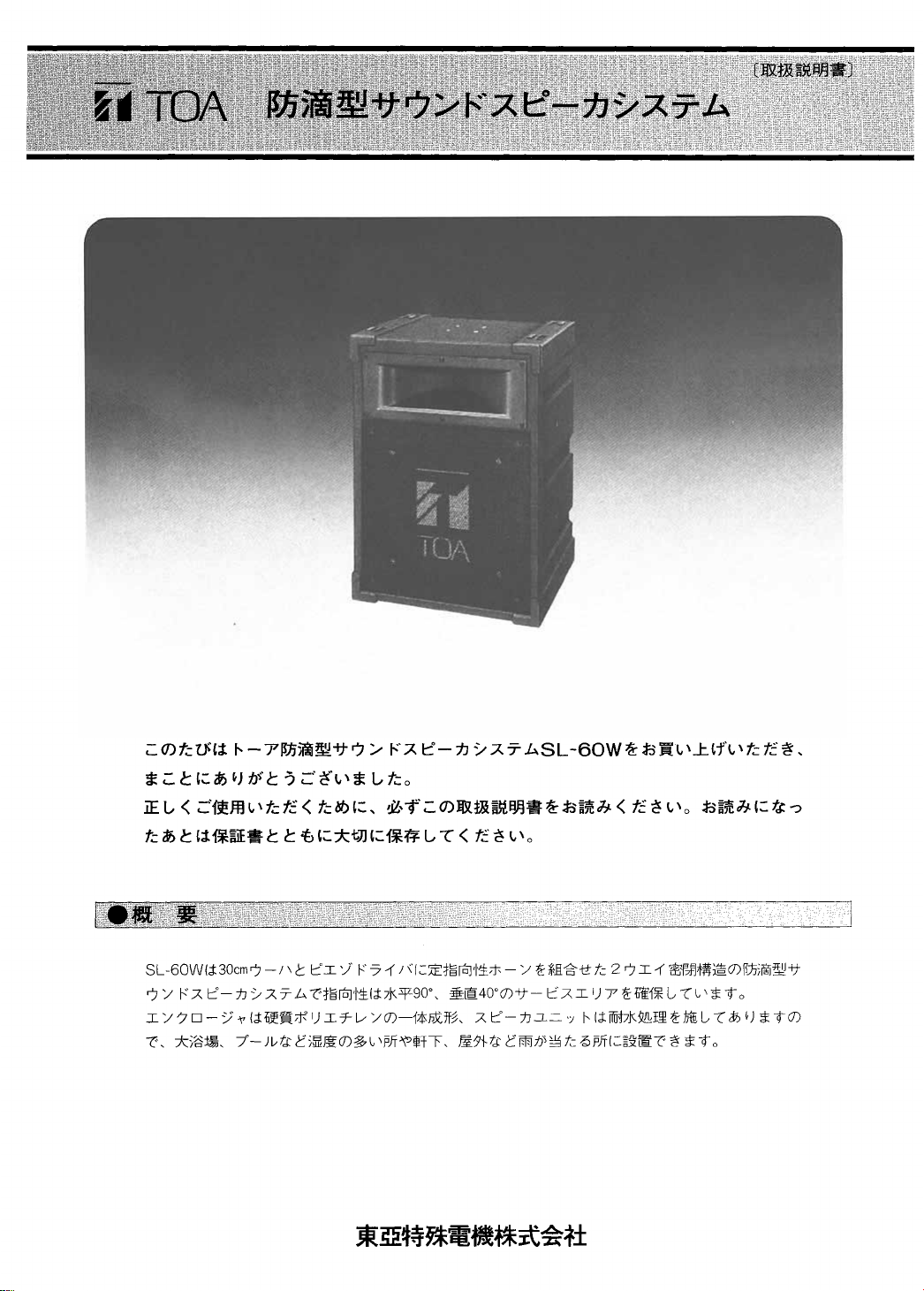

GENERAL DESCRIPTION
The Toa SL-60W is a weatherproof 2-way speaker system having a 30 cm woofer and a
constant directivity horn with a pie o driver unit. Its directivity coverage is 90° hori ontal and
40° vertical. A sealed enclosure is made of polyethylene and a speaker unit is weath-
erproofed, making the SL-60W most ideal both for indoor (even in such moist places as in-
door swimming pools) and outdoor applications.
Toa Electric Co., Ltd.
KOBE, JAPAN
Instruction Manual
Insta ation and optiona mounting devices
Wa mounting.
Use the YS-60 (optional).
Mounting on the po e.
Use the optional mounting kits YS-60 and YS-
60B.
Cei ing suspension.
Use the HY-401 (optional).
Mounting the speaker on the speaker
stand.
Use the optional mounting kits STB-3 and ST-
20.
When changing to high impedance, use the
optional matching transformer MT-648.
Use the SL-60SRK kit (optional) for on-the-
road applications.
For the above optional mounting devices, refer to each corresponding manual.

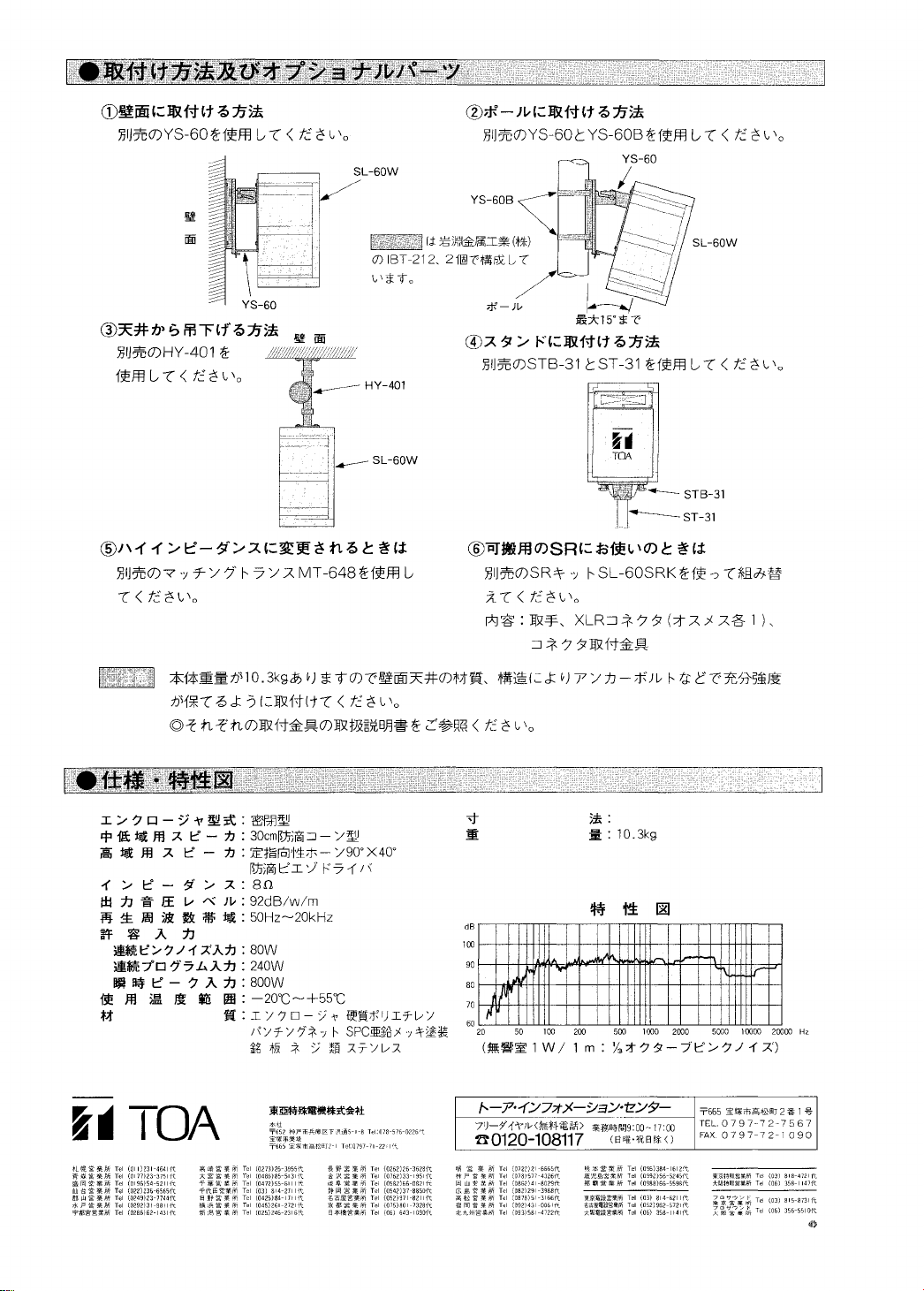

Specifications and characteristic diagram
Enc osure:
Sealed type
Woofer:
Weather proofed 30 cm cone speaker
Tweeter:
CD horn 90° × 40° with Weather proofed pie o driver
Impedance:
8
Output sound pressure eve :
92 dB/w/m
Frequency response:
50 H - 20 kH
Hand ing Power Capacity:
Continuous pink noise
80 watts RMS of band-limited pinknoise
Continuous program
240 watts
Instantaneous peak
800 watts
Operating temperature range:
—20°C to +55°C
Materia :
Enclosure Polyethylene
Punched Metal Net Painted on inc-plated-steel
Name Plate, Screws Stainless steel
Dimensions:
510 (H) x 367 (W) x 310 (D) mm
20.1 (H) x 14.4 (W) x 12.2 (D) inches
Weight:
10.3
kg
22.7 pounds
Characteristic diagram
(1W/1m : 1/3 Octave Pink Noise)
Toa Electric Co, Ltd.
KOBE, JAPAN
Model SL-60W
*Please see the reverse side for English manual.
510(H)×367(W)×310(D)
133-01-265-50
