Tobii PCEye User’s Manual

User’s Manual

Tobii PCEye

Tobii PCEye User’s Manual

Content subject to change without notice.

Please check Tobii web site www.tobii.com for

updated versions of this manual.

Manual Version 1.3.1

08/2012

The information contained in this document

is proprietary to Tobii Technology. Any

reproduction in part or whole without prior

written authoriztion by Tobii Technology is

prohibited.

Tobii_Manual_PCEye_V1_3_1_15082012_UsEng

Contents

Introduction 5

1.1 Intended Use 5

1.2 Package Contents 6

1.3 Customer Support 6

1.4 Warranty 7

1.5 Third Party Accessories 7

Safety 8

2.1 Mounting Warning 8

2.2 Emergency Warning 8

2.3 Infrared Warning 8

2.4 Epilepsy Warning 9

2.5 Electricity Warning 9

2.6 Magnetic Field Warning 9

2.7 Child Safety 9

Getting Started 10

3.1 Device Parts, Ports & Connectors 11

3.2 The Tobii PCEye Installation Guide 12

3.3 Mounting the PCEye to your PC Monitor 13

3.4 The Tobii PCEye Conﬁguration Guide 16

Using the PCEye 19

4.1 Positioning 19

4.1.1 Screen Size and Optimal Distance 19

4.1.2 Track Status Viewer 21

4.1.3 Positioning Guide 21

4.2 Starting and Disabling Eye Control 24

4.3 Accessing the Tobii Eye Control Options 24

4.4 Creating a New Proﬁle 25

4.5 Selecting Current User Proﬁle 26

4.6 Deleting a Proﬁle 27

4.7 Customizing the Interaction 27

4.8 Showing Track Status 29

4.9 Calibration 30

4.9.1 Starting Calibration 30

4.9.2 Interrupting Calibration 30

4.9.3 Customizing Active Eye 30

4.9.4 Improving Calibration Point(s) 31

4.9.5 Removing Calibration Point(s) 32

4.9.6 Customizing the Calibration 33

4.9.7 Customizing the Calibration Area 35

4.10 Windows Control 35

4.10.1 Starting and Disabling Windows Control 35

4.10.2 Windows Control Type 36

4.10.3 Gaze Selection 37

4.10.4 Mouse Emulation 46

Product Care 52

5.1 Temperature & Humidity 52

5.1.1 General Use 52

5.1.2 Transportation and Storage 52

5.2 Cleaning 52

5.3 Transporting the PCEye 53

5.4 Disposing of the PCEye 53

Appendices 54

6.1 Appendix A: System Information 54

6.2 Appendix B: Compliance Information 54

6.3 Appendix C: Technical Speciﬁcations 61

Tobii PCEye User’s Manual

Chapter 1 Introduction

Introduction

Thank you for purchasing a Tobii PCEye device from Tobii Technology!

To ensure the optimal performance of this product, please take the time to read this

manual carefully.

This User’s Manual covers:

• The PCEye device and its use.

• The Tobii Eye Control Suite program (for enabling the use of eye control on

your PC Computer).

1.1 Intended Use

The Tobii PCEye module is an eye control unit which is designed to dock, using its

mounting bracket, under retail PC computer screens. The PCEye module allows you

use eye control to operate your personal computer with precision regardless of glasses,

contact lenses, eye color or light conditions. Simply, it enables you to control your

computer with your eyes. By looking at the screen, you control the mouse pointer and

click by blinking, dwelling (staring at the screen for a certain length of time) or using a

Switch.

When used in combination with communications software the PCEye allows

Augmentative and Alternative Communication (AAC) users the ability to achieve their

full potential through eye control. Using the eye control offered by the PCEye a user

can communicate via text or symbols to generate synthesized (computer voice) or

digitized (recorded voice) speech for face-to-face communication. A user also has the

option of communication through e-mail, text messages and chat and has the freedom

and exibility to write and edit documents, surf the Internet, or play music and games, If

used in conjunction with communications software and an environmental control unit,

users can also use the PCEye’s eye control to control a TV, DVD and other household

appliances via IR remote control.

When used in conjunction with communications software the PCEye device is

not intended as the sole communication means for a user but as a complementary

communication solution. Low-tech and no-tech Augmentative and Alternative

Communication (AAC) solutions used as additional methods are recommended as best

practice for any person utilizing a high-tech AAC device.

Tobii PCEye User’s Manual

6Chapter 1 Introduction

1.2 Package Contents

The items below are included with your PCEye package:

• A Tobii PCEye

• A Tobii PCEye Carrying Case

• A Tobii PCEye Mounting Bracket

• A Power Adapter

• A Micro USB Cable

• A Torx 20 Key (Screwdriver)

• 6 Torx Screws (4 M4 at head and 2 M4 regular)

• An Installation CD

- Tobii Eye Control Suite

- Tobii PCEye Installation Guide

- Tobii PCEye Conguration Guide

• Tobii Communicator (Trial Version) CD

• This Tobii PCEye User’s Manual

• A Tobii PCEye Mounting Guide (with cm/in ruler)

• Alternative Mounting Kit (for recessed VESA screw holes on the monitor)

- 4 long M4 at head Torx screws

- 4 spacers

Only use the items included in the PCEye package, those described in the product

documentation and other approved Tobii Accessories in conjunction with the Tobii

PCEye.

1.3 Customer Support

For support, please contact your local representative or Support at Tobii. In order

to receive assistance as quickly as possible, make sure you have access to your PCEye

device and, if possible, an Internet connection. You should also be able to supply the

serial number of the device, which you nd on the back of the device or in the System

Information section of Tobii Eye Control Options, see the System Information

section in the Appendices chapter.

For further product information and other support resources, please visit the Tobii

community www.mytobiicommunity.com and the Tobii website www.tobii.com in the

Augmentative and Alternative Communication section.

Tobii PCEye User’s Manual

Chapter 1 Introduction

1.4 Warranty

Please read this User’s Manual carefully before using the device. The warranty is only

valid if the device is used according to the User’s Manual and the warranty seal is not

broken. Disassembling the PCEye device will void the warranty.

1.5 Third Party Accessories

The use of Third Party products and accessories is at the user’s own risk and the

functioning of those products together with the Tobii PCEye is the responsibility of, and

at the risk of, the Third Party Manufacturer.

Tobii PCEye User’s Manual

8Chapter 2 Safety & Compliances

Safety

The Tobii PCEye has been tested and approved as compliant to all the

Specications and Standards listed in the 6.2 Appendix B: Compliance

Information section of this manual and in the 6.3 Appendix C: Technical

Specications section -- including, but not limited to, the Medical Device

Directive (MDD) 93/42/EEC. Nevertheless, in order to ensure safe operation of

your Tobii PCEye device, there are a few safety warnings to bear in mind:

2.1 Mounting Warning

The PCEye devices should be mounted according to instructions for approved mounts

or mounting brackets (see 3 Getting Started > 3.2 Mounting the PCEye to

your PC Monitor). However, should the device for any reason harm or damage

someone or something due to falling or other. Neither Tobii Technology nor any of its

representatives will be responsible or liable for any damages or injuries which may arise.

The mounting of the PCEye is done entirely at the user’s own risk.

2.2 Emergency Warning

Be aware that due to the low, but possible, risk of failure, the Tobii PCEye should not be

relied upon exclusively as an audio communications, or an environmental control, device

in emergencies, as well as in dangerous, or otherwise important, situations. Do not

rely on the device for emergency calls or banking transactions. We recommend having

multiple ways to communicate in emergency situations. Banking transactions should only

be carried out with a system recommended by, and approved according to the standards

of, your bank.

2.3 Infrared Warning

When activated, the Tobii PCEye emits pulsed infrared (IR) light. Certain medical devices

are susceptible to disturbance by IR light and/or radiation. Do not use the PCEye when in

the vicinity of such susceptible medical devices as their accuracy or proper functionality

could be inhibited.

Chapter 2 Safety & Compliances

Tobii PCEye User’s Manual

Chapter 2 Safety & Compliances

2.4 Epilepsy Warning

Some people with Photosensitive Epilepsy are susceptible to epileptic seizures or

loss of consciousness when exposed to certain ashing lights or light patterns in everyday

life. This may happen even if the person has no medical history of epilepsy or has never

had any epileptic seizures.

A person with Photosensitive Epilepsy would also be likely to have problems with TV

screens, some arcade games, and ickering uorescent bulbs. Such people may have a

seizure while watching certain images or patterns on a monitor, or even when exposed

to the light sources of an eye tracker. It is estimated that about 3-5% of people with

epilepsy have this type of Photosensitive Epilepsy. Many people with Photosensitive

Epilepsy experience an “aura” or feel odd sensations before the seizure occurs. If you feel

odd during use, move your eyes away from the eye tracker.

2.5 Electricity Warning

Do not open the casing of the PCEye device, since you may be exposed to potentially

hazardous electrical voltage. The device contains no serviceable parts.

2.6 Magnetic Field Warning

The PCEye Mounting Bracket contains magnets. Magnetic elds may interfere with the

function of cardiac pacemakers and implantable cardioverter-debrillators. As a general

rule, maintain a minimum distance of 6 inches (15 centimeters) between any item with

magnets and your heart device.

2.7 Child Safety

The Tobii PCEye is an advanced computer system and electronic device. As such it is

composed of numerous separate, assembled parts. In the hands of a child certain of

these parts have the possibility of being separated from the device, possibly constituting a

choking hazard or another danger to the child.

Young children should not have access to, or the use of, the device without parental or

guardian supervision.

Chapter 2 Safety & Compliances

Tobii PCEye User’s Manual

10 Chapter 3 Getting Started

Getting Started

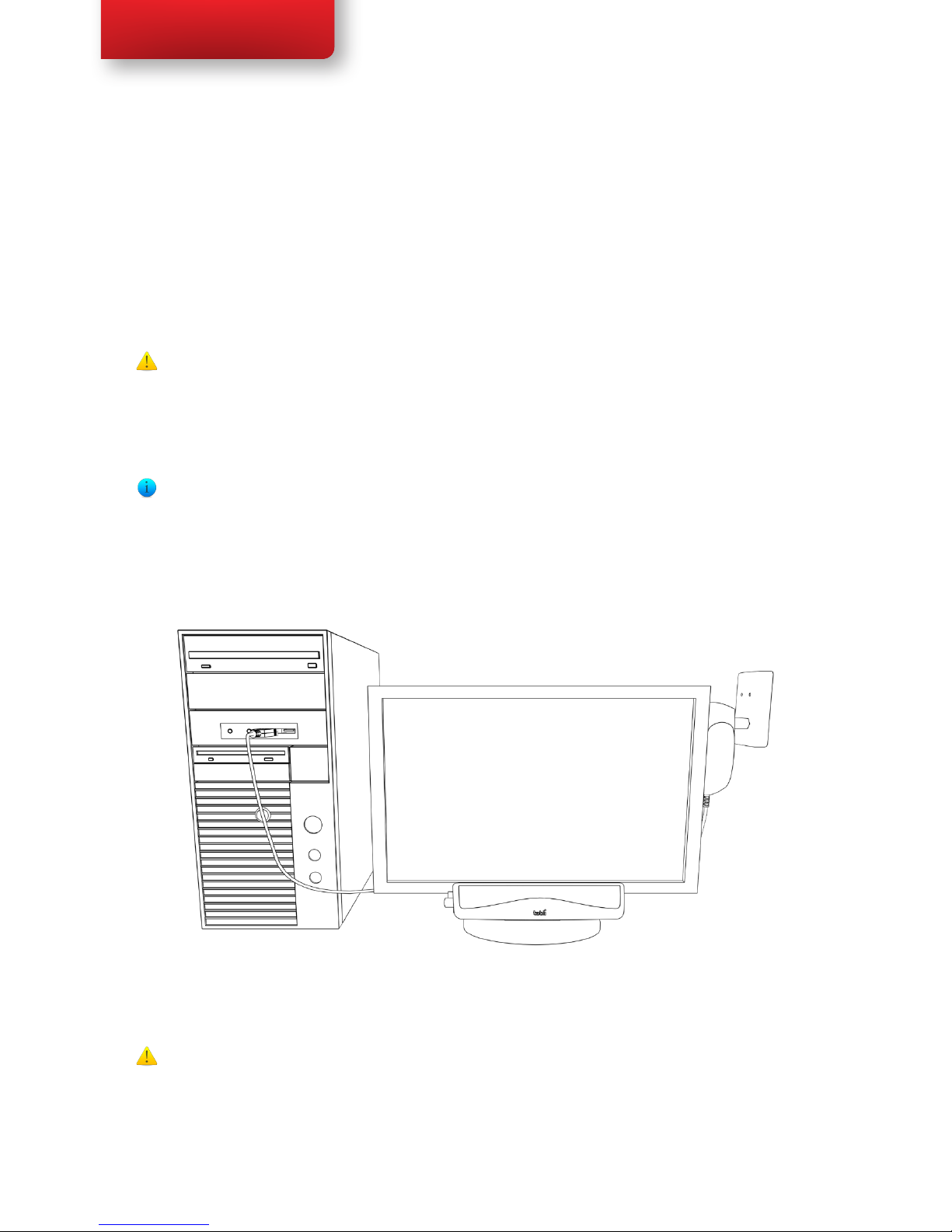

To enable eye control on your computer, by using it in combination with the Tobii

PCEye, you must rst install the necessary software and drivers from the included CD,

mount the Tobii PCEye module to its Mounting Bracket and attach it properly to your

device.

Works with PC computers running on a Windows operating system ONLY (Windows

XP and later). Meant for Desktop PC use, with an external monitor. If you use a Laptop,

the PCEye will only function properly if you use the Laptop as a stationary computer

with an external Monitor.

Be aware that there is no virus protection included with the PCEye Software. Be

sure to have proper virus protection installed on your computer to safeguard against

malfunctions.

Install the software FIRST before connecting the PCEye eye tracker to your computer.

Altri manuali per PCEye

Indice

Altri manuali Tobii Accessori per computer

Tobii

Tobii X2-60 Manuale utente

Tobii

Tobii CEye Manuale utente

Tobii

Tobii X2-30 Manuale utente

Tobii

Tobii PCEye Manuale di istruzioni per l'installazione

Tobii

Tobii PCEye Go Manuale utente

Tobii

Tobii X1 Light Eye Tracker Manuale utente

Manuali Accessori per computer popolari di altre marche

Motorola

Motorola ATRIX Manuale utente

HP USB Media Docking Station Manuale utente

Cherry

Cherry B.UNLIMITED 3.0 Manuale utente

Logitech

Logitech IO2 Manuale utente

ARM

ARM DSTREAM-ST Manuale utente

Bartec

Bartec TC 7 Series Manuale utente

Philips

Philips SPC3540 Manuale utente

Logitech

Logitech mk220 Manuale utente

SilverStone

SilverStone LC02 Manuale utente

Flexispot

Flexispot ML2B Manuale utente

Hamlet

Hamlet UNIVERSAL COVER 101 KBT2 Manuale utente

Adam Equipment

Adam Equipment RS-485 Manuale utente

Vivo

Vivo MOUNT-KB05-4DW Manuale utente

Kvaser

Kvaser Memorator Professional Manuale utente

DRC

DRC D-Imaging Manuale utente

Sven

Sven Base 305 сombo Manuale utente

Hama

Hama 108310 Manuale utente

SpeechWare

SpeechWare FlexyMike FMK03 Manuale utente
