4

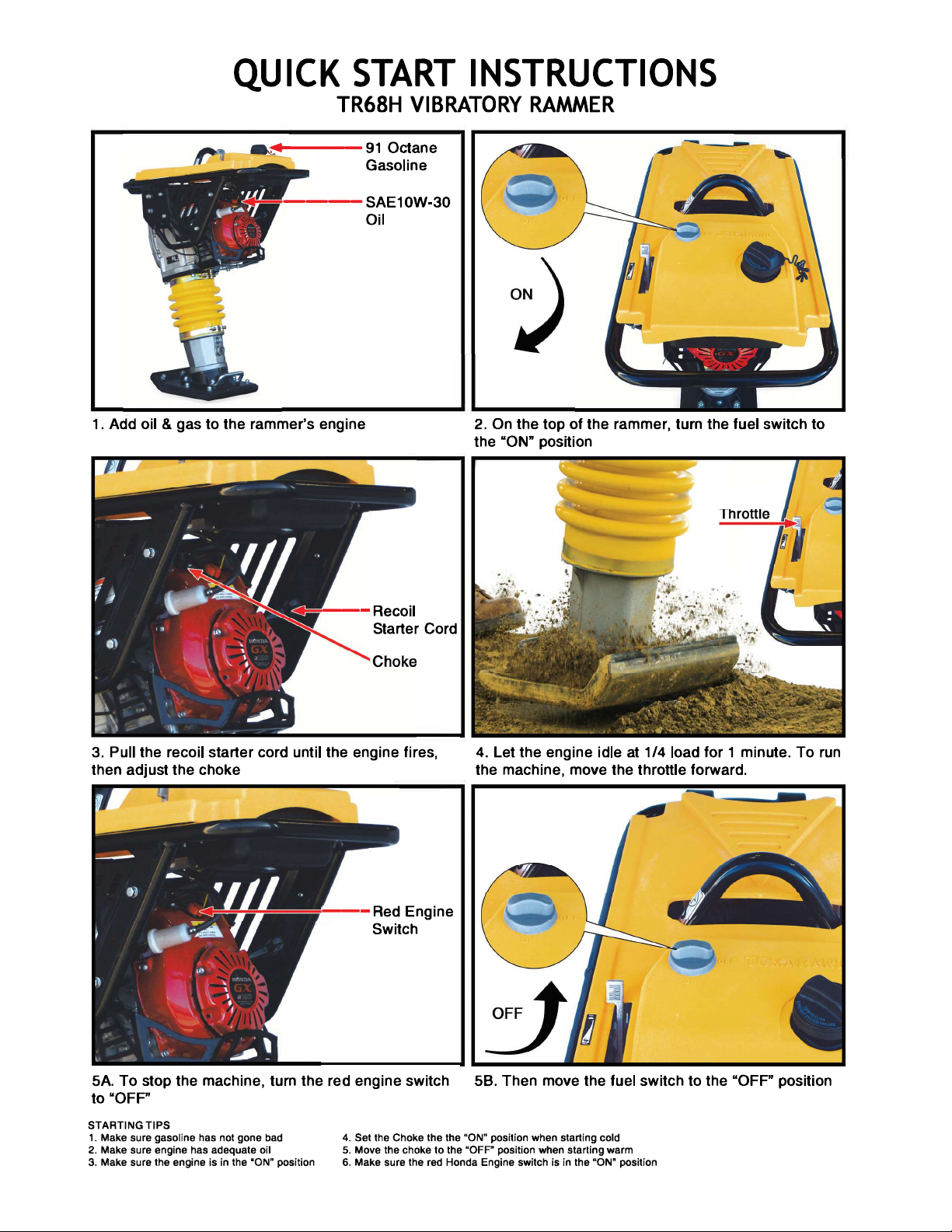

This manual provides information and procedures to safely operate and maintain this
model. For your own safety and protection from injury, carefully read, understand and
observe the safety instructions described in this manual.
Keep this manual or a copy of it with the machine. If you lose this manual or need an
additional copy, please contact Tomahawk Power. This machine is built with user safety
in mind; however, it can present hazards if improperly operated and serviced. Follow
operating instructions carefully. If you have questions
about operating or servicing this
equipment, please contact Tomahawk Power.
The information contained in this manual is based on machines in production at the
time of publication. Tomahawk Power reserves the right to change any portion of this
information without notice. No part of this publication may be reproduced in any form or
by any means, electronic or mechanical, including photocopying, without express
writ
ten permission from Tomahawk Power.
Any type of reproduction or distribution not authorized by Tomahawk Power rep-
resents an infringement of valid copyrights and will be prosecuted. We expressly reserve
theright to make technical modifications, even without due notice, which aim at
improving our machines or their safety standards.
1.
SAFETY INFORMATION
1.1
Safety Precautions
This manual contains DANGER, WARNING, CAUTION, and NOTE callouts which must be
followed to reduce the possibility of personal injury, damage to the equipment, or
improper service.
DANGER
WARNING
CAUTION
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible
injury or death.
DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury.
5
CAUTION: Used without the safety alert symbol, CAUTION indicates a potentially
hazard
ous situation which, if not avoided, may result in property damage.
1.2
Operating Safety
Familiarity and proper training are required for the safe operation of this equipment.
Equipment operated improperly or by untrained personnel can be dangerous! Read the
operating instructions and familiarize yourself with the location and proper use of all
instruments and controls. Inexperienced operators should receive instruction from
someone familiar with the equipment before being allowed to operate the rammer.
-NEVER operate rammer in applications for which it is not intended.
-NEVER allow improperly trained personnel to operate rammer.
-NEVER touch hot muffler, engine cylinders, or cooling fins.
-NEVER use accessories or attachments for the rammer, which are not recommended by
TOMAHAWK POWER. Damage to the rammer and/or injury to user may occur.
-NEVER leave a running machine unattended.
-NEVER run machine indoors or in an enclosed area such as a deep trench unless
adequate ventilation is provided. Exhaust gas from the engine contains poisonous
carbon monoxide gas; exposure to carbon monoxide can cause loss of consciousness
and may
lead to death.
-NEVER tamper with or disable the function of operating controls.
-NEVER use choke to stop the engine.
-NEVER operate the machine in areas where explosions may occur.
-ALWAYS remove or disconnect engine spark plug before servicing rammer, to avoid
accidental start-up.
-ALWAYS read, understand, and follow procedures in the Operation Manual before
attempting to operate equipment.
-ALWAYS be sure that all other persons are at a safe distance away from the rammer. Stop
the machine if people step into the working area of the machine.
-ALWAYS be sure the operator is familiar with proper safety precautions and operation
techniques before using rammer.
-ALWAYS wear protective clothing when operating rammer. Wear goggles or safety glass-
es, hearing protection, and safety shoes.
-ALWAYS keep hands, feet, and loose clothing away from the moving parts of rammer.
6
-ALWAYS use common sense and caution when operating rammer.
-ALWAYS be sure rammer will not tip over, roll slide, or fall when not being operated.
-ALWAYS turn engine OFF when rammer is not being operated.
-ALWAYS guide the rammer in such a way that the operator is not squeezed between the
rammer and solid objects. Special care is required when working on uneven ground or
when compacting coarse material. Make sure to stand firmly when operating the ma-
chine under such conditions.
-ALWAYS operate the rammer in such a way that there is no danger of it turning over or
falling in, when working near the edges of breaks, pits, slopes, trenches and platforms.
1.3
Operator Safety while using Internal Combustion Engines
-DO NOT smoke when refueling the engine or operating the machine.
-DO NOT refuel a hot or running engine.
-DO NOT refuel the engine near an open flame.
-DO NOT smoke while operating the rammer.
-DO NOT operate the rammer near open flames.
-ALWAYS refill fuel tank in a well-ventilated area.
-ALWAYS replace fuel tank cap after refueling.
-ALWAYS check fuel lines, fuel cap, and fuel tank for leaks and cracks before starting
engine. Do not run this machine if fuel leaks are present, or fuel cap or fuel lines are
loose.
-If fuel is spilled during refueling, wipe it off from the engine immediately and discard
the rag in a safe place. Do not operate the unit if fuel or oil leaks remain.
-NEVER operate any gas powered equipment in a poorly ventilated or enclosed area.
-NEVER perform any work on the unit while it is running. Before working on it, stop the
engine and disconnect the spark plug wire to prevent accidental starting.
-Avoid prolonged breathing of exhaust gases.
-Avoid contact with hot exhaust systems and engine parts.
-Allow engine to cool before performing any repairs or service.
-ALWAYS transport and handle fuel only when contained in approved safety containers.
-ALWAYS keep the area around the muffler free of debris such as leaves, paper, cartons,
etc. A hot muffler could ignite the debris and start a fire.
7
1.4
Service Safety
Poorly maintained equipment can become a safety hazard! In order for the equipment to
operate safely and properly over a long period of time, periodic maintenance and
occa
sional repairs are necessary.
-DO NOT attempt to clean or service rammer while it is running.
-DO NOT operate rammer with safety devices or guards removed or that are not in
work
ing order.
-DO NOT operate rammer without air cleaner.
-DO NOT remove air cleaner paper component, or air filter cover while
operating
rammer.
-DO NOT alter engine speeds. Run engine only at speeds specified in Technical Data
Section.
-ALWAYS replace safety devices and guards adhere to repairs and maintenance.
-ALWAYS keep area around muffler free of debris in order to reduce to chance of an
acci
dental fire.
-ALWAYS do Periodic Maintenance as recommended in Operation Manual.
-ALWAYS clean debris from engine cooling fins.
-ALWAYS replace worn or damaged components with spare parts designed and
recom
mended by TOMAHAWK POWER for servicing this rammer.
8
1.5
Label Locations
9
1.6
Safety Labels
Tomahawk & Jumping JX machines use international pictorial labels where
needed. These labels are
described below:
LABEL
MEANING
This label contains important safety and operating information.
If it becomes illegible, the cover must be replaced. Refer to the
Parts Manual for ordering information.
DANGER! Engines emit carbon monoxide; operate only in
well-ventilate area. Read the Operation Manual for machine
information. No sparks, flames, or burning objects should be
near the machine. Shut oG the engine before refueling. Use only
clean, filtered unleaded gasoline.
CAUTION!
Use only clean, filtered gasoline fuel.
CAUTION
Lihing point.
WARNING!
Hot surface!
CAUTION!
For optimal control, performance, and minimal hand/arm
vibration, grasp handle as shown.
