Tomtar 9400-A Manuale utente

Shower chair foldable,

shower chair and shower stool

User manual version 2.0.0 EN

9400-A / 9401-A / 9402-A

9400-A

9402-A

9401-A

Record of product identication data

We recommend that you write down your product identication data (found on nameplate) below,

so that you have these on hand should you require any further information about your product.

(See "Product labelling" section)

Type / model

Item No. / REF:

Serial number (21):

Date of manufacture:

Other information/notes:

FOREWORD

Many thanks for choosing a shower chair

made by DIETZ.

This product is a medical aid. In order to use it

properly and avoid possible risks due to unin-

tended use, you must become thoroughly famil-

iar with its operation.

Read this user manual carefully before you begin

using your product. It contains important in-

structions that will enable you to fully take ad-

vantage of the technical benets. In addition,

you will receive information that will aid with

maintaining operational safety and the preser-

vation of your investment in your product.

If you have any questions or require additional

information, please contact the specialist retail-

er which supplied the product to you.

You will always nd the latest information about

your product on our website. For information or

queries concerning product safety and on re-

calls, please contact DIETZ in writing or by tele-

phone. You will nd our contact information on

the back of this user manual.

NOTE

A large-print version of the

user manual is available for

visually impaired persons at

www.dietz-group.de in PDF

format.

DIETZ GmbH // User Manual shower chair / 9400-A / 9401-A / 9402-A // Version 2.0.0 EN

CONTENTS

1 Important information

1.1 General information . . . . . . . . . . . . . . . . .5

1.2 Intended purpose . . . . . . . . . . . . . . . . . . .5

1.3 Indications . . . . . . . . . . . . . . . . . . . . . . . .5

1.4 Contraindications . . . . . . . . . . . . . . . . . . .5

1.5 Symbols . . . . . . . . . . . . . . . . . . . . . . . . . .6

2 Product description

2.1 Scope of delivery . . . . . . . . . . . . . . . . . . .7

2.2 Exemplary representation 9400-A /

9401-A. . . . . . . . . . . . . . . . . . . . . . . . . . .8

2.3 Exemplary representation 9402-A . . . . . . .8

2.4 Accessories . . . . . . . . . . . . . . . . . . . . . . . .8

3 Commissioning the product

3.1 Assembly instructions . . . . . . . . . . . . . . . .9

3.2 Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

3.3 Assembly 9400-A (foldable shower chair) .9

3.4 Assembly 9401-A (shower chair) /

9402-A (stool) . . . . . . . . . . . . . . . . . . . .10

4 Using the product

4.1 Adjusting seat height. . . . . . . . . . . . . . . .12

4.2 Getting in and out. . . . . . . . . . . . . . . . . .12

4.3 9400-A Folding/unfolding . . . . . . . . . . . .13

4.4 Transport. . . . . . . . . . . . . . . . . . . . . . . . .14

5 Technical data

5.1 DIETZ’s measurement system. . . . . . . . . .14

5.2 Dimensions and technical specications. .15

5.3 Product tests. . . . . . . . . . . . . . . . . . . . . .15

5.4 Further information . . . . . . . . . . . . . . . . .15

5.5 Materials . . . . . . . . . . . . . . . . . . . . . . . .16

5.6 Product labelling . . . . . . . . . . . . . . . . . . .16

6 Safety instructions

6.1 Safety instructions. . . . . . . . . . . . . . . . . .17

7 Care and maintenance

7.1 Servicing/maintenance. . . . . . . . . . . . . . .18

7.2 Maintenance schedule . . . . . . . . . . . . . .19

7.3 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . .20

7.4 Disinfection. . . . . . . . . . . . . . . . . . . . . . .20

7.5 Disposal . . . . . . . . . . . . . . . . . . . . . . . . .20

7.6 Forwarding/Reusing. . . . . . . . . . . . . . . . .21

7.7 Storage. . . . . . . . . . . . . . . . . . . . . . . . . .21

8 Manufacturer‘s declarations

8.1 Warranty . . . . . . . . . . . . . . . . . . . . . . . .22

8.2 Lifetime. . . . . . . . . . . . . . . . . . . . . . . . . .22

8.3 Liability. . . . . . . . . . . . . . . . . . . . . . . . . .22

1 IMPORTANT INFORMATION

1.1 GENERAL INFORMATION

This user manual is included in the scope of de-

livery. The user should keep this manual on

hand at all times and it must remain with the

product if the product is passed on to a third

party. We reserve the right to make changes to

the versions shown in this user manual as a re-

sult of further technical development. Reprints,

translations and reproductions of this manual in

any form, in whole or in part, require the writ-

ten approval of DIETZ GmbH. The copyright is

owned by the manufacturer. You can obtain the

latest version of the user manual by contacting

DIETZ GmbH. Read the user manual before as-

sembling and using the product.

1.2 INTENDED PURPOSE

The product is used to make it easier for people

with reduced mobility to take a shower on rm,

level and slip-resistant surfaces. The product is

designed for a maximum user weight of 120 kg.

The product is not suitable for persons who are

smaller than 146 cm or weigh less than 40 kg

(BMI < 17) and must not be used by children.

The product is not suitable for use as permanent

seating. It is not to be used to transport persons

or loads.

1.3 INDICATIONS

This product is suitable for persons with physical

limitations who are unable to take a shower

while standing:

tStanding and inability to stand

tStanding and instability

tLoss of / defective / deformed limbs

1.4 CONTRAINDICATIONS

The product is unsuitable in the case of:

tPerception disorders

tSevere disequilibrium

tInability to sit

tA body weight exceeding 120 kg

DIETZ GmbH // User Manual shower chair / 9400-A / 9401-A / 9402-A // Version 2.0.0 EN

1.5 SYMBOLS

These symbols indicate passages of text that are

helpful for using and operating the product in

everyday life.

WARNING

It is mandatory to observe and comply with

warnings. They draw your attention to the fact

that failure to comply with them may result in

injury and/or damage to the product or the envi-

ronment.

NOTE

Tips and advice which make using the various

functions easier.

1 IMPORTANT INFORMATION

2 PRODUCT DESCRIPTION

2.1 SCOPE OF DELIVERY

The product is partially pre-assembled at the

factory, wrapped in protective lm, and is sup-

plied in a cardboard box.

Upon receipt of the goods, please immediately

check to make sure that the contents are com-

plete and undamaged. If the contents are no-

ticeably damaged, inform the freight company

immediately.

Scope of delivery 9400-A foldable:

t1 pre-assembled shower chair

t1 backrest

t1 user manual

Scope of delivery 9401-A:

t2 side elements incl. armrest

t2 seat tubes

t1 screw set: 4 × screws,

4 × washers, 4 × nuts

t1 backrest

t1 seat

t1 user manual

Scope of delivery 9402-A:

t2 side elements incl. armrest

t2 seat tubes

t1 screw set: 4 × screws,

4 × washers, 4 × nuts

t1 seat

t1 user manual

WARNING

Risk of poisoning: When burnt, packaging

lms can release toxic gases.

Risk of suffocation: Keep the plastic bags out

of the reach of children.

DIETZ GmbH // User Manual shower chair / 9400-A / 9401-A / 9402-A // Version 2.0.0 EN

2.2 EXEMPLARY REPRESENTATION 9400-A / 9401-A

1. Recessed grip

2. Backrest

3. Side element incl. armrest

4. Seat

5. Connecting pieces

6. Locking receptacle incl. locking

bolt (9400-A)

7. Telescopic leg

8. Pin clip

9. Rubber feet

Abb. 1

2.3 EXEMPLARY REPRESENTATION 9402-A

1. Side element incl. armrest

2. Seat

3. Connecting pieces

4. Telescopic leg

5. Pin clip

6. Rubber feet

Abb. 2

2.4 ACCESSORIES

No accessories are provided for the products.

2 PRODUCT DESCRIPTION

3.1 ASSEMBLY INSTRUCTIONS

The assembly and the functional check are to be

performed by the specialist dealer. The dealer's

technician adapts the product to the respective

user.

NOTE

Read the user manual before assembling and us-

ing the product.

3.2 TOOLS

The 9400-A, foldable is assembled without

tools.

The following tools are required for mounting

the 9401-A / 9402-A:

tCross tip screwdriver

3.3 Assembly 9400-A (foldable shower chair)

1. Release the cable tie (Fig.3, 1).

2. Swing the side elements forward at the

armrests (Fig.3, 2) and open them slightly

outwards so that the seat can be folded

upwards without any obstruction (Fig.3, 3).

3. Now align the side elements parallel to each

other. You can now slowly fold the seat

down (Fig. 4, 1) and place the seat tubes

on the locking receptacle. Check that both

sides  t together. Only then press the seat

surface down until you hear it click into

place.

WARNING

Risk of trapping: Take care of your hands/ n-

gers during the entire assembly.

Abb. 3

Abb. 4

2 PRODUCT DESCRIPTION

3 COMMISSIONING THE PRODUCT

DIETZ GmbH // User Manual shower chair / 9400-A / 9401-A / 9402-A // Version 2.0.0 EN

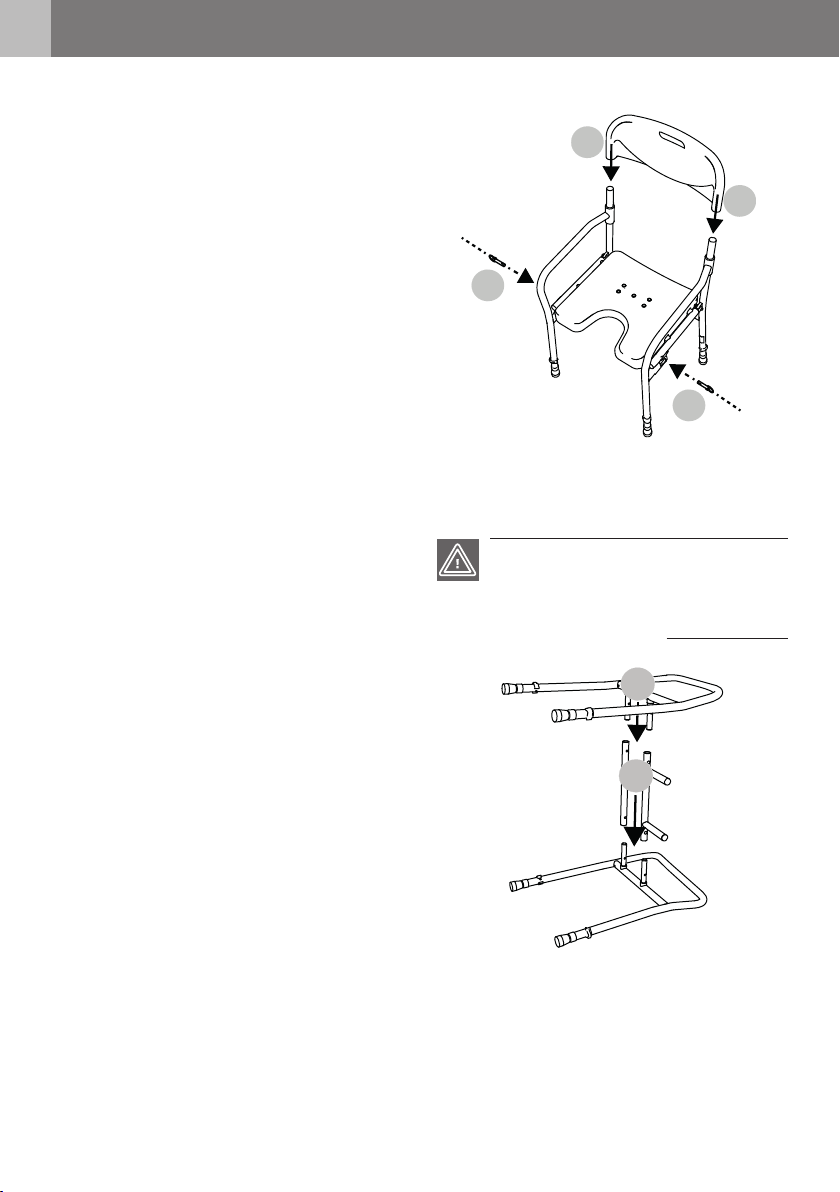

4. The securing bolts (right/left) are inserted from

the side until they click into place (Fig. 5, 1).

5. Lift the backrest to the side using both

hands. The next step is to push the backrest

onto the back tubes up to the stop of the

sleeve fastening (Fig. 5, 2).

Abb. 5

3.4 Assembly 9401-A (shower chair) / 9402-A (stool)

Steps 1. to 4. are identical for products 9401-A

and 9402-A. The exemplary illustrations show

these steps on product 9402-A (stool).

1. Place a side element on a clean,  at and

sturdy surface ( oor or table). The connecting

pieces are plugged onto the attachments of

the side element (Fig. 6, 1).

2. Now push the other side element onto

the connecting pieces (Fig. 6, 2). Bring the

connecting pieces and the side elements

to cover the holes and screw them tightly

together.

Use the following parts for this:

4 × washers, 4 × nuts,

4 × screws 55 mm.

WARNING

Risk of trapping: Take care of your hands/ n-

gers during the entire assembly.

Abb. 6

3 COMMISSIONING THE PRODUCT
