TomTom One XL Manuale utente
TomTom XL
Getting started1.
2
Get-
ting
started Mounting your navigation device
1. Push the EasyPort™ Mount on your TomTom XL against the windscreen in your car.
2. Adjust the angle of your device.
3. Lock the EasyPort Mount by twisting the base.
4. Insert the Car Charger into your device.
1
2
3
4
3
5. Insert the Car Charger into the cigarette lighter in your car.
6. Switch your device on by pressing the On/Off button on the top of your device.
7. You now have to answer some questions to set up your device. Tap the screen to
answer the questions.
8. To remove the Mount from your windscreen, first unlock the EasyPort Mount, then gen-
tly pull one of the tabs. The Mount comes away from the windscreen.
GPS reception
When you first start your TomTom XL navigation device, the device may need a few min-
utestodetermine your GPS positionand show your current position on the map. In future,
your position will be found much faster, usually within a few seconds.
To ensure good GPS reception, you should use your device outdoors. Large objects such
as tall buildings can sometimes interfere with reception.
Troubleshooting
In rare cases, your TomTom XL navigation device may not start correctly or may stop
responding to your taps.
5
6
7
8
4
First, check that the battery is properly charged. To charge the battery, connect your
device to the car charger. It can take up to 2 hours to fully charge the battery.

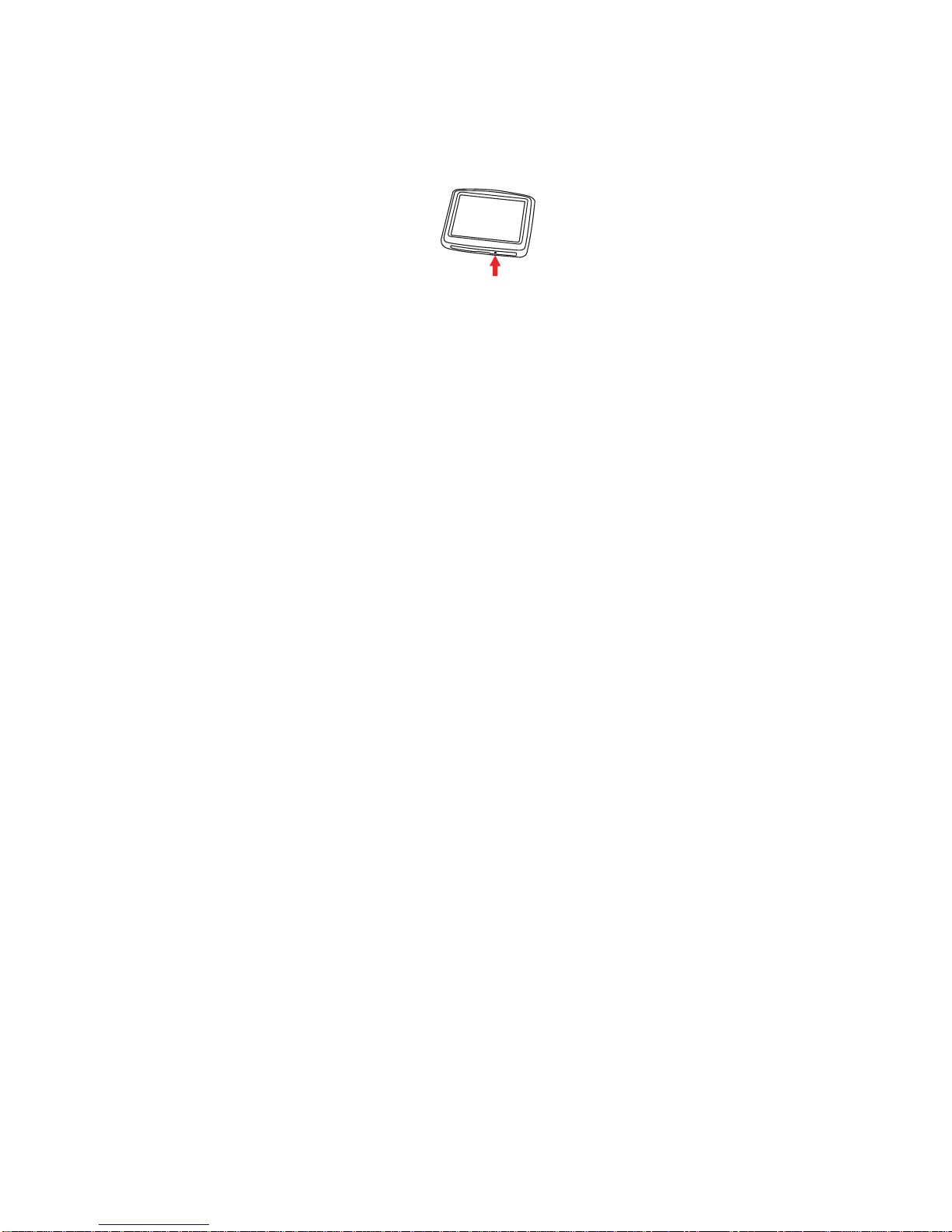

If this does not solve the problem, you can reset the device. First turn your device off and
wait for at least 10 seconds. Then use a straightened paper clip, or something similar, to
push the reset button. The reset button is on the bottom of your device.

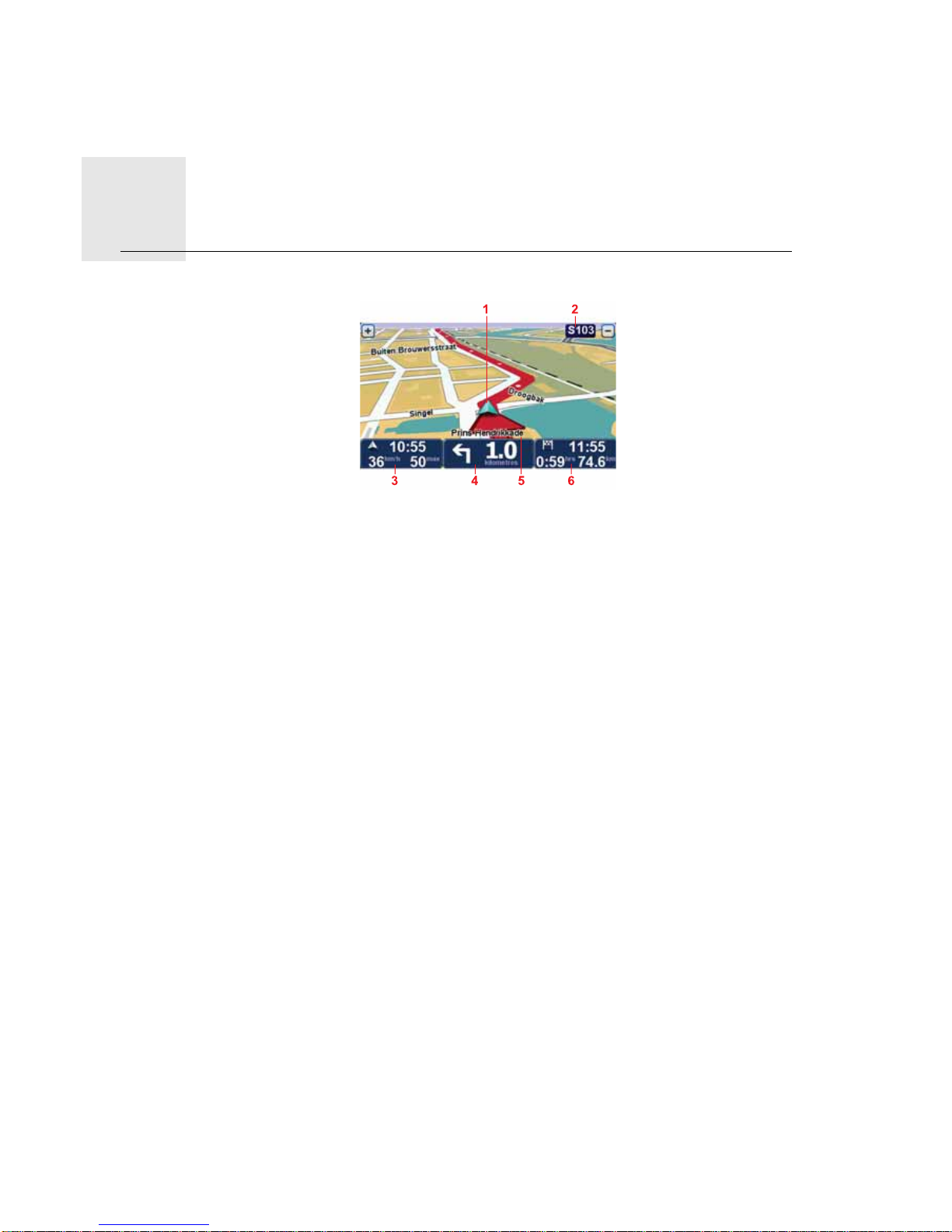

Driving View2.
5
Driving
View
1. Your current position.
2. The name of the next major road or road sign information, if applicable.
3. Your speed and the speed limit, if known.
Tap this area to repeat the last spoken instruction and to change the volume.
4. Navigation instruction for the road ahead.
Tap this panel on the status bar to switch between 2D and 3D views of the Driving View.
5. The name of the street you are on.
6. Information about your journey: journey time, remaining distance and arrival time.
Tap this panel on the status bar to see a route summary.

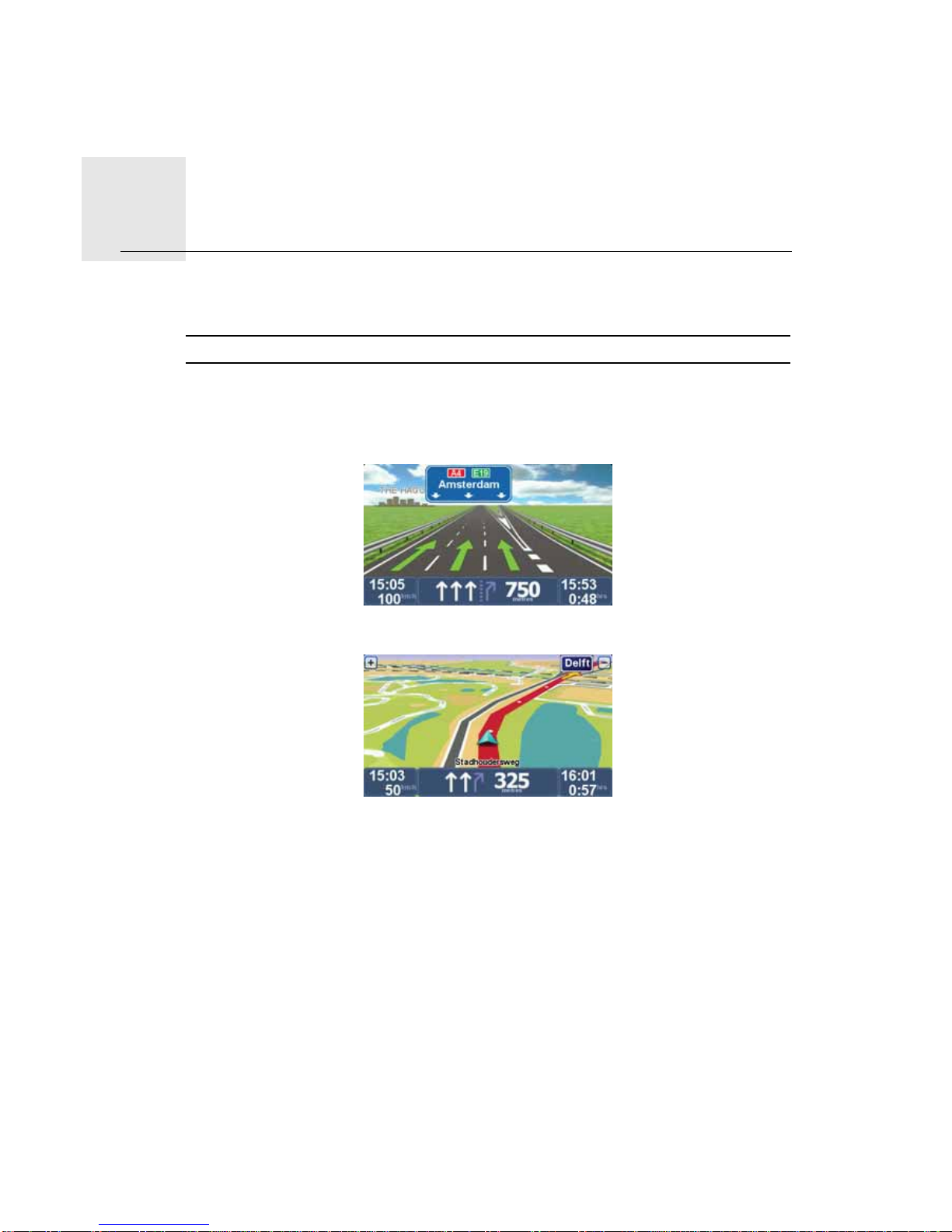

Advanced Lane Guidance3.
6
Advanc
ed
Lane
Guid-
ance Advanced Lane Guidance
Note: Lane guidance is not available for all junctions or in all countries.
YourTomTom XL helps you preparefor motorway exits and junctions by showing thecor-
rect driving lane for your planned route.
As you approach an exit or junction, the lane you need is shown on the screen.
For some exits and junctions, the lane you need is shown in the status bar.
Main Menu4.
7
Main
Menu The Main Menu is the starting point for planning a route, looking at a map or changing
your device settings.
To open the Main Menu from the Driving View, tap the centre of the screen.
To return to the Driving View from the Main Menu, tap done.

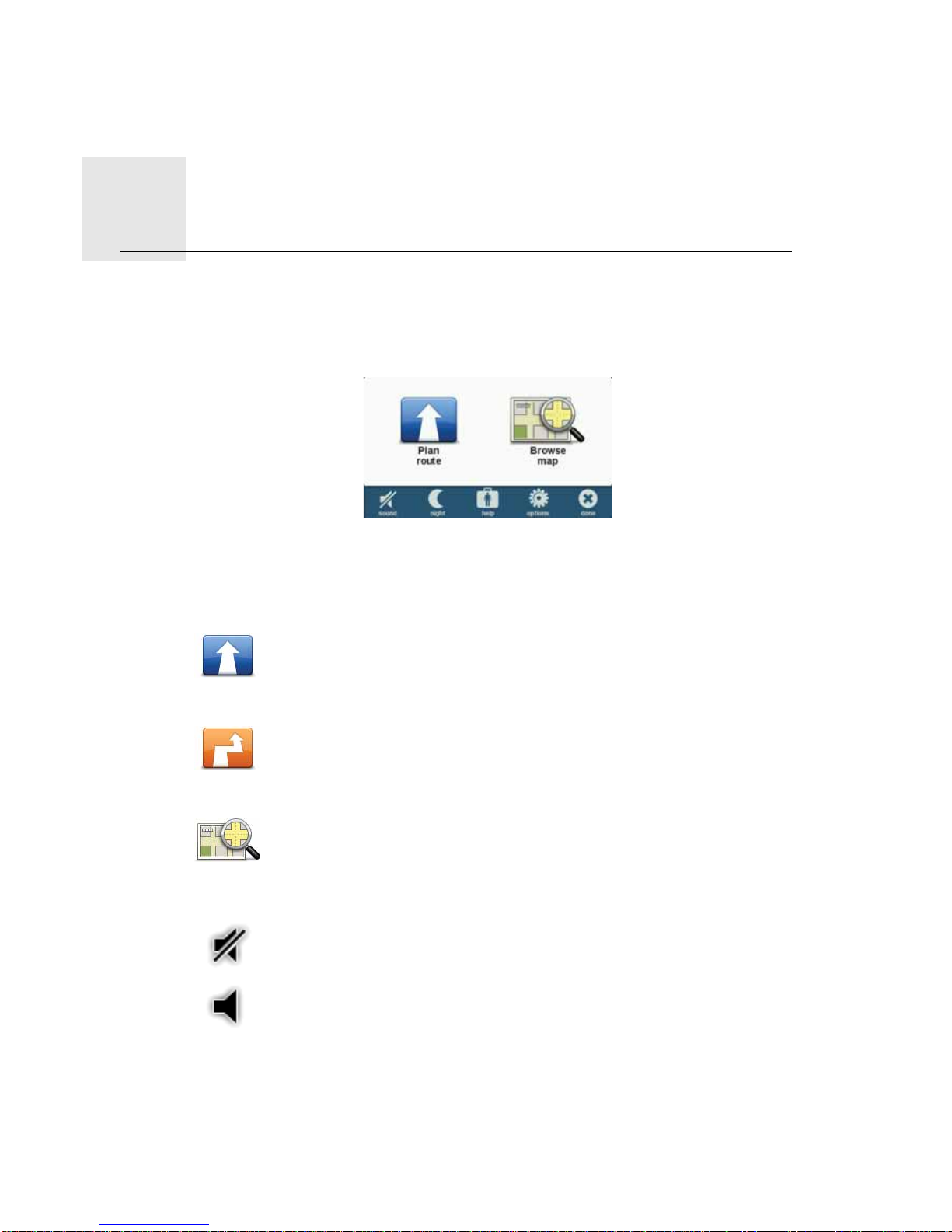

Main Menu buttons
The following buttons are shown on the Main Menu.
Plan route
Tap this button to plan a new route.
This button is shown when you have not planned a route.
Change route
Tap this button to change the existing route or to plan a new route.
This button is shown when you have planned a route.
Browse map
Tap this button to look at the map.
Sound
sound
Tap this button to turn the sound off.
sound
Tap this button to turn the sound on.
8
Night /Day
night
Tap this button to set the night colour scheme, which reduces the brightness
of the screen and shows the map using dark colours.
This is useful when driving at night or in dark environments such as long tunnels.
day
Tap this button to set the day colour scheme, which increases the brightness
of the screen and shows the map using bright colours.
Options
options
Tap this button to adjust the settings for your device.
For more information, see the chapter Options.
Help
help
Tap this button to see contact details for local emergency services and other
specialist services, such as hospitals and veterinary clinics. You can then plan
a route to your chosen service centre.
For more information, see the chapter Help.
Browse Map5.
9
Browse
Map To look at the map in the same way as you might look at a traditional paper map, tap
Browse map in the Main Menu.
You can move the map by touching the screen and sliding your finger across the screen.
1. Scale bar
2. Marker
Markers point to your current location, your home location and your destination. The
marker shows the distance to the location.
Tap a marker to centre the map on the location pointed to by the marker.
3. POI button
Tap this button to select which POIs are shown.
4. Cursor
5. Find button
Tap this button to find specific addresses.
6. Cursor button
Tap this button to plan a route to the cursor position, create a Favourite at the cursor
position or find a Point of Interest near to the cursor position.
7. Zoom bar
Zoom in and out by moving the slider.
Planning a route6.
10
Plan-
ning a
route 1. Tap the screen to open the Main Menu.
2. Tap Plan route.
You can enter an address in various ways, but we will enter the full address.
3. Tap Address.
4. Start to type the name of the town where your journey will begin and tap on the name
when it appears in the list.
Tip: When you plan a route for the first time you are asked to select the country or state.
Your choice is saved and used for all future routes. You can change this setting by tapping
on the flag and selecting a new country or state.
5. Enter the street name and the house number, then tap Done.
Tip: Before you start to enter a street name, City centre is shown at the top of the list. This
is useful if you do not have an address and only need general directions.
6. Tap Done.
The route is planned and a summary of the route is shown.
7. Tap Done.
Your navigation device is ready to guide you to your destination.
