Tomura PS-9304S Manuale utente
DVR User Manual
PS-9304S
PS-9308S
For H.264 4/8/16-channel digital video recorder
All rights reserved
Digital Video Recorder User Manual
2
CAUTION
Please read this user manual carefully to ensure that you can use the device correctly and safely
We do not warrant all the content is correct. The contents of this manual are subject to change without notice
This device should be operated only from the type of power source indicated on the marking label. The voltage
of the power must be verified before using. Kindly remove the cables from the power source if the device is not to
be used for a long period of time.
Do not install this device near any heat sources such as radiators, heat registers, stoves or other device that
produce heat
Do not install this device near water. Clean only with a dry cloth
Do not block any ventilation openings and ensure well ventilation around the machine
Do not power off the DVR when the device is function. The correct procedure to shut down DVR is to stop
recording firstly, and then use “shut down”button from the menu, and finally switching off the main power.
This equipment is for indoor use only. Do not expose the machine in rain or moist environment. In case any solid
or liquid get inside the machine’s case, please cut off the power supply immediately, and get it checked by a
qualified technician.
Refer all servicing to qualified service personnel. No any parts repaired by yourself without technical aid or
approval.
This manual is suitable for 4/8/16-channel digital video recorders. All examples and pictures used in the manual
are from 8-channel DVR.
Digital Video Recorder User Manual
3
Table of Contents
1Introduction...................................................................................................................................................................7
1.1 DVR Introduction.............................................................................................................................................................................................7
1.2 Main Features.................................................................................................................................................................................................7
2Hardware Installation ..................................................................................................................................................10
2.1 Install Hard Drive ..........................................................................................................................................................................................10
2.1.1 Install Hard Drive.................................................................................................................................................................................10
2.2 Front Panel Instructions ................................................................................................................................................................................11
2.3 Rear Panel Instructions.................................................................................................................................................................................13
2.3.1 Rear Panel Interface............................................................................................................................................................................13
2.4 Remote Controller.........................................................................................................................................................................................15
2.5 Control with Mouse.......................................................................................................................................................................................16
2.5.1 Connect Mouse...................................................................................................................................................................................16
2.5.2 Use Mouse..........................................................................................................................................................................................17
3Basic Function Instruction..........................................................................................................................................18
3.1 Power On/Off................................................................................................................................................................................................18
3.1.1 Power on ............................................................................................................................................................................................18
3.1.2 Power off ............................................................................................................................................................................................18
3.2 Login............................................................................................................................................................................................................19
3.3 Live preview..................................................................................................................................................................................................19
3.3.1 Live playback......................................................................................................................................................................................20
4Main menu setup guide...............................................................................................................................................21
4.1 Basic configuration........................................................................................................................................................................................22
4.1.1 System ...............................................................................................................................................................................................22
Digital Video Recorder User Manual
4
4.1.2 Time & date.........................................................................................................................................................................................24
4.1.3 DST....................................................................................................................................................................................................24
4.2 Live configuration..........................................................................................................................................................................................25
4.2.1 Live.....................................................................................................................................................................................................25
4.2.2 Main monitor.......................................................................................................................................................................................26
4.2.3 Spot....................................................................................................................................................................................................27
4.2.4 Mask...................................................................................................................................................................................................28
4.3 Record configuration.....................................................................................................................................................................................29
4.3.1 Enable................................................................................................................................................................................................29
4.3.2 Record stream ....................................................................................................................................................................................29
4.3.3 Time ...................................................................................................................................................................................................30
4.3.4 Stamp.................................................................................................................................................................................................31
4.3.5 Recycle record....................................................................................................................................................................................32
4.3.6 Snap...................................................................................................................................................................................................32
4.4 Schedule configuration..................................................................................................................................................................................32
4.4.1 Schedule.............................................................................................................................................................................................33
4.4.2 Motion.................................................................................................................................................................................................34
4.4.3 Sensor................................................................................................................................................................................................34
4.5 Alarm configuration.......................................................................................................................................................................................35
4.5.1 Sensor................................................................................................................................................................................................35
4.5.2 Motion.................................................................................................................................................................................................38
4.5.3 Video loss...........................................................................................................................................................................................40
4.5.4 Other alarm.........................................................................................................................................................................................40
4.5.5 Alarm out ............................................................................................................................................................................................41
4.6 Network configuration....................................................................................................................................................................................42
4.6.1 Network ..............................................................................................................................................................................................42
Digital Video Recorder User Manual
5
4.6.2 Sub stream .........................................................................................................................................................................................43
4.6.3 Email..................................................................................................................................................................................................45
4.6.4 Other settings......................................................................................................................................................................................46
4.7 User management configuration....................................................................................................................................................................48
4.8 P.T.Z configuration.........................................................................................................................................................................................50
4.9 Reset............................................................................................................................................................................................................54
5Record search & playback and backup......................................................................................................................55
5.1 Time search..................................................................................................................................................................................................55
5.2 Event search.................................................................................................................................................................................................56
5.3 File management..........................................................................................................................................................................................57
5.4 Image...........................................................................................................................................................................................................58
5.5 Backup.........................................................................................................................................................................................................58
6Manage DVR................................................................................................................................................................60
6.1 Check system information.............................................................................................................................................................................60
6.1.1 System information..............................................................................................................................................................................60
6.1.2 Event information................................................................................................................................................................................60
6.1.3 Log information ...................................................................................................................................................................................60
6.1.4 Network information.............................................................................................................................................................................60
6.1.5 Online information...............................................................................................................................................................................60
6.2 Disk management.........................................................................................................................................................................................60
6.3 Upgrade .......................................................................................................................................................................................................61
6.4 Logoff...........................................................................................................................................................................................................61
7Remote Surveillance ................................................................................................................................................... 62
7.1 Accessing DVR.............................................................................................................................................................................................62
7.1.1 On LAN...............................................................................................................................................................................................62
7.1.2 OnWAN..............................................................................................................................................................................................63
Digital Video Recorder User Manual
6
7.2 The remote live preview interface as below:...................................................................................................................................................64
7.3 Remote playback & backup...........................................................................................................................................................................67
7.3.1 Remote playback ................................................................................................................................................................................67
7.3.2 Remote backup...................................................................................................................................................................................72
7.4 Remote System Configuration.......................................................................................................................................................................74
8Mobile Surveillance.....................................................................................................................................................75
8.1 By Phones with Windows mobile...................................................................................................................................................................75
8.2 By Phones with Symbian...............................................................................................................................................................................78
8.3 The operation method for iPhone mobile clients................................................................................................. Error! Bookmark not defined.
8.4 The installation & operation methods for Android mobile clients Software Installation........................................... Error! Bookmark not defined.
8.5 Installation and Operation methods for blackberry mobile phone Client...........................................................................................................94
8.5.1 Installation instruction for Blackberry mobile phone client......................................................................................................................94
8.5.2 Operation method for Black berry mobile phone client..........................................................................................................................97
Appendix A FAQ………………………………………………………………………………………………………………….............104
Appendix B Calculate Recording Capacity………………………………………………………………..…………………………108
Appendix C Compatible Devices…………………………………………………………………………………………………........109
Appendix D 4-CH DVR Specifications…………………………………………………………………………………………………110
Appendix E 8-CH DVR Specifications…………………………………………………………………………………………………111
Appendix F 16-CH DVR Specifications………………………………………………………………………………………………..112
Digital Video Recorder User Manual
7
1 Introduction
1.1 DVR Introduction
This model of DVR (Digital Video Recorder) is designed for high performance CCTV solutions. It adopts state of the art
video processing chips and embedded Linux system. Meanwhile, it utilizes most advanced technologies, such as standard
H.264 with low bit rate, Dual stream, SATA interface, VGA output mouse supported, IE browser supported with full remote
control, mobile view(by phones), etc., ensuring powerful functions and high stability. Due to these distinctive characteristics,
it is widely used in banks, telecommunication, transportation, factories, warehouse, and other related applications.
1.2 Main Features
COMPRESSION FORMAT
Standard H.264 compression with low bit rate and better image quality
LIVE SURVEILLANCE
Support HD VGA output
Support channel security by hiding live display
Display the local record state and basic information
Support USB to make full control
RECORD MEDIA
Support one SATA HDD to record for a longer time without any limitation
BACKUP
Support USB 2.0 devices to backup
Digital Video Recorder User Manual
8
Support saving recorded files with AVI standard format to a remote computer through internet
RECORD & PLAYBACK
Record modes: Manual, Schedule, Motion detection and Sensor alarm recording
Support recycle after HDD full
Resolution, frame rate and picture quality are adjustable
128MB for every video file packaging
4 audio channels available
Two record search mode: time search and event search
Support 4/8/16 screen playback simultaneously
Support deleting and locking the recorded files one by one
Support remote playback in Network Client through LAN or internet
ALARM
1 channel alarm output and 4/8/16 channel alarm input available
Support schedule for motion detection and sensor alarm
Support pre-recording and post recording
Support linked channels recording once motion or alarm triggered on certain channel
Support linked PTZ preset ，auto cruise and track of the corresponding channel
PTZ CONTROL
Support various PTZ protocols
Support 128 PTZ presets and 8 auto cruise tracks
Support remote PTZ control through internet
SECURITY
Customize user right: log search, system setup, two way audio, file management, disk management, remote login,
Digital Video Recorder User Manual
9
live view, manual record, playback, PTZ control and remote live view
Support 1 administrator and 15 users.
Support event log recording and checking, events unlimited
NETWORK
Support TCP/IP, DHCP, PPPoE, DDNS protocol
Support IE browser to do remote view
Support setup client connection amount
Support dual stream. Network stream is adjustable independently to fit the network bandwidth and environment.
Support picture snap and color adjustment in remote live
Support remote time and event search, and channel playback with picture snap
Support remote PTZ control with preset and auto cruise
Support remote full menu setup, changing all the DVR parameters remotely
Support mobile surveillance by smart phones , Symbian, WinCE, Iphone , Gphone, or Blackberry, 3G network
available
Support CMS to manage multi devices on internet
Digital Video Recorder User Manual
10
2 Hardware Installation
Notice: Check the unit and the accessories after getting the DVR.
Please disconnect the power before being connected to other devices. Don't hot plug in/out
2.1 Install Hard Drive
2.1.1 Install Hard Drive
Notice: 1.This series support one SATA hard drive. Please use the hard drive the manufacturers recommend specially
for security and safe field. Please refer to “Appendix C Compatible Devices 2”.
2. Please calculate HDD capacity according to the recording setting. Please refer to “Appendix B Calculate
Recording Capacity”.

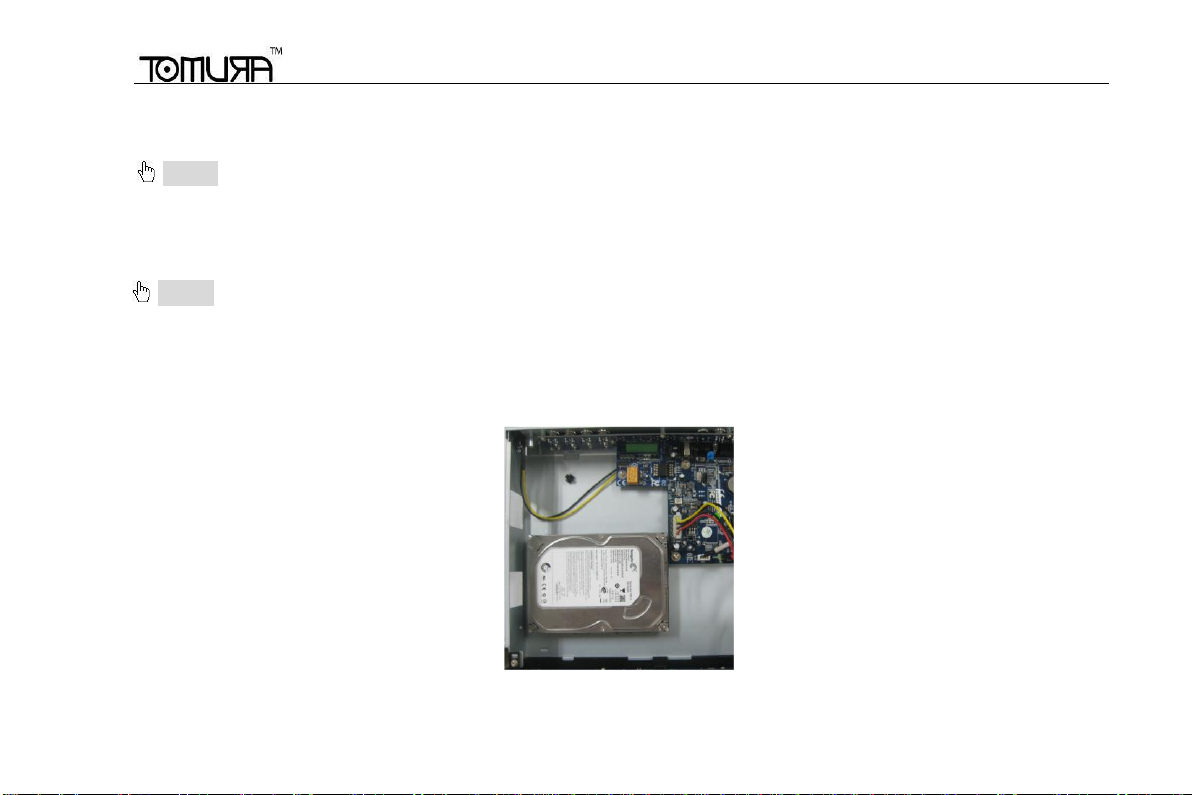

Step1: Unscrew and Open the top cover
Step2: Connect the power and data cables. Place the HDD onto the bottom case as below.
Fig 2.1 Connect HDD
Step3: Mount the HDD as below.
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Tomura Registratore digitale
