Topcon CL-55 Series Manuale utente
CL-55 User Manual
Part Number: 1033350-01
Rev Number: A
© Copyright Topcon Precision Agriculture
All contents in this manual are copyrighted by Topcon Agriculture. All rights reserved. The
information contained herein may not be used, accessed, copied, stored, displayed, sold, modified,
published or distributed, or otherwise reproduced without express written consent from Topcon
Agriculture.
Topcon Agriculture shall not be held responsible for possible inaccuracies due to misprints within
this Manual; Topcon Agriculture reserves the right to modify the Manual and the devices in
appropriate ways to generally improve the product, without prejudice to its performance.
1033350-01 Rev A 2
Table of Contents
Foreword ........................................................................................................... 3
General Information .......................................................................................... 3
Description ...................................................................................................... 3
CL-55 variants ................................................................................................ 3
Hardware ........................................................................................................ 4
Mechanical characteristics ......................................................................... 4
Cover characteristics ............................................................................... 6
Technical Specifications ................................................................................ 10
Thermal characteristics................................................................................. 10
Operating temperature ............................................................................. 10
Storage temperature ................................................................................ 10
Altitude…. ................................................................................................. 10
Humidity ................................................................................................... 10
General environmental characteristics ......................................................... 10
Protection degree ..................................................................................... 10
Vibration and shock .................................................................................. 10
Electrical characteristics ............................................................................... 10
Electrical architecture ............................................................................... 10
Supply voltage .......................................................................................... 14
Installation –setup ......................................................................................... 15
CL-55 installation .......................................................................................... 15
Layout diagrams ............................................................................................. 15
Label ................................................................................................................ 17
User interface .................................................................................................. 20
Product warranty ............................................................................................ 20
Assistance and repair..................................................................................... 20
Use restrictions and warnings (RED) ............................................................ 21
Use restrictions and warnings (FCC / ISED) ................................................. 21
RF Radiation Exposure statement ................................................................ 22
Foreword
The CL-55 adds cellular and Wi-Fi capability to the X-Family consoles. It allows access to the new
Topcon Agriculture Platform (TAP), which is a cloud based integrated agronomic management
platform. It also provides access to the XTEND feature in the Horizon console operating system.
1033350-01 Rev A 3
General Information
Description
The CL-55 (Couldlink55) is proposed as a standalone box with a dedicated LINUX-based, ultra-low
power, hi-performance processor. It will provide 3G global, LTE cat1 regional, Dual-mode Bluetooth
v4.2, WiFi 802/11 b,g,n communication capability along with a multimode positioning system (aGPS
and telephone cell geo-referencing) and an hardware based, highly secure encryption engine, up to 4
CAN Lines and LAN Lines BroadR-Reach automotive and standard Ethernet. The CL-55 is also
compatible with a 4G/LTE modems covering different geographical areas and operators
(EU/AUS/VZW/JAP). The IP66 plastic box, the industrial grade working temperature range of the
electronics and the rugged mechanics, allow the use of CL-55 on any kind of agricultural or
construction machine and other on-road and off-road transportation means.
CL-55 variants
The CL-55 is available in different hardware versions with different MODEM characteristics:
•CL-55 3G
•CL-55 LTE EU
•CL-55 LTE JAP
•CL-55 LTE EU SDF
•CL-55 LTE AUS
•CL-55 LTE VZW
•CL-55 3G + RADIO
•CL-55 LTE EU + RADIO
•CL-55 LTE JAP + RADIO
•CL-55 LTE EU SDF + RADIO
•CL-55 LTE AUS + RADIO
•CL-55 LTE VZW + RADIO
•CL-55 LITE LTE 3G
•CL-55 LITE LTE EU
•CL-55 LITE LTE JAP
•CL-55 LITE LTE AUS
•CL-55 LITE LTE VZW
The versions for European market are CL-55 3G and CL-55 LTE EU and the corresponding LITE
and +RADIO versions. See “Electrical characteristics” for details on every modem.
1033350-01 Rev A 4
Hardware
Mechanical characteristics
The Mechanical components of CL-55 are:
•Back housing / aluminum carrier
•Plastic front cover with integrated LED-windows
•Mainboard
•Antennas (external & internal)
•Supporting parts (gasket, screws, M8-harness, venting membrane, Label, …)
•GPS antenna connector: C TYPE BLUE CONNECTOR
•3G/4G antenna connector: D TYPE BORDEAUX FAKRA CONNECTOR
•Diversity antenna connector: L TYPE CARMINE RED FAKRA CONNECTOR
•RP-SMA CONNECTOR Wi-Fi
•SATEL RTK
•Input connector J7
•LAN connector J6 (4 contacts)
•LAN connector J8 (3 contacts)
1033350-01 Rev A 5

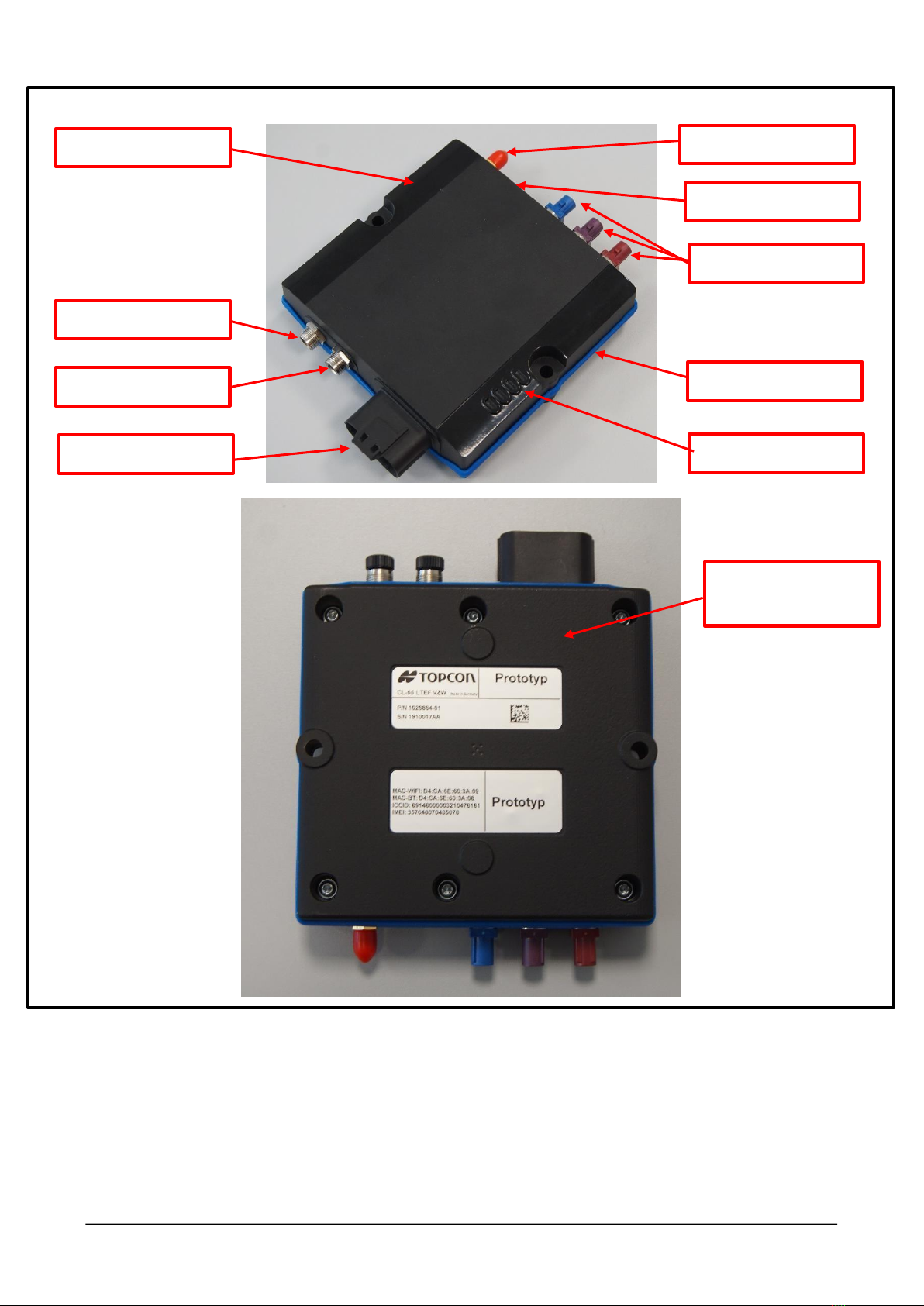

Figure 1
Plastic front cover
M8 3 pin
M8 4 pin
Input connector J7
RP
-
SMA
Sealing standard blue
LED
-
Windows
Aluminum carrier &
back housting
FAKRA Connectrs
Satel RTK optional
1033350-01 Rev A 6
Cover characteristics
Back housing / aluminum carrier
•Aluminum die cast
•Supporting the venting membrane and the label field
•Powder coating with structure, matte, RAL 9005

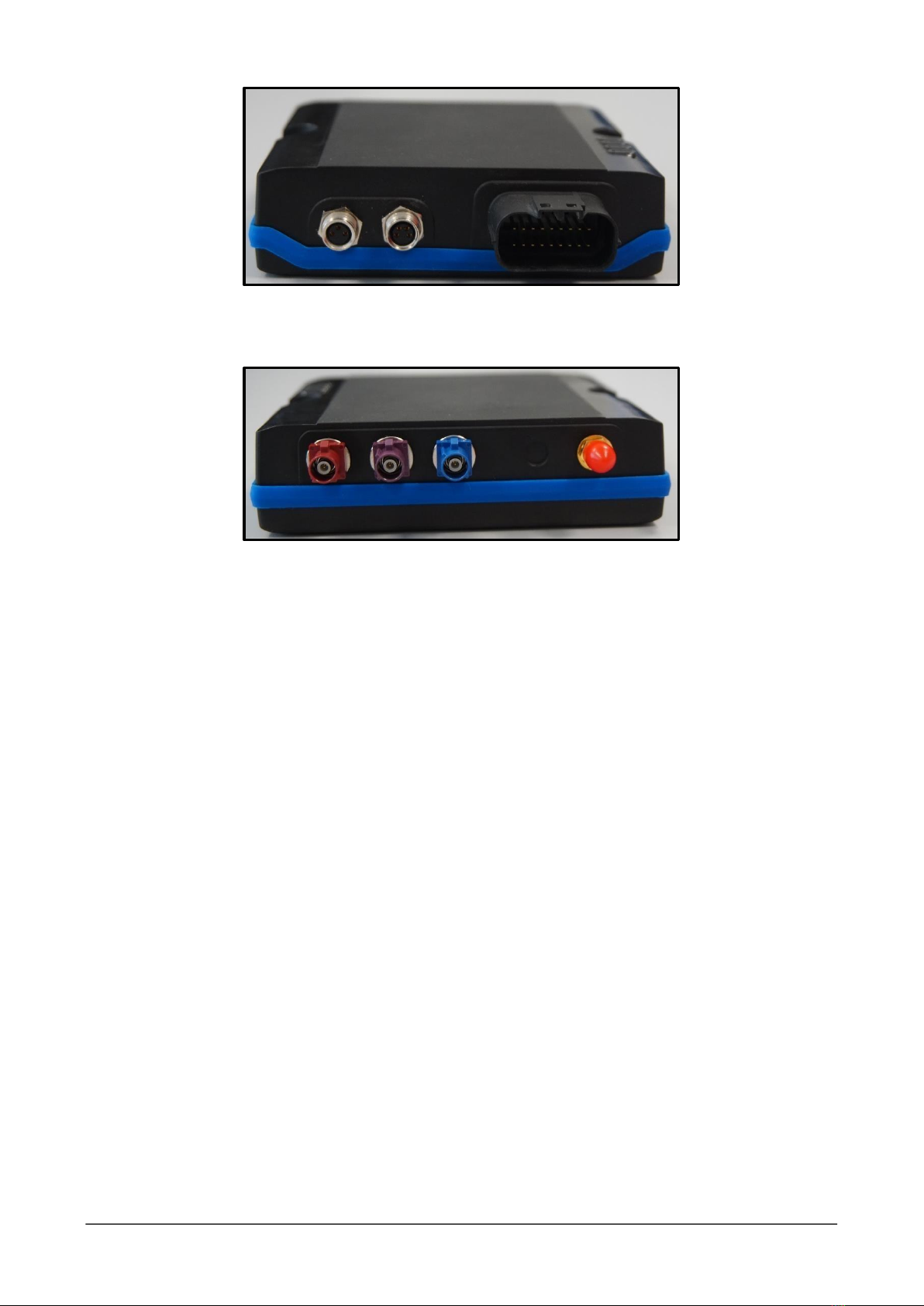

Figure
2
Figure
3
1033350-01 Rev A 7
Plastic Front Cover
•Plastic molded part, visible surfaces etched & polished, no painting
•4 overmolded or assembled LED windows
•Supporting the external Satel RTK
•Supporting the external WiFi-Antenna
•Supporting the external GPS-Connector, 3G-4G Connector, Diversity-Antenna
•Supporting the M8 4 pin, M8 3 pin Main connector
•Plastic material color 9005, black
•Plastic material color GY7G086, light grey

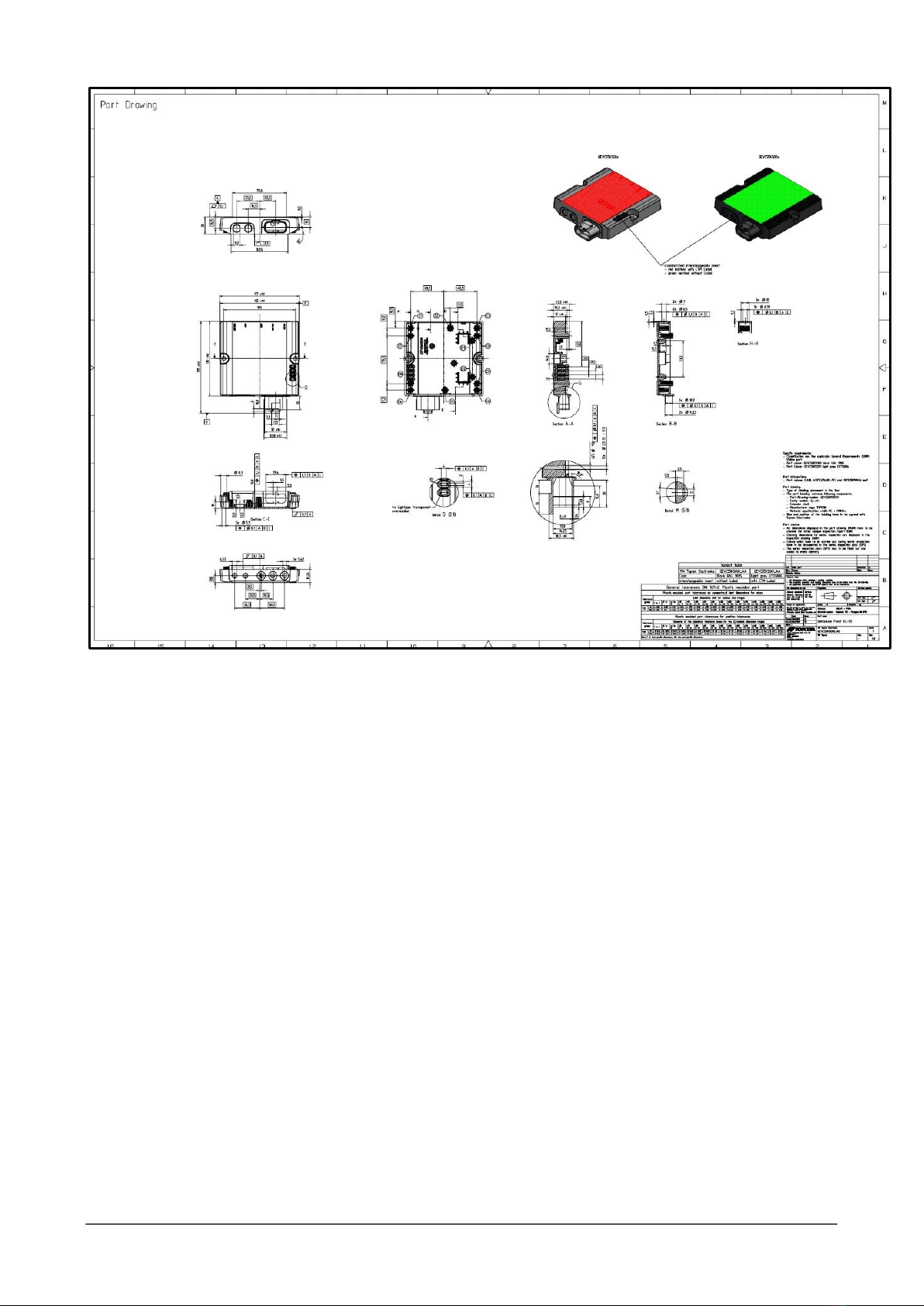

Figure
4
1033350-01 Rev A 8
Mass
The total mass of the CL-55 including the battery and the box is 0,3 kg.
Mechanical dimensions
The CL-55 box board can be contained into a prism having the following dimensions: L:
150,3 mm x W: 119,5 mm x H: 32,2 mm
Figure
5
1033350-01 Rev A 9
Fastening
The fastening method of the CL-55 box will be in accordance with Figure 6 above with two screws
or bolts/nuts.
The fixation holes diameter is 5,5 mm for M5 screws/bolts. The head plane for screws has a
diameter of 10mm and allows mounting with wrench socket up to 15mm diameter. The headplane is
recessed 8mm to cover max. locknut with washer high within the cover dimensions. The mounting
torque should be 1,75 +/-0,25 Nm.
Technical Specifications
Thermal characteristics
Operating temperature
The CL-55 3G and CL-55 LITE 3G operate in accordance with the specification while exposed to a
still air environment at a temperature range of -25 °C < Top < +55 °C.

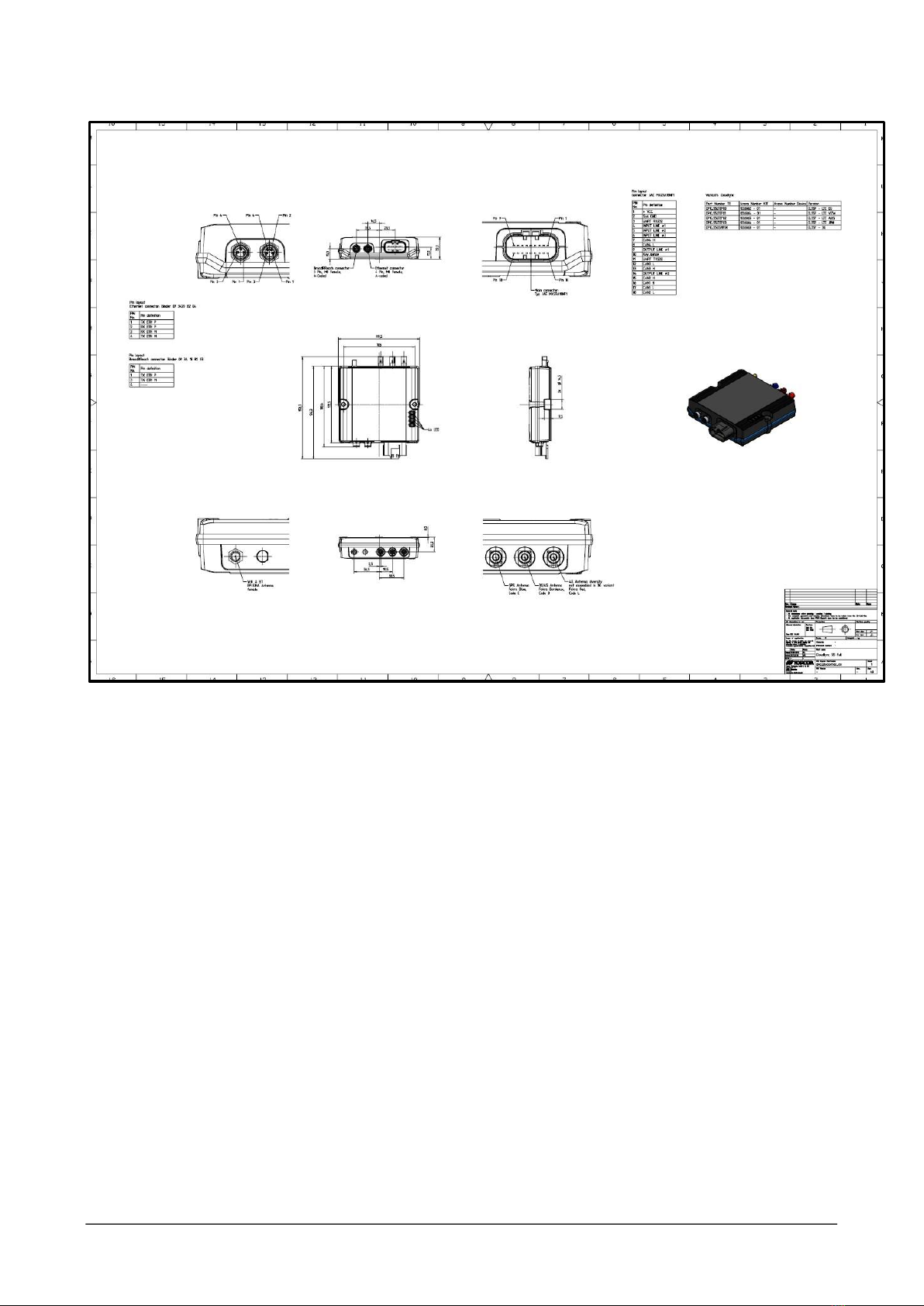

Figure
6
–
CL
-
55
box mechanical
drawing
1033350-01 Rev A 10
The CL-55 LTE EU and CL-55 LITE LTE EU operate in accordance with the specification while
exposed to a still air environment at a temperature range of -25 °C < Top < +50 °C.
Storage temperature
The CL-55 will withstand an indefinite storage in an environment at a temperature range of - 40° C <
Ts < +85 °C.
Altitude
The CL-55 meets the specification requirements if kept to an altitude up to 2500 m a.s.l.
Humidity
The CL-55 operates in accordance with the specification while kept in an ambient of RH included in
the range 5% - 85% non-condensing.
General environmental characteristics
Protection degree
The CL-55, properly installed and connected, meets the IP66 protection level.
Vibration and shock
The CL-55, properly mounted and connected, will be able to operate in accordance with the
specification while exposed to a 10 –2000 Hz random vibration profile of 21.3 m/s2 RMS for 24
hours along each geometrical axis.
The CL-55 will survive the application of 100 impulses of 400 m/s2 (6 mS each) along each
geometrical axis.
Electrical characteristics
Electrical architecture
TABLE 1 shows the main hw characteristics.
TABLE 2 lists the CL-55 Functional blocks.
TABLE 3 shows the microprocessor block diagram.
Features
Type
Notes
