Topeak Prepstand Series Manuale utente

PREPSTAND™PRO

WEIGHT SCALE

Art no. TW001-1

Art no. TWSC01

PREPSTAND™ELITE

Art no. TW002-1

User's Guide

PREPSTAND™SERIES

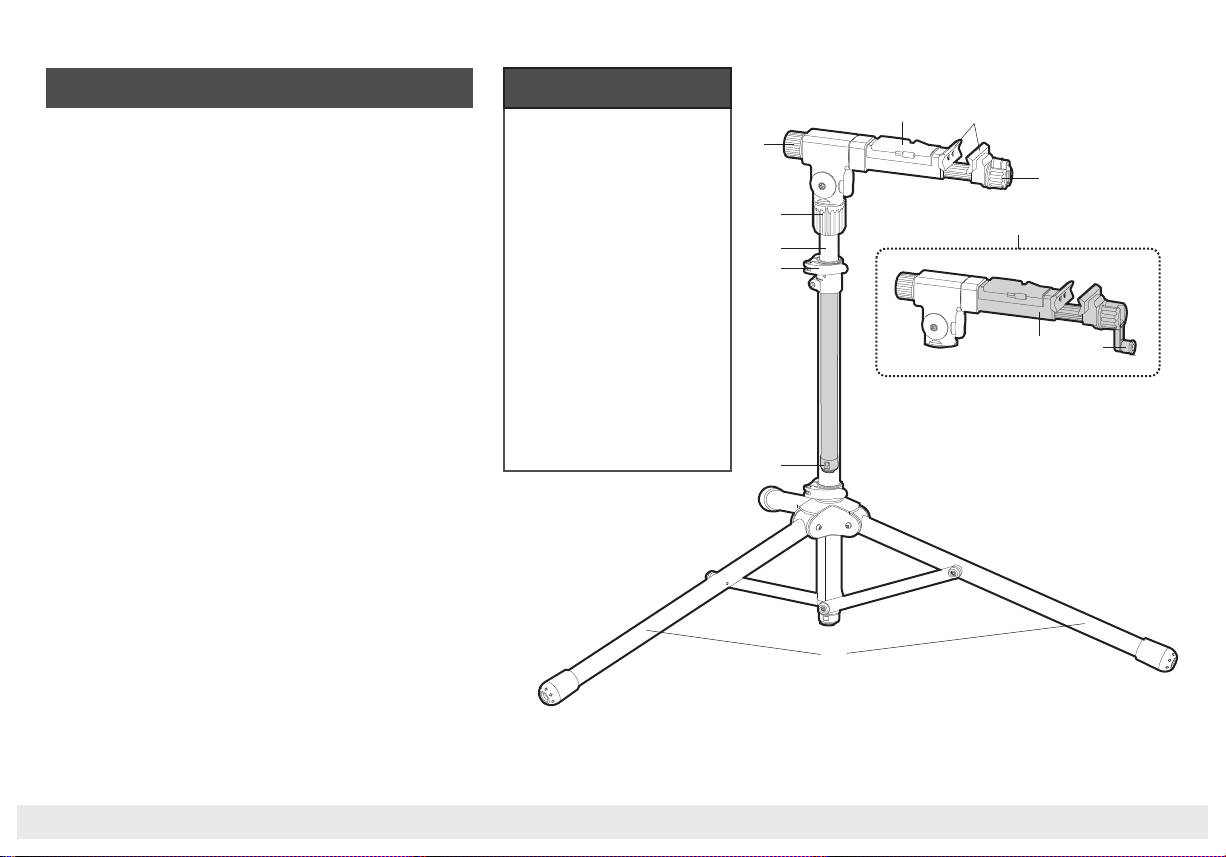

REPAIR & STORAGE SOLUTIONS01 PREPSTAND SERIES

1. 360˚ Rotation Knob

2. Small Parts Box

3. Clamp Jaws

4. Clamp Knob

5. Main Unit

5a. Clamp Arm

5b. Clamp Lever

6. Folding Knob

7. Extension Tube

8. QR Clamp Lever

9. Air Cushion Valve

10. Support Legs

DETAILED PARTS DESCRIPTION

TABLE OF CONTENTS

PREPSTAND ELITE

03-04 : ASSEMBLY

03 : SUPPORT LEGS ASSEMBLY

04 : MAIN UNIT ASSEMBLY

05 : ADJUSTMENT

05 : CLAMP STRENGTH ON EXTENSION TUBE

AND CLAMP JAWS ADJUSTMENT

05 : ROTATING ANGLE ADJUSTMENT

06 : SMALL PARTS BOX

06 : SMALL PARTS BOX OPERATION

08-10 : DISASSEMBLY

08 : ROTATE CLAMP ARM TO HORIZONTAL

POSITION

08 : CLOSE CLAMP JAWS

09 : FOLD MAIN UNIT

10 : FOLD SUPPORT LEGS

06 : PREPSTAND PRO (WITH WEIGHT SCALE)

06 : WEIGHT MEASUREMENT

05-07 : WEIGHT SCALE

05 : CONVERT SMALL PARTS BOX TO WEIGHT SCALE

07 : QUICK START MANUAL

07 : CHANGE BATTERY

5a 5b

REPAIR & STORAGE SOLUTIONS

PREPSTAND SERIES

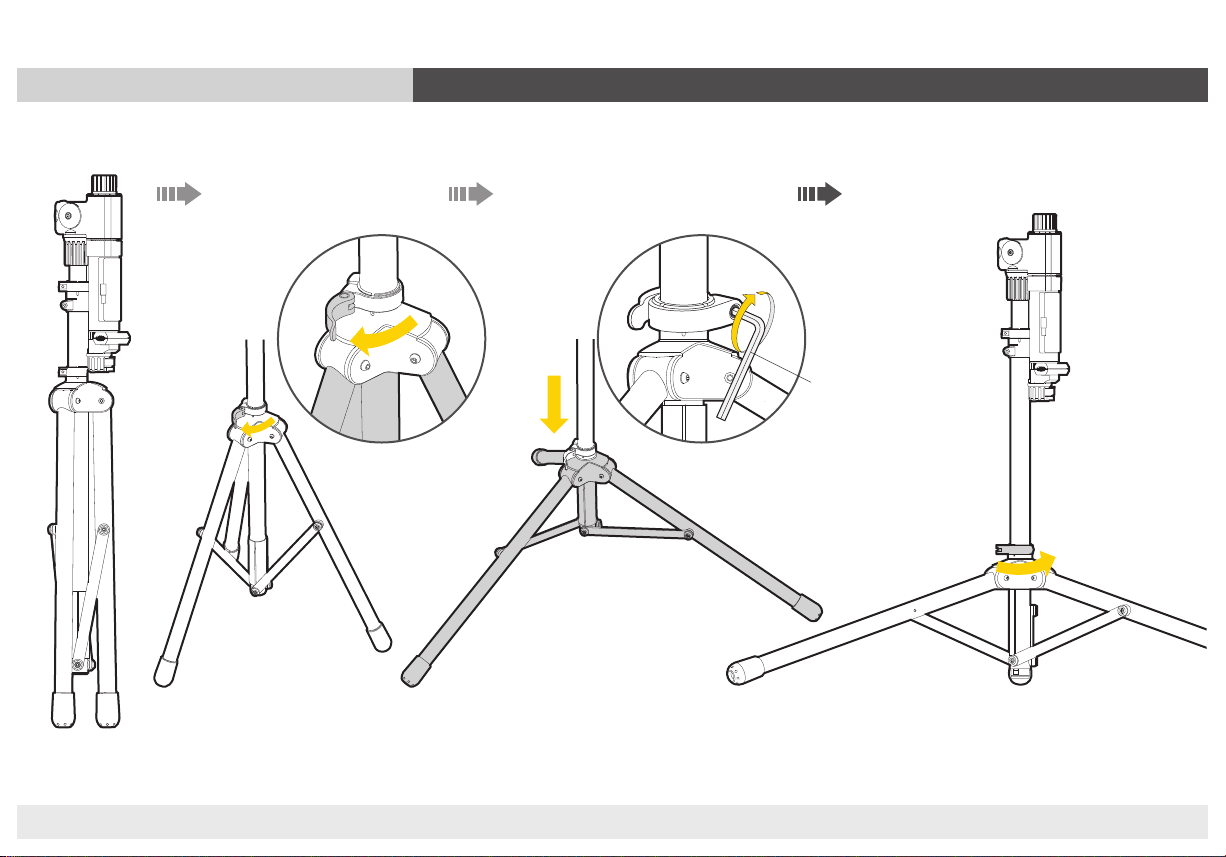

SUPPORT LEGS ASSEMBLY

ASSEMBLY

PREPSTAND ELITE

NOTE:

Always fully expand support

legs for a steady foundation.

5mm

Allen Key

Clamp strength

adjustment

REPAIR & STORAGE SOLUTIONS PREPSTAND SERIES

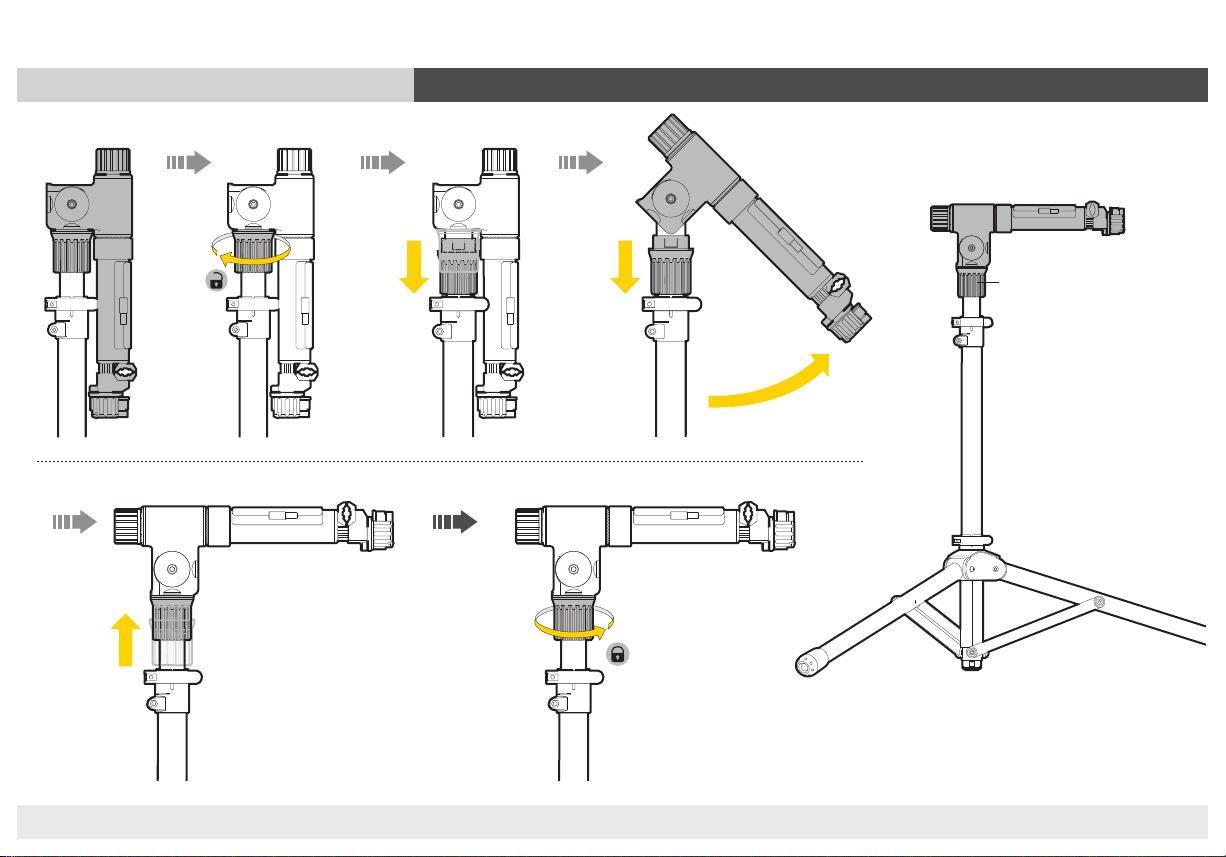

MAIN UNIT ASSEMBLY

NOTE:

Always make sure folding knob

is securely tightened.

ASSEMBLY

Folding Knob

REPAIR & STORAGE SOLUTIONS

PREPSTAND SERIES

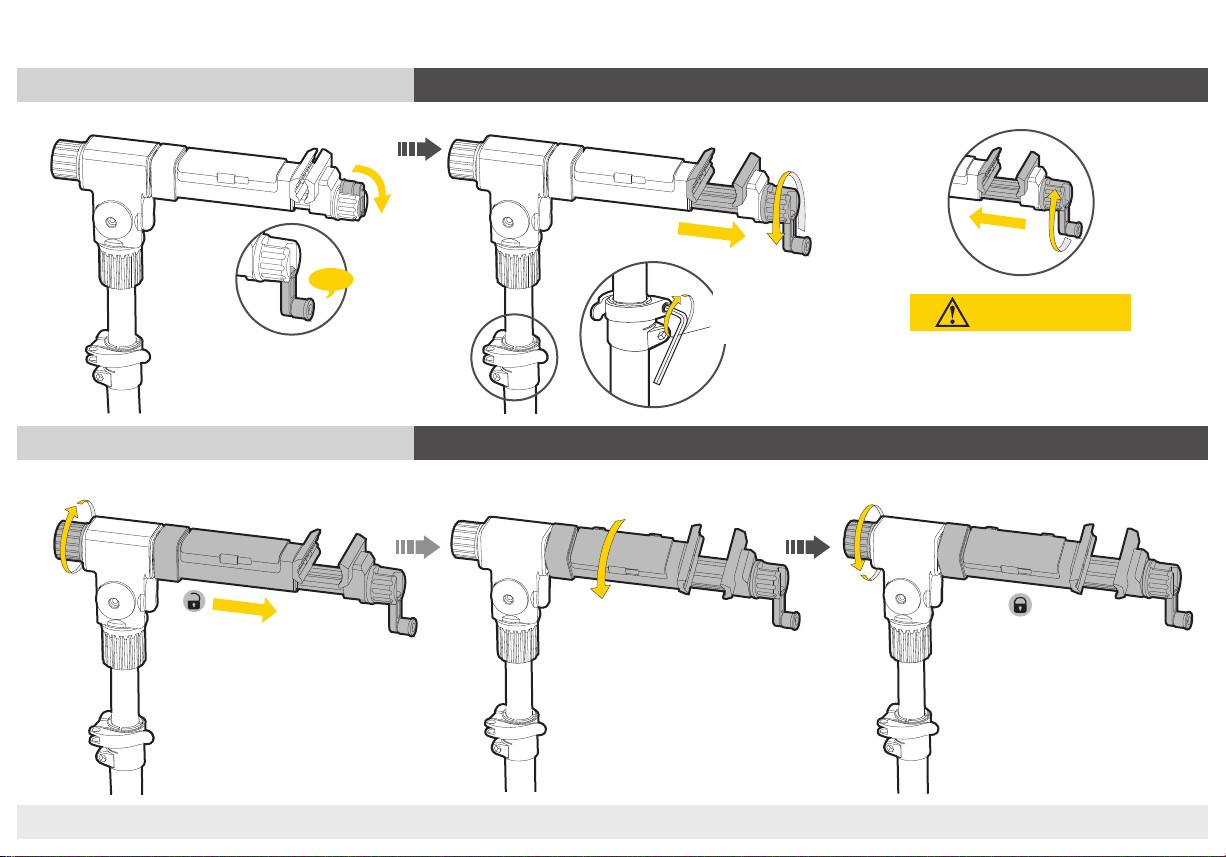

CLAMP STRENGTH ON EXTENSION TUBE AND CLAMP JAWS ADJUSTMENT

ROTATING ANGLE ADJUSTMENT

ADJUSTMENT

Clamp strength

on extension tube

adjustment

Clamp

Lever

NOTE:

Always make sure small

parts box is locked before

rotating main unit.

ADJUSTMENT

NOTE:

Always make sure clamp

arm is securely tightened

after rotating.

Tighten the clamp lever

carefully. Over-tightening may

cause damage to your bike.

CAUTION

CLICK

5mm

Allen

Key

REPAIR & STORAGE SOLUTIONS PREPSTAND SERIES

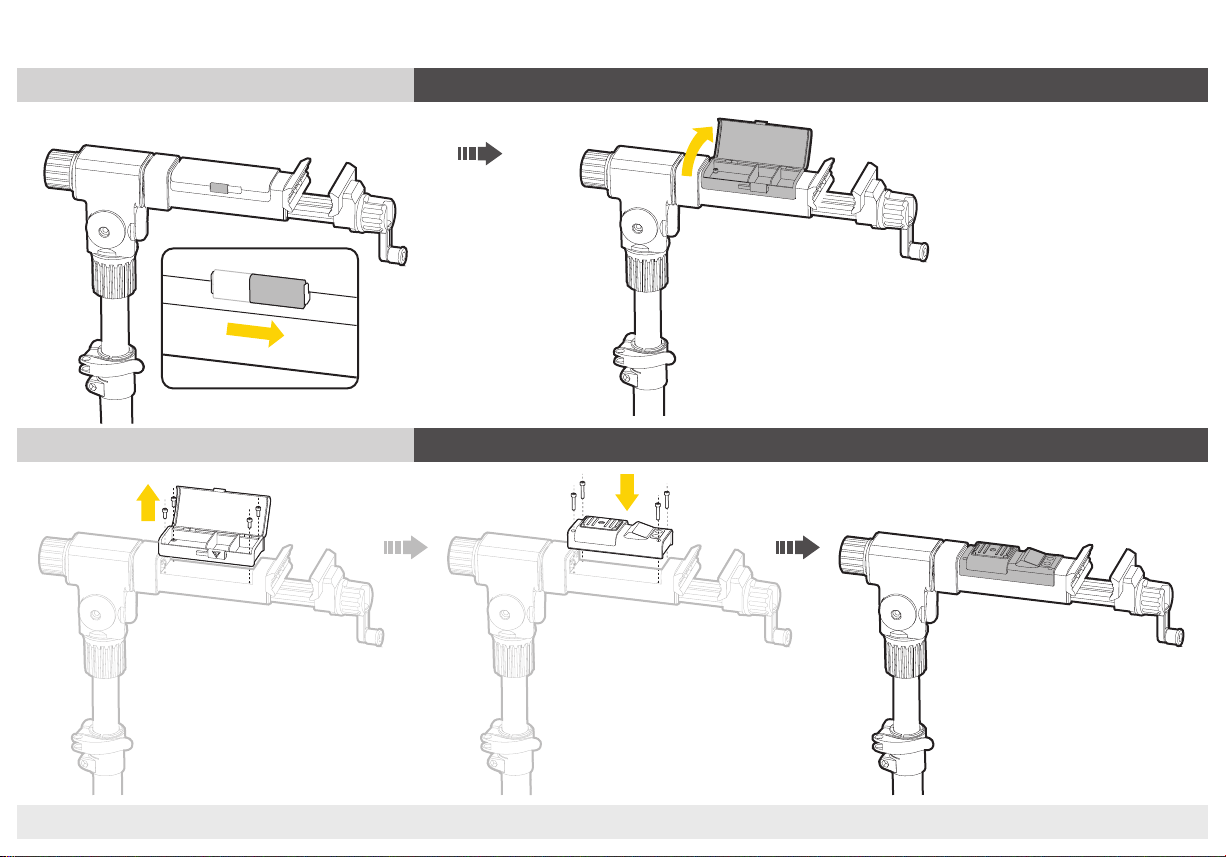

SMALL PARTS BOX

CONVERT SMALL PARTS BOX TO WEIGHT SCALE

SMALL PARTS BOX OPERATION

WEIGHT SCALE

NOTE:

Always make sure small

parts box is locked before

rotating main unit.

REPAIR & STORAGE SOLUTIONS

PREPSTAND SERIES

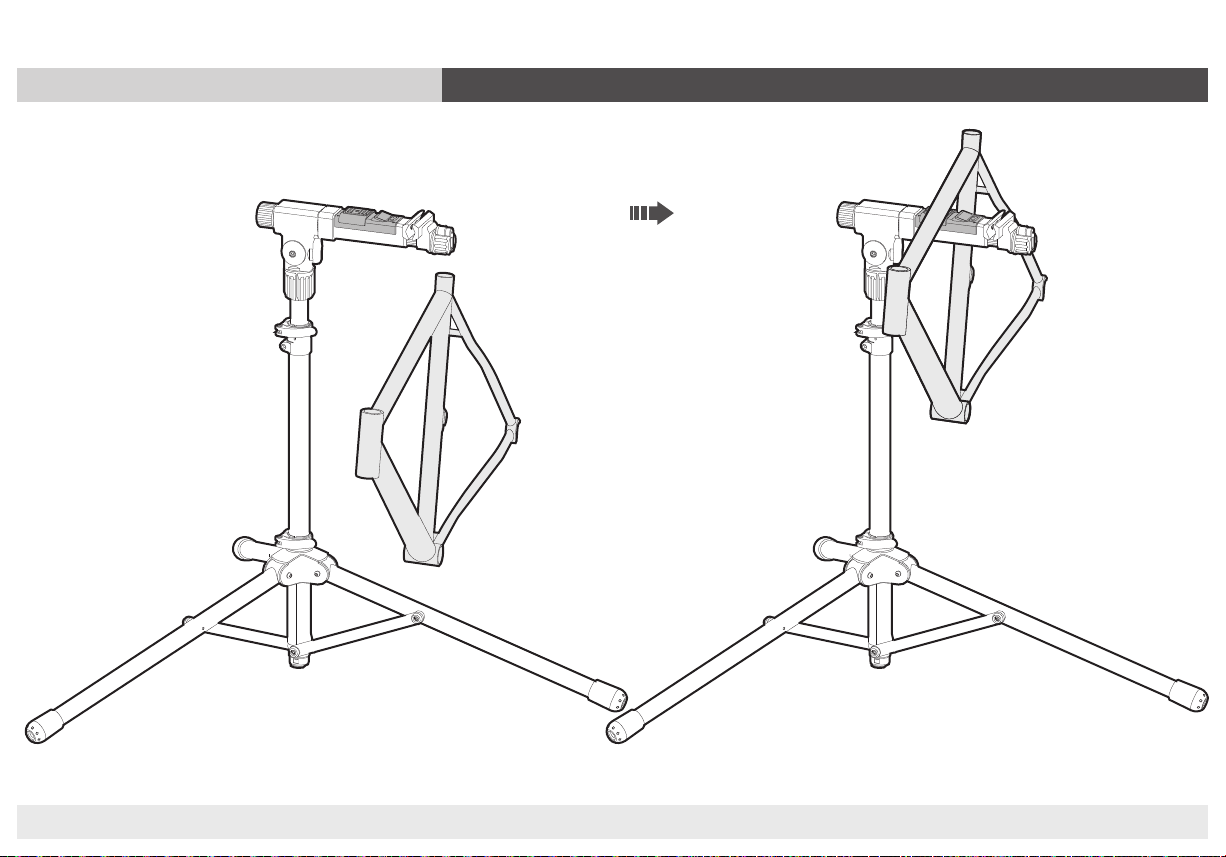

PREPSTAND WITH WEIGHT SCALE

PREPSTAND PRO (WITH WEIGHT SCALE)

WEIGHT MEASUREMENT

NOTE:

In order to weigh accurately, support

legs should be on ﬂat ground and

weight scale facing up in vertical

position. Make sure item being weighed

is not touching Prepstand.

REPAIR & STORAGE SOLUTIONS PREPSTAND SERIES

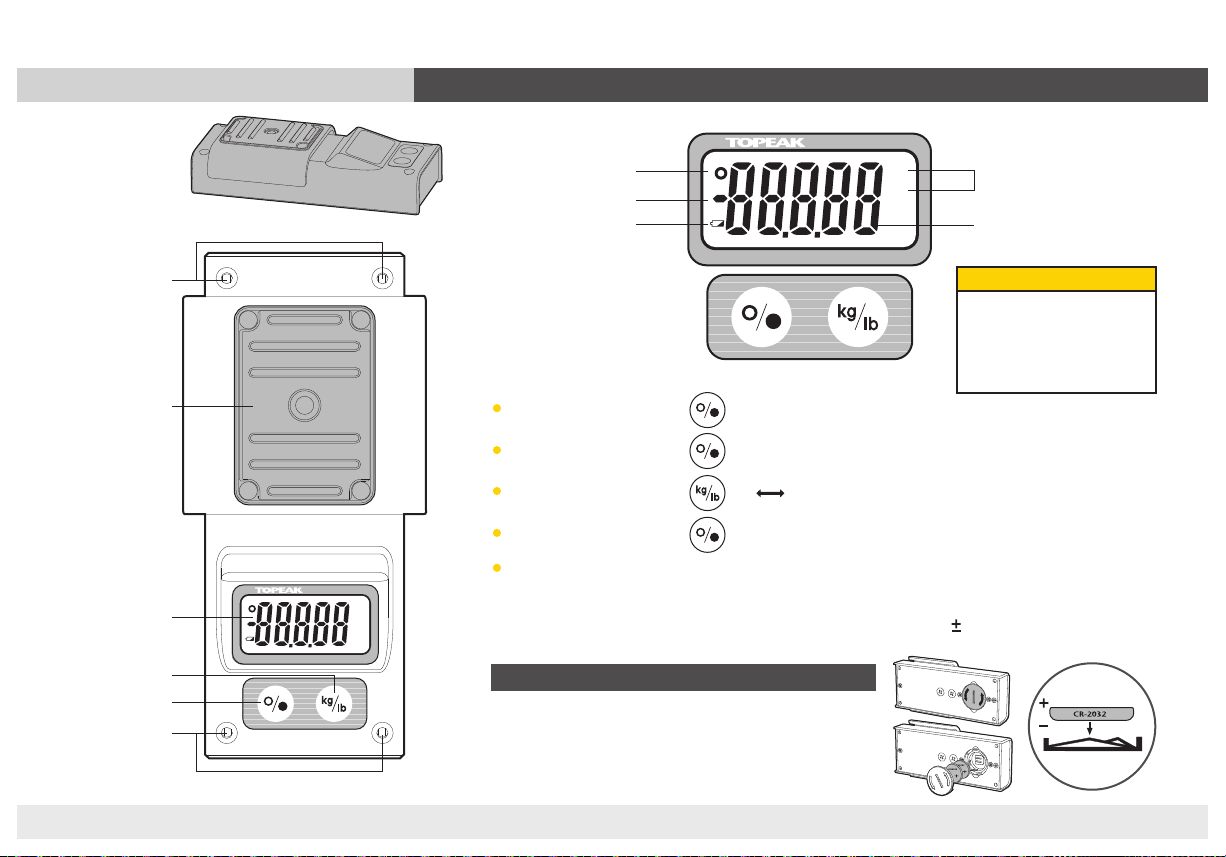

QUICK START MANUAL

WEIGHT SCALE

CHANGING BATTERIES (CR2032 x 2 pcs)

1. Open battery cover.

2. Replace batteries. Be sure positive and

negative side of batteries are inserted correctly

when replacing.

Size: (L x W x H)

5.4" x 2.5" x 1"

Weight: 240 g

Scale

Display screen

On/Oﬀ/Reset

Unit selection

(Screws -

M4 x 0.7mm x L20

Supplied)

Screw Holes

(Screws -

M4 x 0.7mm x L20

Supplied)

Screw Holes

Ready to weigh/

weight completed

indicator

Negative indicator

Low battery indicator Digital display screen

Measured data from the

Topeak weight scale is for

personal reference only

and cannot be used for

commercial purposes.

BE AWARE

Weight units

On Press

Oﬀ Press and hold for 3 seconds.

Unit Selection Press kg lb

Reset Press when unit is on.

Auto-oﬀ Display screen will shut oﬀ automatically after 3 minutes of inactivity.

OPERATION:

NOTE:

Maximum weight capacity is 25 kg (55 lb), accuracy tolerance: 20 g

REPAIR & STORAGE SOLUTIONS

PREPSTAND SERIES

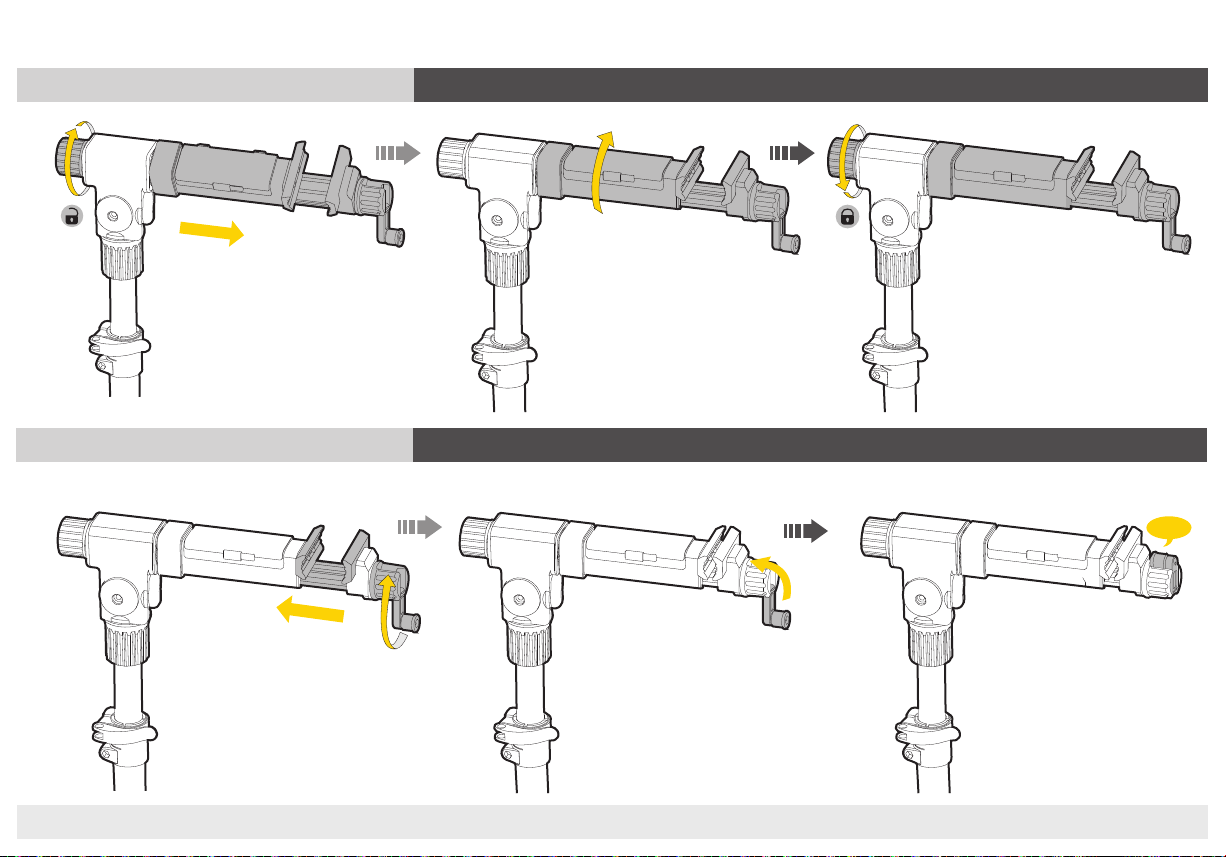

DISASSEMBLY

CLICK

ROTATE CLAMP ARM TO HORIZONTAL POSITION

CLOSE CLAMP JAWS

PREPSTAND ELITE

REPAIR & STORAGE SOLUTIONS PREPSTAND SERIES

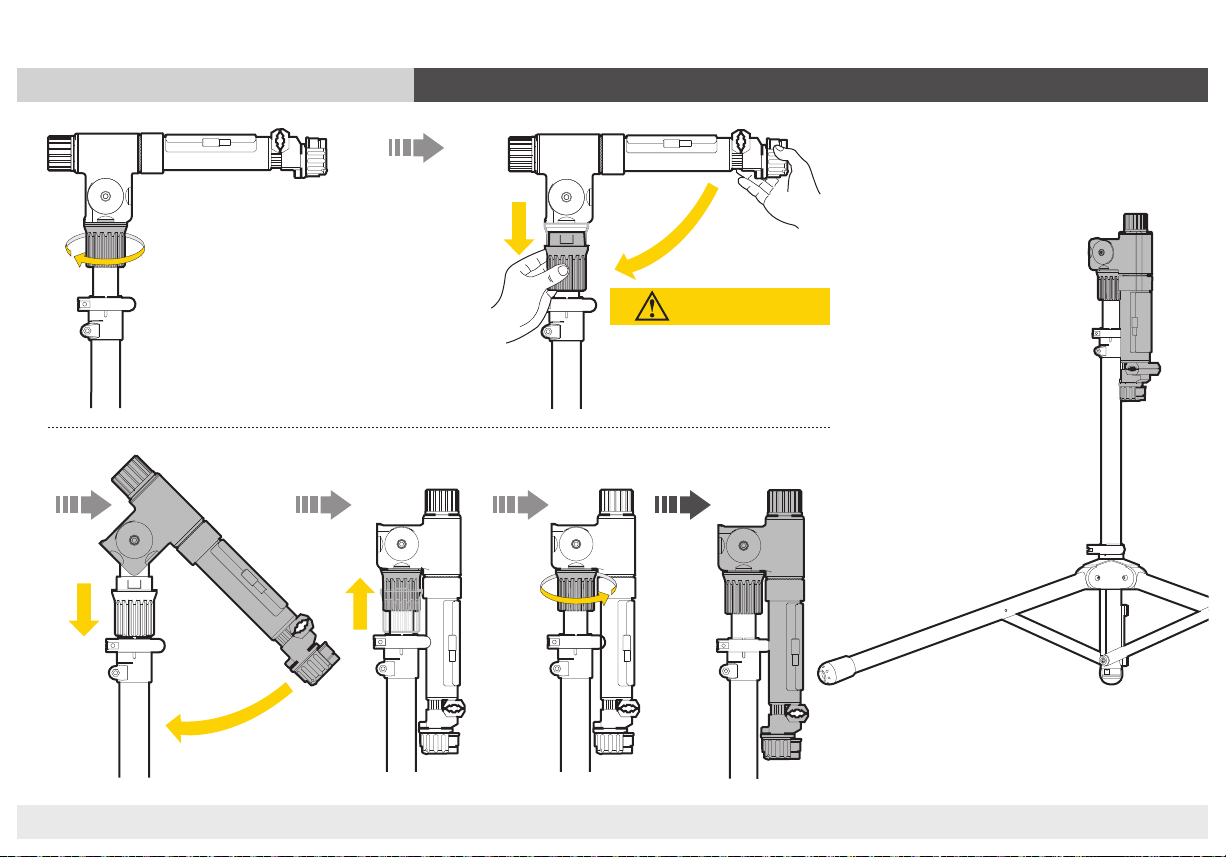

FOLD MAIN UNIT

DISASSEMBLY

Always use both hands to

fold down main unit,

otherwise main unit might hit

your ﬁngers and cause injury.

CAUTION
