1. Read through the instruction manuel thoroughly before beginning
construction
Before You Begin

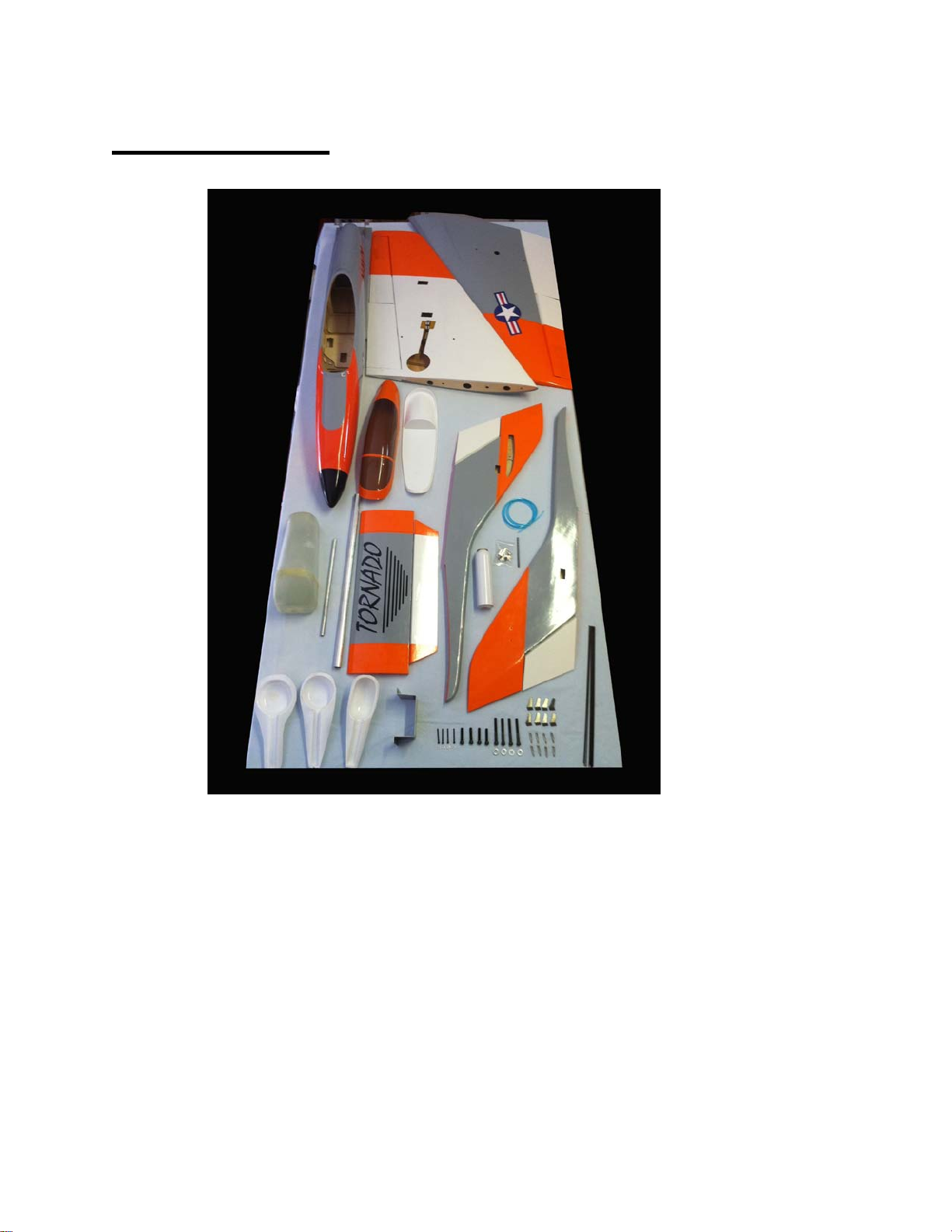

2. Check all parts supplied with the kit for defects, and missing parts.
Dry fit all parts that will be glued for proper fit. If any parts are
found to be defective please contact local dealer for assistance.
3. Use proper adhesives for assembly, It is imperative that all glue
joints be very strong for best results and safety.
1. Hysol or 15 Min epoxy with micro balloons
Adhesive Required:
2. 30 min epoxy
3. Medium CA
4. Zap-A-Dapa GOO or Automotive Goop
1. Turbine 12lb-18lb thrust
Required Parts for Final Assembly
2. TX and RX with a minimum of 7 channels
3. 4- mini servos with a minimum of 65oz torque for Empennage
4. 5- Standard size servos with a minimum of 120oz torque for
Ailerons,Flaps and Nose wheel steering
5. 1- Standard servo for retract valve
6. Electronic Brake Valve or Mechanical Brake valve
7. UAT
8. RX battery with a minimum of 2,200 mah 6v
9. 2 5/8 Wheels and Brakes for Main Gear, 2/14 Nose wheel
10. A minimum of 3/8 struts for Mains and Nose
11. Pull-Pull cable for steering
