Toro 81801 Manuale utente

FormNo.3455-226RevA

Flex-ForcePowerSystem™

60VMAXBatteryCharger

ModelNo.81801—SerialNo.323000001andUp

Registeratwww.Toro.com.

OriginalInstructions(EN)*3455-226*

Introduction

Thisbatterychargerisintendedtobeusedbyresidentialhomeowners.

ThischargerisdesignedtochargeonlyToro60Vlithium-ionbatterypacks.

Itisnotdesignedtochargeanyotherbatteries.Usingthisproductfor

purposesotherthanitsintendedusecouldprovedangeroustoyouand

bystanders.

Readthisinformationcarefullytolearnhowtooperateandmaintain

yourproductproperlyandtoavoidinjuryandproductdamage.Youare

responsibleforoperatingtheproductproperlyandsafely.

Visitwww.Toro.comformoreinformation,includingsafetytips,training

materials,accessoryinformation,helpndingadealer,ortoregisteryour

product.

Wheneveryouneedservice,genuineT oroparts,oradditionalinformation,

contactanAuthorizedServiceDealerorT oroCustomerServiceandhave

themodelandserialnumbersofyourproductready.Figure1identies

thelocationofthemodelandserialnumbersontheproduct.Writethe

numbersinthespaceprovided.

Important:Withyourmobiledevice,youcanscantheQRcodeon

theserialnumberdecal(ifequipped)toaccesswarranty,parts,and

otherproductinformation.

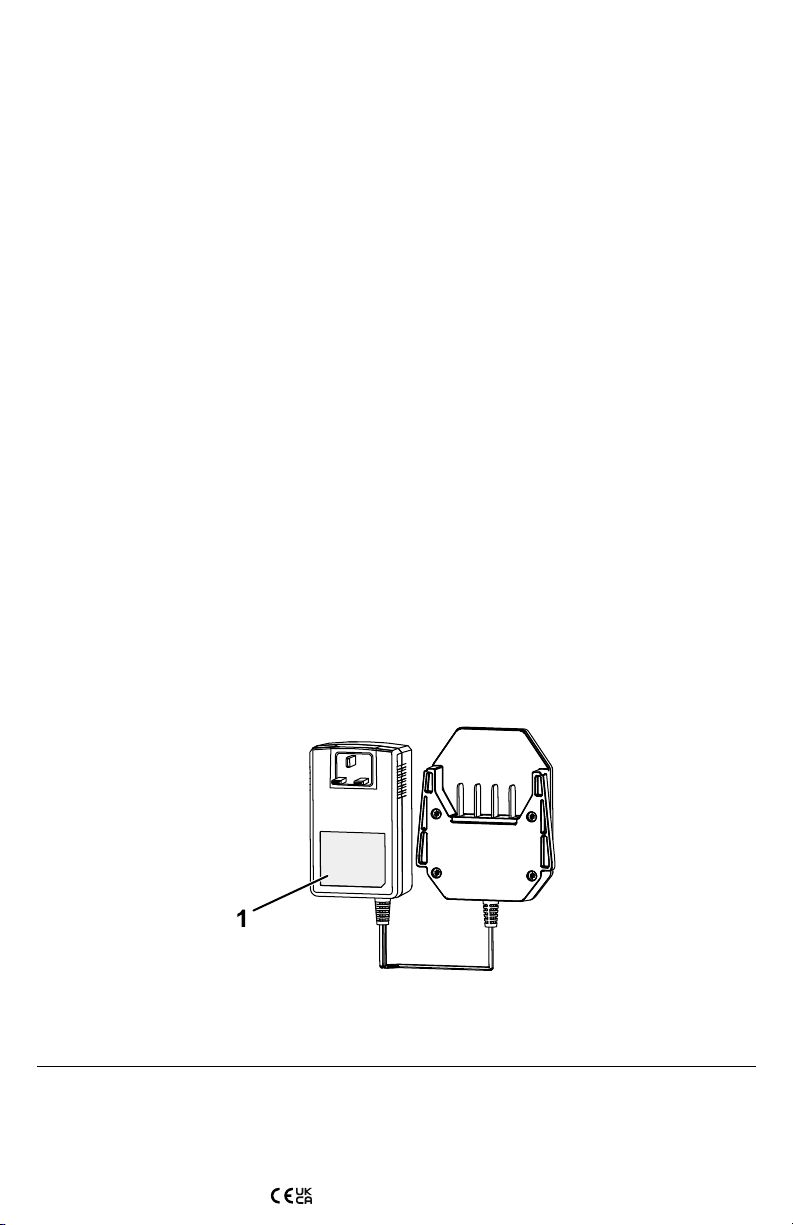

g400607

Figure1

1.Modelandserialnumberlocation.

Company

8111LyndaleAvenue

South

Bloomington,MN

55420

Registerat

www.Toro.com.

OriginalInstructions

(EN)

PrintedinChina

AllRightsReserved*3455-226*

ModelNo.

SerialNo.

Safety-AlertSymbol

Thesafety-alertsymbol(Figure2)showninthismanualandonthe

machineidentiesimportantsafetymessagesthatyoumustfollowto

preventaccidents.

g000502

Figure2

Safety-alertsymbol

Thesafety-alertsymbolappearsaboveinformationthatalertsyouto

unsafeactionsorsituationsandisfollowedbythewordDANGER,

WARNING,orCAUTION.

DANGERindicatesanimminentlyhazardoussituationwhich,ifnot

avoided,willresultindeathorseriousinjury.

WARNINGindicatesapotentiallyhazardoussituationwhich,ifnot

avoided,couldresultindeathorseriousinjury.

CAUTIONindicatesapotentiallyhazardoussituationwhich,ifnotavoided,

mayresultinminorormoderateinjury.

Thismanualusestwootherwordstohighlightinformation.Importantcalls

attentiontospecialmechanicalinformationandNoteemphasizesgeneral

informationworthyofspecialattention.

Safety

IMPORTANTSAFETYINSTRUCTIONS

1.SAVETHESEINSTRUCTIONS—Thismanualcontainsimportant

safetyandoperatinginstructionsforT oro60Vlithium-ionbattery

packsandToro60Vlithium-ionbatterychargers.

2.Beforeusingthebatterycharger,readalltheinstructionsand

cautionarymarkingsonthebatterycharger,batterypack,and

productusingthebatterypack.

3.CAUTION—Toreduceriskofinjury,chargeT oro60Vlithium-ion

batterypackswithToro60Vlithium-ionbatterychargersonly.Other

brandsofbatterypacksmayburst,causingpersonalinjuryand

damage.

4.WARNING—Pluggingthebatterychargerintoanoutletthatisnot

220to240Vcancauseareorelectricshock.Donotplugthe

batterychargerintoanoutletotherthan220to240V.Foradifferent

styleofconnection,useanattachmentplugadapteroftheproper

congurationforthepoweroutletifneeded.

I.Training

1.Donotallowchildrenoruntrainedpeopletooperateorservicethis

device.Allowonlypeoplewhoareresponsible,trained,familiarwith

theinstructions,andphysicallycapabletooperateorservicethe

device.

2.Donotallowchildrentouseorplaywiththebatterypackorbattery

charger;localregulationsmayrestricttheageoftheoperator.

II.Preparation

1.Useappliancesonlywithspecicallydesignatedbatterypacks.

Usingothertypesofbatterypacksmaycreateariskofinjuryand/or

re.

2.Donotuseadamagedormodiedbatterypackorbatterycharger.

Itmayexhibitunpredictablebehavior,resultinginre,explosion,

orriskofinjury.

3.Ifthesupplycordtothebatterychargerisdamaged,contactan

AuthorizedServiceDealertoreplaceit.

III.Operation

1.Chargethebatterypackwithonlythebatterychargerspeciedby

Toro.Achargersuitablefor1typeofbatterypackmaycreatearisk

ofrewhenusedwithanotherbatterypack.

2.Chargethebatterypackinawell-ventilatedareaonly.

3.Followallcharginginstructionsanddonotchargethebatterypack

outsideofthetemperaturerangespeciedintheinstructions.

Otherwise,youmaydamagethebatterypackandincreasetherisk

ofre.

4.Underabusiveconditions,thebatterypackmayejectliquid;avoid

contact.Ifyouaccidentlycomeintocontactwiththeliquid,ushwith

water.Iftheliquidcontactsyoureyes,seekmedicalhelp.Liquid

ejectedfromthebatterypackmaycauseirritationorburns.

5.Donotexposeabatterypackortooltoreorexcessivetemperature.

Exposuretoreortemperatureabove130°C(265°F)maycause

explosion.

6.CAUTION—Amistreatedbatterypackmaypresentariskofre,

explosion,orchemicalburn.

•Donotdisassemblethebatterypack.

•ReplacethebatterypackwithagenuineTorobatterypackonly;

usinganothertypeofbatterypackmaycauseareorriskof

injury.

•Keepbatterypacksoutofthereachofchildrenandintheoriginal

packaginguntilyouarereadytousethem.

IV.MaintenanceandStorage

1.Donotallowchildrentocleanormaintainthebatterycharger.

2.Whenthebatterypackisnotinuse,keepitawayfrommetalobjects

suchaspaperclips,coins,keys,nails,andscrewsthatcanmakea

connectionfrom1terminaltoanother.Shortingthebatteryterminals

maycauseburnsorare.

3.Donotattempttorepairthebatterypackorbatterycharger.Have

anAuthorizedServiceDealerperformserviceonthebatterypack

orbatterychargerusingidenticalreplacementpartstoensurethat

theproductissafelymaintained.

4.Checkwithlocalcodesforpossiblespecialbatterydisposal

instructions.

SAVETHESEINSTRUCTIONS

SafetyandInstructionalDecals

Safetydecalsandinstructionsareeasilyvisibletothe

operatorandarelocatednearanyareaofpotential

danger.Replaceanydecalthatisdamagedormissing.

decal144-6022

144-6022

1.Readthe

Operator’s

Manual.

3.Double

insulated

2.Forindooruse4.Donotdispose

improperly

decal144-3094

144-3094

1.Thebattery

packis

charging.

3.Thebattery

packisover

orunderthe

appropriate

temperature

range.

2.Thebattery

packisfully

charged.

4.Batterypack

chargingfault

Setup

InstallingtheCorrectPlug

Ifnecessary,removeandinstallthecorrectplugfromthechargertomatch

yourreceptacleasshowninFigure3.

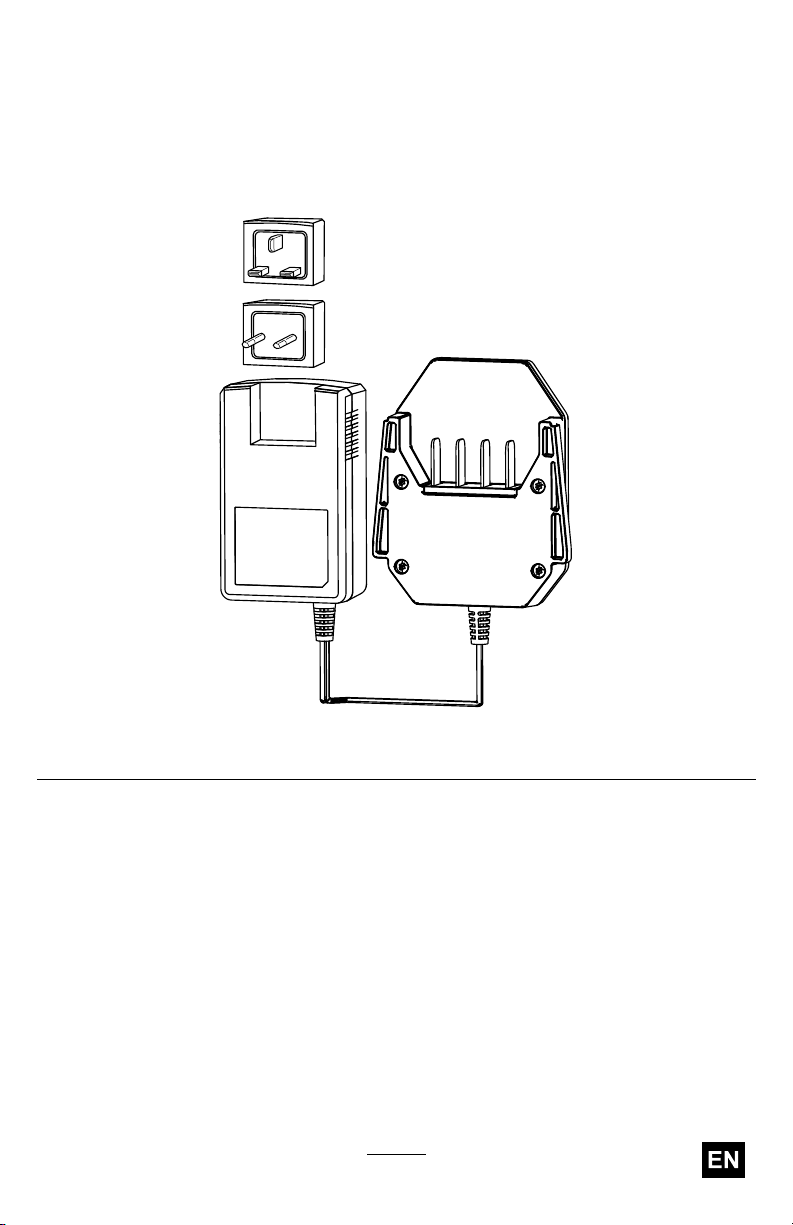

g347487

Figure3

ProductOverview

Specications

BatteryCharger

Model81801

Type60VMAXLithium-IonBatteryCharger

Input220to240VAC50-60HzMax2.0A

Output60VMAXDC1.0A

BatteryPack

Model818208182581850818608187568810

2.0Ah2.5Ah4.0Ah6.0Ah7.5Ah10.0Ah Battery

pack

capacity108Wh135Wh216Wh324Wh405Wh540Wh

Batterymanufacturerrating=60Vmaximumand54Vnominal.Actualvoltagevaries

withload.

AppropriateTemperatureRanges

Chargebatterypackat5°C(41°F)to40°C(104°F)*

Usebatterypackat-30°C(-22°F)to49°C(120°F)

Storebatterypack/chargerat5°C(41°F)to40°C(104°F)*

*Chargingtimewillincreaseifyoudonotchargethebatterywithinthis

range.Storethetool,batterypack,andbatterychargerinanenclosed

clean,dryarea.

Storethemachine,batterypack,andbatterychargerinanenclosed

clean,dryarea.

Operation

ChargingtheBatteryPack

Important:Chargethebatterypackonlyintemperaturesthatare

withintheappropriaterange;refertoSpecications(page8).

Note:Atanytime,pressthebattery-charge-indicatorbuttononthe

batterypacktodisplaythecurrentcharge(LEDindicators).

1.Ensurethattheventsonthebatteryareclearofanydustanddebris.

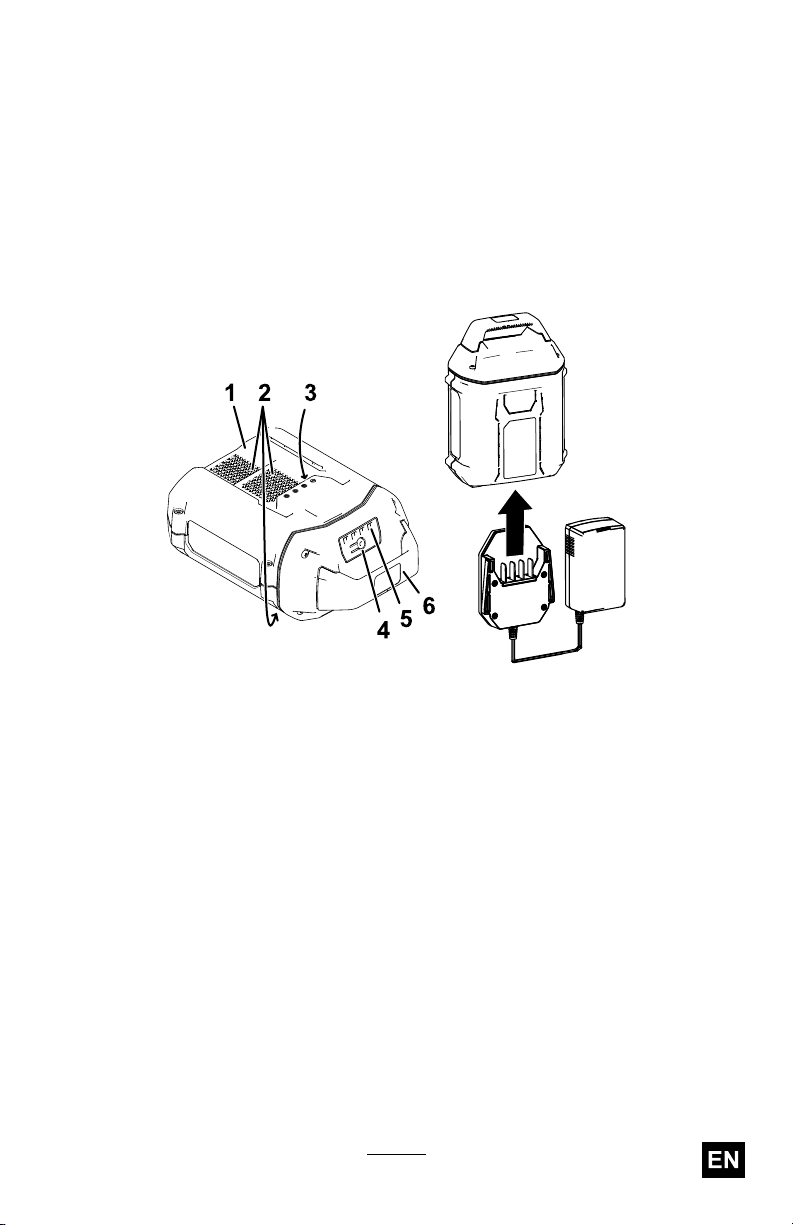

g347460

Figure4

1.Batterypackcavity4.Battery-charge-indicatorbutton

2.Batterypackventingareas5.LEDindicators(currentcharge)

3.Batterypackterminals6.Handle

2.Lineupthecavityinthebatterypack(Figure4)withthetongueon

thecharger.

3.Slidethechargerintothebatterypackuntilitisfullyseated(Figure4).

4.Toremovethebatterypack,slidethechargerbackwardoutofthe

batterypack.

5.RefertothefollowingtabletointerprettheLEDindicatorlighton

thebatterycharger.

Indicator

light

Indicates

OffNobatterypackinserted

Green

blinking

Batterypackischarging

GreenBatterypackischarged

RedBatterypackand/orbatterychargerisoverorundertheappropriate

temperaturerange

RedblinkingBatterypackchargingfault*

*RefertoTroubleshooting(page12)formoreinformation.

Important:Thebatterycanbeleftonthechargerforshortperiods

betweenuses.

Ifthebatterywillnotbeusedforlongerperiods,removethebattery

fromthecharger;refertoStorage(page11).
