Toro 30856 Manuale

Printed in the USA

2003 by The Toro Company

8111 Lyndale Avenue South

Bloomington, MN 55420-1196

Groundsmaster4500-D

Groundsmaster Traction Unit

Model No. 30856—Serial No. 230000701 and Up

Form No. 3350–720

CE Compliance Set Up Instructions

Note: Determine the left and right sides of the machine from the normal operating position.

Loose Parts

Note: Use this chart as a checklist to ensure that all parts necessary for assembly have been received. Without these parts,

total setup cannot be completed. Some parts may have already been assembled at the factory.

Description Qty. Use

Throttle stop

Set screw 1

1Install for CE compliance

Lift latch

Latch bracket –R.H.

Latch bracket –L.H.

Flange lock nut 1/4–20

Install on control console for CE compliance

Lock bracket

Screw 1/4–20 x 1/2”

Washer .281 x .625

Lock nut 1/4–20

Install on hood latch for CE compliance

EEC decals 2Apply to machine for CE compliance.

EEC certificate 2

Install Throttle Stop

1. Loosen set screw on throttle stop.

2. Slide throttle stop onto high idle stop screw (Fig. 1).

Slot in throttle stop to be positioned over rib on engine.

3. Start engine and allow to run for 5 to 10 minutes. The

temperature gauge needle should be in the yellow

before proceeding to next step.

4. If cutting units are equipped with standard angled sail

blades, adjust high idle to 2575 rpm with the cutting

units disengaged. If equipped with high lift parallel sail

blades, adjust high idle to 2550 rpm with the cutting

units disengaged.

5. Tighten setscrew. Apply adhesive into setscrew to

prevent tampering.

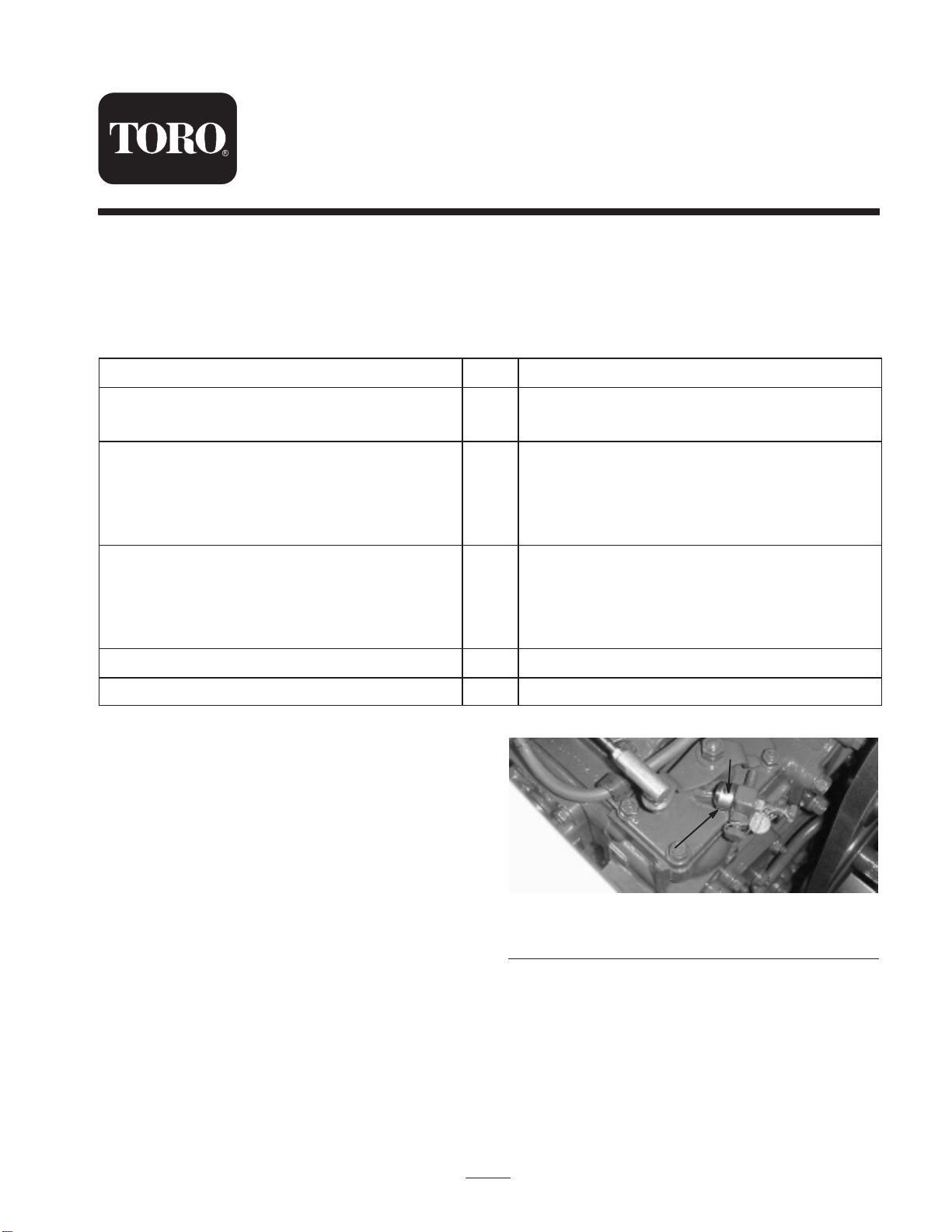

Figure 1

1. Throttle stop 2. Set screw

Install Cutting Unit Lift Latch

1. Rotate latches and remove control panel cover (Fig. 2).

Figure 2

1. Operators control panel

2. Capscrews

3. L.H. latch bracket

4. R.H. latch bracket

5. Lift latch

2. Under front of control panel, locate ends of capscrews

securing control panel to frame (Fig. 2).

3. Insert left hand latch bracket up thru lift lever slot and

onto capscrew. Loosely secure with 1/4–20 flange nut

(Fig. 2).

4. Insert right hand latch bracket up thru lift lever slot and

onto capscrew. Loosely secure with 1/4–20 flange nut

(Fig. 2).

5. On top of control panel, insert each end tab of lift latch

into holes in latch brackets (Fig. 2). Tighten flange nuts.

Installing the Hood Latch

1. Unhook the hood latch from the hood latch bracket

(Fig. 3).

2. Slide the hood lock bracket onto the latch (Fig. 3).

3. Hook the latch onto the hood latch bracket (Fig. 3).

4. Insert a bolt (1/4 x 1-1/2 in.) through the hood lock

bracket and secure it with a flat washer and locknut

(Fig. 3).

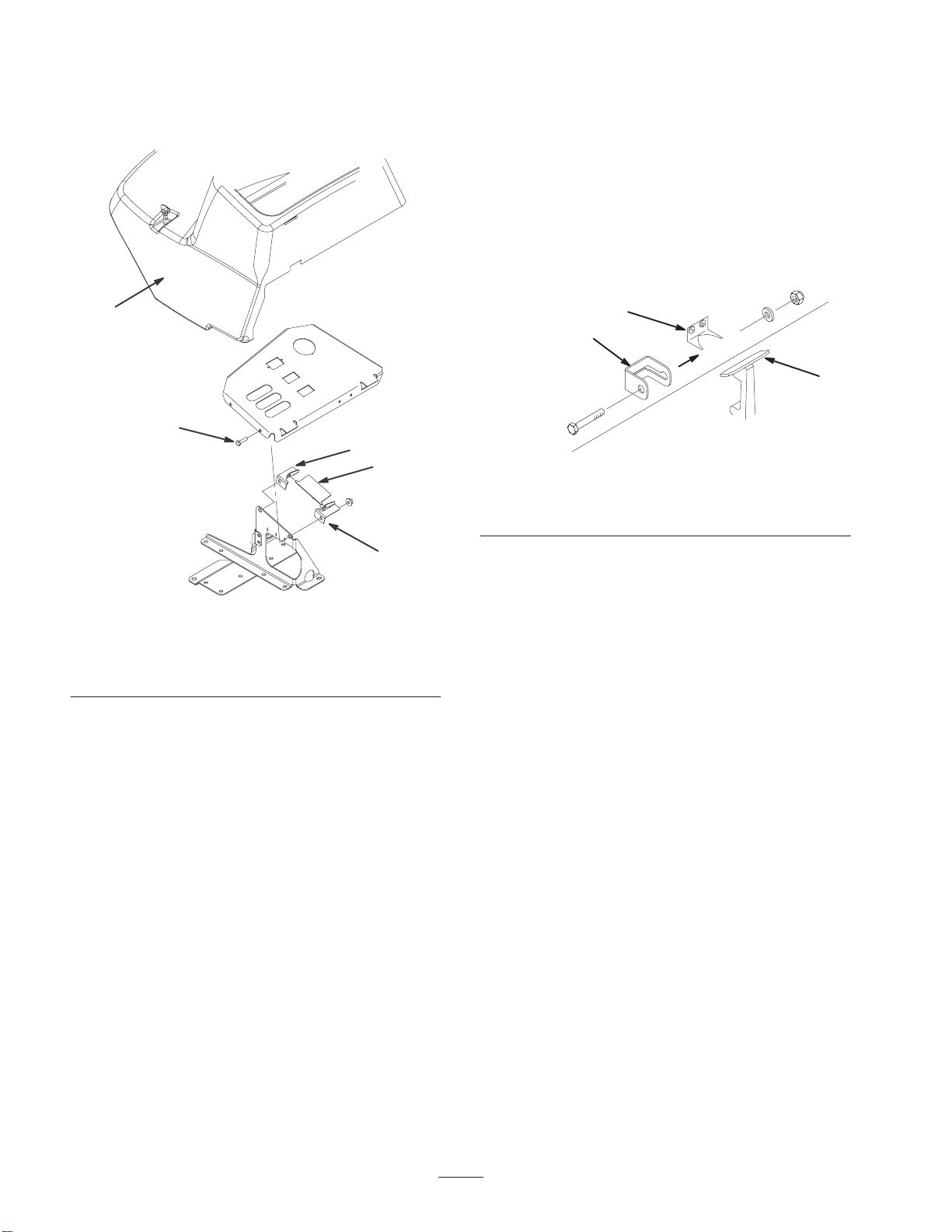

Figure 3

1. Hood latch

2. Hood latch bracket 3. Hood lock bracket
