FormNo.3459-502RevA

FlowDividerKit

Groundsmaster®4500-Dor4700-DTractionUnit

ModelNo.31527

InstallationInstructions

ThisproductcomplieswithallrelevantEuropeandirectives.Fordetails,pleaseseetheDeclarationof

Incorporation(DOI)atthebackofthispublication.

Safety

SafetyandInstructionalDecals

Safetydecalsandinstructionsareeasilyvisibletotheoperatorandarelocatednearanyarea

ofpotentialdanger.Replaceanydecalthatisdamagedormissing.

decal132-6104

132-6104

1.4WDLock2.4WDUnlock

decal132-6185

132-6185

1.4WDLock(10A)

8111LyndaleAvenueSouth

Bloomington,MN55420

Registeratwww.Toro.com.OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved*3459-502*

Installation

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.

ProcedureDescriptionQty.Use

1Nopartsrequired–Preparethemachine.

2Nopartsrequired–Removethehydrauliclines.

Plug1

Valve2

Coil(12V)2

3Coilnut2

Installthecoilsontheow-divider

manifoldassembly(4WDswitch

installationonly).

Flow-dividermanifold1

Pressurehose1

Manifoldtube1

Traction-motortube1

Dividertube1

Tankhose1

Bolt2

Flangenut2

Installthehydrauliccomponents.

Fuse(10A)1

5Fusedecal1

Installthefuse(4WDswitchinstallation

only).

Toggleswitch1

Wireharness1

64WDfunctiondecal1

Installtheswitch.

Wireharness1

Relay1

7Self-tappingscrew1

Installthewireharnesstothemachine

(4WDswitchinstallationonly).

8Nopartsrequired–Completingtheinstallation.

Important:ThiskitisonlyintendedforusewithGroundsmasterModels30881,30882,30873,30873TE,

30874,and30874TEserialnumbers40000000andup.

Note:Theproceduresforinstallingthiskitrequirethatyouworkfromunderthemachine.

PreparingtheMachine

NoPartsRequired

Procedure

Note:Youcanuseahoistforbetteraccessunder

themachine.

Important:Caporpluganydisconnected

hydraulichoses,tubes,orcomponentportsto

preventcontaminatingthesystem.

1.Parkonalevelsurface,engagetheparking

brake,ensurethatthetractionpedalisinthe

neutralposition.

2.EnsurethatthePTObuttonisintheOFF

position.

3.Shutofftheengine,removethekey,andallow

themachinetocool.

CAUTION

Ifyouleavethekeyintheignition

switch,someonecouldaccidentlystart

theengineandseriouslyinjureyouor

bystanders.

Removethekeyfromtheswitchbefore

youdoanymaintenance.

4.Bleedthepressurefromthehydraulicsystem

byturningthehydraulicpumpbypassvalve;

refertotheinstructionsforpushingortowingthe

machineintheOperator’sManual.

5.Ifyouarenotinstallingthe4WDswitch,skip

to2RemovingtheHydraulicLines(page4).If

youareinstallingthe4WDswitch,continuethis

procedure.

6.Opentherighttoolboxcoveranddisconnectthe

negativecablefromthebatterypost;refertothe

Operator’sManualforyourmachine.

WARNING

Incorrectbattery-cableroutingcould

damagethemachineandcablescausing

sparks.Sparkscancausethebattery

gassestoexplode,resultinginpersonal

injury.

•Alwaysdisconnectthenegative

(black)batterycablebefore

disconnectingthepositive(red)

cable.

•Alwaysconnectthepositive(red)

batterycablebeforeconnectingthe

negative(black)cable.

7.Disconnectthepositivebatterycablefromthe

battery;refertotheOperator’sManualforyour

machine.

8.Removetherightconsolecoverasshownin

Figure1.

g204998

Figure1

1.Righttoolboxcover2.Rightconsolecover

RemovingtheHydraulic

Lines

NoPartsRequired

RemovingthePressureHose

1.Alignadrainpanbelowtheforwardendofthe

pressurehose(Figure2).

g021275

Figure2

BottomViewShown

1.Tractionmotor7.Crosstube(rear-traction

manifold)

2.T-tting8.Hydraulicpump

3.Dividertube9.Rear-tractiontube

4.Pressurehose10.Clamp

5.Hydraulic-ltertube11.Tubebracket

6.Rear-tractionmanifold12.Forward

2.Removetheforwardendofthepressurehose

fromthettinginthedividertube,andallowthe

hydraulicuidtodrainfromthehoseandtube

(Figure3).

g021282

Figure3

SideViewShown

1.Bolts6.Tubebracket

2.Chassisbracket7.Pressurehose

3.Dividertube8.Up

4.Nut9.Forward

5.Clamp

3.Removetherearendofthepressurehosefrom

thettinginthehydraulicpump,andremovethe

pressurehose;refertoFigure2andFigure3.

4.Temporarilycapthepumpandthedividertube.

Note:Discardtheoriginalpressurehose.

RemovingtheCrossTube

1.Alignthedrainpanbelowtherear-traction

manifold.

2.Removethetubenutforthecrosstubefromthe

ttingintherear-tractionmanifold(Figure2or

Figure3).

3.Removethetubenutfortheltertubefromthe

ttinginthecrosstube,andremovethecross

tube(Figure2orFigure3).

Important:Retaintheltertubefor

installationinInstallingtheFilterTubeand

theDividerTube(page9).

Note:Discardthecrosstube.

4.Temporarilycapthettingintherear-traction

manifold.

RemovingtheTubeBracketand

Clamp

1.Removetheboltandthenutthatsecurethe

dividertubetothetubebracket,andremovethe

clamp(Figure3orFigure2).

2.Removethe2boltsandthe2nutsthatsecure

thetubebrackettothechassisbracket(Figure3

orFigure2).

Note:Discardthetubebracket,clamp,and

hardware.

RemovingtheDividerTube

1.Removethetubenutfortherear-tractiontube

fromthettingofthedividertube.

2.Removethetubenutofthedividertubefrom

theT-ttinginthefront-lefttractionmotor,and

removethetubefromthemachine(Figure2or

Figure3).

Note:Discardthedividertube.

3.Ifyouareinstallingthe4WDswitch,continue

thisprocedure.Ifyouarenotinstallingthe

4WDswitch,skipto4InstallingtheHydraulic

Components(page7).

RemovingtheTankHose

Important:Thisprocedureisnecessaryifyou

installthe4WDswitch.

1.Alignadrainpanbelowtheforward,straightend

ofthetankhose.

2.Removetheforwardendofthetankhosefrom

thettinginthehydraulicuidtank,capthe

ttingonthetank,andallowthehydraulicuid

todrainfromthehose.

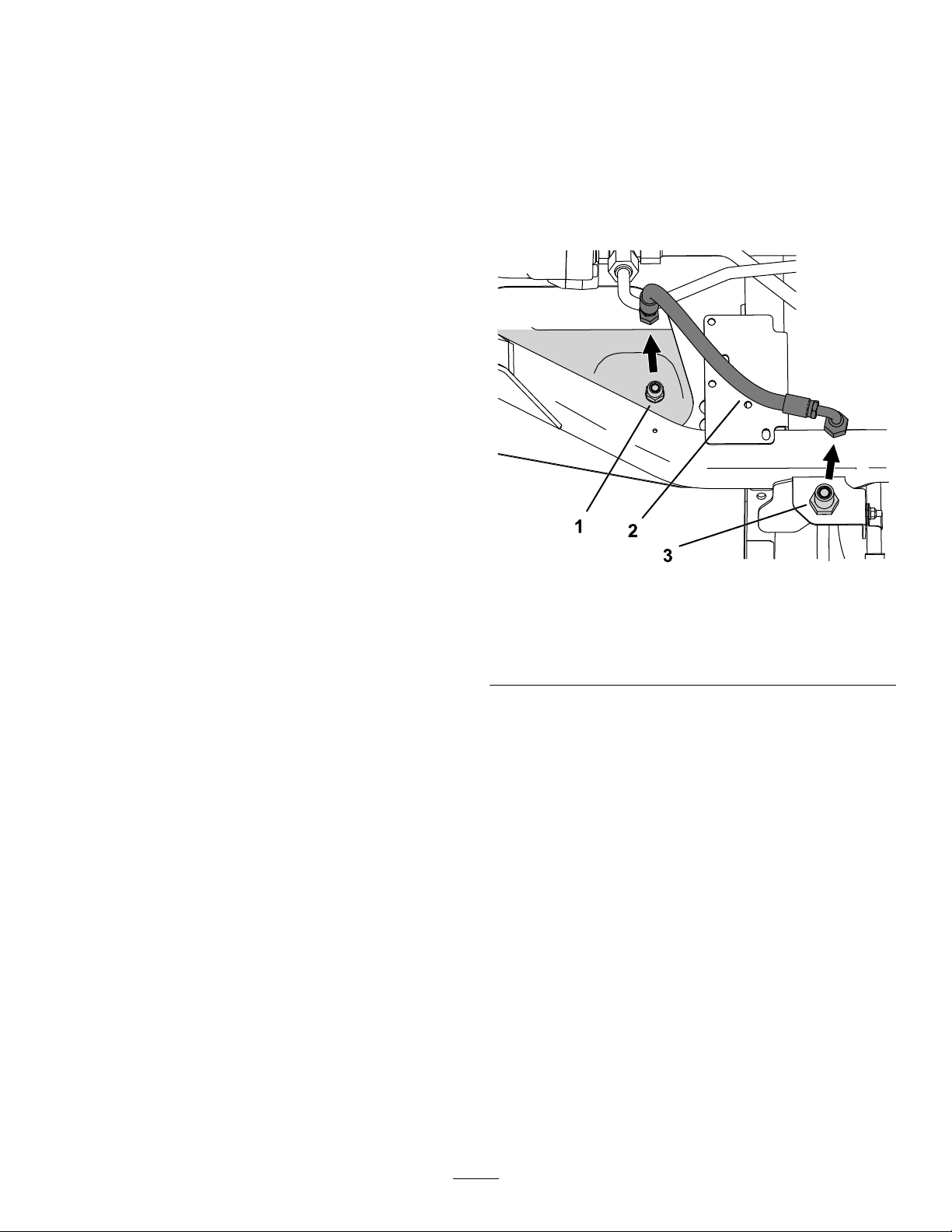

g205311

Figure4

BottomView

1.Hydraulic-tanktting3.Bulkheadtting

2.Tankhose

3.Removetherear,angledendofthetankhose

fromthebulkheadttingandremovethetank

hose.

4.Temporarilycapthebulkheadtting.

Note:Discardtheoriginaltankhose.

InstallingtheCoilson

theFlow-DividerManifold

Assembly

4WDSwitchOnly

Partsneededforthisprocedure:

1Plug

2Valve

2Coil(12V)

2Coilnut

Procedure

Important:Themanifoldcomespre-assembled

forusewithouttheswitch;thisprocedureis

necessaryifyouinstallthe4WDswitch.

1.Removethe2existingvalvesfromtheCV1and

CV2portsofthemanifold.

2.Installtheappropriatepartstotheow-divider

manifoldasshowninFigure5.

g230515

Figure5

1.Coilnut4.Existingorice(removed)

2.Coil(12V)5.Plug

3.Valve6.Neworice

3.Torquethecoilnutsto6.8to9.5N∙m(5to7

ft-lb).

4.Torquethevalvesto34N∙m(25ft-lb).

5.Installtheplugovertheneworice.

Note:Youmaydiscardtheremovedoriceand

valves.

InstallingtheHydraulic

Components

Partsneededforthisprocedure:

1Flow-dividermanifold

1Pressurehose

1Manifoldtube

1Traction-motortube

1Dividertube

1T ankhose

2Bolt

2Flangenut

InstallingtheFlow-Divider

Manifold

1.Aligntheholesintheow-dividermanifoldwith

theholesinthechassisbracket.

Note:Ensurethatthe45°ttingispointing

downandtowardthebackofthemachine.

g205001

Figure6

BottomViewShown

1.Front,righttire4.Coils(forusewith4WD

switchonly)

2.Flangenuts5.Flow-dividermanifold

3.Chassisbracket6.Bolts

2.Securetheow-dividermanifoldtothechassis

bracketwiththe2boltsand2angenuts.

Tightentheboltsto37to45N∙m(27to33ft-lb).

InstallingtheRear-TractionTube

andthePressureHose

1.Aligntheforwardtubenutfortherear-traction

tubewiththeelbowttingintheow-divider

manifold(Figure7andFigure8).

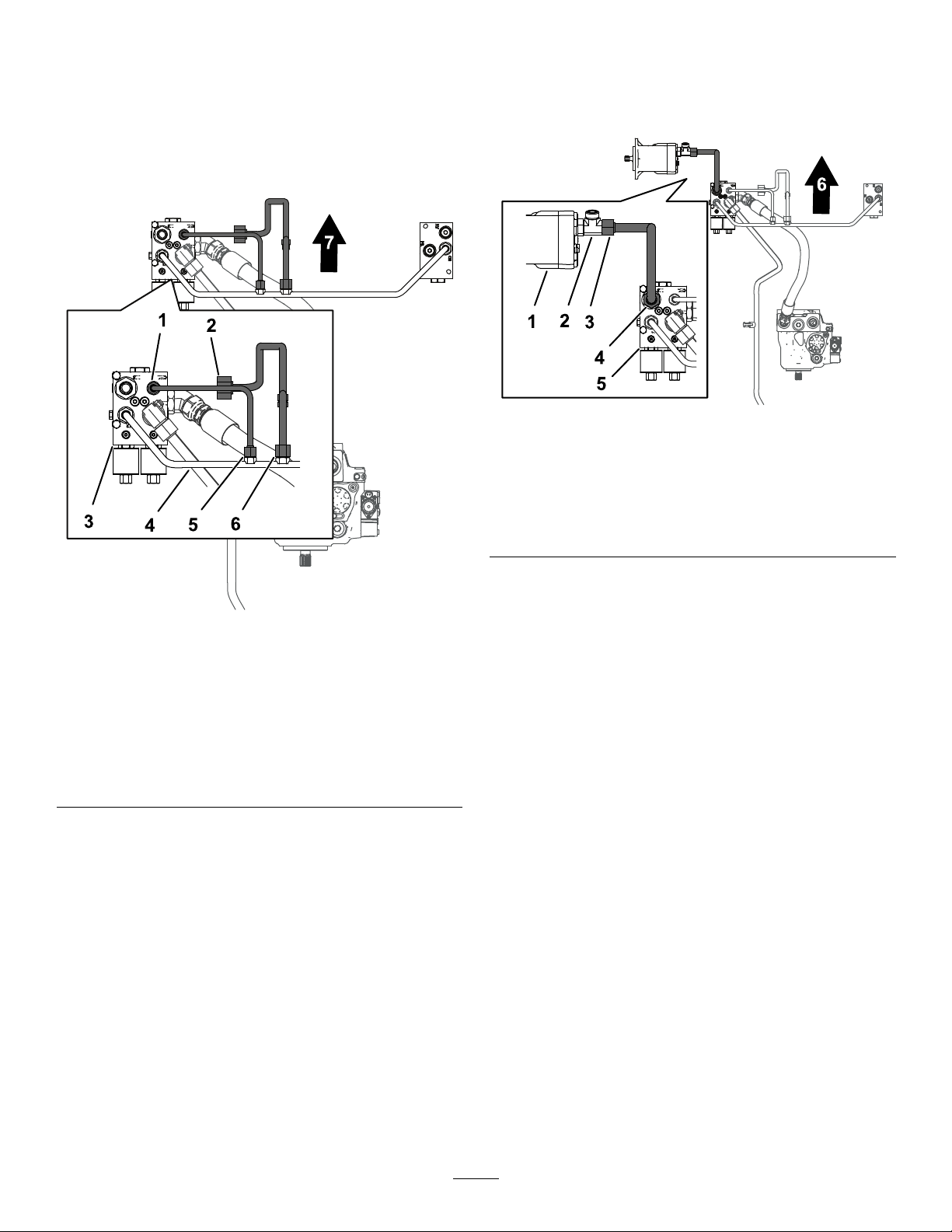

g205002

Figure7

1.Traction-motortube7.Hydraulicpump

2.Dividertube8.Rear-tractiontube

3.Hydraulic-ltertube9.Flow-dividermanifold

4.Rear-tractionmanifold10.Tractionmotor

5.Cross-manifoldtube11.Forward

6.Pressurehose

2.Threadtheforwardtubenutontotheelbow,and

tightenthenutto51to63N∙m(37to47ft-lb).

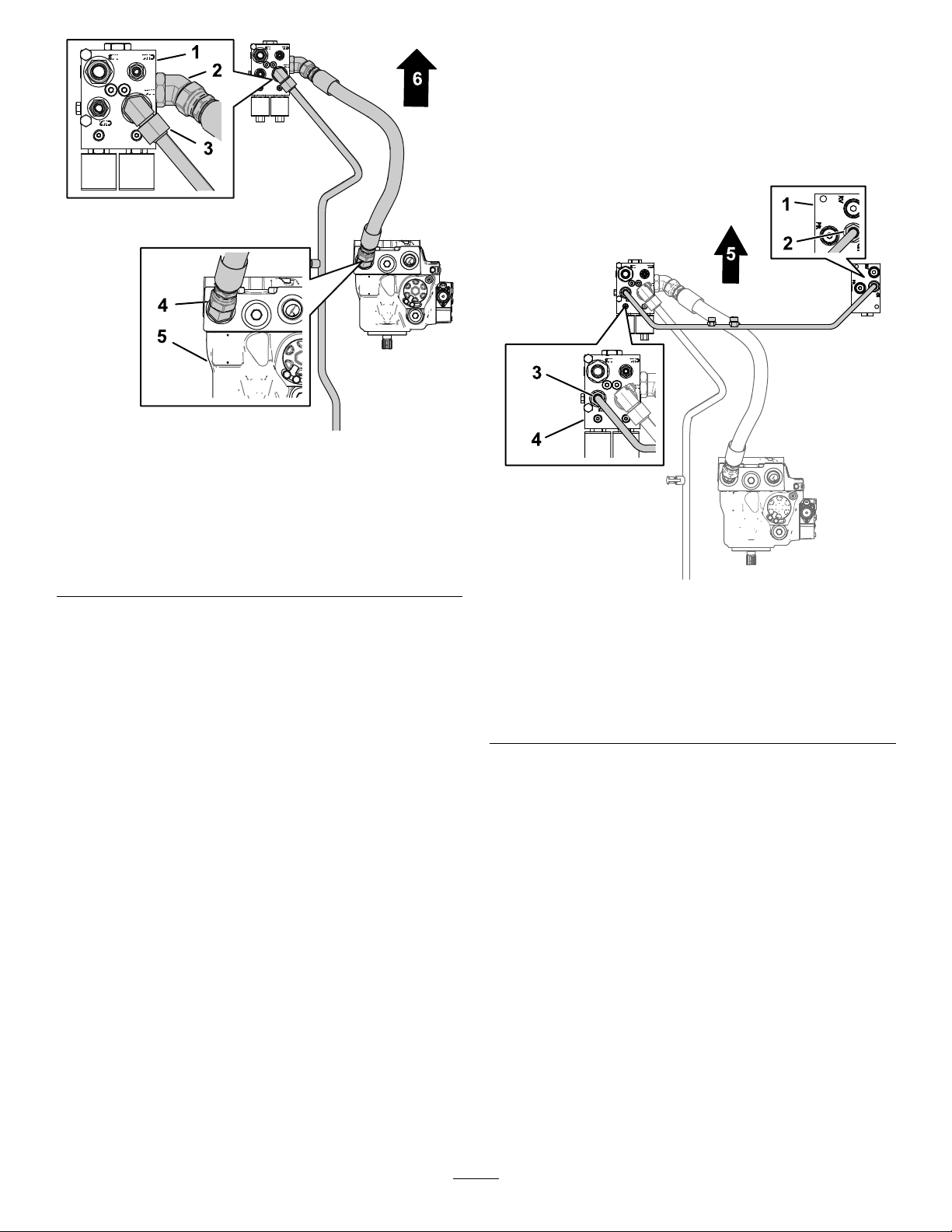

g205014

Figure8

1.Flow-dividermanifold4.Pressurehose(pump

tting)

2.Pressurehose(divider

tting)

5.Hydraulicpump

3.Rear-tractiontube

(forwardtting)

6.Forward

3.Removethetemporarycapfromthehydraulic

pump.

4.Threadonestraightendofthepressurehose

intothettinginthehydraulicpump(Figure8).

5.Removethetemporarycapfromtheow-divider

manifold.

6.Threadtheotherstraightendofthepressure

hoseintothettinginthesideoftheow-divider

manifold(Figure8).

7.Tightenthehosettingsto150to184N∙m(110

to136ft-lb).

InstallingtheCrossTube

1.Removethecaponthettingoftherear-traction

manifoldthatyoupreviouslyinstalled.

2.Alignthetubenutsforthecross-manifoldtubeto

thettingsintherear-tractionmanifoldandthe

ow-dividermanifold(Figure9).

g205016

Figure9

1.Rear-tractionmanifold4.Flow-dividermanifold

2.Cross-manifoldtube

(rear-tractionmanifold

tting)

5.Forward

3.Cross-manifoldtube

(dividertting)

3.Threadthetubenutsontothettingsinthe

ow-dividermanifoldandtherear-traction

manifold,andtightenthenutsto51to63N∙m

(37to47ft-lb).

InstallingtheFilterTubeandthe

DividerTube

1.Preparethehydraulic-ltertuberetainedfrom

RemovingtheCrossTube(page4).Alignthe

tubenutforthehydraulic-ltertubetothetting

inthecross-manifoldtubeasshowninFigure

10.

g205017

Figure10

1.Dividertube(ow-divider

tting)

5.Dividertube

(cross-manifoldtube

tting)

2.Hydraulic-ltertube(lter

basetting)

6.Hydraulic-ltertube

(cross-manifoldtube

tting)

3.Flow-dividermanifold7.Forward

4.Cross-manifoldtube

2.Threadthetubenutforthehydraulic-ltertube

ontothettinginthecross-manifoldtube,and

tightenthenutto51to63N∙m(37to47ft-lb).

3.Alignthetubenutsforthedividertubetothe

ttingsinthecross-manifoldtubeandthe

ow-dividermanifold(Figure10).

4.Threadthetubenutsforthedividertubeonto

thettingsinthecross-manifoldtubeandthe

ow-dividermanifold,andtightenthenutsto37

to45N∙m(27to33ft-lb).

InstallingtheTraction-MotorTube

1.Alignthetubenutsforthetraction-motortube

tothettingsinthetractionmotorandthe

ow-dividermanifold(Figure11).

g205018

Figure11

1.Tractionmotor4.Traction-motortube

(ow-dividertting)

2.T-tting5.Flow-dividermanifold

3.Traction-motortube

(traction-motortting)

6.Forward

2.Threadthetubenutsforthetraction-motortube

ontothettingsinthetractionmotorandthe

ow-dividermanifold,andtightenthenutsto116

to142N∙m(85to105ft-lb).

InstallingtheTankHose

Important:Thisprocedureisnecessaryifyou

installthe4WDswitch.

1.Removethetemporarycapfromthebulkhead

ttingandthreadtheangledendofthetank

hoseontothebulkheadtting.

g205309

Figure12

BottomView

1.Hydraulictanktting3.Bulkheadtting

2.Tankhose

Note:Ensureclearanceforthecoilsbyfacing

theangledendandhoseouttowardtheright

sideofthemachine,perpendiculartotheframe.

2.Removethetemporarycapfromthettingon

thehydraulicuidtank,andthreadthestraight

endofthetankhoseontothetting.

3.Tightentheforward,straightendattachedtothe

tankto50to64N∙m(37to47ft-lb).

4.Tightentheangledendattachedtothebulkhead

to81to100N∙m(60to74ft-lb).

Indice

Manuali Accessori per tosaerba popolari di altre marche

Ariens

Ariens 891008 Manuale utente

Rover

Rover 108 - 109 Manuale utente

Snapper

Snapper 1690047 Manuale utente

Scag Power Equipment

Scag Power Equipment GC-F4 Manuale utente

RHINO

RHINO 800 Manuale utente

Exmark

Exmark Quest 126-7506 Manuale utente

Snapper

Snapper 1685167 Manuale utente

Cub Cadet

Cub Cadet 19B70029100 Manuale utente

Stihl

Stihl AMK 043.1 Manuale utente

MTD

MTD 753-0873 Manuale

Bush Hog

Bush Hog RG60 Manuale utente

Land Pride

Land Pride RCF2760 Manuale utente

Simplicity

Simplicity 211 Manuale utente

Exmark

Exmark ULTRAVAC QUICK DUMP SYSTEM Manuale utente

Excel

Excel Two Bag Catcher Manuale utente

Textron

Textron Jacobsen Pro12 DFS Manuale utente

Ryobi

Ryobi AC018130 Manuale utente

Snapper

Snapper 4544 Guida all'installazione
