USBChargingKit
Groundsmaster®3200or3300SeriesTractionUnit
ModelNo.31984
InstallationInstructions
Installation
1
PreparingtheMachine
NoPartsRequired
Procedure
1.Parkthemachineonalevelsurface.
2.Engagetheparkingbrake.
3.Lowerthecuttingunit.
4.Shutofftheengineandremovethekey.
5.Disconnectthebattery;refertotheelectrical
systemmaintenancesectionofyourOperator’s
Manual.
2
InstallingtheKit
Partsneededforthisprocedure:
1USBport
4Plug
Procedure
1.Removetheexistingplugs(Figure1)fromboth
sidesoftheparking-brakecover.
g301501
Figure1
1.Plugs(4total—2shown)
2.Removetheparking-brakecoverfromthe
machine.
3.Drillahole(3cmor1-3/16inches)intothefront
ofthecoverasshowninFigure2
©2019—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.T oro.com.OriginalInstructions(EN)
PrintedintheUSA
AllRightsReserved*3434-891*A

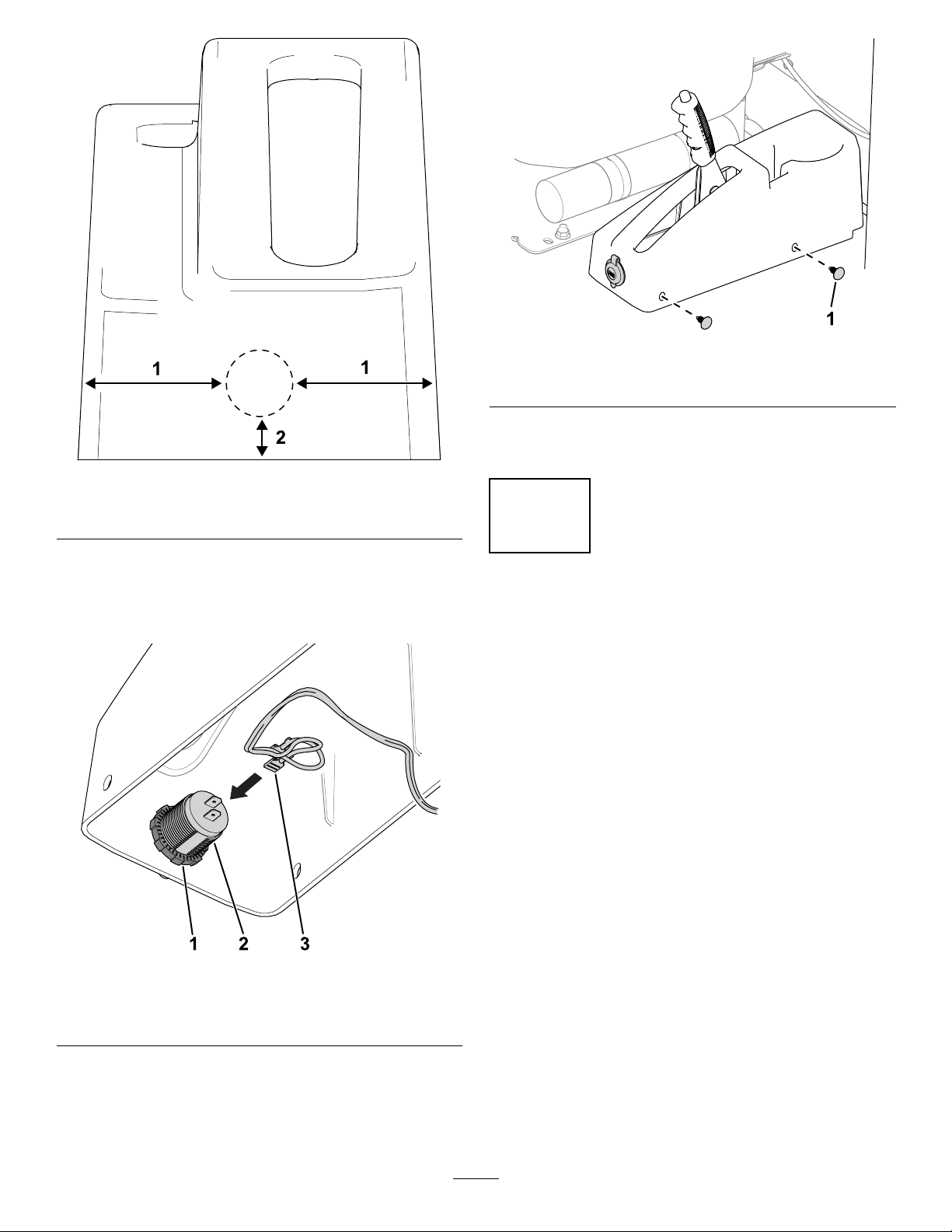

g301502
Figure2
1.6.8cm(2.7in)2.2.5cm(1in)
4.RemovethejamnutfromtheUSBport.
5.Usethepreviously-removedjamnuttosecure
theUSBporttotheparking-brakecover(Figure
3).
g302384
Figure3
1.Jamnut3.Wire-harnessend
2.USBport
6.Connectthewire-harnessendlabeledUSB
PORTtotheUSBport(Figure3).
Note:Thewire-harnessendislocatednearthe
baseoftheparking-brakelever.
g301500
Figure4
1.Plug(4)
7.Use4plugstosecuretheparking-brakecover
tothemachine(Figure4).
3
ConnectingtheBattery
NoPartsRequired
Procedure
Connectthebattery;refertotheelectricalsystem
maintenancesectionofyourOperator’sManual.
2
