FormNo.3366-642RevB
StakePocketAdapterKit
2011andAfterWorkman®MDSeriesUtilityVehicle
ModelNo.119-9604
InstallationInstructions
LooseParts
Usethechartbelowtoverifythatallpartshavebeenshipped.
DescriptionQty.Use
Receiverassembly2
Hex-headbolt(1/4x3/4inch)—2013models
andolder4
Locknut(1/4inch)—2013modelsandolder4
Installthestakepocketadapters(2013modelsandolder).
Receiverassembly2
Hex-headscrew(1/4x3/4inch)—2014
modelsandnewer4Installthestakepocketadapters(2014modelsandnewer).
InstallingtheStakePocketAdapters(for2013Modelsand
Older)
Thebedofthemachinehas2locationsforstakepocketadaptersoneachwall.Eachkitcontains2stakepocketadaptersand
thefollowinginstructionsdescribedrillingholesonlyatthelocationschosenfortheinstallationoftheadapters.Ifmultiplekits
areinstalled,holeswillneedtobedrilledatthoselocationsaswell.
1.Locatethedrillmarksintheholesaroundthestakepocketholesonthewallofthebed(Figure1).
G014775
1
2
1
1
Figure1
1.Possiblestakepocketadapterlocations2.Drillmarks
2.Drilla1/4inchdiameterholeateachdrillmark(Figure1).
©2014—TheToro®Company
8111LyndaleAvenueSouth
Bloomington,MN55420
Registeratwww.Toro.com.OriginalInstructions(EN)
PrintedintheUSA.
AllRightsReserved*3366-642*B

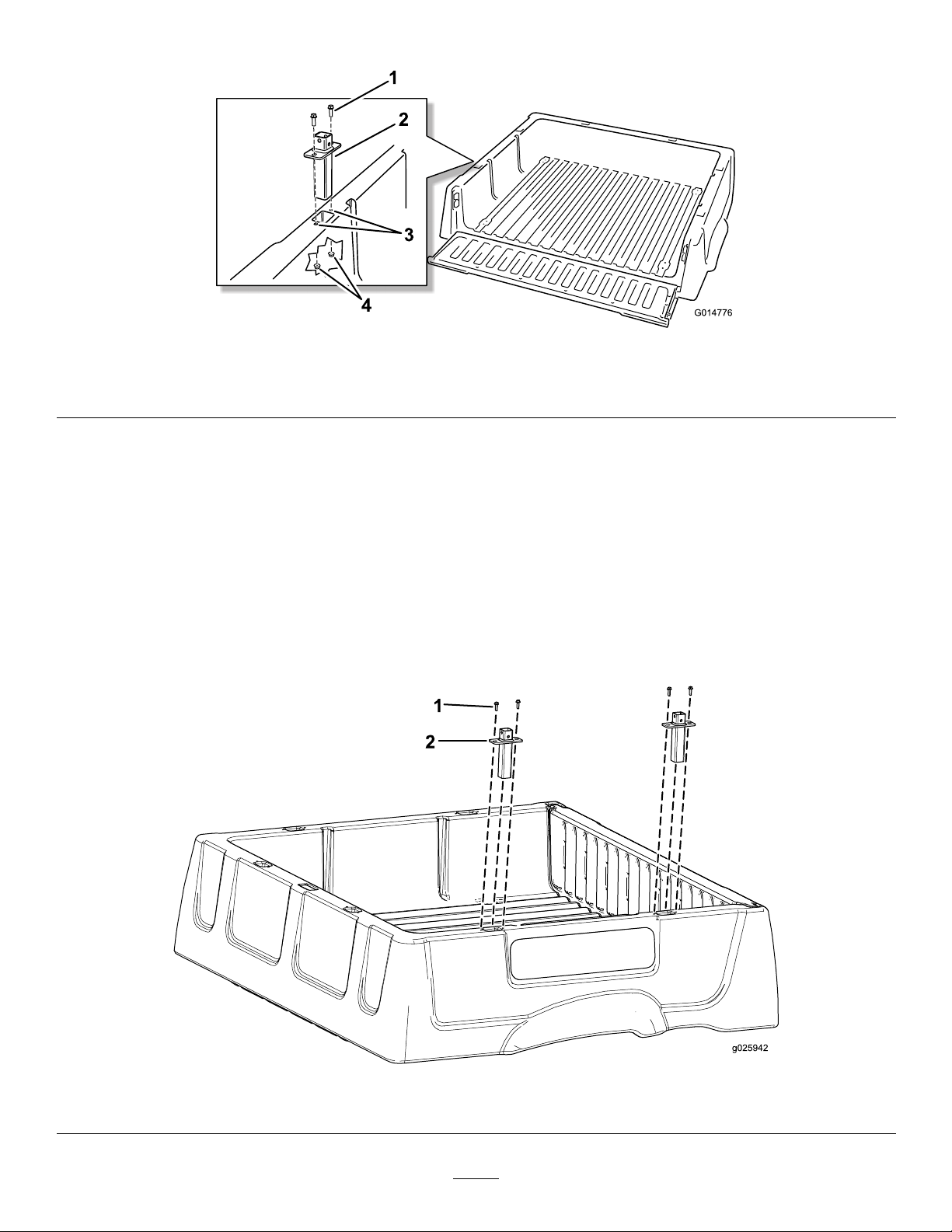

3.Installareceiverassemblyinthehole(Figure2).
G014776
1
2
3
4
Figure2
1.Hex-headbolt(1/4x3/4inch)3.Drilledholes
2.Receiverassembly4.Locknut(1/4inch)
4.Securethereceivertothebedwiththe2hex-headbolts(1/4x3/4inch)and2locknuts(1/4inch).
Note:Tightenthelocknutsuntilsnug,butdonotovertighten.
InstallingtheStakePocketAdapters(for2014Modelsand
Newer)
1.Installareceiverassemblyintothehole(Figure3).
2.Securethereceivertothebedwith2hex-headscrews(1/4x3/4inch)asshowninFigure3.
Important:Torquethehex-headscrews(1/4x3/4inch)to4to5N-m(35to45in-lb),orthethreadson
thescrewsmaybedamaged.
Figure3
1.Hex-headscrew(1/4x3/4inch)2.Receiverassembly
2
