WindshieldWasherFluidKit

2015andafterWorkman®GTX/HDX/MD/HDSeriesUtilityVehicle

ModelNo.130-5615

InstallationInstructions

WARNING

CALIFORNIA

Proposition65Warning

ThisproductcontainsachemicalorchemicalsknowntotheStateofCaliforniato

causecancer,birthdefects,orreproductiveharm.

Installation

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.

DescriptionQty.Use

Nopartsrequired–Preparethemachine.

Washer-uidtank1

Washer-uid-tankbracket1

Washer-uidhose1

Flangenut(5/16inch)4

Carriagebolt(5/16x3/4inch)4

Wireharness1

Malestraighttting1

Femalestraighttting1

Flange-headscrew(1/4x5/8inch)2

Flangenut(1/4inch)2

Installthewindshieldwasheruidkit(GTX-seriesmodels).

Washer-uidtank1

Tank-supportbracket(221x168mm(8-11/16

x6-5/8inch)with45°ange)1

Carriagebolt(5/16x3/4inch)2

Flangedlocknut(5/16inch)2

Carriagebolt(1/4x1-1/4inch)2

Strap1

Spacer(1/4inch)2

Flangedlocknut(1/4inch)2

Hose(3/16inch)1

Barbedhoseconnector1

Wireharness1

Pushfastener8

Installthewindshieldwasheruidkit(HD-seriesmodels).

8111LyndaleAvenueSouth

Bloomington,MN55420

Registeratwww.T oro.com.OriginalInstructions(EN)

PrintedintheUSA

AllRightsReserved*3405-283*A

DescriptionQty.Use

Washer-uidtank1

Tank-supportbracket(216x95mm(8-1/2x

3-3/4)with90°ange)1

Carriagebolt(5/16x3/4inch)2

Flangedlocknut(5/16inch)2

Hose(3/16inch)1

Barbedhoseconnector1

Wireharness1

Pushfastener3

Cabletie1

Installthewindshieldwasheruidkit(MD-seriesmodels).

PreparingtheMachine

1.Parkthemachineonalevelsurfaceandsettheparking

brake.

2.Raisethehood;refertoyourOperator’sManual.

3.Raisethecargobox;refertoyourOperator’sManual.

4.Shutofftheengineandremovethekey.

5.Disconnectthenegative-batterycable;refertoyour

Operator’sManual.

InstallingtheWindshield

WasherFluidKit

ForGTX-SeriesModels

InstallingtheWasher-FluidTank

ForMachineswiththeStorageBoxKitInstalled

IfyouhavetheStorageBoxKitinstalled,discardthe

washer-uid-tankbracket.

1.Installthewasher-uidtanktothestorageboxwiththe

4carriagebolts(5/16x3/4inch)and4angenuts

(5/16inch)asshowninFigure1.

Figure1

1.Storagebox3.Flangenut(5/16inch)

2.Carriagebolt(5/16x3/4

inch)

4.Washer-uidtank

2.Torquetheangenutsto1,987to2,542N∙cm(175

to225in-lb).

InstallingtheWasher-FluidTank

ForMachinewithouttheStorageBoxKitInstalled

1.Installthewasher-uidtanktothewasher-uid-tank

bracketwiththe4carriagebolts(5/16x3/4inch)and

4angenuts(5/16inch)asshowninFigure2.

Figure2

1.Flangenut(5/16inch)3.Washer-uid-tankbracket

2.Washer-uidtank4.Carriagebolt(5/16x3/4

inch)

2.Torquetheangenuts(5/16inch)to1,987to2,542

N∙cm(175to225in-lb).

3.Installthewasher-uid-tankbrackettothedash

reinforcementwiththe2ange-headscrews(1/4x5/8

inch)and2angenuts(1/4inch)asshowninFigure3.

Figure3

1.Washer-uid-tankbracket3.Flange-headscrew(1/4x

5/8inch)

2.Dashreinforcement4.Flangenut(1/4inch)

4.Torquetheangenuts(1/4inch)to1,017to1,243

N∙cm(90to110in-lb).

RoutingandConnectingtheHose

1.Raisethemachinewithjackstands.

2.Connectthefemalestraightttingtothecabhoseand

themalestraightttingtothekithose(Figure4).

Figure4

1.Cabhose3.Malestraighttting

2.Femalestraighttting4.Kithose

3.Connectthefemalestraightttingonthekithoseto

themalestraightttingonthecabhose(Figure5).

Figure5

1.Femalestraighttting2.Malestraighttting

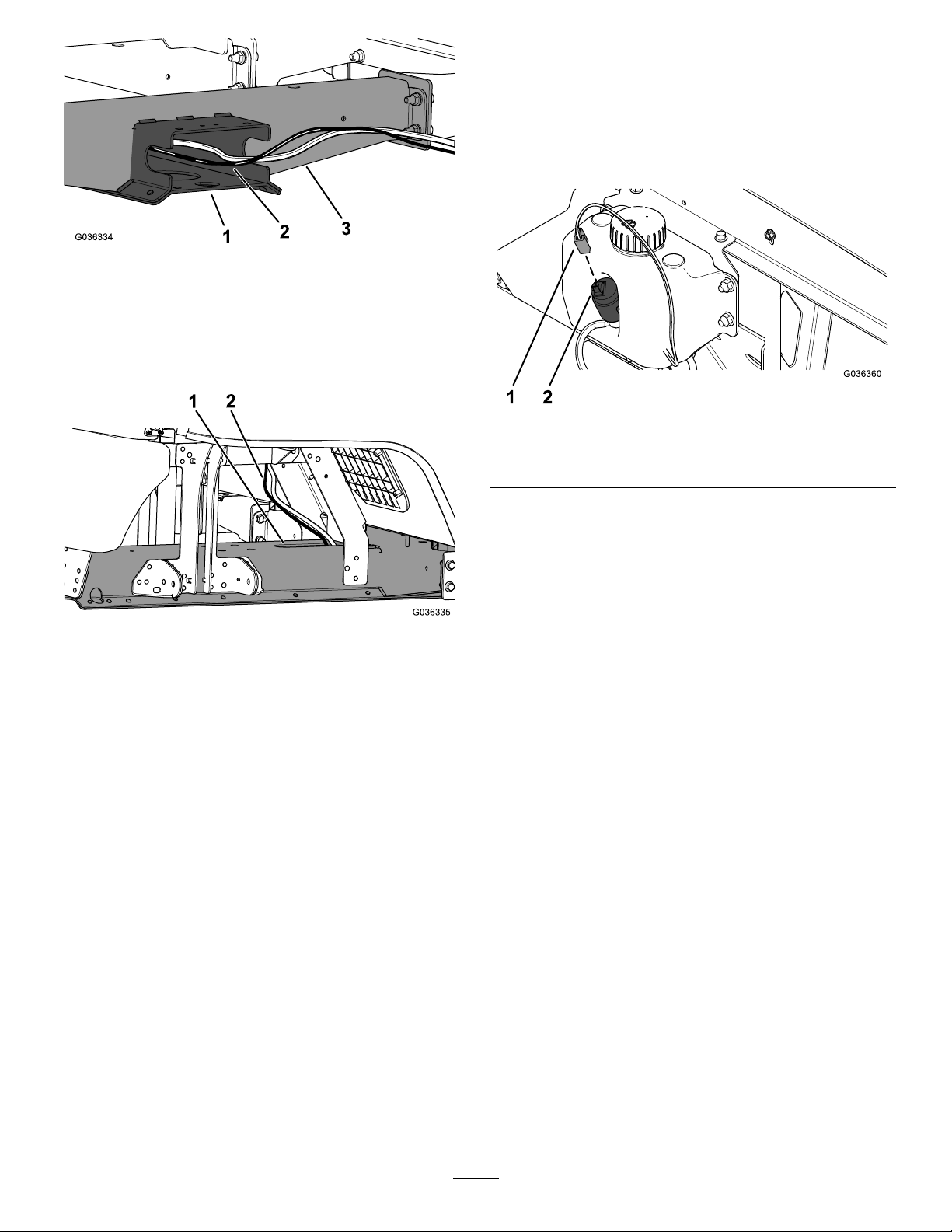

4.Routethekithosealongtheoor-channelplateand

throughtheopeninginframechannel(Figure6).

Figure6

1.Framechannel3.Kithose

2.Floor-channelplate

5.Routethekithosethroughtheopeninginthetopof

theframechannel(Figure7).

Figure7

1.Framechannel2.Kithose

6.Securethekithosealongtheframechannelandas

necessary.

7.Connectthekittothepump;refertoConnectingthe

HosetothePump(page4).

ConnectingtheHosetothePump

1.Atthewasher-uidtank,aligntheendofthehoseto

thebarbedttinginthewasherpump(Figure8).

Figure8

1.Hose3.Washer-pumpmotor

2.Barbedtting

2.Pushthehoseontothettinguntilthehosefullyseats

ontothetting(Figure8).

Note:Ifthehoseistoolong,shortenit.

RoutingandConnectingtheKitWire

HarnesstotheCabWireHarness

1.Connectthemaleconnectoronthekitwireharnessto

thefemaleconnectoronthecabwireharness(Figure

9).

Figure9

1.Cabwireharness3.Maleconnector

2.Femaleconnector4.Kitwireharness

2.Routethekitwireharnessalongtheoor-channelplate

andthroughtheopeninginframechannel(Figure10).

Figure10

1.Framechannel3.Floor-channelplate

2.Kitwireharness

3.Routethekitwireharnessthroughtheopeninginthe

topoftheframechannel(Figure11).

Figure11

1.Framechannel2.Kitwireharness

4.Securethekitwireharnessalongtheframechannel

andasnecessary.

ConnectingtheKitWireHarnesstothe

WasherPump

1.Alignthe2-socketconnectorofthewireharnesstothe

2-bladeconnectorofthewasherpump(Figure12).

2.Pushthewire-harnessconnectorontothepumpuntil

theconnectorfullyseats(Figure12).

Figure12

1.2-socketconnector(wire

harness)

2.2-bladeconnector(washer

pump)

ConnectingtheBattery

1.Connectthenegative-batterycable;refertoyour

Operator’sManual.

2.Lowerthecargoboxandclosethehood;refertoyour

Operator’sManual.

InstallingtheWindshield

WasherFluidKit

ForHD-SeriesModels

RemovingtheRoofPanel

Roofpanelweight:9.5kg(21lb)

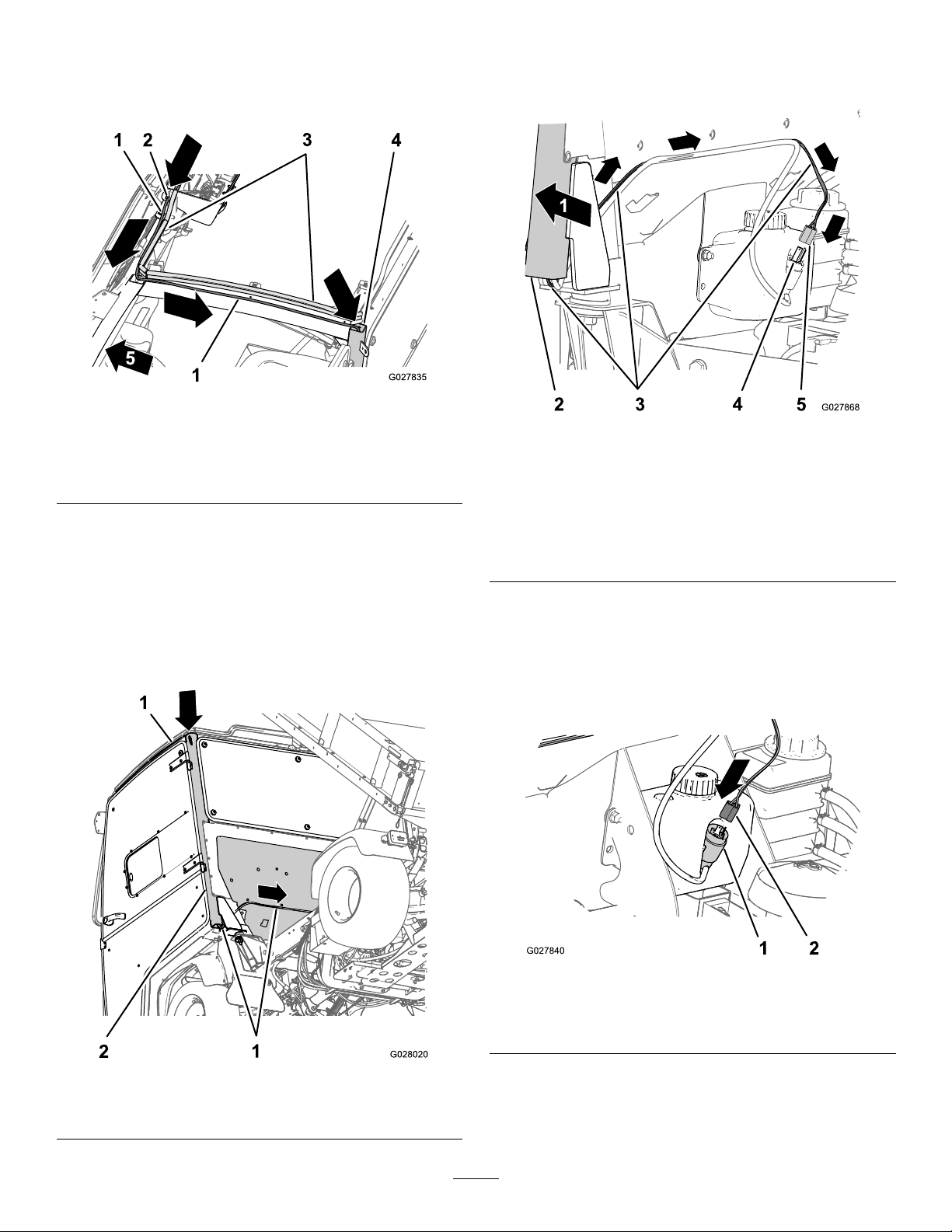

1.Removethe10bolts(1/4x1inch)and10sealing

washers(1/4inch)thatsecuretheroofpaneltothe

roof-supportbracketsofthecab(Figure13).

Note:Retaintheboltsandwashersforinstallationof

theroofpanelinInstallingtheOverheadConsolePlug

andtheRoofPanel(page11).

Figure13

1.Bolt(1/4x1inch)3.Roof-supportbracket

2.Sealingwasher(1/4inch)4.Roofpanel

2.Lifttheroofpanelstraightupandremoveitfromthe

cabofthemachine.

Note:Becarefulwhenyousettheroofpaneldownto

avoiddamagingthesurfaceandedgesofthepanel.

3.Removetheplugfromtheoverheadconsole(Figure

14).

Figure14

1.Overheadconsole2.Plug

InstallingtheWasher-FluidTank

1.Assemblethewasher-uidtanktothetank-support

bracketwiththe2carriagebolts(5/16x3/4inch)and

2angedlocknuts(5/16inch)asshowninFigure15.

Figure15

1.Carriagebolt(5/16x3/4

inch)

3.Hole(washeruidtank)

2.Hole—square(tank

supportbracketfor

HD-seriesmodels—221x

168mm(8-11/16x6-5/8

inch)with45°ange)

4.Flanged-locknut(5/16

inch)

2.Torquetheangedlocknutsto1,987to2,542N∙cm

(175to225in-lb).

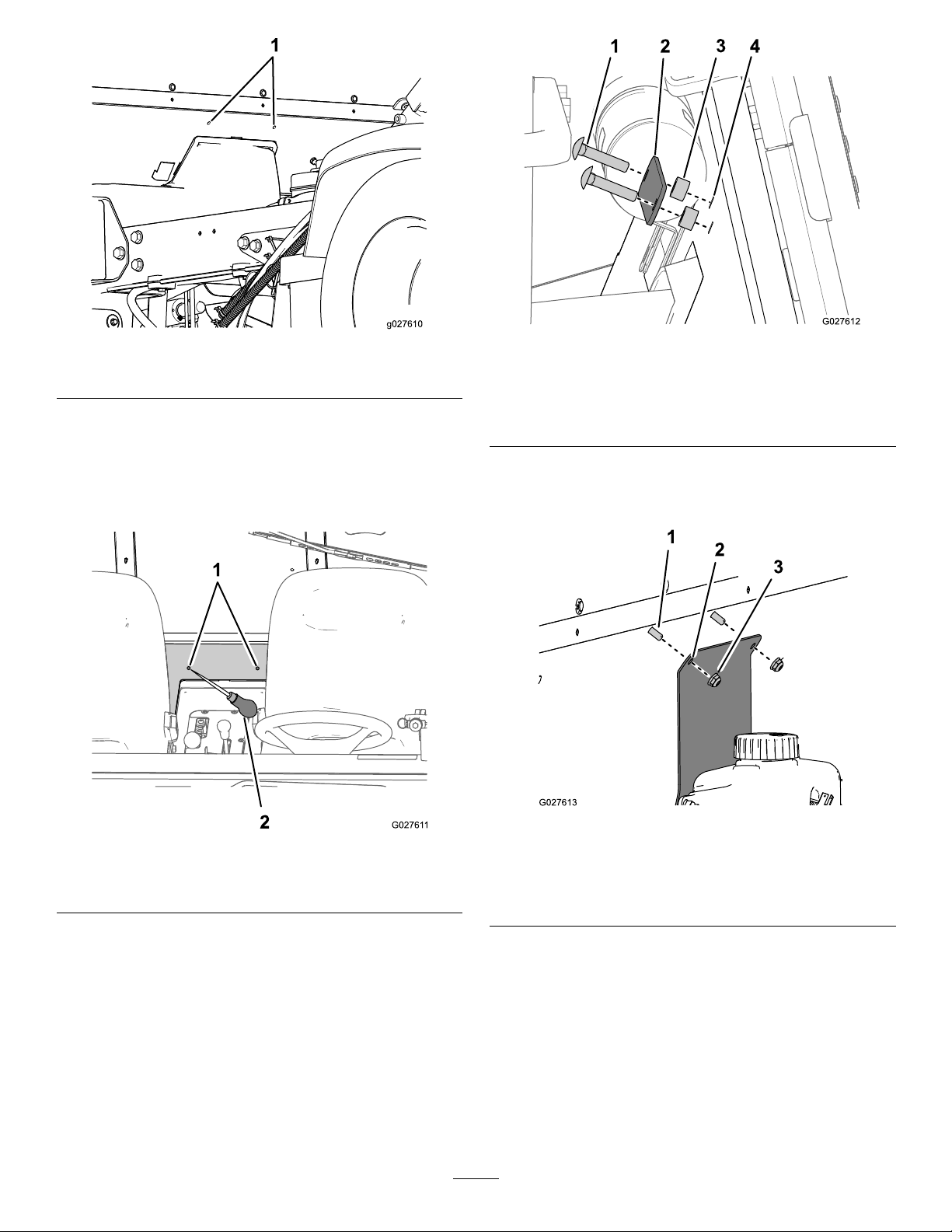

3.Locatethe2holes6.3mm(1/4inch)atthecenterof

therearpanelofthecab(Figure16).

Note:Theholesarespacedapart178mm(7inches).

Figure16

1.Holes—6.3mm(1/4inch)

4.Useanawlorpunchtoopenaholethroughtheinterior

foampanel(Figure17)attheholelocationsthatyou

identiedinstep3.

Note:Usecautionwhenworkingwithsharpawlor

punch.

Figure17

1.Holelocations6.3mm(1/4

inch)—interiorfoampanel

2.Awlorpunch

5.Assemblethe2carriagebolts(1/4x1-1/4inches),

strap,and2spacers(1/4inch)totheholesthatyou

madeintheinteriorfoampanel(Figure18).

Figure18

1.Carriagebolt(1/4x1-1/4

inches)

3.Spacer(1/4inch)

2.Strap4.Holelocation6.3mm(1/4

inch)—interiorfoampanel

6.Assemblethetank-supportbracketandwasher-uid

tank(Figure19)ontothe2carriagebolts(1/4x1-1/4

inches)withthe2angedlocknuts(1/4inch).

Figure19

1.Carriagebolt(1/4x1-1/4

inches)

3.Flangedlocknut(1/4inch)

2.Hole(tank-support

bracket)

7.Torquetheangedlocknutsto1,017to1,243N∙cm

(90to110in-lb).

ConnectingtheHosetotheWiper

1.Attheoverheadconsole,route1endofthehose(3/16

inch)throughtheholeintheoverheadconsole(Figure

20).

Figure20

1.Hole(overheadconsole)4.Barbedhosetting

2.Bulbseal5.Hose(wiperarm)

3.Hose(3/16inch)

2.Insertthesmallendofthebarbedhosettingintothe

endofthehosefromthewiperarmuntilthetting

fullyseats(Figure20).

3.Insertthelargeendofthebarbedhosettingtothe

endofthehose(3/16inch)untilthettingfullyseats

(Figure20).

RoutingtheHose

1.Routethehose(3/16inch)totheleftoftheoverhead

consolealongthebulbsealatthefrontofthecab

frame(Figure21).

Figure21

1.Hose(3/16inch)4.PillarB(cabframe)

2.Hole(overheadconsole)5.Frontofthemachine

3.Bulbseal

2.Routethehoserearwardalongtheleftframechannel

ofthecab(Figure21).

3.Routethefreeendofthehoseintotheopeningatthe

topofthedriver’ssidepillarBofthecabframe,and

downthroughtheframe(Figure22).

Note:Useastiffpieceofwire,about173cm(68

inch)long,topull(sh)thehosethroughpillarBof

thecabframe.

Figure22

1.Hose(3/16inch)2.PillarB(cabframe)

4.Routethefreeendofthehoseacrossthebackofthe

cab,andalignthehosewiththebarbedttinginthe

washerpump(Figure23).

Figure23

1.Frontofthemachine3.Barbedtting(washer

pump)

2.Hose(3/16inch)

ConnectingtheHosetothePump

1.Atthewasher-uidtank,aligntheendofthehoseto

thebarbedttinginthewasherpump(Figure24).

Figure24

1.Washer-pumpmotor3.Hose

2.Barbedtting

2.Pushthehoseontothettinguntilthehosefullyseats

ontothetting(Figure24).

Note:Ifthehoseistoolong,shortenitinstep9of

SecuringtheWireHarnessandHose(page11).

ConnectingtheWireHarnessatthe

OverheadConsole

1.Attheoverheadconsole,routethe2-pinconnector

endofthewireharnessforthewasherpumpthrough

theholeintheoverheadconsole(Figure25).

Figure25

1.Hole(overheadconsole)3.Washerpumpwire

harness

2.2-socketconnector(cab

wireharness)

4.2-pinconnector(washer

pumpwireharness)

2.Alignthe2-pinconnectorofthewasherpumpwire

harnesstothe2-socketconnectorofthecabwire

harness(Figure25).

3.Pushthe2connectorstogetheruntiltheconnector

locksnapssecure(Figure25).

4.Routethe2-socketconnectorofthewireharnessfor

thewasherpumptotheleftoftheoverheadconsole

alongthebulbsealatthefrontofthecabframe(Figure

25).

RoutingtheWireHarness

1.Attheoverheadconsole,routethewireharnessforthe

washerpump(Figure26)totheleftandalongsideof

thehoseinstalledinRoutingtheHose(page8).

Figure26

1.Washerpumpwire

harness

4.PillarB(cabframe)

2.Hole(overheadconsole)5.Frontofthemachine

3.Bulbseal

2.Routethewireharnessrearwardalongtheleftframe

channelofthecab(Figure26).

3.Routethe2-socketconnectorofthewireharnessinto

theopeningatthetopofthedriver’ssidepillarBofthe

cabframeanddownthroughtheframe(Figure27).

Note:Useastiffpieceofwire,about173cm(68

inch)long,topullthewireharnessthroughpillarBof

thecabframe.

Figure27

1.Washerpumpwire

harness

2.PillarB(cabframe)

4.Routethewireharnessforthewasherpumpacrossthe

backofthecab,andalignedtothe2-bladeconnector

inthewasher-pumpmotor(Figure28).

Figure28

1.Frontofthemachine4.2-bladeconnector

(washer-pumpmotor)

2.PillarB(cabframe)5.2-socketconnector

(washerpumpwire

harness)

3.Washerpumpwire

harness

ConnectingtheWireHarnesstothe

WasherPump

1.Alignthe2-socketconnectorofthewireharnesstothe

2-bladeconnectorofthewasherpump(Figure29).

Figure29

1.2-bladeconnector(washer

pump)

2.2-socketconnector

(washerpumpwire

harness)

2.Pushthewire-harnessconnectorontothepumpuntil

theconnectorfullyseats(Figure29).

Indice

Altri manuali Toro Veicolo utilitario

Manuali Veicolo utilitario popolari di altre marche

Polaris

Polaris ACE 900 SP Manuale utente

TrailMax

TrailMax T-12-UR Manuale utente

Floe

Floe Cargo Max 9.5-73 Manuale utente

Taylor-Dunn

Taylor-Dunn B0-050-00 Manuale

Taylor-Dunn

Taylor-Dunn ET 3000 Manuale utente

Kayo

Kayo S70 Manuale utente

Range Road

Range Road RR608 Manuale utente

Landoll

Landoll 900D Series Manuale utente

pronovost

pronovost PUMA-10000 Manuale utente

SSI SCHAEFER

SSI SCHAEFER WEASEL LITE Manuale utente

Club Car

Club Car TURF 272 2005 Manuale

Cushman

Cushman Turf Truckster 84069 Manuale utente

BERG

BERG Large Trailer Manuale utente

Cub Cadet

Cub Cadet Big Country 641 Manuale utente

Westward

Westward Go-4 XTR Manuale utente

Club Car

Club Car Carryall I 1999 Manuale utente

Etnyre

Etnyre Street Flusher Manuale di istruzioni

Landoll

Landoll 340 Manuale utente
