Toshiba E-studio 2006 Manuale utente

OPEN SIDE COVER

MISFEED E130

Printed in China 6LJ83559000

R120620L8301-TTEC OME120213A0 DP-2006/2306/2506 Ver01 F 2013-11

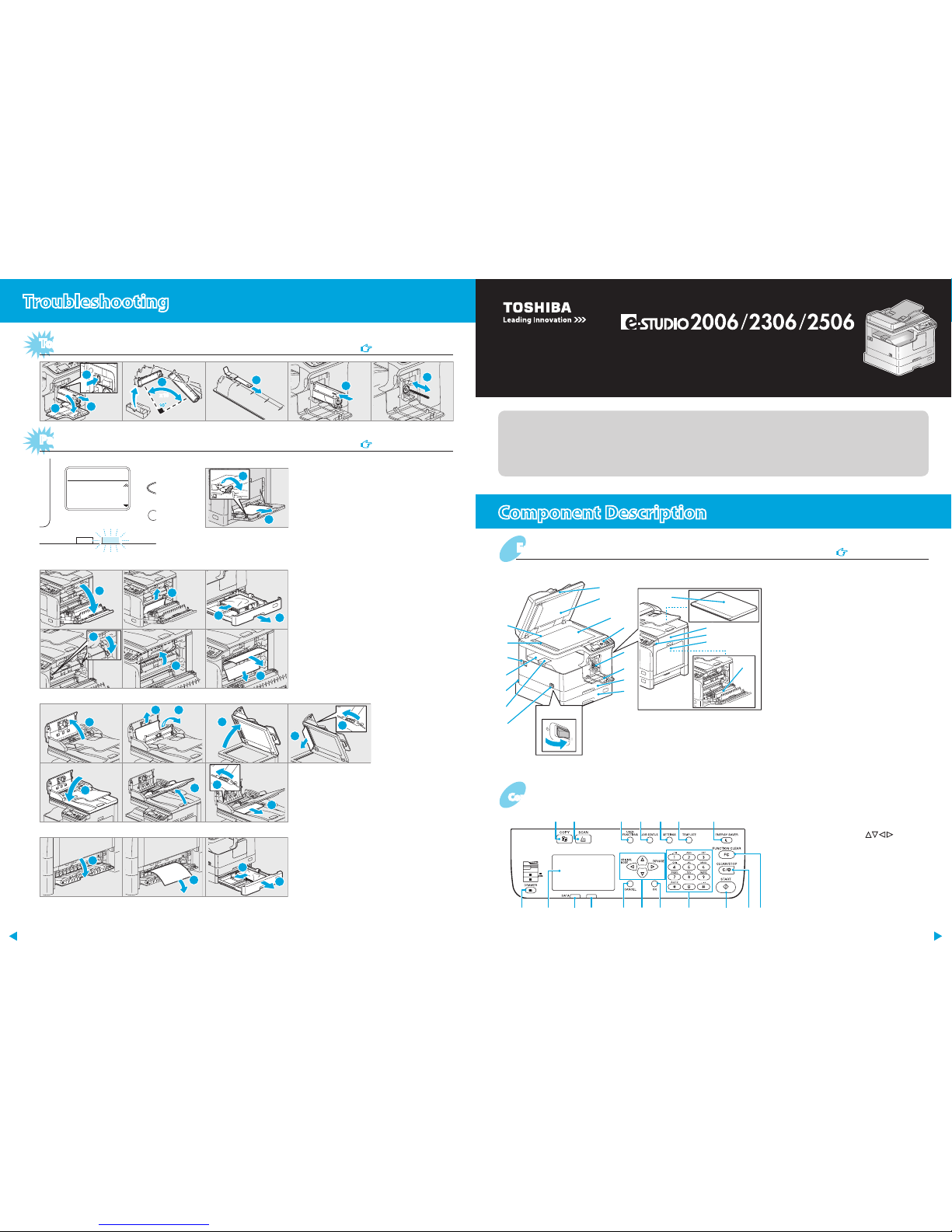

Troubleshooting

x 10

Basic Operations Before Use

This manual describes the components, preparations, basic operations, and troubleshooting for the equipment. Before using the equipment,

read the Safety Information (Printouts). The DVD contains this Quick Guide in other languages.

Trademarks

Company names and product names in this manual are the trademarks of their respective companies.

Component Description

789

Turning on

Control panel

18171615141312111098

7654321

Reversing Automatic Document Feeder

(RADF, optional)

Platen sheet

Original glass

Control panel

Platen Cover (optional <included as standard

in some regions>)

Side cover

USB port

Bypass tray

Automatic Duplexing Unit (ADU, optional)

Toner cartridge

Front cover

Drawer

Paper Feed Unit (PFU, optional)

Power switch

Paper exit stopper

AC-IN terminal (rear)

Receiving tray

USB terminal (4-pin)

Scanning area

Original scale

10.

11.

12.

13.

14.

15.

16.

17.

18.

19.

20.

COPY

SCAN

USER FUNCTIONS

JOB STATUS

SETTINGS

TEMPLATE

ENERGY SAVER

DRAWER

LCD screen

DATA

10.

Alert lamp

CANCEL

Digital keys

START

CLEAR/STOP

FUNCTION CLEAR

11.

12.

13.

14.

15.

16.

17.

18.

MULTIFUNCTIONAL DIGITAL SYSTEMS

Quick Guide

Equipment User's Guide: Chapter 1

Toner empty User's Guide: Chapter 6

On Bypass tray

In Side cover

In RADF

Paper misfeed User's Guide: Chapter 6

In PFU

Before Use Basic Operations

Component Description Troubleshooting

READY

100%

AUTO EXPOSURE

TEXT/PHOTO

1A4

Bypass tray

To set paper size of Drawer

When you load paper in the drawer, a pop-up window appears. Follow the

instructions and set the paper size. (When the "POP UP" function is set to

“ENABLE”.)

Drawer

Loading paper User's Guide: Chapter 1

Installing the driver requires the administrator authority.

For Windows 7, Windows 8, Windows Server 2008 R2, or

Windows Server 2012, use the installer.

Note when installing from installer

Close all running applications.

If the installer does not automatically start, double-click “Setup.exe”

in the DVD.

•

Using installer

1. Close all running applications.

2. Make sure that the equipment is turned oﬀ.

3. Insert the DVD into the computer.

4. Double-click “Setup.exe”.

5. Follow the on-screen instructions.

Using Plug and Play

1. Turn on the equipment.

2. Follow the on-screen instructions.

Connecting computer

Before installing the drivers, connect the equipment and the

computer with a USB cable.

Driver installation Software Installation Guide: Chapter 2

Printer

and scanner

functions

are available.

Scan to USB Memory

1. Place the original(s).

2. Press [SCAN].

3. Connect the USB storage device to the equipment and wait a

few seconds.

4. Press or to select “USB”, and then press [OK].

5. Press to make the scan settings as required.

6. Press [START] to scan your documents.

1. Select [Print] from the application's [File] menu.

2. Select your printer

, and then

click [Preferences]

3. Make print option settings, and then click [OK].

4. Click [Print] ([OK]).

3. Enter the number of copies with

the digital keys

, and then press

[START]

to copy.

To stop copying

Press [CLEAR/STOP]

Shortcut keys

Press : “ORIGINAL MODE”

Press : Europe and the Americas “EXPOSURE”,

Except Europe and the Americas“ID CARD”

To reset settings and LCD screen after copying

Press [FUNCTION CLEAR]

2. Press [COPY] and make the copy

settings.

RADF

1. Place the original(s). Original glass

Copier User's Guide: Chapter 2

Printer User's Guide: Chapter 3 Scanner User's Guide: Chapter 4

TWAIN Scan

1. Place the original(s).

2. Launch a TWAIN-compliant application.

3. Select the device from the application’s [File] menu.

4. Select the menu to scan from the application’s [File] menu.

5. Make the scan settings, and then click [Scan].

Registering a template

1. Press [COPY] or [SCAN].

2. Make settings for the functions to register as a template.

3. Press [TEMPLATE].

4. Press or to select “REGISTRATION”, and then press .

5. Press or to select a template, and then press [OK].

Templates User's Guide: Chapter 2, 4

Recalling a template

1. Press [COPY] or [SCAN].

2. Press [TEMPLATE].

3. Press or to select “RECALL”, and then press .

4. Press or to select the template, and then press [OK].
