Toshiba B10 Manuale utente
English/Español
CAMILEO®B10
Quick Start Guide
Introduction
2
Introduction
For more detailed information please refer to the User's Manual on the
included CD.
Safety instructions
1Do not drop, puncture or disassemble the camcorder; otherwise the
warranty will be voided.
2Avoid all contact with water, and dry hands before using.
3Do not expose the camcorder to high temperature or leave it in direct
sunlight. Doing so may damage the camcorder.
4Use the camcorder with care. Avoid pressing hard on the camcorder
body.
5For your own safety, avoid using the camcorder when there is a storm
or lightning.
6Do not use batteries of different specifications. Doing so may lead to
the potential for serious damage.
7Remove the battery during long periods between usages, as a
deteriorated battery may affect the functionality of the camcorder.
8Remove the battery if it shows signs of leaking or distortion.
9Use only the accessories supplied by the manufacturer.
10 Keep the camcorder out of the reach of infants.
11 There is risk of explosion if battery is replaced by an incorrect type.
12 Dispose of used batteries according to the instructions.
About the battery
❖Use only batteries recommended by TOSHIBA as replacements. The
battery is a lithium ion battery, which can explode if not replaced,
used, handled or disposed of properly. Dispose of the battery as
required by local ordinances or regulations.
❖Charge the battery only in an ambient temperature between 41 and 95
degrees Fahrenheit (5 and 35 degrees Celsius). Otherwise, the
electrolyte solution might leak, battery performance might
deteriorate and the battery life might be shortened.
Safety instructions 3
❖Never install or remove the battery without first turning off the power
and disconnecting the USB cable or AC adaptor (AC adaptor sold
separately).
❖Only use the USB cable or AC adaptor (AC adaptor sold separately)
to charge the battery. Never attempt to charge the battery with any
other charger.
Handling the cord on this product will expose you to lead, a chemical
known to the State of California to cause birth defects or other
reproductive harm. Wash hands after handling.
Regulatory Information
TOSHIBA declares that this product conforms to the following Standards:
Following information is only valid for EU-member States:
Contact
FCC Conditions
This equipment has been tested and found to comply with Part
15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received.
Including interference that may cause undesired operation.
Disposal of products
This symbol indicates that this product must not be disposed of
with normal household waste. The product must be disposed
of separately.
Address: TOSHIBA America Information Systems, Inc.
9740 Irvine Boulevard
Irvine, California 92618-1697
Telephone: (949) 583-3000
Safety instructions
4
Additional Information
© Copyright 2011 TOSHIBA CORPORATION. All rights reserved.
TOSHIBA reserves the right to make technical changes. TOSHIBA
assumes no liability for damages incurred directly or indirectly from
errors, omissions or discrepancies between this product and the
documentation.
Trademarks
CAMILEO is a registered trademark of Toshiba America Information
Systems, Inc. and/or Toshiba Corporation.
Adobe and Photoshop are either registered trademarks or trademarks of
Adobe Systems Incorporated in the United States and/or other countries.
ArcSoft, MediaImpression, and MediaConverter are registered trademarks
of ArcSoft, Inc.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing, LLC.
Secure Digital and SD are trademarks of SD Card Association.
All other brand and product names are trademarks or registered
trademarks of their respective companies.
Getting Started 5
Getting Started

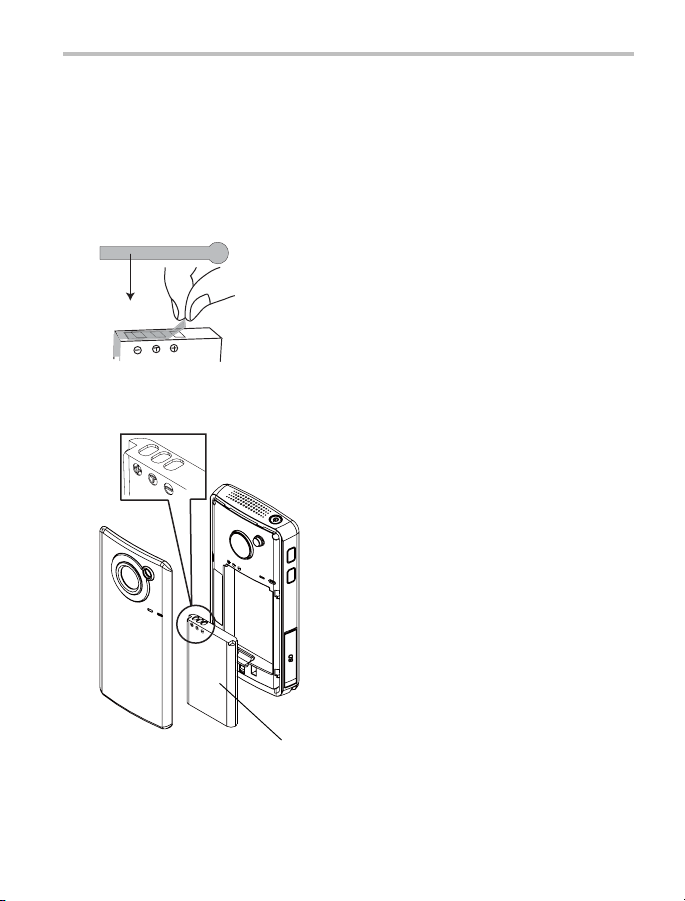

The battery comes pre-installed in the camcorder, however you must
remove the protective film on the battery before use.
To properly connect the battery:
1Slide the battery cover up and remove.
2Remove the battery.
3Pull the film off.
4Reinsert the battery, making sure it is lined-up with the correct
polarity marks.
5Close the battery cover.
REMOVE
Li-ion battery
Getting Started
6

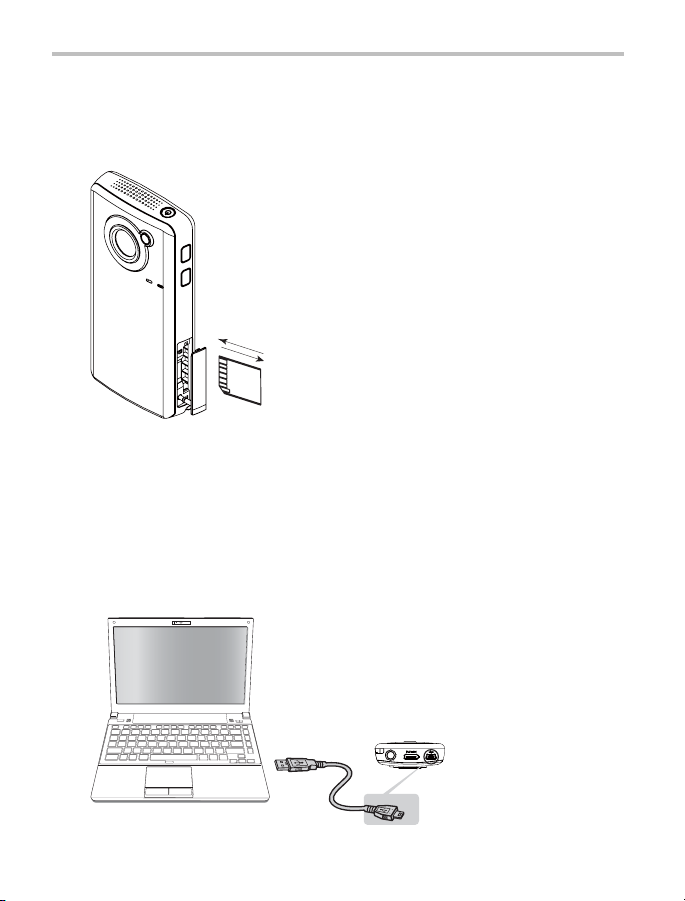

To insert the SD™ Card (optional):
1Flip open the SD™ Card cover.
2Insert the SD™ Card into the slot until it locks in place.
3Once inserted, close the SD™ Card cover.
Charging the battery
You must use the supplied USB cable or AC adaptor (AC adaptor sold
separately) to charge your camcorder before use. Turn off the camcorder.
A blinking light indicates active charging and a solid light indicates that
charging is complete. In AC charging mode, the light turns off
automatically after 5 minutes. It may take up to 8 hours to charge the
battery via USB and up to 4.5 hours via AC adaptor (AC adaptor sold
separately).
To remove the
SD™ Card, press
inward to release
it. When the card
pops out, grasp
it and pull it
straight out.
Quick Tour 7
Quick Tour
1 To power on
Press and hold the Power (......) button
for one second.
To conserve battery power, the
camcorder will turn off automatically
after 3 minutes of non-operation.
2 To start or stop recording
Press the Video (.......) button.
3 To take a photo
Press the Photo (......) button.
4 To zoom in and out
Press the Up/Down arrow (....) buttons.
5 To review videos/photos
Press the Playback (....) button.
6 For menu options
Press the MENU/OK (.......) button to access
the options menu.
For more detailed operational instructions,
please refer to the User’s Manual, chapters
3 & 4 on the supplied CD.
6
32
4
5
1
MENU
OK
Quick Tour
8
Menu/OK button
Menu ON.
Validate the setting.
Front View
Press to take a photo.
Press to begin recording.
Photo button
LCD screen
Left button
Playback button
Video button
To stop recording, press
it again.
Zoom out (Down) button
Delete button
In Record mode: Zoom out.
In Playback mode: Go to the delete
screen. When playing a video,
press to decrease volume.
Move between option items.
During playback: Go to
previous video/photo.
In Record mode: Zoom in.
Zoom in (Up)/Thumbnail
In Playback mode: Go to the
video/photo thumbnail
button
screen. When playing a video,
press to increase volume.
Move between option items.
Right button
In Playback mode: Go to the
next video/photo.
Return/Exit button
Return to the previous screen.
Exit.
Switch to Playback mode.
Quick Tour 9
Power button
Light button
Press to toggle ON/OFF/
Internet upload button
In Playback mode, press to
Rear/Underside Views
Light
Microphone
Multi-indicator light
Battery cover
Strap hook
Speaker
SD™ Card cover
select the current file to tag
Tripod socket
Lens
for upload.
Mini HDMI™ port
Mini USB 2.0 port
When the camera is
connected to your computer,
press to launch the
CAMILEO®Uploader (for
Digital light.
Windows®based systems
only).
Quick Tour
10
Menu options
Video Settings
Light
ON The light turns ON, providing illumination when
recording.
OFF The light turns OFF.
Digital light Extends the dynamic range for backlight and high
contrast, so that objects are brighter and clearer.
Resolution
Full HD 1080/30 1920 x 1080p (30fps)
HD 720/60 1280 x 720p (60fps)
HD 720/30 1280 x 720p (30fps)
VGA 480/30 640 x 480 (30fps)
Stabilization ON Enables digital image stabilization, providing
smooth and stable recording.
OFF Disables digital image stabilization.
Motion Detect ON Initiates video recording when motion is detected.
OFF Disables Motion Detection.
Slow Motion
ON Records videos with slow motion effect. When the
video is played, the playback time will be longer than
the actual recording time.
NOTE: While using the Slow Motion setting, audio is not
recorded and zoom is disabled.
OFF Disables Slow Motion.
Pre-Record ON Enables pre-recording. The camcorder records one
second before the Record button is pressed.
OFF Disables pre-recording.
Time Lapse
OFF Disables time lapse.
1 Sec Records one frame per second.
3 Sec Records one frame every three seconds.
5 Sec Records one frame every five seconds.
Continuous Play ON Playback a video file continuously.
OFF Disables continuous play.
