Toshiba e-STUDIO206L Manuale utente
© TOSHIBATEC CORPORATION 2012 All Rights Reserved. 1
UNPACKING (1)
ACCESSORIES
SETUP FOR ORIGINAL COVER KA-1640PC
UNPACKING (2)
SETUP FOR DEVELOPER UNIT
AUTOMATIC SET-UP MODE
AUTO-TONER SENSOR ADJUSTMENT
SETUP FOR TONER CARTRIDGE
AUTOMATIC GAMMAADJUSTMENT
SETTING DATE AND TIME
DATA ENCRYPTION FUNCTION
COPY OPERATION AND COPY QUALITY
Main
Menu
Menu
II. UNPACKING AND SETUP
II-1. e-STUDIO206L/256/306/356/456
© TOSHIBATEC CORPORATION 2012 All Rights Reserved. 2
UNPACKING (1)
There is no difference in the unpacking and set-up procedures among
e-STUDIO206L/256/306/356/456.
They do not vary so much in accordance with the destinations, either. Therefore,
this chapter takes e-STUDIO356, which is destined for Europe, for the purpose
of illustration.

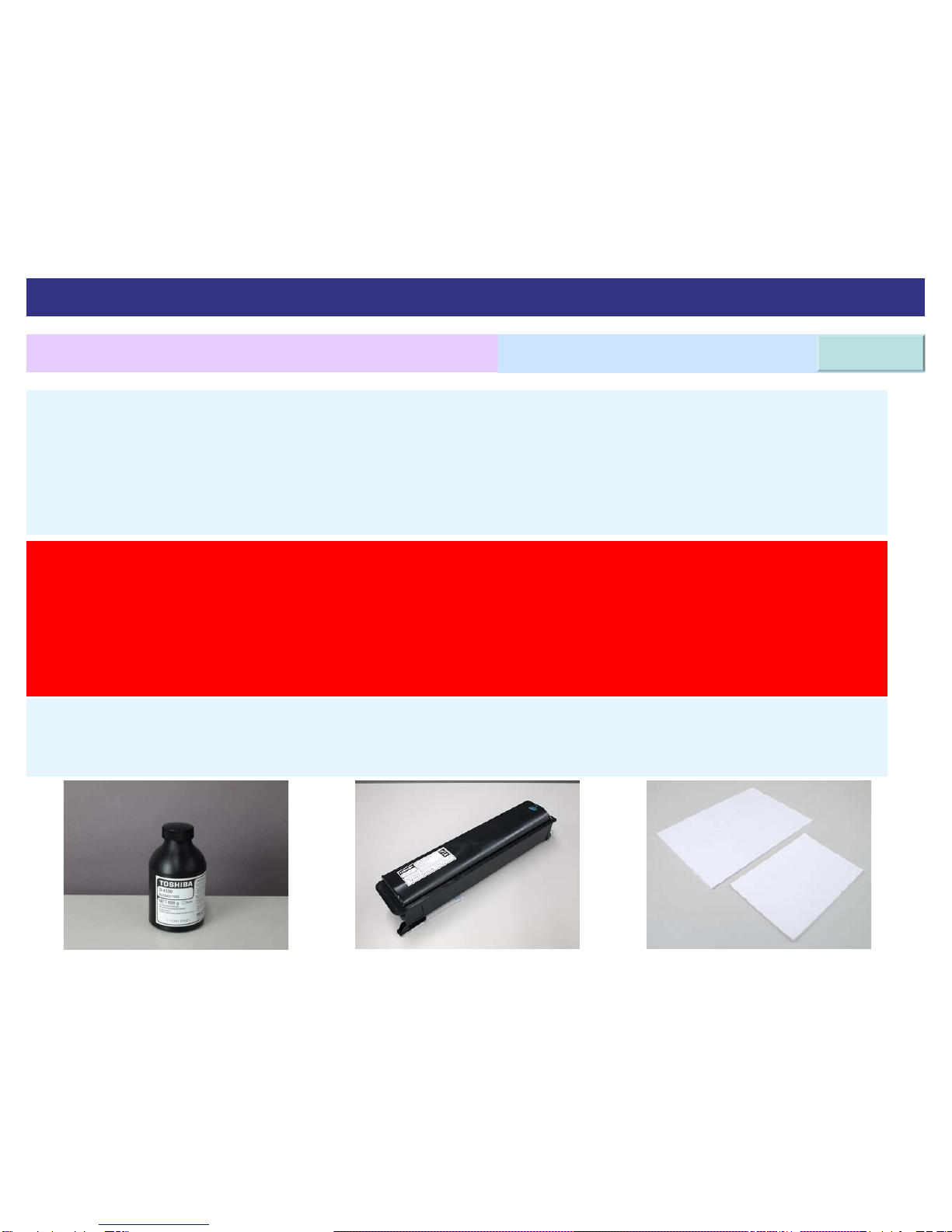

Prior to the setup of the e-STUDIO356, keep the following consumables at the ready:
- DEVELOPER MATERIAL - TONER CARTRIDGE - PLAIN PAPER
* Only for North America and Europe
Sub Menu
II-1. e-STUDIO206L/256/306/356/456
Notes:
1) Be sure to keep spaces of at least 80 cm (both left and right) and 10 cm (rear) around
the equipment so that copy operations can be performed easily.
2) Be sure to install the equipment near an electric outlet so that it is easily accessible.
3) * For Japan, install the ground wire first and then plug in the power cable. Then remove
the ground wire after the power cable is unplugged.
II. UNPACKING AND SETUP
© TOSHIBATEC CORPORATION 2012 All Rights Reserved. 3
UNPACKING (1)

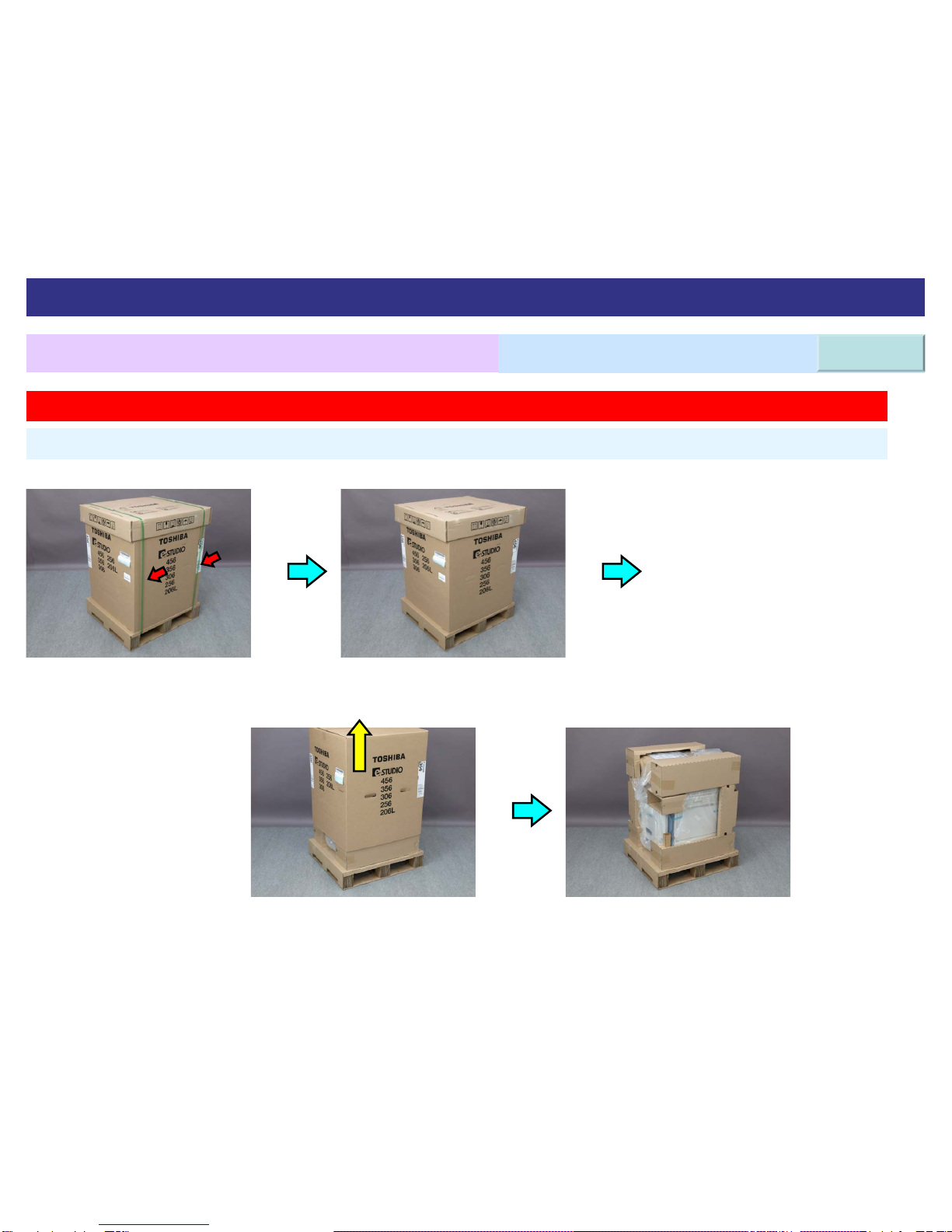

Cut 2 straps. Lift up the packing carton to remove it.
II-1. e-STUDIO206L/256/306/356/456 Sub Menu
* At least 2 service technicians are required to unpack and set up the e-STUDIO.
II. UNPACKING AND SETUP
© TOSHIBATEC CORPORATION 2012 All Rights Reserved. 4
UNPACKING (1)

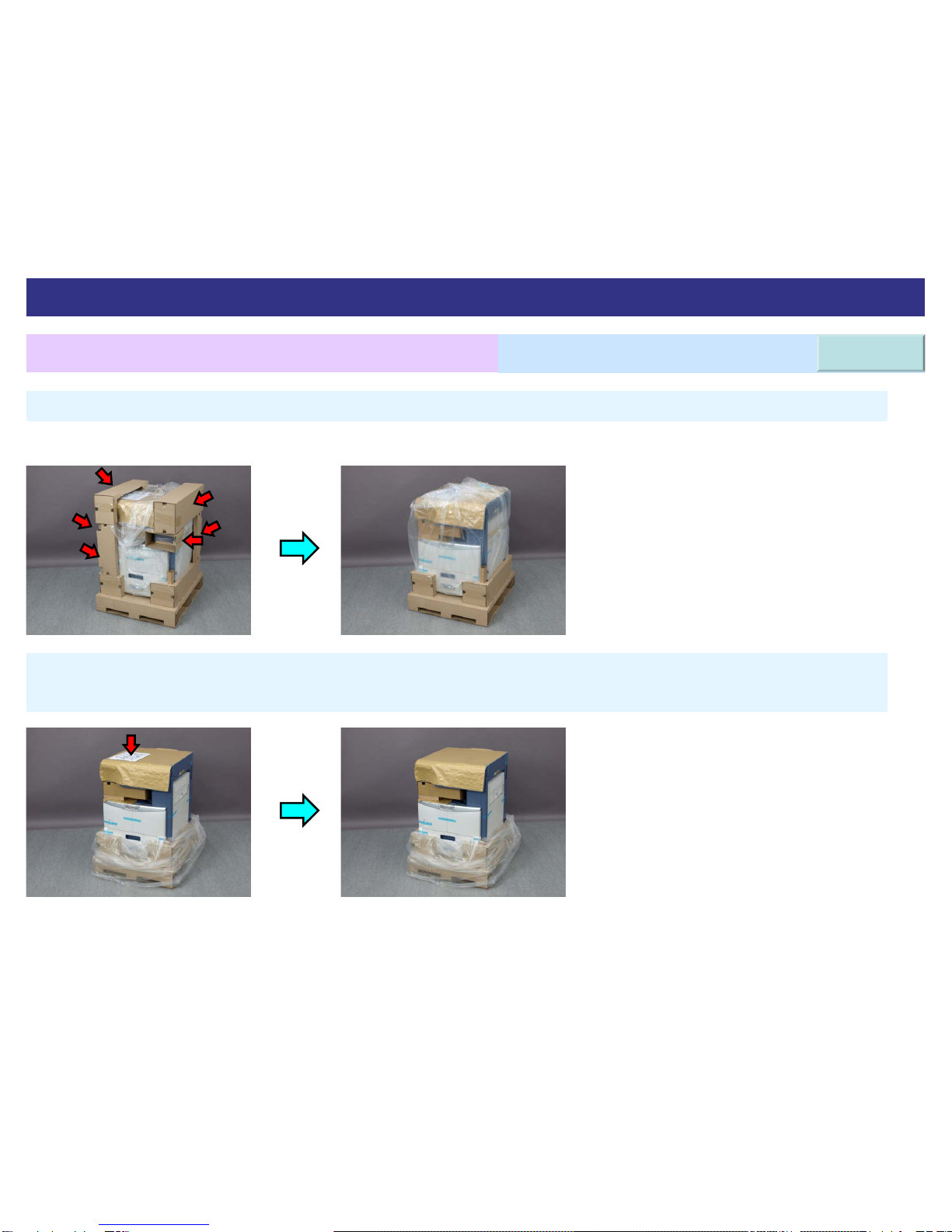

Remove the packing materials.
Lower the plastic bag.
Take out the unpacking instructions.
II-1. e-STUDIO206L/256/306/356/456 Sub Menu
II. UNPACKING AND SETUP
© TOSHIBATEC CORPORATION 2012 All Rights Reserved. 5
UNPACKING (1)
Remove the packing sheet from the original glass.
Remove the packing material and accessories from the inner receiving tray to
the paper exit side. Remove the packing sheet.
II-1. e-STUDIO206L/256/306/356/456 Sub Menu
II. UNPACKING AND SETUP
© TOSHIBATEC CORPORATION 2012 All Rights Reserved. 6
UNPACKING (1)
Prepare the options and the desk.
Pull out 2 handles at the paper feed side.
II-1. e-STUDIO206L/256/306/356/456 Sub Menu
II. UNPACKING AND SETUP
© TOSHIBATEC CORPORATION 2012 All Rights Reserved. 7
UNPACKING (1)II-1. e-STUDIO206L/256/306/356/456 Sub Menu

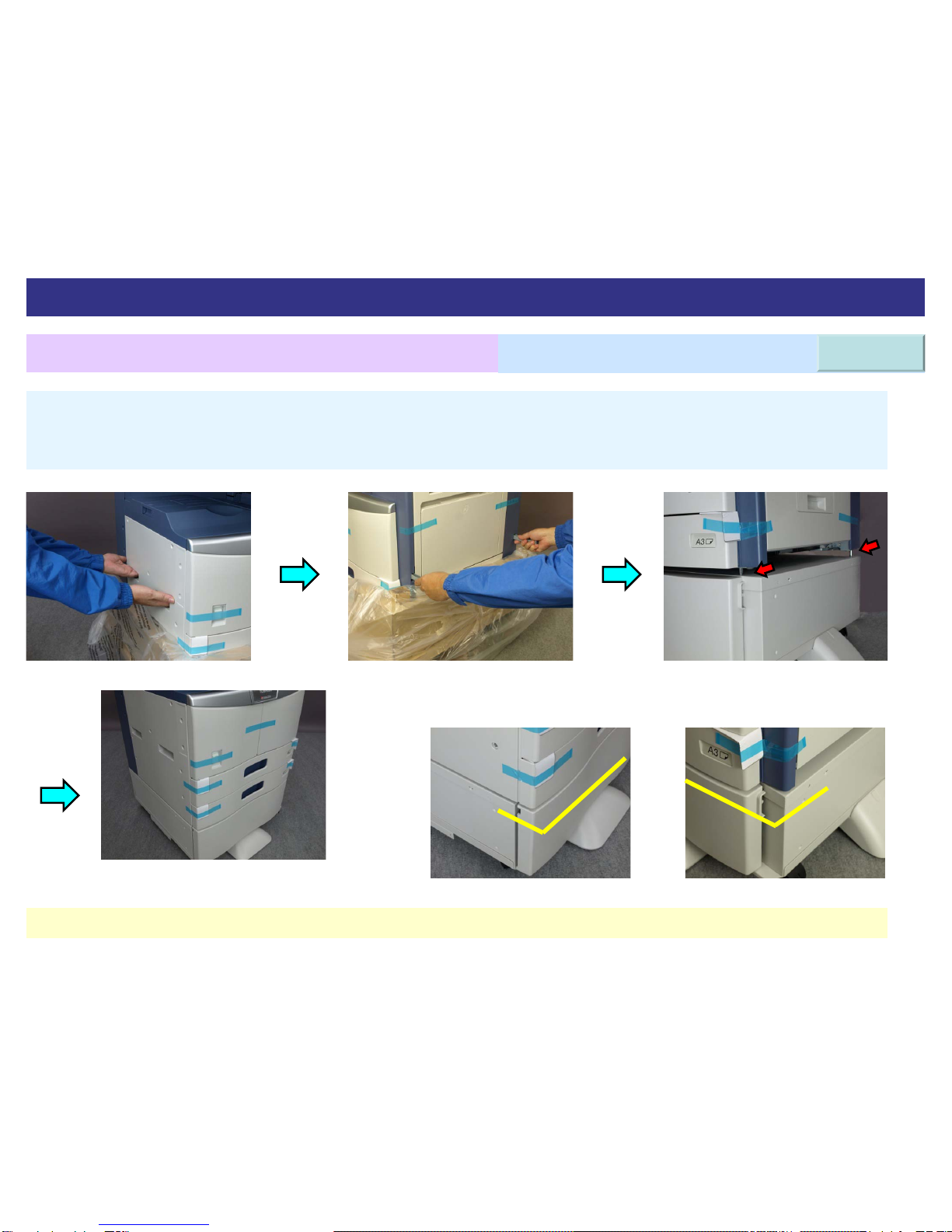

Have 2 service technicians hold the 2 grips at the paper exit side and the 2 handles at the
paper feed side of the e-STUDIO. Gently place the e-STUDIO on the desk fitting the
positioning pins of the desk into the slots of the e-STUDIO.
* Place the e-STUDIO so that its front is aligned to that of the desk.
II. UNPACKING AND SETUP
© TOSHIBATEC CORPORATION 2012 All Rights Reserved. 8
UNPACKING (1)
Peel off the adhesive tape and the packing materials.
II-1. e-STUDIO206L/256/306/356/456 Sub Menu
＊Do not remove the
adhesive tape holding the
platen switch lever at this
point.
Peel if off when the
original cover or the RADF
is installed.
II. UNPACKING AND SETUP
© TOSHIBATEC CORPORATION 2012 All Rights Reserved. 9
UNPACKING (1)
Completely pull out the upper drawer. Take out the accessories.
Peel off the adhesive tape and remove the packing material.
Close the upper drawer.
Completely pull out the lower drawer. Peel off the adhesive tape. Close the
lower drawer.
II-1. e-STUDIO206L/256/306/356/456 Sub Menu
II. UNPACKING AND SETUP
© TOSHIBATEC CORPORATION 2012 All Rights Reserved. 10
UNPACKING (1)

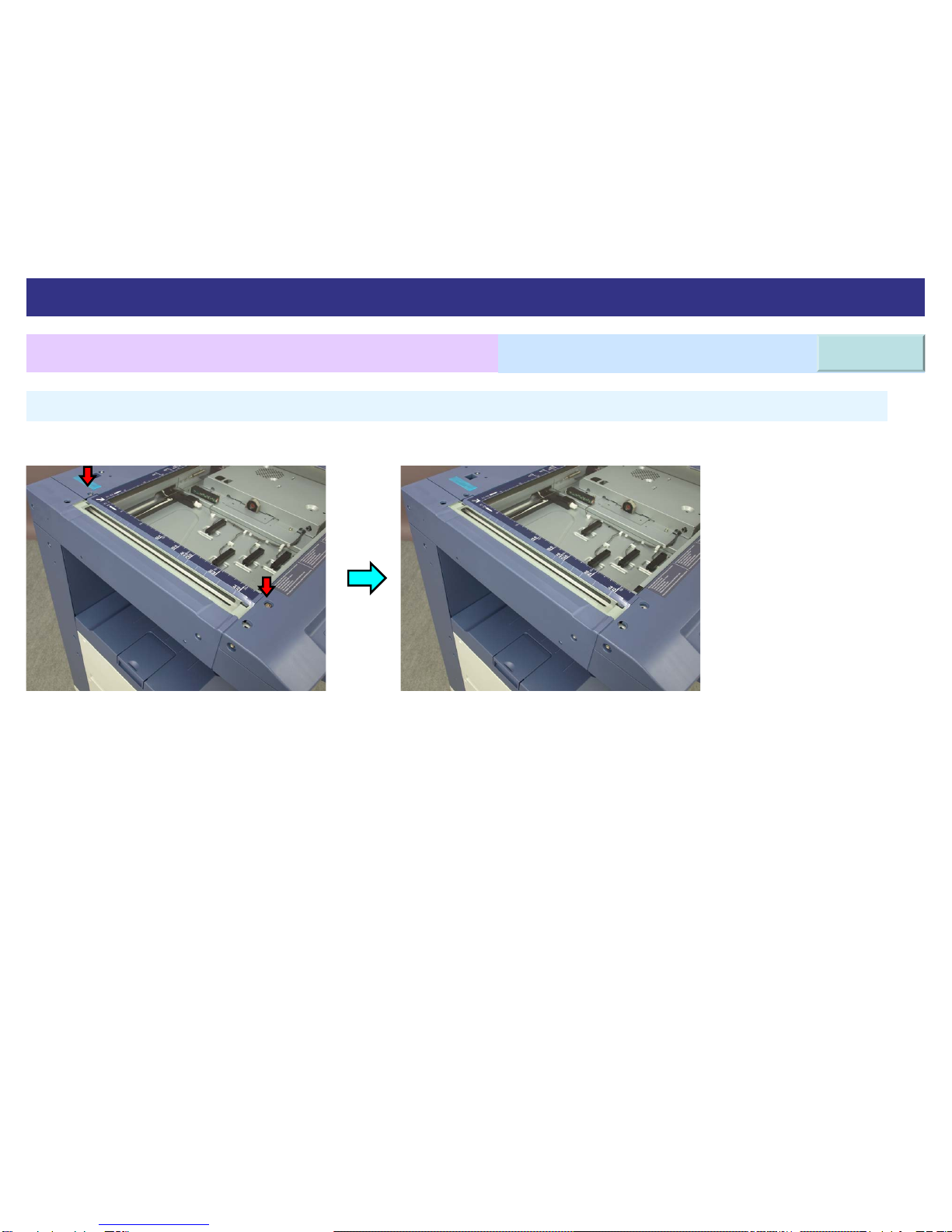

Remove the 2 screws holding the carriage.
II-1. e-STUDIO206L/256/306/356/456 Sub Menu
II. UNPACKING AND SETUP
