Toshiba HX-10 Manuale utente

TOSHIBA INMSX

HOME COMPUTER OWNER'S MANUAL

HX-10

CONTENTS

SAFETY PRECAUTIONS.

INTRODUCTION

CHAPTER 1—SETTING UP

1. TOSHIBA HX-10 PACKAGE CONTENTS

2. CONTROLS AND CONNECTIONS

CHAPTER 2—GETTING STARTED.

CONNECTING TO ATV. RECEIVER.

CONNECTING TO ACASSETTE/DATA RECORDER

TUNING TV. TO YOUR COMPUTER.

LOADING THE SAMPLE PROGRAM.

CONNECTING TO AN AUDIO SYSTEM.

EXPANDING THE CAPABILITIES OF YO

PROGRAM LOADING FROM AUDIO CASSETTE

PROGRAM LOADING FROM ROM CARTRIDGE.

CHAPTER 3—KEYBOARD OPERATIONS.

1. KEYBOARD LAYOUT...

2. DATA KEY OPERATIONS.

3CONTROL KEY OPERATIONS

4. FUNCTION KEY OPERATIONS.

CHAPTER 4—MSX BASIC.

1. BASIC PROGRAMMING.

2. BASIC PROGRAM DEVELOPMENT PROCEDURE.

(1) PROGRAM INPUT.

(2) PROGRAM VERIFICATION.

(3) PROGRAM DEBUGGING

(4) PROGRAM EXECUTION.

(5) ERROR MESSAGE...

(6) PROGRAM SAVING..

3PROGRAMMING EXAMPLES

CHAPTER 5—IN CASE OF DIFFICULTY

BEFORE CALLING FOR SERVICE

(1) CASSETTE PROBLEMS

(2) KEYBOARD FAILURE.

(3) ROM CARTRIDGE FAILURE

(4) AUDIO SYSTEM FAILURE

(5) JOYSTICK FAILURE.

(6) DISPLAY FAILURE.

CHAPTER 6—SPECIFICATIONS..

SPECIFICATIONS.

©APPENDIX

1. CHARACTER CODE LIST.

2. ALPHABETICAL ERROR

SNOMsON=

23233889

CSSSNNNNNN

Naad

ZESSRISZo

SAFETY PRECAUTIONS

Mains Supply

The mains supply required is 240 volts 50 Hz. Aplug is not supplied with the computer

because of the wide variety of wall sockets used in domestic dwellings. You will

therefore need to have fitted to the mains lead a plug suited to the particular sockets in

your home.

We recommend that where possible a13-amp. plug is used, FITTED WITH A3-AMP.

FUSE. Connect the plug as described in the instructions below.

IMPORTANT

The wires in the mains lead are coloured as follows:

BLUE :NEUTRAL

BROWN :LIVE

Connections to atypical 13-amp. plug

These colours might not be the same as those used to identify the terminals of your

plug, so connect the wires as follows:

BLUE —to the terminal marked N, or coloured black

BROWN —to the terminal marked L, or coloured red

ALWAYS SWITCH OFF YOUR COMPUTER BEFORE

INSERTING OR REMOVING AROM CARTRIDGE

See Page 14

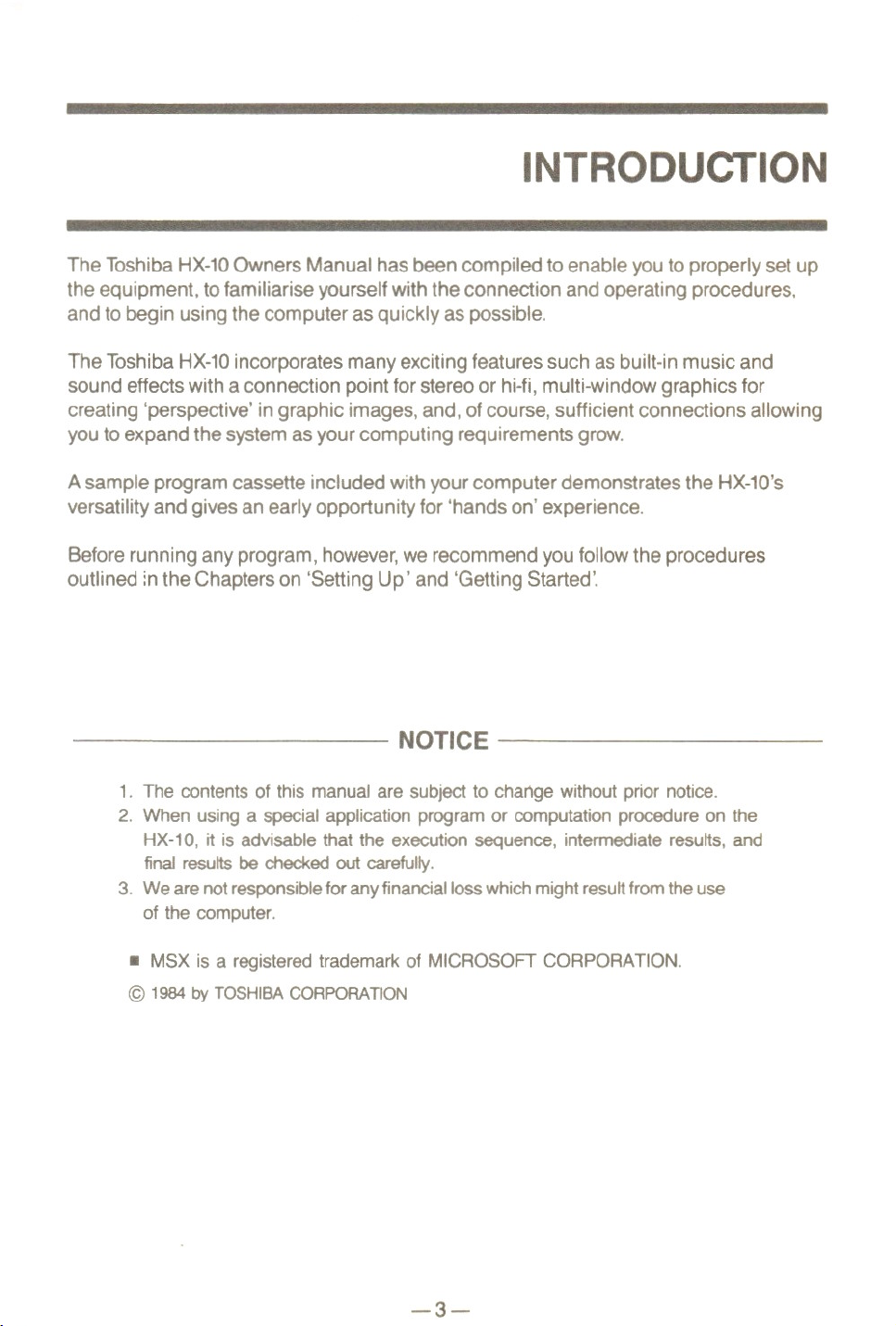

INTRODUCTION

The Toshiba HX-10 Owners Manual has been compiled to enable you to properly set up

the equipment, to familiarise yourself with the connection and operating procedures,

and to begin using the computer as quickly as possible.

The Toshiba HX-10 incorporates many exciting features such as built-in music and

sound effects with aconnection point for stereo or hi-fi, multi-window graphics for

creating ‘perspective’ in graphic images, and, of course, sufficient connections allowing

you to expand the system as your computing requirements grow.

Asample program cassette included with your computer demonstrates the HX-10's

versatility and gives an early opportunity for ‘hands on' experience.

Before running any program, however, we recommend you follow the procedures

outlined in the Chapters on ‘Setting Up’ and ‘Getting Started’.

NOTICE

1. The contents of this manual are subject to change without prior notice.

2. When using aspecial application program or computation procedure on the

HX-10, it is advisable that the execution sequence, intermediate results, and

final results be checked out carefully.

3. We are not responsible for any financial loss which might result from the use

of the computer.

mMSX is aregistered trademark of MICROSOFT CORPORATION.

CHAPTER1

SETTING UP

1. TOSHIBA HX—10 PACKAGE CONTENTS …6

2. CONTROLS AND CONNECTIONS... 6

1. TOSHIBA HX-10 PACKAGE CONTENTS

After unpacking your HX—10 and before connecting the computer to your TV. set please

ensure thatin addition to this manual the following accessories were supplied with your

computer:

Reference Manual

Keyboard transfers

Cassette recorder interface cable

Sample program

If any of the above items were not supplied, please consult your local dealer.

2. CONTROLS AND CONNECTIONS

Front and Right Side Panels

Power indicator Cartridge slot

Rear and Left Side Panels

(4) RF Output (to TV aerial socket)

*Warming

Only equipment specified by TOSHIBA should be connected to the expansion bus.

Damage to the computer and accessaries may occur if non specified equipment is used.

Accessory Cables

Cassette interface cable Coaxial cable

NOTES—

—
