Toshiba CSDW2M60CM28 Manuale utente

D4176244A

FULL HD

Color Camera

CSDW2M60CM28

SPECIFICATIONS

TABLE OF CONTENTS

RESTRICTION FOR USE ················································1

CASES FOR INDEMNITY···············································2

USAGE PRECAUTIONS··················································3

1．INTRODUCTION ·······················································5

2．FEATURES··································································5

3．COMPONENT·····························································6

4．OPTIONAL PARTS·····················································6

5．FUNCTION ·································································7

6．SPECIFICATION·······················································10

7．GUARANTEE···························································17

8．SERVICE ···································································17

9．APPEARANCE ·························································18

Printed On Recycled Paper．

D4176244A

RESTRICTION FOR USE

●

Should the equipment be used in the following conditions or environments, give consideration to

safety measures and inform us of such usage:

1.：Use of the equipment in the conditions or environment contrary to those specified, or use

outdoors.

2.：Use of the equipment in applications expected to cause potential hazard to people or property,

which require special safety measures to be adopted.

●

This product can be used under diverse operating conditions. Determination of applicability of

equipment or devices concerned shall be determined after analysis or testing as necessary by the

designer of such equipment or devices, or personnel related to the specifications. Such designer or

personnel shall assure the performance and safety of the equipment or devices.

●

This product is not designed or manufactured to be used for control of equipment directly

concerned with human life (*1) or equipment relating to maintenance of public services/functions

involving factors of safety (*2). Therefore, the product shall not be used for such applications.

(*1): Equipment directly concerned with human life refers to:

· Medical equipment such as life-support systems, equipment for operating theaters.

· Exhaust control equipment for exhaust gases such as toxic fumes or smoke.

· Equipment mandatory to be installed by various laws and regulations such as the Fire Act or

Building Standard Law.

· Equipment related to the above

(*2): Equipment relating to maintenance of public services/functions involving factors of safety refers to:

· Traffic control systems for air transportation, railways, roads, or marine transportation.

· Equipment for nuclear power generation.

· Equipment related to the above.

D4176244A

CASES FOR INDEMNITY

●

●●

●

In the case damage or losses are caused by fire, earthquake, or other acts of God, acts by a third

party, deliberate or accidental misuse by the user, or use under extreme operating conditions.

●

In the case of indirect, additional, consequential damages (loss of business interests, suspension of

business activities) are incurred as result of malfunction or non-function of the equipment, we shall

be exempted from responsibility for such damages.

●

In the case damage or losses are caused by failure to observe the information contained in the

instructions in this instruction manual and specifications.

●

In the case damage or losses are caused by use contrary to the instructions in this instruction manual

and specifications.

●

In the case damage or losses are caused by malfunction or other problems resulting from use of

equipment or software that is not specified.

●

In the case damage or losses are caused by repair or modification conducted by the customer or any

unauthorized third party (such as an unauthorized service representative).

●

Expenses we bear on this product shall be limited to the individual price of the product.

●

The item that is not described in specifications of this product is off the subject of the guarantee.

D4176244A

USAGE PRECAUTIONS

●

Handle carefully

Do not drop the equipment or allow it to be subject to strong impact or vibration, as such action

may cause malfunctions. Further, do not damage connected cables, since this may cause wire

breakage.

●

Environmental operating conditions

Do not use the product in locations where the ambient temperature or humidity exceeds the

specifications.

Otherwise, image quality may be degraded or internal components may be adversely affected. In

particular, do not use the product in areas exposed to direct sunlight. Moreover, during shooting

under high temperatures, vertical stripes or white spots (noise) may be produced, depending on the

subject or camera conditions (such as increased gain). However, such phenomena are not

malfunctions.

●

About lens mount

As for the C-mount lens used combining this camera, the projection distance from bottom of the

screw should use 8.8 mm or less.

9.4mm or less

C-mount lens Bottom of the screw

●

Combination check with the lens

This camera might from a ghost to image area depending on the combination of a lens and an

illumination with this camera. But this is not a failure of this camera. Therefore, Please check the

combination of the lens and the illumination with this camera when you use.

●

Combination check with the monitor

Depending on a used monitor and the combination of the DVI-D cable, there is the case that is not

displayed normally by a monitor. Please confirm the combination of a monitor and DVI-D cable

and this camera beforehand.

●

Do not apply image pickup surface to the direct sun or intense light

The color filter of the sensor fades when I guess strong light right for a long time.

●

Occurrence of moiré

If you shoot thin stripe patterns, moiré patterns (interference fringes) may appear. This is not a

malfunction.

8.8mm

or less

D4176244A

●

Occurrence of noise on the screen

If an intense magnetic or electromagnetic field is generated near the camera or connected cables,

noise may be generated on the screen. If this occurs, move the camera or the cable.

●If the equipment is not to be used for a long duration

Turn off power to the camera for safety and attach the lens cap to the camera to protect the image

pickup surface.

●

Maintenance

Turn off power to the equipment and wipe it with a dry cloth.

If it becomes severely contaminated, gently wipe the affected areas with a soft cloth dampened with

diluted neutral detergent. Never use alcohol, benzene, thinner, or other chemicals because such

chemicals may damage or discolor the paint and indications.

If the image pickup surface becomes dusty, contaminated, or, scratched, consult your sales

representative.

●

Precaution in the power supply from camera control connector

There is the case that noise appears depending on a PC. Then please use the DC12V supply from a

power supply connector.

There is a possibility that the camera malfunction according to falling supply voltage depending on a

Mini-USB cable for camera control to use.

In that case, please use the DC12V supply from a power supply connector.

When you useAuto Iris control, please use the power supply from theAC adapter.

●

Disposal

When disposing of the camera, it may be necessary to disassemble it into separate parts, in

accordance with the laws and regulations of your country and/or municipality concerning

environmental contamination.

“This symbol is applicable for EU member states only”

D4176244A

1．

．．

．INTRODUCTION

ThisHD color camera is a unit type medical camera utilized 1/2.8 inch sensor.

Apicture output is DVI-D, so that you can get high-speed and high-resolution picture.

Because this camera can connect a monitor directly, it is suitable for use of observation.

2．FEATURES

(1) High-frame rate

This camera output a picture size of the FULL HD with 1920×1080/60p or 1920×1080/60i.

(2) Color reproduction characteristics

This camera is superior in color reproduction characteristics because the sensor is adopted a

primary color mosaic filter.

(3) DVI-D

The picture output is possible just to be connected to the monitor directly because the picture

output is DVI-D.

(4) Small and light

This camera is small and light.

(5) Camera control

It is possible to control this camera from camera control connector.

(6) Electronic lines

It is possible to show a monitor screen electronic lines by two vertical and horizontal.

(7) Grid

It is possible to show a monitor screen grid lines.

(8) Auto Iris control

It is possible to control the auto Iris lens through the EIAJ RC-5204 connector.

(9) RoHS compliant

D4176244A

3．

．．

．COMPONENT

(1) Camera body ···································································× 1

(2) Accessories

・Intentional Manual(Japanese) ····································· × 1

・Intentional Manual(English) ······································· × 1

※No application software attached to this camera.

※No DVI-D cable, Mini-USB cable for camera control and Lens attached to this camera.

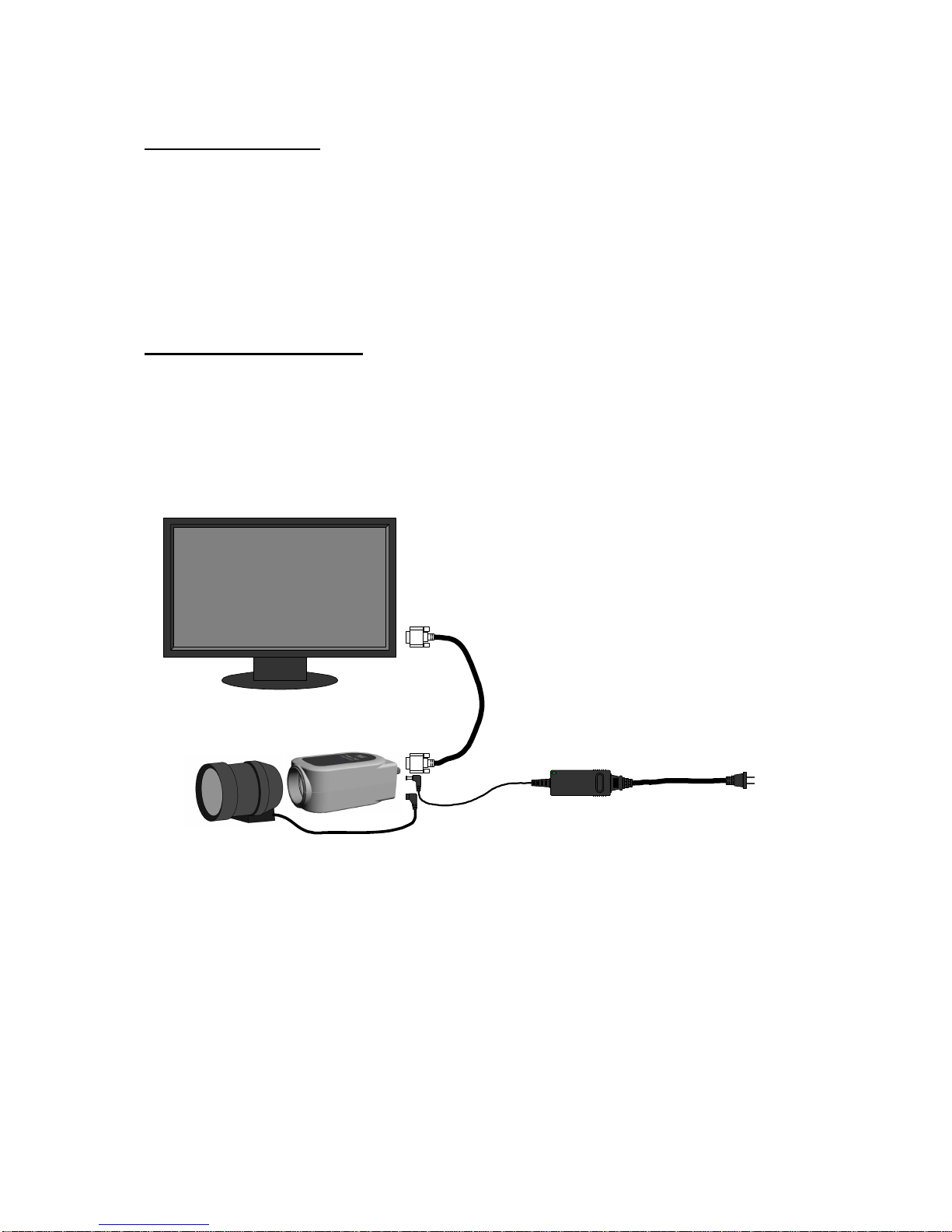

4．

．．

．OPTIONAL PARTS

・AC Adapter SPU16A-105-ASN

・AC Cable APC1025-01P (Only in Japan)

※Please contact our business charge for detail of option unit.

Monitor DVI-D cable

CSDW2M60CM28

Lens AC adapter AC cable

D4176244A

5．

．．

．FUNCTION

(1) Setup-level setting

It is possible to set the setup-level. A setting range is -16LSB～+16LSB. (Factory setting：8LSB)

(2) Gain setting

There are 2 modes of MANU(manual) mode andAUTO mode. (Factory setting：AUTO)

Asetting range is -6dB～+12dB.

AUTO mode always regulates gain depending on the brightness of an object.

It is possible to setting max gain of this time.

(3) Electronic shutter

There are 2 modes of MANU(manual) and AUTO. (Factory setting：AUTO)

・MANU mode

It is possible to select the shutter speed with 9 phases.

・AUTO mode

AUTO mode always regulates shutter speed to the brightness of the subject.

It is possible to setting max gain of this time.

※

It is possible to change detect ratio (Peak：Average) in AUTO mode.

(4) White balance

There are 4 kinds of modes of MWB(Manual White Balance), OPWB(One Push White Balance),

AWB(Auto White Balance) and .PresetWB(Preset White Balance).

It is possible to choose it to a subject, a use. (Factory setting：OPWB)

・MWB(Manual White Balance)

R-gain and B-gain can be set independently.

Setting range：0dB～12dB

・OPWB(One Push White Balance)

It is regulated by one push so that RGB of the center of image area become equal.

・AWB(Auto White Balance)

It is always reproduced kept images of the balance and pursuit the change of the source of light

automatically.

・PresetWB(Preset White Balance)

It is possible to select the white balance value which the color temperature of the source of light.

D4176244A

(5) Aperture

It is possible to set aperture correction revision of the output picture.

A setting range is 8 phases (0~7) each High frequency and Low frequency. (Factory setting：3)

・Phase up : Picture’s edge is emphasized.

(6) Gamma correction

It is possible to set gamma correction of the output picture with 17 phases(0~16). (Factory setting：5)

・Phase up : The shading of the shade become clear.

(7) Auto Iris control

Regulate Lens Iris automaticallyto the brightness of the subject reasonable photography.

※

When you useAuto Iris control, please use the power supply from the AC adapter.

※

It ispossibleto work with DCcontrollens only（Recommendationlens：DV10×8SA-SA1L FUJIFILM）

(8) Mirror mode

It is possible to turn over the output picture.

It is possible to change ON/OFF each Horizontal and Vertical.

(9) Electronic line

Because it is possible to show a monitor screen electronic lines by two vertical and horizontal, it is

convenience to align and measure the images.

You can move the line by one pixel of unit and set the following items.

・Line type

Fill / Translucent

・Line width

1 pixel / 2 pixels

・Line color

changeable

・Setting range

Vertical ：0～1919

Horizontal ：0～1079

D4176244A

(10) Grid

It is possible to show a monitor screen grid lines.

You can regulate the grid interval by one pixel of unit and set the following items.

・Grid type

Translucent

・Grid interval

Vertical ：4～1920

Horizontal ：4～1080

・Grid Width

1 pixel

・Grid color

Changeable

(11) Color matrix

It is possible to adjust the color masking manually. The adjustment method is changing possibility in

RGB and YUV. (Factory setting：RGB)

・RGB

The variable parameter is R-G, R-B, G-B, G-R, B-R and B-G.

・YUV

The variable parameter is hue, and saturation(u / v).

Indice

Altri manuali Toshiba Macchina fotografica digitale

Toshiba

Toshiba PDR-3320 Istruzioni per il montaggio

Toshiba

Toshiba PDR-M60 Manuale utente

Toshiba

Toshiba PDR-2300 Manuale utente

Toshiba

Toshiba PDRM5 - PDR M5_duplicate Web Camera Manuale utente

Toshiba

Toshiba PDR-M11 Manuale utente

Toshiba

Toshiba IK-HR1D Manuale utente

Toshiba

Toshiba PDR-M71 Manuale utente

Toshiba

Toshiba PDR-M25 - 2MP Digital Camera Manuale utente

Toshiba

Toshiba PDR-M21 Manuale utente

Toshiba

Toshiba IK-HR1S Manuale utente

Toshiba

Toshiba IK-WB01A Manuale utente

Toshiba

Toshiba IK-HR1S Manuale utente

Toshiba

Toshiba PDR-3320 Manuale utente

Toshiba

Toshiba Sora PDR-T10 Manuale utente

Toshiba

Toshiba PDR-4300 Istruzioni per il montaggio

Toshiba

Toshiba PDR-M61 Manuale utente

Toshiba

Toshiba BU302MG Manuale utente

Toshiba

Toshiba BU205M Manuale utente

Toshiba

Toshiba IK-HR2D Manuale utente

Toshiba

Toshiba PDR-M1 Manuale utente

Toshiba

Toshiba PDR-M1 Manuale utente

Toshiba

Toshiba BU406M Manuale utente

Toshiba

Toshiba BU238M Manuale utente

Toshiba

Toshiba PDR-M81 Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
