Toshiba MK5002MAL Manuale utente
TOSHIBA AMERICA INFORMATION SYSTEMS
STORAGE DEVICE DIVISION
IRVINE, CALIFORNIA
MK5002MAL (HDD1242)
1.8-INCH HARD DISK DRIVE
USER MANUAL
Rev 02
11/2006
CONTENTS
Introduction..............................................................................1
Setup ........................................................................................2
Using the HDD .........................................................................3
Specifications ..........................................................................4
Drive Connectors.....................................................................6
1
INTRODUCTION – MK5002MAL (HDD1242)
General Features
•1.8" sized drive
•1 Platter
•5.007 Gigabytes*
•5mm High
•15ms Average Seek Time
•ATA (1 - 5) Interface
•Ultra 66 DMA Suppoted
•1024KB Buffer
•Rotational speed of 4,200rpm
•MTTF 300,000 Hours
*Toshiba defines a megabyte (MB) as 1,000,000 bytes and a gigabyte (GB) as 1,000,000,000 bytes.
2
SETUP – MK5002MAL (HDD1242)
Caution: Your Hard Disk Drive is a precision device and even a small drop onto any surface can cause
damage. Electronstatic discharge can also damage the drive. You should ground yourself prior to handling the
drive.

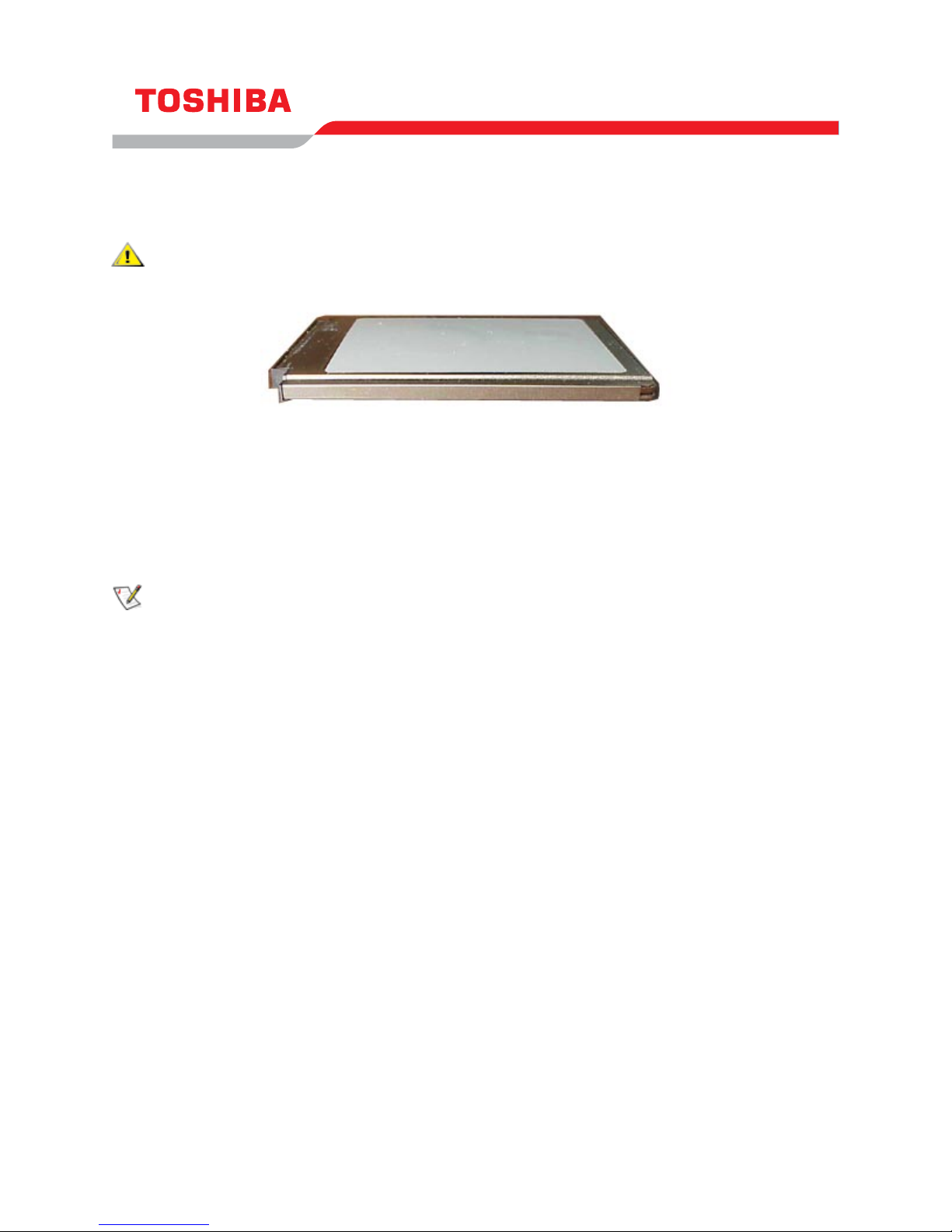

Figure 1. MK5002MAL Side View
Installation Notes
•Do not apply any force to the top cover, except the screw areas on top cover. Maximum force to the
specified area is 2N.
important Note: Disconnect power from your computer system before beginning
installation
3
USING THE HARD DISK DRIVE – MK5002MAL (HDD1242)
Backing up Data Files
To avoid data loss, regularly back up the data files on the hard disk drive.
4
SPECIFICATIONS –MK5002MAL (HDD1242)
General
Model MK5002MAL (HDD1242)
Interface ATA-1/2/3/4/5
Functionality
Formatted Capacity 5.007GB*
Rotational Speed 4200rpm
Avg. Rotational Latency 7.14/ms
Spin-up Time 3.5sec (typical)
Buffer 1024KB
Seek Time
Average
Maximum
15
26
Internal Transfer Rate 118 ~ 175.3 Mbits/sec (max)
Host Transfer Rate
Ultra DMA mode
PIO Mode
66.7Mbytes/sec
16.6Mbytes/sec
Interleave Factor 1:1
*Toshiba defines a megabyte (MB) as 1,000,000 bytes and a gigabyte (GB) as 1,000,000,000 bytes.
Internal Drive Characteristics
Number of Disks 1
Number of Data Heads 2
Track Density (TPI) 1638 (41.6k)
Logical Cylinders 10,350
Logical Heads 16
Logical Sectors/track 63
Bytes per Sector 512
Logical Blocks (LBA) 9,780,750
Reliability
Preventative maintenance None
Non-recoverable read errors 1 error per 1013 bits read
Electrical
Voltage 5V ±5%
Power Consumption
Start 1.2W typ
Seek 1.3W typ
Read/Write 1.3W typ
Sleep 0.05W typ
Energy Consumption Efficiency 0.10W/GB avg
5
Shock
Operating 1,960m/s2(200G)(2msec)
Non-Operating 9,800m/s2(1000G)(1msec)
Physical
Height 0.2" (5.0mm)
Width 2.13" (54.0mm)
Depth 3.09" (78.5mm)
Weight 1.94oz (55g) typ
Regulatory
The drive satisfies the following standards:
Underwriters Laboratories (UL) 1950
Canadian Standard Association (CSA) C22.2 No. 950
TUV Rheinland EN 60 950
EMC - EN50081-1 EN50081-1: 1992
EN55022: 1994 Class B
EN61000-3-2: 1995
EN61000-3-3: 1995
EMC - EN50082-1 EN61000-4-2: 1995
EN61000-4-3: 1998
ENV50204: 1995
EN61000-4-4: 1995
EN61000-4-5: 1995
EN61000-4-6: 1996
EN61000-4-11: 1994
6
DRIVE CONNECTORS –MK5002MAL (HDD1242)

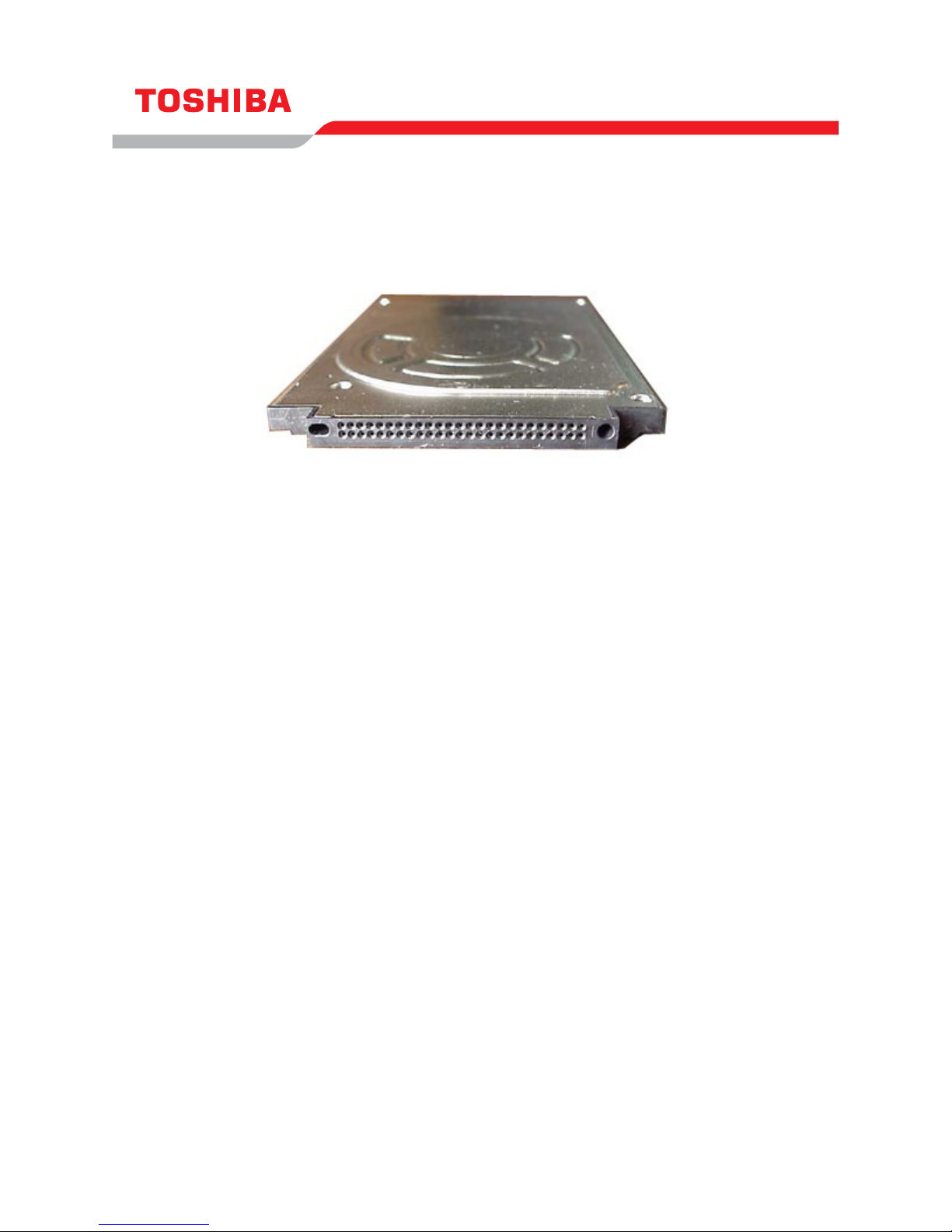

Figure 1. MK5002MAL HDD - INTERFACE CONNECTOR
Interface Connector
Drive Side Connector MCD-D50 Series by DDK Connectors
Recommended Host Side Connector MCD-D50 Series by DDK Connectors
7
Interface Signals
DRIVE INTERFACE SIGNALS
PIN SIGNAL PIN SIGNAL
1 RESET 2 GROUND
3 DD 7 4 DD 8
5 DD 6 6 DD 9
7 DD 5 8 DD 10
9 DD 4 10 DD 11
11 DD 3 12 DD 12
13 DD 2 14 DD 13
15 DD 1 16 DD 14
17 DD 0 18 DD 15
19 GROUND 20 OPEN
21 DMARQ 22 GROUND
23 DIOW/STOP 24 GROUND
25 DIOR/
-DMARDY
HSTROBE
26 GROUND
27 IORDY/
-DMARDY/-
DSTROBE
28 CSEL
29 DMACK 30 GROUND
31 INTRQ 32 IOCS16
33 DA1 34 PDIAG
35 DA0 36 DA 2
37 CS0 38 CS1
39 DASP 40 GROUND
41 3.3V (LOGIC) 42 3.3V (MOTOR)
43 GROUND 44 RESERVED
Note: Symbol () in front of signal indicates negative logic.
