Toshiba International Corporation

Uninterruptible Power Systems

UE3G2L036C61TMB

Product Specifications

INPUT Voltage 240Vac

Voltage Range 168V~264V (+10% to -30%)

Frequency 50/60 Hz Auto Sensing

Synchronization window ± 3Hz

Power Factor Greater than 0.95

THD Current Less than 5% at Full Load

Topology True On-Line, Double Conversion, Input PF Correction

OUTPUT Voltage 240Vac

Capacity (VA) 3600

Capacity (W) 3100

Voltage Regulation ± 3%

Voltage Distortion Less than 6% THD at Full Non-Linear Load. Less than 3% THD at full Linear Load.

Step Load ± 8 % max from 100% to 0 % or from 0% to 100 % linear load

Rated Current 15A

Max Peak Current 45A

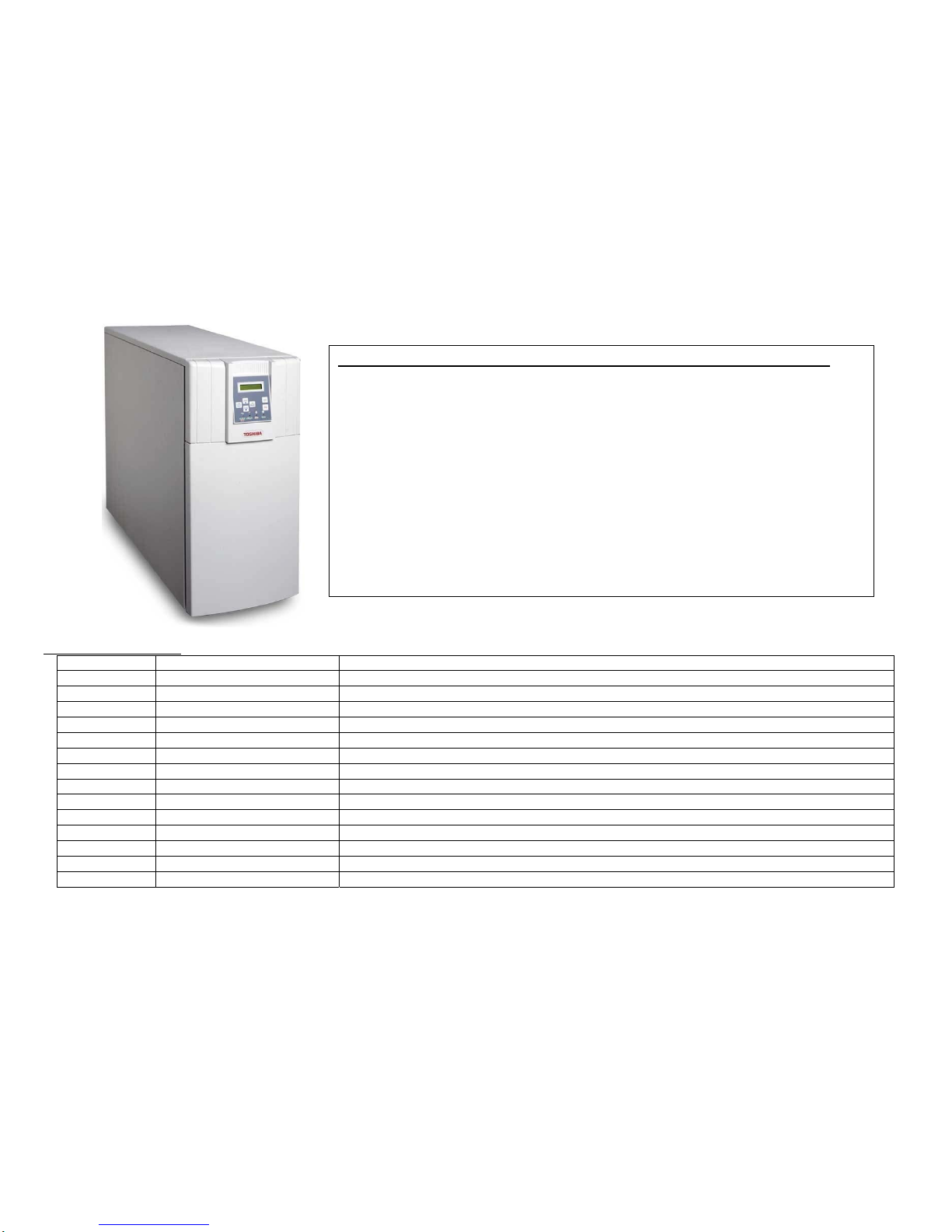

1600EP Series 3.6kVA 240V In - 240V Out Tower Maintenance Bypass Solution

Toshiba's 1600EP Series is an on-line Uninterruptible Power Supply (UPS) systems

provide continuous computer-grade ac power in a compact, high performance, and energy

efficient unit. The UPS unit assures safe and reliable operation of critical office equipment.

This can range from word processors and personal computers to mini-computers and local

area networks. All units feature an audible alarm, which sounds if the battery voltage drops

below standard during use. This is an additional aid to help in retaining the valuable office

data banks. All units allow for computer interfacing.

This model is a Maintenance Bypass solution. Maintenance Bypass solution is a two

breaker maintenance bypass panel. This is a 240V input and 240-output solution.

Toshiba International Corporation

Uninterruptible Power Systems

UE3G2L036C61TMB

Overload Capacity 125% for 30 secs, 150% for 10 secs

Crest Factor 3.0 at full load

Frequency 50/60 Hz Auto Sensing

Frequency Regulation ± 0.5Hz/± 1.0Hz/± 1.5Hz (authorized service center selectable only)

Wave Form Sine wave, Zero Transfer Time

Load Power Factor 0.85

Efficiency AC to AC Greater than 83%

Common Mode Noise Less than 0.5 Vrms

BATTERY DC Voltage 216V

Backup Time 10 min (full load) 30 min (half load)

Battery type Enersys NPX-35 Flame Retardant Lead Acid 9Ah/12V Part #: 51896

Number of batteries Pack 3 (Six batteries in each pack)

Recharge time <12 hours to 90%

PHYSICAL Interface RS-232, Dry Contact Connectivity, External Battery Connectivity

Input Hardwire Input

Output Hardwire Output

Dimensions WxDxH (mm) 838x254x711

Ship Dimensions WxDxH (mm) 965x432x940

Dimensions W x D x H (inch) 33x10x28

Ship Dimensions WxDxH (inch) 38x17x37

Weight kg (lb) 120.2 (265)

Ship Weight kg (lb) 127 (280)

OPTION External Matching Battery Cabinet Single - 70 Mins, Double - 140 Mins. Max Two Cabinets. Part #: UE3-BC-0650

Network Interface Card RemotEye II - Part #: RMTI-INT-R25

Environmental Monitoring Device Part #: RMTI-EMD-HT

ENVIRONMENT Operating Ambient Temperature 0 ~ 40oC (32 ~ 104oF)

Recommended Temperature +15oC ~ 25oC

Storage Temperature -20oC ~ 40oC

Humidity 30-90%, Non-Condensing

Audible Noise 50dB (A) maximum @ 1 meter from Front Panel

Altitude 3300 ft (1,000 m) above sea level

CONFORMANCE Regulatory Approvals UL, CUL, ISO 9001, NEMA/PEI-1993

WARRANTY Three years on electronics

Two years full replacement on battery (See Toshiba warranty policy for full details)
