Total TB2066 Manuale utente

600W

TB2066,UTB2066

TB2066-6,TB2066-8,TB2066S

ASPIRATOR BLOWER

One-Stop Tools Station

Important Safeguards

While using electrical appliances, in order to reduce the risk of fire, electric shock,

and/or injury to persons, basic safety precautions should be followed, including the

following:

Read all instructions carefully, even if you are familiar with the appliance.

To protect against the risk of electric shock, DO NOT IMMERSE the appliance,

cord set or plug in water or other liquids.

To clean, wipe the exterior with a damp cloth.

Close supervision is necessary when any appliance is used near children. Never

leave an appliance unattended when in use.

If the supply cord is damaged, it must be replaced by the manufacturer or its

service agent or a similarly qualified person in order to avoid a hazard.

Switch off and remove the plug from the power outlet when not in use before

assembling or disassembling parts, cleaning or carrying out any maintenance of

the appliance. Never pull the cord while unplugging out from power outlet.

Do not operate the appliance if its damage in any manner. Return the complete

appliance to your nearest authorized service facility for examination, electrical

repair, mechanical repair or adjustments to avoid any hazard.

The use of attachments or accessories not recommended or sold by this

appliance manufacturer may result in fire, electric shock or personal injury.

Do not let the cord hang over the edge of a table, counter, or touch hot surfaces.

Avoid touching hot surfaces, use handles and knobs.

Do not operate or place any part of this appliance on or near any hot surfaces

(such as gas or electric burner or in a heated oven).

Do not abuse the cord, Never carry the appliance by the cord or yank it to

disconnect it from the outlet; instead, grasp the plug and pull to disconnect.

When using an extension cord with your appliance, make sure the extension cord

is correctly wired, and rated for its use.

This product is intended for household use only.

Do not attempt to repair the appliance yourself; instead, take it to your Manufacture

-owned or Authorized Service Centre for repair.

- 2 -

Parts Identification

1. Nozzle

2. Blast Port

3. Trigger Switch

4. Variable Speed Knob

5. Lock-On Button

6. Suction Port

7. Dust Bag

Intended use

Your Blower has been designed for blowing & cleaning applications, as well as light

suction purpose.

- 3 -

General Safety Rules

Warning! Read all instructions. Failure to follow all instructions listed below may

result in electric shock, fire and/or serious injury. The term "power tool" in all of the

warnings listed below refers to your mains operated (corded) power tool or battery

operated (cordless) power tool. SAVE THESE INSTRUCTIONS.

1. Work area

a. Keep work area clean and well lit. Cluttered and dark areas invite accidents.

b. Do not operate power tools in explosive atmospheres, such as in the presence of

flammable liquids, gases or dust. Power tools create sparks which may ignite the

dust or fumes.

c. Keep children and bystanders away while operating a power tool. Distractions can

cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not

use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and

matching outlets will reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces such as pipes, radiators,

ranges and refrigerators. There is an increased risk of electric shock if your body is

earthed or grounded.

C. Do not expose power tools to rain or wet conditions. Water entering a power tool

will increase the risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the

power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged

or entangled cords increase the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor

use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

3. Personal Safety

a. Stay alert, watch what you are doing and use common sense when operating a

power tool. Do not use a power tool while you are tired or under the influence of

drugs, alcohol or medication. A moment of inattention while operating power tools

may result in serious personal injury.

b. Use safety equipment. Always wear eye protection. Safety equipment such as dust

mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate

conditions will reduce personal injuries.

c. Avoid accidental starting. Ensure the switch is in the off position before plugging in.

Carrying power tools with your finger on the switch or plugging in power tools that

have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on, Awrench or

a key left attached to a rotating part of the power tool may result in personal injury,

e. Do not overreach. Keep proper footing andbalance at all times. This enables better

control of the power tool unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and

- 4 -

gloves away from moving parts. Loose clothes, jewellery or long hair can be caught

in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities,

ensure these are connected and properly used. Use of these devices can reduce

dust related hazards.

h. Use clamps or another practical way to secure and support the workpiece to a

stable platform. Holding the work by hand or against your body leaves it unstable

and may lead to loss of control.

Before drilling into walls, floors or ceilings check for the location of wiring and pipes,

Avoid touching the tip of a drill bit just after drilling, as it may be hot.

4. Power tool use and care

a. DO not force the power tool. Use the correct power tool for your application. The

correct power tool will do the job barter and safer at the rate for which it was

designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool

that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source before making any adjustments,

changing accessories, or storing power tools. Such preventive safety measures

reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons

unfamiliar with the power tool or these Instructions to operate the power tool. Power

tools are dangerous in the hands of untrained users.

e. Maintain power tools. Check for misalignment or binding of moving parts, breakage

of parts and any other condition that may affect the power tools operation. If

damaged, have the power tool repaired before use. Many accidents are caused by

poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp

cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc., in accordance with these

instructions and in the manner intended for the particular type of power tool, taking

into account the working conditions and the work to be performed Use of the power

tool for operations different from those intended could result in a hazardous

situation.

5. Service

a. Have your power tool serviced by a qualified repair person using only identical

replacement parts. This will ensure that the safety of the power tool is maintained.

Additional Safety Instructions For Blowers

Do not collect still smoldering cigarette ashes,freshly cut metals shaving, screws,

nails and the like.

Never block suction inlet and outlet.

- 5 -

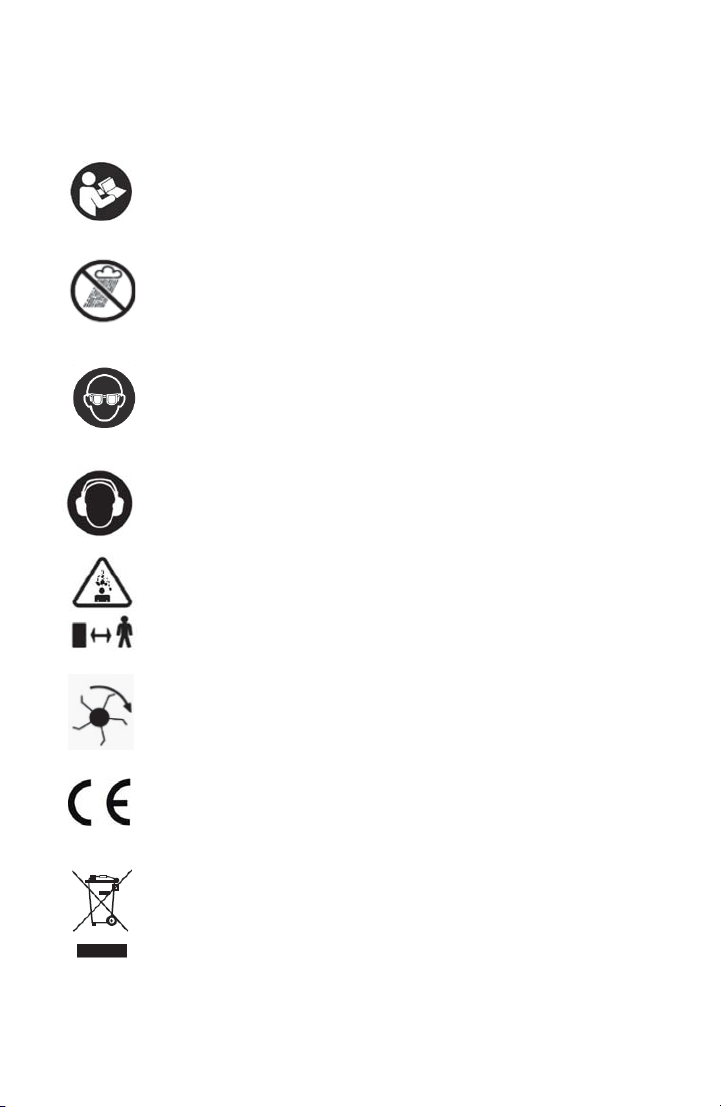

Warning Symbols

Read the operation manual and follow all warnings and safety instructions.

Do not use your saw in wet conditions or expose it to rain.

Always wear eye protection.

Always wear ear protection.

Beware of falling objects.

Keep bystanders away.

Do not touch the fan. The tines will continue to rotate for a short time after

switch off.

Conformance complies with Europe relevant standards.

Meaning of crossed –out wheeled dustbin:

Do not dispose of electrical appliances as unsorted municipal waste, use

separate collection facilities.

- 6 -

Electrical safety

This tool is double insulated; therefore no earth wire is required. Always

check that the power supply corresponds to the voltage on the rating plate.

Assembly

Warning! Before assembly, make sure that the tool is switched off and unplug.

Use

Mounting The Nozzle For Blowing Operations (Fig. A)

Insert the pin located inside the Nozzle into the notch provided on the Blast Port

(1).

To lock Nozzle in place, turn the Nozzle in the direction indicated.

To remove Nozzle, turn the Nozzle in the opposite direction.

Mounting The Nozzle And Dust For Dust Collection (fig. B)

For dust collection, mount the Dust Bag at the Blast Port (2) and Nozzle at the

suction Port (6).

To remove Dust Beg and Nozzle, simply pull out by first turning in the opposite

direction.

Empty the Dust Bag frequently to ensure maximum dust collecting efficiency.

Adjust Variable Speed Knob (4) for different speed requirement.

When continuous operation is required, first depress the switch and then the

lock-on button (5) and release to disengage lock, squeeze and release switch.

Warning:Continuous running of machine should not exceed 30 minutes.

Replacing Carbon Brushes (fig. D)

Use a screwdriver to remove the brush holder cap.

Take out the worn carbon brush, insert the new one and secure the brush hold

cap.

Warning!Remove and check the carbon brushes regularly. Replace when they wear

down to the limit mark.

Accessories

The performance of your tool depends on the accessory used. Manufacture and

Piranha accessories are engineered to high) quality standards and designed to

enhance the performance of your tool. By using these accessories you will get the

very best from your tool.

- 7 -

Maintenance

Your tool has been designed to operate over a long period of time with a minimum of

maintenance. Continuous satisfactory operation depends upon proper tool care and

regular cleaning.

Warning! Before performing any maintenance, switch off and unplug the tool.

Regularly clean the ventilation slots in your tool using a soft brush or dry cloth.

Regularly clean the motor housing using a damp cloth. Do not use any abrasive or

solvent-based cleaner.

Technical data

6602BTU6602BT:ledoM

Rated voltage: 220-240V 110-120V

Frequency: 50/60Hz 60Hz

Power input: 600W

-0:deepsdaol-oN 16000/min

Max blowing rate: 0-3.5m³/min

Insulation class:

Sound pressure level (according

to IEC 60745):

90 dB (A)

Sound power level (according to

IEC 60745):

103 dB (A)

Vibration level (according to IEC

60745):

3.5 m/s2

:thgieW gk6.1

- 8 -

TB2066-6

(ISRAEL plug) TB2066-8

(BS plug) TB2066S

(SAA plug)

TB2066,UTB2066,TB2066-6,TB2066-8,TB2066S Spare part list

- 9 -

29a

29b

29c

No. Part Description QTY No. Part Description QTY

Blower pipe

Blower pipe ring

Left blower guard

Tapping Screw

Lock-nut with flang

Fan

Right blower guard

Tapping Screw

Washer

Bearing

Armature

Bearing

Tapping Screw

Stator

Handle cover

Tapping Screw

Switch

PCB switch

Tapping Screw

Cable clamp

Cord Jacket

Cord plug

Motor housing

Rating label

Brand label

Brush holder

Carbon Brush

brush cover

Dust bag Assm

Cloth

Steel wire

Dust bag ring

TB2066,UTB2066,TB2066-6,TB2066-8,TB2066S Exploding view

- 10 -

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Total Soffiatore

Total

Total TABLI2002 Manuale utente

Manuali Soffiatore popolari di altre marche

Weed Eater

Weed Eater VS2000BV Manuale utente

KRAUSMANN

KRAUSMANN U37020-00 Manuale utente

Bosch

Bosch ALB 36 LI Manuale utente

Cub Cadet

Cub Cadet HB425 Manuale utente

GreenWorks Pro

GreenWorks Pro BLB482 Manuale utente

ARIETE

ARIETE 2768 Manuale utente

NuTone

NuTone 331H Manuale utente

GÜDE

GÜDE GLB 200 18 Li-Ion Manuale utente

I.VA.CO.

I.VA.CO. SC Series Istruzioni operative

DeWalt

DeWalt DCE100 Manuale utente

Becker

Becker SV 7.330 Manuale utente

Metabo

Metabo AG 18 Pro Manuale utente

Desa

Desa GA3650TB Manuale utente

Echo

Echo Power Blower PB-230LN Manuale utente

Echo

Echo PB-413H Manuale utente

Black & Decker

Black & Decker BV3100 Manuale utente

Ryobi

Ryobi RY08570 Manuale utente

Haaga

Haaga 355 Manuale utente
