Total TP425381 Manuale utente
25cc 15"
25cc 15"
GASOLINE GRASS TRIMMER
TP425381
SAFETY RULES & PRECAUTIONS
Proper safety precautions must be observed. Like all power
equipment this unit must be handled carefully. DO NOT EXPOSE
YOURSELF OR OTHERS TO DANGER. Follow these general rules. Do
not permit others to use this machine unless they are thoroughly
responsible and have read, and understand the machine manual and
are trained in its operation.
łAlways wear safety goggles for eye protection. Dress properly; do
not wear loose clothing or jewelry that could become caught in
moving parts of the unit. Safe, sturdy, nonskid footwear should
always be worn. Long hair should be tied back. It is recommended
that legs and feet be covered to protect from flying debris during
operation.
łInspect the entire machine for loose parts (nuts, bolts, screws, etc.)
and any damage. Repair or replace as necessary before using the
machine. DO NOT USE any attachment with this power head other
than the ones recommended by our company. Serious injury to the
operator or bystanders could result as well as damage to the machine.
łKeep the handles free from oil and fuel.
łAlways use proper handles and shoulder strap when cutting.
łDo not smoke while mixing fuel or filling tank.
łDo not mix fuel in an enclosed room or near open flames. Assure
adequate ventilation.
łAlways mix and store the fuel in a properly marked container that is
approved by local codes and ordinances for such usage.
łNever remove the fuel tank cap while the engine is running.
łNever start or run the engine inside a closed room or building.
Fumes from the exhaust contain dangerous carbon monoxide.
łNever attempt to make engine adjustments while the unit is running
and strapped to the operator. Always make engine adjustments with
the unit resting on a flat, clear surface.
łDo not use the unit if it is damaged or poorly adjusted. Never
remove the machine’s guard. Serious injury to the operator or
bystanders could result as well as damage to the machine.
łInspect the area to be cut and remove all debris that could become
entangled in the nylon cutting head. Also remove any objects that the
unit may throw during cutting.
łKeep children away. Onlookers should be kept at a safe distance
from the work area, at least 15 METER (50 FEET)
łNever leave the machine unattended.
łDo not use this unit for any job other than those for which it is
intended as described in this manual.
łDo not overreach. Keep proper footing and balance at all times. Do
not run the unit while standing on a ladder or on any other unstable
footing location.
łKeep hands and feet clear of the nylon cutting head while unit is in
use.
łDo not use this type of machine for sweeping away debris.
łDo not use the unit when you are tired, ill or under the influence of
medication, drugs or alcohol.
łUse nylon cutting head which is free of damage. If a stone or any
other obstacle is hit, stop the engine and check the nylon cutting head.
A broken or unbalanced nylon cutting head must never be used.
FOLLOW INSTRUCTION FOR CHANGING ACCESSORIES.
łDo not store in a closed area where fuel vapors can reach an open
flame from hot water heaters, furnaces, etc. Store in a locked, well
ventilated area only.
łEnsure safe and proper performance of your product. These part are
available from your dealer. The use of any other accessories or
attachments may cause a potential hazard or injury to the user,
damage to the machine and void this warranty.
łClean the machine completely, especially, the fuel tank, its
surroundings, and the air cleaner.
łWhen refueling, be sure to stop the engine and confirm that it is
cooled down. Never refuel when the engine is running or hot. When
gasoline spills, be sure to wipe it up completely dispose of those
materials before starting the engine.
łStay clear of other workers or bystanders by at least 15 meters/50
feet.
łWhen ever approaching an operator of the machine, carefully call
his attention and confirm that the operator stop the engine. Be careful
not to startle or distract the operator which can cause an unsafe
situation.
łNever touch the nylon cutting head when ever the engine is running.
If it is necessary to adjust the protector or nylon cutting head, be sure
to stop the engine and confirm that the nylon cutting head has
stopped running.
łThe engine should be turned off when the machine is moved
between work areas.
łBe careful not to hit the nylon cutting head against stones, or the
ground. Unreasonable rough operation will shorten the life of the
machine as well as create an unsafe environment for yourself and
those around you.
łPay attention to loosening and overheating of parts. If there is any
abnormality of the machine, stop operation immediately and check
the machine carefully. If necessary, have the machine serviced by a
authorized dealer. Never continue to operate a machine which may be
damaged.
łIn start-up or during operation of the engine, never touch hot parts
such as the muffler, the high voltage wire or the spark plug.
łAfter the engine has stopped, the muffler is still hot. Never place the
machine in any places where there are flammable materials (dry
grass, etc.), combustible gasses or combustible liquids.
łPay special attention to operation in the rain or just after the rain as
the ground may be slippery.
łIf you slip or fall to the ground or into a hole, release the throttle
lever immediately.
łBe careful not to drop the machine or hit it against obstacles.
łBefore proceeding to adjust or repair the machine, be sure to stop
the engine and detach the spark plug.
łWhen the machine is placed in storage for a long time, drain fuel
from the fuel tank and carburetor, clean the parts, move the machine
to a safe place and confirm that the engine is cooled down.
łMake periodic inspections to assure safe and efficient operation. For
a thorough inspection of your machine, please contact a dealer.
łKeep the machine away from fire or sparks.
łIt is believed that a condition called Reynaud’s phenomenon, which
affects the fingers of certain individuals may be brought about by
exposure to vibration and cold, loss of color and numbness in the
fingers. The following precautions are strongly recommended
because the minimum exposure which might trigger the ailment is
unknown. Keep your body warm, especially the head, neck, feet,
ankles, hands and wrists. Maintain good blood circulation by
performing vigorous arm exercises during frequent work breaks and
also by not smoking. Limit the hours of operation. Try to fill each day
with jobs where operating the brush cutter or other hand-held power
equipment is not required.
If you experience discomfort, redness and swelling of the fingers
followed by whitening and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.
łAlways wear ear protection, loud noise for long time can make
hearing debase even lost hearing.
łTotal face and head protection must be wearing to prevent damage
from plummet or branch.
łWear no-slip heavy duty work gloves to improve your grip on the
brush cutter handle. Gloves also reduce the transmission of machine
vibration to your hands
łWARNING: The cutter area is still dangerous while the machine is
coasting to a stop.
WARNINGS
Because a trimmer/cutter is a high-speed, fast cutting power tool,
special safety precaution must be observed to reduce the risk of
personal injury. Read this manual carefully. Be familiar with the
controls and the proper use of the unit. Know how to shut it off, and
how to unhook a harnessed unit quickly.

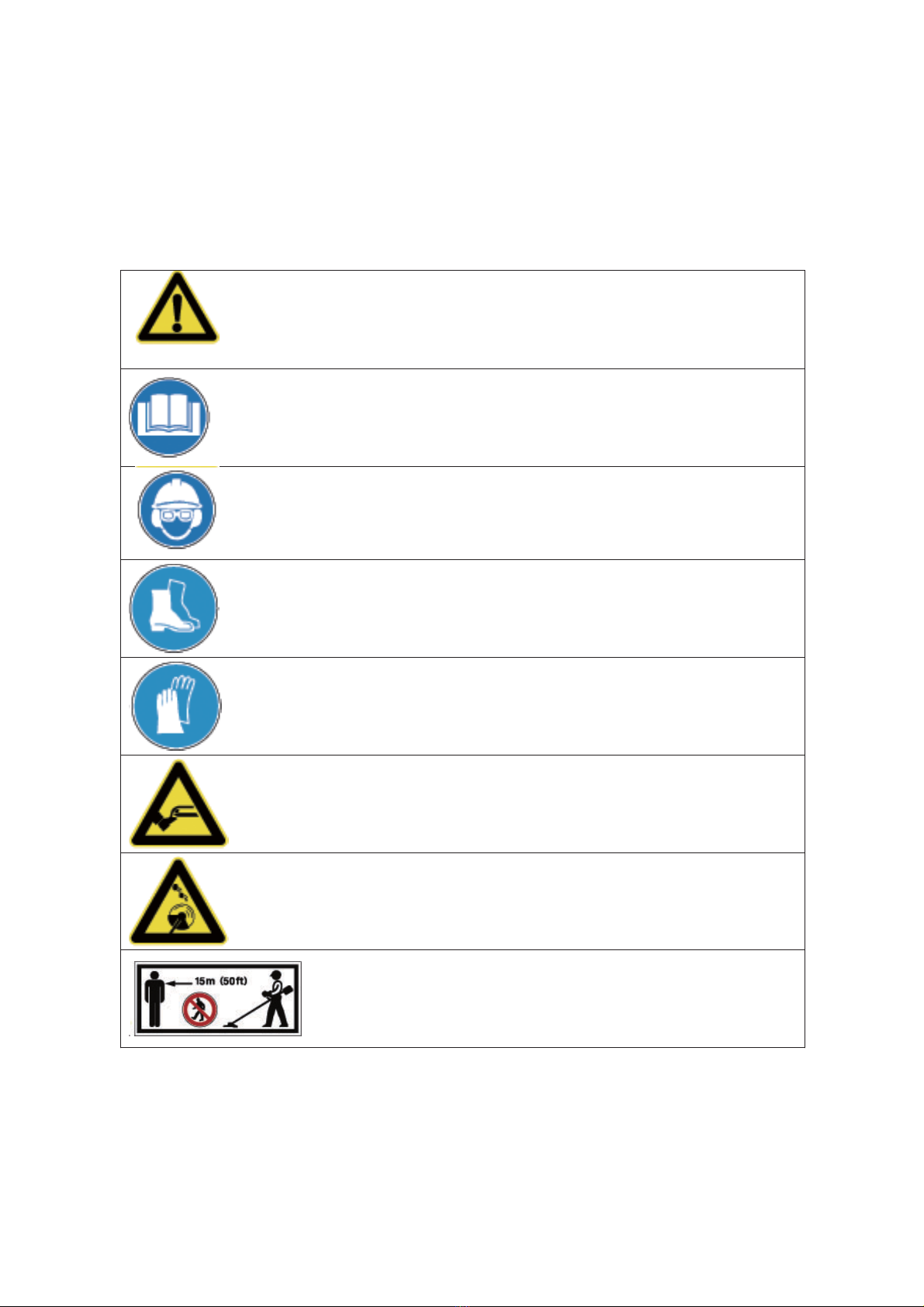

This graphic accompanied by the words WARNING
and DANGER calls attention to an act of a condition
which can lead to SERIOUS INJURY.
READ & UNDERSTAND Operator’s Manual and
Safety Manual.
ALWAYS WEAR EYE PROTECTION, EAR
PROTECTION AND HEAD PROTECTION.
WEAR FOOT PROTECTION
WEAR GLOVES
BEWARE OF FOOT INJURY BY CUTTING
ATTACHMENT
BEWARE OF THROWN OBJECTS HIT BY CUTTING
ATTACHMENTS. NEVER USE WITHOUT PROPERLY
MOUNTED BLADE GUARD.

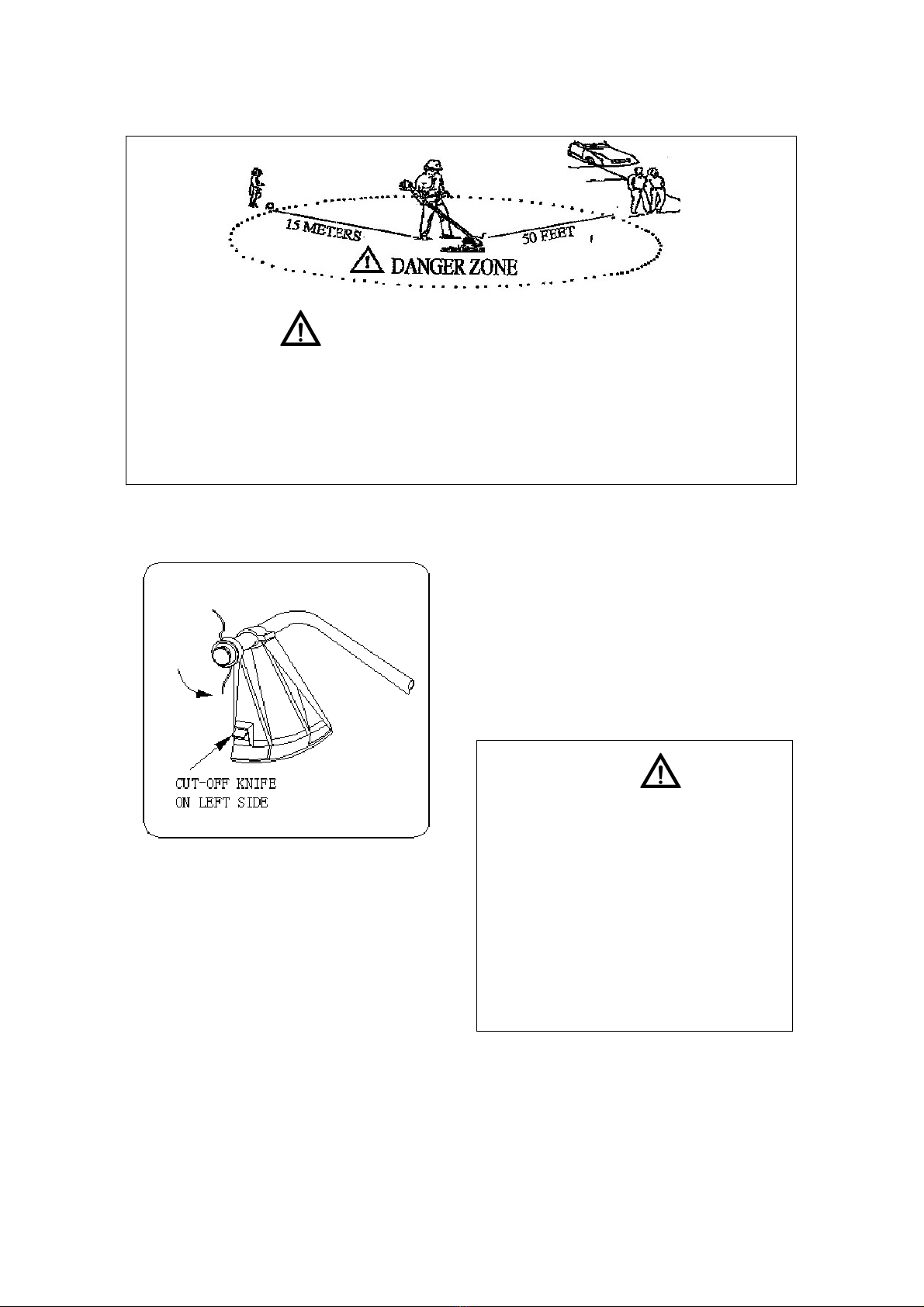

KEEP 15 METERS AWAY FROM ANY OTHER PERSON
Specification
MODEL TP425381
Remote type Direct Drive
Flexible shaft
Max. speed(rpm) 8140
Idle speed(rpm) 3000±150
Vibration values at
each handle(m/s2)15
Sound pressure
values[dB(A)] 102
Guaranteed Sound
power values [dB(A)] 111
Line cutting width 15ļ/380 mm
Nylon head rotation Clockwise(seen from the top)
Aluminum pole 2 pcs
Main
unit
Weight when dry(kg) 4.8
Engine type Air-cooled;2 cycle; vertical
Piston valve; gasoline engine
Displacement(mL) 25
Maximum
output(W/rpm) 750/7500
Carburetor Diaphragm-type
Ignition Non-contact electronic ignition
Method of starting Recoil type
Fuel used Gasoline mixed with lubricating
oil
(ratio of 40:1)
Engine
Fuel tank capacity(L) 0.5
Accessories included:
1set line spool
1pcs debris shield
1pcs oil bottle
1pcs auxiliary handle
1pcs carrying belt
1pcs wrench
2pcs hex keys
Before operation
SAFETY MANUAL included with unit. Read before operating and keep
for future reference to learn proper, safe operating techniques.
NYLON CUTTER HEAD Contains replaceable nylon trimming line that
advances when the trimmer head is tapped against the ground while
the head is turning at normal operating speed.
CUT-OFF KNIFE Trims nylon filament to the correct length-7,headto
end of line-when nylon trimming head is bumped on the ground
during operation, line advance. If trimmer is operated without a
cut-off knife the line becomes too long (more than7”) the engine, this
will overheat or damage the engine.
DEBRIS SHIELD Mounted just above the cutting attachment. Helps
protest operator by deflecting debris produced during debris produced
during the trimming operation. Do not operate unit without shield.
D-HANDLE this handle can be adjusted at you convenience for
comfort.
DRIVE SHAFT ASSEMBLY contains a specially designed liner flexible
drive shaft.
IGNITION SWITCH “slide switch” mounted on top of the Throttle
Trigger Housing. Move switch FORWARD to Run, BACK TO STOP.
SAFETY LEVER Before acceleration compresses it please.
THROTTLE TRIGGER Spring loaded to return to idle when released.
When accelerating, press trigger gradually for best operating
technique. Do not hold trigger while starting.
PURGE BULB Pushing purge bulb (7 to 10 times before starting),will
remove all air and sale fuel from fuel system and bring fresh fuel to
the carburetor.
FUEL TANK LID.
FUEL TANK Contains fuel and fuel filter.
AIR CLEANER COVER Contains replaceable felt element.
CHOKE the choke control is located on the top of the filter cover.
STARTER HSNDLE pull handle until engine starts, then return handle
slowly. DO NOT let handle snap back or damage to starter will occur.
ASSEMBLY INSTRUCTIONS

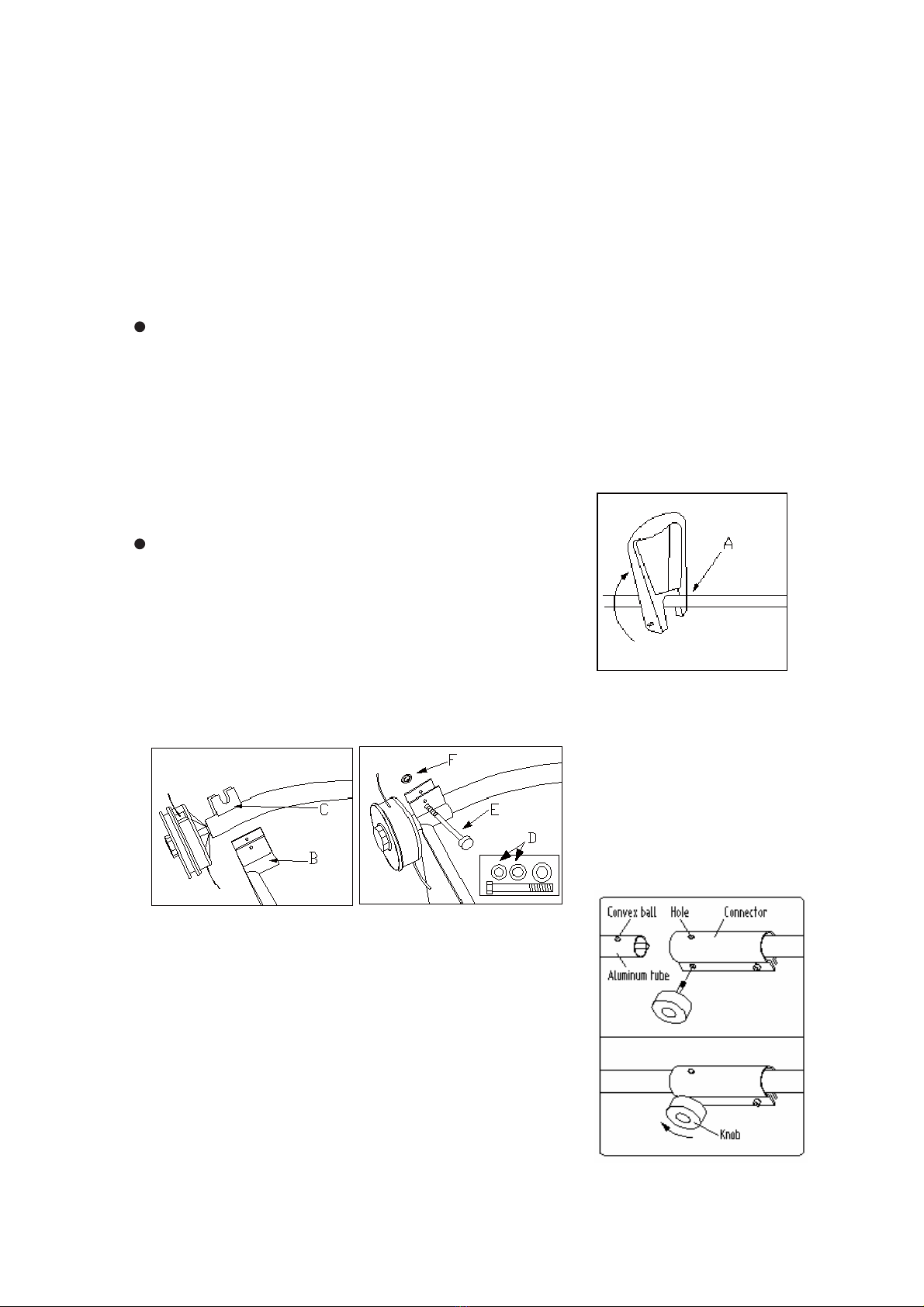

HANDLE ASSEMBLY
NOTE: The Delta Handle is attached to the shaft but has been
turned under for ease of packing.
Loosen adjustment knob and rotate handle to top of shaft
handle to top of shaft Position handle 6-1/2 to 8-1/2ļfrom
throttle (Fig.1)
Tighten adjustment knob securely.
DEBRIS SHIELD
Shield Fits snug on shaft. Some force may be
required.
Seat shield (B) onto shaft bracket (C).
Insert washers (D) onto bolt.
Insert bolt (E) and nut (F).tighten securely. Fig.1
Fig.2A Fig.2B
INSTALLING THE LOWER SHAFT
Pack the aluminum tube into the
connector inside, make the convex
ball aim at the hole on connector
Then turning the knob clockwise until it is tight
DANGER ZONE
NO PERSON EXCEPT OPERATOR ALLOWED 15 METERS RADIUS DANGER ZONE.
EYE, EAR, FACE, FOOT, LEG AND BODY PROTECTION MUST BE WORN BY
OPERATOR. PERSONS IN ZONE OR RISK BEYOND DANGER ZONE SHOULD WEAR
EYE PROTECTION AGAINST THROWN OBJECTS. RISK DIMINISHES WITH
DISTANCE FROM DANGER ZONE.
CUTTING WITH A NYLON HEAD
For nearly all cutting, it is good to
tilt the lineheadofthecirclewhere
the line is moving A W A Y you
and the debris shield.
WARNING
DANGER
LineheadrotatesinaCLOCKWISE
Tilting the head to the wrong side will
shoot the debris TOWARDS you. If
the line head is held flat to the
ground so that cutting occurs on the
whole line circle, debris will be
THROWN at you, drag will slow the
engine down, and you will use up a
lot of line.
direction. The CUT-OFF KNIFE will
be on the right side of the debris
shield.
WARNING
DANGER
CUTTING WITH A NYLON HEAD
TRIMMING:
This is feeding the trimmer carefully into
the material you wish to cut. Tilt the head
slowly to direct debris away from you. If
cutting up to a barrier such as fence, wall
or tree, approach from an angle where
any debris ricocheting off the barrier will
fly away from you, Move the line head
slowly until the grass is cut right up the
barrier, but do not jam (overfeed) the line
into the barrier. If trimming up to a wire
mesh or chain linked fence be careful to
feed only up to wire. If you go to far the
line will snap off around the wire.
Use only quality nylon monofilament
line of the diameter 2 mm. Never
use wire or wore-reinforced line in
place of nylon trimmer line. Load
your nylon line cutting head only
with ny n trimmer
lo
WARNING DANGER
Use extreme caution when operating
over bare spots and gravel, because
the line can throw small rock
particles at high speeds. Debris
shields on the unit cannot stop
objects which bounce or ricochet off
hard surfaces.
WARNING DANGER
The proper debris shield must be in
place on the unit when nylon
cutting line is used, The cutting line
can flap around if too much line is
exposed. Always use the plastic
debris shield with cut-off knife
when using nylon cutting heads.
Indice
Altri manuali Total Tagliabordi
