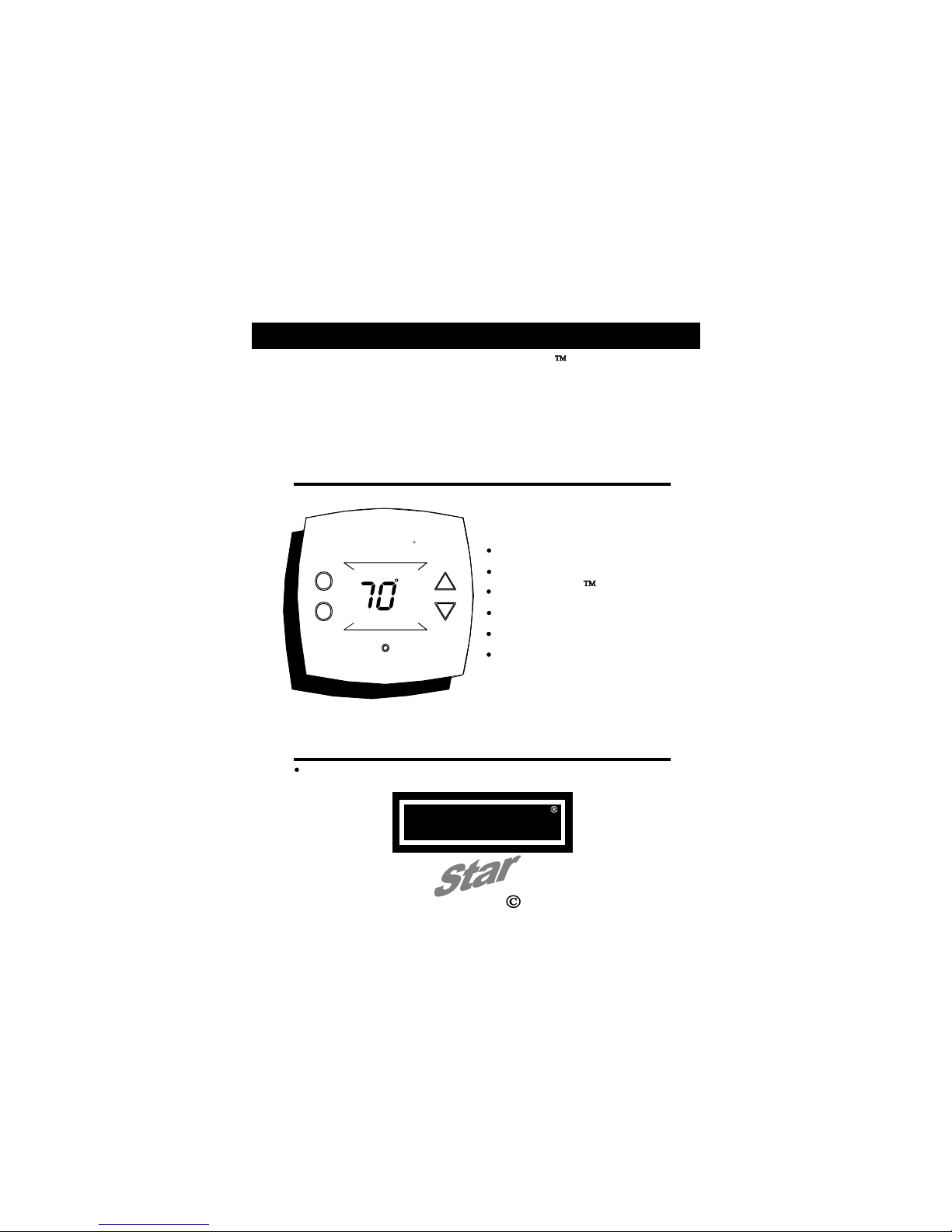

TOTALINE 1 For All Manuale utente
OWNER'S MANUAL
P/N P474-0100
Non-Programmable
Digital Thermostat
1 For All
Use with most Air Conditioning & Heating Systems including: 1 or 2 Stage
Electric Cooling & Gas Heating, Heat Pump, Electric or Hydronic Heat.
Meets California Title 24
Dual Setpoint
Very easy to program
Thermoglow Backlight
No batteries required
Auto-Changeover
Locking Keypad
Replacement Components Division Carrier Corporation 12/06
TOTALINE
AUTO COOL
76
HEAT
68
TOTALINE
FRONT PANEL
DISPLAY
BASIC OPERATION
SELECTING THE HEAT
OR COOL MODE
ADVANCED SETUP
ABOUT ADVANCED FEATURES
& OPERATION
WARRANTY
P/N P474-0100
2
3
4
6
10
14
Replacement Components Division Carrier Corporation 12/06
CAUTION Follow Installation Instructions carefully.
DISCONNECT POWER TO THE HEATER -
AIR CONDITIONER BEFORE REMOVING
THE OLD THERMOSTAT AND INSTALLING
THE NEW THERMOSTAT.
WARNING
Page 1
Table Of Contents
5
TOTALINE
Front Panel
Page 2
Liquid Crystal Display
with Thermoglow
Up/Down Buttons
Mode Button
Fan Button
Heat or Cool Indicator
Red = Heat, Green = Cool
AUTO COOL
76
HEAT
68
Mode Indicators - Page 4
Selects the operational mode of the equipment.
HEAT - Indicates the heating mode.
COOL - Indicates the air conditioning mode.
AUTO - Indicates the system will automatically
changeover between heat and cool modes
as the temperature varies.
OFF - Indicates heating and cooling are turned off.
Room Temperature Display
Indicates current room temperature.
Desired Set Temperature - Page 5
Indicates desired room temperature(s).
Fan On icon - Page 5
Indicates constant, continuous fan operation.
When Fan On is not lit - indicates the fan will only
operate when necessary to heat or to cool.
Display
Page 3
Fan On
AUTO
OFF
COOL
88
HEAT
88

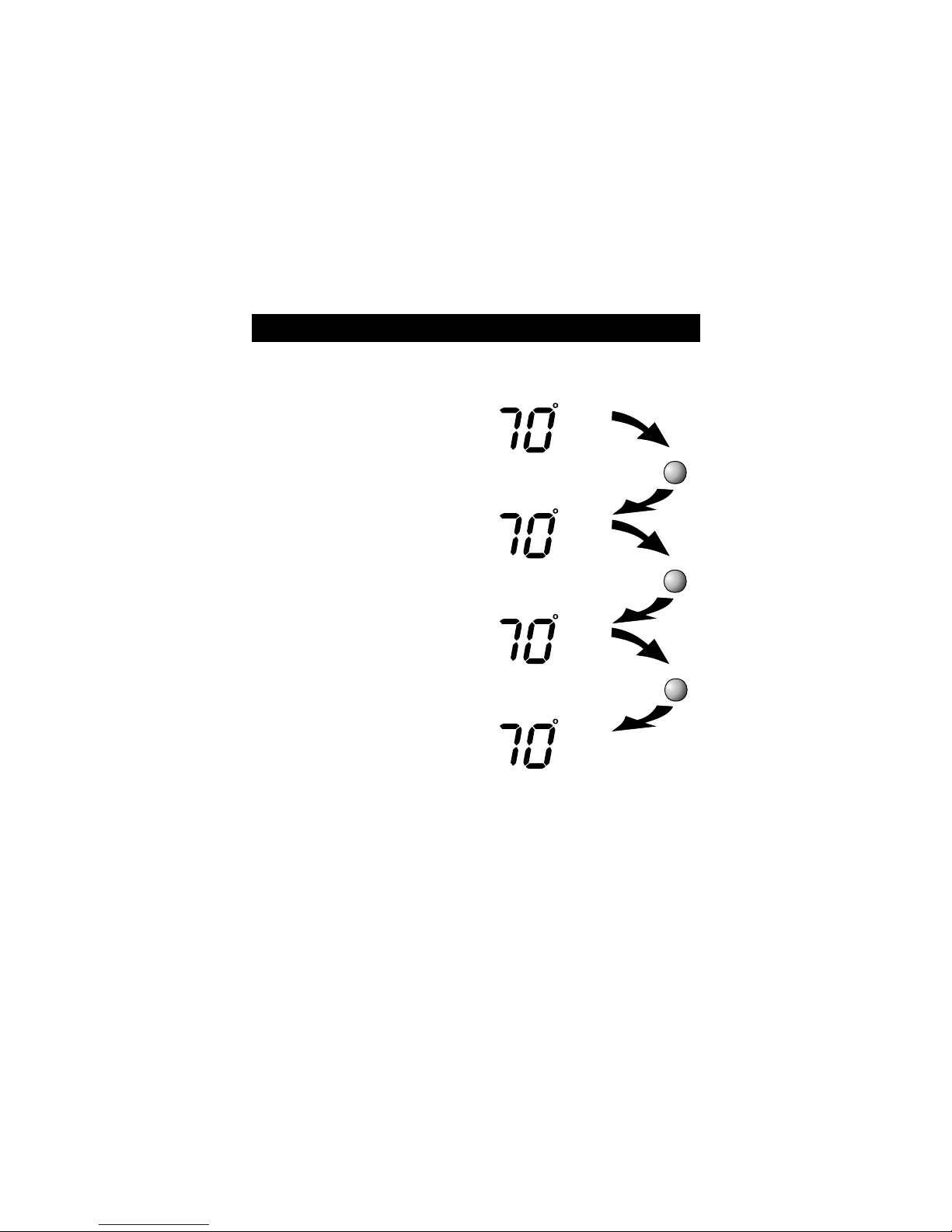

Selecting the Heat or Cool Mode
Press
MODE

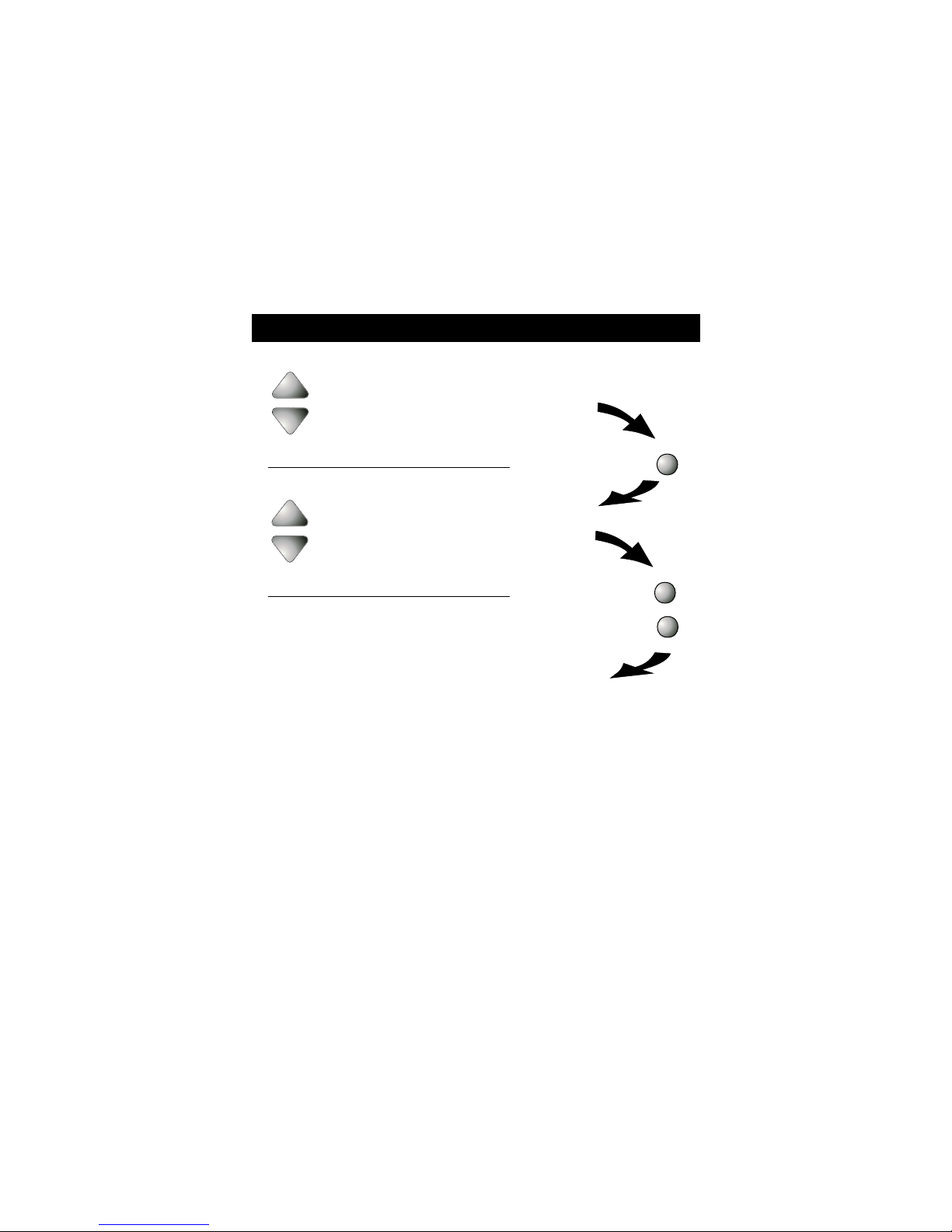

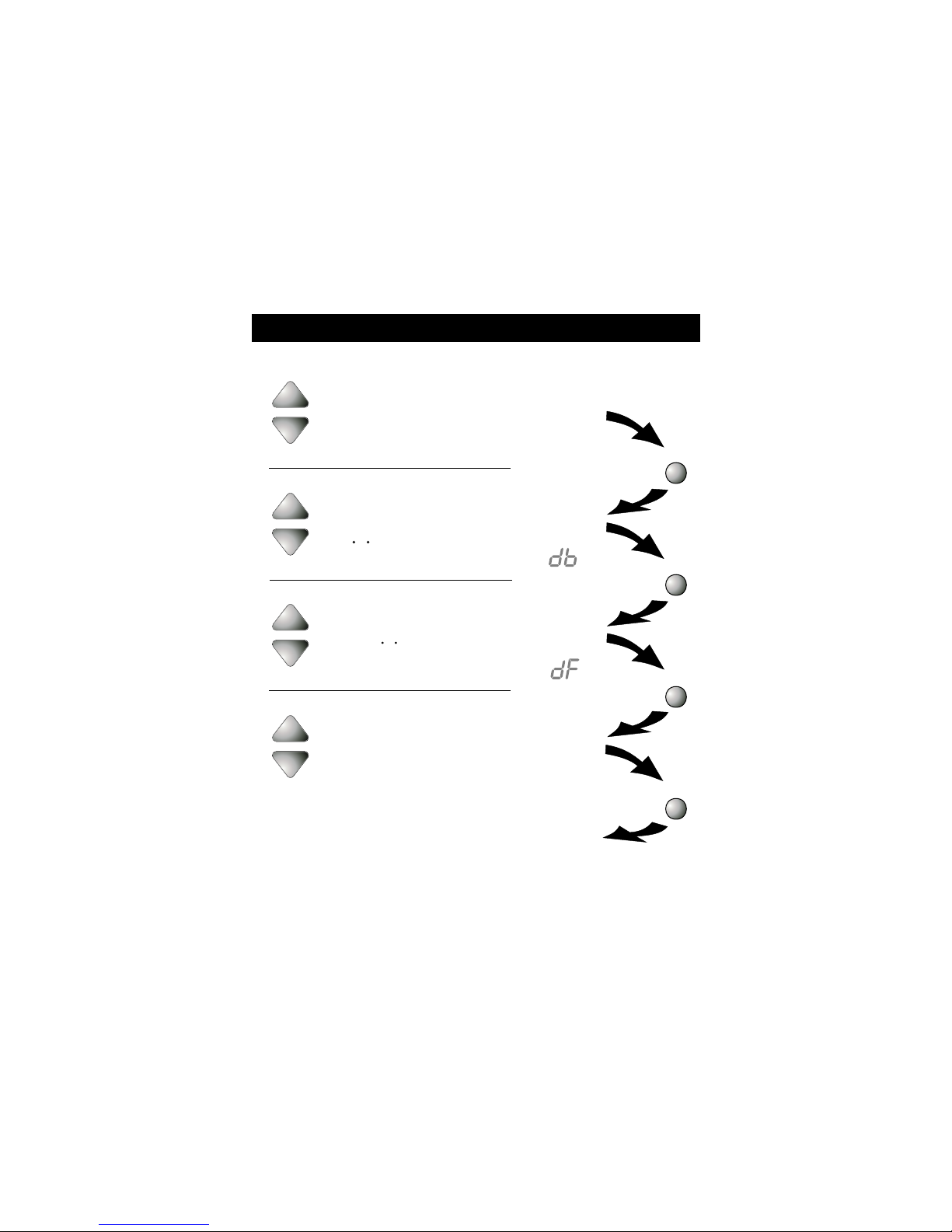

Press
Press
MODE
MODE
Page 4
The HEAT setting indicates the
temperature the room has to
reach before the furnace will
turn on to heat the room.
Heating Only
The COOL setting indicates the
temperature the room has to
reach before the air conditioner
will turn on to cool the room.
Cooling Only
OFF indicates both heating
and air conditioning
systems are turned off.
Off
AUTO will automatically select
heat or cool based on room
temperature demand.
Heating or Cooling
Select Mode by Pressing the MODE Button
HEAT
68
COOL
76
AUTO COOL
76
HEAT
68
OFF
AUTO COOL
76
HEAT
68
Fan On
COOL
76
Selecting Your Desired Temperature
(adjusting the setpoints)
Basic Operation
Page 5
AUTO MODE
Pressing the UP or DOWN buttons in Auto mode will adjust
both the heat and cool set temperatures simultaneously.
buttons.
Adjust the desired
set temperature with the
HEAT OR COOL MODE
Pressing the UP or DOWN buttons in Heat or Cool mode will
adjust only the heat or cool set temperature.
buttons.
Adjust the desired
set temperature with the
Using the Fan Button
Press
FA N
Fan On indicates constant fan
operation. You may turn the fan
on even if the thermostat is in the
Off mode. Pressing the FAN button
toggles this feature on or off.
COOL
76
Press
Press
Press
Continued
Press the MODE button.
While holding MODE,
press the FAN button
for two seconds to enter
Setup screens.
NOTE: Each step # is located at
the top right corner of the
display for easy reference.
FA N
MODE
MODE
MODE
MODE
2
2
OFF
4
hp
5
0
2
1
Select setpoint configuration:
1= Single Setpoint
2= Dual Setpoint
On
Off
ON = Heat Pump
operation
OFF = Gas Electric
operation
Select the reversing valve
polarity for Heat Pump
operation:
O = Energize in cooling
b = Energize in heating
(Step 5 only appears if
heat pump is on in step 4)
b
O
Page 6
Advanced Setup
Note: Steps #1 and #3 have been intentionally omitted.
Press
Press
Press
Press
Continued
MODE
MODE
MODE
MODE
OFF
6
eh
7
2
COOL
8
HEAT
2
9
cy
6
Select Electric Heat operation:
On = 1st stage electric heat
Off = 1st stage gas heat
On
Off (Step 6 only appears if
heat pump is off in step 4)
Adjust the deadband
for the 1st stage.
(1 - 6 )
Adjust the minimum difference
between cooling & heating
setpoints.
(0 - 6 )
(Step 8 only appears if dual
setpoint is selected in step 2)
(d1, d, 2 - 6)
Select the cycles per
hour limit:
d=cycles per hour
limit defeated
d1=d + defeat 5 min.
compressor lockout
Page 7
Advanced Setup
Press
Press
MODE
MODE
FA N
On
i0
l i
i i
f
On
Off
Select backlight operation:
ON - Light continuously
OFF - Light for 8 seconds
after a button press
C
F
Select thermostat
operation in degrees
Fahrenheit or Celsius.
After programming is complete,
press the MODE and UP buttons
at the same time for two seconds
to leave the Setup screens. If no
buttons are pressed, the display
will leave the setup screens after
30 seconds.
Page 8
Advanced Setup
Advanced Setup Table
Page 9
Advanced Setup
Step # Description Range Factory Default
1 / 2
Off / On
O / b
Off / On
1 - 6
0 - 6
d, d1, 2 - 6
Off / On
F / C
2
Off
O
Off
2
2
6
On
F
2
4
5
6
7
8
9
10
11
Display Mode
Heat Pump
Reversing Valve Polarity
Electric Heat
Deadband/Temp. Swing 1st Stage
Minimum Heat/Cool Differential
Cycles Per Hour
Thermoglow Backlight
Fahrenheit or Celsius
Note: Steps #1 and #3 have been intentionally omitted.
