Leyard TVH Series LED Video Wall User Manual 7/19/2016
2
Copyright © 2016 by Leyard Optoelectronic Co., Ltd. All rights
reserved.
The contents of this publication may not be reproduced in any form without
permission of Leyard Optoelectronic Co., Ltd.
Trademark Credits
Windows™ is a trademark of Microsoft Corp.
All other names are trademarks or registered trademarks of their respective companies.
Disclaimer
The information contained in this document is subject to change without notice. Leyard
Optoelectronic Co., Ltd. makes no warranty of any kind with regard to this material. While every
precaution has been taken in the preparation of this manual, the Company shall not be liable for errors
or omissions contained herein or for incidental or consequential damages in connection with the
furnishing, performance, or use of this material.
Warranty and Service Plans
Leyard Optoelectronic Co., Ltd. warranty and service plans will help you maximize your investment by
providing great support, display uptime, and performance optimization. From post-sale technical
support to a full suite of depot services, our services are performed by trained Leyard employees.
When you purchase a Leyard product, you get more than a display, you get the service and support
you need to maximize your investment. To find the latest warranty and service information regarding
your Leyard product, please visit http://www.planar.com/support/
------------------------------------------------------------------------------------------------------------------------------------
Leyard TVH Series LED Video Wall User Manual 7/19/2016
3
Table of Contents
Introduction 4
Safety Information 5
Safety Precautions and Instructions 6
European Union Disposal Instructions 8
Cabinet Appearance 9
Dimensions & Diagrams of Cabinet 11
TV Player Controller 12
TV Player Composition 13
Installation – Frame 14
Installation – LED Cabinet 25
Installation – Lease 32
Installation – Seated 33
Installation – Mounted 42
Connections 45
Maintenance 48
Troubleshooting 53
Specifications 55
------------------------------------------------------------------------------------------------------------------------------------
Leyard TVH Series LED Video Wall User Manual 7/19/2016
4
Introduction
The Leyard® TVH Series LED Video Wall is characterized by small pixel pitch, no splicing gap,
high brightness and resolution, large angle of view, wide color gamut and low power
consumption, as well as the following characteristics.
High Splicing Accuracy
All critical components are provided with advanced fine machining technology, which has
greatly improved the splicing accuracy.
Fast Assembly
There are independent elastic protection devices between cabinets, with fast positioning
locks on both sides to enable fast assembly.
Standardized Interface
HDMI is adopted to improve the universal adaptation of products.
High Integration of Hardware
The control board and drive board can be integrated without external LED controller.
------------------------------------------------------------------------------------------------------------------------------------
Leyard TVH Series LED Video Wall User Manual 7/19/2016
5
Safety Information
Before using your Leyard TVH Series LED Video Wall, please read this manual thoroughly to
help protect against damage to property and to ensure personal safety.
Be sure to observe the instructions
For your safety, be sure to observe ALL the warnings detailed in this manual.
For installation or adjustment, please follow this manual’s instructions and refer all servicing
to qualified service personnel.
Safety Precautions
WARNING! WALL AND/OR SUPPORT MOUNTS MUST BE SECURE
If a display or displays are hung from a wall or some other support, the
structure must be verified as able to safely sustain the weight of the assembly.
Simply mounting to wallboard or wall paneling won’t be adequate or safe.
------------------------------------------------------------------------------------------------------------------------------------
Leyard TVH Series LED Video Wall User Manual 7/19/2016
6
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use Leyard TVH Series displays outdoors or near water.
6. Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus that produce heat.
7. Do not defeat the safety purpose of a polarized or grounding type plug. The polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong is provided for
your safety. When the provided plug does not fit into your outlet, consult an
electrician for the replacement of the obsolete outlet.
8. Protect the power cord(s) from foot traffic or kinks particularly at plugs, convenience
receptacles and the point where they exit from Leyard TVH Series displays.
9. You should only use replacement parts, accessories and other components specified
by Planar Systems.
10. Unplug all Leyard TVH Series displays during lightning storms or when unused for long
periods of time.
11. You must follow all National Electrical Code regulations. In addition, be aware of local
codes and ordinances when installing your system.
12. Refer all servicing to qualified service personnel. Servicing is required when any
Leyard TVH Series display has been damaged in any way, such as when the AC power
cord or plug is damaged, liquid has been spilled or objects have fallen into a product,
the products have been exposed to rain or moisture, do not operate normally or have
been dropped.
13. You should consider keeping the packing materials in case the equipment ever needs
to be shipped.
14. Wall mounts must be secure. The wall must be strong enough to hold all Leyard TVH
Series displays, mounting plates, cables and accessories.
------------------------------------------------------------------------------------------------------------------------------------
Leyard TVH Series LED Video Wall User Manual 7/19/2016
7
Recommended Usage
In order to get the most from your Leyard TVH Series display, use the following recommended
guidelines to optimize the display.
Leyard TVH Series displays are designed for fixed installation, indoor use only.
------------------------------------------------------------------------------------------------------------------------------------
Leyard TVH Series LED Video Wall User Manual 7/19/2016
8
------------------------------------------------------------------------------------------------------------------------------------
Leyard TVH Series LED Video Wall User Manual 7/19/2016
9
Cabinet Appearance
Front and Side View
Single Power Supply – Fixed | Double Power Supply - Fixed
Single Power Supply – Rental | Double Power Supply – Rental
------------------------------------------------------------------------------------------------------------------------------------
Leyard TVH Series LED Video Wall User Manual 7/19/2016
10

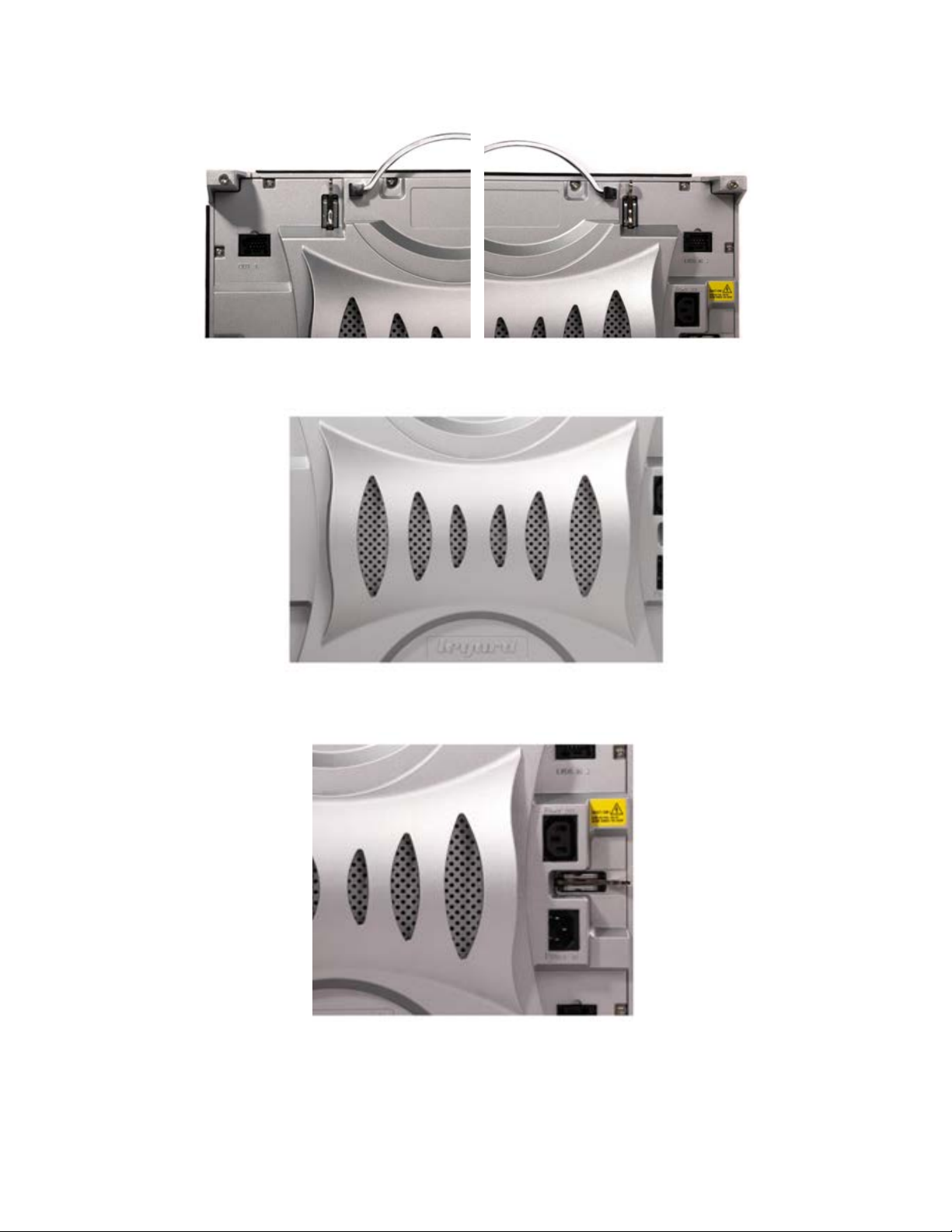

Connection Details
Details
Cabinet Power Details
