Touchstone Sideline Series Manuale utente
Sideline®Series
Electric Fireplace Heater
OWNER’S MANUAL
28” / 36” / 40” / 45” / 50” / 60” / 72” / 84” / 100”
Sideline®Series Recessed Electric Fireplace
AC 110-120V 60Hz 1500W
Model#: 80004, 80011, 80014, 80015, 80025, 80027, 80028, 80029,
80032, 80043
800.215.1990 touchstonehomeproducts.com
rev.011723
2
IMPORTANT SAFETY INFORMATION 3
CSA Approval Listing Information 4
Fireplace Specifications 4
Serial Number Label 5
DIMENSIONAL DRAWINGS 6
80004 – Sideline®50” Dimensions 6
80011 – Sideline®60” Dimensions 7
80014 – Sideline®36” Dimensions 8
80015 – Sideline®72” Dimensions 9
80025 – Sideline®45” Dimensions 10
80027 – Sideline®40” Dimensions 11
80028 – Sideline®28” Dimensions 12
80029 – Sideline®50” White Dimensions 13
80032 – Sideline®100” Dimensions 14
80043 – Sideline®84” Dimensions 15
UNPACKING YOUR FIREPLACE 16
Parts and Hardware 16
Tools Required 16
What’s in the Box 16
Unpacking and Setup 16
Wiring 16
Testing the Fireplace Prior to Installation 17
3-prong Outlet Installation 17
Hard Wire Connection 18
INSTALLATION 19
Choosing Installation Location 19
Removing the Glass Panel 20
Recessed Installation 21
Crystal Embers and Fire Log Installation 23
Re-installing the Glass Panel 24
Wall Mounted Installation 25
OPERATING THE FIREPLACE 28
Power 28
Remote Control Operation 29
Temperature Limiting Control 29
CARE, CLEANING AND MAINTENANCE 30
WARRANTY 31
800.215.1990 touchstonehomeproducts.com
rev.011723
3
Important Safety Information
PLEASE READ CAREFULLY FOR SAFE OPERATION
§ THIS FIREPLACE IS HOT WHEN IN OPERATION AND CAN CAUSE SEVERE INJURY.
§ Do not operate fireplace before reading and understanding operating instructions. Failure to operate
fireplace according to operating instructions could cause fire or injury.
§ Risk of injury. This fireplace is HOT when in operation and heating element is ON. Power to the
fireplace should be turned OFF and the fireplace allowed to cool before servicing. To disconnect
power to the fireplace, turn controls to OFF, then remove plug from outlet.
§ Do not install damaged, incomplete, or substitute components.
§ Young children should be carefully supervised when they are in same room with fireplace. Toddlers,
young children and others may be susceptible to accidental contact burns. A physical barrier is
recommended if there are at-risk individuals in the house. To restrict access to the fireplace, install
an adjustable safety gate to keep at-risk individuals away from the fireplace and hot surfaces.
§ Clothing and other flammable material should not be placed on or near the fireplace.
§ Due to high temperatures, the fireplace should be located out of traffic and away from furniture and
draperies.
§ It is imperative that the control compartments, circulating blower, and its passageway are kept clean.
§ Under no circumstances should this fireplace be modified.
§ Do not use the fireplace if any part has been under water.
§ Do not operate the fireplace with the glass panel removed, cracked or broken.
§ Keep the packaging material out of the reach of children. As with all plastic bags, these are not toys
and should be kept away from children and infants.
§ Servicing should only be done while the fireplace is disconnected from the power outlet.
§ Unplug fireplace if not being used for an extended period of time.
§ Always plug this fireplace into a wall outlet or receptacle. Never plug this fireplace into a
surge protector, extension cord, or relocatable power tap.
§ Do not operate this fireplace with a damaged cord or plug, after the fireplace malfunctions, or has
been dropped, or damaged in any manner.
§ Do not use outdoors.
§ Never locate fireplace where it may fall into a bathtub or other water container.
§ Do not place the cord under carpeting. Do not cover cord with throw rugs, runners, or the like.
Arrange cord away from traffic area and where it will not be tripped over.
§ Connect to properly grounded outlets or hard wire connection only.
§ Do not insert foreign objects into any ventilation or exhaust opening as this may cause electric
shock, fire, or damage to the fireplace.
§ To prevent a possible fire, do not block the air intakes or exhaust in any manner. Do not use on soft
surfaces, like a carpet, where openings may be blocked.
§ Ensure clearances to combustibles are maintained when building a mantel or shelves above the
fireplace. Elevated temperatures on the wall or in the air above the fireplace can cause melting,
discoloration or damage to decorations, television or other electronic components.
800.215.1990 touchstonehomeproducts.com
rev.011723
4
CSA Approval Listing Information
This fireplace has been tested in accordance with the CSA Standards for fixed and location-dedicated
electric room appliances in the United States and Canada. If you need assistance during installation, please
contact our technical support department at 800-215-1990.
Note: This fireplace must be electrically wired and grounded in accordance with local codes or, in the
absence of local codes, with National Electric Code ANSI/NFPA 70-latest edition in the United States or the
Canadian Electric Code, CSA C22.1 in Canada.
Fireplace Specifications
Model Number
80004
80011
80014
80015
80025
Description
Sideline®50
Sideline®60
Sideline®36
Sideline®72
Sideline®45
Voltage
120v AC
120v AC
120v AC
120v AC
120v AC
Watts
Max 1500W
Max 1500W
Max 1500W
Max 1500W
Max 1500W
Amps
12 AMP
12 AMP
12 AMP
12 AMP
12 AMP
Fireplace Width
50”
60”
36”
72”
45”
Fireplace Height
21 ½”
21 ½”
21 ½”
21 ½”
21 ½”
Fireplace Depth
5 ½”
5 ½”
5 ½”
5 ½”
5 ½”
Shipping Weight
60 lbs
70 lbs
38 lbs
110 lbs
55 lbs
Fireplace Weight
65 lbs
100 lbs
47 lbs
150 lbs
59 lbs
Model Number
80027
80028
80029
80032
80043
Description
Sideline®40
Sideline®28
Sideline®50
White
Sideline®100
Sideline®84
Voltage
120v AC
120v AC
120v AC
120v AC
120v AC
Watts
Max 1500W
Max 1500W
Max 1500W
Max 1500W
Max 1500W
Amps
12 AMP
12 AMP
12 AMP
12 AMP
12 AMP
Fireplace Width
40”
28”
50”
100”
84”
Fireplace Height
21 ½”
16 ½”
21 ½”
21 ½”
21 ½”
Fireplace Depth
5 ½”
5 ½”
5 ½”
5 ½”
5 ½”
Shipping Weight
41 lbs
25 lbs
60 lbs
150 lbs
125 lbs
Fireplace Weight
49 lbs
33 lbs
65 lbs
175 lbs
140 lbs
800.215.1990 touchstonehomeproducts.com
rev.011723
5
Serial Number Label
Each Touchstone Home Products Electric Fireplace contains a serial number label on the shipping box.
Please remove the shipping label and place the label on the back page of this manual for future reference.
800.215.1990 touchstonehomeproducts.com
rev.011723
6
Dimensional Drawings

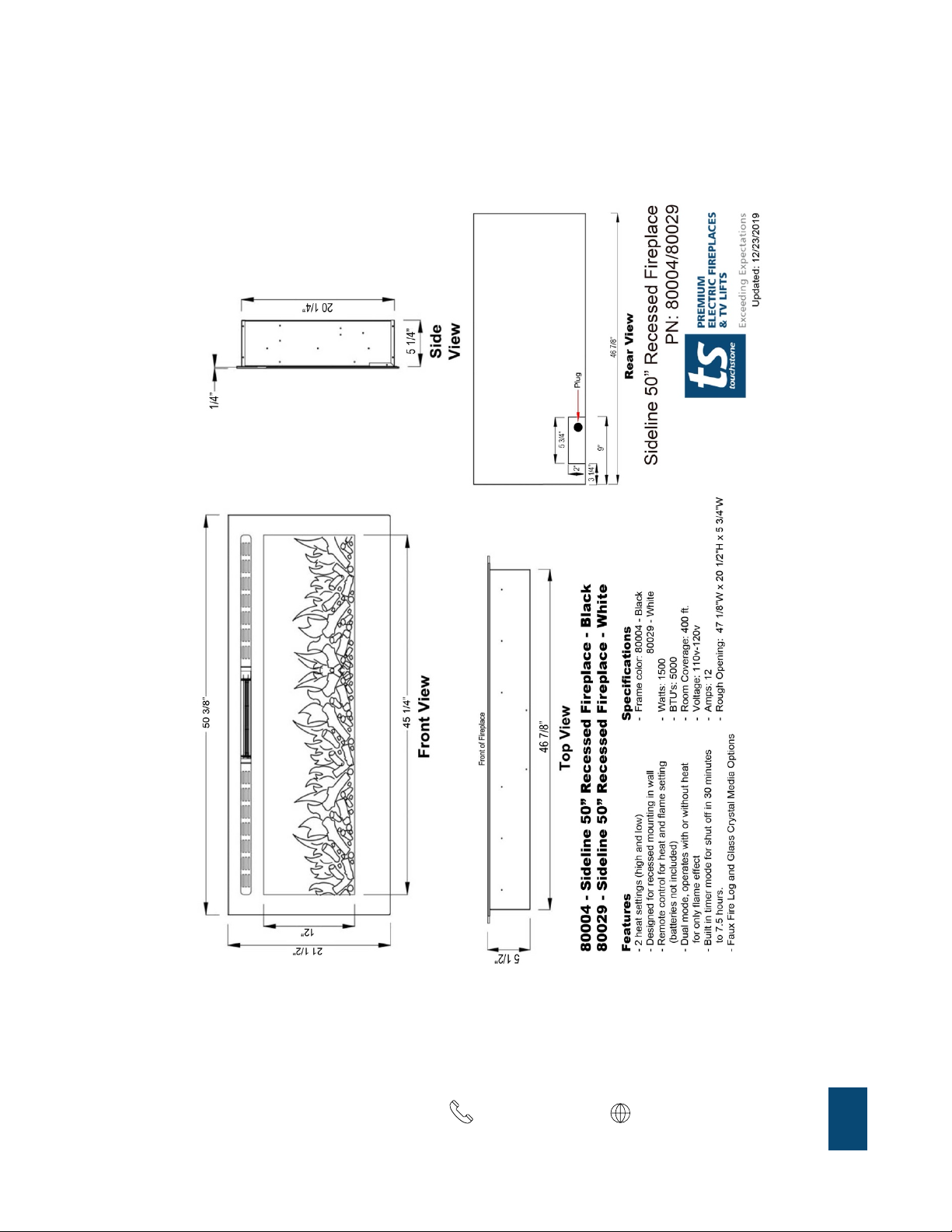

80004 – Sideline®50” Dimensions
800.215.1990 touchstonehomeproducts.com
rev.011723
7
80011 – Sideline®60” Dimensions
800.215.1990 touchstonehomeproducts.com
rev.011723
8

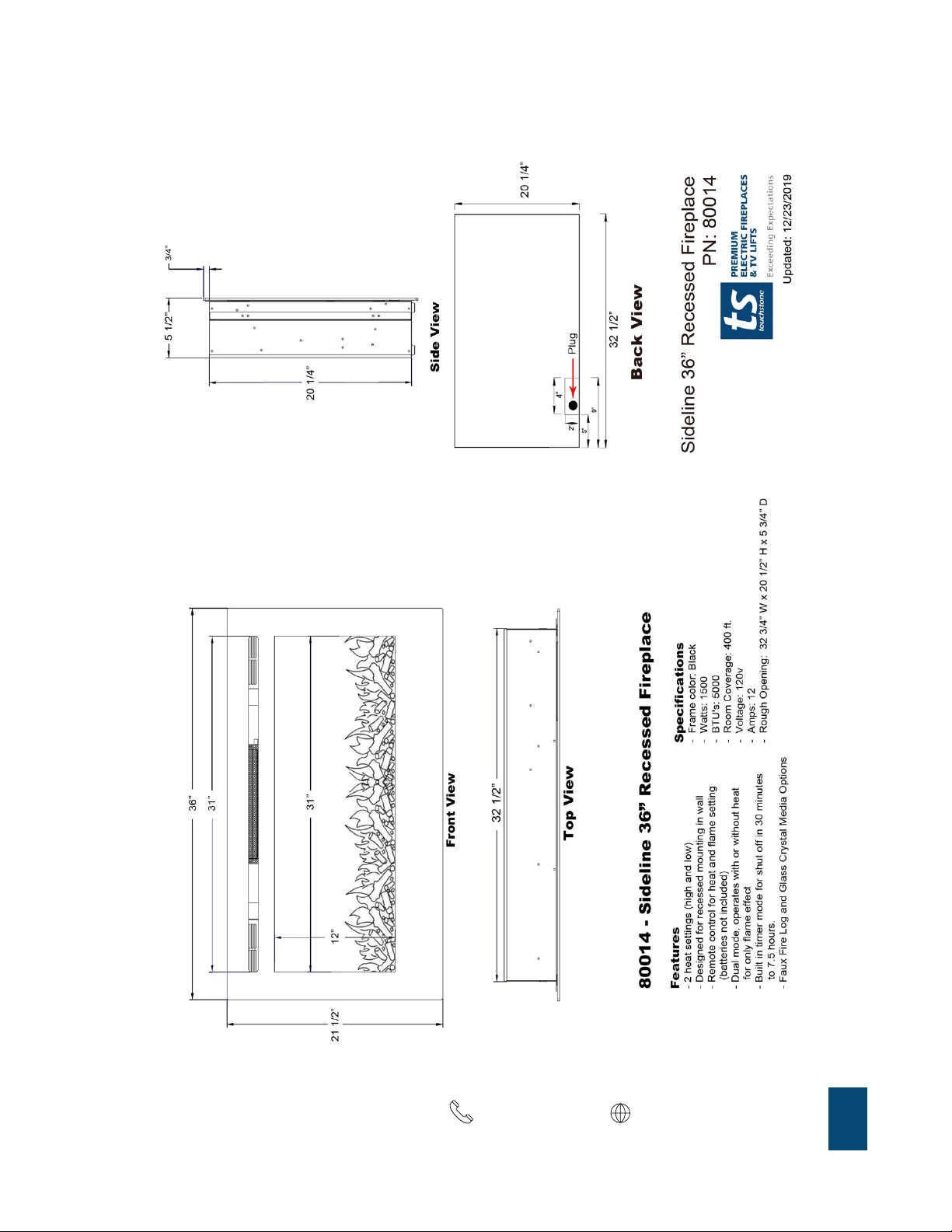

80014 – Sideline®36” Dimensions
800.215.1990 touchstonehomeproducts.com
rev.011723
9

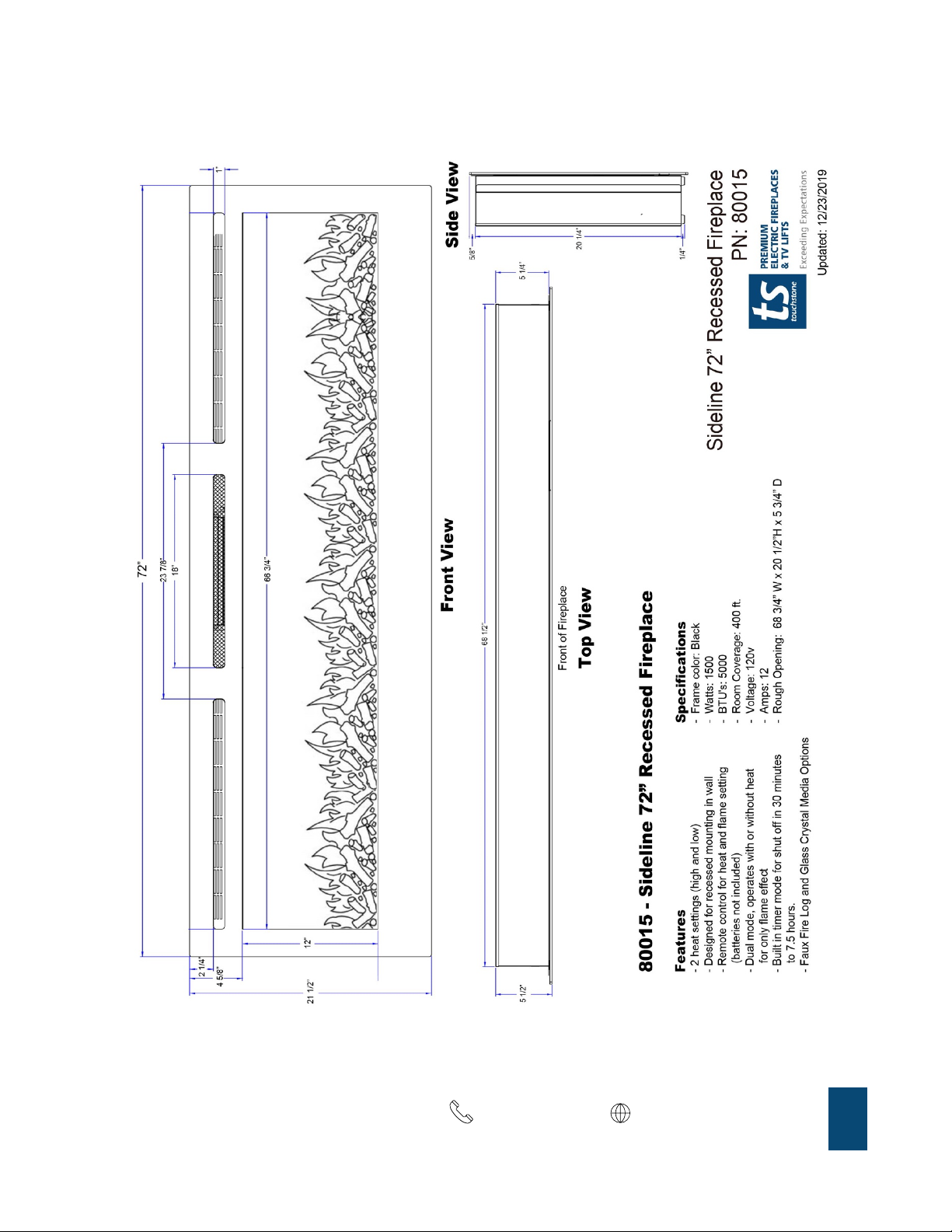

80015 – Sideline®72” Dimensions
800.215.1990 touchstonehomeproducts.com
rev.011723
10
80025 – Sideline®45” Dimensions
