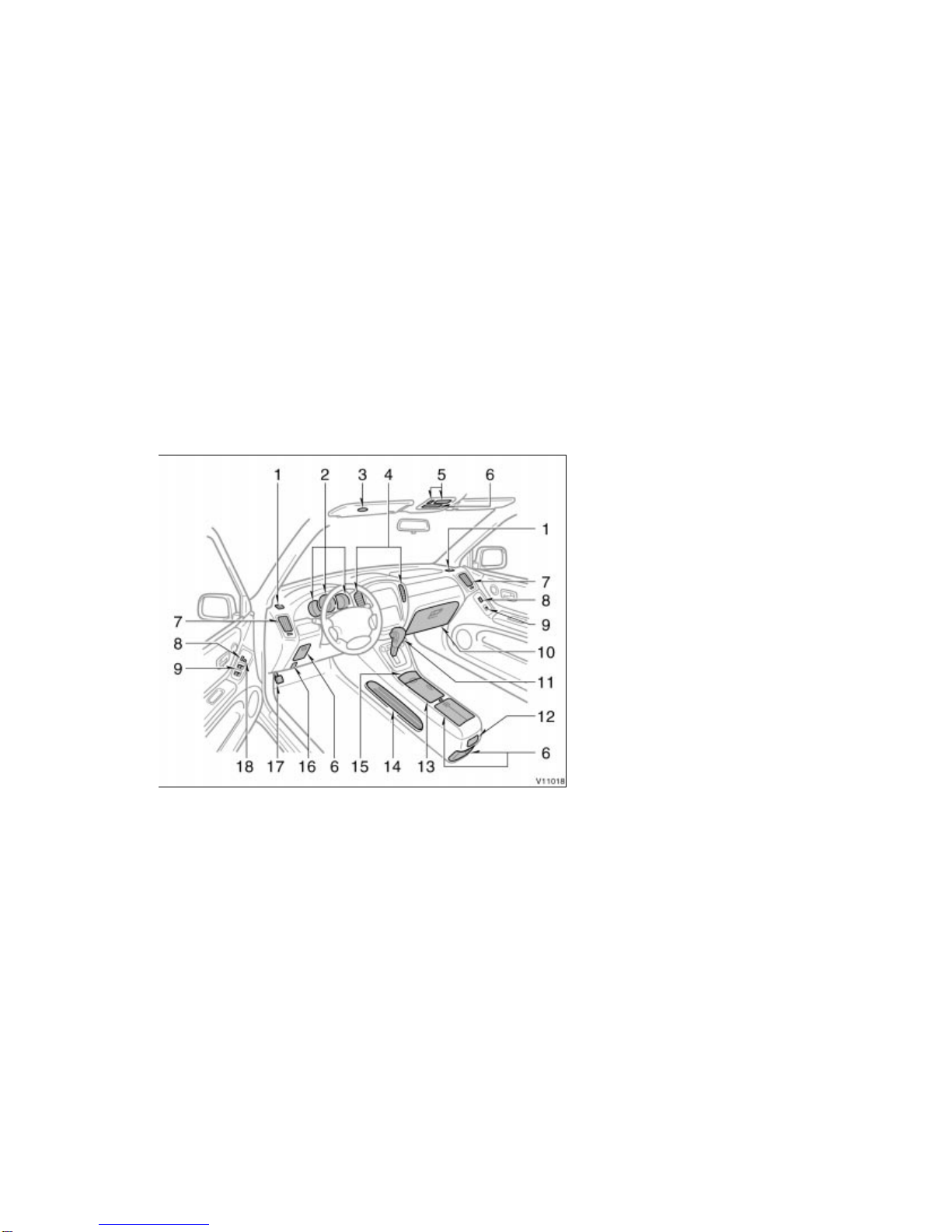

Toyota 2003 HIGHLANDER Manuale utente

’03 HIGHLANDER_U (L/O 0208)

2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 9. . . . . . . . . . . . . . . . . . . . . . .

SECTION

–

’03 HIGHLANDER_U (L/O 0208)

22003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

1. Side defroster outlets

2. Instrument cluster

3. Garage door opener

4. Center vents

5. Electric moon roof switch and personal

light

6. Auxiliary boxes

7. Side vents

8. Power door lock switches

9. Power window switches

10. Glove box

11. Automatic transmission selector lever

12. Rear ashtray

13. Cup holder

14. Container

15. Front ashtray

16. Hood lock release lever

17. Parking brake pedal

18. Window lock switch

Instrument panel overview

Vehicles with rear console

’03 HIGHLANDER_U (L/O 0208)

2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

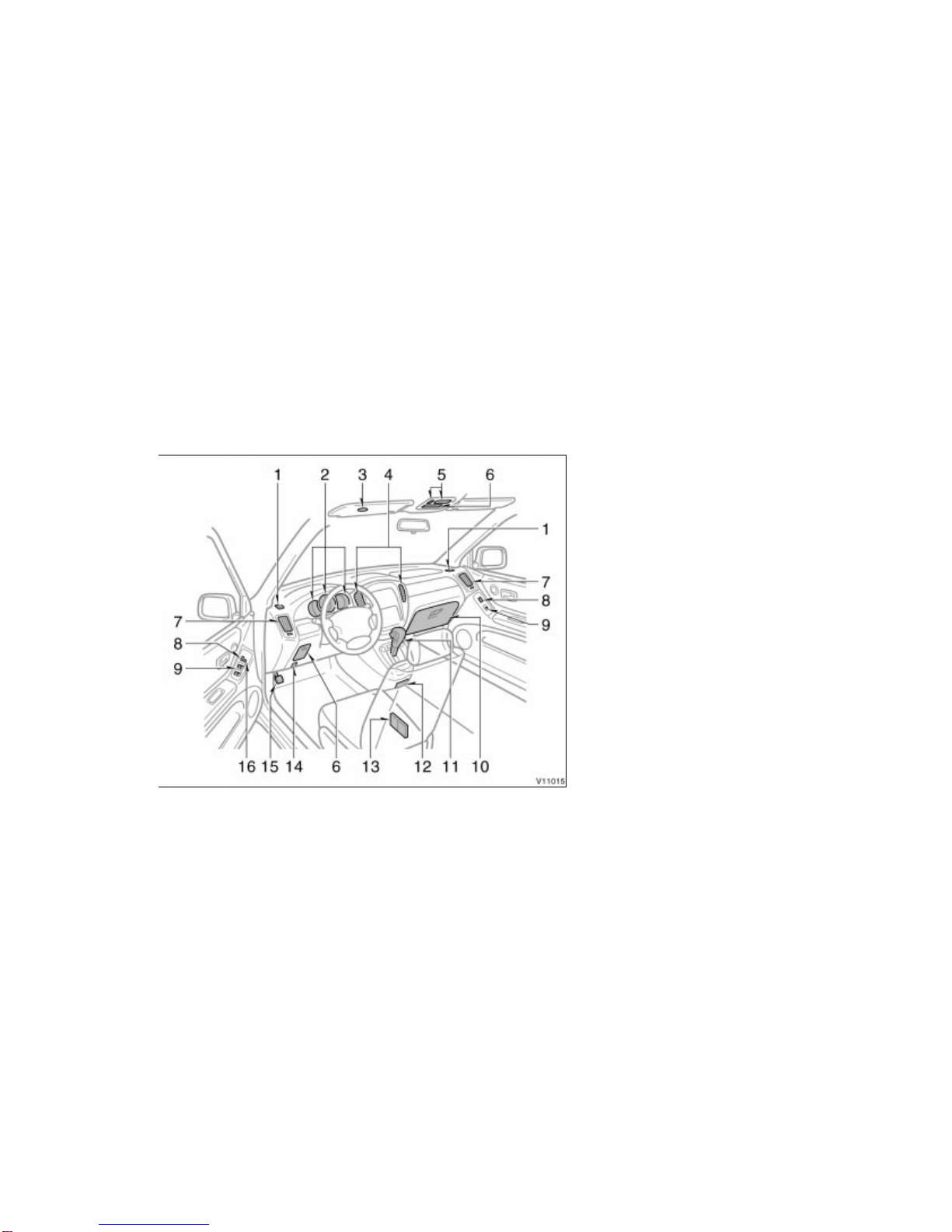

1. Side defroster outlets

2. Instrument cluster

3. Garage door opener

4. Center vents

5. Electric moon roof switch and personal

light

6. Auxiliary boxes

7. Side vents

8. Power door lock switches

9. Power window switches

10. Glove box

11. Automatic transmission selector lever

12. Ashtray

13. Cup holders

14. Hood lock release lever

15. Parking brake pedal

16. Window lock switch

Vehicles without rear console

’03 HIGHLANDER_U (L/O 0208)

42003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

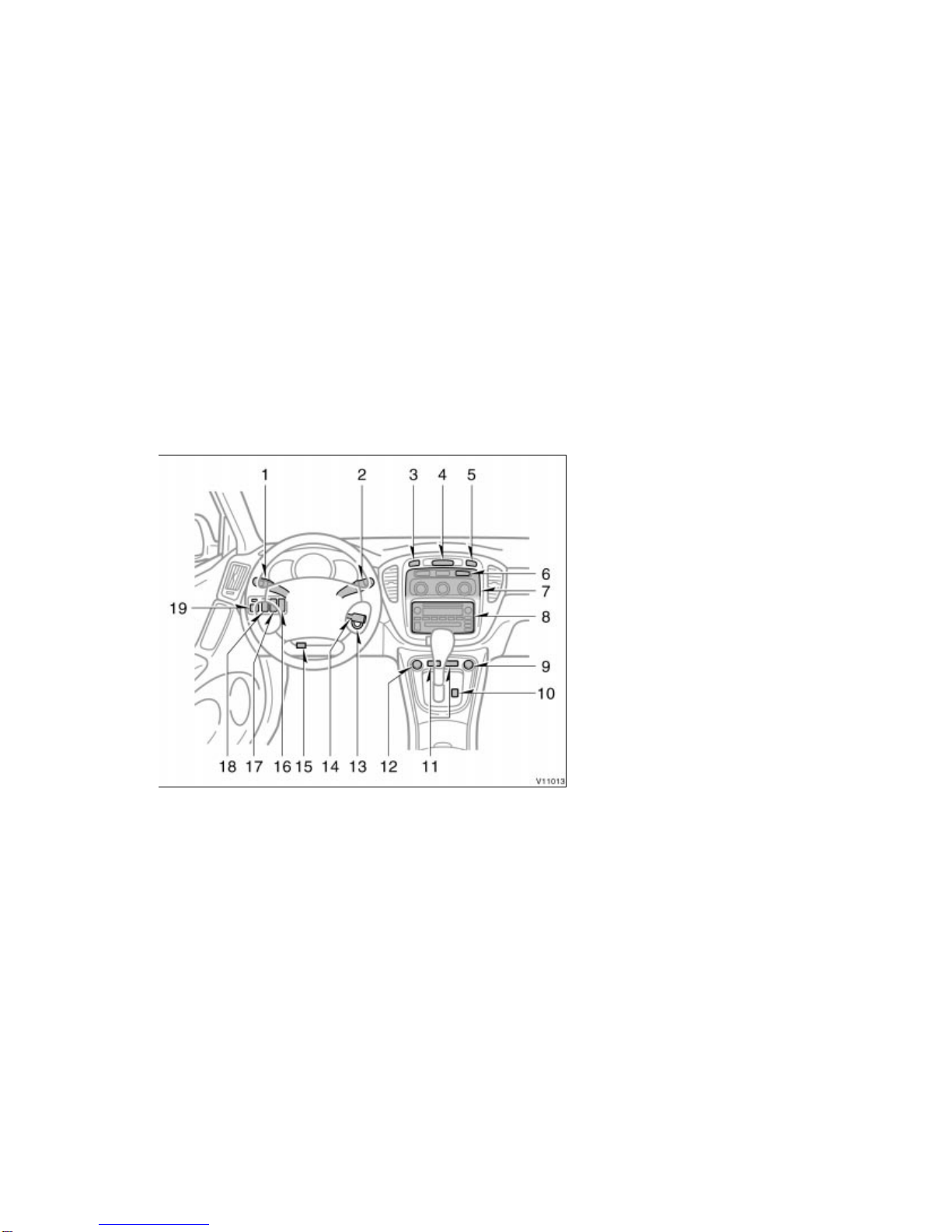

1. Headlight, turn signal and front fog

light switches

2. Wiper and washer switches

3. Emergency flasher switch

4. Clock

5. Front passenger’s seat belt reminder

light

6. Rear window defogger switch

7. Air conditioning controls

8. Car audio

9. Cigarette lighter (vehicles with rear

console) or power outlet (vehicles

without rear console)

10. Snow mode button

11. Seat heater switches

12. Power outlet (vehicles with rear

console) or cigarette lighter (vehicles

without rear console)

13. Ignition switch

14. Cruise control switch

15. Tilt steering lock release lever

16. Traction control system off switch

(two–wheel drive models)

17. Outside rear view mirror defogger and

windshield wiper de–icer switch

Vehicles with manual air conditioning controls

’03 HIGHLANDER_U (L/O 0208)

2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

18. Theft deterrent system/Engine

immobiliser system indicator light

19. Power rear view mirror control switches

’03 HIGHLANDER_U (L/O 0208)

62003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

1. Headlight, turn signal and front fog

light switches

2. Wiper and washer switches

3. Emergency flasher switch

4. Clock

5. Front passenger’s seat belt reminder

light

6. Air conditioning controls and

multi–information display

7. Rear window defogger switch

8. Car audio

9. Cigarette lighter (vehicles with rear

console) or power outlet (vehicles

without rear console)

10. Snow mode button

11. Seat heater switches

12. Power outlet (vehicles with rear

console) or cigarette lighter (vehicles

without rear console)

13. Ignition switch

14. Cruise control switch

15. Tilt steering lock release lever

16. Traction control system off switch

(two–wheel drive models)

Vehicles with automatic air conditioning controls

’03 HIGHLANDER_U (L/O 0208)

2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

17. Outside rear view mirror defogger and

windshield wiper de–icer switches

18. Theft deterrent system/Engine

immobiliser system indicator light

19. Power rear view mirror control switches

’03 HIGHLANDER_U (L/O 0208)

82003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

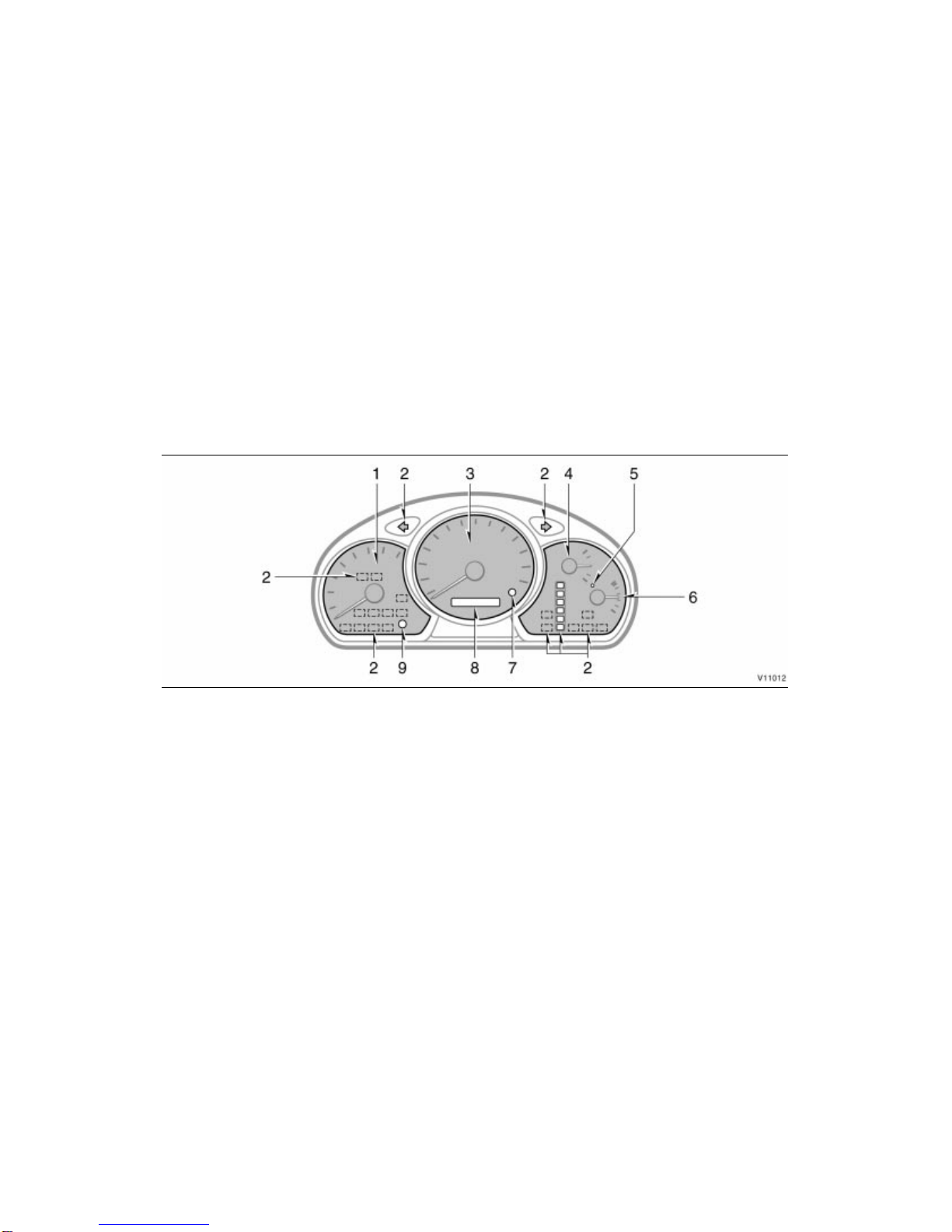

1. Tachometer

2. Service reminder indicators and

indicator lights

3. Speedometer

4. Fuel gauge

5. Low fuel level warning light

6. Engine coolant temperature gauge

7. Trip meter reset knob

8. Odometer and two trip meters

9. Instrument panel light control knob

Instrument cluster overview

’03 HIGHLANDER_U (L/O 0208)

2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

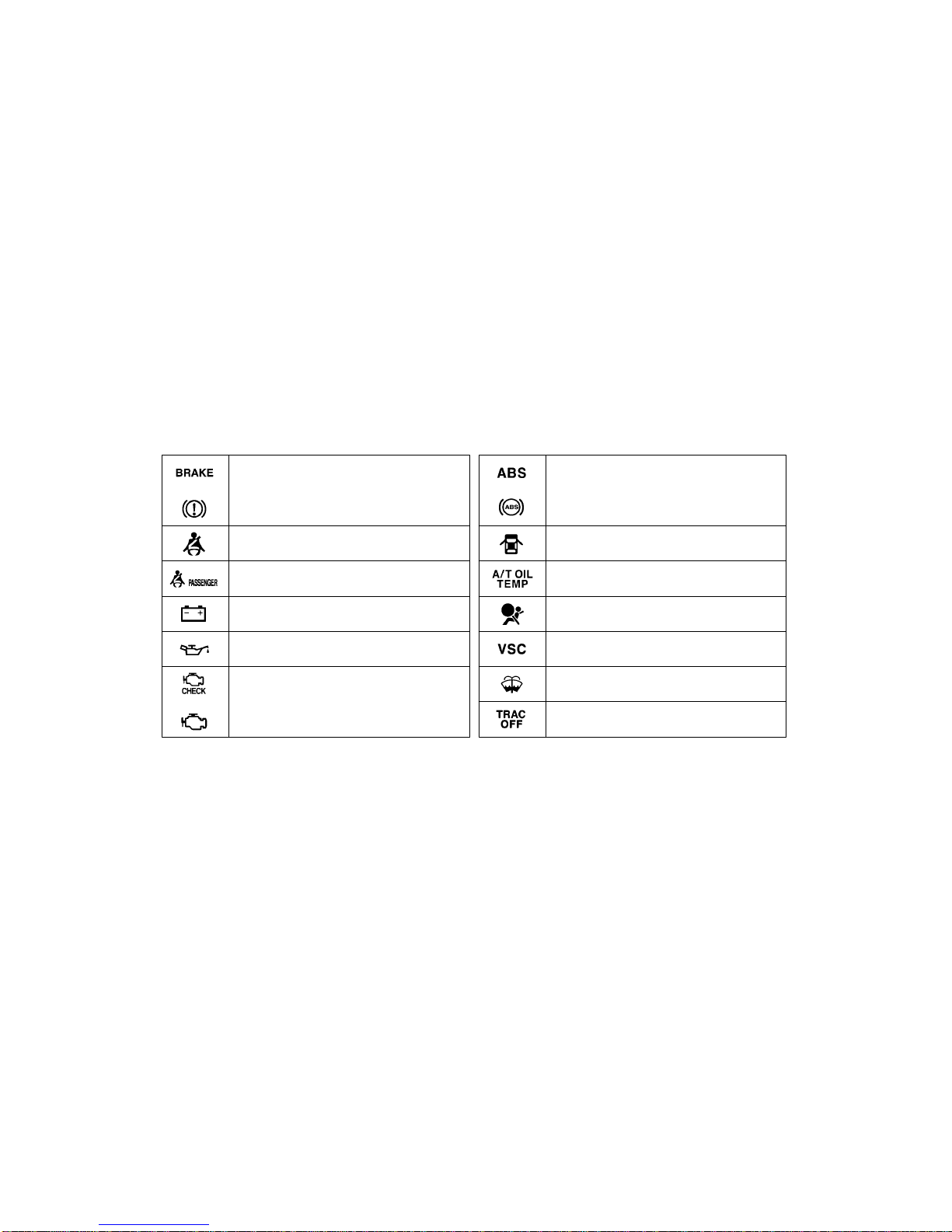

Brake system warning light∗1

Discharge warning light∗1

Low engine oil pressure warning light∗1

Malfunction indicator lamp∗1

SRS warning light∗1

Driver’s seat belt reminder light∗1Open door warning light∗1

Automatic transmission fluid temperature warning

light∗1

Low windshield washer fluid level warning light∗1

Vehicle skid control system warning light∗1

Traction control system off indicator light

Anti–lock brake system warning light∗1

Front passenger’s seat belt reminder light∗1

Indicator symbols on the instrument panel

’03 HIGHLANDER_U (L/O 0208)

10 2003 HIGHLANDER from Aug. ’02 Prod. (OM48441U)

∗1: For details, see “Service reminder indicators and warning

buzzers” on page 105 in Section 1–5.

∗2: If this light flashes, see “Cruise control” on page 125 in

Section 1–6.

Cruise control indicator light∗2

Overdrive–off indicator light

Slip indicator light

Headlight high beam indicator light

Turn signal indicator lights

Automatic transmission indicator lights

Snow mode indicator light
