Toyota 2005 ECHO Manuale utente

2005 ECHO from Aug. ’04 Prod. (OM52636U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 7. . . . . . . . . . . . . . . . . . . . . . .

SECTION

22005 ECHO from Aug. ’04 Prod. (OM52636U)

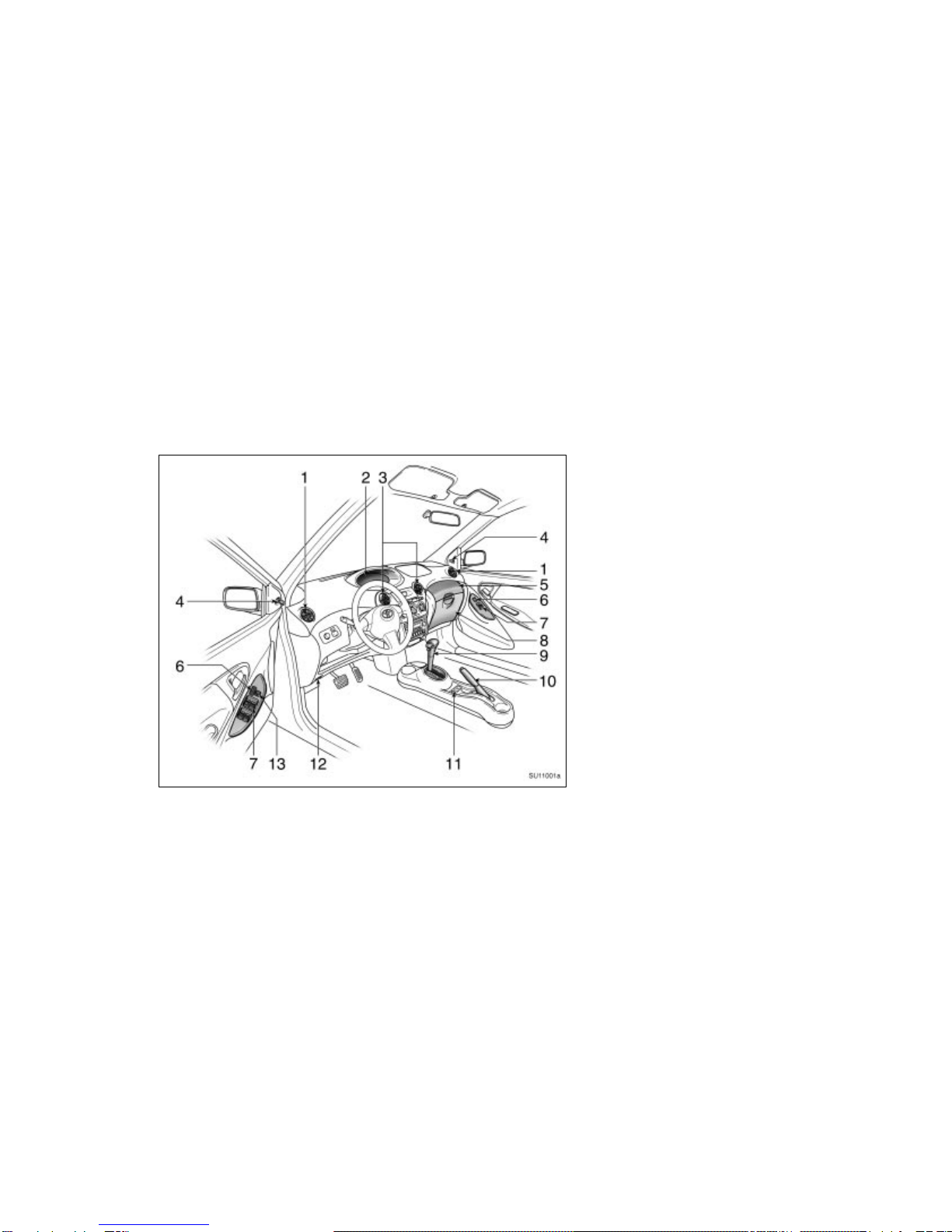

Instrument panel overview

1. Side vents

2. Instrument cluster

3. Center vents

4. Rear view mirror remote control levers

5. Auxiliary box

6. Power door lock switches

(with power windows)

7. Power window switches

8. Glove box

9. Automatic transmission selector lever or

manual transmission gear shift lever

10. Parking brake lever

11. Power door lock switch

(without power windows)

12. Hood lock release lever

13. Window lock switch

SU11001a

2005 ECHO from Aug. ’04 Prod. (OM52636U)

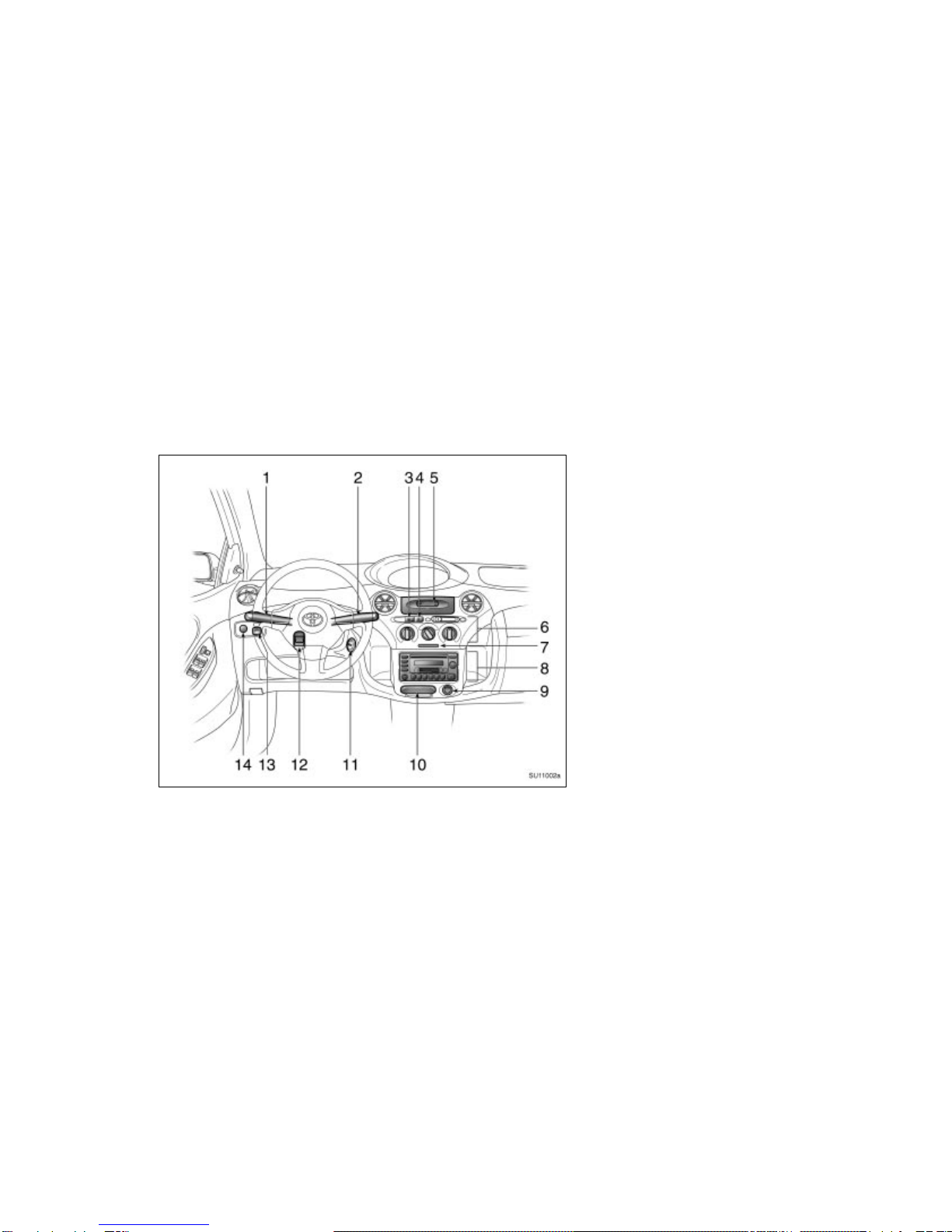

1. Headlight and turn signal switches

2. Wiper and washer switches

3. Rear window defogger switch

4. Emergency flasher switch

5. Clock

6. Air conditioning controls

7. Security indicator light/Front passen-

ger’s seat belt reminder light

8. Audio system

9. Cigarette lighter/Power outlet

10. Ashtray/Coin box

11. Ignition switch

12. Tilt steering lock release lever

13. Power rear view mirror control switches

14. Instrument panel light control knob

SU11002a

42005 ECHO from Aug. ’04 Prod. (OM52636U)

SU11015

1. Service reminder indicators and

indicator lights

2. Speedometer

3. Fuel gauge

4. Odometer and two trip meters

5. Trip meter reset knob

Instrument cluster overview

Type A

2005 ECHO from Aug. ’04 Prod. (OM52636U)

SU11014

1. Service reminder indicators and

indicator lights

2. Speedometer

3. Fuel gauge

4. Odometer and two trip meters

5. Trip meter reset knob

Type B

62005 ECHO from Aug. ’04 Prod. (OM52636U)

SU11009b

1. Service reminder indicators and

indicator lights

2. Speedometer

3. Extinction canceling button

4. Odometer and two trip meters

5. Fuel gauge

6. Trip meter reset button

7. Tachometer

Type C

2005 ECHO from Aug. ’04 Prod. (OM52636U)

Indicator symbols on theinstrument panel

or Brake system warning light∗1

Driver’s seat belt reminder light∗1

Discharge warning light∗1

Malfunction indicator lamp∗1

Low engine oil pressure warning light∗1

Anti-lock brake system warning light∗1

SRS warning light∗1

Low windshield washer fluid level warning light∗1

Low fuel level warning light∗1(type A)

Turn signal indicator lights

Headlight high beam indicator light

Overdrive- off indicator light

Low engine coolant temperature indicator light

(in blue)∗2

High engine coolant temperature warning light

(in red)∗1

Front passenger’s seat belt reminder light∗1

Open door warning light∗1

Low fuel level indicator light∗1(type B)

∗1: For details, see “Service reminder indicators and warning

buzzers” on page 90 in Section 1-6.

∗2: For details, see “Engine coolant temperature indicator and

warning light” on page 87 in Section 1-6.

82005 ECHO from Aug. ’04 Prod. (OM52636U)

2005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Keys and Doors

Keys 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side doors 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Back door 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hood 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel tank cap 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

04 06.07

SECTION

82005 ECHO HATCHBACK from Jul. ’04Prod. (OM52624U)

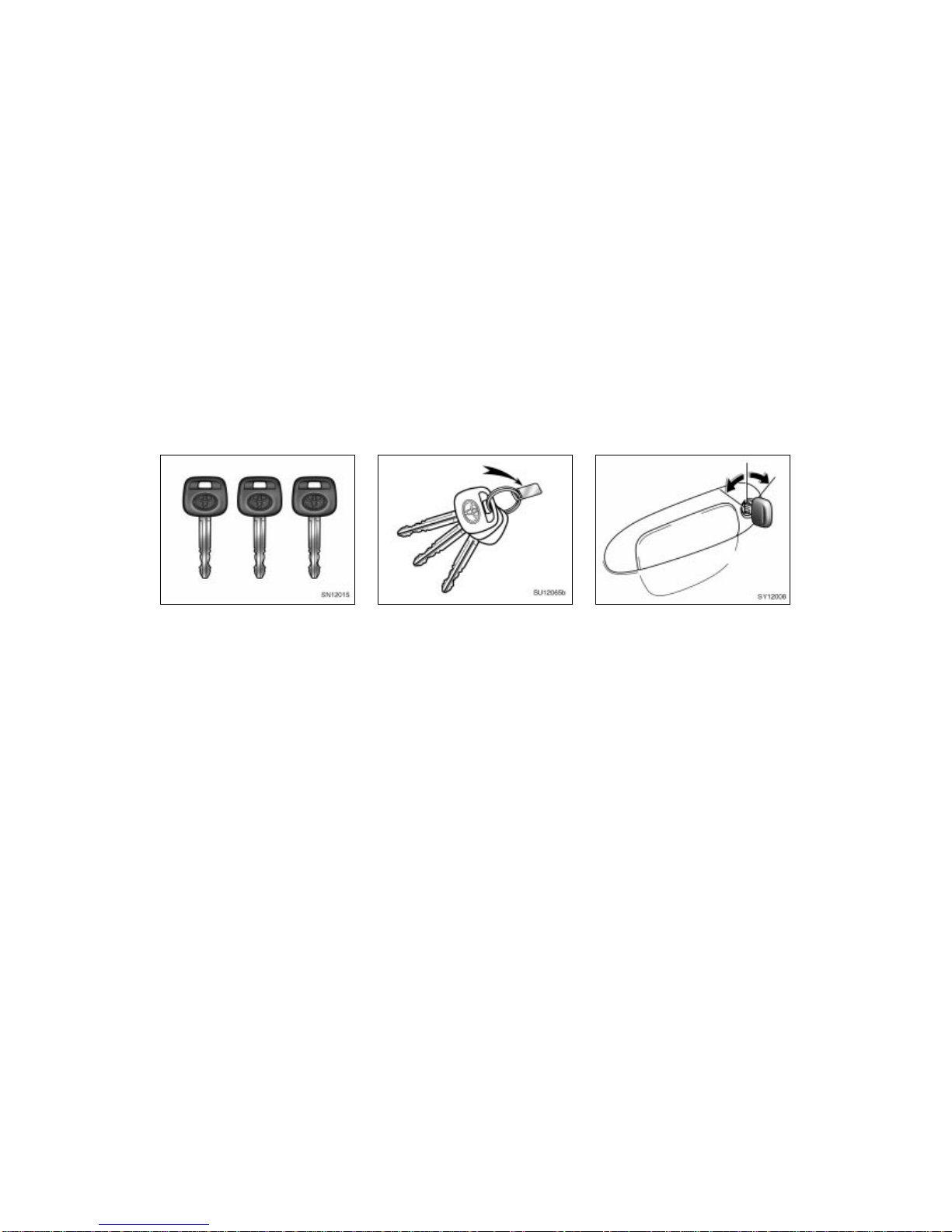

Keys

SN12015

These keys work in every lock.

Since the side doors and back door can

be locked without a key, you should al-

ways carry a spare key in case you acci-

dentally lock your keys inside the vehicle.

SU12065b

KEY NUMBER PLATE

Your key number is shown on the plate.

Keep the plate in a safe place such as

your wallet, not in the vehicle.

If you should lose your keys or if you

need additional keys, duplicates can be

made by a Toyota dealer using the key

number.

We recommend writing down the key num-

ber and storing it in a safe place.

Side doors—

SY12008

LOCKING AND UNLOCKING WITH KEY

Insert the key into the keyhole and turn

it.

To lock: Turn the key forward.

To unlock: Turn the key backward.

5- door models—All the side doors and

back door lock and unlock simultaneously

with either front door. In the driver’s door

lock, turning the key once will unlock the

driver’s door and twice in succession will

unlock all the side doors and back door

simultaneously.

04 06.07
