OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Move the lever to “LOCK,” allowing the door to be

opened only from the outside.

Doors-Child safety locks

Rear door

Spare tire & tools

Tool location

Removing the spare tire

Loosen and remove the nut.

Remove the luggage storage box.

Loosen and remove the bolt.

Refer to the Owner’s Manual for tire changing and

jack positioning procedures.

Jack handle

Spare tire

Jack

Wheel nut

wrench

!A word about safe vehicle operations

This Pocket Reference Guide is a summary of

basic vehicle operations. It contains brief

descriptions of fundamental operations so you

can locate and use the vehicle’s main

equipment quickly and easily.

The Pocket Reference Guide is not intended

as a substitute for the Owner’s Manual

located in the vehicle’s glove box. We

strongly encourage you to review the Owner’s

Manual and supplementary manuals so you

will have a better understanding of the

vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota

Motor Sales, U.S.A., Inc. wish you many years

of satisfied driving in your new Corolla

Matrix.

This Pocket Reference Guide is not a full

description of Corolla Matrix operations.

Every Corolla Matrix owner should review

the Owner’s Manual that accompanies this

vehicle.

Pay special attention to the boxed

information highlighted in yellow

throughout the Owner’s Manual. Each box

contains safe operating instructions to

help you avoid injury or equipment

malfunction.

All information in this Pocket Reference

Guide is current at the time of printing.

Toyota reserves the right to make changes

at any time without notice.

2007

Corolla Matrix

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

INDEX

Item Page no.

OVERVIEW

Engine maintenance 7

Fuel tank door release and cap 6

Hood release 6

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry 6

FEATURES/OPERATIONS

Air Conditioning/Heating 14

Audio 13

Auto lock functions18

Automatic Transmission 8

Clock 9

Cruise control 15

Cup holders 12

Door locks-Power 10

Light control-Interior/Instrument panel 11

Lights & turn signals 10

Moonroof 12

Parking brake 15

Power outlets 14

Seat adjustments-Front 9

Seat adjustments-Rear 9

Seats-Head restraints 9

Tilt steering wheel 15

Window-Glass hatch 11

Windows-Power 12

Wiper & washer lever-Front/Rear 11

SAFETY ANDEMERGENCY FEATURES

Doors-Child safety locks 17

Seat belts 16

Seat belts-Shoulder belt anchor 16

Spare tire & tools 17

Tire Pressure Warning System reset 16

1Programmable by customer. Refer to theOwner’s

Manual for instructions and more information.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

12V DC Power outlet/Cigarette lighter*

Ignition switch

Cruise control*

Tilt steering lock release

“TRAC OFF” (Tr act ion Control “OFF”)

Theft deterrent system*/Engine immobilizer

indicator light

Tire Pressure Warning System reset*

Glass hatch opener switch*

*If equipped

OVERVIEW

Power rear view mirror control*

Instrument panel light control

Headlight, turn signal and front fog light* controls

Wiper and washer controls

Air Conditioning*/Heater controls

Rear window defogger switch

Emergency flasher switch

Clock

Front passenger seat belt reminder light/Front

passenger occupant classification indicator*

Audio system

115V AC Power outlet*/Auxiliary box

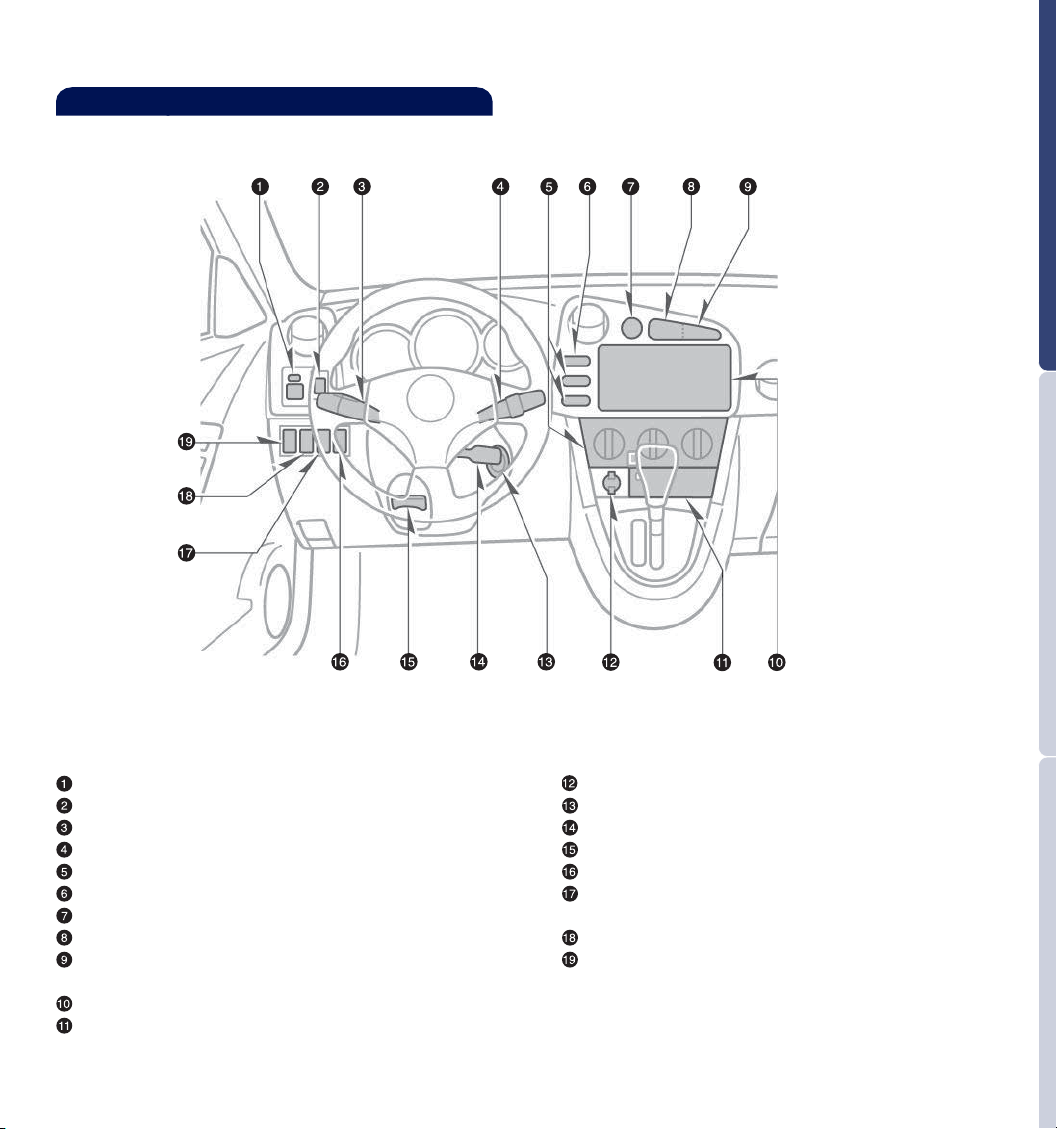

Instrument panel

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Vehicle Stability Control/Traction Control

warning1

Low Tire Pressure Warning1

Engine oil replacement reminder1

Front passenger occupant classification

indicator

Headlight low beam indicator

Headlight high beam indicator

Tu r n signal indicator

Overdrive “OFF” indicator

Slip indicator/Traction control system “OFF”

indicator

Cruise control indicator2

Anti-lock Brake System warning1

Tachometer

Service indicator and reminder

Speedometer

Fuel gauge

Low fuel level warning

Engine coolant temperature

Trip meter reset knob

Odometer, two trip meters and outside

temperature

2If this light flashes, refer to “Cruise control,” Section 1-7, 2007

Owner’s Manual.

OVERVIEW

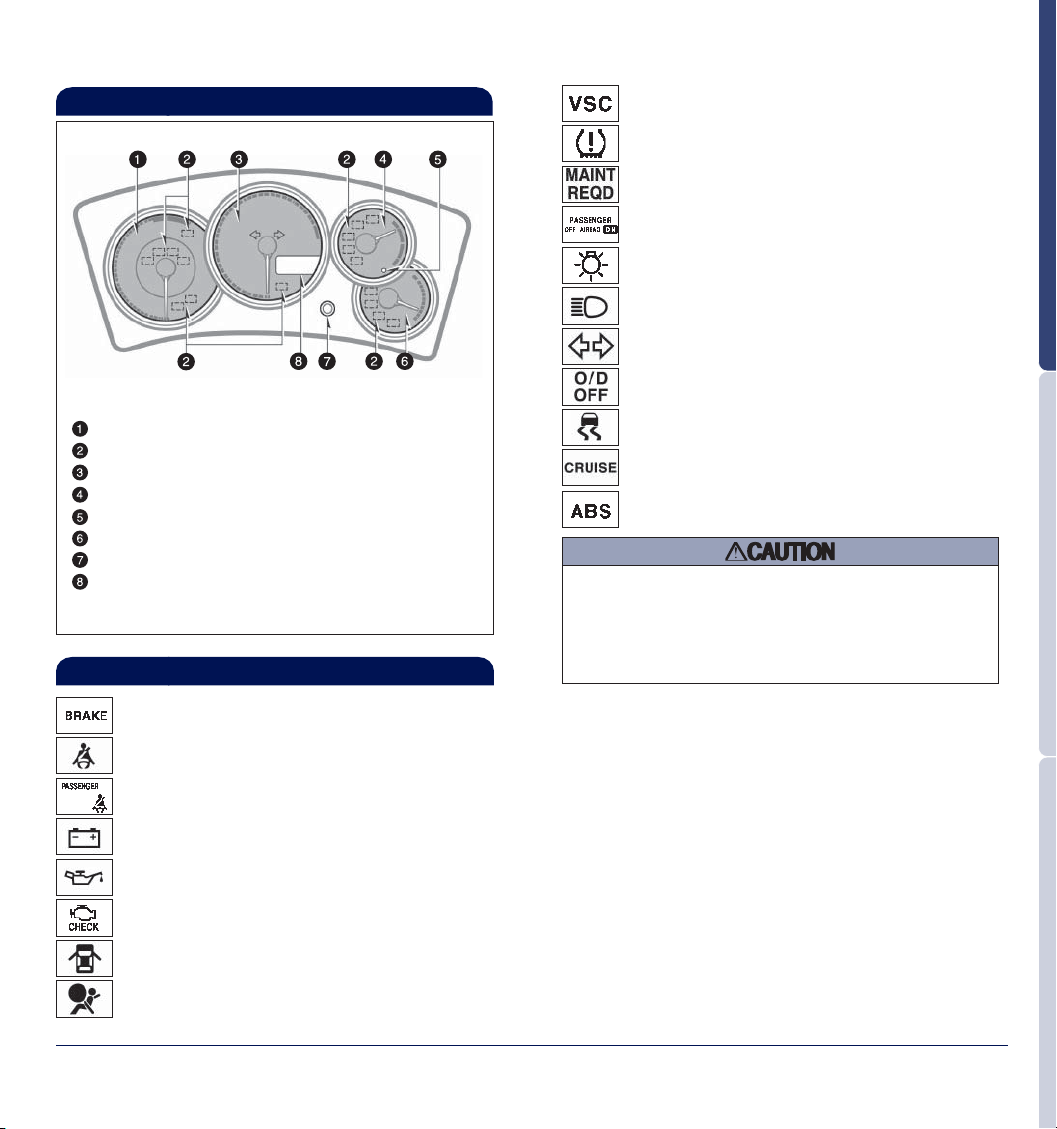

Instrument cluster

Indicator symbols

When the Anti-lock Brake System (ABS) function is in

action, you may feel the brake pedal pulsating and

hear anoise. In this situation, to let the Anti-lock

Brake System work for you, just hold the brake pedal

down more firmly. Do not pump the brake as this will

result in reduced braking performance.

1For details, refer to “Service reminder indicators and warning

buzzers,” Section 1-6, 2007 Owner’s Manual.

Driver’s seat belt reminder1

(alarm will sound if speed is over 9 mph)

Brake system warning1

Front passenger seat belt reminder1

(alarm will sound if speed is over 9 mph)

Charging system warning1

Low engine oil pressure warning1

Malfunction/Check Engine indicator1

Open door warning1

Airbag SRS warning1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

OVERVIEW

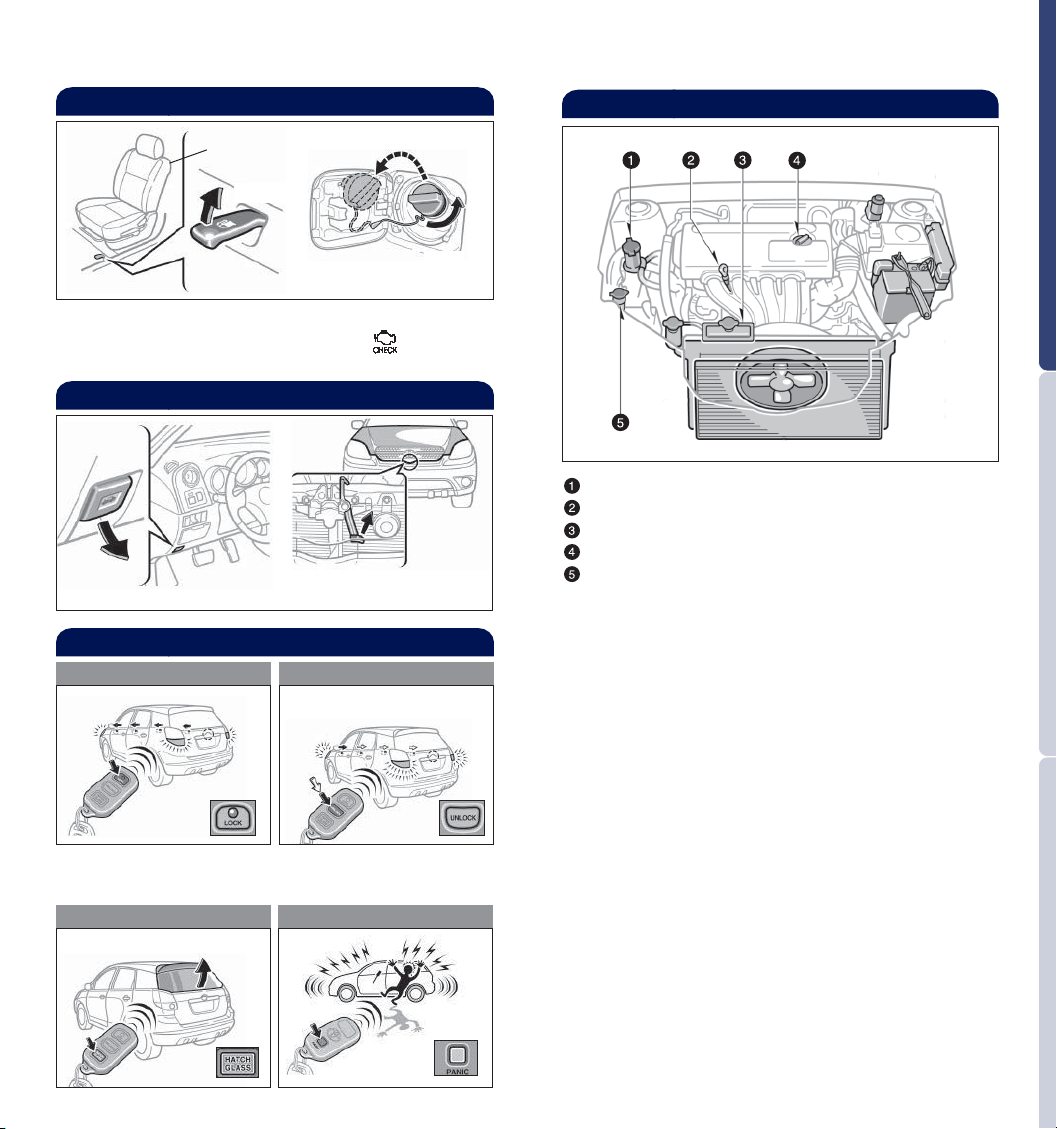

Fuel tank door release and cap

Tu r n

Store

Pull up

Driver seat

NOTE:Tighten until one click is heard. If the cap is

not tightened enough, Check Engine “”indicator

may illuminate.

Engine maintenance

Power steering fluid reservoir

Engine oil level dipstick

Engine coolant reservoir

Engine oil filler cap

Windshield and rear window washer fluid tank

Note: Regularly scheduled maintenance, including

oil changes, will help extend thelife of

your vehicle and maintain performance.

Please refer to the“Owner’sWarranty

Information Booklet,” “Scheduled

Maintenance Guide” or “Owner’s Manual

Supplement.”

Hood release

Pull

Keyless entry (if equipped)

Locking operation Unlocking operation

Glass hatch opener

Alarm operation

Push Push ONCE: Driver door

TWICE: All doors

NOTE: After unlocking, if adoor is not opened within

thirty (30) seconds, all doors will relock for safety

Push and hold Push

Pull up latch and

raise hood

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Seats-Head restraints

Lock release button Lock release button

FEATURES/OPERATIONS

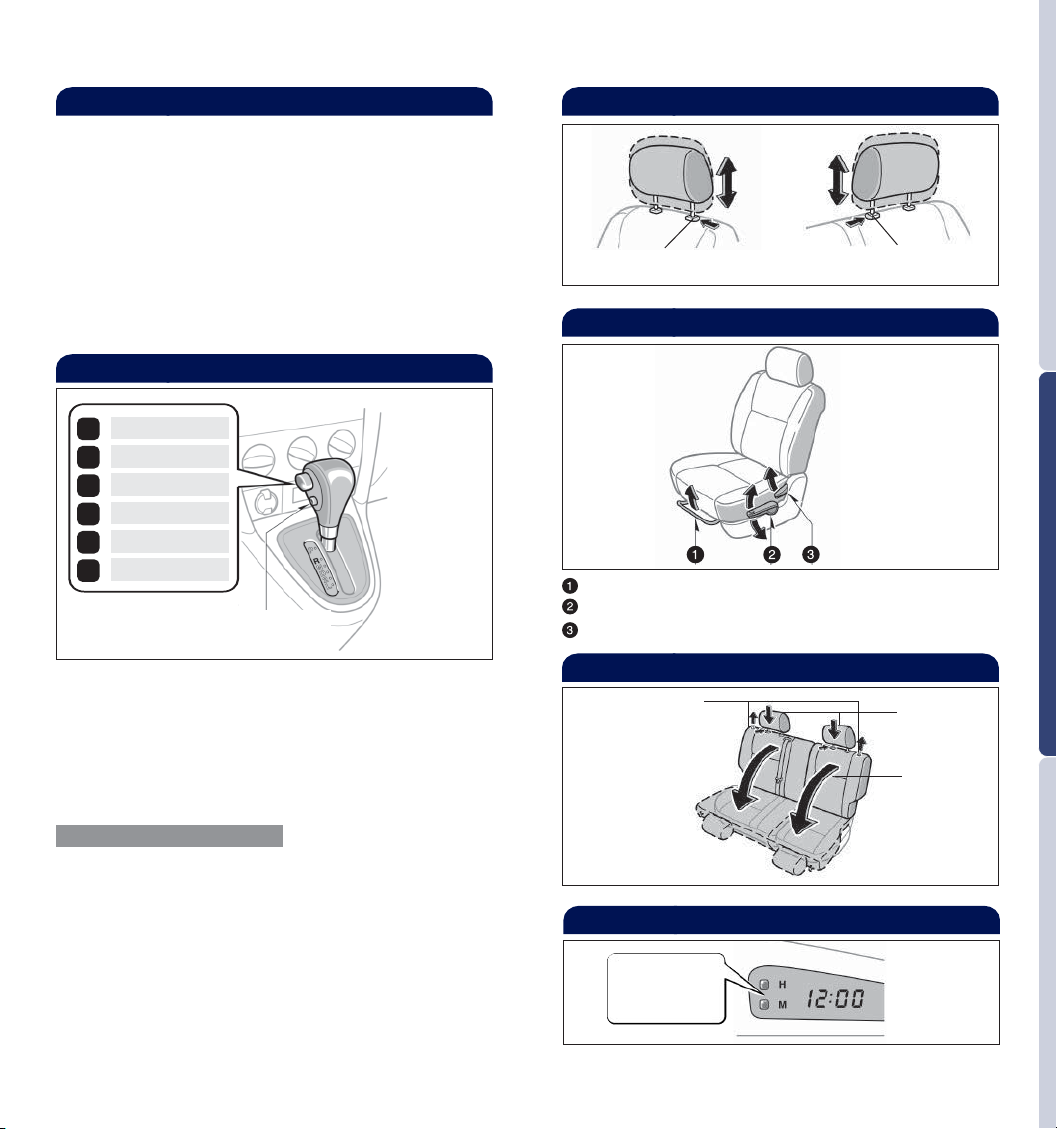

Automatic Transmission (if equipped)

Park1

Reverse

Neutral

Drive

Second gear

First gear

Overdrive switch

To t u r n “ON” or “OFF” Depress the overdrive

switch to choose either three-speed (“OFF”) or four-

speed (“ON”) operation. During normal driving

conditions, always drive with overdrive “ON;”this

allows the transmission to shift automatically into

four-speed operation at higher speeds, improving

fuel economy. If the indicator light on the

instrument cluster is illuminated, overdrive is “OFF.”

1The ignition must be ON, and the brake pedal

depressed to shift from “Park.”

Downshifting increases power going uphill, or

provides engine braking downhill. For best fuel

economy during normal driving conditions, always

drive with the shift lever in the “D” position.

Front Rear

Auto lock functions (if equipped)

Automatic door locks can be programmed to operate

in 4different modes.

-Doors lock when shifting from “Park.”

-Doors unlock when shifting into “Park.”

-Doors unlock when the ignition key is turned to the

“ACC” or “LOCK” position and driver’s door is

opened.

-Deactivate, auto lock function cancelled.

Refer to the Owner’s Manual for more details. Seat adjustments-Front

Position

Height crank (driver side only)

Seatback angle

Seat adjustments-Rear

(1) Unlock (2) Lower

(3) Fold

down

Clock

H-Hour set

M-Minute set

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

1110

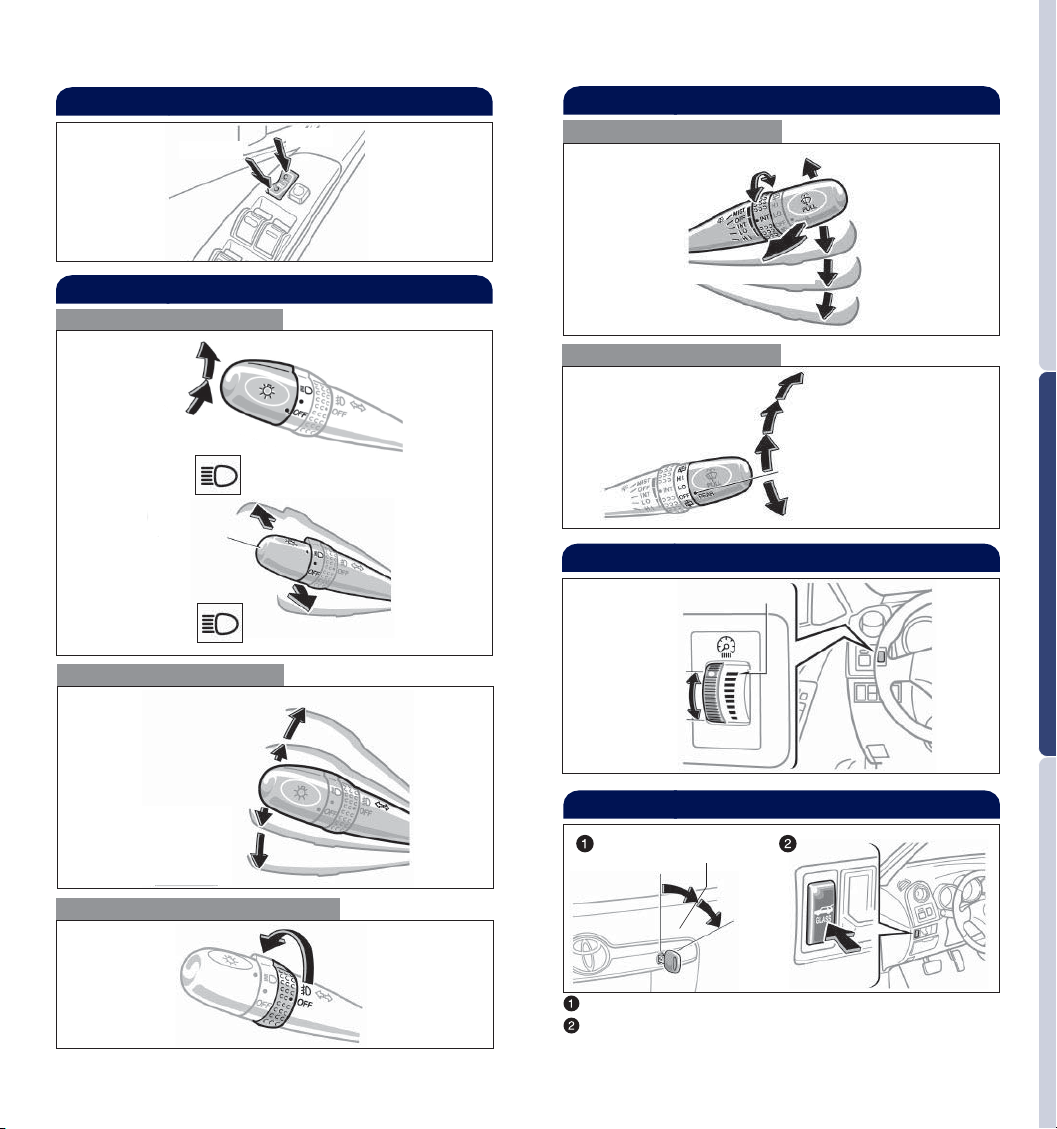

Lights &turn signals

Headlights

Wiper &washer lever-Front/Rear

Front operation

Rear operation

Adjust interval Single wipe

Pull to wash and wipe

Interval wipe

Slow

Fast

Wash and wipe

Wipe

Interval wipe

Wash and wipe

High beam

Parking lights

Headlights

High beam flasher

Low beam

FEATURES/OPERATIONS

Turn signals

Right turn

Lane change

Left turn

Front fog lights turn on only when the headlights are

on low beam.

Front fog lights (if equipped)

Tu r n

Light control-Instrument panel

Brightness

control

Window-Glass hatch

To o p e n with key Tu r n the key FULLY clockwise.

To open with opener switch* Push and hold the

switch when the vehicle is stopped.

*If equipped

Back door lock

position

Full intensity position

Door locks-Power (if equipped)

Lock

Unlock

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Moonroof (if equipped)

Sliding operation Tilting operation

Windows-Power (if equipped)

Driver side Passenger window

lock switch

Window operation

Automatic down operation (Driver side only) Push

the switch completely down and release to fully open.

To stop window mid-way, lightly pull the switch up.

Window lock switch Deactivates all passenger

windows. Driver’s window remains operable.

Cup holders

Front Rear

Down

Open

Close Close

Tilt

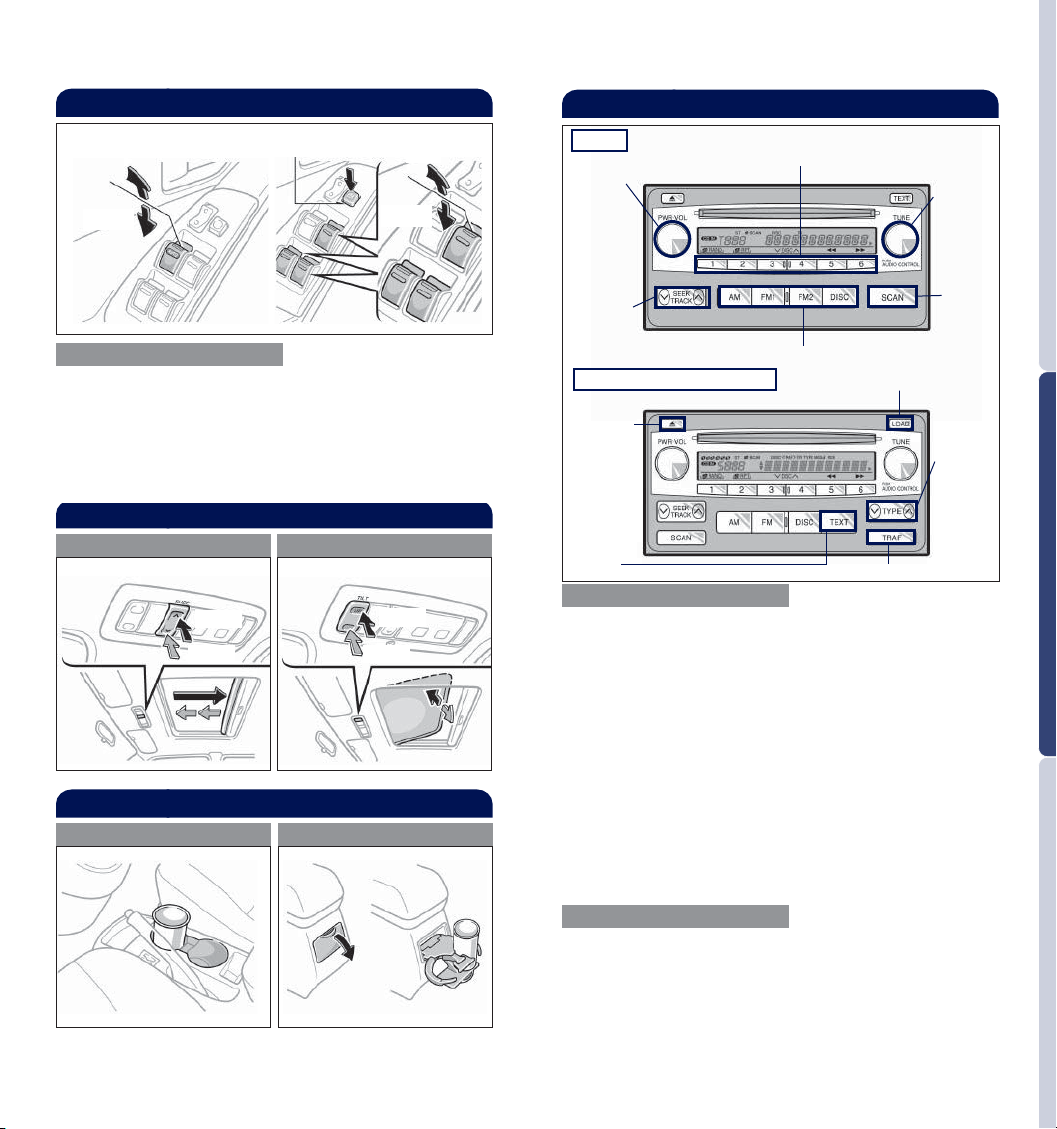

Audio

Type 2additional functions

Push to turn

ON/OFF

Seek

station/

CD track

select

Mode

Station

/CD

track

scan

Preset buttons -button functions in

other modes indicated above number

Load CD(s)

Eject CD

View

genre

with RDS

system

FEATURES/OPERATIONS

CD PLAYER

To scan tracks on adisc Push and hold “SCAN.” Push

again to hold selection.

CD Changer (Type 2only)

-To load one disc Push “LOAD” and insert one disc.

-To load multiple discs Push and hold “LOAD” until

you hear abeep. Insert one disc. Wait until the

green indicator illuminates and shutter opens to

insert nextdisc.

To preset stations Tune in the desired station and

press apreset button (1-6) until you hear abeep.

Push desired preset button (1-6) to select.

To scan stations Push and hold to scan preset

stations. Push again to hold selection.

RDS (Radio Data System-FMonly) (Type 2only)

-Push TYPE “”or “”to view current program

genre. Push again within 6seconds to select new

genre.

-Push “SEEK/TRACK” or “SCAN” to find same genre

program.

-Push “TEXT” to receive information transmitted

from radio stations.

RADIO

Tra f f i c information

View

Radio

and CD

text

Push to

adjust

tone

and

balance

Type 1

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

FEATURES/OPERATIONS

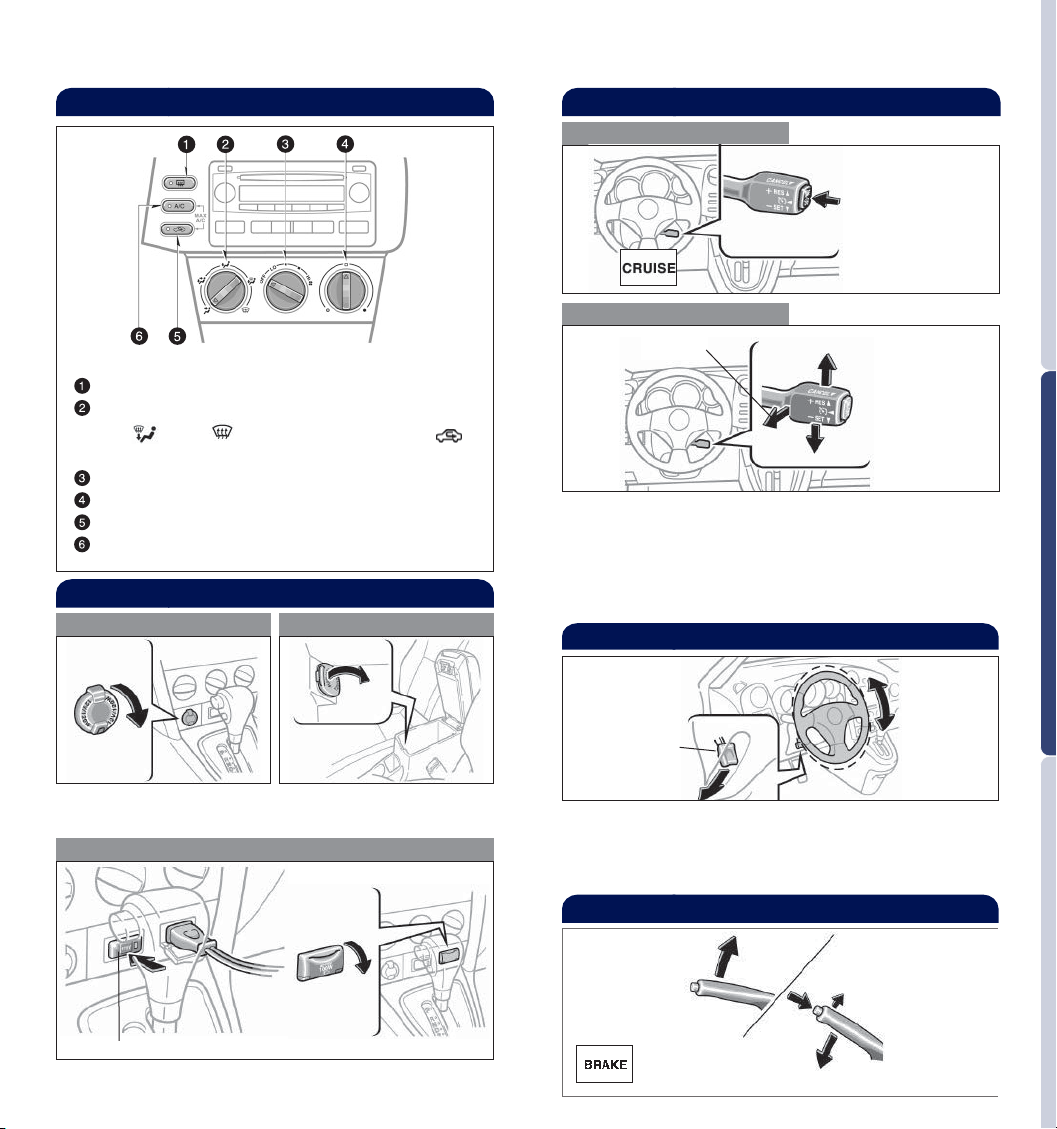

Cruise control (if equipped)

Turning system ON/OFF

Functions

System

ON/OFF

Resume2/Increase speed

Set/Decrease speed

Cancel1

Power outlets

Shifter area (12V) Center console box (12V)

Designed for 12V car accessories. Key must be in the

“ACC” or “ON” position to be used.

Shifter area (115V, if equipped)

Key must be in the “ON” position.

Main switch

Hold wheel, push lever down, set angle, then

return lever.

Note: Donot attemptto adjust while thevehicle

is in motion.

Tilt steering wheel

Lock release

lever

Air Conditioning (if equipped)/Heating

Rear defogger

Air flow vent

Fan speed

Temperature

Fresh or recirculate cabin air

Air Conditioning ON/OFF

Angle

Parking brake

Pull

Set Release

(1) Pull slightly

(2) Push

(3) Lower

1The set speed may also be cancelled by depressing

the brake pedal or the clutch pedal.

2The set speed may be resumed once vehicle speed

exceeds 25 mph.

Refer to the Owner’s Manual for more details.

In “”or “”mode, use fresh air (“”

indicator “OFF”)to reduce window fogging.

Altri manuali per 2007 Matrix

Indice

Altri manuali Toyota Automobile

Toyota

Toyota Prius 2009 Manuale utente

Toyota

Toyota HIGHLANDER 2010 Manuale utente

Toyota

Toyota FJ cruiser 2013 Manuale operativo

Toyota

Toyota Prius 2010 Manuale utente

Toyota

Toyota FJ cruiser Manuale utente

Toyota

Toyota COROLLA CROSS HYBRID 2020 Manuale utente

Toyota

Toyota TACOMA 2010 Manuale utente

Toyota

Toyota Corolla Verso Manuale utente

Toyota

Toyota 4RUNNER BROCHURE 2011 Manuale utente

Toyota

Toyota 1990 Supra MA70 Series Guida rapida

Toyota

Toyota 2013 Yaris Manuale operativo

Toyota

Toyota Celica 2002 Manuale utente

Toyota

Toyota Camry 1996 Manuale utente

Toyota

Toyota FJ Cruiser 2007 Manuale utente

Toyota

Toyota Avalon 2007 Manuale utente

Toyota

Toyota Tundra guide Manuale utente

Toyota

Toyota 1991 Land Cruiser 70 Series Manuale utente

Toyota

Toyota PRIUS 2017 Manuale utente

Toyota

Toyota 2003 ECHO Manuale utente

Toyota

Toyota Highlander 2021 Manuale utente

Toyota

Toyota LAND CRUISER Manuale utente

Toyota

Toyota TACOMA 2010 Manuale utente

Toyota

Toyota avalon 2016 Manuale utente

Toyota

Toyota RAV4 EV 2013 Manuale utente

Manuali Automobile popolari di altre marche

CITROËN

CITROËN DS4 DSign Manuale utente

Lexus

Lexus 2015 CT 200h Manuale utente

Cadillac

Cadillac CTS 2008 Manuale utente

Mercedes-Benz

Mercedes-Benz M-class ML 55 AMG Manuale utente

Porsche

Porsche Boxster S Manuale utente

GMC

GMC 2010 Savana 1500 Cargo Manuale utente

KIAM

KIAM SPORTAGE 2014 Manuale elenco delle parti

GMC

GMC 2013 Terrain Istruzioni per il montaggio

GMC

GMC T-Series 1999 Manuale utente

Mercury

Mercury 1998 Mystique Manuale utente

Mercury

Mercury 2007 Mariner Manuale utente

Mazda

Mazda 2007 Mazdaspeed 3 Guida

Mazda

Mazda 2014 CX-5 Manuale utente

GMC

GMC Chevrolet Express 2022 Manuale utente

GMC

GMC 1997 Jimmy Manuale utente

Chevrolet

Chevrolet 2012 Malibu Manuale utente

Cadillac

Cadillac 2010 Escalade Manuale utente

Skoda

Skoda FABIA RS - ANNEXE 118 Manuale utente
