OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 5. . . . . . . . . . . . . . . . . . . . . . .

SECTION

WWW.MANUALS.WS

’05MY CELICA U (L/O 0409)

2005 CELICA from Sep. ’04 Prod. (OM20888U)

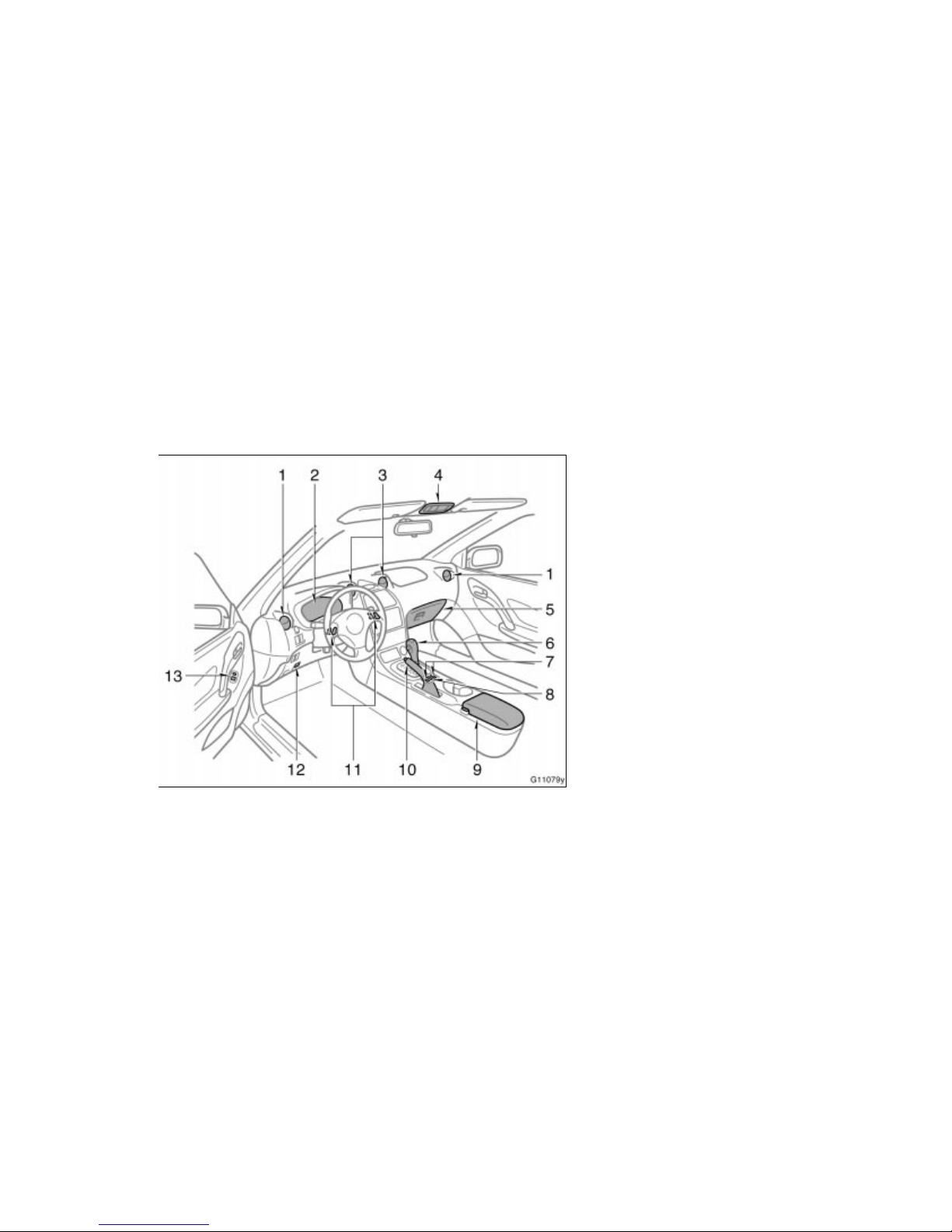

1. Side vents

2. Instrument cluster

3. Center vents

4. Electric moon roof switch and/or

interior light

5. Glove box

6. Automatic transmission selector lever

or manual transmission gear shift lever

7. Power window switches

8. Power door lock switch

9. Auxiliary box

10. Parking brake lever

11. Transmission shift switches

12. Hood lock release lever

13. Power rear view mirror control switches

Instrument panel overview

WWW.MANUALS.WS

’05MY CELICA U (L/O 0409)

2005 CELICA from Sep. ’04 Prod. (OM20888U)

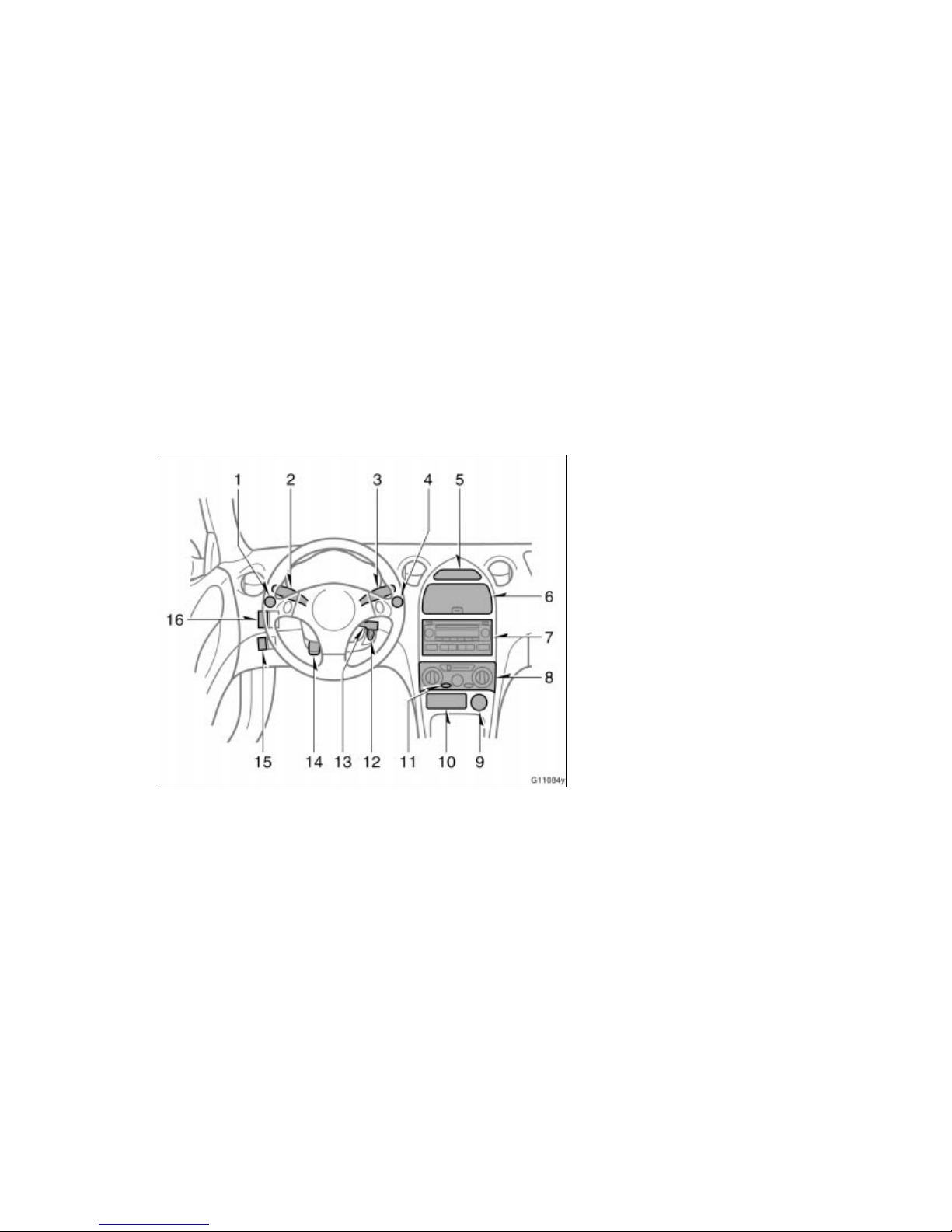

1. Instrument panel light control knob

2. Headlight, turn signal and front fog

light switches

3. Wiper and washer switches

4. Emergency flasher switch

5. Clock

6. Auxiliary box

7. Audio system

8. Air conditioning controls

9. Cigarette lighter

10. Ashtray

11. Rear window defogger switch

12. Ignition switch

13. Cruise control switch

14. Tilt steering lock release lever

15. Headlight beam level control dial

16. Window lock switch

WWW.MANUALS.WS

’05MY CELICA U (L/O 0409)

2005 CELICA from Sep. ’04 Prod. (OM20888U)

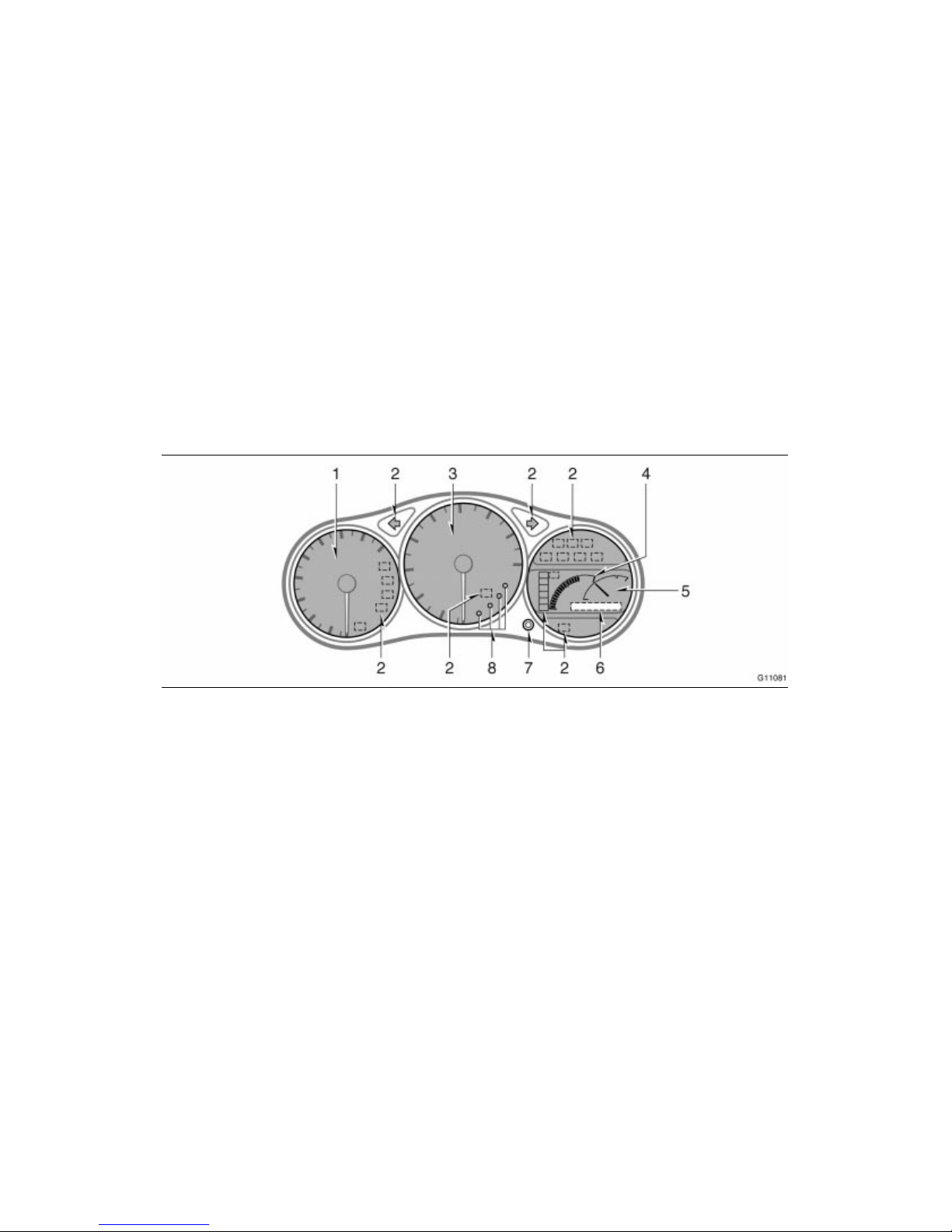

1. Tachometer

2. Service reminder indicators and

indicator lights

3. Speedometer

4. Fuel gauge

5. Engine coolant temperature gauge

6. Odometer and two trip meters

7. Trip meter reset knob

8. Gear position indicators

Instrument cluster overview

WWW.MANUALS.WS

’05MY CELICA U (L/O 0409)

2005 CELICA from Sep. ’04 Prod. (OM20888U)

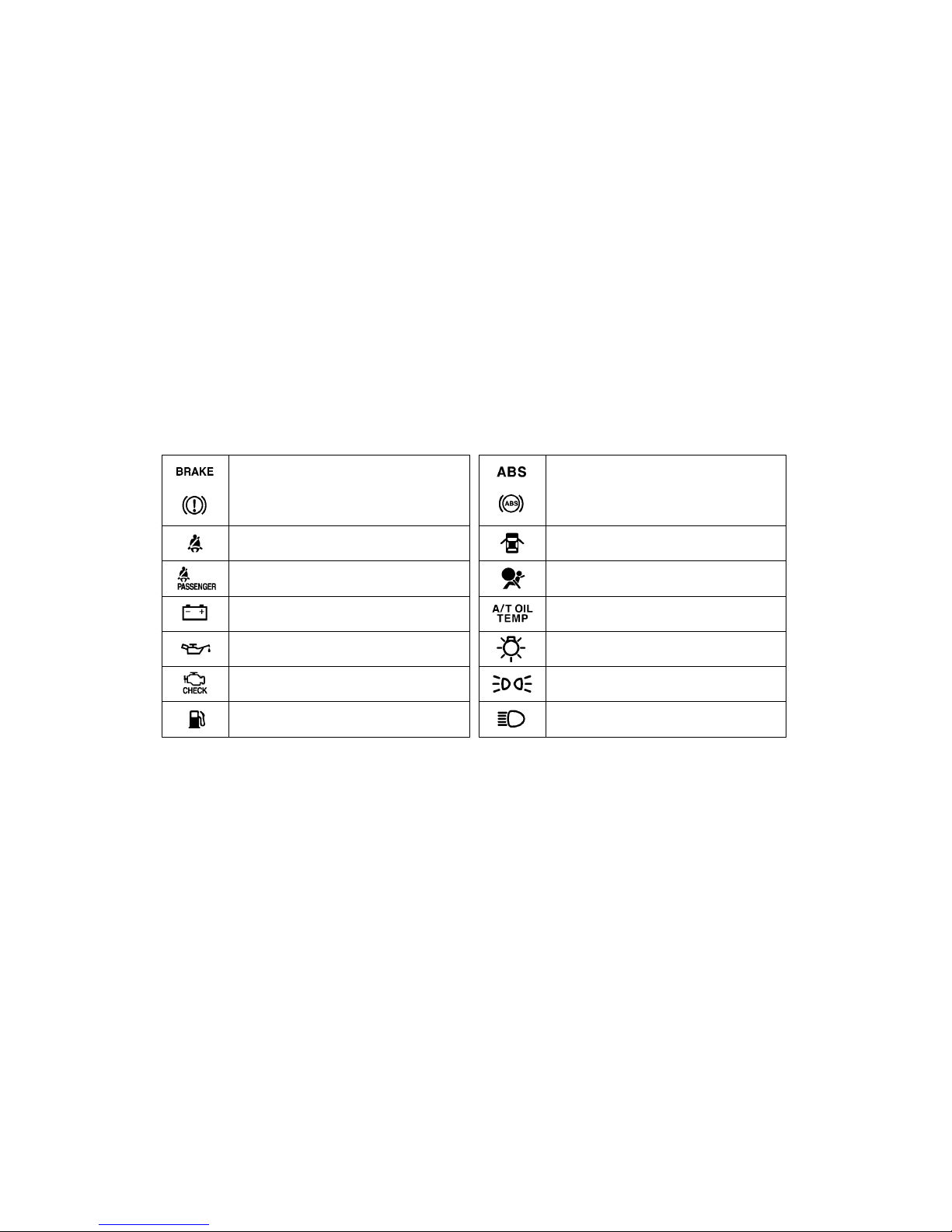

SRS warning light∗1

Open door warning light∗1

Brake system warning light∗1

Discharge warning light∗1

Low engine oil pressure warning light∗1

Malfunction indicator lamp∗1

Anti- lock brake system warning light∗1

Driver’s seat belt reminder light∗1

Low fuel level warning light∗1

or or

Automatic transmission fluid temperature

warning light∗1

Headlight low beam indicator light

Tail light indicator light

Headlight high beam indicator light

Front passenger’s seat belt reminder light∗1

Indicator symbols on the instrument panel

WWW.MANUALS.WS

’05MY CELICA U (L/O 0409)

2005 CELICA from Sep. ’04 Prod. (OM20888U)

∗1: For details, see “Service reminder indicators and warning

buzzers” in Section 1-6.

∗2: If this light flashes, see “Automatic transmission” in Section

1- 7.

∗3: If this light flashes, see “Cruise control” in Section 1- 7.

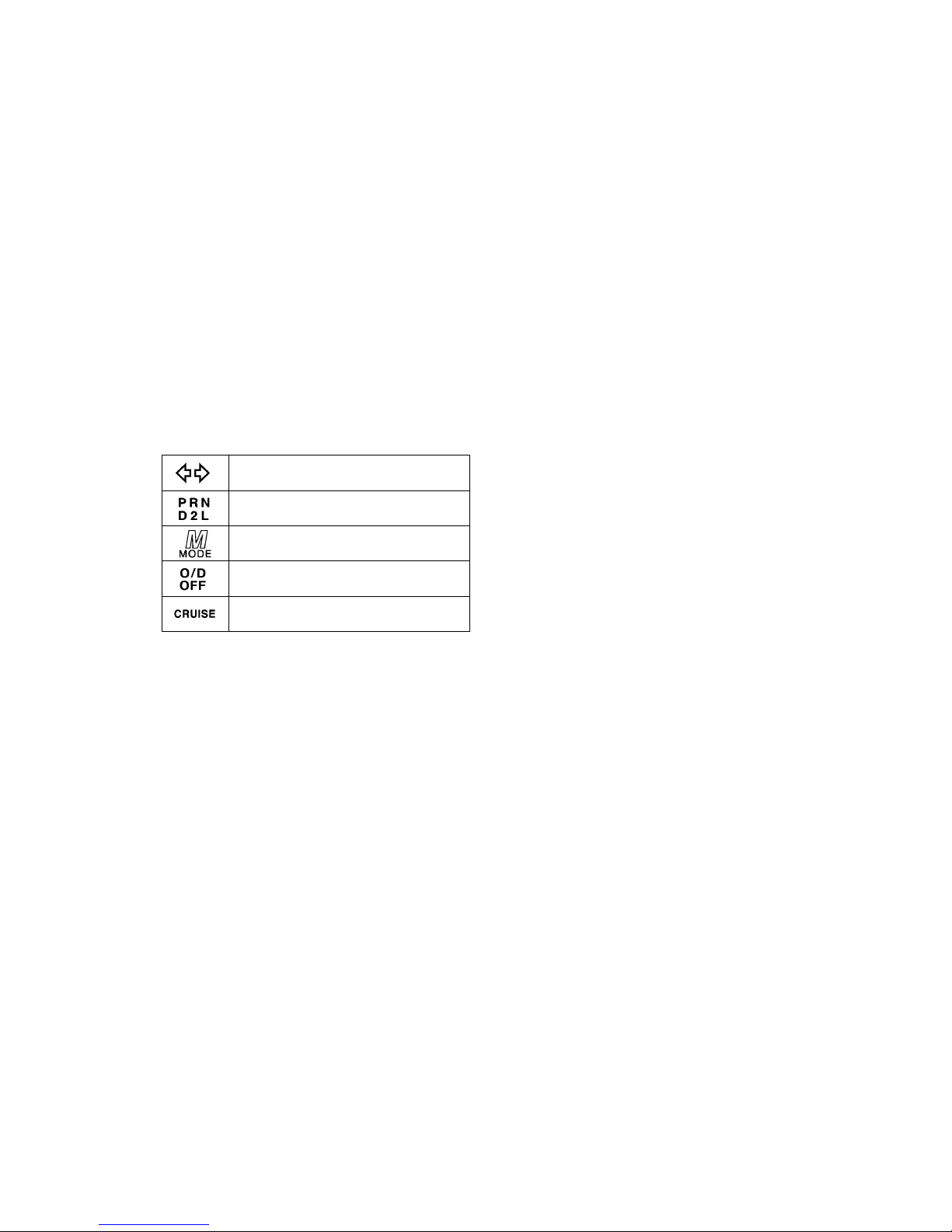

Cruise control indicator light∗3

Overdrive- off indicator light

Automatic transmission indicator lights

M mode indicator light∗2

Turn signal indicator lights

WWW.MANUALS.WS

’05MY CELICA U (L/O 0409)

2005 CELICA from Sep. ’04 Prod. (OM20888U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Keys and Doors

Keys 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wireless remote control 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side doors 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power windows 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Back door 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hood 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel tank cap 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electric moon roof 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION

WWW.MANUALS.WS

’05MY CELICA U (L/O 0409)

2005 CELICA from Sep. ’04 Prod. (OM20888U)

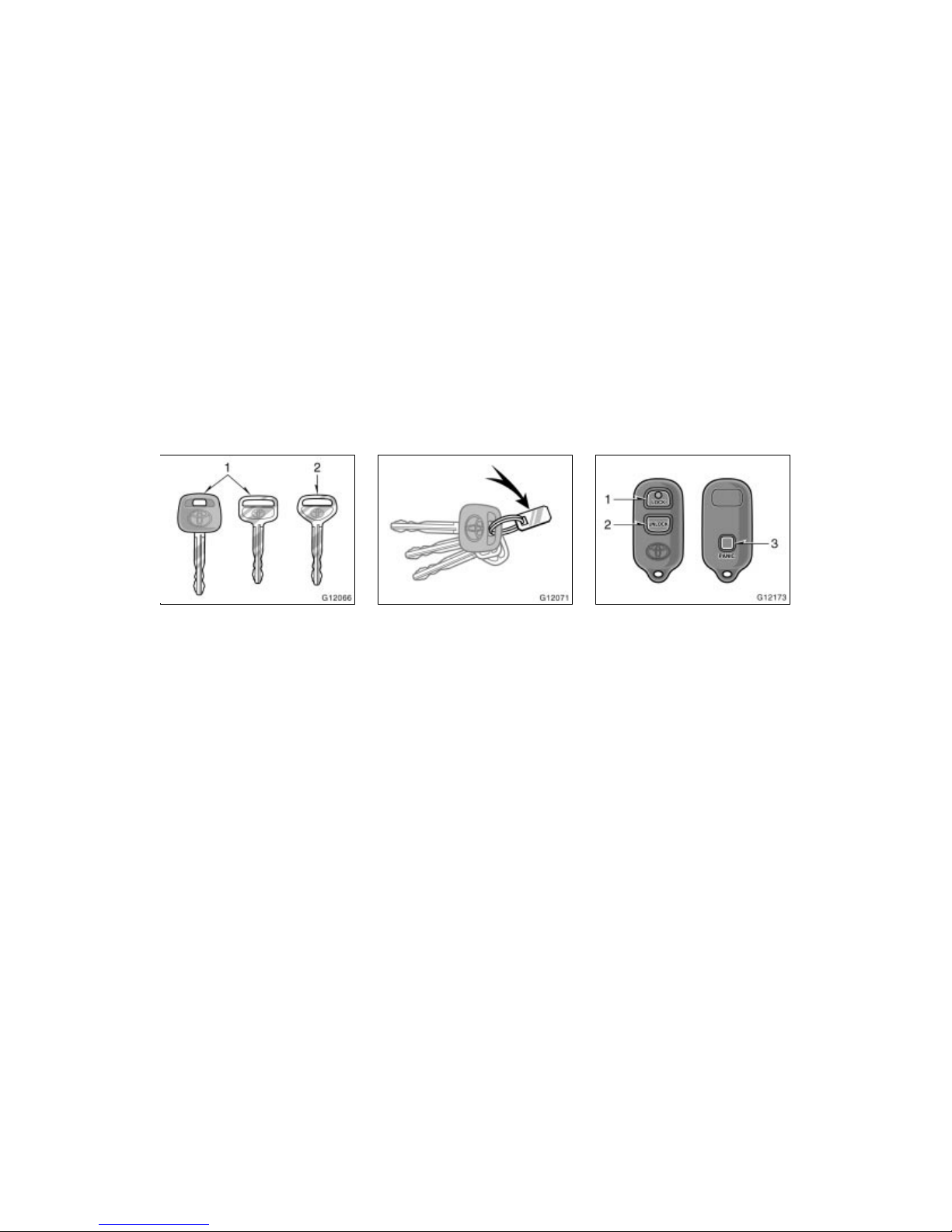

Your vehicle is supplied with two kinds

of keys.

1. Master keys—

These keys work in every lock.

Since the side doors and back door

can be locked without a key, you

should always carry a spare master

key in case you accidentally lock your

keys inside the vehicle.

2. Sub key—

This key will not work in the back door

and glove box.

To protect items locked in the glove

box or luggage compartment when us-

ing valet parking, leave the sub key

with the attendant.

KEY NUMBER PLATE

Your key number is shown on the plate.

Keep the plate in a safe place such as

your wallet, not in the vehicle.

If you should lose your keys or if you

need additional keys, duplicates can be

made by a Toyota dealer using the key

number.

We recommend writing down the key num-

ber and storing it in a safe place.

1. “LOCK” switch

2. “UNLOCK” switch

3. “PANIC” switch

Keys Wireless remote control—

WWW.MANUALS.WS

’05MY CELICA U (L/O 0409)

2005 CELICA from Sep. ’04 Prod. (OM20888U)

The wireless remote control system is

designed to lock or unlock all the

doors or activate the “PANIC” mode

from a distance within approximately 1

m (3 ft.) of the vehicle.

When you operate any switch, push it

slowly and securely.

The wireless remote control transmitter is

an electronic component. Observe the fol-

lowing instructions in order not to cause

damage to the transmitter.

Do not leave the transmitter in places

where the temperature becomes high

such as on the dashboard.

Do not disassemble it.

Avoid knocking it hard against other

objects or dropping it.

Avoid putting it in water.

You can use up to 4 wireless remote con-

trol transmitters for the same vehicle.

Contact your Toyota dealer for detailed

information.

If the wireless remote control transmitter

does not actuate the doors or alarm, or

operate from a normal distance:

Check for closeness to a radio trans-

mitter such as a radio station or an

airport which can interfere with normal

operation of the transmitter.

The battery may have been consumed.

Check the battery in the transmitter. To

replace the battery, see “—Replacing

battery”.

If you lose your transmitter, contact your

Toyota dealer as soon as possible to

avoid the possibility of theft, or an acci-

dent.

If you lose your transmitter, contact your

Toyota dealer as soon as possible to

avoid the possibility of theft, or an acci-

dent. (See “If you lose your wireless re-

mote control transmitter” in Section 4.)

For vehicles sold in U.S.A.

This device complies with Part 15 of the

FCC Rules. Operation is subject to the

following two conditions:

(1) This device may not cause harmful

interference, and (2) this device must

accept any interference received, includ-

ing interference that may cause unde-

sired operation.

WWW.MANUALS.WS

’05MY CELICA U (L/O 0409)

2005 CELICA from Sep. ’04 Prod. (OM20888U)

NOTICE:

This equipment has been tested and

found to comply with the limits for a

Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are

designed to provide reasonable protec-

tion against harmful interference in a

residential installation. This equipment

generates, uses and can radiate radio

frequency energy and, if not installed

and used in accordance with the instruc-

tions, may cause harmful interference to

radio communications. However, there is

no guarantee that interference will not

occur in a particular installation. If this

equipment does cause harmful interfer-

ence to radio or television reception,

which can be determined by turning the

equipment off and on, the user is en-

couraged to try to correct the interfer-

ence by one or more of the following

measures:

Reorient or relocate the receiving an-

tenna.

Increase the separation between the

equipment and receiver.

Connect the equipment into an outlet

on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced

radio/TV technician for help.

FCC WARNING:

Changes or modifications not ex-

pressly approved by the party respon-

sible for compliance could void the

user’s authority to operate the equip-

ment.

For vehicles sold in Canada

Operation is subject to the following two

conditions:

(1) this device may not cause interfer-

ence, and (2) this device must accept

any interference, including interference

that may cause undesired operation of

the device.

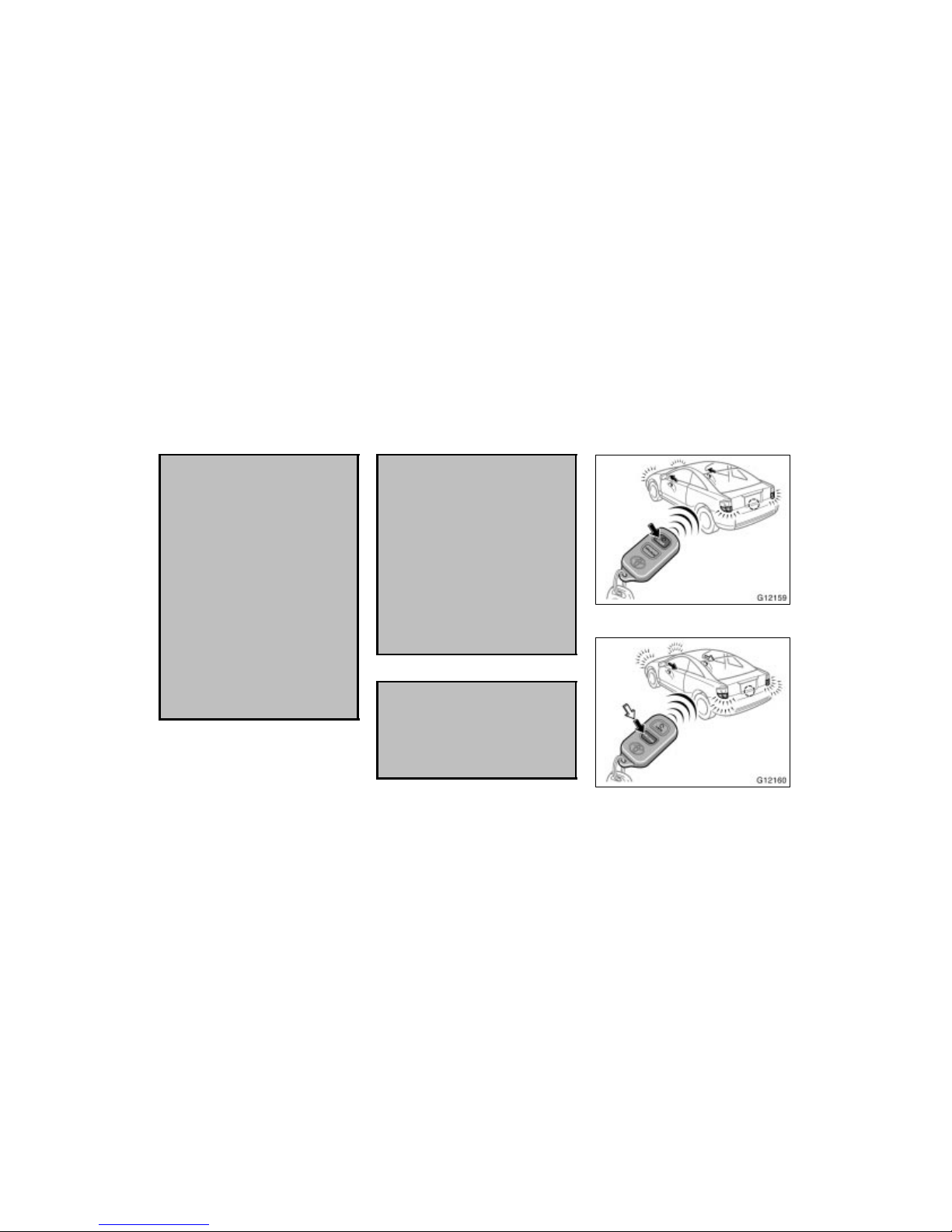

Locking operation

Unlocking operation

—Locking and unlocking

doors
