Toyota Corolla 2002 Manuale utente

WWW.MANUALS.WS

’02 Corolla U (L/O 0105)

2002 Corolla_U (OM12743U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panelel 7. . . . . . . . . . . . . . . . . . . . .

SECTION

–

WWW.MANUALS.WS

’02 Corolla U (L/O 0105)

22002 Corolla_U (OM12743U)

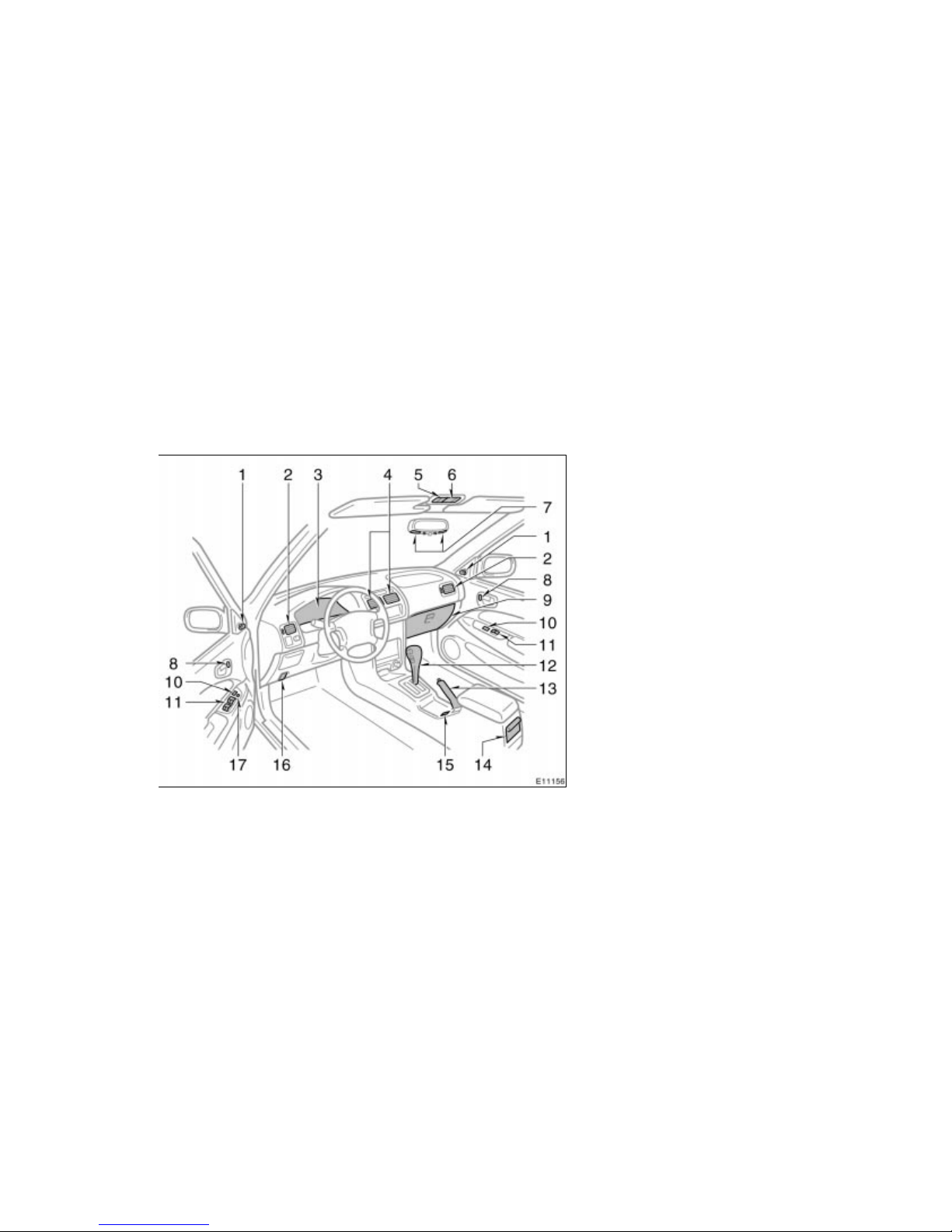

1. Rear view mirror remote control levers

2. Side vents

3. Instrument cluster

4. Center vents

5. Electric moon roof switches

6. Personal light

(with electric moon roof)

7. Personal lights

(without electric moon roof)

8. Power door lock switches

(without power windows)

9. Glove box

10. Power door lock switches

(with power windows)

11. Power window switches

12. Automatic transmission selector lever

or manual transmission gear shift lever

13. Parking brake lever

14. Cup holder

15. Power outlet

16. Hood lock release lever

17. Window lock switch

Instrument panel overview

WWW.MANUALS.WS

’02 Corolla U (L/O 0105)

2002 Corolla_U (OM12743U)

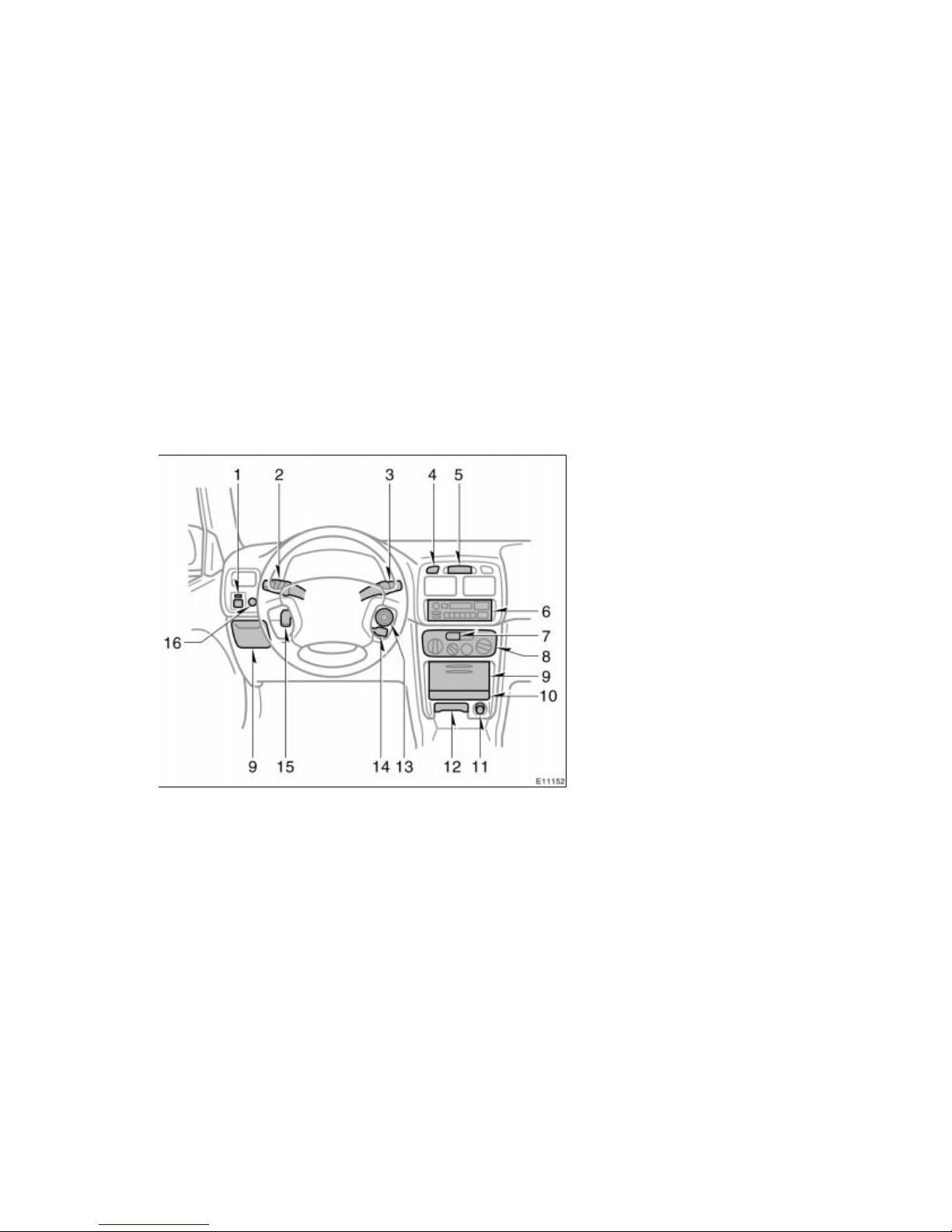

1. Power rear view mirror control switches

2. Headlight, turn signal and front fog

light switches

3. Wiper and washer switches

4. Emergency flasher switch

5. Clock

6. Car audio

7. Rear window defogger switch

8. Air conditioning controls

9. Auxiliary boxes

10. Cup holder

11. Cigarette lighter

12. Ashtray

13. Ignition switch

14. Cruise control switch

15. Tilt steering lock release lever

16. Instrument panel light control knob

WWW.MANUALS.WS

’02 Corolla U (L/O 0105)

42002 Corolla_U (OM12743U)

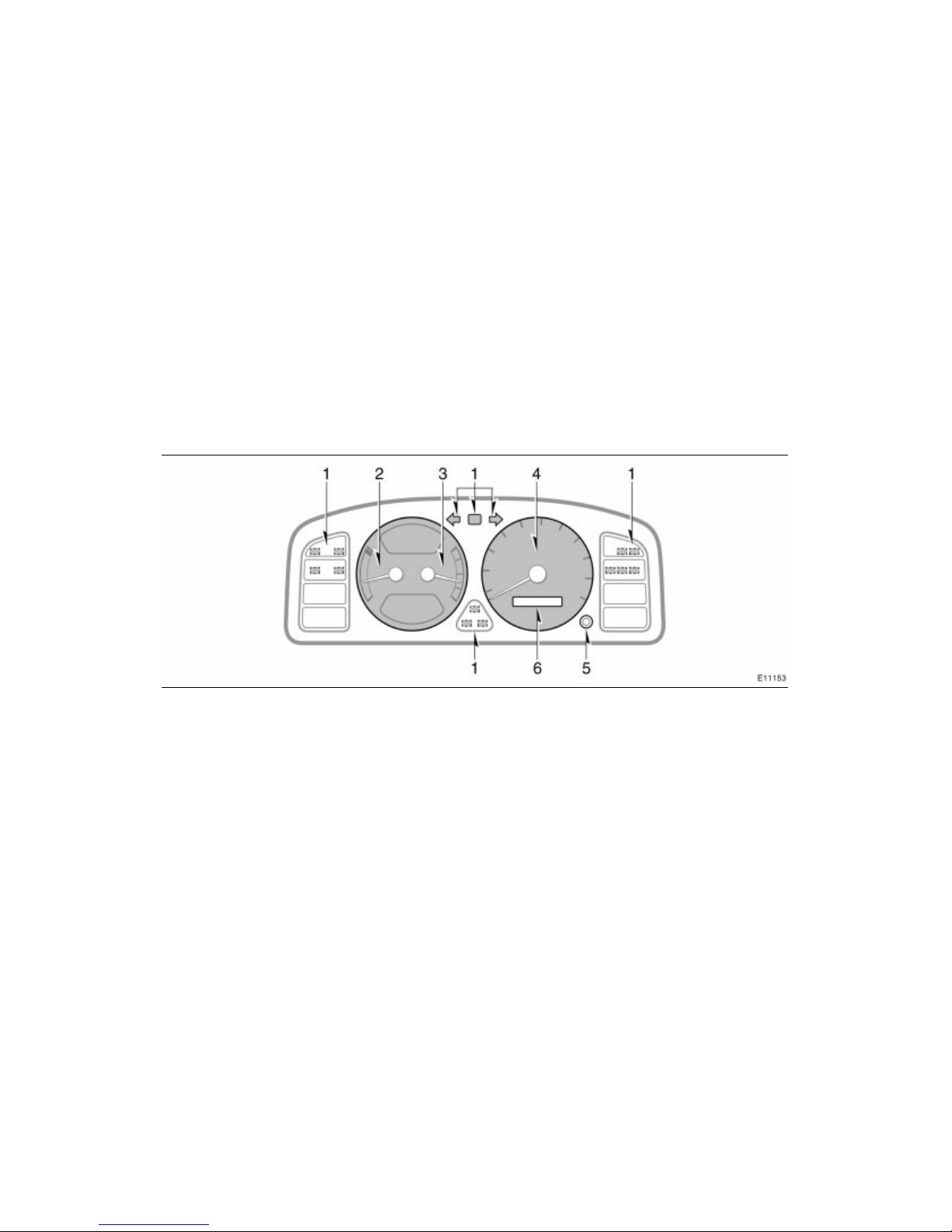

1. Service reminder indicators and

indicator lights

2. Engine coolant temperature gauge

3. Fuel gauge

4. Speedometer

5. Trip meter reset knob

6. Odometer and two trip meters

Instrument cluster overview

Type A

WWW.MANUALS.WS

’02 Corolla U (L/O 0105)

2002 Corolla_U (OM12743U)

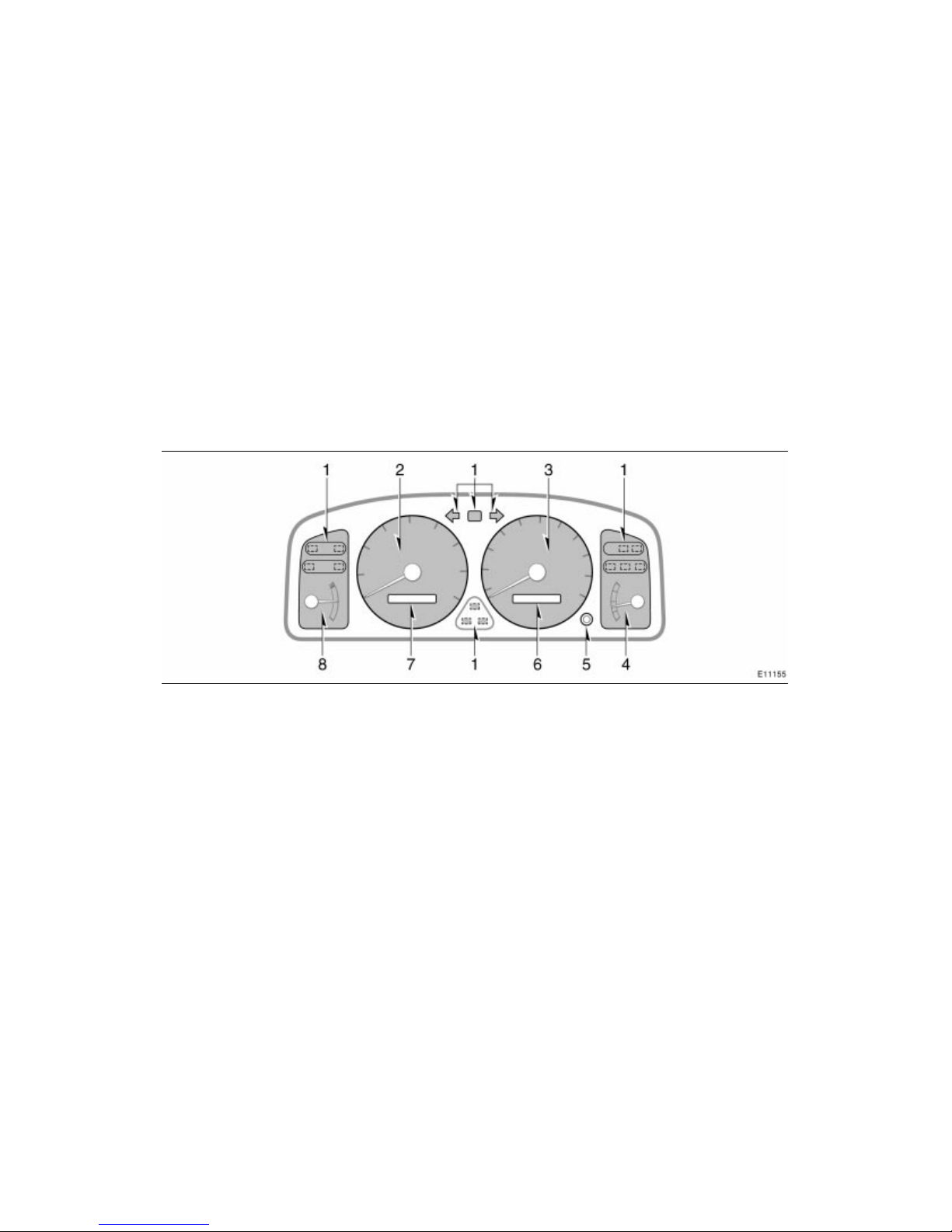

1. Service reminder indicators and

indicator lights

2. Tachometer

3. Speedometer

4. Fuel gauge

5. Trip meter reset knob

6. Odometer and two trip meters

7. Outside temperature display

8. Engine coolant temperature gauge

Type B

WWW.MANUALS.WS

’02 Corolla U (L/O 0105)

62002 Corolla_U (OM12743U)

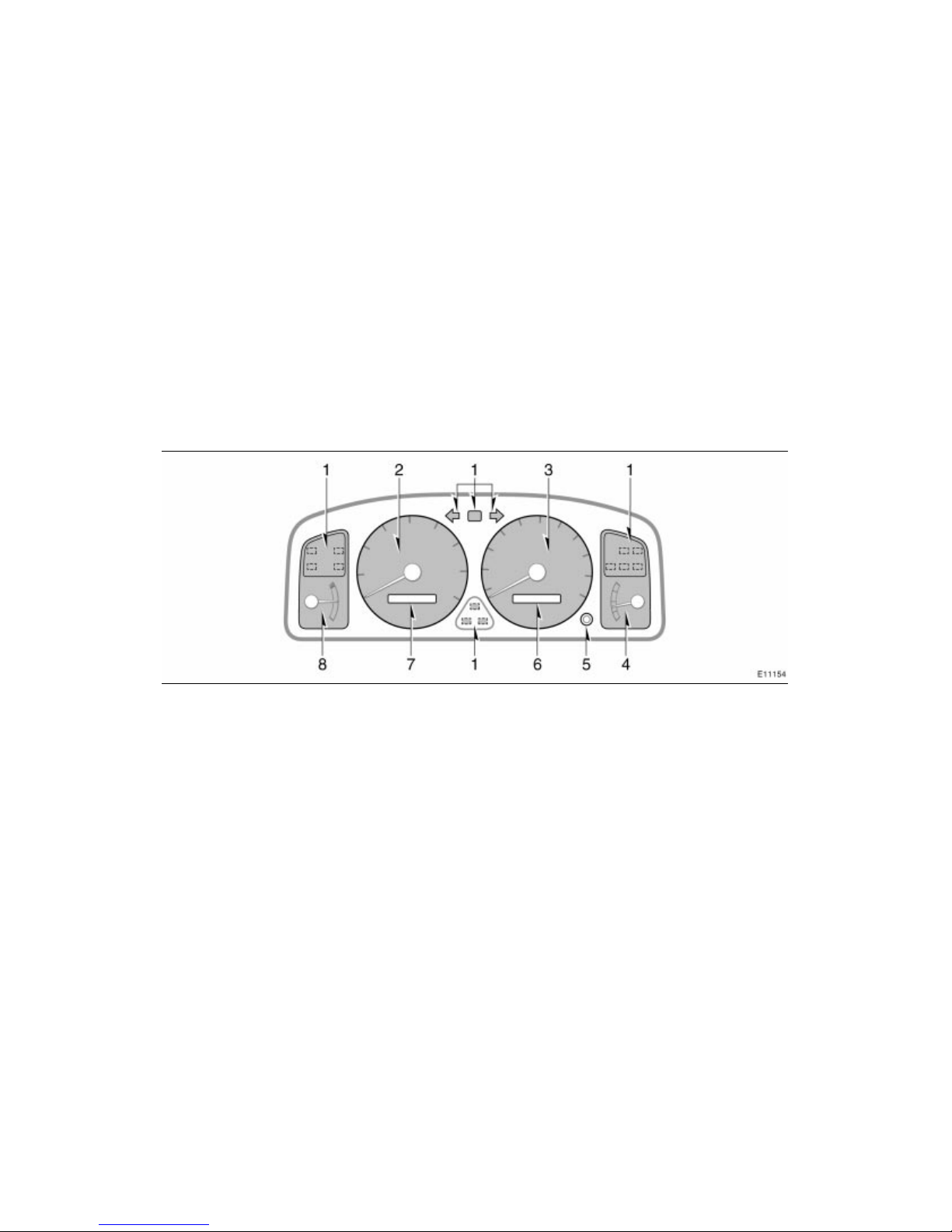

1. Service reminder indicators and

indicator lights

2. Tachometer

3. Speedometer

4. Fuel gauge

5. Trip meter reset knob

6. Odometer and two trip meters

7. Outside temperature display

8. Engine coolant temperature gauge

Type C

WWW.MANUALS.WS

’02 Corolla U (L/O 0105)

2002 Corolla_U (OM12743U)

Brake system warning light∗1

Seat belt reminder light∗1

Discharge warning light∗1

Malfunction indicator lamp∗1

Low engine oil pressure warning light∗1

Anti–lock brake system warning light∗1

Open door warning light∗1

SRS warning light∗1

Low windshield washer fluid level warning

light∗1

Low fuel level warning light∗1

Turn signal indicator lights

Headlight high beam indicator light

Overdrive–off indicator light

Cruise control indicator light∗2

∗1: For details, see “Service reminder indicators and warning

buzzers” in Section 1–5.

∗2: If this light flashes, see “Cruise control” in Section 1–6.

Indicator symbols on the instrument panel

WWW.MANUALS.WS

’02 Corolla U (L/O 0105)

82002 Corolla_U (OM12743U)

WWW.MANUALS.WS

’02 Corolla U (L/O 0105)

2002 Corolla_U (OM12743U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Keys and Doors

Keys 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side doors 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power windows 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trunk lid 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hood 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel tank cap 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electric moon roof 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION

–

WWW.MANUALS.WS

’02 Corolla U (L/O 0105)

10 2002 Corolla_U (OM12743U)

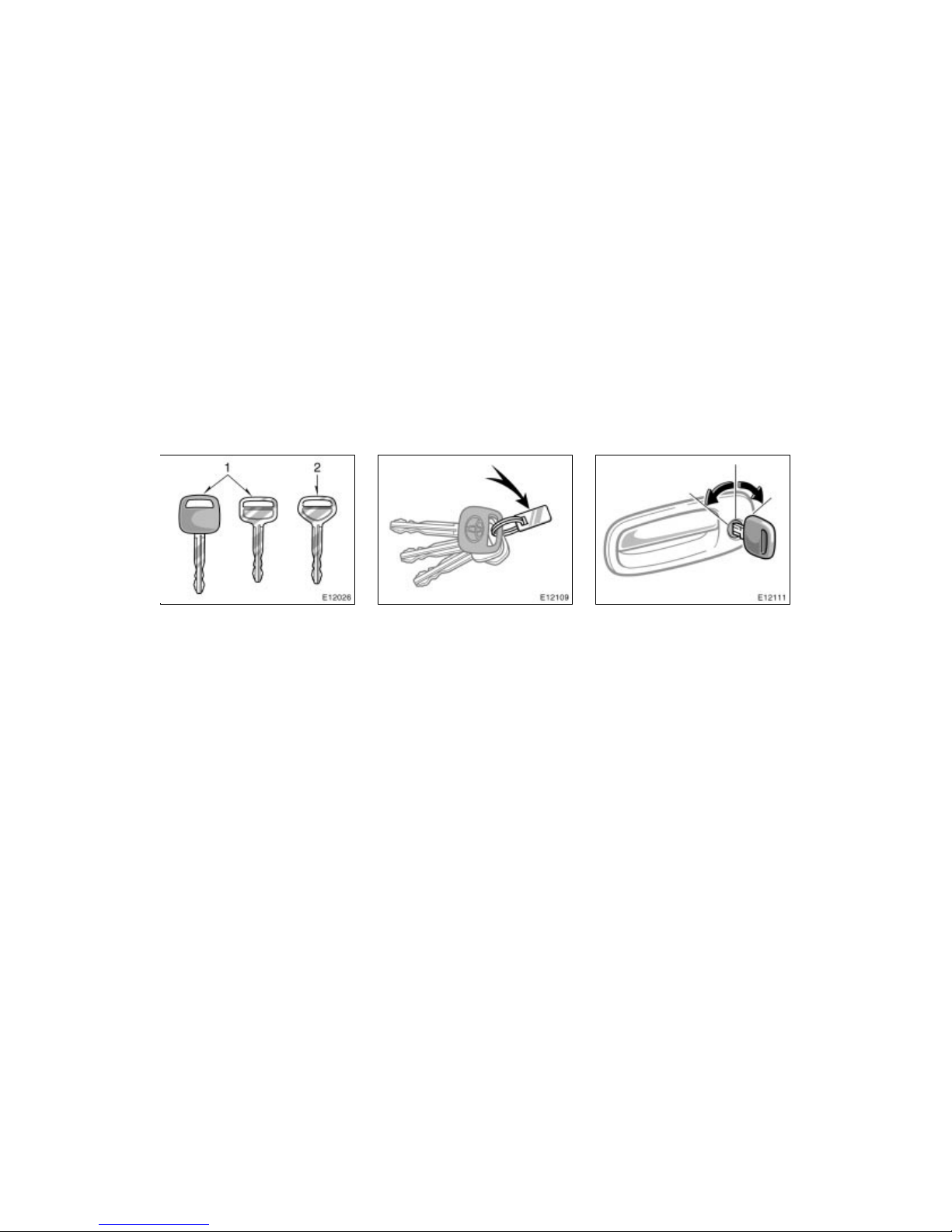

Your vehicle is supplied with two kinds

of keys.

1. Master key—This key works in every

lock.

2. Sub key—This key will not work in the

trunk.

To protect things locked in the trunk when

you have your vehicle parked, leave the

sub key with the attendant.

Since the doors and trunk lid can be

locked without a key, you should always

carry a spare master key in case you

accidentally lock your keys inside the ve-

hicle.

KEY NUMBER PLATE

Your key number is shown on the plate.

Keep the plate in a safe place such as

your wallet, not in the vehicle.

If you should lose your keys or if you

need additional keys, duplicates can be

made by a Toyota dealer using the key

number.

We recommend you to write down the key

number and keep it in safe place.

LOCKING AND UNLOCKING WITH KEY

Insert the key into the keyhole and turn

it.

To lock: Turn the key forward.

To unlock: Turn the key backward.

Vehicles with power door lock system—All

the doors lock and unlock simultaneously

with either front door. In the driver’s door

lock, turning the key once will unlock the

driver’s door and twice in succession will

unlock all the doors simultaneously.

Keys Side doors
