OPERATION OF INSTRUMENTS AND

CONTROLS

Overview of instruments and controls

Instrument panel overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Instrument cluster overview 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Indicator symbols on the instrument panel 5. . . . . . . . . . . . . . . . . . . . . . .

SECTION

–

2001MY ECHO (U) L/O0008

22001 ECHO (OM52440U)

Instrument panel overview

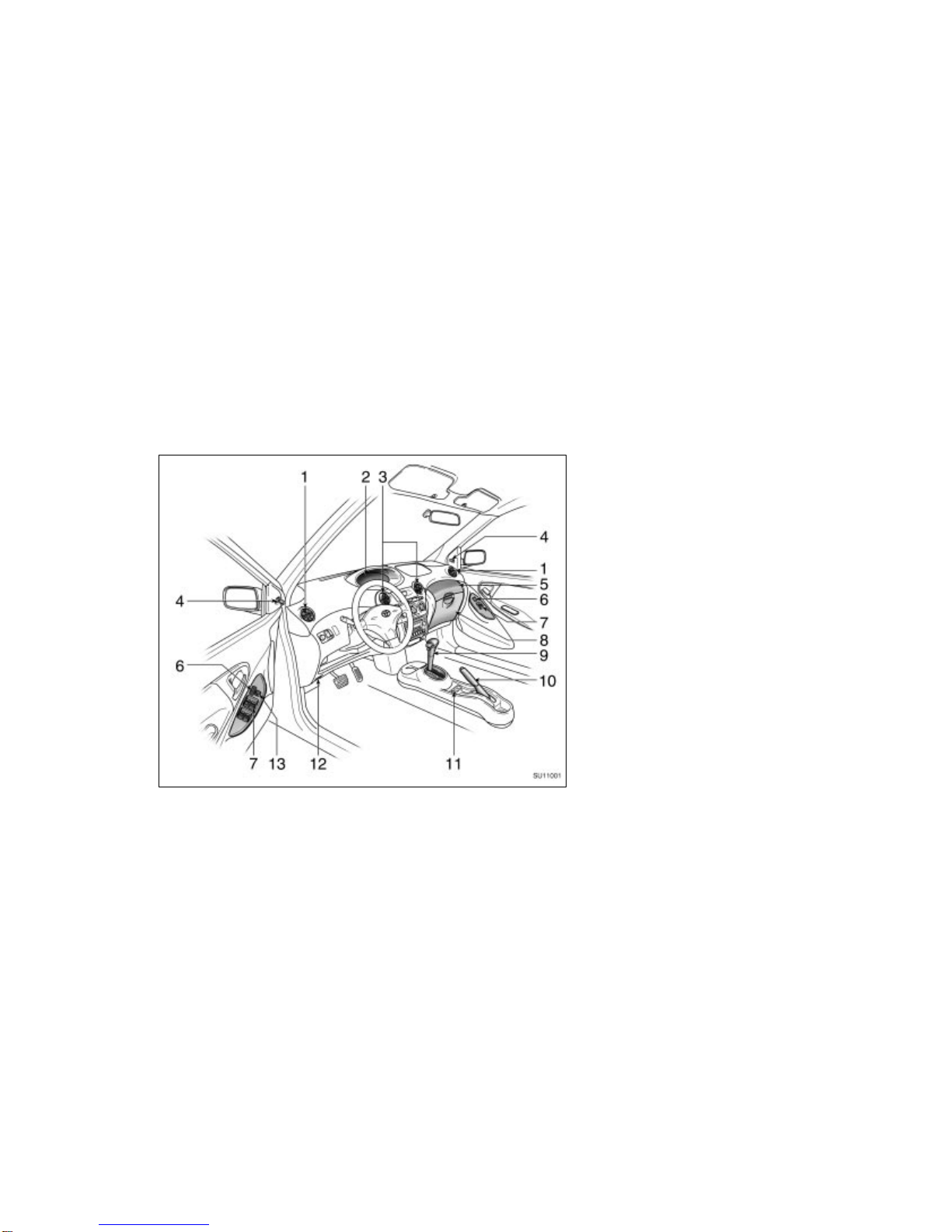

1. Side vents

2. Instrument cluster

3. Center vents

4. Rear view mirror remote control levers

5. Auxiliary box

6. Power door lock switches

(with power windows)

7. Power window switches

8. Glove box

9. Automatic transmission selector lever or

manual transmission gear shift lever

10. Parking brake lever

11. Power door lock switch

(without power windows)

12. Hood lock release lever

13. Window lock switch

SU11001

2001MY ECHO (U) L/O0008

2001 ECHO (OM52440U)

1. Headlight and turn signal switch

2. Wiper and washer switches

3. Rear window defogger switch

4. Emergency flasher switch

5. Clock

6. Air conditioning controls

7. Security indicator light/Front

passenger’s seat belt reminder light

8. Car audio

9. Cigarette lighter/Power outlet

10. Ashtray/Coin box

11. Ignition switch

12. Tilt steering lock release lever

13. Instrument panel light control knob

SU11002

2001MY ECHO (U) L/O0008

42001 ECHO (OM52440U)

SU11006

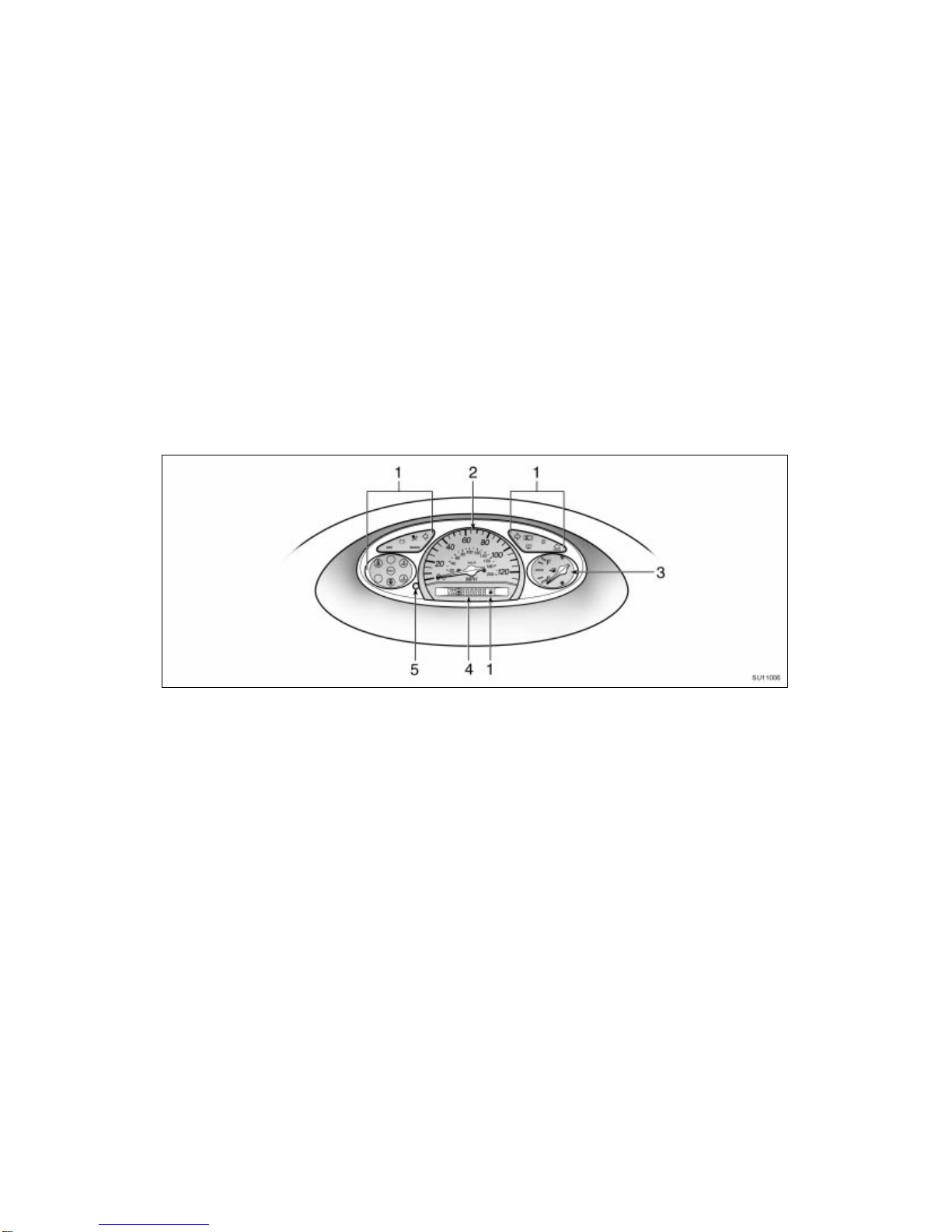

1. Service reminder indicators and

indicator lights

2. Speedometer

3. Fuel gauge

4. Odometer and two trip meters 5. Trip meter reset knob

Instrument cluster overview

2001MY ECHO (U) L/O0008

2001 ECHO (OM52440U)

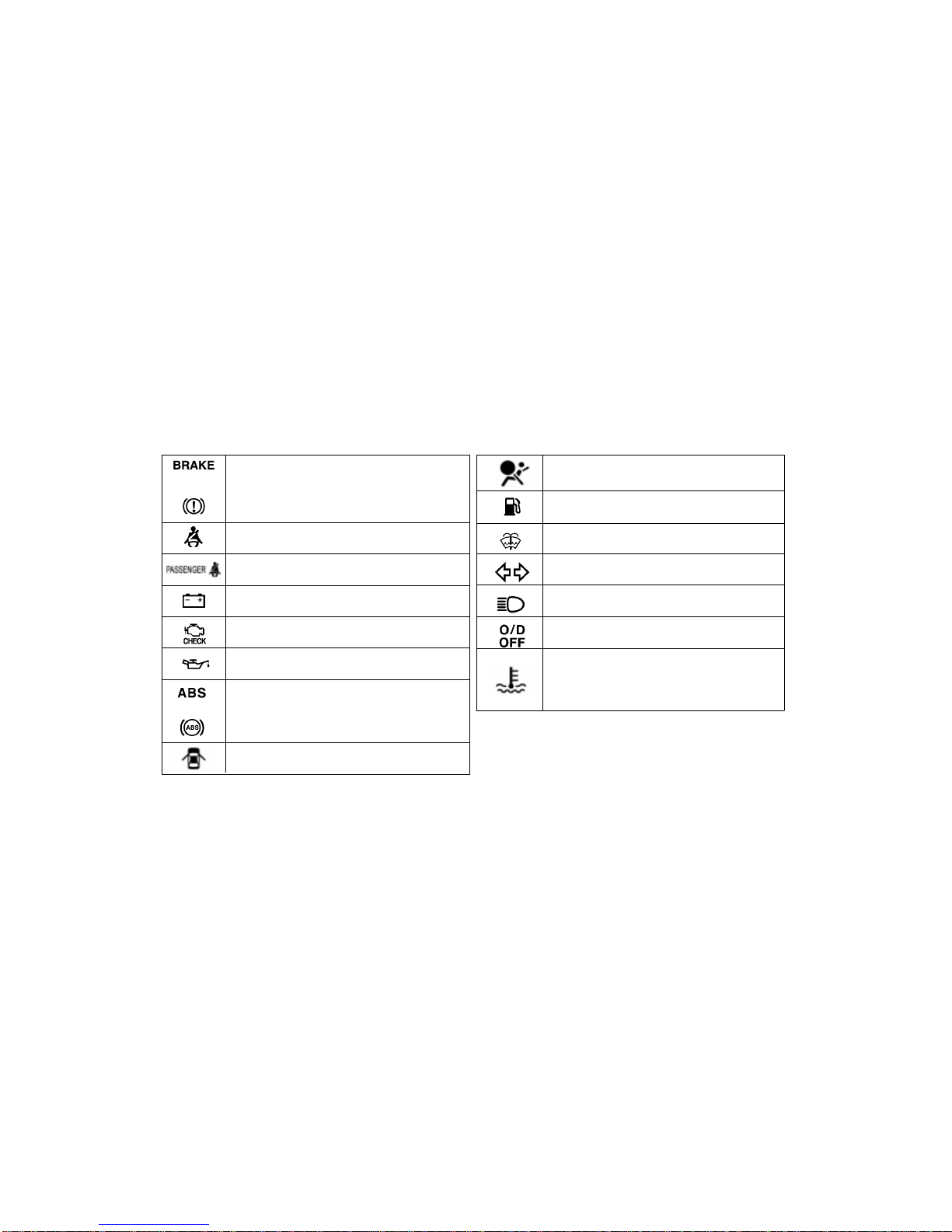

Indicator symbols on the instrument panel

or Brake system warning light∗

Driver’s seat belt reminder light∗

Discharge warning light∗

Malfunction indicator lamp∗

Low oil pressure warning light∗

Anti-lock brake system warning light∗

SRS warning light∗

Low windshield washer fluid level warning light∗

Low fuel level warning light∗

Turn signal indicator lights

Headlight high beam indicator light

Overdrive–off indicator light

Low engine coolant temperature indicator light

(in blue)∗

High engine coolant temperature warning light

(in red)∗

Front passenger’s seat belt reminder light∗

Open door warning light∗

∗: For details, see “Service reminder indicators and warning

buzzers” in Section 1–5.

2001MY ECHO (U) L/O0008

62001 ECHO (OM52440U)

2001MY ECHO (U) L/O0008

2001 ECHO (OM52440U)

OPERATION OF INSTRUMENTS AND

CONTROLS

Keys and Doors

Keys 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Side doors 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Power windows 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trunk lid 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hood 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Theft deterrent system 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel tank cap 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION

–

2001MY ECHO (U) L/O0008

82001 ECHO (OM52440U)

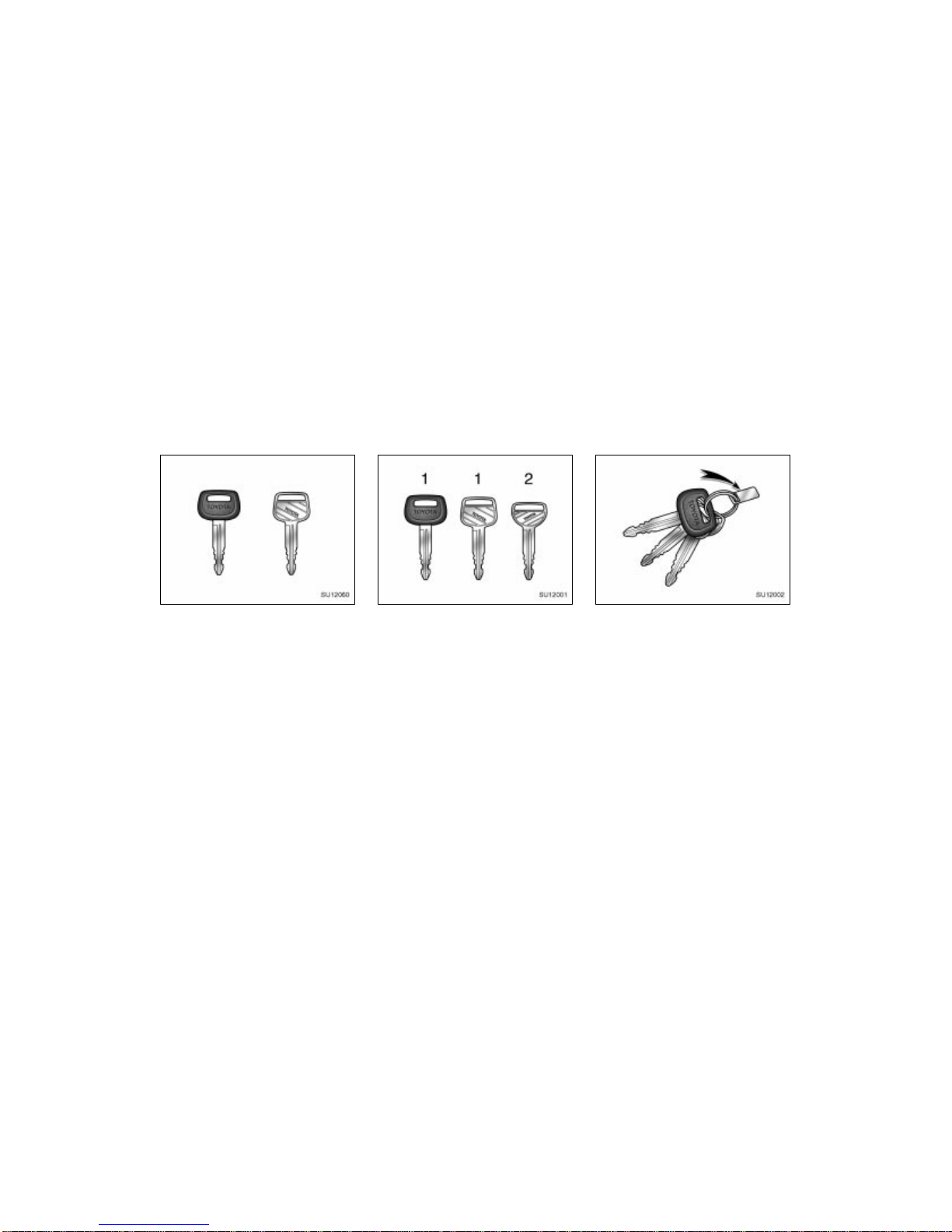

Keys (type A)

SU12060

This key works in every lock.

Since the doors and trunk lid can be

locked without a key, you should always

carry a spare key in case you accidentally

lock your keys inside the vehicle.

Keys (type B)

SU12001

Your vehicle is supplied with two kinds

of key.

1. Master key—This key works in every

lock.

2. Sub key—This key will not work in the

trunk.

To protect things locked in the trunk when

you have your vehicle parked, leave the

sub key with the attendant.

Since the doors and trunk lid can be

locked without a key, you should always

carry a spare master key in case you

accidentally lock your keys inside the ve-

hicle.

SU12002

KEY NUMBER PLATE

Your key number is shown on the plate.

Keep the plate in a safe place such as

your wallet, not in the vehicle.

If you should lose your keys or if you

need additional keys, duplicates can be

made by a Toyota dealer using the key

number.

We recommend you to write down the key

number and keep it in safe place.

2001MY ECHO (U) L/O0008

2001 ECHO (OM52440U)

Side doors—

SY12008

LOCKING AND UNLOCKING WITH KEY

Insert the key into the keyhole and turn

it.

To lock: Turn the key forward.

To unlock: Turn the key backward.

Vehicles with power door lock system—All

the doors lock and unlock simultaneously

with either front door. In the driver’s door

lock, turning the key once will unlock the

driver’s door and twice in succession will

unlock all the doors simultaneously.

SY12009

LOCKING AND UNLOCKING WITH

INSIDE LOCK BUTTON

Move the lock button.

To lock: Push the knob down.

To unlock: Pull the knob up.

Closing the door with the lock knob in the

lock position will also lock the door. Be

careful not to lock your keys in the ve-

hicle.

Vehicles with power door lock sys-

tem—The door cannot be locked if you

leave the key in the ignition switch.

SU12005

Vehicles with power windows (driver’s

side)

SU12006

Vehicles with power windows (passen-

ger’s side)

2001MY ECHO (U) L/O0008

10 2001 ECHO (OM52440U)

SY12011

Vehicles without power windows

LOCKING AND UNLOCKING WITH

POWER DOOR LOCK SWITCH

Push the switch.

Vehicles with power windows—

To lock: Push the switch on the front side.

To unlock: Push the switch on the rear

side.

Vehicles without power windows—

To lock: Push the switch on the “LOCK”

side.

To unlock: Push the switch on the oppo-

site side of the “LOCK” side.

All the doors lock or unlock simultaneous-

ly.

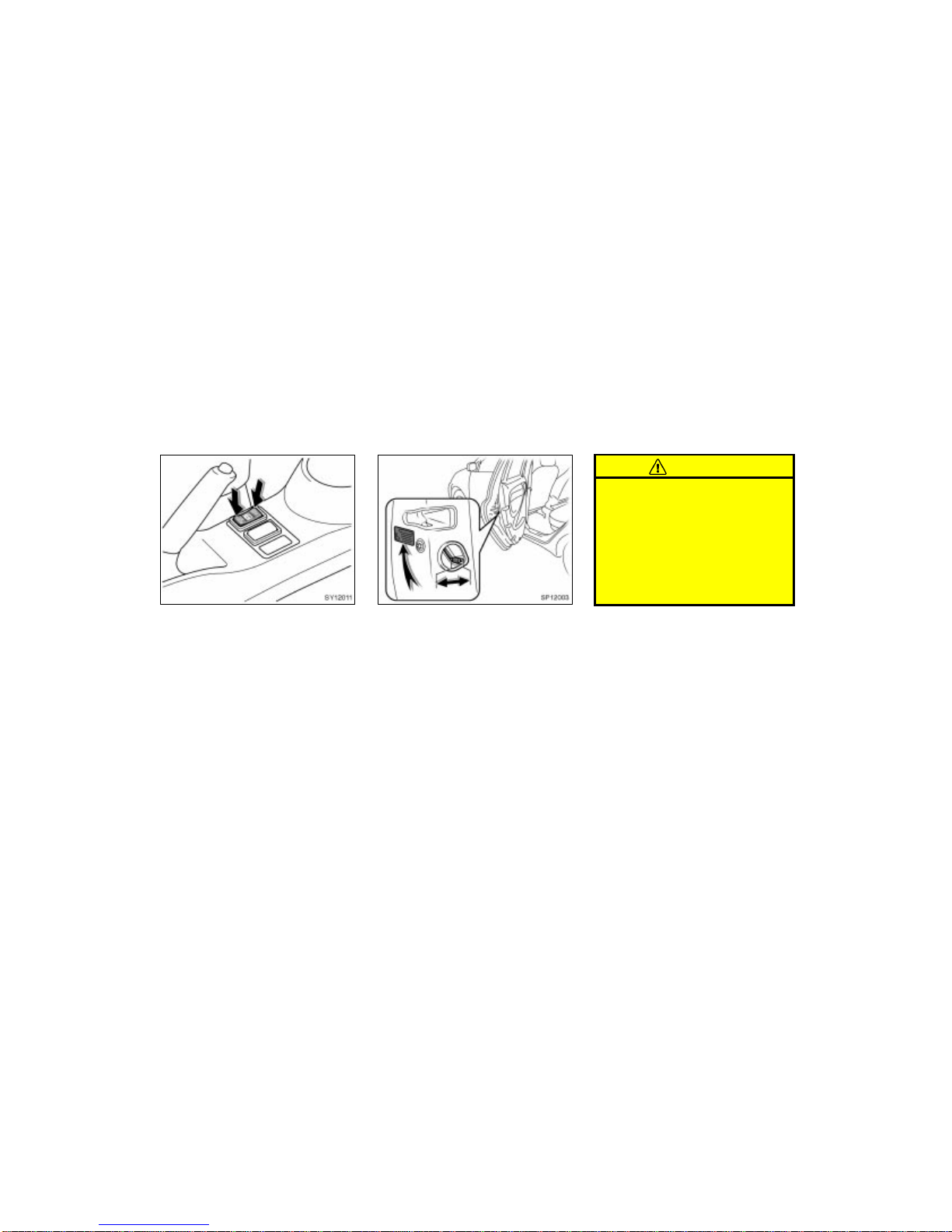

SP12003

REAR DOOR CHILD–PROTECTORS

(4–door models only)

Move the lock lever to the “LOCK”

position as shown on the label.

This feature allows you to lock a rear

door so it can be opened from the outside

only, not from inside. We recommend us-

ing this feature whenever small children

are in the vehicle.

CAUTION

Before driving, be sure that the doors

are closed and locked, especially

when small children are in the ve-

hicle. Along with the proper use of

seat belts, locking the doors helps

prevent the driver and passengers

from being thrown out from the ve-

hicle during an accident. It also helps

prevent the doors from being opened

unintentionally.
