Toyota FJ GSJ10 Guida rapida
2005 TOYOTA MOTOR CORPORATION
All rights reserved. This book may not be repro-
duced or copied, in whole or in part, without the
written permission of Toyota Motor Corporation.
First Printing: Dec. 22, 2005 01-051222-00
FOREWORD
To assist you in your service activities, this manual explains the main characteristics of the new FJ Cruiser
in particular providing a technical explanation of the construction and operation of new mechanism and new
technology used.
Applicable models: GSJ10, GSJ15 series
This manual is divided into 3 sections.
1. New Model Outline - Explanation of the product to give a general understanding of its features.
2. Technical Description -Technical explanation of the construction and operation of each new system and
component.
3. Appendix - Major technical specifications of the vehicle.
CAUTION, NOTICE, REFERENCE and NOTE are used in the following ways:
CAUTION A potentially hazardous situation which could result in injury if instructions are
ignored.
NOTICE Damage to the vehicle or components may occur if instructions are ignored.
REFERENCE Explains the theory behind mechanisms and techniques.
NOTE Notes or comments not included under the above 3 titles.
For detailed service specifications and repair procedures, refer to the following Repair Manuals:
Manual Name Pub. No.
•2007 FJ Cruiser Repair Manual
•2007 FJ Cruiser Electrical Wiring Diagram RM0240U
EM0240U
All information contained herein is the most up-to-date at the time of publication. We reserve the right to
make changes without prior notice.
NEW MODEL OUTLINE
EG-2
EXTERIOR APPEARANCE
0240MO01Z
0240MO02Z
NEW MODEL OUTLINE
MODEL CODE
GSJ15 L - G K F S K A
1 2 3 4 5 6 7 8
BASIC MODEL CODE
1
CODE ENGINE DRIVE TYPE
1
GSJ10
1GR FE
2WD
GSJ15 1GR-FE 4WD
2
STEERING WHEEL POSITION
2
L : Left-Hand Drive
3
MODEL NAME
3
G : FJ CRUISER
4
BODY TYPE
4
K : Access Door Wagon
GEAR SHIFT TYPE
5F : 6-Speed Manual, Floor
A : 5-Speed Automatic, Floor
6
GRADE
6
S : SR
7
ENGINE SPECIFICATION
7
K : DOHC and SFI
8
DESTINATION
8
A : U.S.A. and Canada
MODEL LINE-UP
BODY
DRIVE
TRANSMISSION
DESTINATION ENGINE BODY
TYPE
DRIVE
TYPE
6-Speed Manual 5-Speed Automatic
TYPE
TYPE
RA61F A750E A750F
U.S.A.
1GR FE
Access
Door
2WD - GSJ10L-GKASKA -
U.S.A. and Canada 1GR-FE Door
Wagon 4WD GSJ15L-GKFSKA - GSJ15L-GKASKA
NEW MODEL OUTLINE
EG-4
EXTERIOR
Front View
The headlights and radiator grille evoke an image of the original Land Cruiser FJ-40 series.
The high cabin and rounded design create a modern image.
0240MO03Z
Rear View
The quarter windows that extend partway around the rear of the vehicle and the placement
of the license plate evoke an image of the original Land Cruiser FJ-40 series.
The rear bumper creates a rugged image that suits an off road vehicle.
0240MO04Z
NEW MODEL OUTLINE

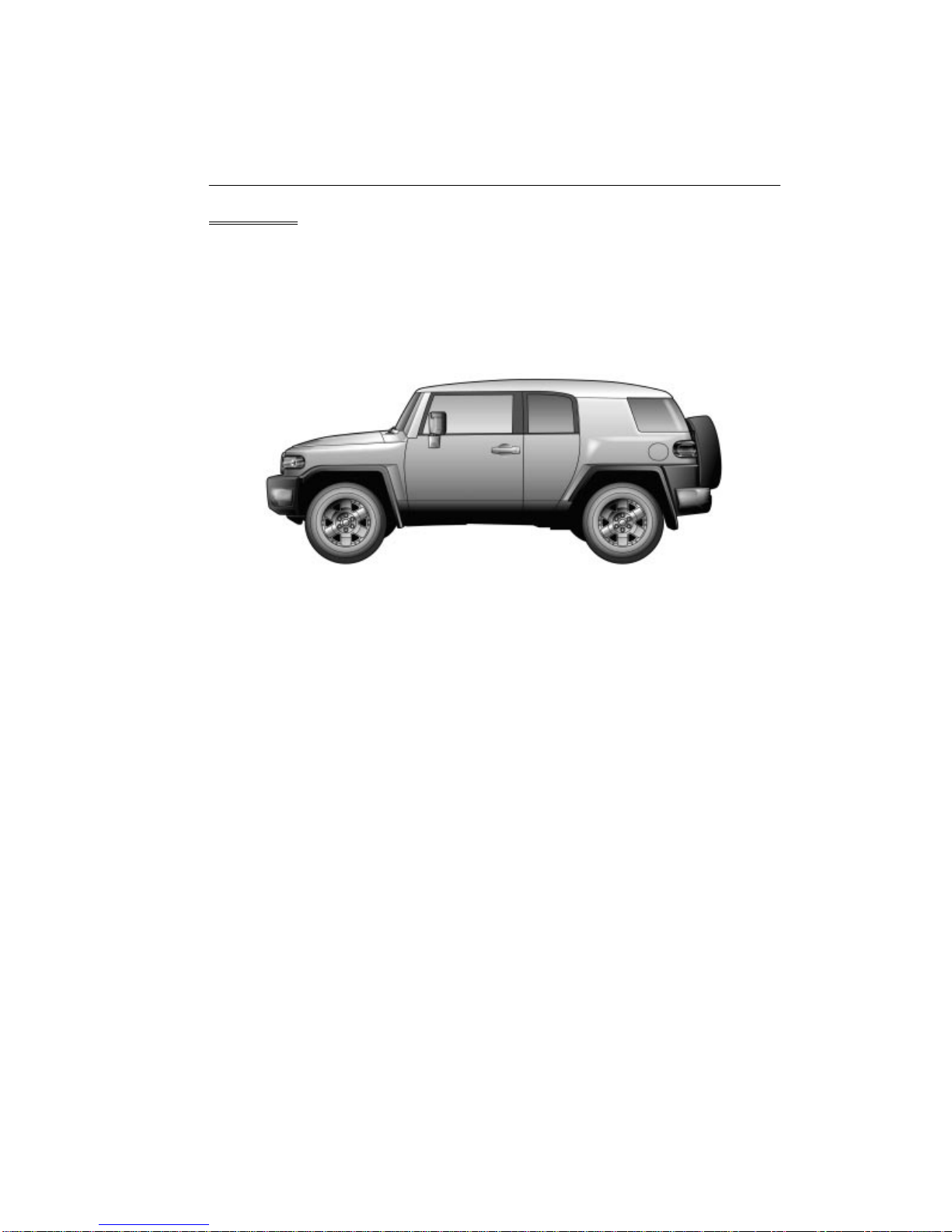

Side View
The quarter pillar and over fenders express a sense of individuality and create a dynamic
image.
The black rocker panel area creates a three-dimensional appearance.
The rear access doors create a stylish profile.
0240MO05Z
NEW MODEL OUTLINE
EG-6

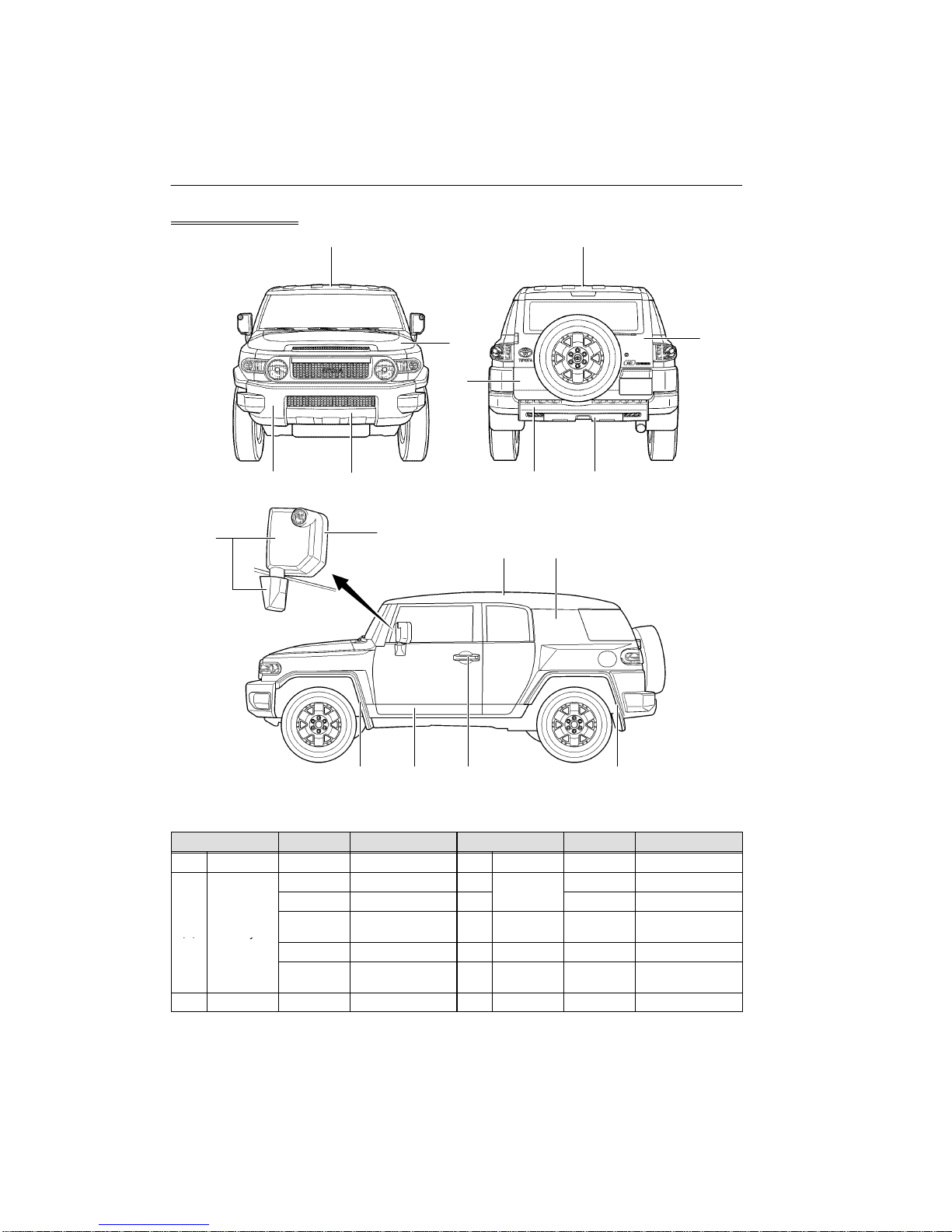

Exterior Color
0240MO06Z
(1)
0240MO07Z
(1)
(2) (2)
(8)
(3) (4) (3) (4)
(5) (6) (1) (2)
(7) (7)(9)(8)
Parts Color No. Color Name Parts Color No. Color Name
(1) Roof 058 White (4) Bumper 11CR07 Silver Metallic
1D4 Silver Metallic (5)
Mirror
11CR07 Silver Metallic
211 Black Mica (6)
Mi
rror 11BK10 Black
(2) Body 3P2 Bordeaux Mica (7) Over
Fender 11BK10 Black
()
y
5A3 Yellow (8) Moulding 11BK10 Black
8T6 Blue (9) Door
Handle 11CR07 Silver Metallic
(3) Bumper 11BK10 Black - - - -
NEW MODEL OUTLINE
Tire & Disc Wheel
Tire Size P265/70R17
Disc Wheel
Size 17 ×7 1/2J
Di
sc
Wh
ee
l
Material Steel Aluminum
P. C. D.* mm (in.) 139.7 (5.5) 139.7 (5.5)
Off Set mm (in.) 15 (0.6)
Wheel Design
0240MO08C 0240MO09C
Equipment Standard Option
*: P.C.D. (Pitch Circle Diameter)
NEW MODEL OUTLINE
EG-8

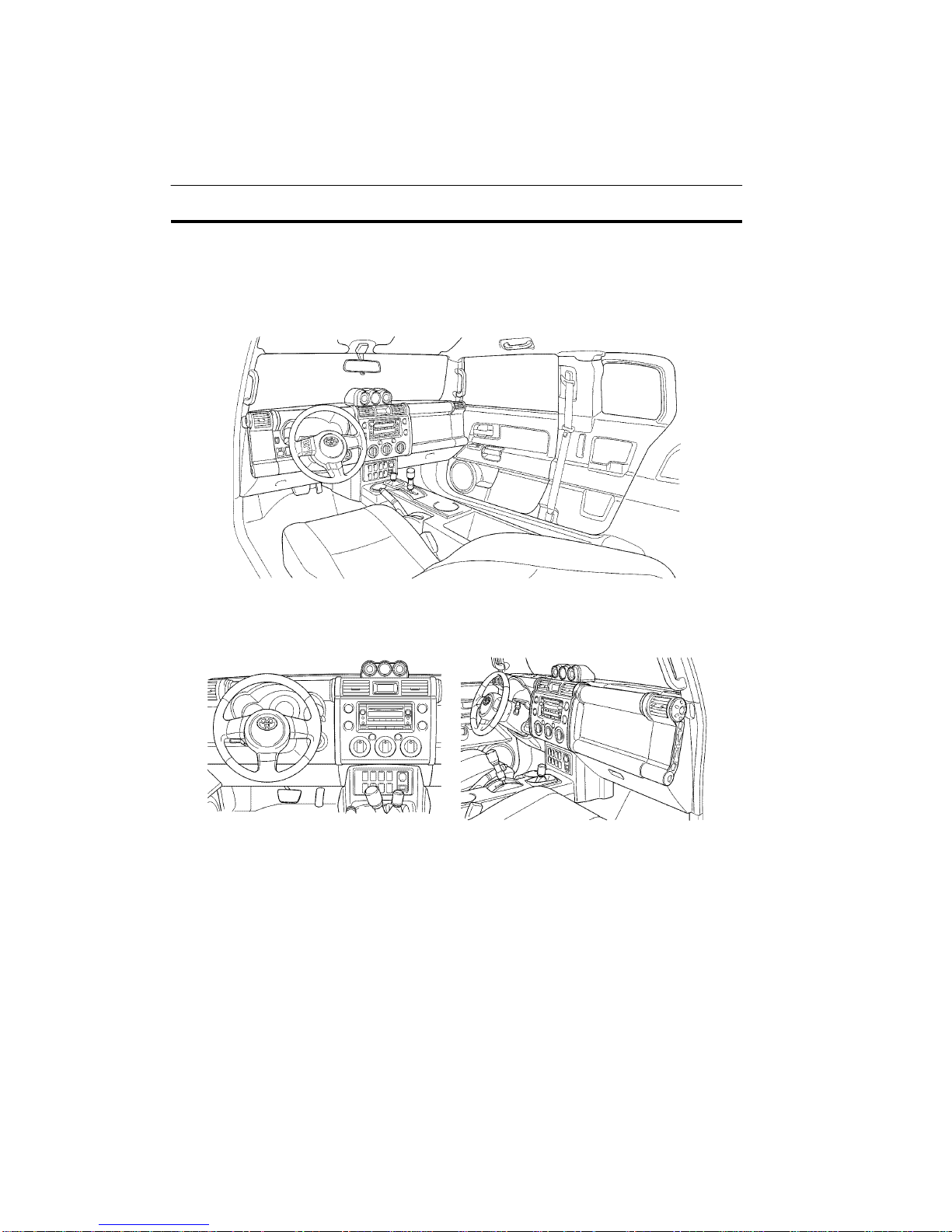

INTERIOR
The flexible cabin space and functional design give a modern rugged image to the interior.
The instrument panel has a distinct design that creates an image of two pipes.
The door trim panel has a straight arm rest and pipe-shaped door grip, providing both a
dynamic image and usability.
0240MO10Z
0240MO11Z
NEW MODEL OUTLINE

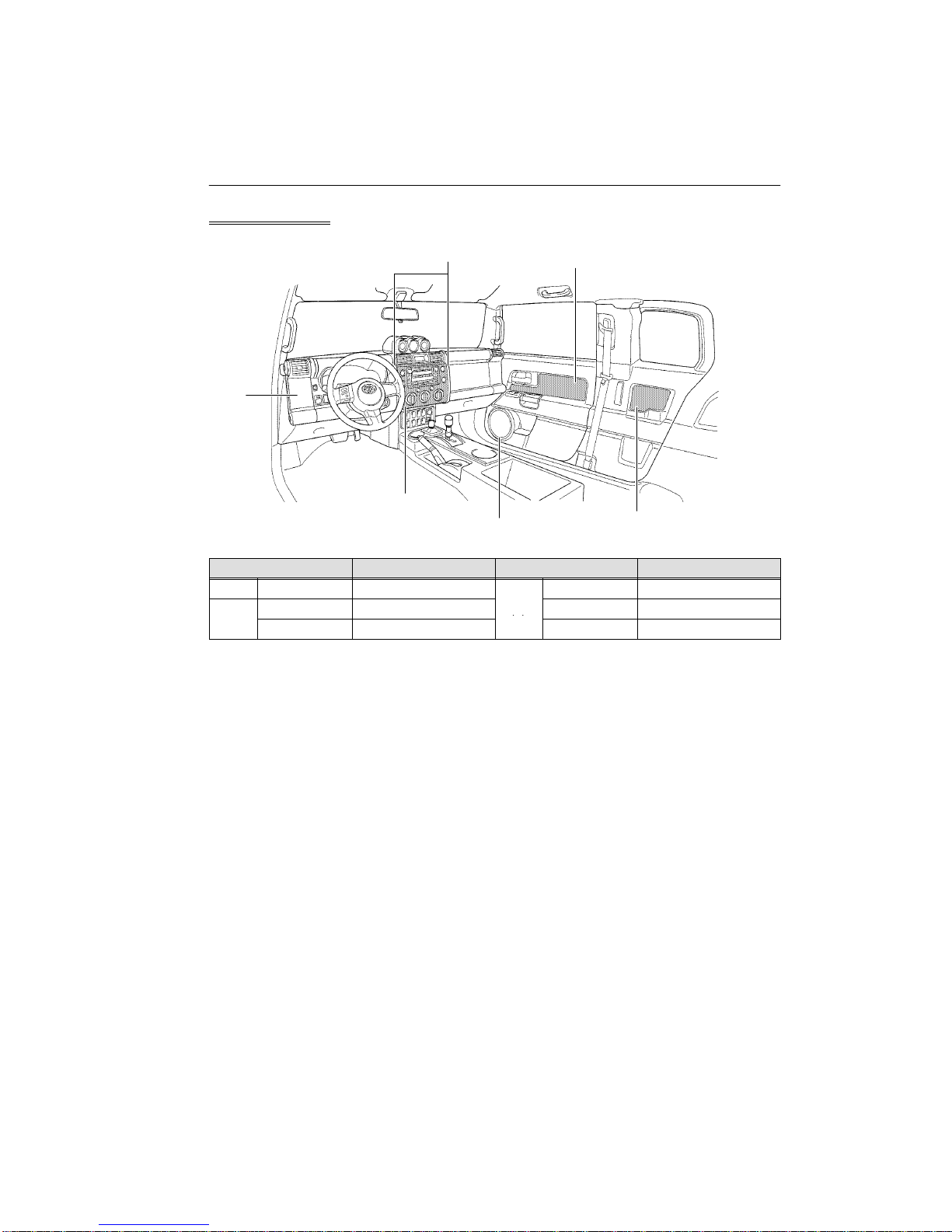

Interior Color
0240MO12Z
(1)
(1)
(2)
(2)
(1) (2)
Color No. Color Name Color No. Color Name
(1) 21SV31 Silver Metallic 3P2 Bordeaux Mica
(2)
1D4 Silver Metallic (2) 5A3 Yellow
(2) 211 Black Mica
()
8T6 Blue
NEW MODEL OUTLINE
EG-10
Combination Meter
The tachometer and the three (engine coolant, fuel, voltage) gauges are arranged to create
a sense of individuality.
0240MO13Z
4WD models with Automatic Transmission for U.S.A.
4WD models with Manual Transmission for Canada 0240MO14Z
Accessory Meter
The accessory meter with three additional gauges creates a rugged image.
0240MO15Z
Accessory Meter
Inclinometer
Outside Temperature Gauge
Compass Gauge
