!A word about safe vehicle operations

This Quick Reference Guide is a summary of basic vehicle

operations. It contains brief descriptions of fundamental

operations so you can locate and use the vehicle’s main

equipment quickly and easily.

The Quick Reference Guide is not intended as a substitute for

the Owner’s Manual located in your vehicle’s glove box. We

strongly encourage you to review the Owner’s Manual and

supplementary manuals so you will have a better understanding

of your vehicle’s capabilities and limitations.

Your dealership and the entire staff of Toyota Motor Sales,

U.S.A., Inc. wish you many years of satisfied driving in your

new Prius.

This Quick Reference Guide is not a full description of Prius

operations. Every Prius owner should review the Owner’s

Manual that accompanies this vehicle.

Pay special attention to the boxed information highlighted in

color throughout the Owner’s Manual. Each box contains safe

operating instructions to help you avoid injury or equipment

malfunction.

All information in this Quick Reference Guide is current at

the time of printing. Toyota reserves the right to make

changes at any time without notice.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

Spare tire & tools

To o l l o c a t i o n

Removing the spare tire

Refer to the Owner’s Manual for tire changing and jack positioning

procedures.

Wheel nut

wrench

Spare tire

Towing eyelet

Center auxiliary box

Moving the lever to “LOCK” will allow the door to be opened only from

the outside.

Rear door

Jack

Jack handle

Doors-Child safety locks

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

INDEX

Engine maintenance 9

Fuel tank door release and cap 8

Hood release 8

Indicator symbols 4-5

Instrument cluster 4

Instrument panel 2-3

Keyless entry16

Light control-Instrument panel 9

Smart Key system1,2 7

Air Conditioning/Heating 16

Audio 18-19

Auto lock functions110

Clock 23

Cruise control 20

Dynamic Radar Cruise Control 20-21

EV-Drive Mode 12

Garage door opener (HomeLink®)323

Hill start Assist Control (HAC) 23

Hybrid Synergy Drive System 10

Lights1& turn signals 15

LKA (Lane Keep Assist) 21

Moonroof 17

Multi-information display222

Parking brake 12

Power outlets 19

Seat adjustments-Front 13

Seat heaters 16

Seats-Folding down second row seats 13

Seats-Head restraints 13

Solar ventilation system 17

Steering wheel switches 19

Telephone controls (Bluetooth®)22

Tilt and telescopic steering wheel 12

Transmission 11

Windows-Power 14

Windshield wipers & washers 14

Doors-Child safety locks 25

Door locks 24

Seatbelts 24

Seatbelts-Shoulder belt anchor 24

Spare tire & tools 25

Tire Pressure Monitoring (warning) System 24

OVERVIEW

FEATURES/OPERATIONS

SAFETY AND

EMERGENCY FEATURES

1Visit your Toyota dealer for information on customizing this feature.

2Programmable by customer. Refer to the Owner’s Manual for instructions and

more information.

3HomeLink®is a registered trademark of Johnson Controls, Inc.

OVERVIEW

Instrument panel

Steering wheel controls

Steering wheel audio controls

Voice command button1,2

“TRIP” button

Multi-information display button

Steering wheel climate controls

Cruise control1

“LKA” switch1

Distance switch1

Telephone controls1,2

Headlight and turn signal controls/Headlight, turn signal and front fog

light controls1

Wiper and washer controls1

Mph or km/h button

Advance Parking Guide System/Intelligent Parking Assist pre-support

switch1,2

Power button

Multi-information display

Audio system or navigation system-integrated audio system1,2

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

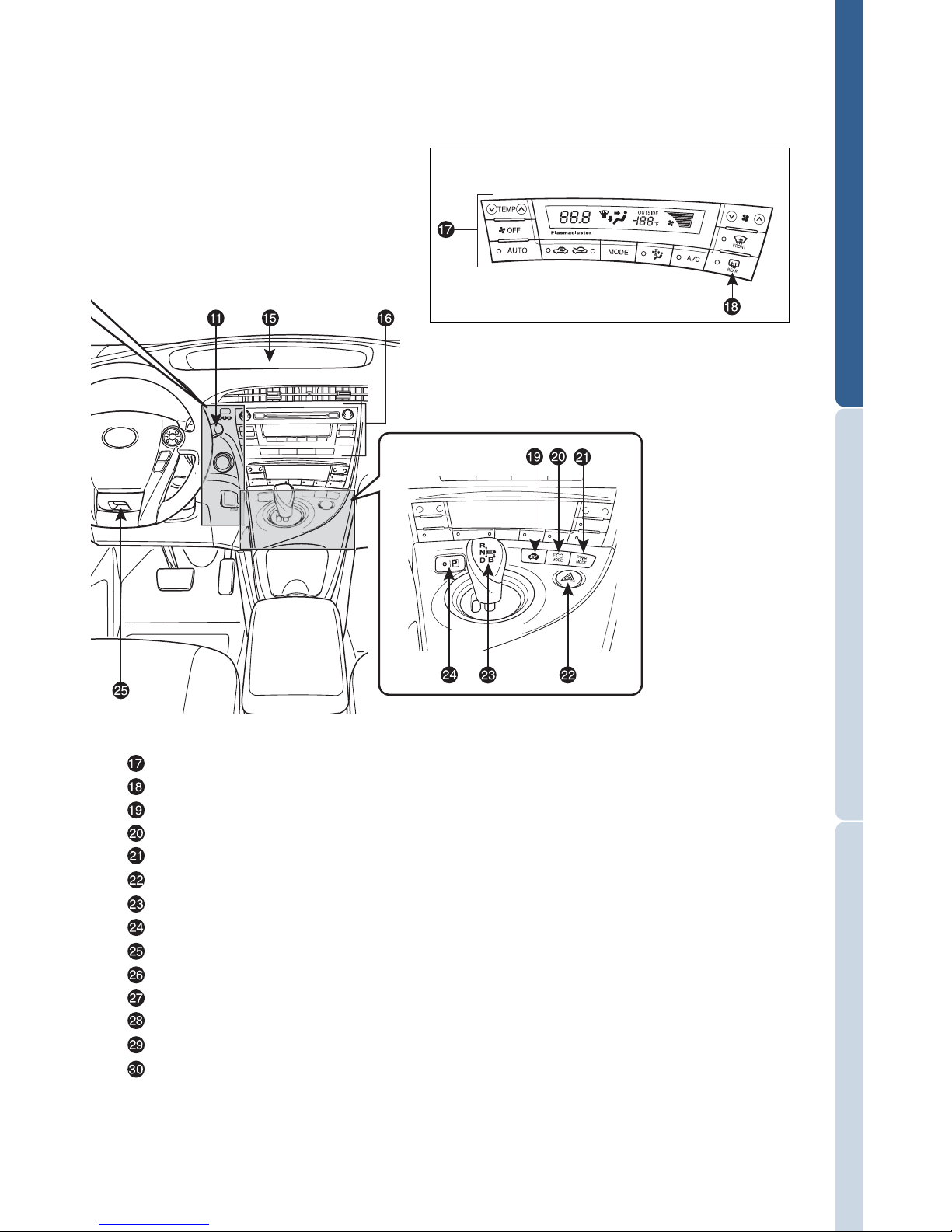

Automatic Air Conditioning

Air Conditioning controls

Outside rearview mirror1/Back window defogger button

“EV” switch1

“ECO MODE” switch

“PWR MODE” switch

Emergency flasher button

Shift lever

“P” position switch

Tilt and telescopic steering lock release lever

Fuel filler door opener

Power rearview mirror control

Headlight cleaner switch1

Solar ventilation switch1

Instrument panel light control

1If equipped

2For vehicles with a navigation system, refer to the “Navigation System

Owner’s Manual.”

OVERVIEW

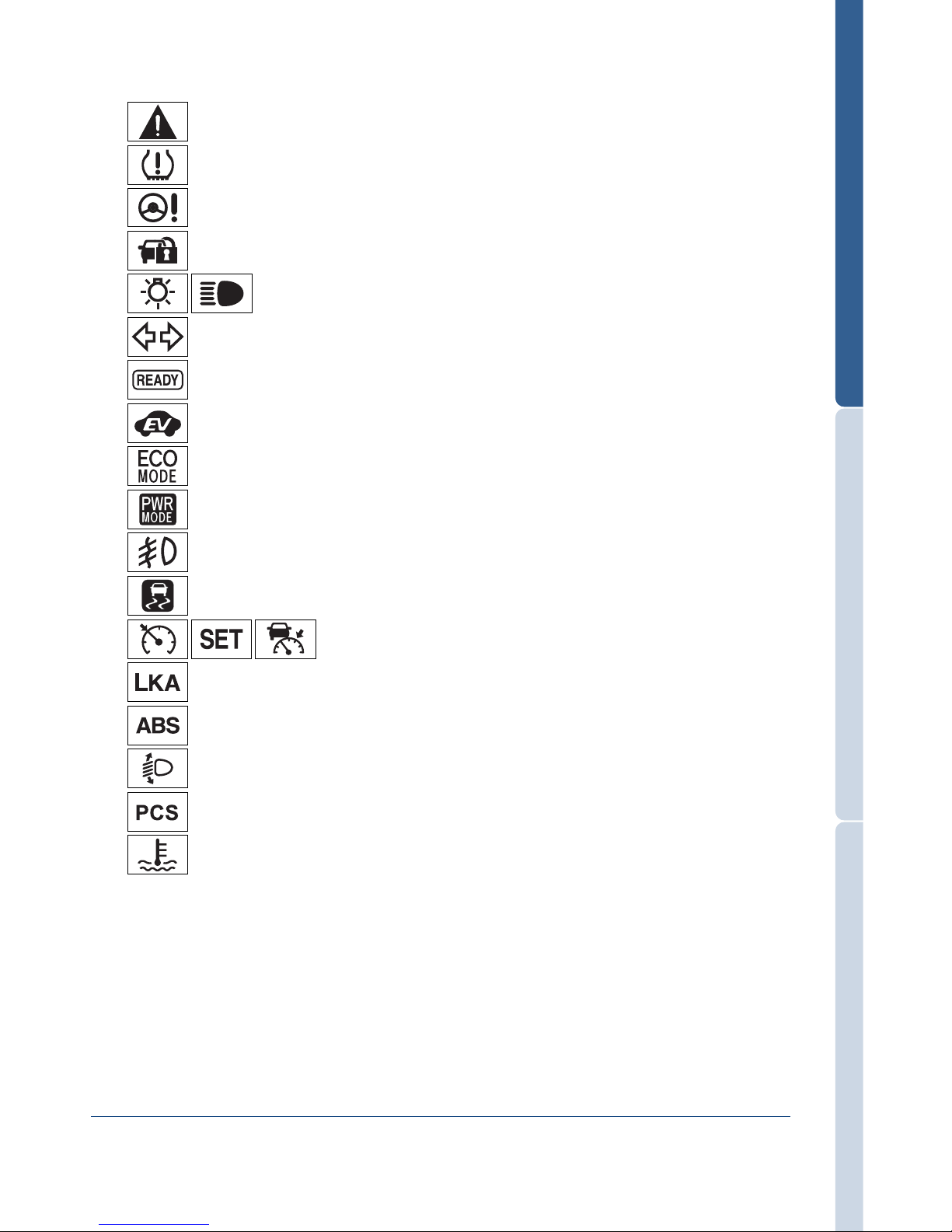

Indicator symbols

Instrument cluster

Service indicator and reminder

Fuel gauge

Transmission shift position indicator

Multi-information display

Instantaneous fuel consumption

Speedometer

Charging system warning1

Brake system warning1

Front passenger occupant classification or front

passenger airbag ON/OFF indicator1

Open door warning

Airbag SRS warning1

Driver seatbelt reminder

(alarm will sound if speed is over 12 mph)

Front passenger seatbelt reminder

(alarm will sound if speed is over 12 mph)

Malfunction/Check Engine indicator1

Low fuel level warning

Brake system warning light (yellow indicator)1

1If indicator does not turn off within a few seconds of starting engine, there may

be a malfunction. Have vehicle inspected by your Toyota dealer.

For details, refer to “Indicators and warning lights,” Section 2-2, 2010

Owner’s Manual.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

2If this light flashes, refer to “Cruise control,” Section 2-4, 2010 Owner’s Manual.

Anti-lock Brake System warning1

Headlight low/high beam indicator

Turn signal indicator

Slip indicator/Hill start Assist Control indicator1

Cruise control indicator2

LowTirePressureWarning

Theft deterrent/Engine immobilizer system indicator

Master warning

Electric power steering system warning1

READY indicator

Front fog light indicator

Eco Mode indicator

EV Drive Mode indicator

Automatic headlight leveling system warning1

Lane Keep Assist indicator

Pre-Collision System warning light1

High coolant temperature warning light1

Power Mode indicator

OVERVIEW

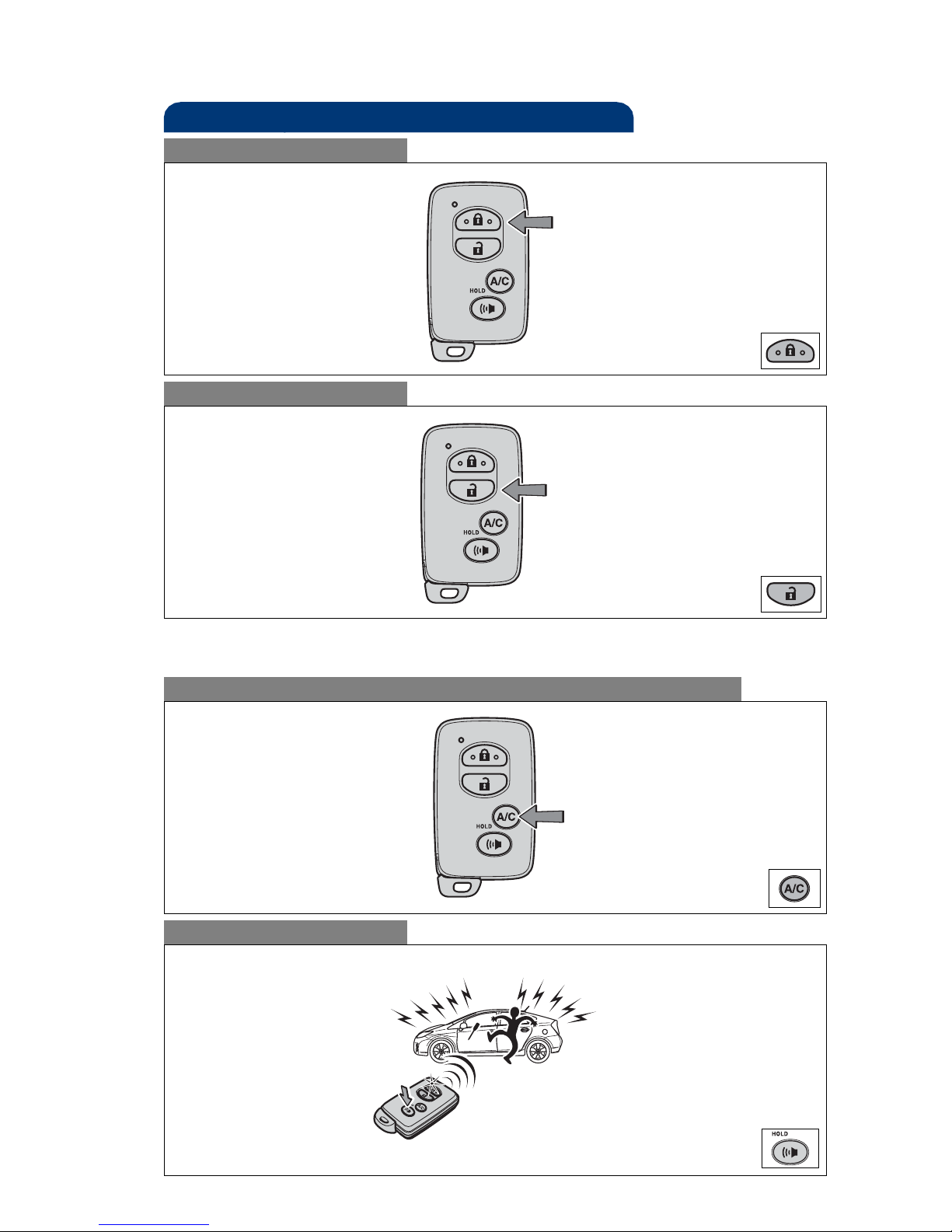

Keyless entry

Push

Push ONCE: Driver door

TWICE: All doors

Locking operation

Unlocking operation

Remote Air Conditioning system operation (if equipped)

Panic button

Push and hold

NOTE: If a door is not opened within 60 seconds of unlocking, all doors will

relock for safety.

Will automatically shut off

after three minutes, or if a

door is opened.

OVERVIEW FEATURES/OPERATIONS SAFETY AND EMERGENCY FEATURES

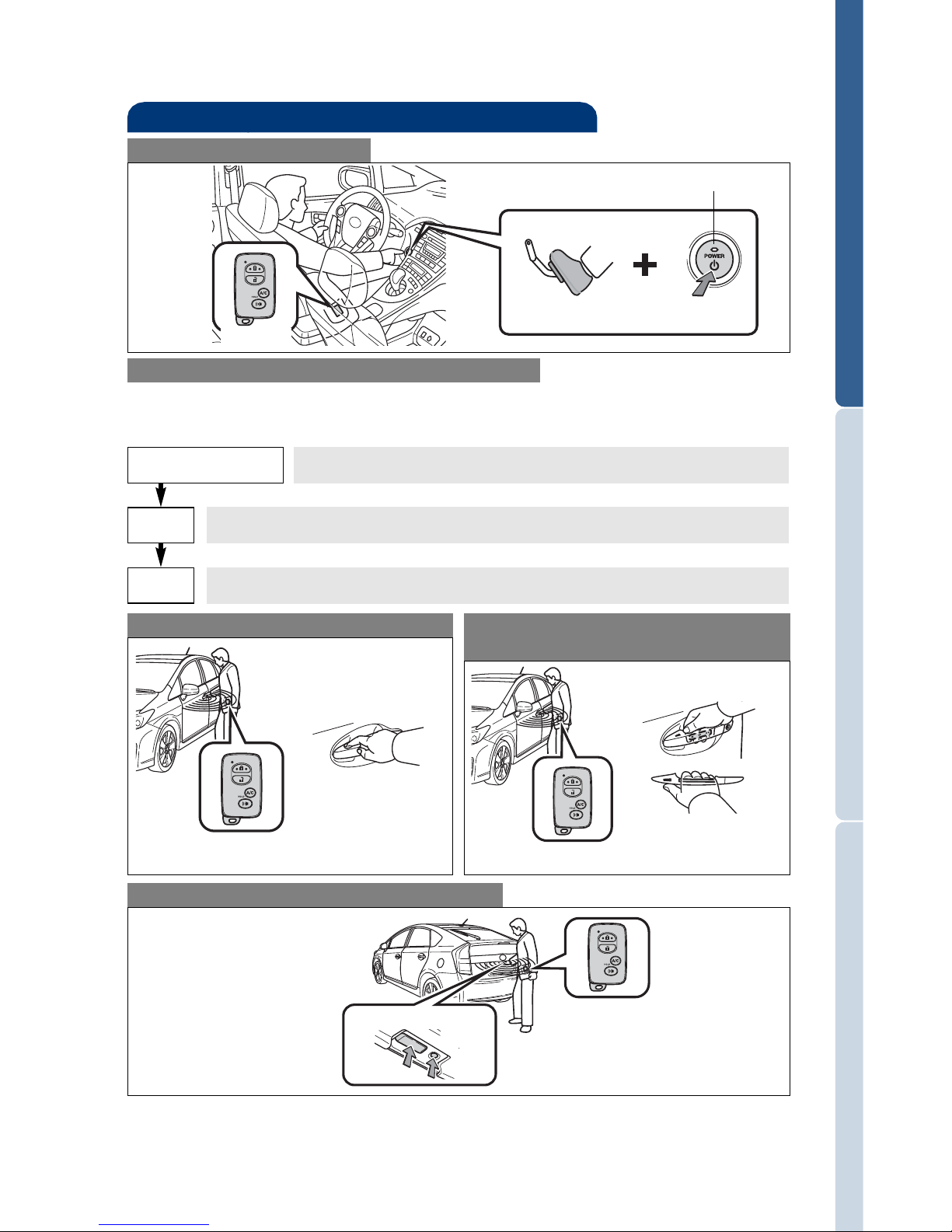

Smart Key system (if equipped)

Start function

Accessories such as the radio will operate.

Power ON; Hybrid System is not engaged.

All systems OFF.

ACCESSORY

OFF

Push

Depress

brake pedal

Carrying

Green indicator ON

Without depressing the brake pedal, pressing the “POWER” switch will

change the operation mode in succession from:

Power (without starting Hybrid System)

* Driver door unlocking function can be programmed to unlock driver door

only, or all doors. Grasping passenger door handle will unlock all doors.

NOTE: Doors may also be locked/unlocked using remote.

Locking operation (if equipped) Unlocking operation

(if equipped)

Carry remote to lock/unlock Carry remote to lock/unlock

Front door lock Front door unlock*

Back door lock/unlock (if equipped)

Carry remote to

lock/unlock

Touch

Grasp

Push

Lock

Push

Unlock

Hood release

Pull up latch and

raise hood

Fuel tank door release and cap

NOTE: Tighten until one click is

heard. If the cap is not tightened

enough, Check Engine “ ”

indicator may illuminate.

Pull

Tu r n

Store

Engage support rod

Pull

OVERVIEW
