Toyota Prius+ Manuale utente
Prius
+
Brief Guide
1
Table of Contents
Caution: High voltage components 2
Hybrid battery (traction battery)
air vent 2
Accessing your vehicle 3
Electric windows and windows lock 4
Child rear door protection lock 4
Seats 5
Steering wheel adjustment 6
nstrument Panel Overview 7
Multi-information display 8
nstrument cluster 9
Lights 9
Wipers 10
Power (ignition) switch 11
Heating, A/C and de-misting 12
Steering wheel climate control
switches 13
Setting of the clock 13
Gear change 14
Parking brake 14
Fuel tank opening 15
Bonnet opening 15
Eco-Driving 16
Introduc ng Pr us
+
Thank you for buying a Prius
+
. We trust this Brief Guide will enable you to become familiar with
your vehicle’s basic operations and assist you in enjoying your vehicle.
This brief guide does not replace or substitute the Owner’s Manual, which you will find in the
vehicle’s glove compartment. t is important that you review the full Owner’s Manual as well as
any further supplementary manuals as this will allow you to familiarise yourself with the
operating and safety instructions and to handle the vehicle within its limitations.
Please do read all documents in your pack as this will ensure you get maximum performance
from your car and learn about related services offered.
Your Centre and everyone at Toyota wish you many years of enjoyable driving in your new
Prius
+
.
NB: All information contained in this brief guide are current at the time of printing.
Toyota reserves the right to make changes at any time without notice.
2
Caut on: H gh voltage components
Hybr d battery (tract on battery) a r vent
1. Air conditioning compressor.
2. High voltage cables (orange colour).
3. Power control unit and DC/DC converter.
4. Electric motor (Traction motor).
5. Hybrid battery (Traction battery).
6. Caution label.
7. Service plug.
There is an air intake vent under the right-hand front
seat to cool the hybrid battery. f it becomes blocked,
hybrid battery may overheat causing reduction of
battery output.
Take care when handling the hybrid system, as it contains a high
voltage system and some parts become extremely hot.
3
Unlocking and locking doors
The following operations can be performed simply by carrying the electronic key on your person.
(The driver should always carry the electronic key.)
The Mechanical Key is stored within the
Electronic Key
Smart entry & start system
1. Electronic keys
- Operating smart entry & start system
- Operating the wireless remote control function
2. Mechanical keys
3. Key number plate
The wireless remote control can be used to lock and
unlock your vehicle from the outside.
Unlock all doors and boot/rear door
Access ng your veh cle
1. Unlocks and locks the side doors.
2. Unlocks and locks the back door.
Press the lock button to lock the doors.
Lock all doors and boot/rear door
4
Ch ld rear door protect on lock
The door cannot be opened from inside the vehicle
when the locks are set.
These locks can be set to prevent children from
opening the rear doors. Push down the rear door
switches to lock the rear doors.
1. Unlock
2. Lock
Electr c w ndows and w ndows lock
The electric windows can be opened and closed as
follows:
1. Closing
2. One touch closing*
3. Opening
4. One touch opening*
Pressing the switch locks the passenger windows
preventing accidental opening or closing.
Keep fingers away from moving windows
*Pushing the switch in the opposite direction will
stop the window travel partway
5

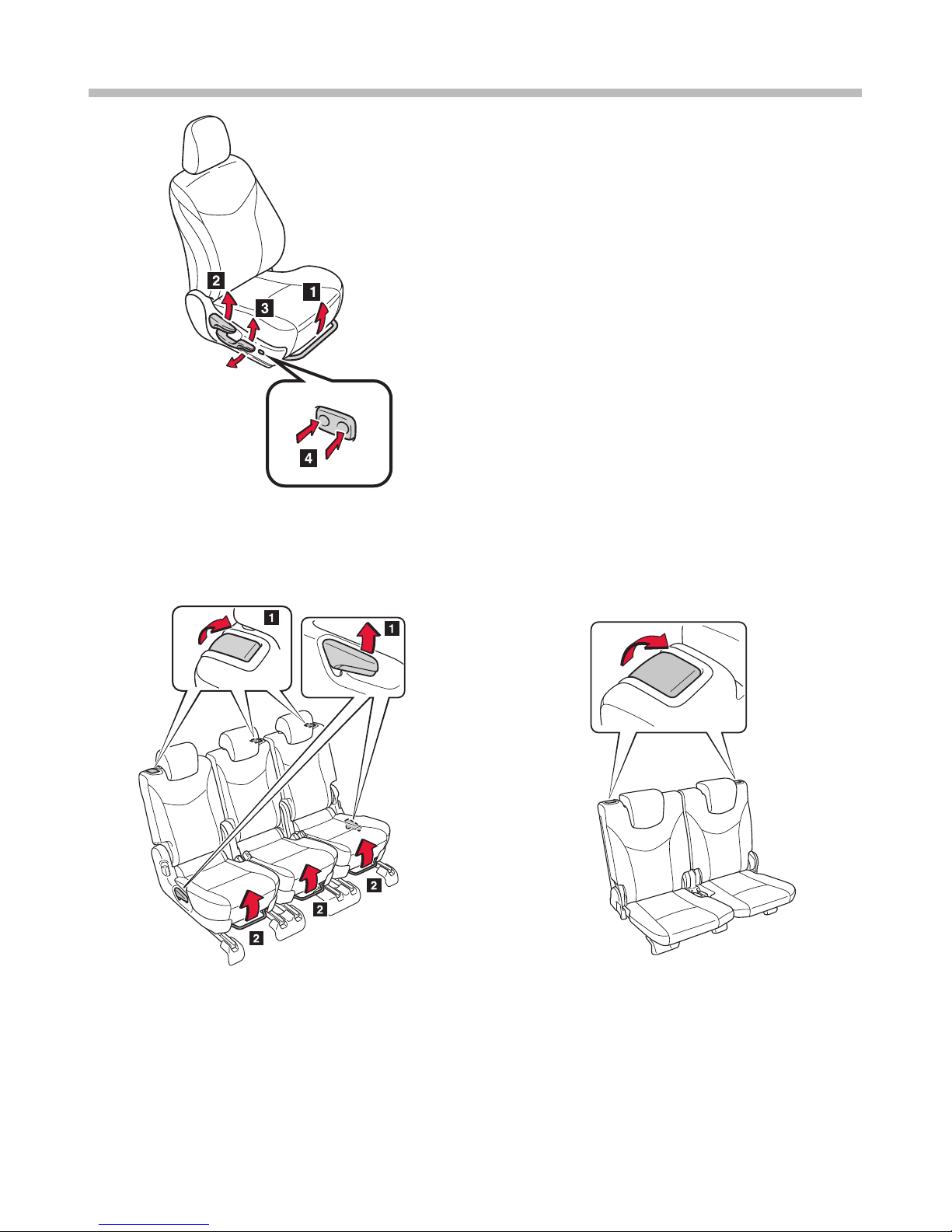

Seats
Front seats
1. Seat position adjustment lever.
2. Seatback angle adjustment lever.
3. Vertical height adjustment lever*.
4. Lumbar support adjustment switch*.
*: For driver's side, if equipped.
Second seats
1. Seat back angle adjustment lever.
2. Seat position adjustment lever.
Seat back angle adjustment lever.
Third seats
For details, see your Owner's Manual chapter 1-4.
6
Steer ng wheel adjustment
After adjustment, pull the lever up to secure the
steering wheel.
Steering wheel must not be adjusted while the vehicle is in motion.
Steering wheel
Hold the steering wheel and press the lever down.
Adjust to the ideal position by moving the steering
wheel horizontally and vertically.
Parking brake pedal
Tilt and telescopic steering control lever
Windscreen wipers and
washer switch
Rear window wiper and
washer switch
Headlight switch
ndicator lever
Fog light switch
7
Instrument Panel Overv ew
A. Heating and A/C controls (page 12).
* f equipped.
*1Refer to
“
Navigation System” Owner's Manual.
*2Refer to “Touch Screen” Owner's Manual.
Navigation system*1
Audio system*2
Gauges and meters
Trip-information display
Fuel filler
door opener
SRS knee airbag
Pre-crash braking off switch*
SRS driver airbag
Horn
8

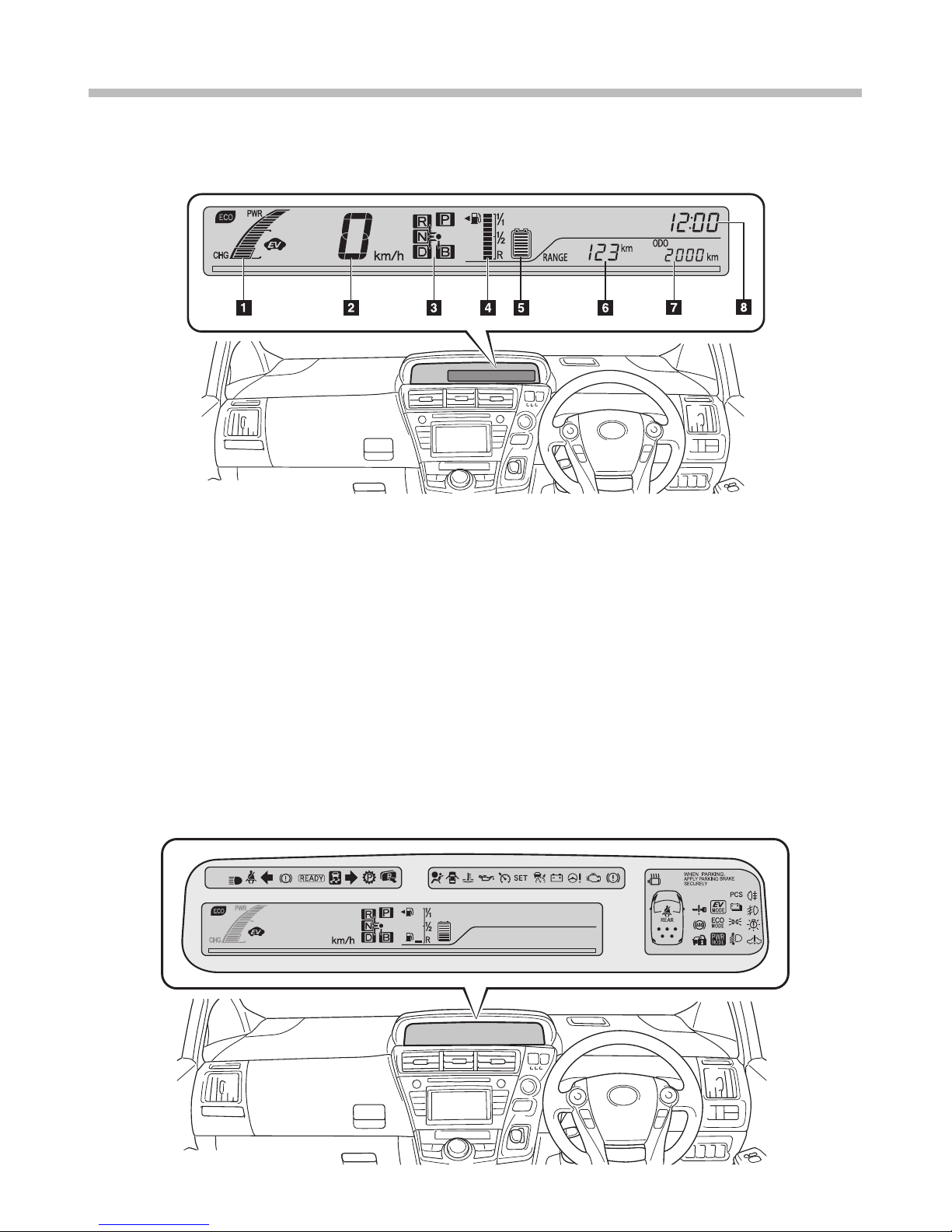

Mult - nformat on d splay
Gauges and meters
The following gauges and meters illuminate when the “POWER” switch is in ON mode.
Indicators and warning lights
The indicators and warning lights inform the driver of the status of the vehicle’s various systems.
1. Hybrid System Indicator
This represents the hybrid system power output
and regenerative charging.
2. Speedometer
Displays the vehicle speed.
3. Shift position indicators
Displays the shift position.
4. Fuel gauge
Displays the quantity of fuel remaining in the tank.
5. Hybrid (traction battery) status
The amount of charge remaining in the hybrid
(traction battery) is shown by 8 bars.
6. Trip information display
Displays fuel consumption, driving range, etc
7. Odometer and trip meter display
8. Clock
