Toyota CN-TS6271A Manuale utente
General
Power Supply DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Current Consumption Less than 2.5A
Display Block
Display Type 7” wide TFT panel
Display Size 234 × 1440 (dot)
Pixel Layout Vertical Stripe
CN-TS6271A
Display Unit
TOYOTA PART No. : 86111-20010
VEHICLE : AVENSIS
DESTINATION : Europe
PRODUCTED AFTER : Nov., 2002
Dimensions** 179 x 109 x 50 mm
Weight** 740g
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
Specification*
1 FEATUERS 2
2 SYSTEM BLOCK DIAGRAM 2
3 FRONT VIEW 3
4 REAR VIEW AND CONNECTORS 3
5 WIRING CONNECTIONS 4
·
Compliance with TOYOTA AVC-LAN.
·
Low-reflection 7” color TFT LCD.
·
Compliance with NTCS input .
6 IC BLOCK DIAGRAM 5
7 REPLACEMENT PARTS LIST 6
8 EXPLODED VIEW (Unit) 7
9 WIRING DIAGRAM 8
10 SCHEMATIC DIAGRAM 9
CONTENTS
Page Page
1 FEATUERS

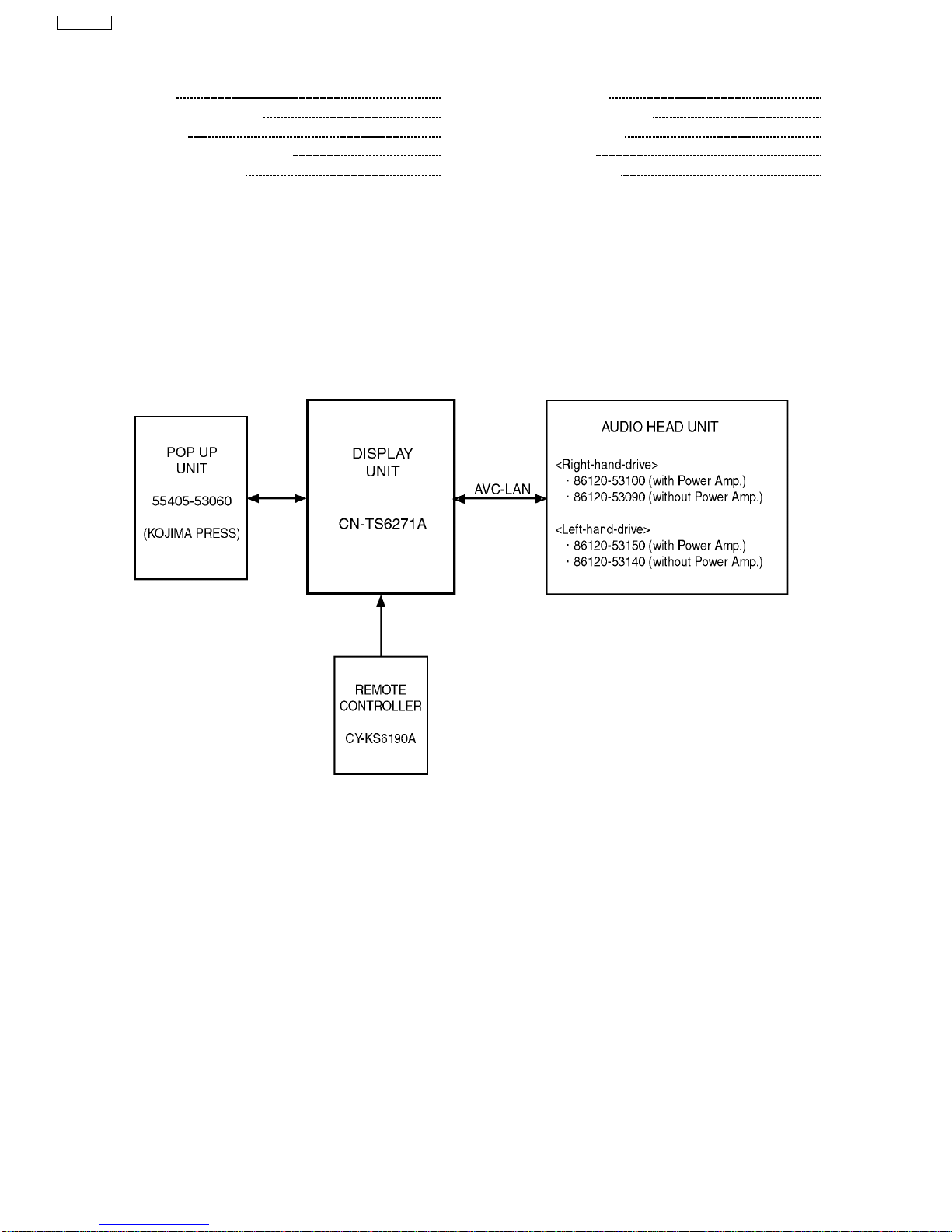

2 SYSTEM BLOCK DIAGRAM
2
CN-TS6271A
3 FRONT VIEW
4 REAR VIEW AND CONNECTORS
3
CN-TS6271A
5 WIRING CONNECTIONS
4
CN-TS6271A
IC102 : YEAMTC7W14UL
IC103 : C0JBAA000291
6 IC BLOCK DIAGRAM
IC51 : YEAMSBX8035F
5
CN-TS6271A
7 REPLACEMENT PARTS
LIST
Notes :
1.Be sure to make your orders of replacement parts
according to this list.
2.Important safety notice: Components, identified by mark
have special characteristics important for safety. When
replacing any of these components, use only
manufacturer´s specified parts.
3.Location keys in the remarks column indicates the general
location of the parts shown in the exploded drawing, as in a
road map.
4.The marking (RTL) indicates that Retention Time is limited
for this item. After the discontinuation of assembly in
production, the item will continue to be available for a
specific period of time. The retention period of availability is
dependent on the type of assembly, and in accordance with
the laws governing part and product retention. After the end
of this period, the assembly will no longer be available.
5. "MCC" marks in remarks column are indicated supply parts
of Matsushita Communication Industrial Corp. of America
(MCC).
Ref.
No. Part No. Part Name & Description Remarks
[E9000]
IC´s and TRANSISTORs
IC51 YEAMSBX8035F IC
IC101 C0JBAB000149 IC
IC102 C0JBAZ000525 IC
IC103 C0JBAA000291 IC
DIODEs
D1 YEAD1SS355T1 Diode
D2 YEAD1SS355T1 Diode
D3 YEAD1SS355T1 Diode
D4 MA2J72900L Diode
D5 MA2J72900L Diode
CAPACITORs
C1 YECUZ1H221JC Ceramic, 220PF 50WV
C2 YECUZ1H332KX Ceramic, 3300PF 50WV
C3 F1H1H152A201 Ceramic, 1500PF 50WV
C4 YECUZ1C104KX Ceramic, 0.1µF 16WV
C5 YECUZ1C104KX Ceramic, 0.1µF 16WV
C6 YECUZ1C104KX Ceramic, 0.1µF 16WV
C7 YECUZ1C104KX Ceramic, 0.1µF 16WV
C8 F1L1E2250002 Ceramic, 2.2 µF 25WV
C9 F1L1C4750006 Ceramic, 4.7µF 16WV
C10 YECUV0J106KX Ceramic, 10µF 6.3WV
C11 YECUV0J106KX Ceramic, 10µF 6.3WV
C12 YECUV0J106KX Ceramic, 10µF 6.3WV
C13 F1L1C4750006 Ceramic, 4.7µF 16WV
C14 F1L1E2250002 Ceramic, 2.2 µF 25WV
C15 YECUV0J106KX Ceramic, 10µF 6.3WV
C52 YECUV0J106KX Ceramic, 10µF 6.3WV
RESISTORs
J1 ERJ3GEY0R00V Chip, 0Ω
ΩΩ
Ω1/16W
J2 ERJ3GEY0R00V Chip, 0Ω
ΩΩ
Ω1/16W
J3 ERJ3GEY0R00V Chip, 0Ω
ΩΩ
Ω1/16W
J7 ERJ3GEY0R00V Chip, 0Ω
ΩΩ
Ω1/16W
R1 ERJ3GEYJ152V Chip, 1.5kΩ
ΩΩ
Ω1/16W
R2 ERJ3GEYJ122V Chip, 1.2kΩ
ΩΩ
Ω1/16W
R3 ERJ3GEYJ331V Chip, 330Ω
ΩΩ
Ω1/16W
Ref.
No. Part No. Part Name & Description Remarks
R7 ERJ3GEYJ101V Chip, 100Ω
ΩΩ
Ω1/16W
R10 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R11 ERJ3GEYJ152V Chip, 1.5kΩ
ΩΩ
Ω1/16W
R12 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R13 ERJ3GEYJ221V Chip, 220Ω
ΩΩ
Ω1/16W
R15 ERJ3GEYJ391V Chip, 390Ω
ΩΩ
Ω1/16W
R16 ERJ3GEYJ561V Chip, 560Ω
ΩΩ
Ω1/16W
R18 ERJ3GEYJ821V Chip, 820Ω
ΩΩ
Ω1/16W
R19 ERJ3GEYJ822V Chip, 8.2kΩ
ΩΩ
Ω1/16W
R51 ERJ6GEYJ471 Chip, 470Ω
ΩΩ
Ω1/10W
CONNECTORs
CN1 YEAESFR30R1E Connector, 30P
CN2 YEAE5243730 Connector, 30P
CN51 K1KA03A00153 Connector, 3P
COILs
L1 YELTBLM21A10 Coil
L2 G1C101K00009 Coil
L3 YELTBLM21A10 Coil
L4 G1C100K00005 Coil
Mechanical Parts
MISCELLANEOUS
EX1 EDTCA40QA0 LCD
M1 UDQFHFM01 DC Motor
AP1 YEAP2821 Flexible Cable, 30P
CNP1 K9ZZ00000836 Connector, 30P
CNP2 K1HB039D0003 Connector, 3P
1YEFA05801 Bottom Cover
2YEFX9992775 Drawing PCB Ass´y
3A4LBHF000008 Back Light
4YEFX9992668 Conductive Tape
5YEFX0215135A Bracket
6YEFX0215166 Bracket, GND
7YEFV012083 Insulator
8YEFA07605 Front Plate Ass´y
9YEFS011823 Pad
10 YEFS011762 Pad
11 YEFJ012123 Ornament Plate
12 YEP0PT9000B0 PCB w/Component RTL
13 YEFS04759 Gum packing
14 YEFX0215925 Bracket
20 YEJS06119 Screw, M2.6x4mm
21 YEJS06027 Screw, M3x4mm
22 YEJT03007 Screw, M3x5mm
23 YEJT03015 Tapping Screw, M3x6mm
25 XSB2+3FX Screw, M2x3mm
26 XTB26+4FFX Tapping Screw, M2.6x4mm
6
CN-TS6271A
8 EXPLODED VIEW (Unit)
7
CN-TS6271A
9 WIRING DIAGRAM
9.1. Main / Photo Sensor Block
L1
C14
C8
R18 R19
D5
L2
C13
C9
L4
C11
C12
D4
L3
C15
C10
IC103
R3
C7
R2
R1
R17
CN2 CN1
J7
C6
IC102 IC101
D3
R12
R13 R11
R16
R7 C3
C2 D2
J6
J5
J4
J2
J3
J1
C4
C1
R15
R10
D1
C5
1
3
[E-9000a][Top View] [E-9000a][Bottom View]
[E-9000b][Top View] [E-9000b][Bottom View]
CN-TS6271A SUB P.C.B.
8
CN-TS6271A
10 SCHEMATIC DIAGRAM
10.1. Main / Photo Sensor Block
9
CN-TS6271A
10
CN-TS6271A
