Toyota HILUX Manuale utente

UHF CB Transceiver

UH9000S / UH9060S / UH9080S

Fitting Instructions

Hilux

Fitting Kit Part Number: UNIFK001

Page 2 of 14

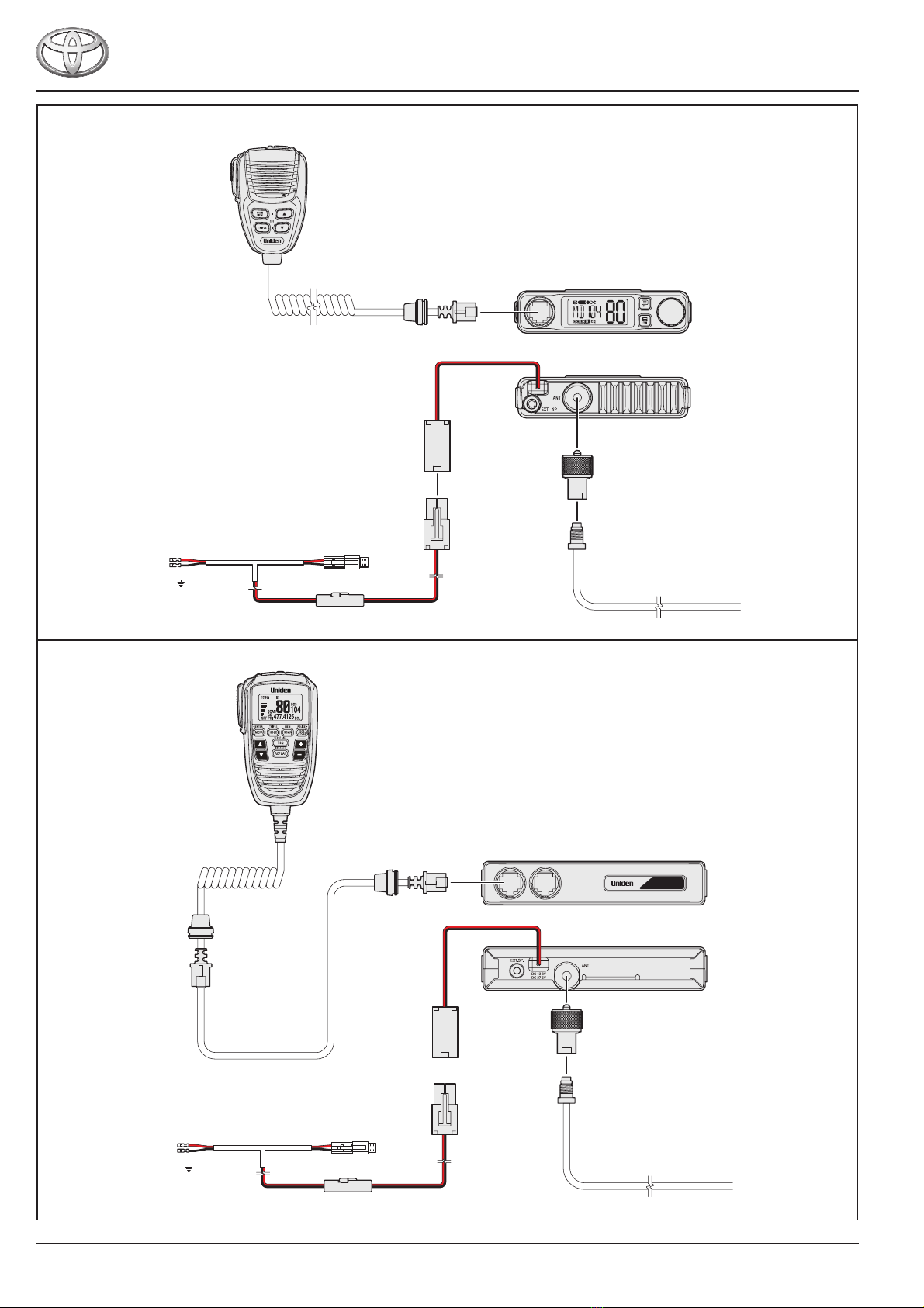

Fitting Instructions

UH9000S / UH9060S / UH9080S

UHF CB Transceiver

Front

Antenna

Connector

Speaker

Microphone

UH9000S

Rear

Earth

ccessory

Power

Fuse

Power

Lead Patch

Harness

Antenna

Connector

Extension

Cable

(Optional)

UH9060S / UH9080S

Earth

ccessory

Power

Fuse

Remote LCD

Speaker

Microphone

Rear

UHF CB Transceiver

Front

Power

Lead Patch

Harness

Fitting Instructions

UH9000S / UH9060S / UH9080S

Page 3 of 14

WARNING

This vehicle is equipped with Supplemental Restraint System (SRS) airbags and seatbelt pretensioners.

Before starting work, wait at least 90 seconds after the ignition switch is turned off and the negative (-) battery terminal

cable is disconnected.

SRS parts are equipped with a backup power source. If work is started within 90 seconds of turning the ignition switch off

and disconnecting the negative (-) battery terminal cable, SRS parts may deploy possibly causing serious injuries.

WARNING

Do not install any parts in a location that may interfere with the operation and deployment of the SRS airbags or seatbelt

pretensioners, including driver, front passenger and knee SRS airbags if tted. Doing so may result in serious injury or

death.

PREPARATION

• Follow all standard workshop and occupational health and safety practices during the installation process.

• Check and note any existing marks or damage to the vehicle.

• Before starting the installation thoroughly read through these installation instructions then follow the tting sequence as described.

• Check that the UHF CB transceiver kit is complete.

• Take all possible precautions to avoid damaging the vehicle’s interior and exterior during the installation. Use protective tape on

parts and tools where necessary.

• To avoid damage to the wiring harness and antenna cable, avoid contact with sharp edges. Cable tie securely every 200 mm.

• Ensure all removed parts are re-tted correctly.

SPECIAL TOOLS

• Trim removal tools

• Protective tape

• Lead wire

PARTS LIST - UHF CB TRANSCEIVER KITS

Model UHF CB Transceiver Kit Fitting Kit Part Number

HILUX

UH9000S

UNIFK001UH9060S

UH9080S

PARTS LIST - ANTENNA

Model Antenna Part Number Description

HILUX

AT970BKTWIN Antenna Dual Whip Black

AT970WTWIN Antenna Dual Whip White

AT970BK Antenna 1200mm Black

AT970W Antenna 1200mm White

AT890BK Antenna 1000mm Black

AT890W Antenna 1000mm White

AT880TWIN Antenna Dual Whip Stainless Steel

Fitting Instructions

UH9000S / UH9060S / UH9080S

Page 4 of 14

REMOVAL

Removal - Engine Bay

1. Open the bonnet.

2. Remove the radiator shroud (7 scrivets).

Push in the centre of the scrivets and pull up the shroud to

remove. Take care to retain all scrivets.

3. Disconnect the (-) negative battery terminal cable.

4. Cut the outer tang off the rewall grommet where

indicated.

Note: Refer to the Alternate antenna cable entry point

on page 8 if both grommet entry points are being used

Removal - Interior

1. Remove the front passenger’s side instrument panel under

cover sub-assembly.

Use a at blade screwdriver to release the (4) clips, lower

slightly and pull away.

Fitting Instructions

UH9000S / UH9060S / UH9080S

Page 5 of 14

2. Unclip (4 [ ]) and remove the front passenger’s side scuff

plate.

3. UH9060S / UH9080S only - Remove the glovebox.

Open the glovebox and remove the (2) stopper pins by

rotating 90º and pulling out. Unclip the damper rod. Open

the glovebox fully and pull away from the lower retaining

clips.

4. Remove the front passenger’s cowl side trim board

(1 screw and 2 clips [ ])

Prise off carefully at retaining clip locations to avoid

damaging the clips and panel.

Fitting Instructions

UH9000S / UH9060S / UH9080S

Page 6 of 14

5. Using a trim removal tool remove the (1) xmas tree clip

and fold down the passenger’s side footwell carpet.

6. Using a trim removal tool remove the (1) xmas tree clip

and fold down the driver’s side footwell carpet.

7. Place protective tape around the air conditioning control

panel as shown.

8. Remove the air conditioning control panel (9 clips [ ]).

Prise off carefully at retaining clip locations using a trim

removal tool to avoid damaging the clips and panel.

9. Disconnect the right hand side power socket connector.

Fitting Instructions

UH9000S / UH9060S / UH9080S

Page 7 of 14

INSTALLATION

Antenna

1. Remove the sleeve, spacer washer, lock washer and nut

from the antenna.

2. Pass the antenna cable through the antenna mounting

hole.

3. Secure the antenna to the mount using the sleeve, spacer

washer, lock washer and nut. Tighten securely.

Antenna Cable

1. Pass the antenna cable through the radiator grille opening

in the location as shown.

2. Route the cable through the radiator support panel

opening as shown.

Fitting Instructions

UH9000S / UH9060S / UH9080S

Page 8 of 14

3. Route the antenna cable under the washer bottle ller

tube. Follow the existing wiring harness around the battery

tray and under the accessory fuse box towards the rewall.

4. At the completion of the installation, cable tie the antenna

harness to the existing wiring harness where indicated [ ].

5. Route the antenna cable below the accessory fuse box

and follow the existing wiring harness to the rewall

grommet.

6. At the completion of the installation, cable tie the antenna

cable to the existing wiring harness where indicated [ ].

7. Pass a lead wire through the cut rewall grommet opening

to the passenger’s side footwell.

Attach the antenna cable to the lead wire.

Alternate antenna cable entry point

7. Remove the grommet from rewall:

a. Drill a 5 mm hole through the centre.

b. Ret the grommet to the rewall opening.

c. Pass a lead wire through the cut rewall grommet

opening to the passenger’s side footwell.

d. Attach the antenna cable to the lead wire.

Fitting Instructions

UH9000S / UH9060S / UH9080S

Page 9 of 14

8. Carefully pull the lead wire and antenna cable through

from the passenger’s side footwell.

IMPORTANT

Use silicon spray to allow the antenna cable to pass

through the grommet more easily.

At the completion of the installation process seal the

antenna cable grommet entry point with an automotive

grade sealant and secure with a cable tie.

UH9000S

9. Disconnect the lead wire and route the antenna cable

behind the blower motor mount, below the carpet line then

behind the centre console towards the driver’s side

footwell.

10. Pull the antenna cable through to the driver’s footwell.

UH9060S / UH9080S

9. Disconnect the lead wire and pull the antenna cable

through to the passenger’s side footwell.

Fitting Instructions

UH9000S / UH9060S / UH9080S

Page 10 of 14

Power Lead Patch Harness - UH9000S

1. Disconnect the right hand side power socket connector

and dehouse the (2) connector pins from the right hand

side power socket connector [1].

2. House the (2) removed pins in the free power lead patch

harness connector [2].

3. House the (2) free power lead patch harness pins into the

existing right hand side power socket connector [3].

4. Connect the existing right hand side power socket

connector to the right hand side power socket [4].

IMPORTANT

Refer to the following diagram for wiring details.

5. Position the power lead patch harness fuse holder/s neatly

behind the driver’s side instrument panel nish cushion

and carpet. Cable tie [ ] using self-adhesive cable tie

mounting blocks where necessary to avoid fouling and

rattling.

6. Ret the driver’s side footwell carpet and secure with

existing xmas tree clip.

WARNING

Ensure the driver’s footwell carpet and oormat (if tted)

are repositioned correctly to avoid fouling with the foot

pedals operation.

Power Lead Patch Harness - UH9060S / UH9080S

1. Route the power lead patch harness from the passenger’s

side footwell, behind the glovebox frame and through the

centre console to the right hand side power socket

connector.

Hilux

Power

socket

Existing vehicle

harness

Existing vehicle power

socket connector

Existing vehicle power

socket connector Power

socket

To UHF CB

transceiver

Power lead

patch harness

Existing vehicle power

socket connector

To UHF CB

transceiver

Existing vehicle

harness Power lead

patch harness

Existing vehicle

harness Power lead

patch harness To UHF CB

transceiver
