User Guide
MC200CM
MC210CS
MC220L
Gigabit Ethernet Media Converter
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice.
is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other
brands and product names are trademarks or registered trademarks of
their respective holders.
No part of the specifications may be reproduced in any form or by any
means or used to make any derivative such as translation,
transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2011 TP-LINK
TECHNOLOGIES CO., LTD. All rights reserved.
http://www.tp-link.com
i
CONTENTS
Package Contents...........................................................................1
1. Introduction.............................................................................1
2. Features...................................................................................2
3. Appearance Indication ...........................................................3
3.1 LED Indicators................................................................. 3
3.2 Switch.............................................................................. 4
4. Installation Guides .................................................................5
4.1 Gigabit Ethernet Media Converter:.................................. 5
4.2 Configuration ................................................................... 7
4.3 Installation Procedure...................................................... 8
4.4 Install Media Converter into MC1400 .............................. 9
5. Troubleshooting ...................................................................10
6. Appendix: Specifications.....................................................11
1
Package Contents
Before starting using the products, make sure what you have is what you
ordered. The Converter includes:
¾One Converter
¾One AC-DC Power Adapter (DC9V/600mA)
¾One User Guide
1. Introduction
MC200CM, MC210CS and MC220L are Gigabit Ethernet Media
Converters. The FX port of MC220L supports hot-swappable.
The converter mediates between a 1000Base-TX segment and a
1000Base-X segment. It is primarily designed for larger bandwidth, and
higher speed demanding workgroups that require expansion of the
Gigabit Ethernet network

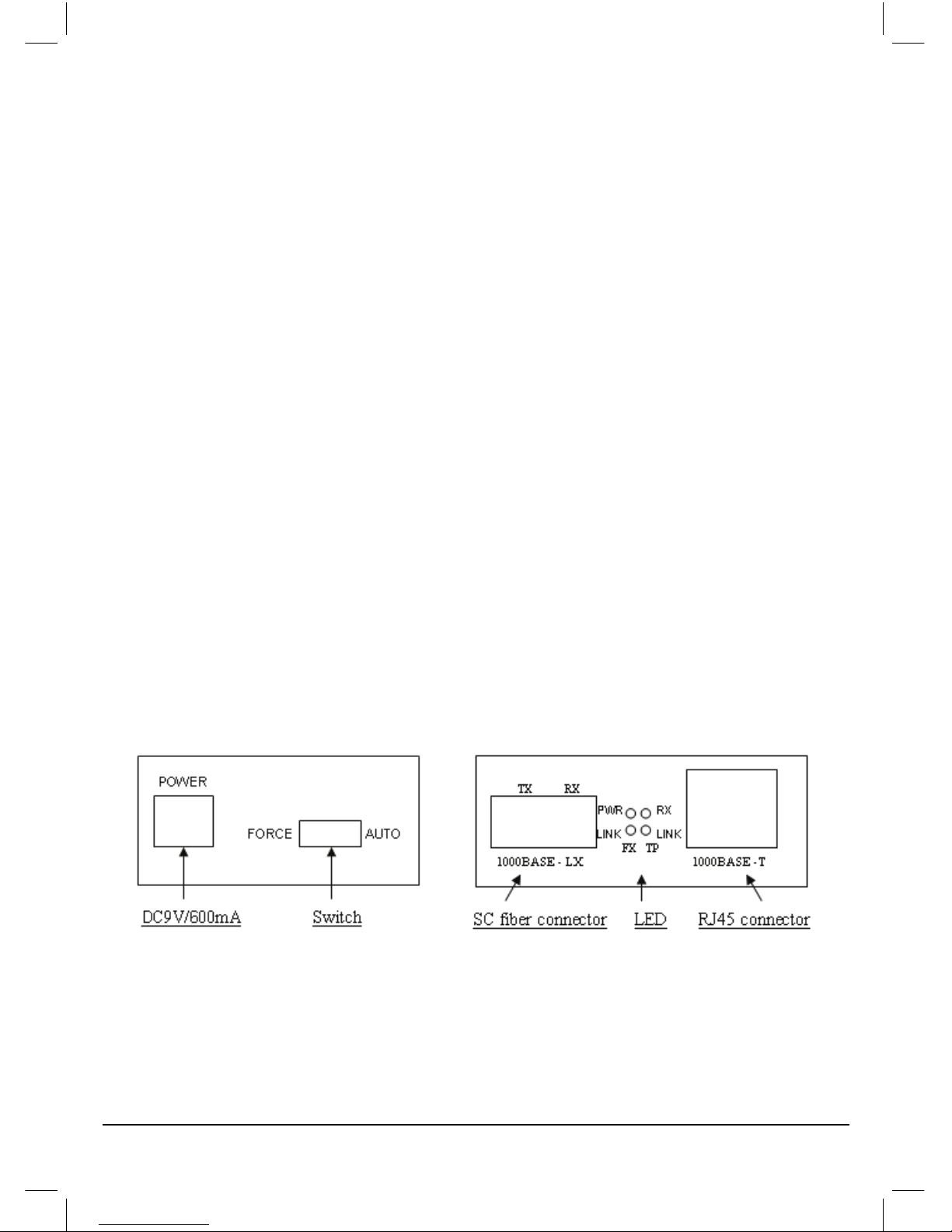

Rear Panel Front Panel
MC200CM&MC210CS
2

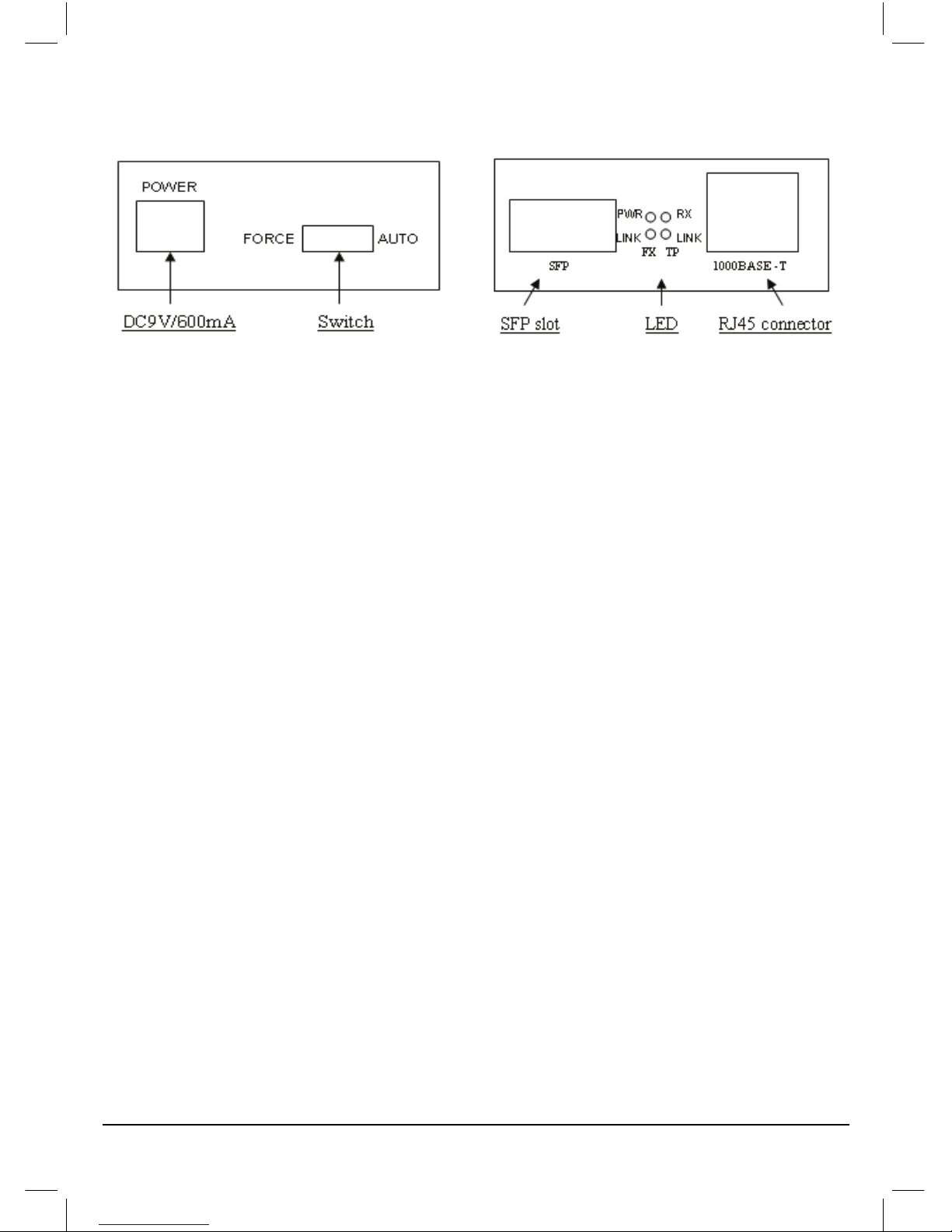

Rear Panel Front Panel
MC220L
Note:
This media convertor can also be powered by 5VDC Adapter.
2. Features
¾Comply with IEEE 802.3ab and IEEE 802.3z.
¾Provide one SC/LC fiber connector and one RJ45 connector.
Please check the table in page 3 for the accurate connector of each
model.
¾Work at 1000Mbps in Full-Duplex mode for both TX port and FX
port.
¾Support auto MDI/MDIX for TX port.
¾Extend fiber distance up to 0.55km for multi-mode fiber and 15km
for single-mode fiber. Please check the table in page 3 for the
accurate transmission distance of each model.
¾Easy-to-view LED indicators provide status to monitor network
activity easily.
¾External power supply.
3
¾FX port supports hot-swappable(only for MC220L).
Connectors and Network Cables Supported
The connectors and network cables supported by the converter are
listed as follows.
¾Connectors: RJ-45, SC, LC.
¾Network Cables: Cat.5 Twisted-Pair(below abbreviated as TP),
9/125um Single-mode fiber, 62.5/125,50/125um Multi-mode fiber.
Model No.
Interface Transmission
Distance
Transmission
Media
Output
Center
Wavelength
MC200CM RJ45--SC
0.55km(50/125um)
0.22km(62.5/125um)
Multi-mode
Fiber,TP 850nm
MC210CS RJ45--SC 15km Single-mode
Fiber,TP 1310nm
MC220L RJ45--LC 0.55km/10km Multi/single-mode
850nm/1310
nm

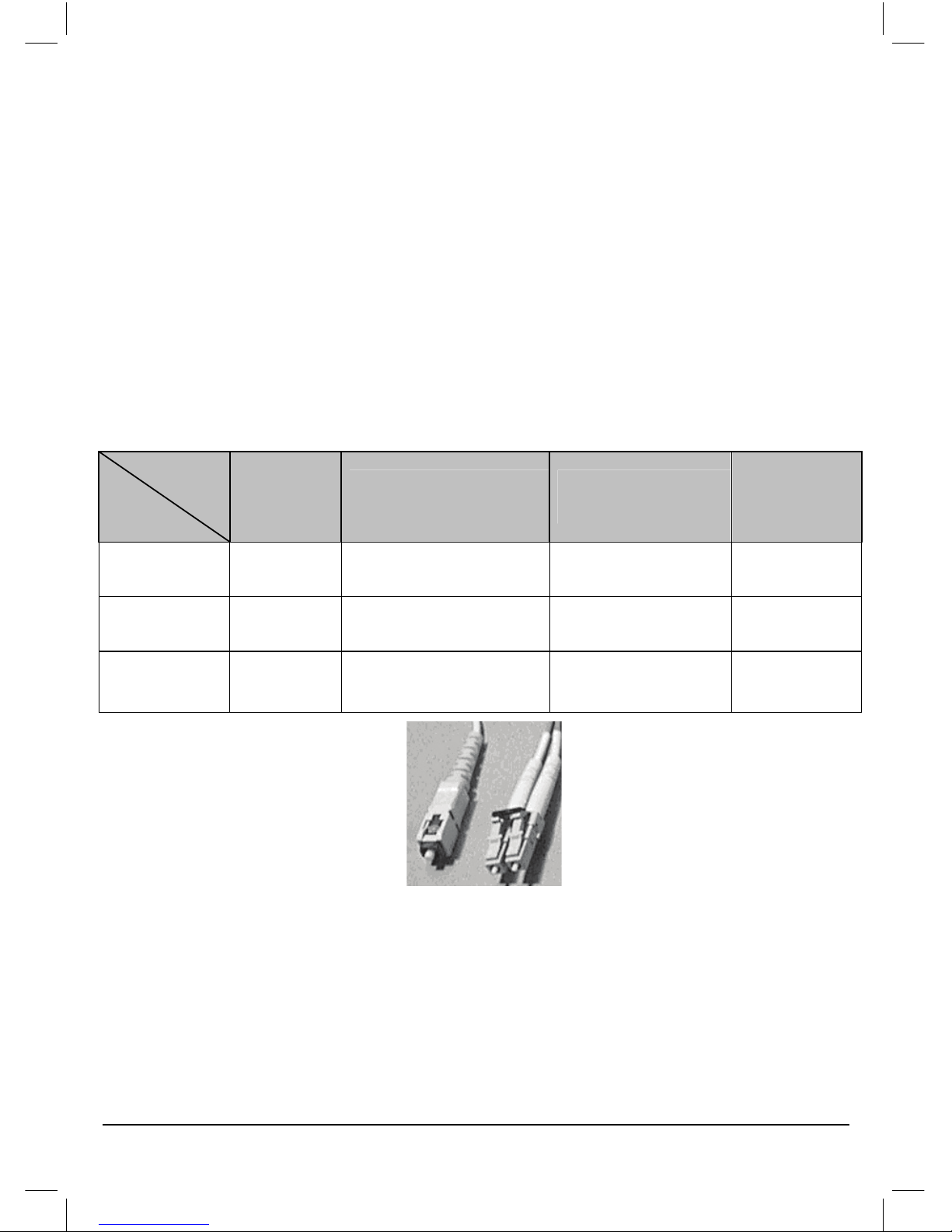

SC fiber connector and LC fiber connector
3. Appearance Indication
3.1 LED Indicators
This converter has LED indicators which can provide a real-time report.
4
When you take a look at these indicators, you will know what’s
happening on your network.
Name Status Indication
On Power on
PWR Off Power off
On There’s a valid link for FX Port.
FX LINK
Off There’s no valid link for FX Port.
On There’s a valid link for TP Port.
LINK Off There’s no valid link for TP Port.
On The converter is receiving data from TP port.
TP
RX Off The converter is not receiving data from TP
port.
Note:
The TP port mentioned in this User Guide Manual stands for the TX port
without any explanations.
3.2 Switch
¾FORCE: The FX port operates in FORCE mode.
PWR
RX
LINK
LINK
FX TP
Force AUTO
5
¾AUTO: The FX port operates in Auto-Negotiation mode.
Note:
Be sure the opposite end is using the same setting. When using two
converters at the same time, the two converters must be set to FORCE
mode. When connected to other products, such as TL- SL2210WEB or
TL-SL2428WEB, the converter must be set to Auto- Negotiation mode.
We suggest leaving the switches on AUTO.
Please reset the converter after configuring the switches. Then the
change would take effect.
4. Installation Guides
4.1 Gigabit Ethernet Media Converter:
¾The SC fiber connector of MC200CM transmits/receives data by
850nm short wave laser on multi-mode fiber.
¾The SC fiber connector of MC210CS transmits/receives data by
1310nm short wave laser on single-mode fiber.

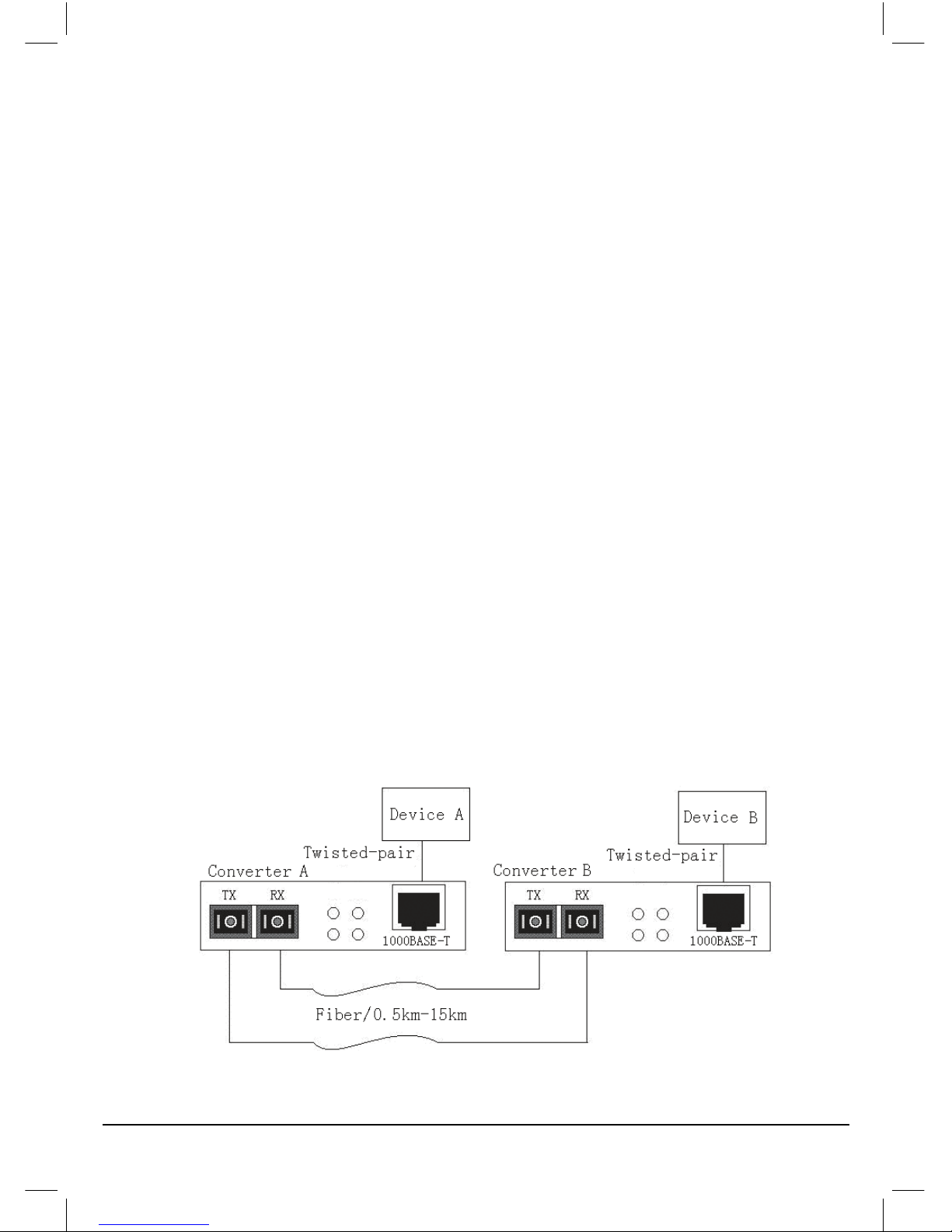

Transmits and receives data on different fibers
6
Note:
Either two MC200CM or two MC210CS could cooperate. MC220L can
be plugged in with two kinds of SFP modules, single-mode or
multi-mode.

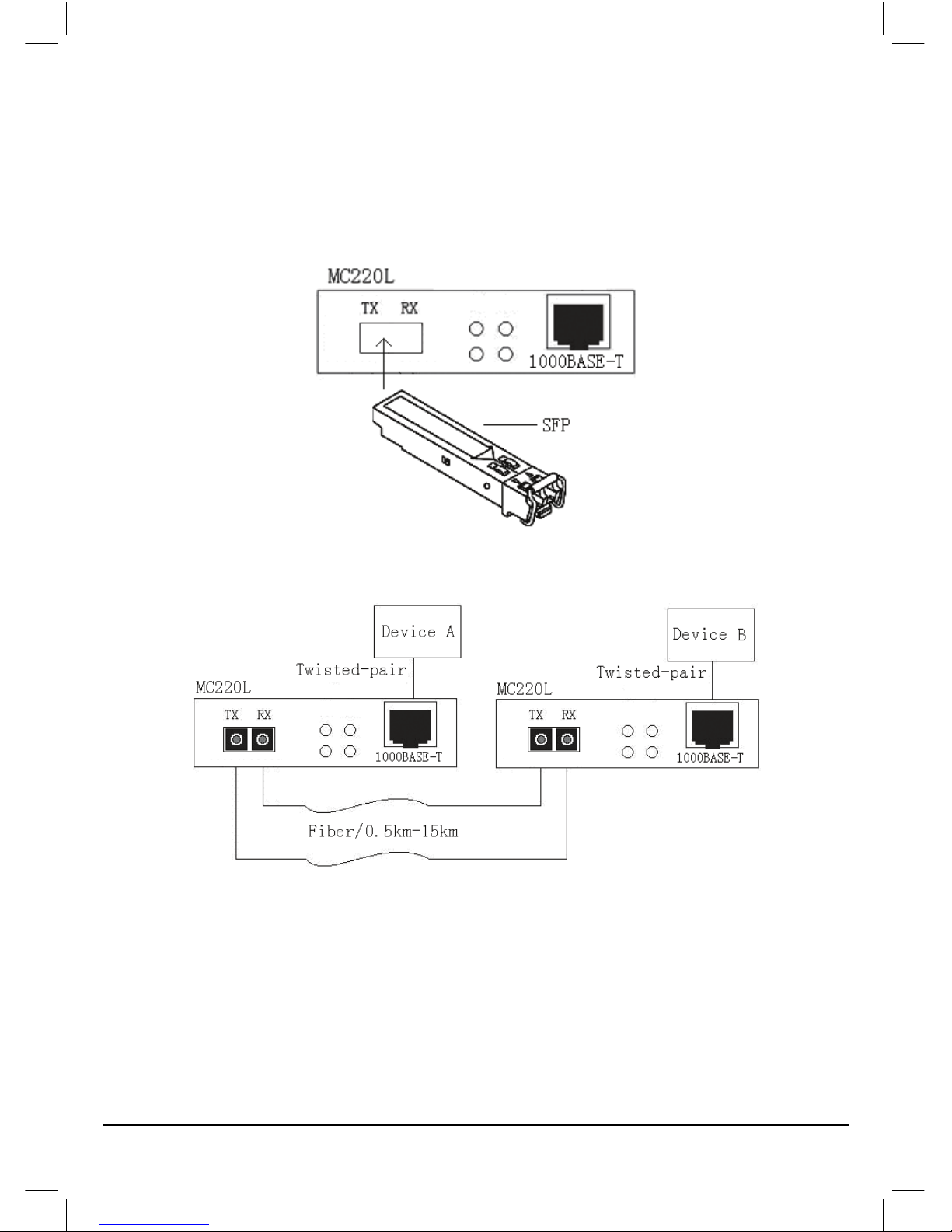

Plug the SFP module into MC220L
Transmits and receives data between two MC220L
Note:
Two MC220L with the same SFP module could cooperate.
7
Transmits and receives data between MC220L and
MC200CM/MC210CS
Note:
MC220L could be connected to MC200CM or MC210CS, however, the
SFP module in MC220L must use the same mode and the same
wavelength as the opposite end. (Please refer to the table below) And
the connection fiber must be LC-SC fiber.
Model No. MC220L connect with MC200CM MC210CS
Transmission
Media SFP module 850nm, Multi-mode 1310nm,
Single-mode
4.2 Configuration
In order to achieve the aim of effectively expanding a Gigabit Ethernet
network, please take the following examples for reference:
1. Place two converters back to back between the following end
devices.
