TP-Link TD-8841 Manuale utente

TD-8841

External ADSL Router

Rev: 1.0.2

1910010026

Specifications are subject to change without notice. is a registered trademark of

TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or

registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from TP-LINK

reserved.

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

•Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that may cause

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in

which case the user may be required to take adequate measures.

SAFETY NOTICES

Caution:

1) Do not use this product near water, for example, in a wet basement or near a swimming pool.

2) Avoid using this product during an electrical storm. There may be a remote risk of electric

shock from lightning.

III

CONTENTS

Package Contents....................................................................................................1

Chapter 1. Product Overview...............................................................................2

1.1 Product Main Specification........................................................................................2

1.2 Supporting Protocol................................................................................................... 2

1.3 Transmit Data-rate .................................................................................................... 3

1.4 ATM Property............................................................................................................ 3

1.5 System Support......................................................................................................... 3

1.6 Working Environment................................................................................................ 3

Chapter 2. Hardware Installation Guide..............................................................4

2.1 System requirement.................................................................................................. 4

2.2 LED explanation........................................................................................................4

2.3 Rear-panel ................................................................................................................4

2.4 Hardware installation procedures.............................................................................. 5

Chapter 3. System Configuration........................................................................6

3.1 Computer Configuration............................................................................................ 6

3.2 Login .........................................................................................................................7

3.3 Web Setup ................................................................................................................ 8

3.4 Software Dial...........................................................................................................18

3.5 USB Configuration .................................................................................................. 20

Chapter 4. Advantage Management Setup.......................................................26

Chapter 5. FQA....................................................................................................27

Appendix A: Default Configuration ......................................................................28

Appendix B: Configuring the PCs ........................................................................29

TD-8841 External ADSL2+ Router User Guide

Package Contents

The following items should be found in your package:

¾One TD-8841 External ADSL2+ Router

¾One AC power Adapter for TD-8841 External ADSL2+ Router

¾One Resource CD for TD-8841 External ADSL2+ Router, including:

zThis Guide

zQuick installation Guide Program

zOther Helpful Information

zUSB driver

¾Quick installation Guide

¾One RJ45 cable

¾Two RJ11 cables

¾One ADSL splitter

¾One USB cable

)Note:

Make sure that the package contains the above items. If any of the listed items are damaged or

missing, please contact with your distributor.

TD-8841 External ADSL2+ Router User Guide

Chapter 1.Product Overview

With the excellent circuit design and high quality production, we guarantee the ADSL2+ Router’s

high performance, great stability and easy to use.

In addition to the basic DMT physical layer functions, the ADSL2+ PHY supports dual latency

ADSL2+ framing (fast and interleaved) and the I.432 ATM Physical Layer.

The TD-8841 is a complete plug-and-play solution. With standard Ethernet interface, it can be

directly connected to any 10M/100M Ethernet devices, support Auto-MDIX.

The TD-8841 not only uses html (web mode through Ethernet port) to configure the Router but

also uses external utility software. You can download it from our website (http://www.tp-link.com).

1.1 Product Main Specification

¾High speed and asymmetrical data transmit mode, provides safe and exclusive bandwidth

¾Supports All ADSL2+ industrial standards

¾Compatible with all mainstream DSLAM (CO)

¾Firmware upgradeable

¾Provides integrated access of internet and route function which face to SOHO user

¾Advanced DMT modulation and demodulation

¾Real-time Configuration and device monitoring

¾Quick response semi-conductive surge protection circuit, provides reliable ESD and

surge-protect function

1.2 Supporting Protocol

¾G.992.1 (G.dmt) - Annex A/B/C

¾G.992.2 (G.lite) - Annex A/B/C

¾ANSI T1.413

¾G.992.3 (ADSL2) Annex A/B/C/M and Annex L (RE-DSL) compliant

¾G.992.5 (ADSL2+) Annex A/B/C and Annex L (RE-DSL) compliant

¾ADSL dual latency (fast path and interleaved path)

¾I.432 ATM physical layer compliant

¾Supports RFC2364 (PPPoA)

¾Supports RFC2516 (PPPoE)

TD-8841 External ADSL2+ Router User Guide

¾Supports RFC1483 (EoA)(Bridged *and Router)

¾Supports RFC1577 (IPoA)

)Note: “*” Needs the third-party software.

1.3 Transmit Data-rate

¾Max download data-rate: 24Mbps

¾Max upload data-rate: 3.5Mbps

¾Max line length: 6Km

1.4 ATM Property

¾AAL0, AAL5, OAM, RM, and raw cell types supported

¾Direct hardware support for 4 Receive VCs, with additional RX VCs and TX VCs supported in

software

¾Full 24-bit Virtual Path Identifier (VPI) and Virtual Circuit Identifier (VCI)

1.5 System Support

¾Support PVC

¾Support NAT、DHCP and so on

¾Support IEEE 802.3、IEEE 802.3u

¾Support 10Base-T/100BASE-TX full-duplex or half duplex Ethernet

¾Support Auto-MDIX

¾Support USB 1.1 device interface

1.6 Working Environment

¾Operating temperature: 0 ~40℃℃

¾Storage temperature: -40 ~70℃℃

¾Humidity: 10%~90% (non-condensing)

TD-8841 External ADSL2+ Router User Guide

Chapter 2.Hardware Installation Guide

The TD-8841 maintains six separate interfaces, including four Ethernet interfaces, one USB

interface and one ADSL interface. The Router should not be located where it will be exposed to

moisture or excessive heat. Place the Router in a location where it can be safely connected to the

various devices as well as to a power source.

2.1 System requirement

Confirm your computer has been installed with networking interface card (NIC) before connecting

ADSL2+ Router to your computer, with the operating system supporting the TCP/IP protocol.

2.2 LED explanation

The front panel of ADSL2+ Router includes one power indicator (RED) and eight function

indicators (GREEN), as explained in following chart:

Name Status Indication

On Power OK

PWR Off Power fail

Slow flash Self-detecting when power on

Quick flash The LINE port is connecting to ISP’s network

On The LINE port has connected to ISP’s network

ADSL

Off The LINE port has no connection

On There is mistake when ADSL transmitting or receiving data

ALARM Off ADSL normal

On There is data transmitting or receiving on WAN port

ACT Off No data is being transmitted or received on WAN port

On Connection to telecom network is OK

Off Connection on USB port is abnormal

USB

Flash Data is being transmitted or received

On LAN port is normal

Off Connection on LAN port is abnormal

LAN(1~4)

Flash Data is being transmitted or received on LAN port

2.3 Rear-panel

¾ON/OFF: Turn on/off the ADSL2+ Router’s power.

TD-8841 External ADSL2+ Router User Guide

¾Power (9V AC/0.8A input): please do not use any unknown power adaptor; otherwise your

ADSL2+ Router may be damaged.

¾RESET (reset default): First press the reset button of Router, then turn on the Router’s

power for at least three seconds. It will resume the default manufacturer’s setup.

¾LAN: Connect with your computer’s NIC.

¾USB: Connect with your computer’s USB interface

¾LINE (WAN): Connect to the MODEM Port of Splitter or Connect to the telephone line.

2.4 Hardware installation procedures

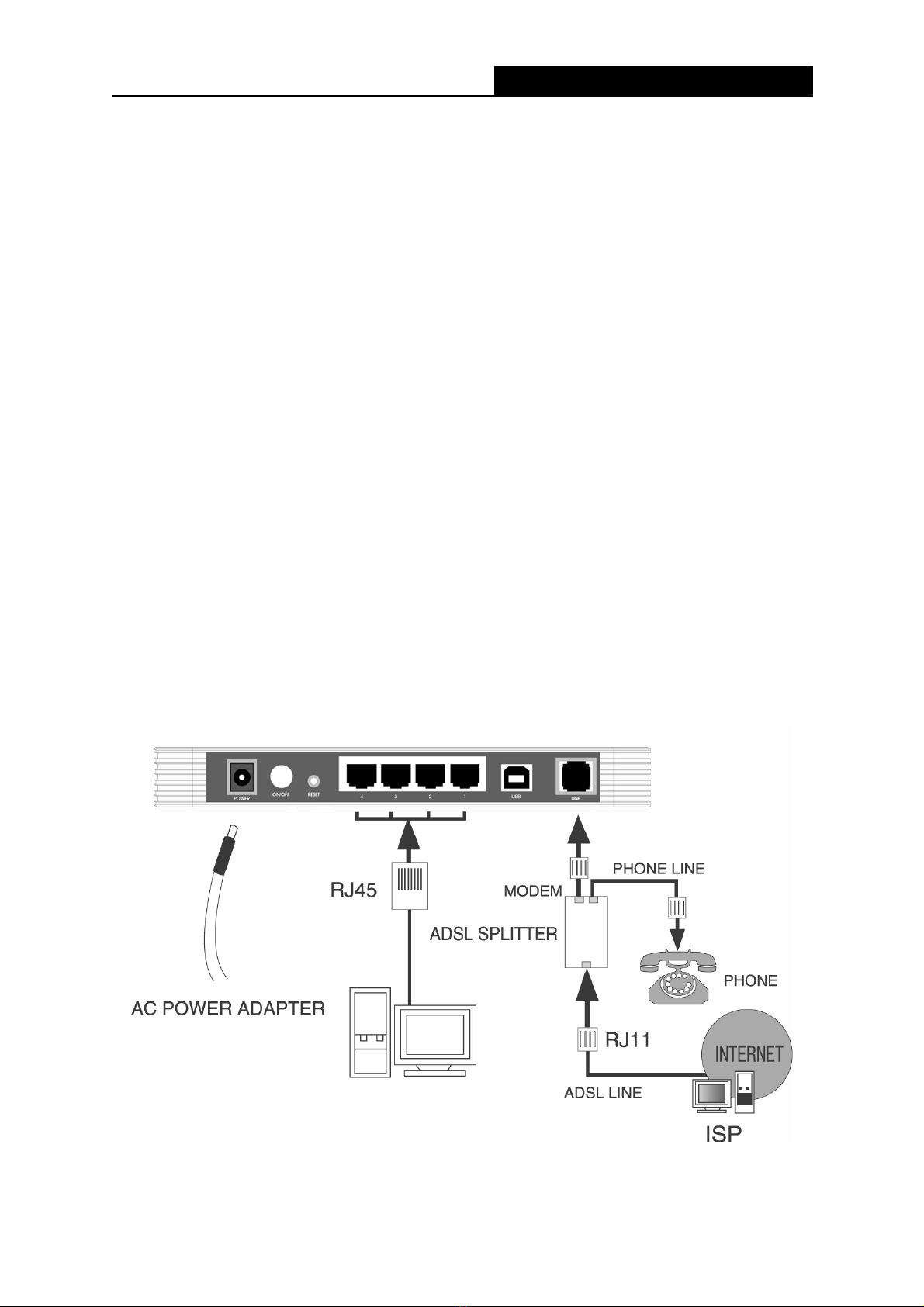

The procedure to install the Router can be described in general terms in the following steps and

shown as Figure 2-1:

First Step: Connecting the MODEM port of Splitter with the LINE port of the TD-8841 ADSL2+

Router by telephone line. While you need to use a telephone, please attach telephone line into the

phone of Splitter.

Second Step: Connect category 5 cable with RJ45 jacks to ADSL2+ Router’s LAN port and your

computer’s NIC. Or connect USB cable to ADSL2+ Router’s USB port and your computer’s USB

interface.

Third Step: Plug one end of the AC Power Adapter into the Power jack on the Ethernet ADSL2+

Router and the other end to a standard electrical outlet.

Last Step: Check the line connection to see if everything is ready. Power up finally.

Figure 2-1

TD-8841 External ADSL2+ Router User Guide

Chapter 3.System Configuration

3.1 Computer Configuration

The default IP address of the ADSL2+ Router is 192.168.1.1, and the default Subnet Mask is

255.255.255.0. These values can be seen from the LAN, and can be changed as your desire. As

an example, we use the default values for description in this guide.

1. Connect the cable according to Chapter 2, turn on the power.

2. Connect the local PCs to the ADSL2+ Router’s LAN port. There are then two means to

configure the IP address for your PCs.

¾Configure the IP address manually

1) Set up the TCP/IP Protocol for your PC(s).

2) Configure the network parameters. The IP address is 192.168.1.xxx ("xxx" is from 2 to

254), Subnet Mask is 255.255.255.0, and Gateway is 192.168.1.1 (The ADSL2+

Router’s default IP address).

¾Obtain an IP address automatically

1) Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your

PC(s).

2) The built-in DHCP server will assign IP addresses for the PC(s).

)Note:

If you need instructions as to how to do this, please refer to5Appendix B: Configuring the PCs.

Remarks: you can check whether your configuration is successful through PING command. Enter

Ping 192.168.1.1

If the screen looks like the following, you have been successful.

If the screen looks like the following, the connection has failed. Please try again.

Altri manuali per TD-8841

Indice

Altri manuali TP-Link Router di rete

TP-Link

TP-Link TL-WR840N Manuale utente

TP-Link

TP-Link Archer C1900 Manuale utente

TP-Link

TP-Link SafeStream TL-R480T+ Manuale utente

TP-Link

TP-Link TL-WDR4300 Manuale utente

TP-Link

TP-Link Deco WE10800 Manuale utente

TP-Link

TP-Link AXE5400 Manuale utente

TP-Link

TP-Link TL-ER7206 Manuale utente

TP-Link

TP-Link TD-W9977 Manuale utente

TP-Link

TP-Link SafeStream TL-ER5120 Manuale utente

TP-Link

TP-Link Wi-Fi 7 Manuale utente

TP-Link

TP-Link Archer AC1200 Manuale utente

TP-Link

TP-Link Archer AX55 Manuale utente

TP-Link

TP-Link Archer A20 Manuale utente

TP-Link

TP-Link Archer AX6000 Manuale utente

TP-Link

TP-Link Deco S4 Manuale utente

TP-Link

TP-Link TL-R470T Manuale utente

TP-Link

TP-Link Archer VR600 Manuale utente

TP-Link

TP-Link Deco Wi-Fi 6 Manuale utente

TP-Link

TP-Link Archer AX11000 Manuale utente

TP-Link

TP-Link TD-W8968 Manuale utente

TP-Link

TP-Link TL-ER6020 Manuale utente

TP-Link

TP-Link TL-WR710N Manuale utente

TP-Link

TP-Link Archer MR600 Manuale utente

TP-Link

TP-Link TD-9970B Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza

LevelOne

LevelOne FBR-1416 Manuale utente
