Installation Guide

Load Balance Broadband Router

TL-R480T+

Enterprise Networking Solution



Specifications are subject to change without notice. is a registered trademark

of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks of their

respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make

any derivative such as translation, transformation, or adaptation without permission from TP-LINK

http://www.tp-link.com



This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case

the user will be required to correct the interference at his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

This device may not cause harmful interference.1)

This device must accept any interference received, including interference that may cause2)

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.



This is a class A product. In a domestic environment, this product may cause radio interference, in

which case the user may be required to take adequate measures.



The User Guide of this product is provided in the resource CD. To obtain the latest

product information, please visit the Official Website:

http://www.tp-link.com



This Installation Guide describes the hardware characteristics, installation methods

and the points that should be attended to during installation. This Installation

Guide is structured as follows:

Chapter 1 Introduction. This chapter describes the External Components of

the Router.

Chapter 2 Installation. This chapter illustrates how to install the Router.

Chapter 3 Lightning Protection. This chapter illustrates how to prevent

lightning damage.

Chapter 4 Connection. This chapter illustrates how to do the physical connec-

tion of the Router.

Chapter 5 Configuration. This chapter illustrates how to login and set up the

Router.

Appendix A Troubleshooting.

Appendix B Hardware Specifications.

Appendix C Technical Support.



This Installation Guide is for:

Network Engineer

Network Administrator



This Guide uses the specific formats to highlight special messages. The following

table lists the notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may result in

device damage.

Remind to take notice. The note contains the helpful information for a

better use of the product.

Related Document

III



Contents

Chapter 1 Introduction ——————————— 01

1.1 Product Overview...................................................................01

1.2 Appearance...............................................................................01

Chapter 2 Installation ———————————— 03

2.1 Package Contents ...................................................................03

2.2 Safety Precautions ..................................................................03

2.3 Installation Tools......................................................................05

2.4 Product Installation................................................................06

Chapter 3 Lightning Protection ———————— 08

3.1 Cabling Reasonably................................................................08

3.2 Connect to Ground.................................................................10

3.3 Equipotential Bonding..........................................................11

3.4 Use Lightning Arrester..........................................................12

Chapter 4 Connection ——————————— 14

4.1 WAN Port....................................................................................14

4.2 LAN Port .....................................................................................14

4.3 Console Port..............................................................................14

4.4 Verify Installation ....................................................................15

4.5 Power On....................................................................................15

4.6 Initialization ..............................................................................15

Chapter 5 Conguration

——————————— 16

5.1 Preparations..............................................................................16

5.2 Login............................................................................................16

5.3 WAN/LAN Ports Conguration...........................................17

Appendix A Troubleshooting ————————— 18

Appendix B Hardware Specications —————— 19

Appendix C Technical Support ————————— 20

Load Balance Broadband Router





TL-R480T+ is a product designed for small business. It features three free changeable

ports that can be set to either LAN or WAN, allowing the router to support up to four

WAN ports to satisfy various Internet access requirements through one device. At the

same time, network traffic is managed to ensure that data is properly distributed to

each port. TP-LINK TL-R480T+ will provide you consistent network uptime and reliable

Ethernet connectivity.



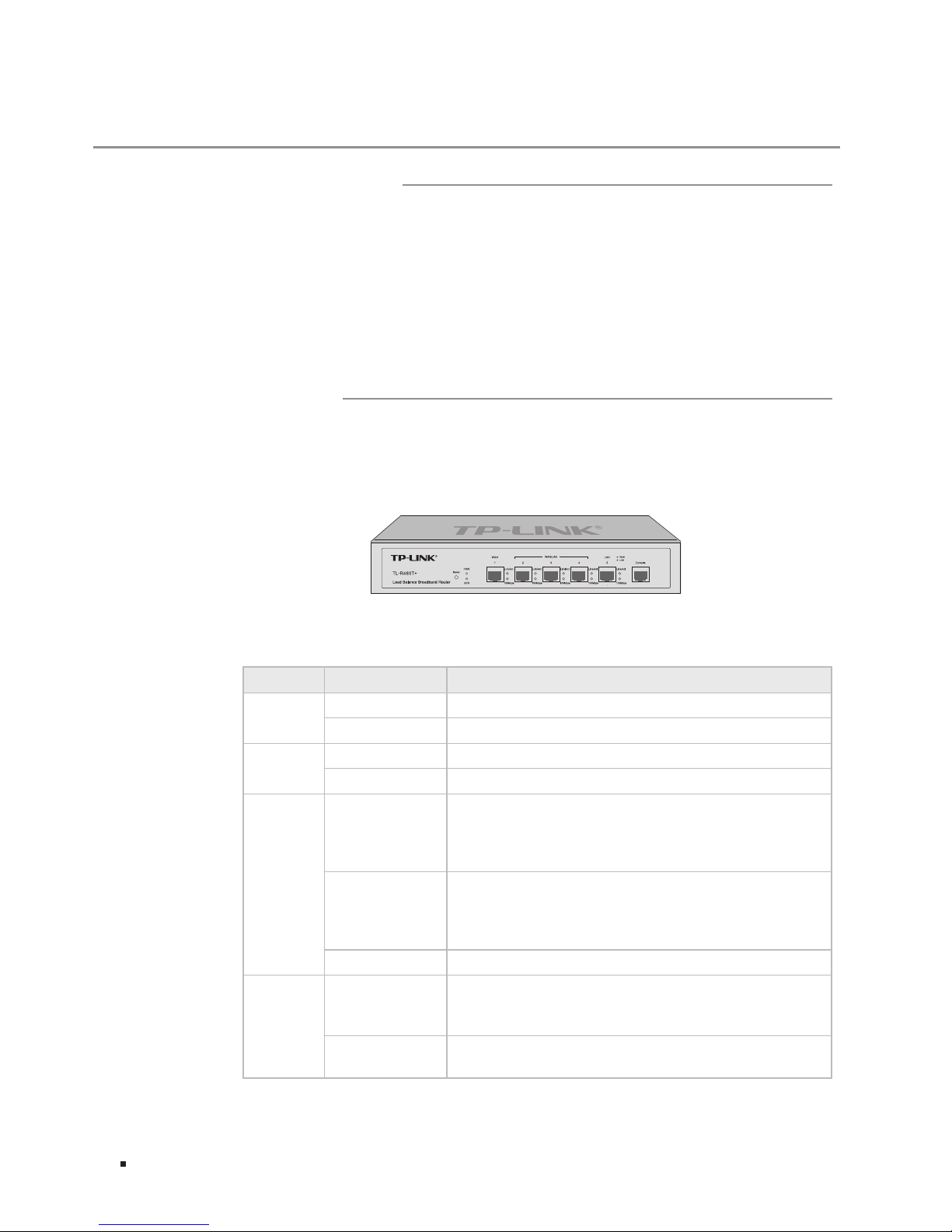

Front Panel



The front panel of TL-R480T+ is shown as the following figure.

Front PanelFigure 1-1

LEDs

LED Status Indication

PWR On The Router is powered on

Off The Router is powered off or power supply is abnormal

SYS Flashing The Router works properly

On/Off The Router works improperly

Link/Act

(Green/Yellow)

There is a device linked to the corresponding port but

not active

(Green indicates the corresponding port is working as

a LAN port, and yellow indicates WAN port.)

Flashing

(Green/Yellow)

The corresponding port is transmitting or receiving

data

(Green indicates the corresponding port is working as

a LAN port, and yellow indicates WAN port.)

Off There is no device linked to the corresponding port

100Mbps

(Green/Yellow)

The linked device is running at 100Mbps

(Green indicates the corresponding port is working as

a LAN port, and yellow indicates WAN port.)

Off There is no device linked to the corresponding port or

the port is running at 10Mbps

Introduction

Load Balance Broadband Router

Interface Description

WAN The WAN port is designed to connect the Router to the interface provided

by ISP via the RJ45 cable

LAN The LAN port is designed to connect the Router to the local PCs or

switches by the RJ45 cable

Console

The Console port is designed to connect with the serial port of a computer

or terminal to check and monitor some simple system information of the

Router

Reset

With the Router powered on, use a pin to press and hold the Reset button (about 5

seconds) until the SYS LED ashes quickly. Then release the button and wait for the

Router rebooting to its factory default settings.

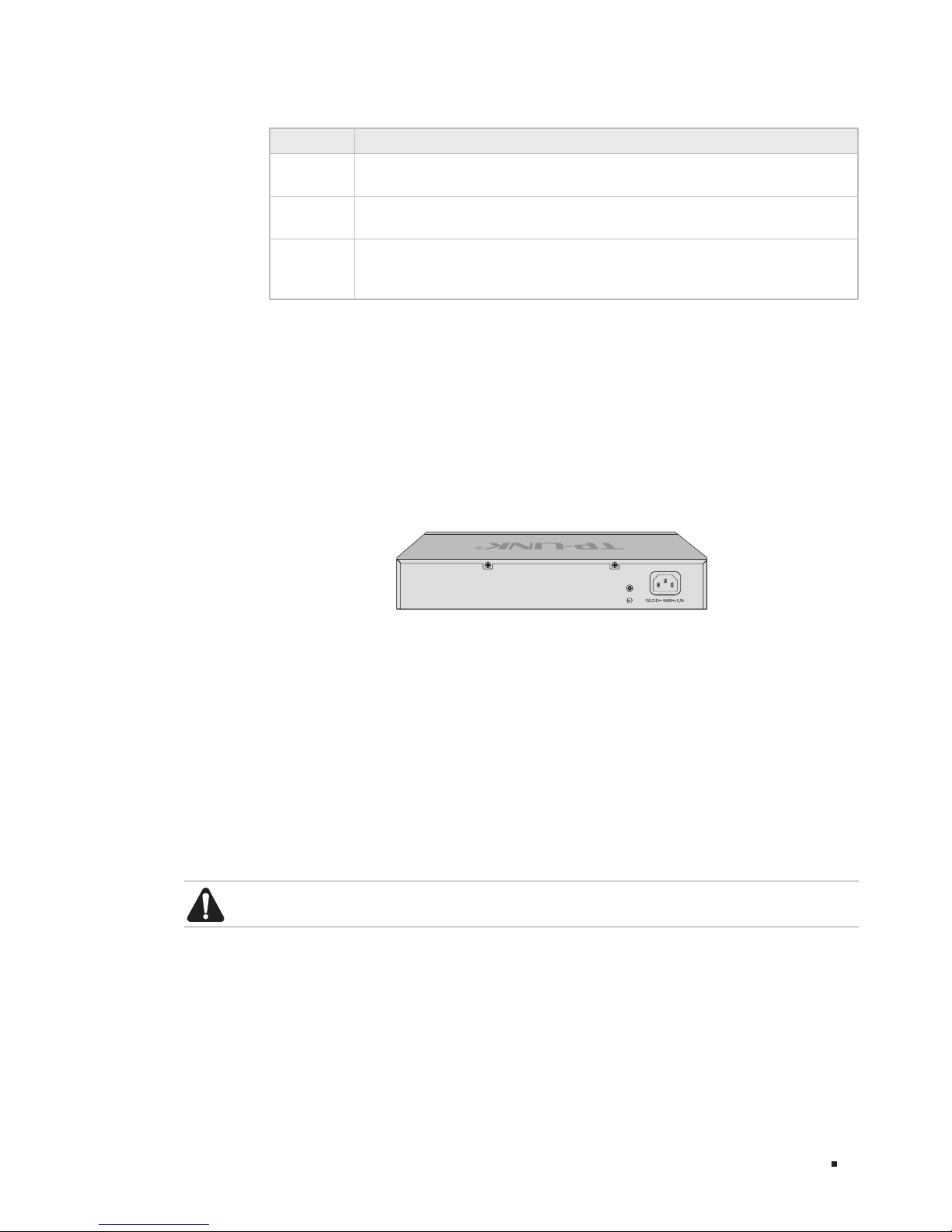

Rear Panel



The rear panel of TL-R480T+ is shown as the following figure.

Rear PanelFigure 1-2

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC power outlet. Please make sure the voltage of the power supply meets the

requirement of the input voltage.

Grounding Terminal

The Router already comes with lightning protection mechanism. You can also ground

the Router through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Caution: Please use the provided power cord.

Introduction

Load Balance Broadband Router





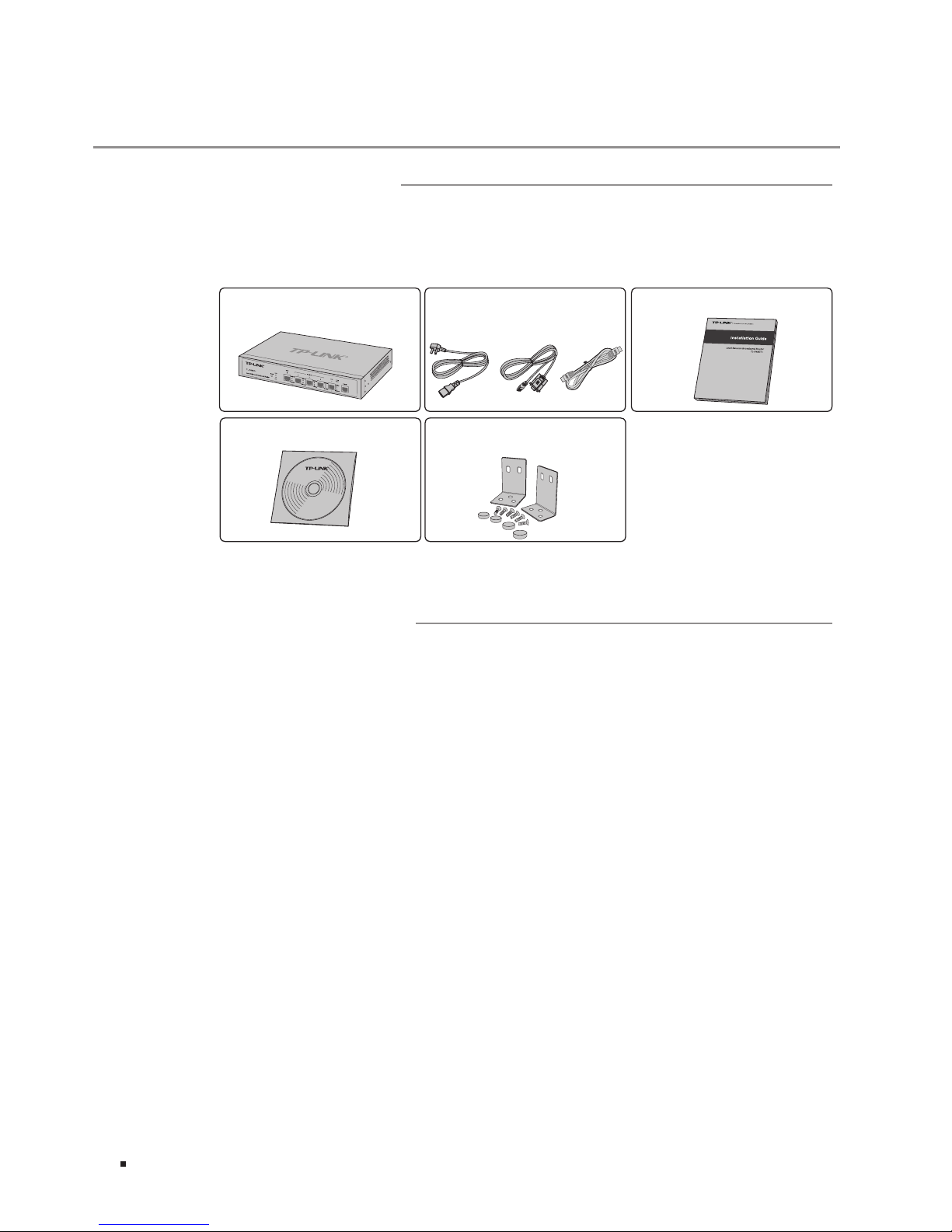

Make sure that the package contains the following items. If any of the listed items is

damaged or missing, please contact your distributor.

One Resource CD

One Router One Power Cord, One Console

Cable and One Ethernet Cable

This Installation Guide

Two mounting brackets and the

ttings



To avoid any device damage and bodily injury caused by improper use, please observe

the following rules.

Safety Precautions



Keep the power off during the installation.



Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good



skin contact and is well grounded.

Use only the power cord provided with the Router.



Make sure that the supply voltage matches the specifications indicated on the rear



panel of the Router.

Ensure the vent hole is well ventilated and unblocked.



Do not open or remove the cover of the Router.



Before cleaning the device, cut off the power supply. Do not clean it by the waterish



cloth, and never use any other liquid cleaning method.

Installation

Load Balance Broadband Router

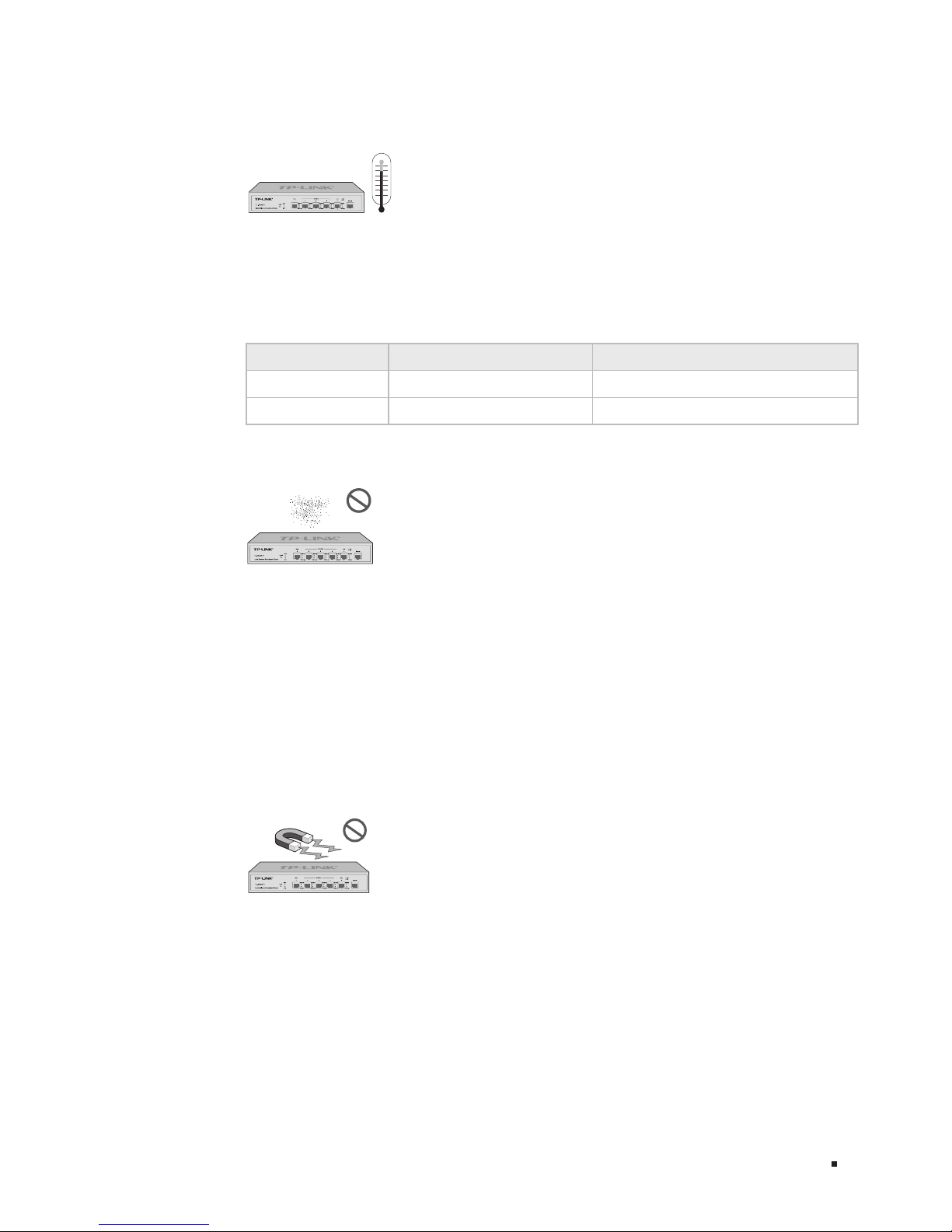

Site Requirements



Temperature/Humidity

ȭ

ȭ

Please keep a proper temperature and humidity in the equipment room. Too high/low

humidity may lead to bad insulation, electricity leakage, mechanical property changes

and corrosions. Too high temperature may accelerate aging of the insulation materials

and can thus significantly shorten the service life of the device. For normal temperature

and humidity of the device, please check the following table.

Environment Temperature Humidity

Operating 0℃~ 40℃10% ~ 90%RH Non-condensing

Storage -40℃~ 70℃5% ~ 90%RH Non-condensing

Clearness

The dust accumulated on the Router can be absorbed by static electricity and result

in poor contact of metal contact points. Some measures have been taken for the

device to prevent static electricity, but too strong static electricity can cause deadly

damage to the electronic elements on the internal circuit board. To avoid the effect of

static electricity on the operation of the Router, please attach much importance to the

following items:

Dust the device regularly, and keep the indoor air clean.



Keep the device well grounded and ensure static electricity has been transferred.



Electromagnetic Interference

Electronic elements including capacitance and inductance on the device can be affected

by external interferences, such as conducted emission by capacitance coupling,

inductance coupling, and impedance coupling. To decrease the interferences, please

make sure to take the following measures:

Use the power supply that can effectively filter interference from the power grid.



Keep the device far from high-frequency, strong-current devices, such as radio



transmitting station.

Use electromagnetic shielding when necessary.



Installation

Load Balance Broadband Router

Lightening Protection

Extremely high voltage currents can be produced instantly when lightning occurs and the air

in the electric discharge path can be instantly heated up to 20,000℃. As this instant current

is strong enough to damage electronic devices, more effective lightning protection measures

should be taken.

Ensure the rack and device are well earthed.



Make sure the power socket has a good contact with the ground.



Keep a reasonable cabling system and avoid induced lightning.



Use the signal SPD (Surge Protective Device) when wiring outdoor.



Note: For detailed lightning protection measures, please refer to Chapter 3

Lightning Protection.

Installation Site

S

When installing the device on a rack or a flat workbench, please note the following

items:

The rack or workbench is flat and stable, and sturdy enough to support the weight



of 5.5kg at least.

The rack or workbench has a good ventilation system. The equipment room is well



ventilated.

The rack is well grounded. Keep the power socket less than 1.5 meters away from



the device.



Phillips screwdriver



ESD-preventive wrist wrap



Cables



Installation

Altri manuali per TL-R480T

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali TP-Link Router di rete

TP-Link

TP-Link EC330-G5u Manuale utente

TP-Link

TP-Link Archer C2600 Manuale utente

TP-Link

TP-Link TD-W9970 Manuale utente

TP-Link

TP-Link TL-R470T+ Manuale utente

TP-Link

TP-Link TD-W9977 Manuale utente

TP-Link

TP-Link SafeStream TL-ER6020 Manuale utente

TP-Link

TP-Link Deco S4 Manuale utente

TP-Link

TP-Link SR20 Manuale utente

TP-Link

TP-Link Archer AX53 Manuale utente

TP-Link

TP-Link TL-WR841N Manuale utente

TP-Link

TP-Link Archer C3200 Manuale utente

TP-Link

TP-Link EC330-G5u Manuale utente

TP-Link

TP-Link TL-WDR3600 Manuale utente

TP-Link

TP-Link Archer C2 Manuale utente

TP-Link

TP-Link TL-WPA8730 Manuale utente

TP-Link

TP-Link ARCHER MR200 Manuale utente

TP-Link

TP-Link archer VR900V Manuale utente

TP-Link

TP-Link Archer C5400X Manuale utente

TP-Link

TP-Link Archer C6 Manuale utente

TP-Link

TP-Link TD-W8961ND Manuale utente

TP-Link

TP-Link TD-W8151N Manuale di installazione e funzionamento

TP-Link

TP-Link Archer VR400 Manuale utente

TP-Link

TP-Link RE355 Manuale utente

TP-Link

TP-Link Archer VR900 Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza

LevelOne

LevelOne FBR-1416 Manuale utente
