TP-Link TL-SG1008 Manuale utente
TP-LINK TECHNOLOGIES CO.,LTD.
E-mailǖ[email protected]m
Websiteǖhttp:// www.tp-link.com.cn
ADDǖFI.3,Bldg.R1-B.High-Tech Industrial Park,Shenzhen Road.Shenzhen.China
71035787
User’s Guide
TL-SG1008
8-port Gigabit Ethernet Switch
TL-SG1016
16-port Gigabit Ethernet Switch
TL-SG1024
24-port Gigabit Ethernet Switch
TL-SG1048
48-port Gigabit Ethernet Switch
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a
registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands
and product names are trademarks or registered trademarks of their
respective holders.
No part of the specifications may be reproduced in any form or by any means
or used to make any derivative such as translation, transformation, or
adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD.
Copyright © 2007 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to pro-vide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.
CE Mark Warning
This is a class A product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.
SAFETY NOTICES
Cautions
Do not use this product near water, for example, in a wet basement or near a
swimming pool.
Avoid using this product during an electrical storm. There may be a remote risk
of electric shock from lightning.
CONTENTS
Package Contents .................................................................. 1
Chapter 1 Introduction of the Product.............................. 2
1.1 Overview of the Product...............................................................2
1.2 Features..........................................................................................2
Chapter 2 Installation......................................................... 4
2.1 Mounting the Switch on a Desk.......................................................4
2.2 Mounting the Switch in a Rack........................................................4
2.3 Power On........................................................................................5
Chapter 3 Identifying External Components.................... 7
3.1 Rear Panel......................................................................................7
3.2 LED Indicators ................................................................................7
Appendix A: Specifications ................................................... 9
Appendix B: Troubleshooting ............................................. 10
TL-SG1008/TL-SG1016/TL-SG1024/TL-SG1048
Gigabit Ethernet Switch User Guide
1
Package Contents
The following contents should be found in your box:
¾One Gigabit Ethernet Switch
¾One power cord
¾This User's Guide
¾Rubber footpads for Desk-mount
¾Rack-mount kit for installing the switch in a 19-inch rack
Note: If any of the above contents is damaged or missing, please
contact the retailer from whom you purchased the Gigabit Ethernet Switch for
assistance.
TL-SG1008/TL-SG1016/TL-SG1024/TL-SG1048
Gigabit Ethernet Switch User Guide
2
Chapter 1 Introduction of the Product
This chapter describes the features of the Gigabit Ethernet Switch.
1.1 Overview of the Product
The Gigabit Ethernet Switch provides you with a high-performance, low-cost,
easy-to-use, seamless and standard upgrade to boost your old network to
1000Mbps. Increase the speed of your network server and backbone
connections make Gigabit a reality. Power users in the home, office,
workgroup or creative production environment can now move large,
bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia
files and other applications that have to move large files across the network
almost instantly.
The Gigabit Ethernet Switch features a non-blocking switching architecture
that forwards and filters packets at full wire-speed for maximum throughput. It
is compatible with all 10,100, and 1000Mbps Ethernet devices because it is
standard-based, it protects your existing network investments while providing
you with a straightforward migration path to faster Gigabit speeds.
The Gigabit Ethernet Switch is plug-and-play and no configuration is required.
Auto MDI/MDI-X cable detection on all ports eliminate the need for crossover
cable or Uplink port. Each port can be used as general ports or Uplink ports,
and any port can be simply plugged into a server, a hub, a router or a switch,
using the straight cable or crossover cable. Diagnostic LEDs which display link
status and activity, allowing you to quickly detect and correct problems on the
network.
1.2 Features
¾Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab standards
TL-SG1008/TL-SG1016/TL-SG1024/TL-SG1048
Gigabit Ethernet Switch User Guide
3
¾8/16/24/48 10/100/1000Mbps Auto-Negotiation RJ45 ports
supporting Auto- MDI/MDIX
¾All ports Support full/half-duplex mode for 10/100Mbps and full
duplex- mode for 1000Mbps
¾Supports IEEE802.3x flow control for full-duplex mode and
backpressure for half-duplex mode
¾Non-blocking switching architecture that forwards and filters packets
at full wire-speed for maximum throughput
¾4K entry MAC address table of the TL-SG1008 and 8K entry MAC
address table of the TL-SG1016, TL-SG1024 and TL-SG1048 with
auto-learning and auto-aging
¾LED indicators for monitoring power, link, speed and activity
¾Store-and-Forward switching method
TL-SG1008/TL-SG1016/TL-SG1024/TL-SG1048
Gigabit Ethernet Switch User Guide
4
Chapter 2 Installation
2.1 Mounting the Switch on a Desk
Before placing the Switch on a desk, attach four rubber footpads to the flutes
on the Switch bottom, then lay the Switch on the desktop, where can be able
to withstand 5kg of weight.
TL-SG1008, TL-SG1016, TL-SG1024 and TL-SG1048 are different in the
number of LED indicators and RJ45 ports. All figures are of TL-SG1008 in this
user's guide.
Note
¾Make sure there is a grounded AC outlet within 1.5 meters, and working
well.
¾Make sure there is free space for radiating heat and air.
¾Make sure not too place anything to heavy on top of the switch.
2.2 Mounting the Switch in a Rack
The dimension of the Gigabit Ethernet Switch is designed according to the
standard 19” rack-mountable steel case of Electronic Industries Association.
Turn off all the equipment connected to the Switch before mounting it in the
rack, then rivet the two “L” brackets onto each side of the Switch, fasten it with
screws in the rack.
TL-SG1008/TL-SG1016/TL-SG1024/TL-SG1048
Gigabit Ethernet Switch User Guide
5

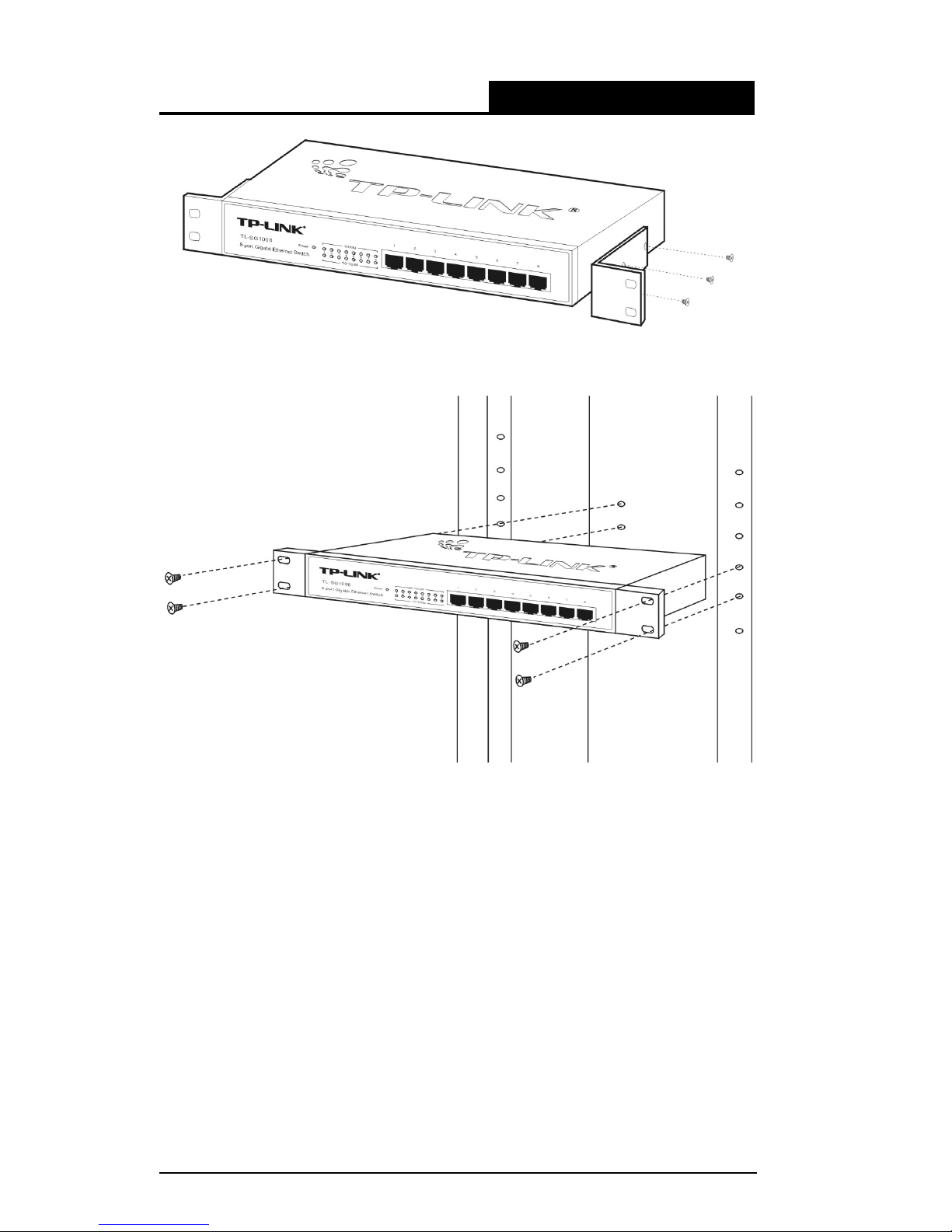

Figure 2-1 Rivet the “L” brackets onto the Switch
Figure 2-2 Fasten the Switch in the rack
2.3 Power On
The Gigabit Ethernet Switch is powered by AC power supply. Powering on the
Switch, it will automatically initialize and its LED indicators should respond as
follows:
1) All of the 10/100Mbps Link/Act and 1000Mbps Link/Act LED indicators of
the TL-SG1008 will flash momentarily at first, flash sequence later and
flash momentarily lastly, which represent a resetting of the system.
All of the 10/100Mbps Link/Act and 1000Mbps Link/Act LED indicators of the
