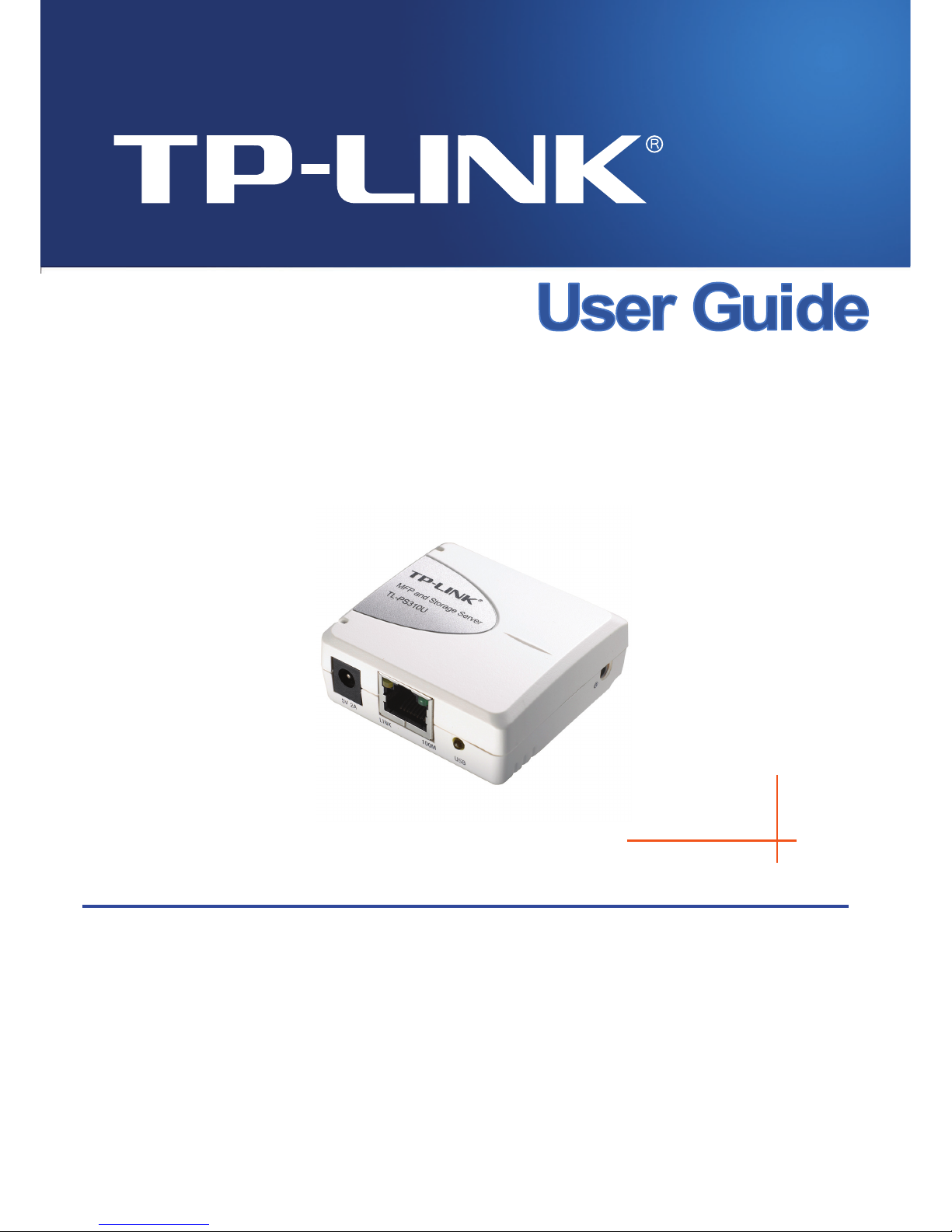

TP-Link TL-PS310U Manuale utente

TL-PS310U

Single USB 2.0 Port MFP and Storage Server

V1.1

1910010131

Specifications are subject to change without notice. is a registered trademark of TP-LINK

TECHNOLOGIES CO., LTD. Windows 2000/XP/Vista are registered trademarks of Microsoft Corp. Other

brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as translation, transformation, or adaptation without permission from TP-LINK

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that may cause

undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void

the user’s authority to operate the equipment.

III

CONTENTS

1INTRODUCTION..........................................................................................................1

1.1 Product Overview......................................................................................................1

1.2 Network Management ...............................................................................................1

1.3 Components and Features .......................................................................................1

1.4 Hardware Installation ................................................................................................1

2THE SOFTWARE INSTALLATION .............................................................................2

2.1 For Windows 2000/XP Users ....................................................................................2

2.1.1 Connecting to an USB Device.............................................................................................5

2.1.2 Connecting to an USB Printer or Multi-functional Printer .................................................... 8

2.1.3 Connecting to an USB HUB .............................................................................................. 10

2.1.4 Disconnecting an USB Device........................................................................................... 11

2.1.5 Request to Disconnect ...................................................................................................... 12

2.1.6 Setting the Polling Interval................................................................................................. 16

2.1.7 Setting the MFP and Storage Server by Setup Utility........................................................ 16

2.2 For Windows Vista Users ........................................................................................18

2.2.1 Connecting to an USB Device........................................................................................... 21

2.2.2 Connecting to an USB HUB .............................................................................................. 21

3WEB MANAGEMENT INTERFACE ..........................................................................22

3.1 For Windows 2000/XP/Vista Users .........................................................................22

3.2 WEB Page Description.............................................................................................22

4TROUBLESHOOTING...............................................................................................28

4.1 Frequently Asked Questions...................................................................................28

APPENDIX Configuring the PCs....................................................................................29

1 Introduction

1.1 Product Overview

MFP and Storage Server enhance capability by letting you place your USB devices at convenient

locations directly on the Ethernet network. It’s designed to connect your USB printers, MFP and USB

storage devices to your network, allowing all network users access to these USB devices remotely.

1.2 Network Management

MFP and Storage Server support the WEB management, which remote management and a warning. A

standard WEB server is permanent on these MFP and Storage Servers. Any standard WEB browser can

be used to access and manage these MFP and Storage Servers.

1.3 Components and Features

y1-USB2.0 Port MFP and Storage Server

y1 USB2.0 port (High-speed)

yFast Ethernet network port: RJ-45 for 10Base-T or 100Base-TX

yLINK LED to indicate network connection,100M LED to indicate 100M connection, USB LED to

indicate USB status

yOne Setup CD for Windows 2000/XP/Vista, User’s Guide

yOne power adapter

yBuilt-in Reset Button

Before you start, you should prepare:

¾One Windows 2000/XP/Vista computer with CD-ROM drive

¾One USB devices with USB port

1.4 Hardware Installation

Make sure that your USB devices are switched off and that the MFP and Storage Server’s power adapter

is disconnected.

1) Connect your USB device to the USB port of the MFP and Storage Server.

2) Connect the MFP and Storage Server to the router or switch/HUB with the Ethernet cable.

3) Connect the power adapter to the MFP and Storage Server. When the Link LED lights up, the MFP

and Storage Server is correctly connected to the network.

2 The Software Installation

2.1 For Windows 2000/XP Users

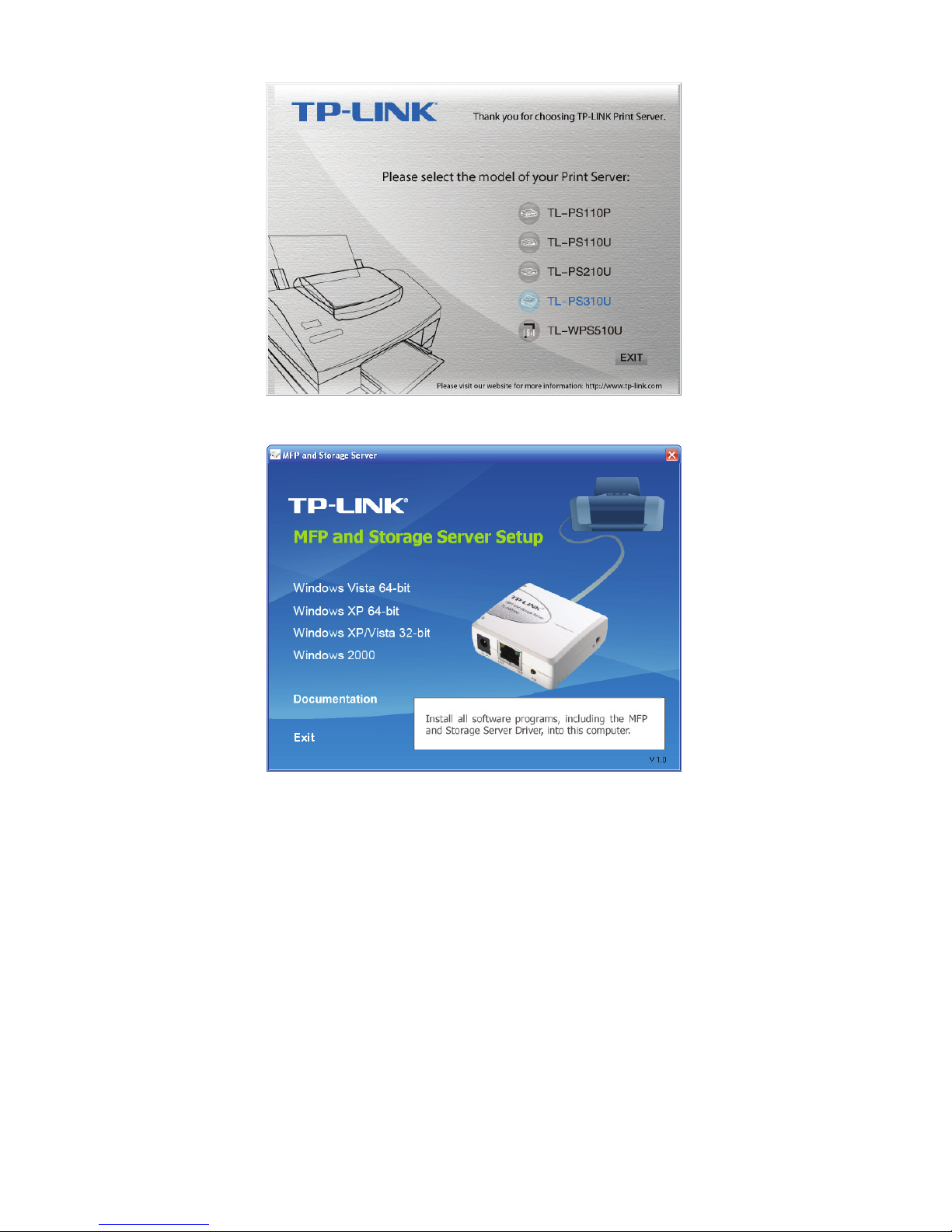

1) Insert the setup CD into your CD-drive. The auto-run program will be started.

2) Click the TL-PS310U to begin the setup.

3) Choose your operating system to install all software programs.

4) When the installation completed, click “Finish” to close the installation wizard.

5) On your desktop you will see a new icon, double-click the icon and it will bring up the MFP and

Storage Server setup utility.

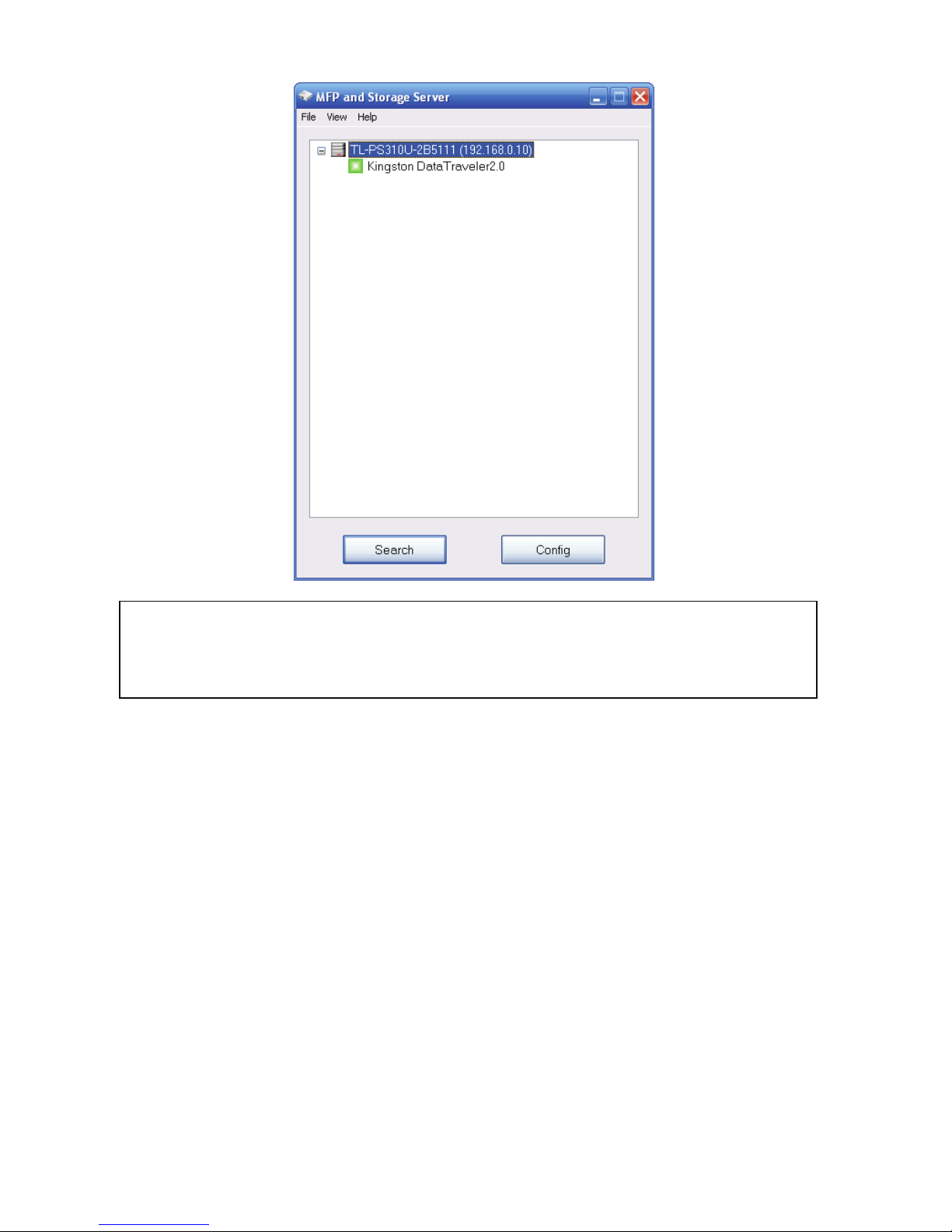

6) The setup utility will show up and display all the active MFP and Storage Servers on your network. In

this screen, you will see the product listed as “TL-PS310U-2B5111(192.168.0.10)”. The “2B5111” is

the last 6 digits of the MFP and Storage Server’s MAC address, and the “192.168.0.10” is the MFP

and Storage Server’s IP address.

2.1.1 Connecting to an USB Device

a) Connect the USB cable on your USB device to the USB port of the MFP and Storage Server, and

make sure both the USB device and the MFP and Storage Server are powered on. The USB device

will then show up on the MFP and Storage Server utility as a green icon. The green icon indicates that

the USB device is ready to be connected. If for any reason the USB device does not show up, please

click the “Search” button to refresh the list.

b) Select the USB device that you will want to connect and click on the “Connect” button at the bottom.

Note:

If your USB device does not show up on the list, please try to disconnect and reconnect the USB

device to the USB port of the MFP and Storage Server. Also, please make sure the MFP and

Storage Server and your USB device are powered on.

c) Once the USB device has been connected, the green icon( ) will turn orange( ) to indicate that the

connection has been established. The USB device now becomes available on your computer, and you

can use this USB device as if it was directly connected to your computer.
