Product information TQ Roboter Flexible Base Plate
V 2.0 | 03/2023 | ENG Copyright © TQ-Systems GmbH 1/ 2
TQ Roboter Flexible Base Plate
TQ robot flexible Base Plate.
Material number: 334600.0101
Follow these instructions for correct and safe
operation.
1. Scope of delivery
1x Base plate
The mounting material is not included in the scope of
delivery.
2. Symbols
General warning sign
Warning: Electricity
General mandatory action sign
Refer to instruction manual / booklet
• Lists
1. Numbering (The consecutive numbering defines
the sequence of the instructions given.)
Reference
3. Intended use
The TQ Flexible baseplate is used for mounting the
Franka Production 3 (Franka Emika GmbH) robot on
different profile systems.
NOTE
The product is used as part of a higher-level
overall system.
Project planning, assembly, and commissioning
exclusively by authorized specialist personnel
with the following knowledge:
• Knowledge of the applicable regulations
on occupational safety and accident
prevention
• Knowledge of applicable EMC regulation.
All applications deviating from the intended use are
regarded as improper use.
These include, for example:
• Do not use outdoors
• Use outside the permissible technical operating
limits
• Do not use in potentially-explosive environments
• Do not ignore safety instructions
• Do not operate a faulty machine
4. Safety Instructions
NOTE
Prior to handling the base plate (assembly, use,
control) , you must have read and understood the
content of this Product information.
• Comply with instructions and notes
NOTE
Assembly and commissioning only by authorized
specialist personnel who have special knowledge
of how to use the product.
5. Assembly
NOTE
Device damage due to incorrect
installation/attachment and unsuitable
environmental conditions.
Prerequisites:
• The profile table on which the base plate for the
Franka Production 3 robot (Franka Emika GmbH)
is mounted must be designed for the load and
anchored to the floor.
• The following maximum forces must be absorbed
by the profile table in static and dynamic mode:
– Vertical force: max. 410 N
– Horizontal force: max. 300 N
– Tilting torque: max. 280 Nm
– Torque around axis 1: max. 90 Nm
• Make sure the mounting surface is level.
• Observe the documentation of the robot Franka
Production 3 (Franka Emika GmbH).
• The robot Franka Production 3 (Franka Emika
GmbH) must not be live during assembly.
NOTE
Do not use any sharp or pointed objects to open
the packaging.
1. Remove packaging
2. Check that the delivery is complete and
undamaged, otherwise contact the manufacturer.
Impressum
NOTE
Tighten the screws with a tightening torque of 23
Nm.
Mounting base plate on the profile table
Required tool:
• Allen key M8
Required mounting material:
• 4x Cylinder Screw with hexagon socket DIN 912
A2 M8x25 strength class 8.8
• 4x Washer DIN 125 A2 for M8

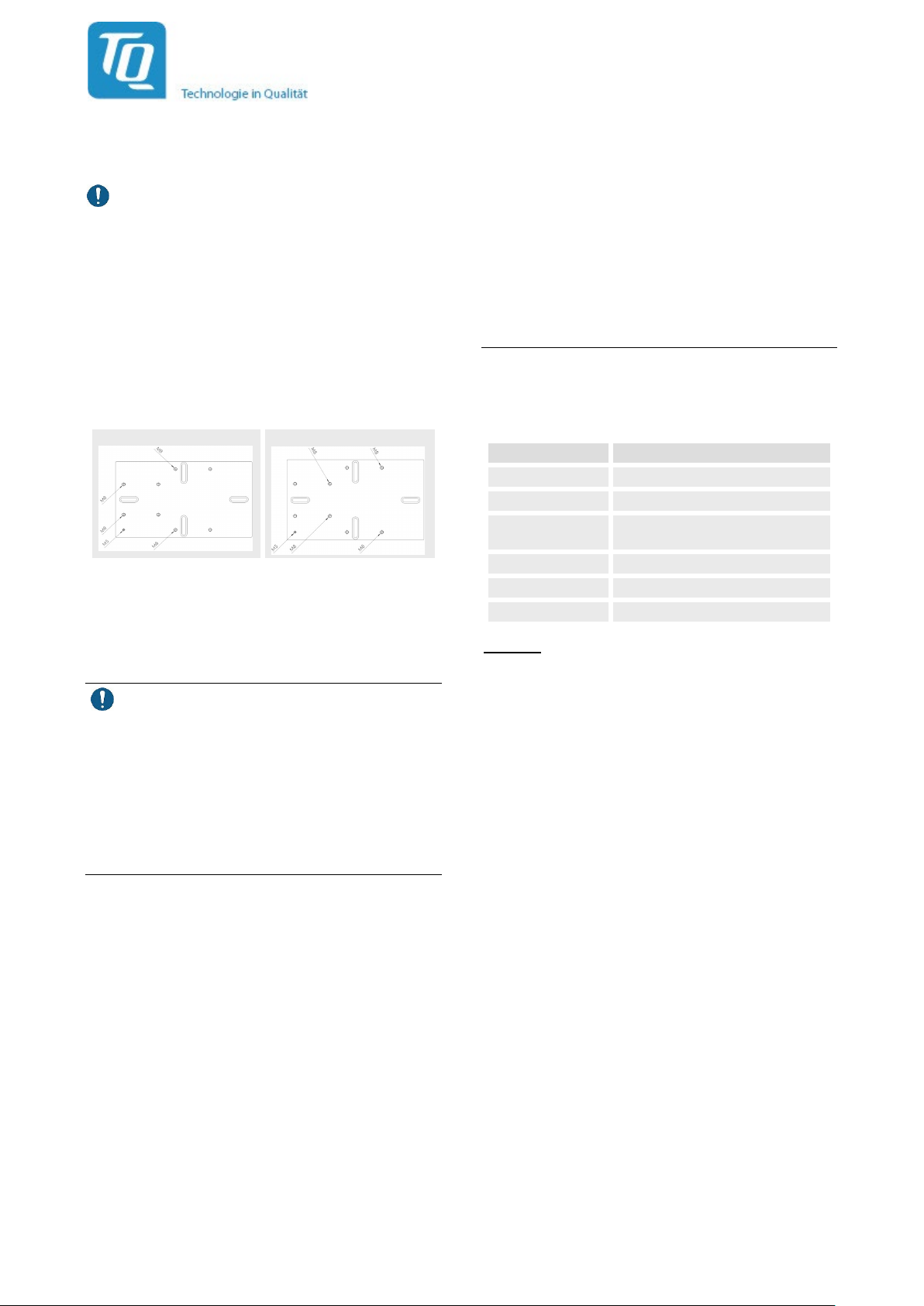

Possible grids for mounting:
