TraffiCalm M75-SOLAR-000C Manuale utente

Solar Power Kits

Covers Solar Kits:

100W70AH M75-SOLAR-000C

60W 35AH M75-SOLAR-000S

100W 140AH M75-SLR14-000C

E. 5676 Seltice Way Post Falls, Idaho 83854 1-855-738-2722 support@trafficalmsystems.com

Installation Instructions 029-03748-0000 Rev F May, 2020

Solar N-C-S Installation Instructions 029-03748-0000 rev E

REVISION BLOCK

REV.

DESCRIPTION

DATE

APPROVED

Original Release

November 17, 2012

A-1

Updated Battery wiring

cautions,, REV Block

November 19, 2012

Part number assigned

November 26, 2012

Solar Mounting Revision

October 4, 2017

Removed Solar N

reference

May, 2018

Updated Panel Ratigins

May, 2020

Andy P.

This product was manufactured in an ISO 9001 certified facility.

Table of Contents

1Safety Information.............................................................................................................................................. 2

1.1 Intended Use ................................................................................................................................ 2

1.2 Technical Support .........................................................................................................................2

1.3 Safety Messages….........................................................................................................................2

1.3.1 Safety Message Format.....................................................................................................2

1.4 Safety Considerations .................................................................................................................. 3

1.4.1 Personal Safety Equipment and Clothing ....................................................................... 3

1.4.2 Electrical Shock .............................................................................................................. 3

1.4.3 Battery Safety.................................................................................................................. 4

1.4.4 Mechanical Safety............................................................................................................ 4

2Description ......................................................................................................................................................... 5

2.1 Specifications................................................................................................................................5

2.2 Required Maintenance ................................................................................................................. 5

2.3 Battery Life… ...............................................................................................................................5

3Installation Requirements.................................................................................................................................. 6

3.1 Equipment Requirements..............................................................................................................6

3.2 Installation of Solar Panel .............................................................................................................6

3.3 Battery Box Installation… ............................................................................................................6

Warranty…............................................................................................................................................................... 9

Appendix A: Solar Kit Battery Box Drawing ..................................................................................................... 10

Appendix B: Solar Panel Structure assembly ......................................................................................................11

NOTICE: Because of TraffiCalm’s commitment to continuous improvement the content of these documents

and product specifications may change without notice. Please contact your partner or TraffiCalm Technical

service to check for updates before planning your installation.

Solar N-C-S Installation Instructions 029-03748-0000 rev E

Safety Information

We provide important safety information and

warnings to assist you in understanding and avoiding

potential harm to yourself, and possible damage to

equipment during the installation of TraffiCalm LED

Sign solar kit. Although we have included many

potential hazards you may encounter during the

installation of this equipment, we cannot predict all

of the possible hazards and this list should not be a

substitute for your judgment and experience.

Please read and observe all safety information

and instructions in this manual before installing

the system equipment. Also, save this installation

manual for future reference.

If you are unsure about any part of this installation or

of the potential hazards discussed, please contact

your supervisor immediately.

1.1

Intended Use

The solar kit is intended to be used to power the

TraffiCalm LED displays.

1.2

Technical Support

If you have questions about the system, its use, or

operation, please contact your local partner or call

the TraffiCalm Technical Service department at 1-

855-738-2722, in the U.S.A. Technical service

hours: Monday through Thursday, 7:00 AM to 5:00

PM and Friday from 7:00 AM to 12:00 PM Pacific

Standard Time.

1.3

Safety Messages

We include safety messages in this manual to help

you protect your safety and the safety of others. This

section contains important information to help you

recognize and understand these safety messages.

Please read all messages before

proceeding with the installation of this equipment.

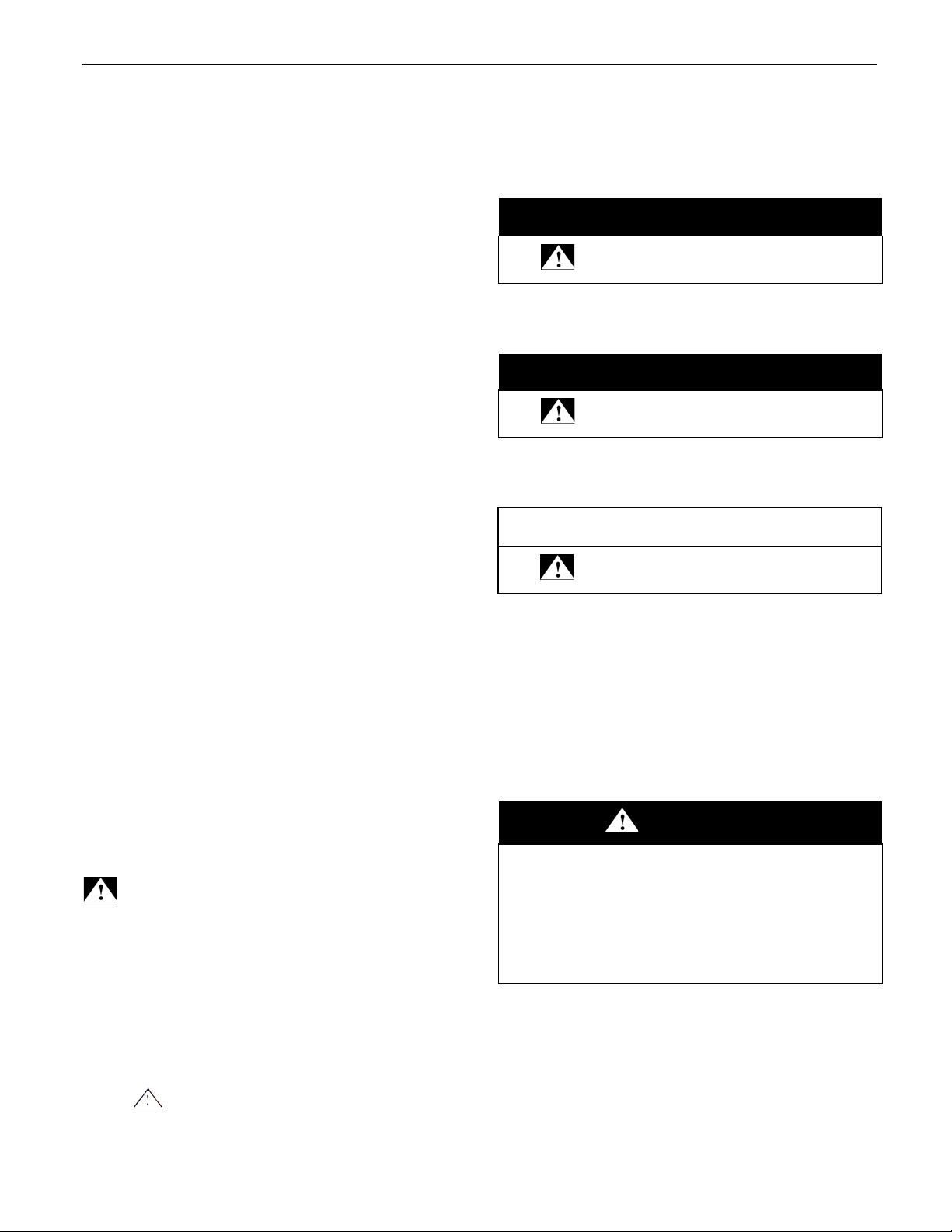

1.3.1 Safety Message Format

Safety messages are designed to alert you to potential

hazards that can cause personal injury to you or

others. They can also indicate the possibility of

property damage.

Each safety message box contains the safety alert

symbol ; and one of three signal words:

DANGER, WARNING, or CAUTION; plus a safety

message.

The signal words and symbols, and their meanings,

are shown below:

DANGER

The safety message is in this box.

DANGER indicates a potentially hazardous

situation, which, if not avoided, will result in

death or serious injury and/or property damage.

WARNING

The safety message is in this box.

WARNING indicates a potentially hazardous

situation, which, if not avoided, could result in

death or serious injury and/or property damage.

CAUTION

The safety message is in this box.

CAUTION indicates a potentially hazardous

situation, which, if not avoided, may result in

minor or moderate injury and/or property

damage.

In addition to the symbols and words explained

above, each safety message identifies the hazard,

describes what you can and should do to avoid the

risk of exposure to the hazard, and tells the probable

consequences of not avoiding the hazard.

WARNING

Battery acid may cause skin irritation and eye

injury. To reduce the risk of burns or other

acid related injury resulting from handling

lead-acid batteries:

-Wear gloves, goggles, and an apron when

handling batteries,

-Handle batteries with care.

Solar N-C-S Installation Instructions 029-03748-0000 rev E

1.4

Safety Considerations

Please consider the following safety issues

before servicing TraffiCalm Driver Feedback

Signs and power systems.

Although we have compiled this list of common

safety considerations, it should not be considered as

complete. It is not intended to take the place of your

good judgment, training, and experience. Choose the

right equipment for the job. If you are unsure of

which safety equipment is recommended or

appropriate for the job, ask your supervisor or

foreman.

1.4.1 Personal Safety Equipment and

Clothing

Personal safety equipment and clothing including

high visibility vests, hard hats, gloves, electrical

shock or electrocution protection clothing and

equipment, safety shoes, safety glasses, face shields,

goggles, and hearing protection devices are just some

of the items available to you.

1.4.2

Electrical Shock

As a trained installer of electrical equipment you

are aware of the dangers associated with servicing

electrical devices. Always be sure that the power to

the equipment, and all associated equipment, is

turned off before beginning any procedure. Use the

equipment, techniques, and procedures that you

learned during your training or apprenticeship or

other electrical industry recognized safety

procedures.

lifting techniques and have adequate help.

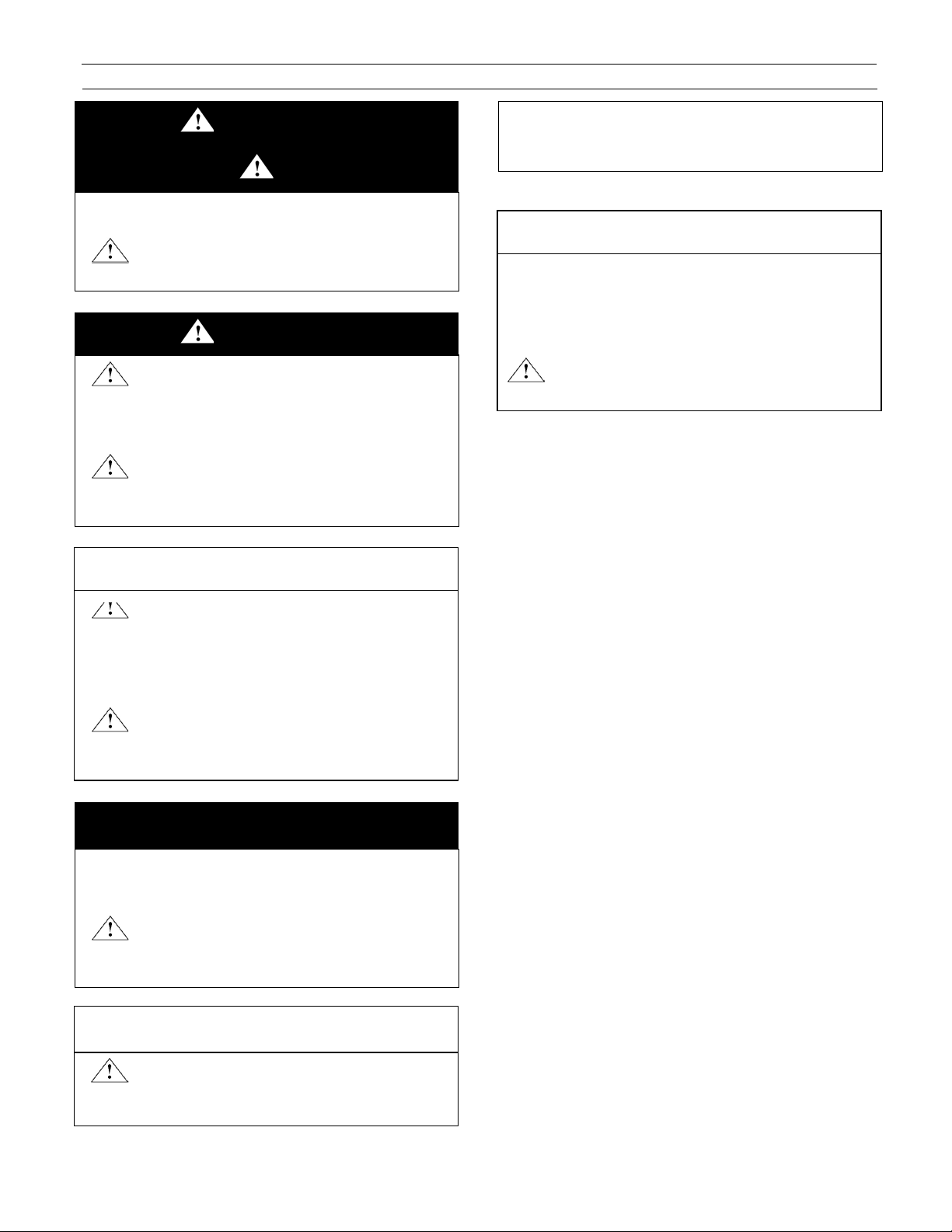

WARNING

To reduce the risk of burns or other acid-related

injury resulting from exploding batteries:

-Always use the recommended

charging systems with this product.

CAUTION

To avoid the possibility of injury due to falling or

unstable equipment:

-Be certain the sign is mounted to an

appropriately rated pole or equivalent

mounting surface.

-Use appropriately rated mounting

hardware.

WARNING

To reduce the risk associated with

contamination of water supplies resulting

from improper disposal of batteries containing

lead and acid:

-Please dispose of batteries in

accordance with all local government laws

and regulations.

CAUTION

An accidental short circuit may

instantly heat conductive jewelry, tools, and

surrounding objects to skin-searing

temperatures. To reduce this risk when

working around batteries:

-Keep tools, jewelry, and other

conductive objects away from the battery

terminals.

WARNING

To reduce the risk of impact hazards resulting

from falls, accident with a passing vehicle,

and/or from unstable equipment:

-Use appropriate work zone traffic

control methods, equipment, and

procedures.

CAUTION

Strain or back injury may result from

lifting equipment improperly. To reduce the

risk of strain or back injury, use proper

Solar N-C-S Installation Instructions 029-03748-0000 rev E

1.4.3

Battery Safety

Batteries may produce an explosive gas under some

conditions. This gas may easily be ignited by a spark

or flame as you work near the battery. To reduce the

risk of explosion, disconnect the battery, work in a

well ventilated area, avoid the use of devices that

create sparks or use open flames, and use appropriate

personal safety equipment and clothing.

1.4.4

Mechanical Safety

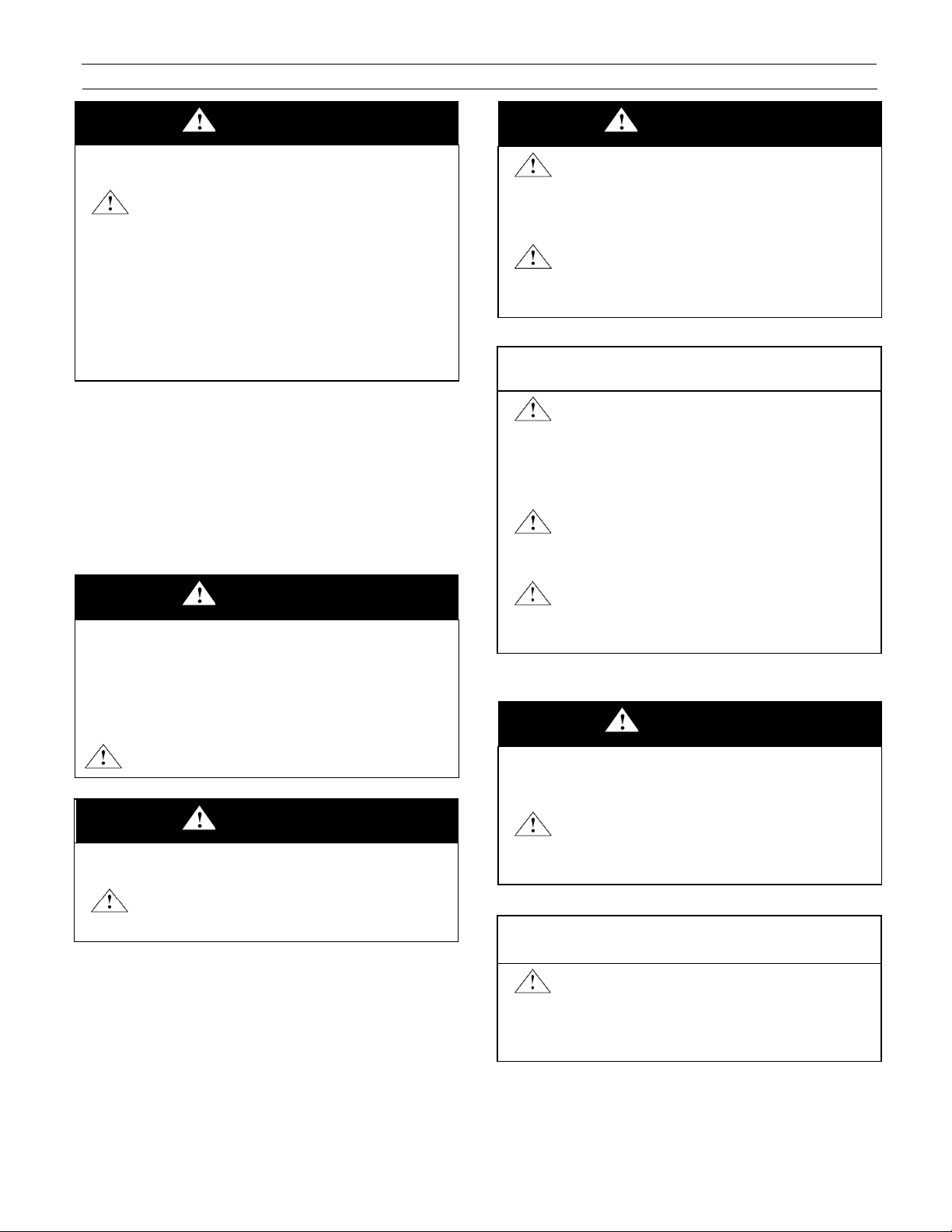

WARNING

To reduce the risk of electric shock related injury

resulting from contacting hazardous AC voltage:

-The charging activity on this

equipment must be performed by qualified

personnel who is someone with previous

training or who has received factory

training on these or similar types of

equipment so that they thoroughly

understand the techniques, tools, and

methods required to properly service this

equipment.

WARNING

To reduce the risk associated with

contamination of water supplies resulting

from improper disposal of batteries containing

lead and acid:

-Please dispose of batteries in

accordance with all local government laws

and regulations.

CAUTION

An accidental short circuit may

instantly heat conductive jewelry, tools, and

surrounding objects to skin-searing

temperatures. To reduce this risk when

working around batteries:

-Keep tools, jewelry, and other

conductive objects away from the battery

terminals.

-Do not connect the battery stub

ring lugs to the harness until they are

securely attached to a battery first.

WARNING

Battery acid may cause skin irritation and eye

injury. To reduce the risk of burns or other

acid related injury resulting from handling

lead-acid batteries:

-Wear gloves, goggles, and an apron when

handling batteries,

-Handle batteries with care.

WARNING

To reduce the risk of impact hazards resulting

from falls, accident with a passing vehicle,

and/or from unstable equipment:

-Use appropriate work zone traffic

control methods, equipment, and

procedures.

WARNING

To reduce the risk of burns or other acid-related

injury resulting from exploding batteries:

-Always use the recommended

charging systems with this product.

CAUTION

Strain or back injury may result from

lifting equipment improperly. To reduce the

risk of strain or back injury, use proper

lifting.

Solar N-C-S Installation Instructions 029-03748-0000 rev E

2Description

The solar kit provides power for a TraffiCalm LED

display system using the energy of the sun. Display

operating endurance obtained will vary with

installation location and conditions, battery

condition, weather conditions, and display settings.

Depending on the part number supplied (see cover

page) this kit may include one 150 watt solar panel,

or one 100W solar panel or one 60W solar panel, a

battery box, mounting brackets, and appropriate

conduit to connect the system. The battery box

contains four batteries and the charge control device.

The following tables contain the specifications for

the solar panels and the batteries.

2.1 Specifications

Solar Panel:

Polycrystalline 60W, 12V, (Pmax 17.8V, 3.37A).

Polycrystalline 100W, 12V, (Pmax 17.3V, 4.63A).

Battery:

Sealed 12V, 35AH, AGM, 23-lbs, 7.68” x 5.12” x

6.10” with “button” connectors. Non-Spillable

DOT approved.

Solar Charger:

Morning Star Sunsaver 20L.

20A rated input (solar panel).

Regulation Voltage 14.1V.

Regulation method is PWM.

Maximum Solar Voltage 25V.

Wiring Harness battery connection is fused at 10A

fast acting with an ATO 32V fuse.

Enclosure:

NEMA 3R rating.

Mounting bracket for banding or bolting provided.

Enclosure is insulated with R3.3 foil faced rigid foam

insulation on all inside surfaces. Batteries sit on

polycarbonate shelves.

2.2

Required Maintenance

Although this system is designed to require little

maintenance, the system will perform most

efficiently if a small amount of maintenance is

performed.

Inspect and clean the solar panel periodically. Check

for local vegetation shading the panel and prune back

as needed.

When replacing battery be sure to use a sealed

battery of the correct voltage and capacity ratings.

2.3

Battery Life

These are suggestions for obtaining the greatest

battery lifetime.

oNever let the battery sit in a discharged state

for more than a few days.

oDuring extended cloudy days monitor the

battery level and either recharge as necessary

or reduce the power consumed by the display

by limiting its operation.

oTry to configure the display in such a way as

to ensure that no more than 50% of the

battery charge is removed at any time.

oPerform a maintenance charge on the battery

3 to 4 times each year.

CAUTION

To avoid the possibility of injury due to falling or

unstable equipment:

-Be certain the sign is mounted to an

appropriately rated pole or equivalent

mounting surface.

-Use appropriately rated mounting

hardware.

Solar N-C-S Installation Instructions 029-03748-0000 rev E

3Installation Requirements

This section describes the components, tools, and

information you must have available before

installing TraffiCalm 140Ah Solar Kit.

3.1

Equipment Requirements

In addition to the Driver Feedback Sign to be

installed, you will need the following suggested

items if you intend to follow these directions:

oPole and Footing material

oStainless steel banding and banding clips and

application tool or adjustable steel banding

for installing Battery Box & Sign

oAssorted hand tools.

oSocket set and drive handle.

oU-Bolts for installing solar panel

3.2

Installation of Solar Panel

NOTE

It is the installer’s responsibility to

ensure that this installation

complies with local and national

codes.

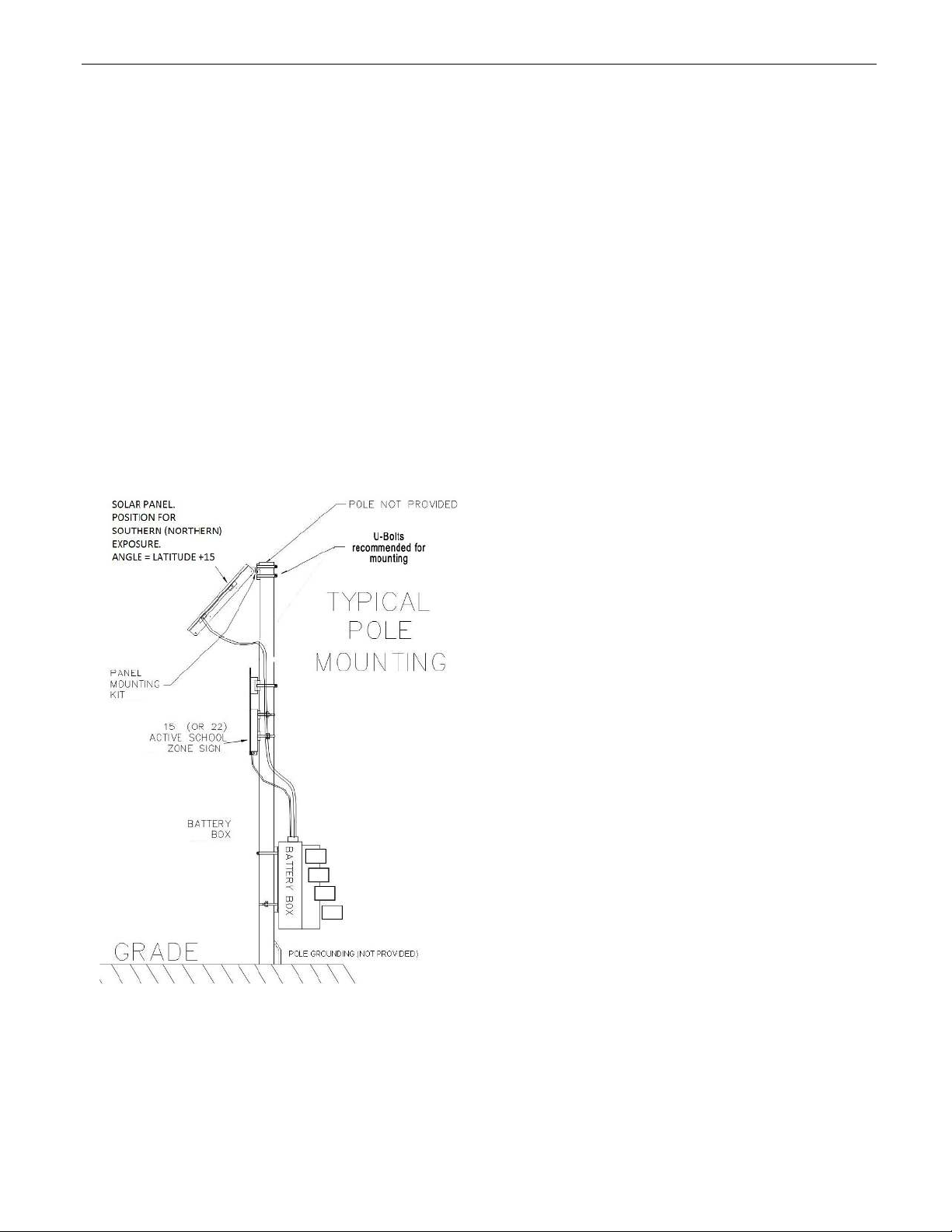

Use a pole of proper size with an appropriate footing

for the soil and load conditions. Consult with a

professional Civil engineer for proper pole selection

and footing design for the local area. Assemble

the solar panel mounting bracket using directions

supplied with the mounting bracket components.

Install the mounting bracket onto the pole with user

supplied (U-Bolts).

In northern latitudes aim the bracket at true South,

not magnetic south. True South is the direction

facing the sun parallel to the shortest shadow of the

day cast by the sign pole, which occurs at “Solar

Noon”. To estimate what time solar noon will occur

in your area go to the NOAA web site with your

longitude and latitude.

http://www.srrb.noaa.gov/highlights/sunrise/sunrise.h

tml

Set the bracket angle using your current latitude +15

degrees as measured from horizontal (flat) to the final

position. Example: If the latitude is 45-degrees, set

the panel angle 60-degrees away from flat. You may

be able to get a small amount of additional power by

calculating the set angle using: Latitude *0.9 +29.

This results in a steeper angle than the other method,

optimizing collection around the noon hours during

the winter months, which is when the most solar

energy is available.

Install the solar panel onto the mounting bracket.

3.3

Battery Box Installation

Note: you may wish to cover the solar panel during

daylight installation to prevent accidental short

circuit of energized panel during installation.

Attach the “I” bracket to the battery box using

the included hardware.

a. Attach the “I” bracket to the center holes of

the battery box using two 3/8-16 x 1-1/4 inch

bolts, two 3/8-inch flat washers, and two

lock washers. (These bolts are hidden when

the battery box is mounted on the pole.)

b. Install 3/8-16 x 1-inch bolts in the remaining

four holes of the bracket with a flat washer

and a lock washer on each bolt.

Attach the battery box to the pole with user-

supplied 3/4-inch banding and a buckle in two

places (as close to each cross arm of the bracket

as possible).

Connect battery power to the Electronic Control

System (ECS) see Figure 3-1 (15” DFB ECS

Solar N-C-S Installation Instructions 029-03748-0000 rev E

Shown with optional beacon cable set, see your

display installation manual for other display size

connections).

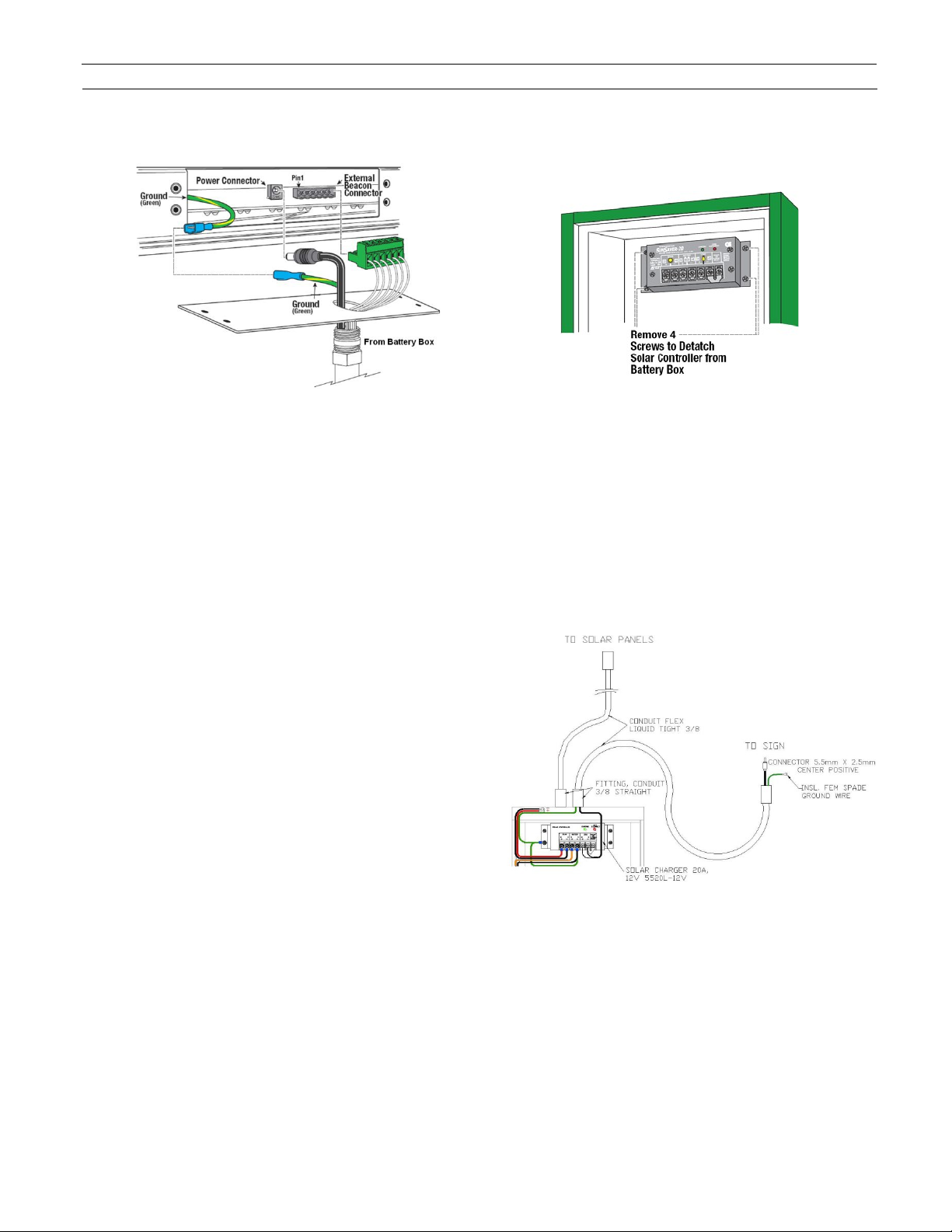

Figure 3-1. 15” Display ECS Access Panel

a. Route the supplied 5 foot conduit with DC

power wire and ground cable from the

battery box to the bottom of the ECS. It can

be installed at either the top or bottom of the

battery box, but if installed at the bottom,

extra wire (#14 Red and Black, not supplied)

will have to be spliced in to make up the

extra length used.

b. At the bottom of the ECS, remove the access

panel and route the power cord and green

ground wire through the conduit receptor

located on the access panel. Plug in the

power connector to the power connector

receptacle located inside the ECM. Connect

the ground wire to the green wire located

inside the ECS.

c. Secure the conduit to the conduit receptor.

d. Install the access panel cover.

Route solar panel wires to the battery box. See

Figure 3-2.

a. Remove the battery box cover.

b. In the battery box, remove the two right side

screws and loosen the two left side screws on

the solar charger.

c. Pull the charger away from the mounts and

allow it to hang out of the way.

d. Remove the insulation panel that was under

the charger and store it in a safe place. (This

gives access to the conduit fittings from

inside of the enclosure.)

e. Install the wires and cable from the sign and

solar panel (solar panel left, sign right)

through the provided conduit fittings, and

then tighten the conduit connectors onto the

pre-installed fittings.

f. Replace the insulation panel removed earlier,

and re-install the solar charger.

Figure 3-2. Remove Solar Charger from

Battery Box

Connect ECS wires to solar charger in battery

box. See Figure 3-3.

a. Connect the ground wire from the display to

the solar charger mounting screw.

b. Connect the ECS power cable lead with the

white stripe to the solar charger terminal

marked “LOAD +”, which is terminal 6.

c. Connect the other ECS power cable lead to

the terminal marked “LOAD –“, which is

terminal 5.

Figure 3-3. Wiring Solar Charger

in Battery Box

Install the batteries in the battery box. Install the

battery Ring Lug stubs onto the batteries first.

Then connect the batteries to their respective

connectors (one set provided per shelf) in the

harness matching orange to orange and black to

black. The operating voltage is 12VDC. At this

point the display has power.

Connect the wires to the solar panel.

a. At the solar panel, make sure the opaque

cloth is still covering the panel.

Solar N-C-S Installation Instructions 029-03748-0000 rev E

b. In multi-panel parallel solar arrays inspect

that blocking diodes are properly installed on

the solar panel terminal blocks (in the solar

panel wiring boxes) to prevent back feeding

on shaded panels.

c. Connect the battery box red wire (+) to the

panel + on the solar panel terminal block.

Connect the battery box black wire to panel

negative in the panel terminal block.

8. Connect the solar panel wires to the solar

charger in the battery box. See Figure 3-3.

a. Make sure the opaque cloth is still covering

the panel.

b. Connect the solar panel red wire to the

positive (+) terminal of the solar charger “SOLAR +”

terminal (4).

c. Connect the solar panel black wire to the

solar charger “SOLAR –“ terminal (3).

Check the panel operation and battery charging using

a volt meter. During daylight hours, if the battery

voltage rises above night levels, then the solar panel

and charger are working.

Monitor the charge process through a full charge. If

the charge voltage is excessive, then the charger may

have failed and will damage the batteries unless

action is taken to disconnect the solar panel until

repairs are made.

The charger is temperature compensated. It is

normal for the charge voltage to be higher when the

weather is cold, and lower when the weather is hot.

The normal full charge voltage varies -28mV per

degree C of deviation from 25°C.

Note: The solar panel only provides power

when illuminated by the sun. If the panel was

covered during installation, remove the cover

before performing this test.

For best results, start with a new fully charged

battery. Never mix old and new batteries. Be sure

to ground the solar panel rack and battery box

properly according to code.

Solar N-C-S Installation Instructions 029-03748-0000 rev E

TraffiCalm Systems, a division of MOR Manufacturing, provides the following warranty for its traffic

calming solutions whether sold directly by TraffiCalm or by an authorized TraffiCalm distribution

partner.

Warranty

•TraffiCalm Systems warrants the product, excluding batteries, will be free of defect in

materials and workmanship for a period of two (2) years beginning on the day the end

user receives the product. Warranty is only valid if the product is ineffective for its

intended purpose due to defects in materials or workmanship.

•Warranty is only valid if the product is installed, operated and maintained in accordance

with the manufacturer’s instructions and recommendations (available upon request).

•TraffiCalm’s sole responsibility and the purchaser’s and user’s exclusive remedy shall be

that TraffiCalm will furnish replacements for defective parts.

•Replacement parts will carry the unexpired warranty of the parts they replace. Non warranty

repairs are guaranteed for a period of 90 days.

•Claims made under this warranty will be honored only if TraffiCalm is notified of a failure

within the warranty period, reasonable information requested by TraffiCalm is provided,

and TraffiCalm is permitted to verify the cause of the failure.

•TraffiCalm assumes no liability for any incidental or consequential damages, in any way

related to the product regardless of the legal theory on which the claim is based.

This warranty does not cover damage resulting from:

Accidents, vandalism, impact with a foreign object or acts of God.

Product modifications made by someone not authorized by TraffiCalm

Failure of Customer to follow TraffiCalm’s published operating instructions,

Failure to follow TraffiCalm’s published site selection and installation instructions,

Removal or relocation of the unit,

Electrical work external to the unit, virus/hacker activity, and external computer

errors.

THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES AND CONDITIONS,

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES

AND CONDITIONS OF MERCHANTABILITY.

E. 5676 Seltice Way Post Falls, Idaho 83854 1-855-738-2722 support@trafficalmsystems.com

Appendix A: Solar Kit Battery Box Drawings

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali TraffiCalm Invertitore

TraffiCalm

TraffiCalm Solar N Manuale utente

Manuali Invertitore popolari di altre marche

Fourgroup

Fourgroup Easy Manuale utente

Velleman

Velleman PI300M Manuale utente

Sungrow

Sungrow SG350HX-US Manuale utente

WilTec

WilTec 61897 Manuale utente

SMA

SMA SUNNY BOY STORAGE 2.5 Manuale utente

Simplicity

Simplicity LANDLORD 316 Manuale utente

Santak

Santak SMAX 3000 Manuale utente

ATON

ATON RA.Store-3 Manuale utente

ZIEHL-ABEGG

ZIEHL-ABEGG FXET4AMQ Manuale utente

Tektronix

Tektronix CFG250 Manuale utente

Champion

Champion 200989 Manuale utente

Vanner

Vanner 20-500 Series Manuale utente

GE GEP Manuale utente

Astrel Group

Astrel Group Power Reducer Guida rapida

MULTIQUIP

MULTIQUIP GDP-5H Guida

GoWISE

GoWISE PS1007 Manuale utente

Promate

Promate PM13500D ES Manuale utente

Mastervolt

Mastervolt WHISPER 3.5M3000 RPM Manuale utente
