Assembly Guide

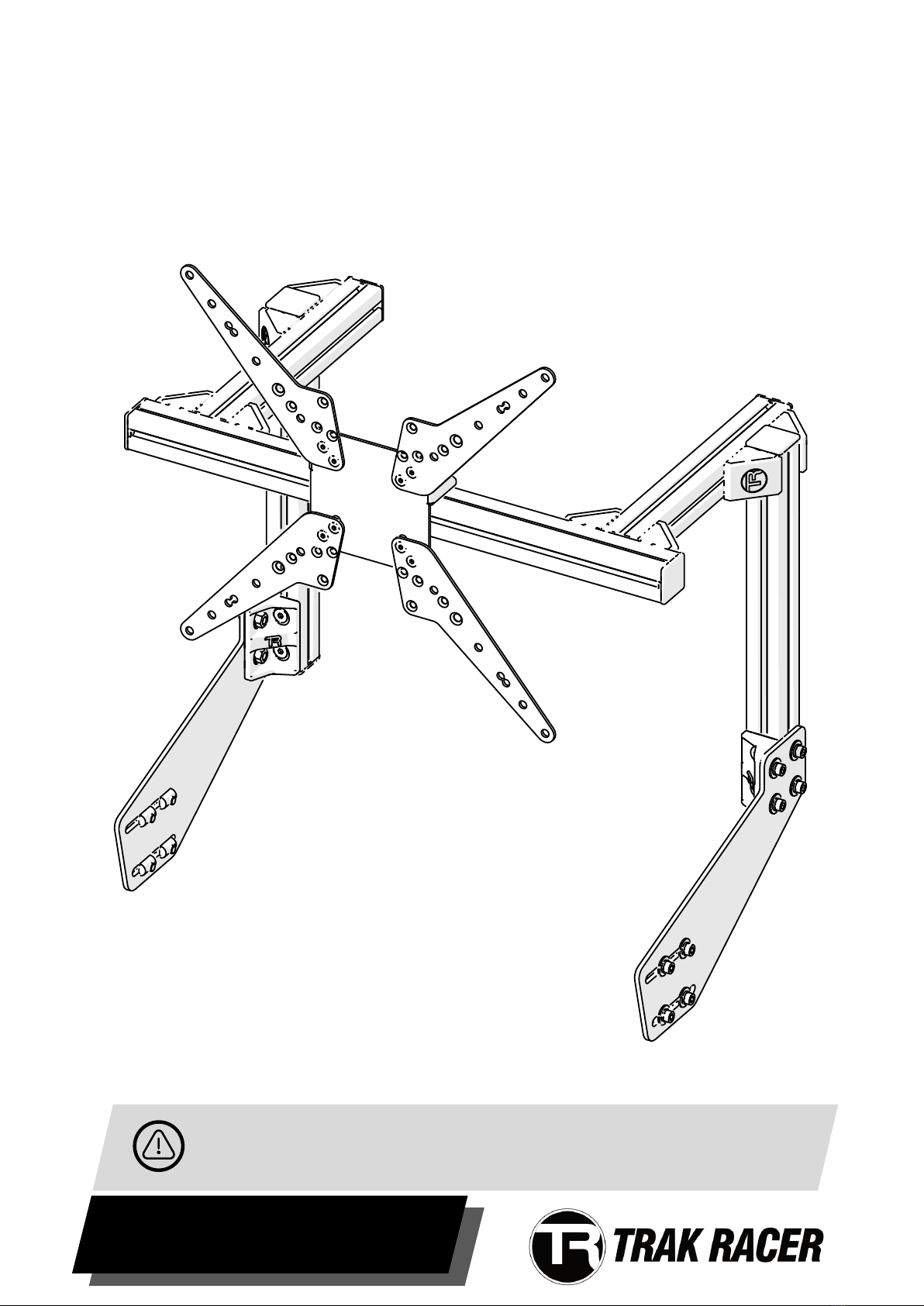

MONITOR STAND
Published 2023‑12‑22
MS-CM-SML2
IMPORTANT: As there are different versions of each rig depending on your
region, please ensure that you are using the correct instruction set. The
part number below should match the part number labeled on your box
TABLE OF CONTENTS

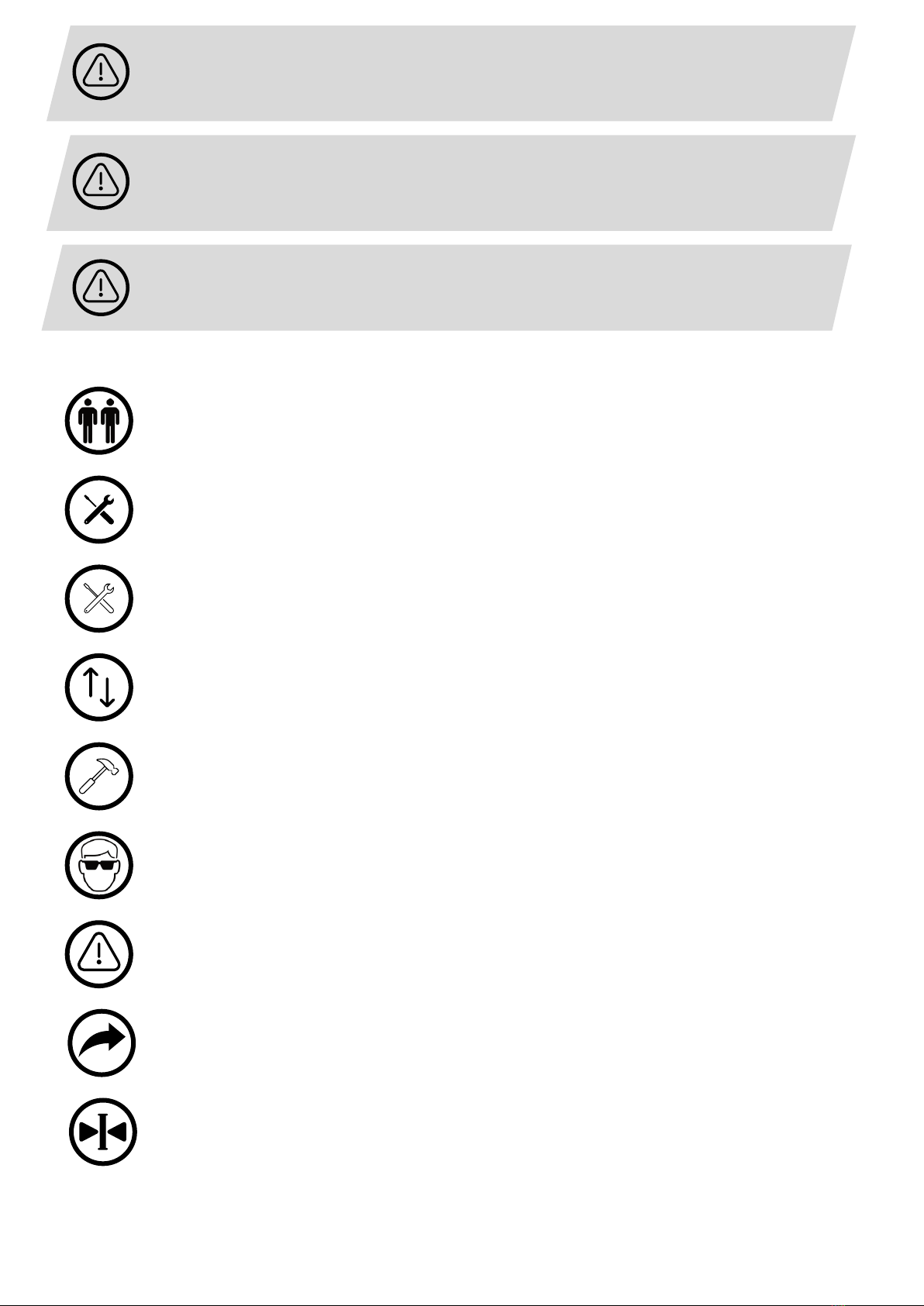

3 Symbol Legend
4 Part list
6 Assembly Notes
10 MS-CM-SML2 Assembly Instructions
2
Two people needed
Tighten hardware
Leave hardware loose for adjustment
Make Adjustment
Break tab off Corner bracket CB1
Safety glasses needed
Attention / Priority
Reserve for following step
Mirrored Components (Same on both sides)
IMPORTANT: As there are different versions of each rig depending on your
region, please ensure that you are using the correct instruction set. The
part number below should match the part number labeled on your box
IMPORTANT: Due to the nature of cut aluminium profile, some metal
shavings may still be present after our extensive QA cleaning process. We
recommend that boxes and packaging is opened on a hard oor.
NOTE: Some screws and washers are pre-installed. These will be part of
the parts list and will need to be loosened and reattached according to
the instructions.
3
M8-16-FS

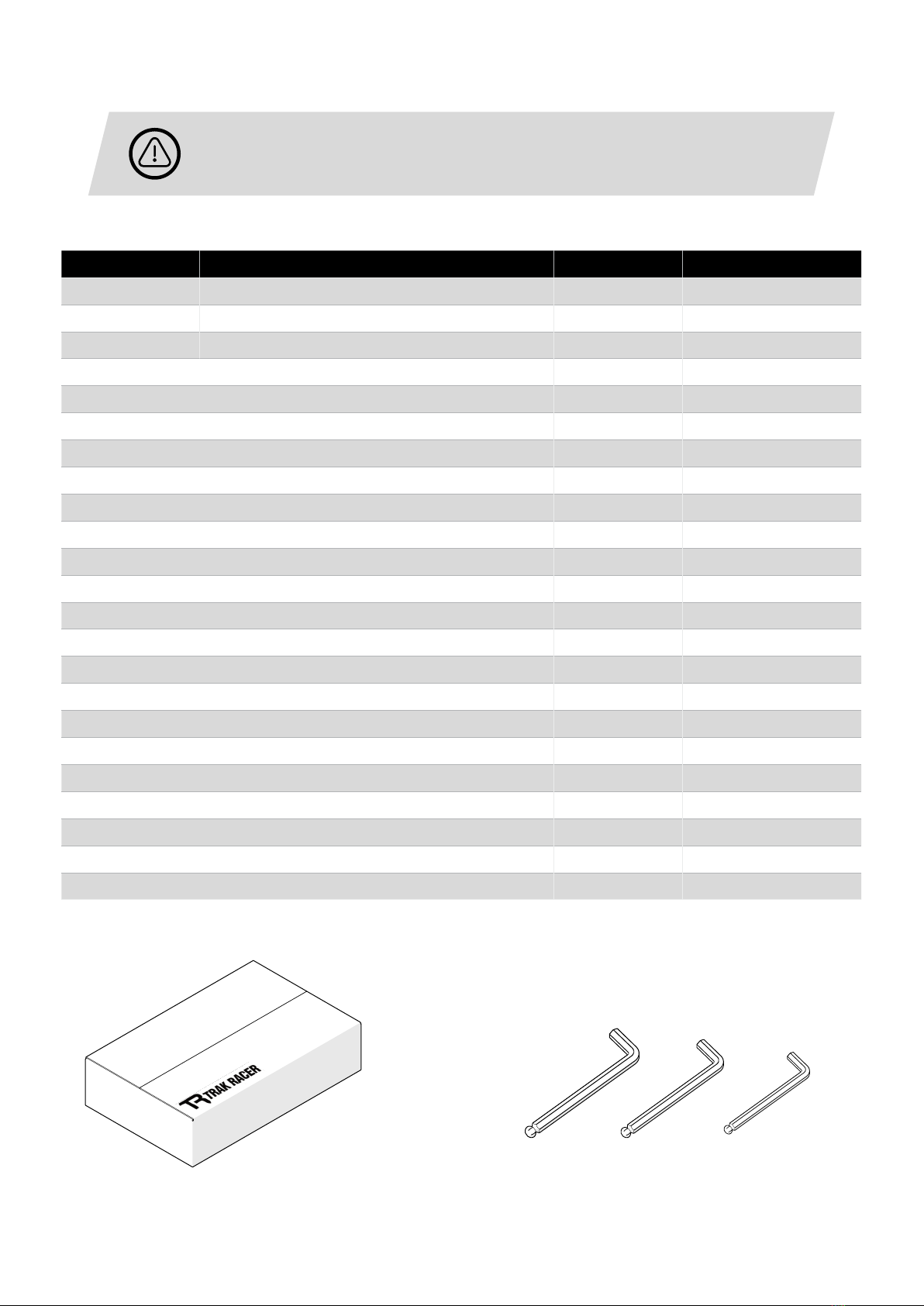

MS-CM-SML2 PARTS LIST
Part # Description QTY Check
AL-40-300 40x400 300mm prole 2
AL-40-400 40x400 400mm prole 2
AL-40-600 40x400 600mm prole 1
40x80 Anodized corner bracket 2
Bracket, Corner with Cap, 40x40 8
40x40 End Cap 8
M8 Ball Bearing Nut 34
Washer (Flat), M8 34
Washer (Lock), M8 32
Screw (Flat), M6x16 8
Screw (Flat), M8x16 4
Screw (Button), M8x16 4
Screw (Hex), M8x16 2
Screw (Hex), M8x20 32
M8 Flange Nut 4
M6 Outer Hexagon Nut 8
6mm Hex Key 1
5mm Hex Key 1
4mm Hex Key 1
Package 1
Logo Plate 2
TV Back panel 1
Extended lm 4
INCLUDED TOOLS
PACKAGE 1(BOX)
6mm Hex Key
5mm Hex Key
4mm Hex Key
IMPORTANT: As there are different versions of each rig depending on your
region, please ensure that you are using the correct instruction set. The
part number below should match the part number labeled on your box
BA-80-S
BS-40
EC-40
NS-M8
WF-M8
WL-M8
M6-16-FS
M8-16-BS
T2
40x40-EC
M8-N
M8-FW
M8-LW
T1
T3
TV-B-P
P1C
L-01
EF
4
TV Ba ck P an el Extended film
Logo Plate
40x 40 0x3 00m m Pr of i le
X2 X 2 X2
X 1
40x 400 x40 0mm Pro fil e 40x 400 x60 0mm Prof ile 40 x8 0 C or ne r Bra ck et
40 x4 0 Co rn er Bracke t
w i th Ca p
X8 X 8 X34
40x 40 En d Ca p M8 Ba ll b ea rin g N ut M8 Flat Washer
M8 Lock Washer
X32 X8 X4X4
M6x16mm Flat Screw M8x16mm Flat Screw M8x16mm Button Screw
M8x16mm Hex Screw
X2 X 32 X4
M8x20mm Hex Screw M8 Fl ang e Nut M6 Ou te r He x ag on Nu t
X2 X 1 X4
X34
X8

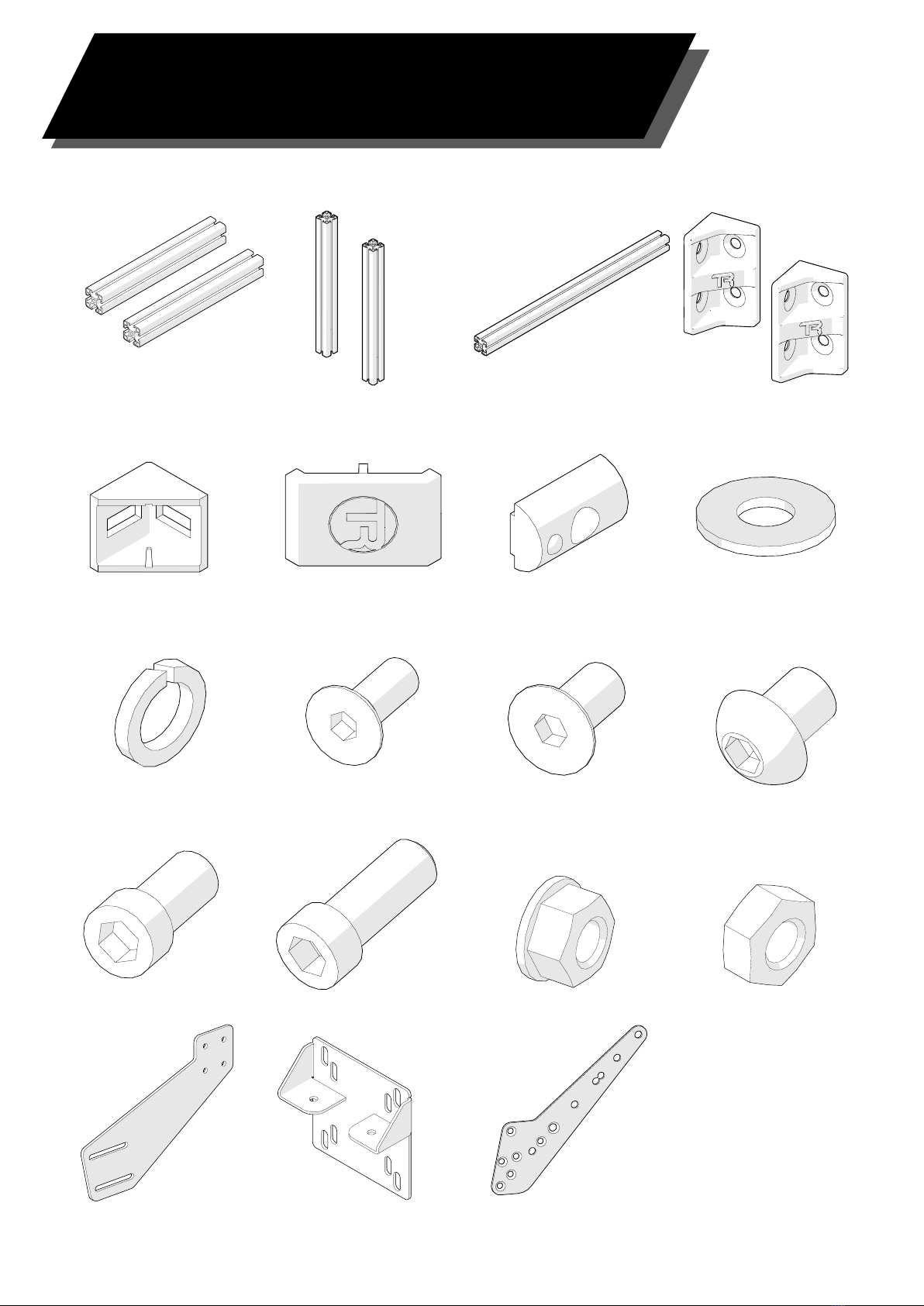

IN THE BOX
5
FRONT SIDE
INSIDE
TOP SIDE
OUTSIDE
NOTE
6

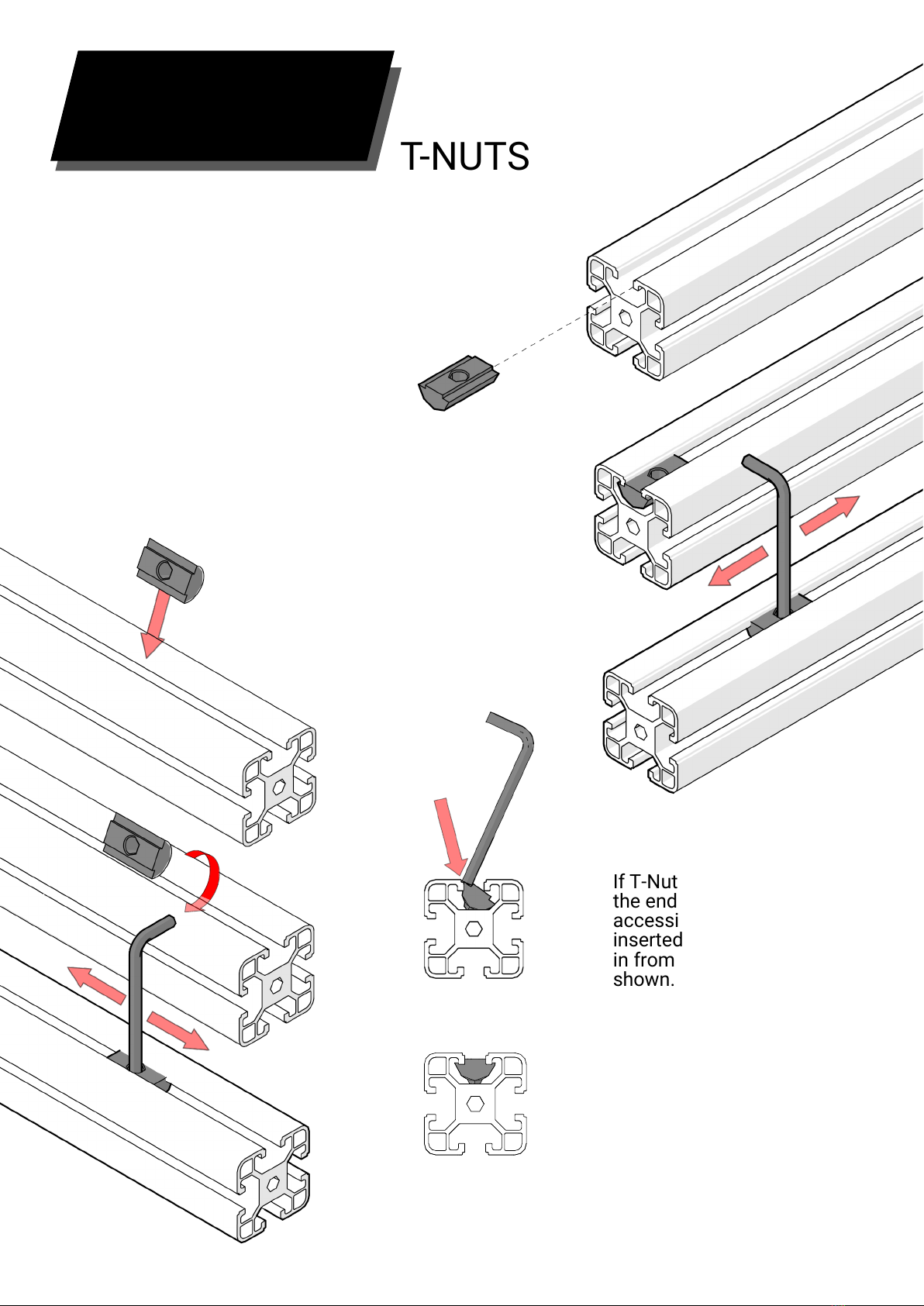

If T-Nuts are skipped, and
the ends are no longer
accessible, they can be
inserted by “rocking” them
in from the outer face as
shown.
Use the provided allen key
to push the T-Nut into
position and place the hole
to slide into position.
It is strongly advised that
spring T-Nuts are inserted
by sliding from the ends of
profiles. Please take careful
note of each step of all T-nuts
as some are to be installed in
anticipation of future steps.
T-NUTS
NOTE
7
M8 16 but ton sc rew
X 4

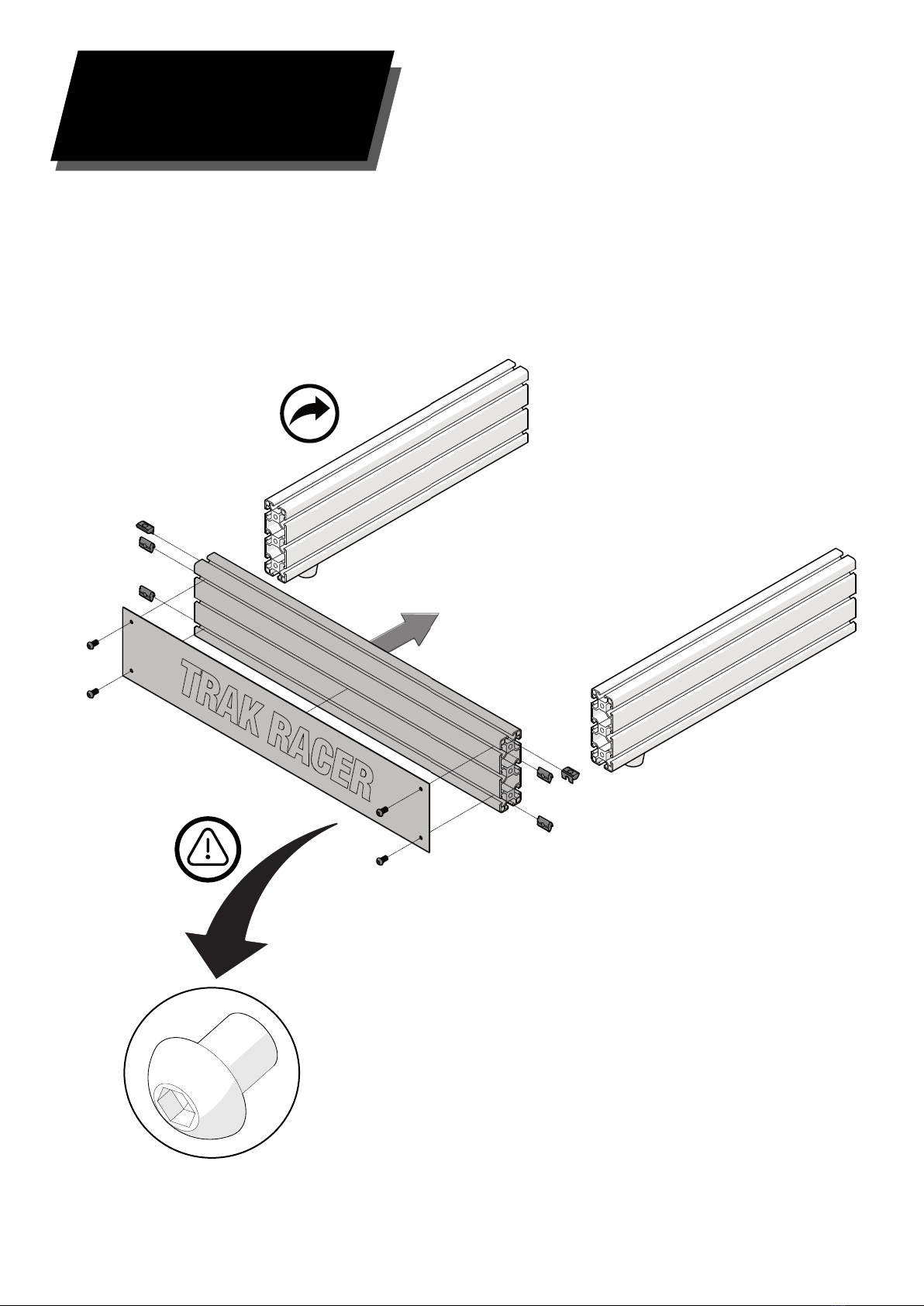

FOR LOGO PLATE
BUTTON SCREWS
NOTE
8
=

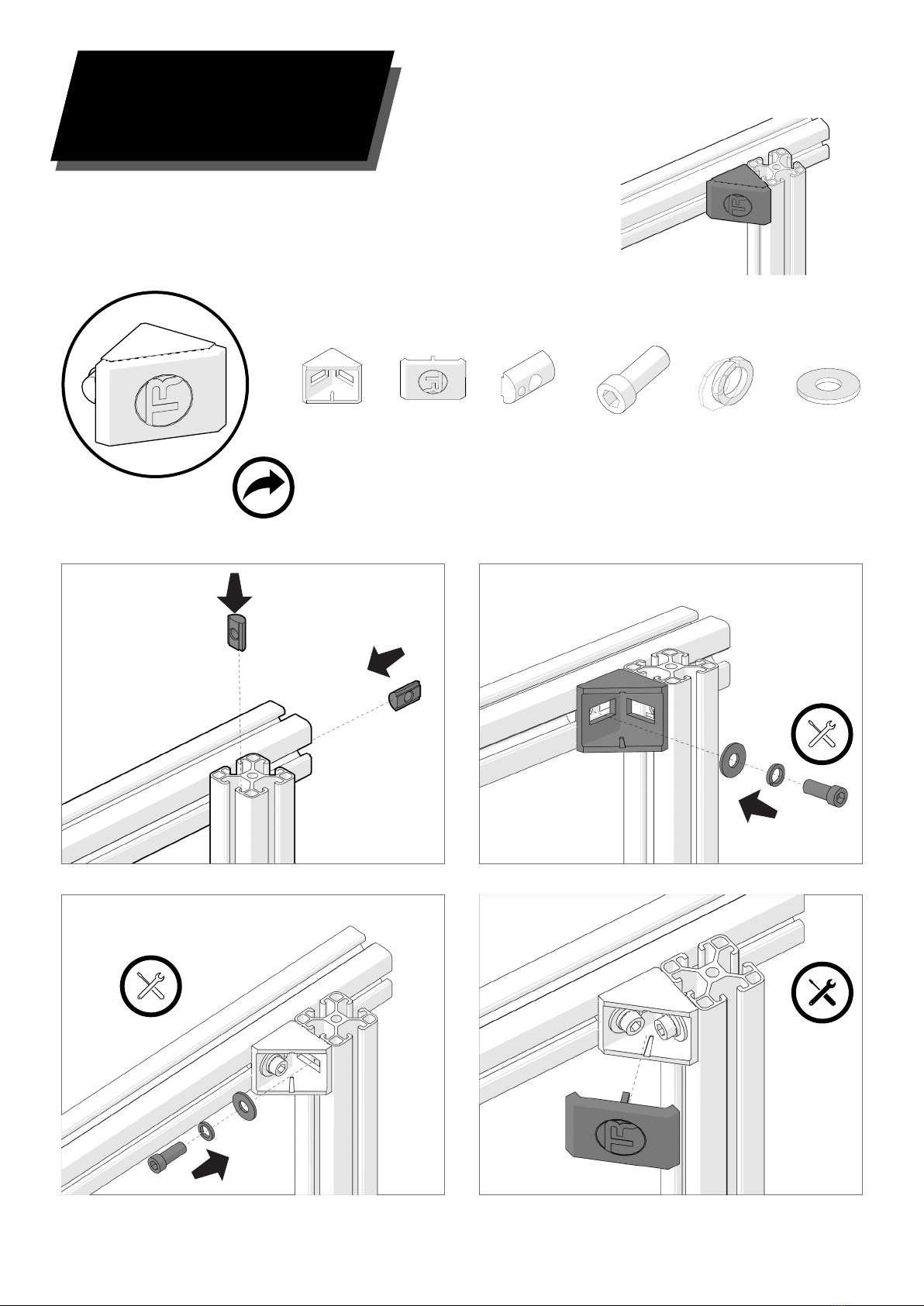

1. 2.
3. 4.
X1
+
X1 X2 X2 X2 X2
+ + + +
M8x20
ALUMINUM
PROFILE
ASSEMBLY
NOTE
9

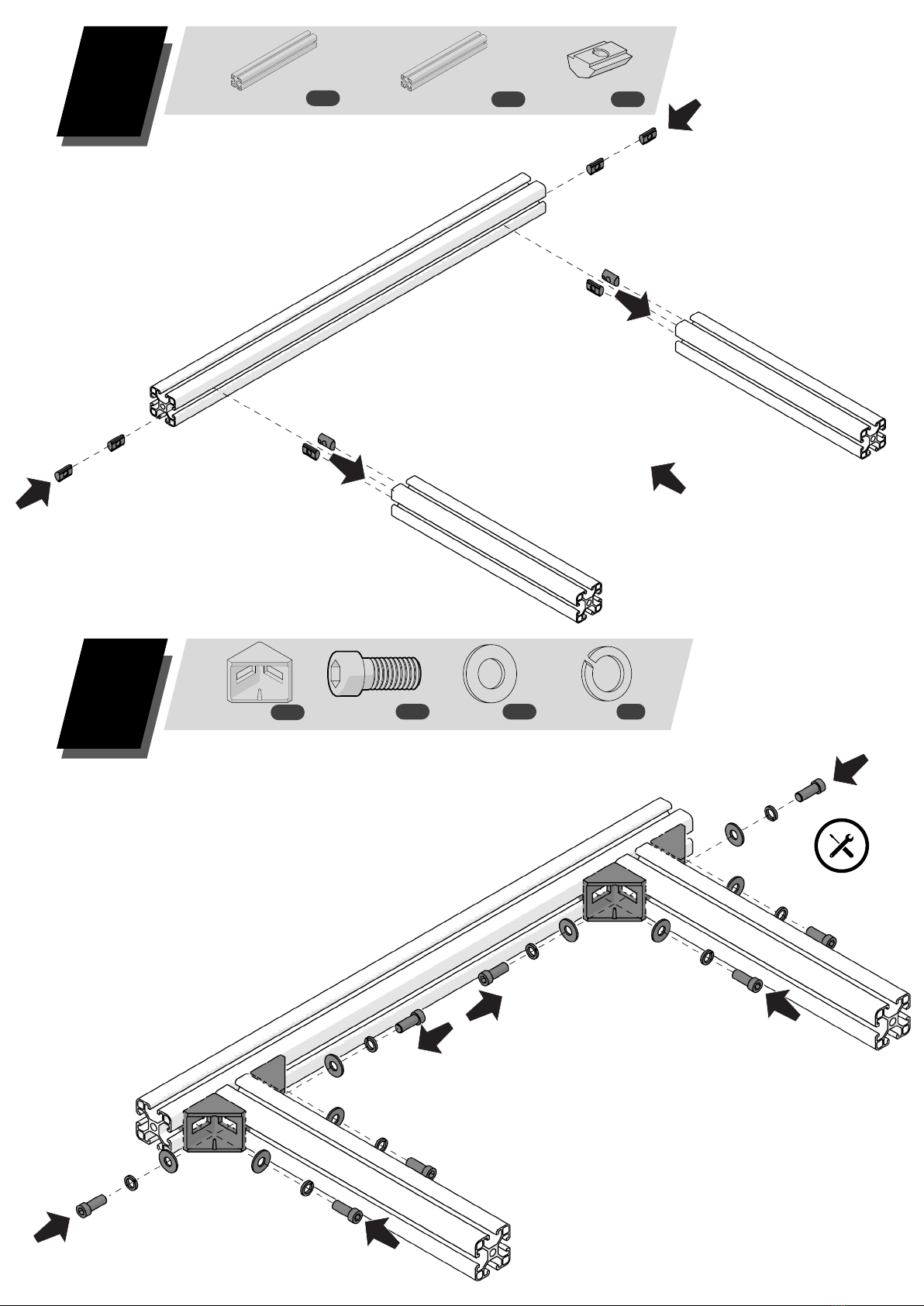

10
W-M8 x8
1
2
LP-160 x8
600mm Profile x1 NS-M8 x8
BC-40 x4 SH-M8-20 x8
300mm Profile x2
M8x20mm
