PC150

Digital Bench Scale

Operation Manual

Revision 1.2

September 14, 2000

1996-2000 Transcell Technology, Inc.

Contents subject to change without notice.

Transcell Technology, Inc.

35 Waltz Drive

Wheeling, IL 60090

Tel (847) 419-9180

Fax (847) 419-1515

E-mail: [email protected]

Web: www.transcell.net

PC-150 Operation Manual 1

ATTENTION:

To extend the life of your digital scale, do not drop items to be weighed onto the

platform or overload the scale beyond its rated capacity. Shock-loading and

overloading may damage the load cell and void the warranty.

Table of Contents

Introduction ............................................................................................................................ 1

Installation and Wiring............................................................................................................ 2

Display Overview ................................................................................................................... 3

Keyboard Functions................................................................................................................ 4

User Menu Mode.................................................................................................................... 5

Setup Menu Mode.................................................................................................................. 6

Calibration.............................................................................................................................. 8

APPENDIX A: Specifications.................................................................................................. 10

APPENDIX B: Troubleshooting the Serial Port ....................................................................... 11

APPENDIX C: Displayed Error Codes..................................................................................... 12

APPENDIX D: Warranty and Service Information................................................................... 13

Introduction

The PC-150 Digital Bench Scale is a com-

pact, 150 lb (70 kg) capacity bench scale

with display and five function keyboard. It

comes standard with a bright LED screen for

easy readout, a removable stainless steel

platform, and an RS-232C serial communi-

cation port.

The scale can be configured to display its

divisions in two separate modes – non-

NTEP mode and NTEP mode. The scale is

shipped from the factory configured in non-

NTEP mode. The NTEP mode is supplied

for scales that need to comply with Hand-

book 44 requirements. To re-configure the

scale, please refer to the “Setup Menu

Mode” section of the manual.

The PC-150 uses full duplex RS-232C serial

format for communication with personal

computers or remote displays. The unit can

transmit data on demand or continuously in

several popular data protocols.

The scale’s serial communication parame-

ters are altered through the User menu The

“User Menu Mode” section of the manual

explains how to use the five front panel keys

to maneuver and save settings in this menu.

2Revision 1.2

Installation and Wiring

The PC-150 back panel comes equipped

with a female DSUB-9 connector for the

RS-232 serial port, a jack for DC power

input, a calibration switch and an

ON/OFF rocker switch. To install the

scale, simply plug the enclosed AC Wall

Adapter into the scale’s DC power jack

first, then into an AC outlet (115 VAC

only). Finally, turn the rocker switch to

the ON (“1”) position. The scale is now

ready for use.

ON/OFF

SWITCH DC POWER

JACK RS-232

PORT

ID TAG

CALIBRATION

SWITCH COVER

PC-150 Back Panel

The female 9-Pin RS-232

connector is used to interface

to a PC. Shown at right are

the pin assignments for the

connector.

Pin No. Pin Name

2Receive Data

3Transmit Data

5Signal Ground

235

9-pin RS-232 connector (female)

Shown at right is the suggested cable diagram

for direct connection to a PC. Or, you can or-

der the optional pre-wired NMC-1 Null Modem

Cable TO SCALE TO PC

2RXDRXD 2

TXD 3

S. GND 53TXD

5S. GND

6DSR

4DTR

8CTS

DSUB9 DSUB9

FIGURE 1. Cable Diagram for Scale to IBM PC

PC-150 Operation Manual 3

Display Overview

ZERO

TARE

NET

GROSS lb

STABLE

PC-150 Display Area

ANNUNCIATOR MEANING

ZERO Better known as the “Center of Zero” annunciator, this light is active whenever the

displayed weight is within ± 0.25 divisions of true zero.

NET Indicates that the scale is displaying net weight.

GROSS Indicates that the scale is displaying gross weight.

TARE Indicates that the tare weight in the system was established by means of the push

button method.

lb and kg Indicates the unit of the displayed weight.

STABLE This light indicates that the scale is in equilibrium.

4Revision 1.2

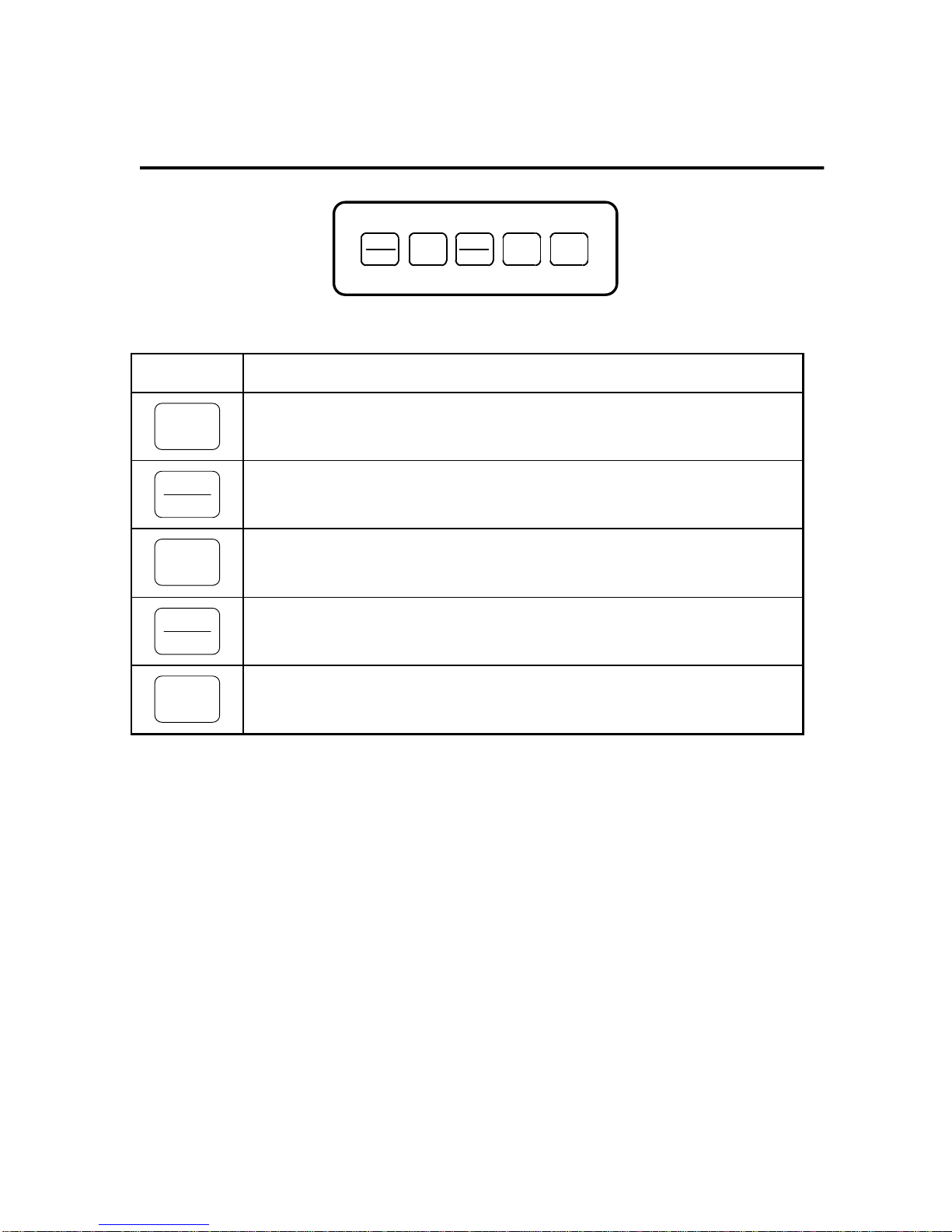

Keyboard Functions

NET

GROSS

ZERO

kg TARE PRINT

PC-150 Keyboard

KEY FUNCTION

ZERO Sets scale to display "0" only when a) in Gross mode, b) not in overload and c) not in

motion.

NET

GROSS Toggles between Gross and Net weight display if a tare has been established.

TARE Used to establish the weight on the platform as the tare weight. You cannot establish

zero or negative gross weight as a tare. Also, the scale must not be in motion or in

overload.

Toggles between lb and kg units if enabled in the User (“A”) Menu.

PRINT Sends "Print" data to serial port if scale is not in motion or in overload.

PC-150 Operation Manual 5

User Menu Mode

The PC-150 scale includes a User menu that contains the scale's serial communication pa-

rameters. It consists of 5 separate menu selections, each also with its own sub-menu of choices.

To change a listed parameter, you must first enter the User Menu mode. Once there, four of the

front panel keys become directional navigators to move around in the menus, and one key is

used to save or SET the selections.

To place the unit in User menu mode:

1. Turn the power off to the unit.

2. While holding down the lb/kg

key, turn the power back on.

3. When the display shows "A1",

the unit is in User Menu mode,

and you can release the lb/kg

key. Shown at right are the di-

rectional and SET key assign-

ments

SET

USER MENU CHART

Baud Rate

1200 2400 4800 9600

Data Bits, Parity

8n 7O 7E

Transmission Mode

Serial Data Format A5

Enable lb/kg Key

0 1

0 1 2 3 4 5

19200

To place the unit back into the Normal Operating mode:

1. Turn off the scale. Turn the scale back on without pressing any keys.

2. The display will go through a digit check, then settle into Normal Operating mode. All front panel

keys will now return to their normal mode of operation.

6Revision 1.2

User Menu Mode / Continued

USER MENU DESCRIPTIONS

NAME/CODE DESCRIPTION CODE/VALUE

Baud Rate Selects the baud rate for data transmission through the serial port. 1200 2400√√

4800 9600

19200

Data Bits and

Parity

Selects the number of data bits and parity of serial transmission.

"8n" = 8 data bits with no parity bit and one stop bit

"7O" = 7 data bits with odd parity bit and one stop bit

"7E" = 7 data bits with even parity bit and one stop bit

"7n" = 7 data bits with no parity bit and two stop bits

8n√√

Mode of Serial

Transmission

Selects when data will be sent out of the serial port to a printer or

computer:"C" = Continuous mode; send data continuously

"d" = Demand mode; send data when a PRINT command is issued

from the printer, computer, or scale.

d√√

Serial Data

Format

Selects the data format to be transmitted via the serial port to a

printer or computer.

"0" = Consolidated Controls Format

"1" = Toledo 8213 Format "2" = NCI 3825Format

"3" = Transcell Technology Format

“4” = Detecto ASD Format “5” = Triner Format

"6" = Fairbanks 70-2453-4 Format

3√√

Disable the

lb/kg Key

Allows the lb/kg key to be disabled so that an operator cannot acci-

dentally press the key and change the displayed units.

"0" = Disable the lb/kg key "1" = Enable the lb/kg key

1√√

Setup Menu Mode

The PC-150 scale includes a Setup menu that determines the scale’s display mode, allows scale

calibration and also contains the scale's adjustable functional parameters. It consists of 5 sepa-

rate menu selections, each also with its own sub-menu of choices.

To change a listed parameter, you must first enter the Setup Menu mode. Once there, four of the

front panel keys become directional navigators to move around in the menus, and one key is

used to save or SET the selections.

PC-150 Operation Manual 7

Setup Menu Mode / Continued

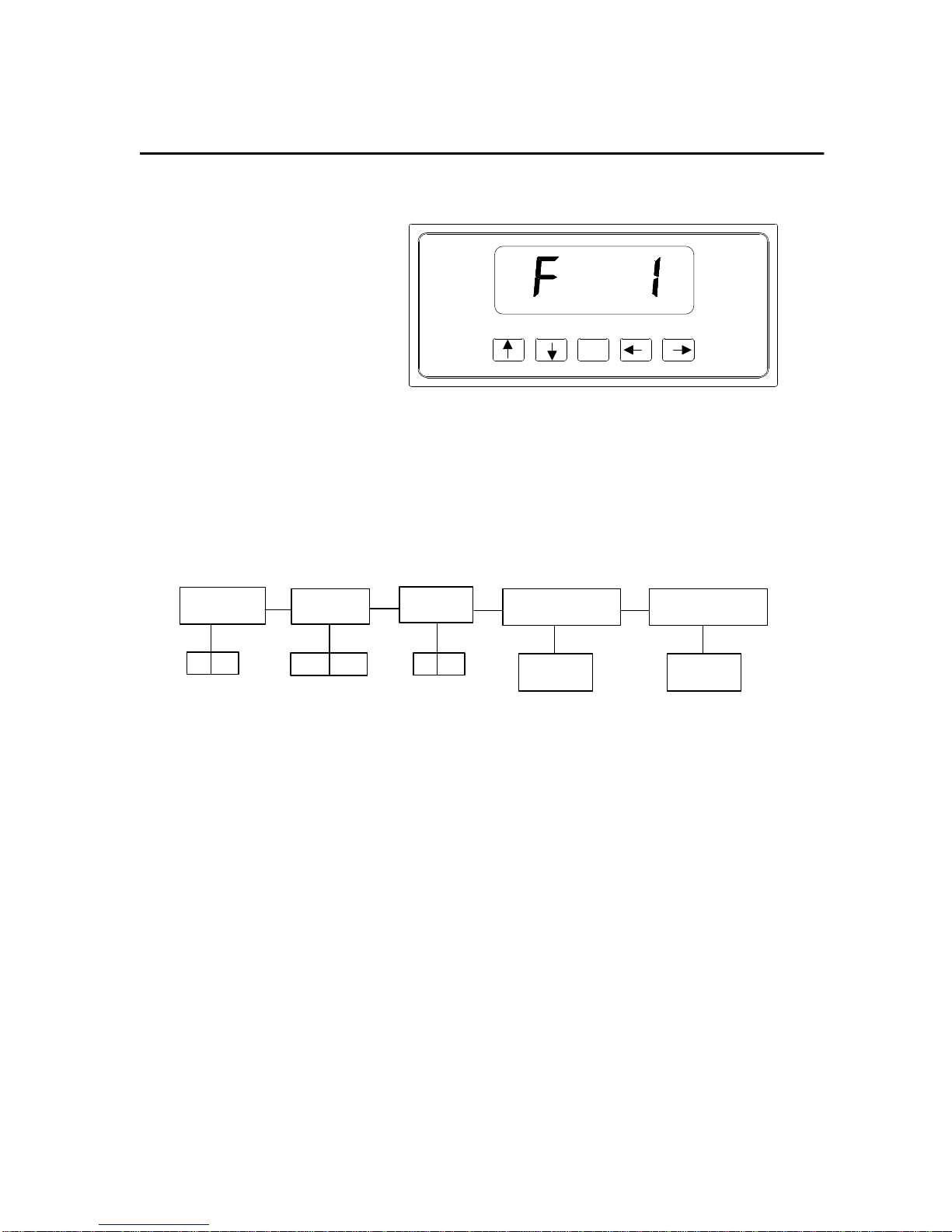

To place the unit in Setup menu mode:

1. Turn the power off to the unit.

2. Locate the calibration switch on

the scale’s back panel and tog-

gle to the opposite position.

3. While holding down both the

ZERO and PRINT keys, turn the

power back on.

4. When the display shows "F1",

the unit is in Setup Menu mode,

and you can release the two

keys. Shown at right are the di-

rectional and SET key assign-

ments

SET

SETUP MENU CHART

Display Mode F6

Zero Range F9

Calib. Unit.

0 1

F11

Display Check F12

Calibration

Press ZERO

key to begin Press ZERO

key to begin

0 1 100% 1.9%

To place the unit back into the Normal Operating mode:

1. With the scale on or off, toggle the Calibration Switch back to its original position. Turn the scale

back on without pressing any keys.

2. The display will go through a digit check, then settle into Normal Operating mode. All front panel

keys will now return to their normal mode of operation.

8Revision 1.2

Setup Menu Mode / Continued

SETUP MENU DESCRIPTIONS

NAME/CODE DESCRIPTION CODE/VALUE

Display Mode Selects display mode for the scale.

"0" = Non-NTEP mode

"1" = NTEP mode

0√√

Zero Range Selects the range within which the scale may be zeroed. Note that

the scale must be in standstill to zero the scale. 100%√√

1.9%

Calib. Unit Selects the primary base unit to be used in the calibration process.

Also the default unit for normal operation.

"0" = primary unit is lb. "1" = primary unit is in kg.

0√√

F11

Display Check Actuates the function that illuminates all digit segments, decimal

points, and LCD annunciators in a test sequence. Pressing the

ZERO key to scroll down one level begins the test sequence.

Press ZERO key

to begin sequence

F12

Calibration Places scale into the calibration routine. Scrolling down with the

ZERO key one level begins the procedure. Press ZERO key

to begin sequence

F13

Factory Reset This sub-menu will reset all parameters in the “F” and “A” menus to

the default settings. USE WITH CAUTION!!!!! Press the ZERO

key twice to exe-

cute.

NOTE: Sub-menu F13 restores all parameters in the User (“A”) Menu and Setup (“F”) Menu

to the factory default settings. PLEASE USE CAREFULLY AS YOU MAY LOOSE VITAL

SETUP PARAMETERS!!!

Calibration

ON/OFF

SWITCH DC POWER

JACK RS-232

PORT

ID TAG

CALIBRATION

SWITCH COVER

CALIBRATION MODE KEY FUNCTIONS

ZERO GROSS

NET TARE PRINT

SET

The scale can be calibrated by following the procedure below. The minimum test weight that can

be used is 1.5 lb (0.7 kg), but 100 lb (50 kg) is the recommended test weight.

Altri manuali per PC 150

Indice

Altri manuali Transcell Technology Scala

Transcell Technology

Transcell Technology SPS-30 Manuale utente

Transcell Technology

Transcell Technology SPL Series Manuale utente

Transcell Technology

Transcell Technology TC-2005 Series Manuale elenco delle parti

Transcell Technology

Transcell Technology TC-2010 Series Manuale elenco delle parti

Transcell Technology

Transcell Technology TI-500E SS Manuale utente

Transcell Technology

Transcell Technology PC35 Manuale utente

Transcell Technology

Transcell Technology PC 150 Manuale elenco delle parti

Transcell Technology

Transcell Technology NEPTUNE-5500 Series Manuale utente

Transcell Technology

Transcell Technology CS Series Manuale utente

Transcell Technology

Transcell Technology SPC-150 Manuale utente

Transcell Technology

Transcell Technology TC-200-6 Manuale utente

Transcell Technology

Transcell Technology SPS-30 Plus Manuale utente

Transcell Technology

Transcell Technology SPS-5 Manuale utente

Transcell Technology

Transcell Technology EL 3000 Manuale utente

Transcell Technology

Transcell Technology TC-100 Series Guida utente

Transcell Technology

Transcell Technology SPS-70 Manuale utente

Transcell Technology

Transcell Technology ESW SERIES Manuale utente

Transcell Technology

Transcell Technology DCSG series Manuale tecnico

Transcell Technology

Transcell Technology WB-5040-SWP Manuale utente

Transcell Technology

Transcell Technology WEIGHBLOK Manuale di istruzioni

Transcell Technology

Transcell Technology tcs3t series Manuale utente

Transcell Technology

Transcell Technology TC-2010 Series Manuale elenco delle parti

Transcell Technology

Transcell Technology Neptune-6500 Series Manuale utente

Transcell Technology

Transcell Technology TC-100 Series Manuale utente

Manuali Scala popolari di altre marche

AWS

AWS ZEO-50 Manuale utente

Gima

Gima Glass Body Fat Analyzer Manuale elenco delle parti

Seca

Seca 374 Manuale utente

TEC

TEC TEC SL59 SERIES Manuale utente

Axis

Axis B/E Series Manuale utente

Alecto

Alecto ACW-40 Manuale utente

Rice Lake

Rice Lake MSI-4260 IS Manuale utente

IKA

IKA RCT basic safety control Manuale utente

ADE

ADE M20011 Manuale utente

Duronic

Duronic KS3000 Manuale utente

Digi

Digi SM-720 Manuale utente

Cardinal

Cardinal CS Series Manuale utente

Korona

Korona Kastella Manuale utente

A&D

A&D FC-50Ki Manuale utente

BDA

BDA CAMARGUE Manuale utente

Tanita

Tanita HD-357 Manuale utente

Leifheit

Leifheit 03173 Manuale utente

Lumme

Lumme LU-1340 Manuale utente
