Transcend TS1GSDOM7H Manuale

7P Horizontal Type

SATA Flash Modules

Transcend Information Inc.

V1.2

Description

Serial-ATA is designed as a successor to the

legacy SATA standard. The new standard is

dedicated to achieve higher transfer rate with thinner

cables and more reliable operation than Parallel ATA

interface. SATA Flash Modules is perfect

replacement storage device for PCs, Laptops,

gaming systems, and handheld devices.

Placement

Features

• RoHS compliant

• Fully compatible with devices and OS that support the

SATA 1.0a 1.5Gbps standard

• Non-volatile Flash Memory for outstanding data

retention

• Supports up to Ultra DMA Mode 4

• Built-in ECC (Error Correction Code) functionality and

wear-leveling algorithm ensures highly reliable data

transfer

• Mechanical write-protect switch

• 7 pin female SATA connector with latch

• Connect to motherboard directly without cable

• Low Power Consumption

• 3.3V / 5V Power Supply.

• Shock resistance

Dimensions

Side Millimeters Inches

A 40.0 ±0.3 1.57 ±0.012

B 30.0 ±0.2 1.18 ±0.008

C* 24.3 ±0.5 0.96 ±0.020

* Please refer to Mechanical Drawing

7P Horizontal Type

SATA Flash Modules

Transcend Information Inc.

V1.2

Specifications

Physical Specification

Form Factor SATA Flash Module Horizontal Type

Storage Capacities 512M~2GB (T.B.D)

Length 40.0 ±0.3

Width 30.0 ±0.2 (Not including Write-Protect Switch and SATA connector)

Dimensions (mm)

Height 24.3 ±0.5 (refer to mechanical drawing)

Input Voltage 5V ±10% / 3.3V ±5%

Weight 8 g

Connector Signal: SATA 7 pins female connector with latch

Power: 2P 1.5mm pitch wafer connector

Environmental Specifications

Operating Temperature 0 ℃to 70 ℃

Storage Temperature - 40 ℃to 85 ℃

Power Consumption

Crystal Disk Mark 1.0.6 / 50MB

Read 164 mA(average) / 200 mA(peak)

Write 170 mA(average) / 210 mA(peak)

2GB SATA Flash Modules

Power Consumption

(DC 5V @25℃) Standby 129.4 mA

7P Horizontal Type

SATA Flash Modules

Transcend Information Inc.

V1.2

* Note : The performance is based on Samsung K9KAG08U0M, single channel. Environment: at 25 ℃, tested with

GA-8IG1000MK, 256 MB RAM, SATA interface support UDMA4, Windows®XP Version 2002 SP2, benchmark utility :

HDBENCH (version 3.4006), copied file 100MB

* Note: FAT format

Reliability

Data Reliability Built-in 4 symbol/page correction ECC

Data Retention 10 years

Connector Durability 500 mating cycles

Performance*

Model P/N Read (KB/s) Write (KB/s) Random Read (KB/s) Random Write (KB/s)

2GB SATA Flash Module 25491 13260 24574 4085

Actual Capacity

Model P/N Capacity C/H/S Capacity (BIOS) DOS Format (Bytes) Windows Format (Bytes)

1GB SATA Flash

Module 1GB 1942 / 16 / 63 1001MB 1,001,439,232 1,001,439,232

2GB SATA Flash

Module 2GB 3884 / 16 / 63 2004MB 2,003,697,664 2,003,697,664

Certification

EMC CE, FCC and BSMI (T.B.D)

7P Horizontal Type

SATA Flash Modules

Transcend Information Inc.

V1.2

Mechanical Drawing

Bottom View (Normal Type)

Side View (Normal Type)

7P Horizontal Type

SATA Flash Modules

Transcend Information Inc.

V1.2

Bottom View (Reversed Type)

Side View (Reversed Type)

7P Horizontal Type

SATA Flash Modules

Transcend Information Inc.

V1.2

Functionality

Pin Assignments

Pin No. Pin Name

01 GND

02 A+

03 A-

04 GND

05 B-

06 B+

07 GND

Disk Active

Indicator

Write-Protect

Disabled

7P Horizontal Type

SATA Flash Modules

Transcend Information Inc.

V1.2

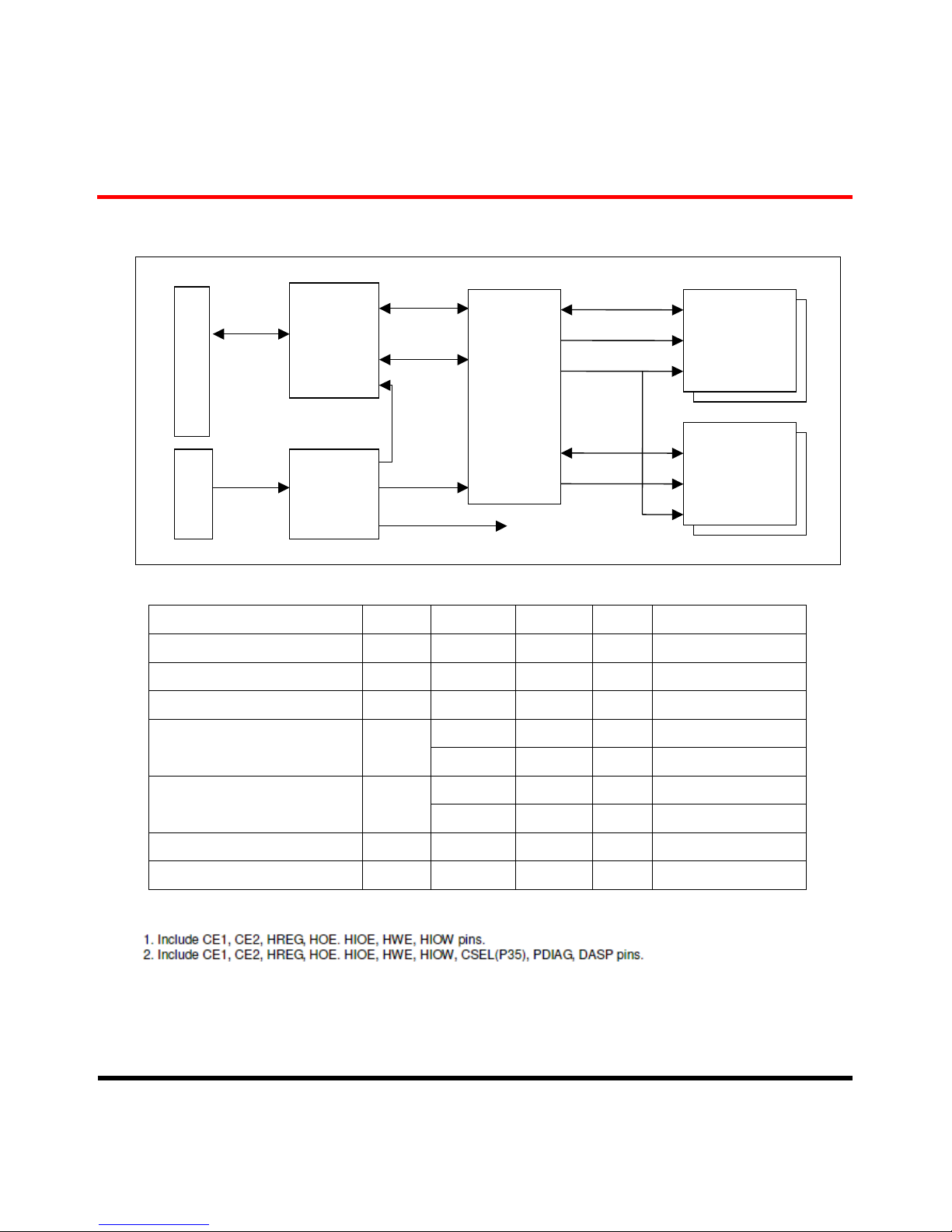

Block Diagram

DC Characteristics

Parameter Symbol Min. Max. Unit Remark

Supply Voltage VCC 2.97 5.5 V

High level output voltage VOH V

CC – 0.8 V

Low level output voltage VOL 0.8 V

2.4 V Non-schmitt trigger

High level input voltage VIH

2.05 V Schmitt trigger1

0.6 V Non-schmitt trigger

Low level input voltage VIL

1.25 V Schmitt trigger1

Pull up resistance2R

PU 52.7 141 KOhm

Pull down resistance RPD 47.5 172 kOhm

IDE

Flash Disk

Controller

Flash Memory

D0 – D7

-CE0 ~ -CE3

-WE…-RE

Flash Memory

D0 – D7

-CE0 ~ -CE3

-WE…-RE

D0 ~ D7

D8 ~ D15

-CE0, -CE1…

Data bus

Control

Signal Others

PATA

SATA

Bridge

SATA 7 PIN Connector

Data

bus

5V/3.3V 3.3V/1.8V

Voltage

Regulator Flash Memory

2 PIN

7P Horizontal Type

SATA Flash Modules

Transcend Information Inc.

V1.2

Command Set

Command Code FR SC SN CY DH LBA Status Note

1 Check Power Mode E5 or 98h – – – – Y – Support

2 Execute Drive Diagnostic 90h – – – – Y – Support

3 Erase Sector C0h – Y Y Y Y Y Not Support #3

4 Flush Cache E7h – – – – Y – Support

5 Format Track 50h – Y – Y Y Y Support

6 Identify Device ECh – – – – Y – Support

7 Idle E3h or 97h – Y – – Y – Support

8 Idle Immediate E1h or 95h – – – – Y – Support

9 Initialize Drive Parameters 91h – Y – – Y – Support

10 Key Management

Structure Read B9 (Feature

0-127) Y Y Y Y Y – NOT Support #1

11 Key Management Read

Keying Material B9 (Feature

80) Y Y Y Y Y – NOT Support #1

12 Key Management Change

Key Management Value B9 (Feature

81) Y Y Y Y Y – NOT Support #1

13 NOP 00h – – – – Y – NOT Support

14 Read Buffer E4h – – – – Y – Support

15 Read DMA C8h – Y Y Y Y Y Support

16 Read Long Sector 22h or 23h – Y Y Y Y NOT Support #2

17 Read Multiple C4h – Y Y Y Y Y Support

18 Read Sector(s) 20h or 21h – Y Y Y Y Y Support

19 Read Verify Sector(s) 40h or 41h – Y Y Y Y Y Support

20 Recalibrate 1Xh – – – – Y – Support

21 Request Sense 03h – – – – Y – Not Support #3

22 Security Disable Password F6h – – – – Y – Support

23 Security Erase Prepare F3h – – – – Y – Support

24 Security Erase Unit F4h – – – – Y – Support

25 Security Freeze Lock F5h – – – – Y – Support

26 Security Set Password F1h – – – – Y – Support

7P Horizontal Type

SATA Flash Modules

Transcend Information Inc.

V1.2

27 Security Unlock F2h – – – – Y – Support

28 Seek 7Xh – – Y Y Y Y Support

29 Set Feature EFh Y – – – Y – Support

30 Set Multiple Mode C6h – Y – – Y – Support

31 Set Sleep Mode E6h or 99h – – – – Y – Support

32 Standby E2 or 96h – – – – Y – Support

33 Standby Immediate E0 or 94h – – – – Y – Support

34 Translate Sector 87h – Y Y Y Y Y Not Support #3

35 Wear Level F5h – – – – Y – Support #4

36 Write Buffer E8h – – – – Y – Support

37 Write DMA CAh – Y Y Y Y Y Support

38 Write Long Sector 32h or 33h – – Y Y Y Y Not Support #2

39 Write Multiple C5h – Y Y Y Y Y Support

40 Write Multiple w/o Erase CDh – Y Y Y Y Y Not Support #3

41 Write Sector(s) 30h or 31h – Y Y Y Y Y Support

42 Write Sector(s) w/o Erase 38h – Y Y Y Y Y Not Support #3

43 Write Verify 3Ch – Y Y Y Y Y Support

#1: This command is optional, depending on the key Management scheme in use.

#2: Use of this command is not recommended.

#3: CFA feature set command is not supported by P-ATA to S-ATA bridge controller.

#4: If Security command 22~27 are supported, this command is not supported.

Definitions

FR = Features Register

SC =Sector Count register (00H to FFH, 00H means 256 sectors)

SN = Sector Number register

CY = Cylinder Low/High register

DH = Head No. (0 to 15) of Drive/Head register

LBA = Logic Block Address Mode Support

– = Not used for the command

Y = Used for the command

7P Horizontal Type

SATA Flash Modules

Transcend Information Inc.

V1.2

SMART Command Set



SMART Command Set

SMART Feature Register Values

D0h Read Data D4h Execute OFF-LINE Immediate

D1h Read Attribute Threshold D8h Enable SMART Operations

D2h Enable/Disable Autosave D9h Disable SMART Operations

D3h Save Attribute Values DAh Return Status

1. If reserved size is below the Threshold, the status can be read from Cylinder register by Return Status command

(DAh).

 SMART Data Structure

BYTE F / V Decription

0-1 X Revision code

2-361 X Vendor specific

362 V Off line data collection status

363 X Self-test execution status byte

364-365 V Total time in seconds to complete off-line data collection activity

366 X Vendor specific

367 F Off-line data collection capability

368-369 F SMART capability

370 F Error logging capability

7-1 Reserved

0 1=Device error logging supported

371 X Vendor specific

372 F Short self-test routine recommended polling time (in minutes)

373 F Extended self-test routine recommended polling time (in minutes)

374 F Conveyance self-test routine recommended polling time (in minutes)

375-385 R Reserved

386-395 F Date Code

396 V Number of MU in device (0~n)

397+(n*6) V MU number

398+(n*6) V MU data block
